Quick Start Guide ATH-UL06 For more information Go to http://consumer.huawei.com/en/ to download the user guide for your device and read the FAQ, privacy policy, and other information. Go to Settings > About phone > Legal information to read the legal information. Please visit http://consumer.huawei.com/en/support/hotline/ for the most up-to-date contact information for your country or region. You can find the regulatory information on the device itself. To view it, touch Settings > About phone > Regulatory information to read the legal information. Your phone at a glance Before you start, let's take a look at your new phone. Press and hold the power button to turn your phone on or off. To forcibly restart your phone, press and hold the power button until your phone vibrates. Camera ,RGYN Micro USB port Microphone Power button Volume button Earpiece Speaker Proximity sensor Headset jack Fingerprint scanner Status indicator Fingerprint identification A unique fingerprint is the safest key. You can use your fingerprint to unlock a file safe or app lock, take photos, unlock your screen, answer calls and stop alarms. Safety has been made easy with fingerprints. Touch Settings > Fingerprint ID > Fingerprint management and follow the onscreen instructions to enroll your fingerprint. When enrolling your fingerprint, make sure the fingerprint sensor and your fingers are dry and clean. Locking and unlocking the screen Press the power button to lock the screen. If your phone is idle for a specified period of time, the screen will automatically lock itself. If the screen is off, press the power button to turn it on. Slide your finger in any direction to unlock the screen. Swipe up from the bottom of the screen to quickly launch commonly used applications without unlocking the screen. Calling and messaging Touch to make a call using the dialer. You can also touch a phone number in your contacts, or a number in a message, email, web page, or other source to place a call. Touch to send a text or multimedia message. You can save photos, audio clips, videos, and other attachments from received multimedia messages. Camera Touch . Frame the scene you want to capture. Let your camera focus automatically or touch the screen to focus on a specific object. Then touch to take a photo. Swipe left or right to switch between different capture modes. Time-lapse mode lets you record the slow transformation of objects or scenes, such as a blooming flower or the setting sun. Internet connection You can access the Internet over Wi-Fi or a mobile data network. Swipe down from the status bar to open the notification panel. Touch to turn on mobile data. Touch and hold to go to the Wi-Fi settings screen. Turn on Wi- Fi and connect to a Wi-Fi network. Backing up data Touch . Touch to open the settings menu. You can set how often you want to back up your data by following the onscreen instructions. Touch and select the data that you want to back up, such as your contacts, messages, and photos. Then follow the onscreen instructions to complete the backup. Phone manager Touch . You can quickly scan your phone for potential risks with one touch. Follow the onscreen instructions to use one-touch optimization, or manually clean the system storage and manage your applications. Touch the options on the screen to clean your system trash, set the harassment filter, activate power saving mode, manage your applications' notification permissions, and more. Screen off gestures Touch and then . Turn on screen off gestures. When the screen is off, you can turn it on or open an app using a predefined gesture. One-hand layout Swipe the navigation bar to the left or right to adjust the screen display area so that you can use the phone with one hand. When in the dialer, contacts, messages, or email app, swipe down on the screen to access the content on the top of the screen with one hand. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment •Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. •Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. •Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long periods. •Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. •Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives •Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. •Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security •Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. •Concentrate on driving. Your first responsibility is to drive safely. •Do not hold the device while driving. Use hands-free accessories. •When you must make or answer a call,…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-8-29 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISATH-UL06 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-11-04: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

Huawei Technologies Co., Ltd Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China +86 755 28780808 www.huawei.com Declaration of Letter Product Type: Smart Phone Model No.: HUAWEI ATH-UL06, ATH-UL06 Two SIM cards share the same RF .The second SIM card only supports GSM ,which can be deleted by the software. Those two SIM cards can’t work together. S incerely, For and Behalf of: Huawei Technologies Co., Ltd. Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China

Huawei Technologies Co., Ltd Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China +86 755 28780808 www.huawei.com Declaration of Letter Product Type: Smart Phone Model No.: HUAWEI ATH-UL06, ATH-UL06 The two models were identical, only difference is the model name. And the two models have the same technical construction, including software design, RF module, antennas, circuit design and PCB layout. There are no differences between the four models (HUAWEI ATH-UL06, ATH-UL06) on electrical and mechanical construction. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China

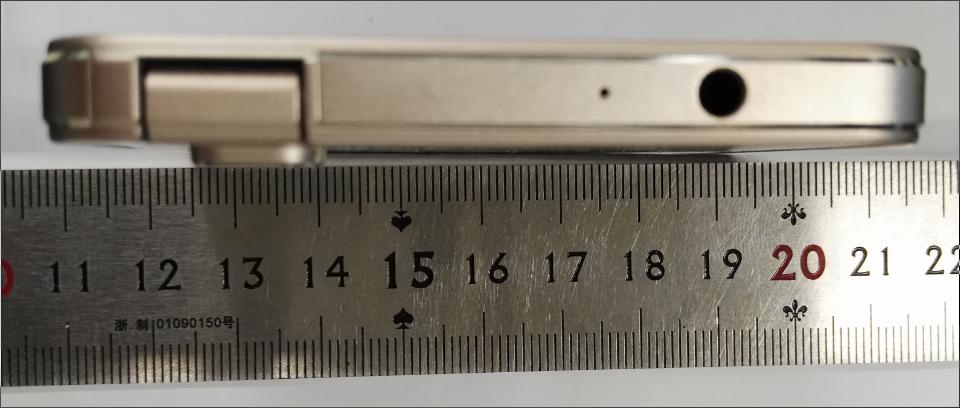

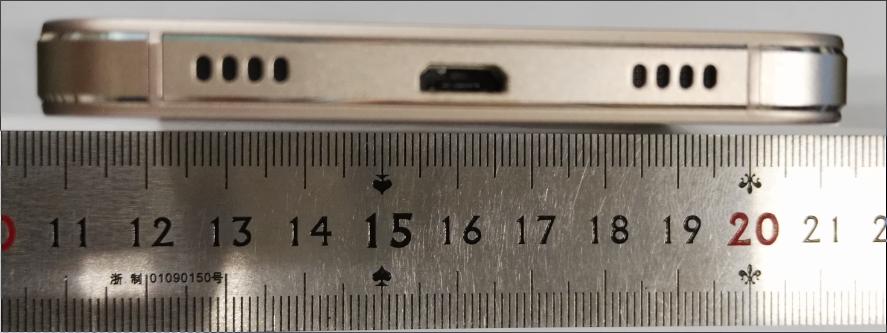

HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page1,Total 5 External Photos of HUAWEI ATH-UL06, ATH-UL06 HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page2,Total 5 HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page3,Total 5 HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page4,Total 5 HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page5,Total 5

HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page1, Total 4 HUAWEI ATH-UL06, ATH-UL06 HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page2, Total 4 HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page3, Total 4 HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page4, Total 4 FCC ID(E-label): Settings > About phone > Legal information FCC ID on the Quick Start Guide

HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page1,Total 5 Internal Photos of HUAWEI ATH-UL06, ATH-UL06 HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page2,Total 5 HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page3,Total 5 HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page4,Total 5 HUAWEI ATH-UL06,ATH-UL06 Smart Phone SECRET Page5,Total 5

Report No.: BTL-FCC-SAR-1507C127 Page 1 of 199 FCC SAR Test Report FCC ID: QISATH-UL06 Project No. : 1507C127 Equipment : Smart Phone Model Name : HUAWEI ATH-UL06,ATH-UL06 Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen,518129, P.R.C Date of Receipt : Jul. 10, 2015 Date of Test : Jul. 10, 2015~ Aug. 12, 2015 Issued Date : Aug. 14, 2015 Tested by : BTL Inc. Testing Engineer : ( Super Jiang) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3,Jinshagang 1st Road, Shixia,Dalang Town, Dongguan, China. TEL: +86-769-8318-3000FAX: +86-769-8319-6000 Report No.: BTL-FCC-SAR-1507C127 Page 2 of 199 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML), or National Institute of Standards and Technology (NIST) . BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or an y agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCC-SAR-1507C127 Page 3 of 199 Table of Contents Page 1 . GENERAL SUMMARY 6 2 . RF EMISSIONS MEASUREMENT 7 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 STATEMENT OF COMPLIANCE 8 3.2 GENERAL DESCRIPTION OF EUT 9 3.3 HOTSPOT POWER REDUCTION SPECIFICATION FOR SAR 11 3.4 LABORATORY ENVIRONMENT 12 3.5 MAIN TEST INSTRUMENTS 13 4 .SAR MEASUREMENTS SYSTEM CONFIGURATION 14 4.1 SAR MEASUREMENT SET-UP 14 4.2 DASY5E-FIELDPROBESYSTEM 15 5 . SYSTEM VERIFICATION PROCEDURE 23 5.1 TISSUE VERIFICATION 23 5.2 SYSTEM CHECK 25 5.3 SYSTEM CHECK PROCEDURE 26 6 .SAR MEASUREMENT VARIABILITY AND UNCERTAINTY 27 6.1 SAR MEASUREMENT VARIABILITY 27 6.2 SAR MEASUREMENT UNCERTAINTY 27 7 . OPERATIONAL CONDITIONS DURING TEST 28 7.1 SAR TEST CONFIGURATION 28 7.1 .1 GSM TEST CONFIGURATION 28 7.1.2 UMTS TEST CONFIGURATION 29 7.1.3 LTE TEST CONFIGURATION 35 7.1.4 2.4G WIFI TEST CONFIGURATION 37 7.2 TEST POSITION 38 7.2.1 HEAD 38 7.2.2 BODY 38 8 .TEST RESULT 39 8.1 CONDUCTED POWER RESULTS 39 8.2 SAR TEST RESULTS 80 Report No.: BTL-FCC-SAR-1507C127 Page 4 of 199 Table of Contents Page 8.3 MULTIPLE TRANSMITTER EVALUATION 117 APPENDIX 124 1. TEST LAYOUT 124 2. SYSTEM CHECK PLOTS 126 3. SAR MEASUREMENT PLOTS 140 4. CALIBRATION CERTIFICATE 199 5. EUT TESTING POSITION 199 Report No.: BTL-FCC-SAR-1507C127 Page 5 of 199 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCC-SAR-1507C127 Original Issue. Aug. 14, 2015 Report No.: BTL-FCC-SAR-1507C127 Page 6 of 199 1. GENERAL SUMMARY Equipment Smart Phone Brand Name HUAWEI Model Name HUAWEI ATH-UL06,ATH-UL06 Model difference Only differ in model name. Manufacturer Huawei Technologies Co., Ltd. Address Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen,518129, P.R.C Standard(s) ANSI Std C95.1-1992Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE Std 1528-2013Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB941225 D01 3G SAR Procedures v03 KDB941225 D05 SAR for LTE Devices v02r03 KDB941225 D06 Hotspot Mode V02 KDB447498 D01 General RF Exposure Guidance v05r02 KDB648474 D04 SAR Handsets Multi Xmiter and Ant v01r02 KDB248227 D01 802. 11 Wi-Fi SAR v02r01 KDB865664 D01 SAR measurement 100 MHrz to 6 GHz v01r04 KDB865664 D02 SAR Reporting v01r01 KDB690783 D01 SAR Listings on Grants v01r03 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCC-SAR-1507C127) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCC-SAR-1507C127 Page 7 of 199 2. RF EMISSIONS MEASUREMENT 2.1 TEST FACILITY The test facilities used to collect the test data in this report is SAR room at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town,Dong Guan, China.523792 2.2 MEASUREMENT UNCERTAINTY Note: Per KDB865664 D01 SAR Measurement 100 MHz to 6 GHz v01r03,when the highest measured 1-g SAR within a frequency band is < 1.5 W/kg, the extensive SAR measurement uncertainty analysis described in IEEE Std 1528-2013 is not required in SAR reports submitted for equipment approval. The equivalent ratio (1.5/1.6) is applied to extremity and occupational exposure conditions. Report No.: BTL-FCC-SAR-1507C127 Page 8 of 199 3. GENERAL INFORMATION 3.1 STATEMENT OF COMPLIANCE Equipment Class Mode Highest Head SAR-1g (W/kg) Highest Body-worn(15mm) SAR-1g(W/kg)…

Text truncated - open the document above for the full version.

RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 53 Appendix for Testreport RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 53 Appendix A: DTS (6 dB) Bandwidth In this document, the "DTS6dBBW" refers to the measured "DTS (6 dB) Bandwidth" value. In this Appendix, the "fc(DTS6dBBW)" refers to the centre of the measured "DTS6dBBW". The introduction of the "fc(DTS6dBBW)" is due to that other measurements use it as the spectrum analyzer setting. For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] DTS6dBBW[MHz] Verdict TM1 _Ch0 L 2402 0.65 pass TM1 _Ch19 M 2440 0.72 pass TM1 _Ch39 H 2480 0.68 pass RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 53 Part II - Test Plots 2.1 TM1_Ch0_L RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 53 2.2 TM1_Ch19_M RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 53 2.3 TM1_Ch39_H RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 53 Appendix B: Occupied Bandwidth For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] Occupied Bandwidth [MHz] Verdict TM1 _Ch0 L 2402 1.06 pass TM1 _Ch19 M 2440 1.07 pass TM1 _Ch39 H 2480 1.07 pass RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 53 Part II - Test Plots 2.1 TM1_Ch0_L RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 53 2.2 TM1_Ch19_M RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 53 2.3 TM1_Ch39_H RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 53 Appendix C: Duty Cycle Part I - Test Results Test Mode TX Freq. [MHz] Duty cycle [%] TM1 CH0,CH19,CH39 62 Part II - Test Plots 2.1 TM1 RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 53 Appendix D: Maximum Conducted Average Output Power Part I - Test Results Test Mode Test Channel Frequency[MHz] Duty Cycle [%] Power[dBm] Verdict TM1 _Ch0 L 2402 62 -1.10 pass TM1 _Ch19 M 2440 62 0.77 pass TM1 _Ch39 H 2480 62 -0.45 pass RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 53 Part II - Test Plots 2.1 TM1_Ch0_L RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 53 2.2 TM1_Ch19_M RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 53 2.3 TM1_Ch39_H RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 53 Appendix E: Maximum Power Spectral Density Level Part I - Test Results Test Mode Test Channel Frequency[MHz] Duty Cycle [%] PD[MHz] Verdict TM1 _Ch0 L 2402 62 -15.31 pass TM1 _Ch19 M 2440 62 -13.34 pass TM1 _Ch39 H 2480 62 -14.42 pass RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 53 Part II - Test Plots 2.1 TM1_Ch0_L RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 53 2.2 TM1_Ch19_M RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 53 2.3 TM1_Ch39_H RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 53 Appendix F: Band Edges Compliance Part I - Test Results Test Mode Test Channel Frequency[MHz] Carrier Power[dBm] Max.Spurious Level[dBm] Verdict TM1_Ch 0 L 2402 -1.14 -54.67 pass TM1_Ch 39 H 2480 -0.55 -52.76 pass RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 20 of 53 Part II - Test Plots 2.1 TM1_Ch0_L RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 21 of 53 2.2 TM1_Ch39_H RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2003 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 22 of 53 Appendix G: Unwanted Emissions into Non-Restricted F…

Text truncated - open the document above for the full version.

FCC RF Test Report Product Name: Smart Phone Model Number: HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2002 FCC ID：QISATH-UL06 \ Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 21 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-1 and 6369A-3. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 21 Date of Receipt Sample: 2015-08-19 Start Date of Test: 2015-08-19 End Date of Test: 2015-08-26 Test Result: Pass Approved by Senior Engineer: 2015-08-26 Liu Chunlin Date Name Signature Prepared by: 2015-08-26 maowenli Date Name Signature Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 21 Modification Record No. Last Report No. Modification Description First Report RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 21 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description ................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................... 8 3.3 Technical Description ................................................................................................................................. 9 4 General Test Conditions / Configurations ............................................................................................................. 11 4.1 Test Modes .............................................................................................................................................. 11 4.2 EUT Configurations .................................................................................................................................. 11 4.3 Test Environments ................................................................................................................................... 12 4.4 Antenna requirements .............................................................................................................................. 12 4.5 Description of tests................................................................................................................................... 13 4.6 Test Setups .............................................................................................................................................. 15 4.7 Test Conditions ........................................................................................................................................ 18 5 Main Test Instruments .......................................................................................................................................... 20 RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 21 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2, Subpart J 2014 47 CFR FCC Part 15, Subpart C 2014 Test Method: FCC KDB 558074 D01 DTS Meas Guidance v03r02 ANSI C63.10-2013, American National Standard for Testing Unlicensed Wireless Devices. 1.2 Test Location Test Location 1: Reliability Labor…

Text truncated - open the document above for the full version.

RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 131 Appendix for Testreport RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 131 Appendix A: DTS (6 dB) Bandwidth In this document, the "DTS6dBBW" refers to the measured "DTS (6 dB) Bandwidth" value. In this Appendix, the "fc(DTS6dBBW)" refers to the centre of the measured "DTS6dBBW". The introduction of the "fc(DTS6dBBW)" is due to that other measurements use it as the spectrum analyzer setting. For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] Ant DTS6dBBW[MHz] Verdict 11B L 2412 Ant 1 8.83 pass 11B M 2437 Ant 1 8.14 pass 11B H 2462 Ant 1 8.13 pass 11G L 2412 Ant 1 16.58 pass 11G M 2437 Ant 1 16.55 pass 11G H 2462 Ant 1 16.58 pass 11N20 L 2412 Ant 1 17.76 pass 11N20 M 2437 Ant 1 17.80 pass 11N20 H 2462 Ant 1 17.80 pass RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 131 Part II - Test Plots 2.1 11B_L@Ant 1 RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 131 2.2 11B_M@Ant 1 RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 131 2.3 11B_H@Ant 1 RF Test Report of HUAWEI ATH-UL06, ATH-UL06 Report No: SYBH(Z-RF)010072015-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies C…
