QISB1TalkBand

Getting started The TalkBand B1 is a wrist band that integrates the functions of exercise monitoring, sleep monitoring, and Bluetooth calling. Let's begin by configuring your B1. Downloading the Huawei TalkBand application 1. Search for Huawei TalkBand in Google Play Store. 2. Download and install the TalkBand application. 3. After the application is installed, is displayed on your phone or tablet. Pairing with your phone For devices compatible with the B1, visit consumer.huawei. com. To pair your phone with the B1, perform the following steps: 1. Press and hold the B1's side button to power it on and turn on Bluetooth. will start blinking. 2. Touch to open the TalkBand application and check your phone's Bluetooth status. If Bluetooth is off, touch the Bluetooth switch displayed in the upper right corner of the application screen to turn it on. Getting to know your B1 ItemDescription Bluetooth headset You can remove it from the B1 for Bluetooth calls. Side button • Press and hold it to power on or off the B1 or reject an incoming call. • Press it to switch between screens, answer or end a call, and disable reminders. Wrist band button Press it to eject the Bluetooth headset. USB portConnect it to a charger for charging. Headset cover Use it to wear a Bluetooth headset more conveniently. Screen displayDescription • Blinking: Pairing with a Bluetooth device. • Steady on: A Bluetooth connection has been set up. 3. Your phone automatically searches for and displays nearby Bluetooth devices. 4. Touch the B1's name to pair with it. Then, will be displayed on the B1's screen . Wearing the B1 Fasten the wrist strap buckles into the wrist band loops. Screen displayDescription The Bluetooth connection has failed or is terminated. Bluetooth status, time, and battery level Exercise reminder Step counter Calorie counter Target completion progress Target completion Congratulations on completing your target Sleep duration Alarm Updating Incoming call End a call Reject a call Caller name or number Calling Battery level from low to high -UUMRK6RG _ .[G]KO: GRQ(GTJ 'VV9Z UXK .[G]KO: GRQ(GTJ ( ^^^^ '[ZUSGZOI YKGXIN 6RGIKZNK(TK^Z ZU_U[XVNUTK '\G ORGHRK JK\OIKY (R[KZUUZNYIXKKT(R[KZUUZNYIXKKT TalkBand B1 Quick Start USB port Wrist band loop Wrist band Wrist band button Side button Bluetooth headset Headset cover Side button Fitness monitoring Exercise reminder The TalkBand application lets you set exercise reminders, letting you set the time you want to be reminded when to exercise. If you do not exercise at the set interval, the B1 will vibrate and display to remind you. Wear the B1 on your wrist and begin a healthier life. Setting the exercise target Use the TalkBand application to set your daily exercise target. Viewing your fitness statistics When you are working out, press the side button to view your fitness statistics. 1. Press the side button to view your steps and target completion progress . 2. Press the side button again to view how many calories you have burned . Completing your exercise target After you complete an exercise target, the B1 displays . Synchronizing your fitness statistics The B1 stores your fitness statistics. You can synchronize the data to the TalkBand application to view it. :GXM KZYZKVY 9KZ 1. Touch to open the TalkBand application. 2. Pair the B1 with your phone. For details, see "Pairing with your phone." 3. To synchronize data between the Tal kBand application and the B1, dr ag down on the application screen and then release your finger. )UTTKIZOUT IUSVRKZKJ (R[KZUUZNYIXKKT ( ^^^^ '\G ORGHRK JK\OIKY (R[KZUUZNYIXKKT After the B1 is paired with your phone, it saves the phone's Bluetooth information. So the B1 will automatically connect to your phone after every restart. You can set a target for calorie burned in the same manner. • Your B1 is water resistant. You can wear it in the rain, when washing your hands, or while taking a shower. • If your skin feels discomfort when wearing the B1, take it off and consult a doctor. Visit consumer.huawei.com or scan the 2D Barcode on the right to search for and download the TalkBand B1 User Guide in other languages. Screen Bluetooth calling The B1 notifies you of incoming calls and lets you answer them even when it's inconvenient for you to do so, such as when you're driving or carrying baggage. It comes with a Bluetooth headset which vibrates when you receive an incoming call, and displays the caller information. Answering a call 1. Press the wrist band button and follow the instructions below to remove the headset. 2. If the size of the headset cover included with your B1 does not fit comfortably, follow the instructions in the figures below on how to replace it. 3. Wear the headset cover and adjust it to the angle shown in the following figure so that it fits comfortably and securely. 4. Press the side button to answer incoming calls. Listening to music Once the B1 is paired with your phone, you can listen to music on your phone using the Bluetooth headset. Backup headset covers are included in the product package. • Press and hold the side button to reject an incoming call. • During a call, press the side button to end the call. Sleep monitoring When you wear the B1 to bed, it collects your deep sleep, light sleep, and awake statistics. After you set a smart alarm, if the alarm finds that you are in a light sleep during the pre- detection period, it will go off ahead of time; if you are in the deep sleep state, the alarm will go off at the preset time. Setting a smart alarm Use the TalkBand application to set the alarm time, pre- detection duration, and repeat interval. Waking up When your alarm is due, the B1 vibrates and displays and the current time . Press the side button to dismiss the alert. Getting to know your sleep status Synchronize your sleep statistics to your TalkBand application to view your sleep status. If you are suffering from poor sleep quality, it is recommended that you do some exercise, …

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Date (26/05/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District 518052, Shenzhen, CHINA Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISB1 Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: TUV PS Fax : NULL From:Zhang Xinghai Fax:0086-755-89650226 Tel:0086-755-28970299 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISB1 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

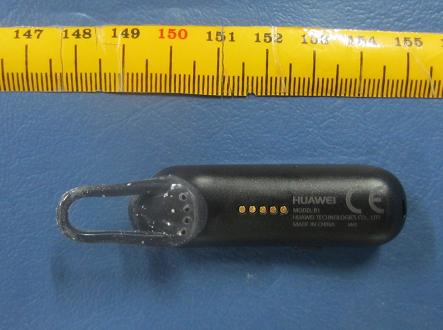

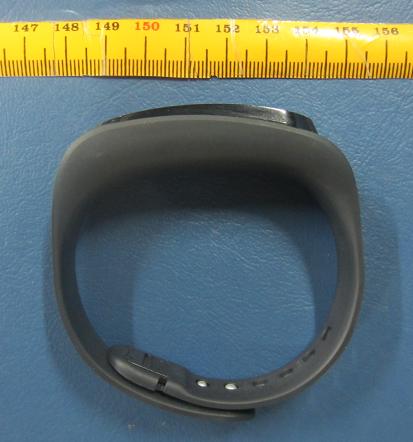

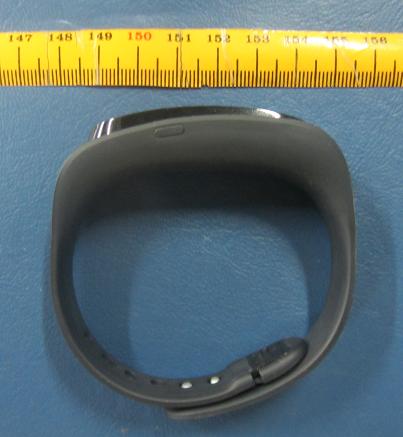

B1 Page1，Total 6 External Photos of B1 B1 Page2，Total 6 B1 Page3，Total 6 B1 Page4，Total 6 B1 Page5，Total 6 B1 Page6，Total 6

B1 Page1, Total 1 Label and Label Location of B1

B1 SECRET Page1, Total2 Internal Photos of B1 B1 SECRET Page2, Total2 Top: Bottom:

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC RF Exposure Evaluation Report Project Name:_______________________ Model:_______________________ FCC ID: _______________________ Report No.: _______________________ APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2014-05-20 2014-05-20 The test results of this test report relate exclusively to the item(s) tested . The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. B1 QISB1 SYBH(Z-SAR)033042014-2 TalkBand Report No.:SYBH(Z-SAR)033042014-2 FCC ID: QISB1 2014-05-20 Page 2 of 8 ※ ※ Modified History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release 2014-05-20 Zhang Hong Report No.:SYBH(Z-SAR)033042014-2 FCC ID: QISB1 2014-05-20 Page 3 of 8 Table of Contents 1 EUT Description .................................................................................................................................................................. 4 1.1 General Description ................................................................................................................................................... 5 2 Test specification(s) ........................................................................................................................................................... 6 3 Testing laboratory ............................................................................................................................................................... 6 4 Applicant and Manufacturer ............................................................................................................................................... 6 5 Application details ............................................................................................................................................................... 6 6 Ambient Condition .............................................................................................................................................................. 6 7 RF exposure limits .............................................................................................................................................................. 7 8 RF Exposure Evaluation .................................................................................................................................................... 8 Report No.:SYBH(Z-SAR)033042014-2 FCC ID: QISB1 2014-05-20 Page 4 of 8 1 EUT Description Table 1:Device information and operating configuration Device Information： DUT Name: TalkBand Type Identification: B1 FCC ID : QISB1 Device Type : Portable device Device Phase: Uncontrolled environment/general population Exposure Category: 309000116756R3 Hardware Version : V11.05.05.03.00 Software Version : Internal Antenna Antenna Type : Portable device Device Operating Configurations: Supporting Mode(s) BT Test Modulation GFSK/π/4-DQPSK/8DPSK Operating Frequency Range(s) Band Tx (MHz) Rx (MHz) BT 2400-2483.5 2400-2483.5 Report No.:SYBH(Z-SAR)033042014-2 FCC ID: QISB1 2014-05-20 Page 5 of 8 1.1 General Description HUAWEI TalkBand B1 is a smart wrist band that integrates functions of sport assistant, sleep monitoring, and Bluetooth calling. It helps you learn about your health status and can also work as a Bluetooth headset. The B1 can connect to a phone or tablet through Bluetooth. Download and install the B1 app on the phone or tablet to easily manage the data of the B1. The B1 supports the following: (1) Bluetooth calling (2) Music playback (3) Step counting (4) Calory calculation (5) Sport target setting (6) Sleep statistics collection (7) Event reminder (8) Smart alarm. Report No.:SYBH(Z-SAR)033042014-2 FCC ID: QISB1 2014-05-20 Page 6 of 8 2 Test specification(s) ANSI Std C95.1-1992 Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) RSS-102 Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands (Issue 4 of March 2010) KDB447498 D01 General RF Exposure Guidance v05r02 3 Testing laboratory Test Site The Reliability Laboratory of Huawei Technologies Co., Ltd. Test Location Zone K3,Huawei Industrial Base, Bantian Industry Area, Longgang District, Shenzhen, Guangdong, China Telephone +86 755 28780808 Fax +86 755 89652518 State of accreditation The Test laboratory (area of testing) is accredited according to ISO/IEC 17025. CNAS Registration number: L0310 A2LA TESTING CERT #2174.01 4 Applicant and Manufacturer Company Name HUAWEI TECHNOLOGIES CO., LTD Address Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C 5 Application details Start Date of test 2014-05-20 End Date of test 2014-05-20 6 Ambient Condition Ambient temperature 20°C – 24°C Relative Humidity 30% – 70% Report No.:SYBH(Z-SAR)033042014-2 FCC ID: QISB1 2014-05-20 Page 7 of 8 7 RF exposure limits Human Exposure Uncontrolled Environment General Population Controlled Environment Occupational Spatial Peak SAR* (Brain/Body/Arms/Legs) 1.60 mW/g 8.00 mW/g Spatial Average SAR** (Whole Body) 0.08 mW/g 0.40 mW/g Spatial Peak SAR*** (Hands/Feet/Ankle/Wrist) 4.00 mW/g 20.00 mW/g Table 2: RF exposure limits The limit applied in this test report is shown in bold letters Notes: * The Spatial Peak value of the SAR averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube) and over the appropriate averaging time ** The Spatial Average value …

Text truncated - open the document above for the full version.

FCC & IC RF Test Report Product Name: TalkBand Product Model: B1 BTS3900 WCDMA Report Number: SYBH(Z-RF)033042014-2001 FCC ID: QISB1 IC: 6369A-B1 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of B1 Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 18 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of B1 Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 18 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2014-05-05 Start Date of Test: 2014-05-05 End Date of Test: 2014-05-08 Test Result: Pass Approved by Senior Engineer: 2014-05-13 Liu Chunlin Date Name Signature Prepared by: 2014-05-13 Zhu Mingjing Date Name Signature RF Test Report of B1 Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 18 Modification Record No. Last Report No. Modification Description First report. RF Test Report of B1 Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 18 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard ....................................................................................................................................... 6 1.2 Test Location............................................................................................................................................. 6 1.3 Test Environment Condition ...................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description .................................................................................................................................. 8 3.2 EUT Identity .............................................................................................................................................. 8 3.3 Technical Description ................................................................................................................................ 9 4 General Test Conditions / Configurations ............................................................................................................. 10 4.1 EUT Configurations ................................................................................................................................. 10 4.2 Test Environments .................................................................................................................................. 11 4.3 Antenna requirements ............................................................................................................................. 11 4.4 Test Setups ............................................................................................................................................. 12 4.5 Test Conditions ....................................................................................................................................... 15 5 Main Test Instruments .......................................................................................................................................... 18 6 Main Test Instruments .......................................................................................................................................... 18 RF Test Report of B1 Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 18 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2, Subpart J 2013 47 CFR FCC Part 15, Subpart C 2013 IC RSS-Gen (Issue 3, December 2010) IC RSS-210 (Issue 8, December 2010) Test Method: FCC PUBLIC NOTICE DA 00-705 Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems (Released March 30, 2000) ANSI C63.4-2003/-2009, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C63.10-2009, American National Standard for Testing Unlicensed Wi…

Text truncated - open the document above for the full version.

RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 127 Appendix A: 20dB Emission Bandwidth (EBW) RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 127 1 Result Table EUT Conf. EBW [MHz] Verdict TM1_DH5_Ch0 0.944 Pass TM1_DH5_Ch39 0.944 Pass TM1_DH5_Ch78 0.950 Pass TM2_2DH5_Ch0 1.241 Pass TM2_2DH5_Ch39 1.240 Pass TM2_2DH5_Ch78 1.241 Pass TM3_3DH5_Ch0 1.259 Pass TM3_3DH5_Ch39 1.258 Pass TM3_3DH5_Ch78 1.259 Pass RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 127 2 Test Plot 2.1 TM1_DH5_Ch0 RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 127 2.2 TM1_DH5_Ch39 RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 127 2.3 TM1_DH5_Ch78 RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 127 2.4 TM2_2DH5_Ch0 RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 127 2.5 TM2_2DH5_Ch39 RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 127 2.6 TM2_2DH5_Ch78 RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 127 2.7 TM3_3DH5_Ch0 RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 127 2.8 TM3_3DH5_Ch39 RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 127 2.9 TM3_3DH5_Ch78 RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 127 Appendix B: Carrier Frequency Separation RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 127 1 Result Table EUT Conf. Carrier Frequency Separation [MHz] Verdict TM1_DH5_Hop 0.975 Pass TM2_2DH5_Hop 0.975 Pass TM3_3DH5_Hop 1.084 Pass RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 127 2 Test Plot 2.1 TM1_DH5_Hop RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 127 2.2 TM2_2DH5_Hop RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 127 2.3 TM3_3DH5_Hop RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 127 Appendix C: Number of Hopping Channel RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 127 1 Result Table EUT Conf. Number of Hopping Channel Verdict TM1_DH5_Hop 79 Pass TM2_2DH5_Hop 79 Pass TM3_3DH5_Hop 79 Pass RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 127 2 Test Plot 2.1 TM1_DH5_Hop RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 20 of 127 2.2 TM2_2DH5_Hop RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 21 of 127 2.3 TM3_3DH5_Hop RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 22 of 127 Appendix D: Time of Occupancy (Dwell Time) RF Test Report of B1 Security Level: Public Report No: SYBH(Z-RF)033042014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 23 of 127 1 Result Table The Dwell Time = Burst Width * Total Hops. The detailed calculations are showed as follows: - The duration for dwell time calculation: 0.4 [s] * hopping number = 0.4 [s] * 79 [ch] = 31.6 [s*ch]; - The burst width [ms/hop/ch], which is directly measured, refers to the duration on one channel hop. - The hops per second for all channels: The selected EUT Conf uses a slot type of 5-Tx&1-Rx and a hopping rate of 1600 [ch*hop/s] for all channels. So the final hopping rate for all channels is 1600 / 6 = 266.67 [ch*hop/s]; - The hops per second on one channel: 266.67 [ch*hop/s] / 79 [ch] =3.38 [hop/s]; - The total hops for all channels within the dwell time calculation duration: 3.38 [hop/s] * 31.6 [s*ch] = 106.67 [hop*ch]; - The dwell time for all channels hopping: 106.67 [hop*ch] * Burst Width [ms/hop/ch]. EUT Conf. Burst Width [ms/hop/ch] Total Hops [hop*ch] Dwell Time [ms] Verdict TM1_DH5_Ch39 2.9 106.67 0.309 Pass TM2_2DH5_Ch39 2.9 106.67 0.309 Pass TM3_3DH5_Ch39 2.9 106.67 0.309 Pass RF Test Report of B1 Security Level: Pub…

Text truncated - open the document above for the full version.

RF Test Report of B1 Photos of Test Setup RF Test Report of B1 For Bluetooth 1．Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) Radiated Spurious Emission (1GHz to18GHz) RF Test Report of B1 Radiated Spurious Emission (above 18GHz) RF Test Report of B1 Conducted Emissions Conducted Emissions for AC Ports END
