QISB2TalkBand

My TalkBand 1. Getting started2. Pairing with your phone Press and hold the power button to turn on your TalkBand. Swipe down to sync your fitness statistics. Touch the screen to move between different displays. Download and install the app. The TalkBand can be paired with two phones at the same time. 3. Fitness monitoring – intelligent activity recognition Set your exercise target using the app. WalkingRunningCyclingHiking Deep sleep Light sleepAwake You can set a smart alarm using the app. 4. Tracking your sleep patterns Swipe on the screen to turn off the alarm. You can share your fitness statistics using the app. When you are in light sleep, the alarm will go off ahead of time. HUAWEI TalkBand B2 2 HUAWEI B2-XXXHUAWEI B2-XXX HUAWEI B2-XXX Protective featuresMy headset 2. Convenient calling Wear the headset and adjust it to the angle shown in the following figure. If the headset cover does not fit comfortably, replace it with a suitable headset cover included with the TalkBand. Press the side button once to answer or end incoming calls. Simply speak into the headset and your message will be sent to your phone's voice assistant software. 1. Waterproof design perfect for all-day use. Can be used in the rain, when washing your hands and having a cold shower. However, please wipe your TalkBand dry after it comes into contact with water. Press the buttons on both sides of the wristband at the same time to remove the headset. Charge the headset through the charging port on the back of the headset. 1. Trendy removable headset Press and hold the side button to reject an incoming call. When wearing the headset on your wrist, remove it to answer an incoming call automatically. 3. Voice assistant support for ultimate convenience Press the side button twice to activate the voice assistant and open the voice assistant software on your phone. 4. Listening to music Swipe on the screen to adjust the volume. 2. The TalkBand is not suitable for use during the following activities: Car washing, swimming, diving, scuba diving, hot showers. The TalkBand is made from special hypoallergenic materials and has passed stringent dermatological tests. If you experience skin discomfort when wearing the TalkBand, discontinue use and consult a doctor. 96723729_01

HUAWEI TalkBand Safety Information Content English 1 français 16 Deutsch 20 Italiano 24 español 28 Português(Portugal) 32 Nederlands 36 polski 40 Svenska 44 dansk 47 Norsk bokmål 50 suomi 53 čeština 56 Ελληνικά 59 Magyar 63 română 66 Português(Brasil) 69 español(Estados Unidos) 73 русский язык 77 български език 81 српски језик/Srpski 85 slovenčina 88 latviešu valoda 91 Eesti keel 94 lietuvių kalba 97 中文(繁體) 100 1 English Safety Information Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc . and any use of such marks by Huawei Technologies Co., Ltd. is under license. 2 English Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR 3 English LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy To better understand how we protect your personal information, please see the privacy policy at http:// consumer.huawei.com/privacy-policy. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. 4 English Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. • Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. 5 English • Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives • Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. • Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security • Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. • Concentrate on driving. Your first responsibility is to drive safely. • RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. • Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates. • Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless 6 English networks, present a hazard to aircraft operation, or be illegal. Operating environment • Avoid damp environments. A…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Confidentiality Letter Date: _2015/2/7_______ Subject: Confidentiality Requ est for FCC ID: QISB2 and IC ID: 6369A Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent User’s Manual ____ __ HUAWEI TECHNOLOGIES CO.,LTD.______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___180 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, By : __________________________ _____ zhang xinghai_________ (Signature/Title) (Print name)

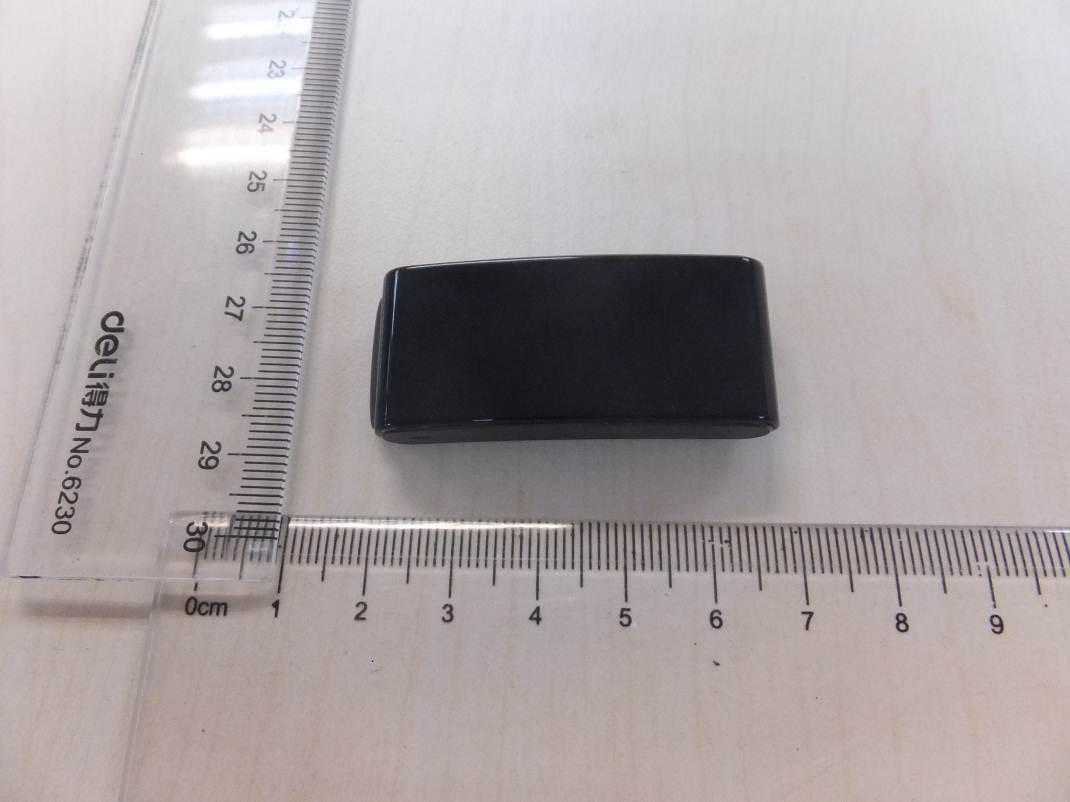

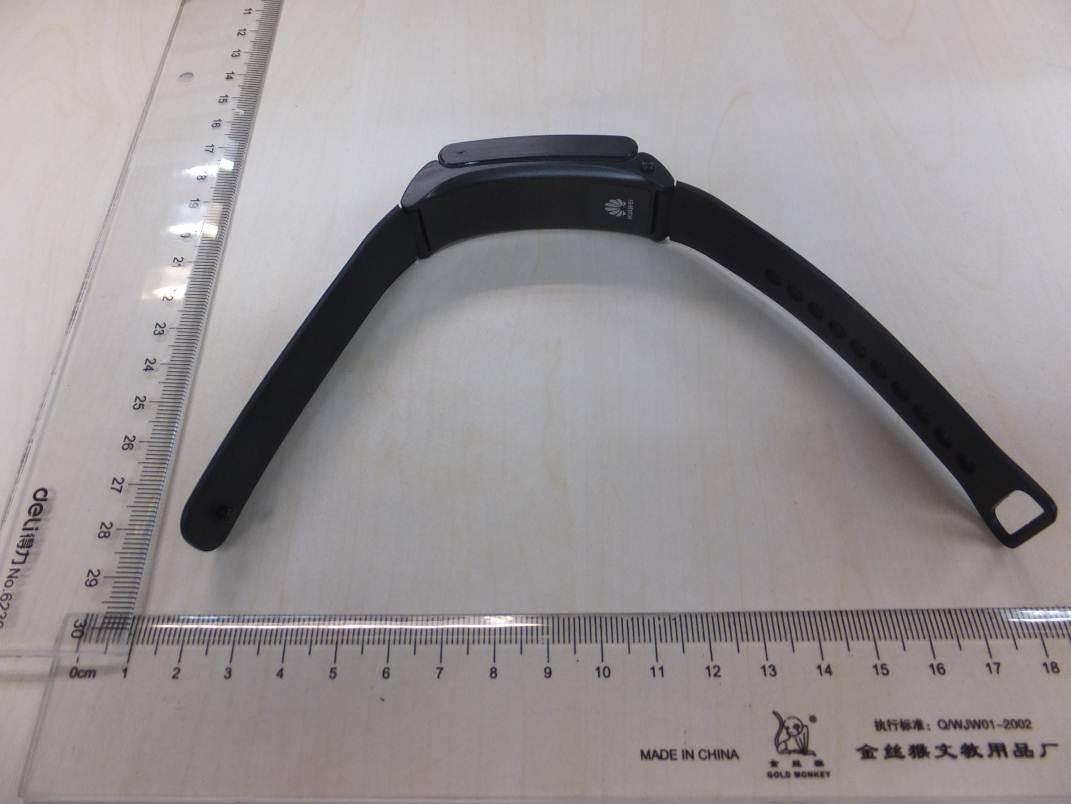

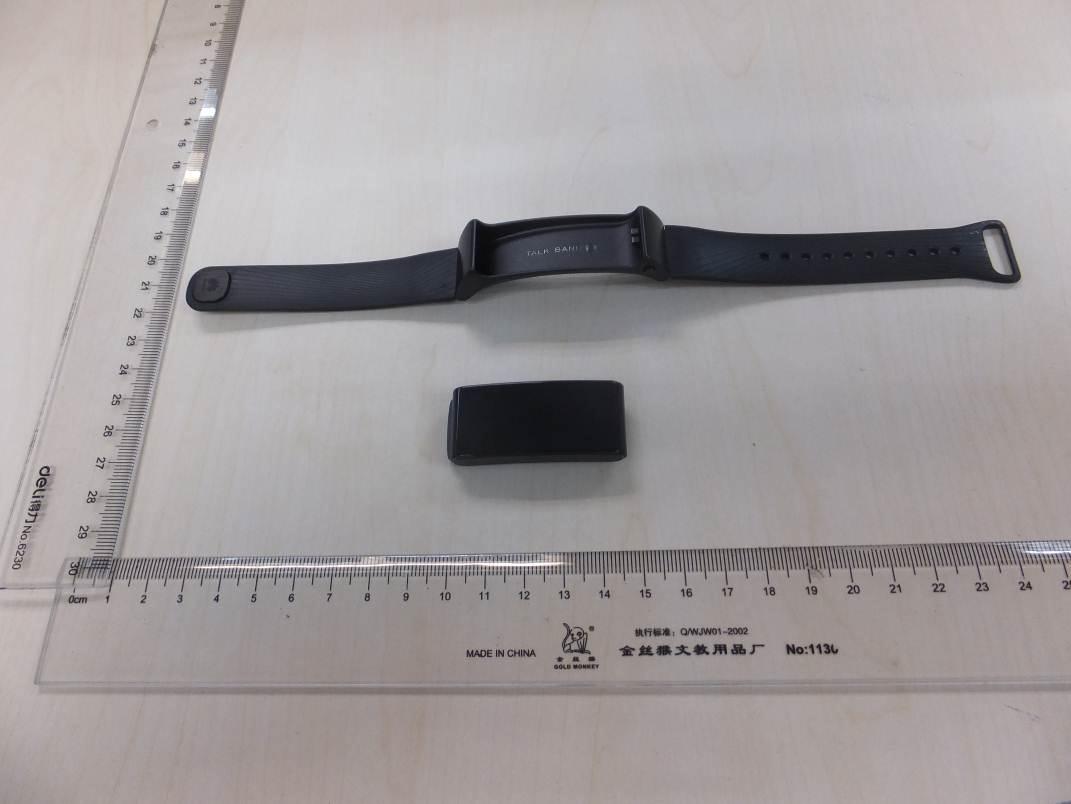

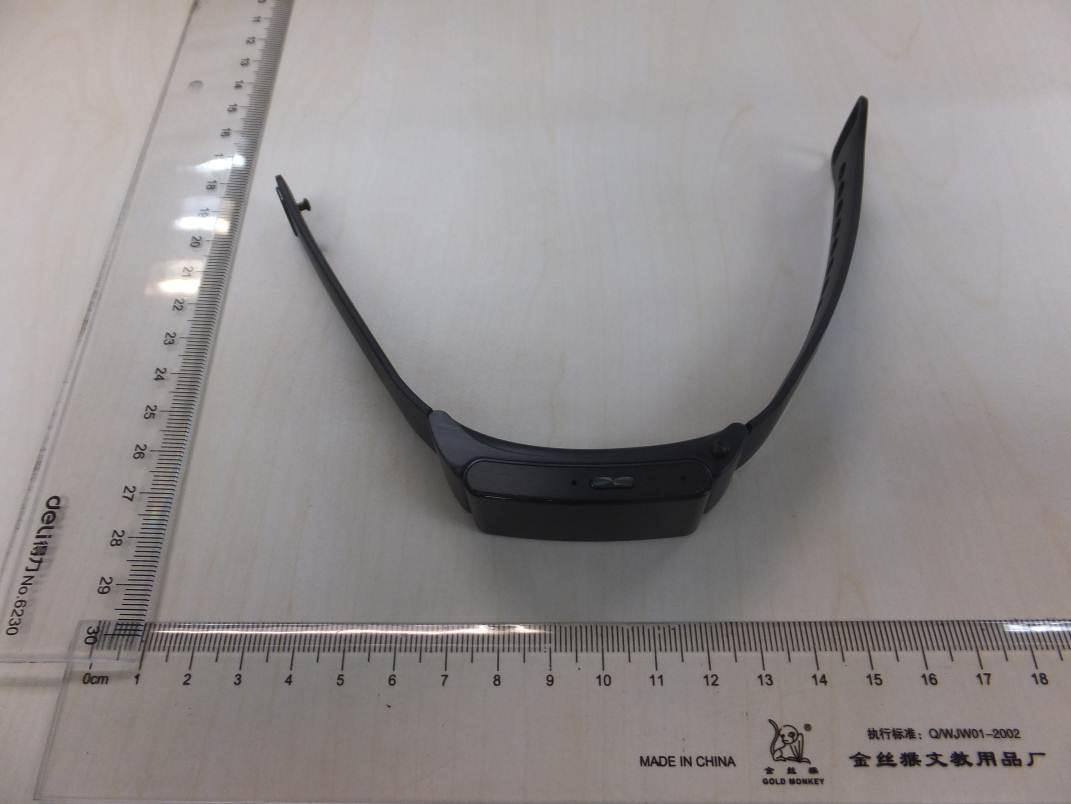

Page 1 of 3 Type Designation: B2 Report Number: 17046566 001 Fig. 1: External view Fig. 2: External view Page 2 of 3 Type Designation: B2 Report Number: 17046566 001 Fig. 3: External view Fig. 4: External view Page 3 of 3 Type Designation: B2 Report Number: 17046566 001 Fig. 5: External view

B1 SECRET ID Label Location_ B1 Page1, Total 1

Page 1 of 3 Type Designation: B2 Report Number: 17046566 001 Fig. 1: Internal view Fig. 2: Internal view Page 2 of 3 Type Designation: B2 Report Number: 17046566 001 Fig. 3: Internal view Fig. 4: Internal view Page 3 of 3 Type Designation: B2 Report Number: 17046566 001 Fig. 5: Internal view Fig. 6: Internal view

Produkte Products RF Exposure Compliance Seite 1 von 1 Page 1 of 1 Product: TalkBand FCC ID: QISB2 IC : 6369A-B2 Radio Frequency Exposure Compliance RESULT: Passed Test standard : RSS-102 Issue 4, March 2010 FCC KDB Publication 447498 v05r02 Since maximum peak output power of the transmitter is 6.2mW <10mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB Publication 447498 D01 General RF Exposure Guidance v05r02. The maximum peak output power of the transmitter is 6.2mW only, which less than 20mW. Hence the EUT is exempted from routine evaluation limits (SAR Evaluation) according to clause 2.5.1 of RSS-102 Issue 4.

Produkte Products TÜV Rheinland LGA Products GmbH
Tillystraße 2
D - 90431 Nürnberg
Tel.: +49 911 655 5225
Fax: +49 911 655 5226 Mail: [email protected]
Web: www.tuv.comom Prüfbericht-Nr.: Test Report No.: 17046566 001 Auftrags-Nr.: Order No.: 164028994 Seite 1 von 29 Page 1 of 29 Kunden-Referenz-Nr.: Client Reference No.: N/A Auftragsdatum: Order date: 08.01.2015 Auftraggeber: Client: Huawei Technologies Co., Ltd, Administration Building, Headquarters of huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen 518129, P.R. China Prüfgegenstand: Test item: TalkBand Bezeichnung / Typ-Nr.: Identification / Type No.: B2 Auftrags-Inhalt: Order content: FCC Certification and Verification Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 CFR47 FCC Part 15: Subpart C Section 15.107 CFR47 FCC Part 15: Subpart C Section 15.109 RSS-210 Issue 8 December 2010 RSS-Gen Issue 3 December 2010 RSS-102 Issue 4 March 2010 Wareneingangsdatum: Date of receipt: 22.01.2015 Prüfmuster-Nr.: Test sample No.: A000157643-001 to 003 Prüfzeitraum: Testing period: 27.01.2015 - 02.02.2015 Ort der Prüfung: Place of testing: Shenzhen Accurate Technology Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Bitte wählen / Please select... geprüft von / tested by: 12.01.2015 Owen Tian / Senior Project Manager kontrolliert von / reviewed by: 25.02.2015 Winnie Hou / Technical Certifier Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. Produkte Products Prüfbericht - Nr.: Test Report No. 17046566 001 Seite 2 von 29 Page 2 of 29 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 5.1.10 CONDUCTED EMISSIONS RESULT: Passed 5.1.11 R ADIATED EMISSION RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 17046566 001 Seite 3 von 29 Page 3 of 29 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 T RACEABILITY .................................................................................................................. 6 2.4 CALIBRATION ................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA ........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING ........................................................................... 6 3. G ENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 I NDEPENDENT OPERATION MODES .................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 9 3.5 SUBMITTED DOCUMENTS .................................................................................................. 9 4. T EST SET-UP AND OPERATION MODES ............................................................................ 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ...................................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE .......................................................................... 10 4.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ........................................................ 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 11 4.5 TEST SETUP DIAGRAM ............................................…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 17046566 001 Seite 25 von 29 Page 25 of 29 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (9kHz-30MHz) Photograph 2: Set-up for Spurious Emissions (30MHz-1GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17046566 001 Seite 26 von 29 Page 26 of 29 Photograph 3: Set-up for Spurious Emissions (1GHz-18GHz) Photograph 4: Set-up for Spurious Emissions (18GHz-26GHz) Produkte Products Prüfbericht - Nr.: Test Report No. 17046566 001 Seite 27 von 29 Page 27 of 29 Photograph 5: Set-up for Conducted Emissions Photograph 6: Set-up for Radiated Emissions, below 1GHz Produkte Products Prüfbericht - Nr.: Test Report No. 17046566 001 Seite 28 von 29 Page 28 of 29 Photograph 7: Set-up for Radiated Emissions, above 1GHz
