QISB310S-518LTE CPE

B310 LTE CPE Quick Start 31506955_01 1 1 Gett ing to know your B310 Power indicator  On: the B310 is powered on.  Off: the B310 is powered off. Network mode indicator  Steady cyan: connected to an LTE network.  Steady blue: connected to a 3G network.  Steady yellow: connected to a 2G network.  Steady green: connected to an Ethernet network.  Steady red: – The SIM card is not recognized, the PIN has not been entered, or the PIN verif icat ion failed. – Failed to connect to a mobile network or an Ethernet network. Wi-Fi/WPS indicator  Steady on: Wi-Fi turned on.  Blinking: a WPS connection is being set up.  Off: Wi-Fi turned off. 2 LAN/WAN indicator  Steady on: LAN/WAN port is connected to a LAN device or an Ethernet port.  Blinking: data is being transmitted through the LAN/WAN port.  Off: LAN/WAN port is not connected to a LAN device or an Ethernet port. Signal strength indicator  On: signal reception available (more bars mean better reception).  Off: no reception. SIM card slot Install a standard SIM card to access the Internet via an LTE/3G/2G data connection. Telephone port Connect to a telephone. WPS button Press and hold for 2 or more seconds until is blinking to active WPS connection when Wi-Fi is turned on. Power button Press and hold for about 3 seconds to power the B310 on or off. Reset button Restoring the default sett ings of the B310 will erase al l previous sett ings. When the B310 is powered on, use a sharply pointed object to press and hold for about 3 seconds until indicator is blinking to restore the B310 to its factory settings. After the factory defaults are restored, the B310 will restart automatically. Power port Connect to compatible power adapter. LAN/WAN port  Working as a LAN port when connected to a computer, switch, or other LAN device.  Working as a WAN port when connected to an Ethernet port on the wall. 3 2 Instal lat ion Scenario 1: Accessing the Internet using an LTE, 3G, or 2G network Step 1: Installing the SIM card 1. Slide off the card slot cover. 2. Insert the SIM card into the card slot. Ensure that the beveled edge of the SIM card aligns with that of the card slot. 3. Close the card slot cover. Do not remove the SIM card when it is in use. Doing so will affect the performance of your B310 and data stored on the SIM card may be lost. 4 Step 2: Connecting cables Once connected to a power outlet, the B310 automat ically powers on. Power adapter Computer Telephone Laptop, tablet, or smart phone  To prevent interference caused by radio signals, place the B310 at least 1 meter (3.28 feet) away from telephone and other electrical devices.  The B310's power adapter model is HW-120100XYW. X and Y represent letters or numbers that vary by region. For details about the specif ic adapter model, contact an authorized dealer. Do not connect the B310 to the telephone wal l outlet (or any Public Switched Telephone Network), because doing so could damage the B310 due to excessive heat. 5 Scenario 2: Accessing the Internet using Ethernet Connect the B310 to a wal l-mounted Ethernet port or an ADSL modem for Internet access. Once connected to a power outlet, the B310 automat ically powers on. Power adapter Ethernet port on the wall Telephone Laptop, tablet, or smart phone  To prevent interference caused by radio signals, place the B310 at least 1 meter (3.28 feet) away from telephone and other electrical devices.  The B310's power adapter model is HW-120100XYW. X and Y represent letters or numbers that vary by region. For details about the specif ic adapter model, contact an authorized dealer. Do not connect the B310 to the telephone wal l outlet (or any Public Switched Telephone Network), because doing so could damage the B310 due to excessive heat. 6 3 Sett ing up a Wi-Fi connect ion Step 1: Enabling Wi-Fi on the B310 When the indicator is steady on, the Wi-Fi funct ion of the B310 is turned on. Step 2: Recording the SSID and Wi-Fi key The default SSID and Wi-Fi key are printed on the B310's bottom label. Step 3: Setting up a Wi-Fi connection on your client  Method 1: Sett ing up a W i-F i connect ion manual ly 1. From your Wi-Fi enabled client, scan for wireless networks in your area. 2. Connect to the network name that matches the SSID found on the device label. 3. When prompted for password, enter the Wi-Fi Key found on the device label. (The Wi-Fi key is case sensitive.) Your client will notify you when it is connected. Make sure your client (computer, tablet, or smart phone) also supports Wi-Fi. For details about how to manual ly enable or disable the Wi-Fi funct ion, refer to the WLAN sett ings sect ion of the help informat ion on the web management page. To prevent unauthorized part ies from accessing your Wi-Fi network, it is recommended that you change the SSID and Wi-Fi key from t ime to t ime. For details, see the help informat ion on the web management page. 7 AirPort: On Turn AirPort Off No network selected XXXXXXXX Join Other Network... Create Network... Open Network Preferences... i Settings WLAN XXXXXXXX Other... Ask to Join Nerworks CHOOSE A NETWORK... WLAN XXXXXXXX WLAN XXXXXXXX Secured with WPA2 Networks WiFi Connect XXXXXXXX Connect automatically Windows 7 iPhoneMac Windows 8 Android  Method 2: Sett ing up a W i-F i connect ion through WPS If the client supports WPS, you can set up a WPS connect ion as follows: 1. Ensure that Wi-Fi is enabled on the client. 2. Press and hold the WPS button for 2 or more seconds. The indicator then starts blinking. 3. Activate the WPS connection on the client in 2 minutes. For instruct ions about how to enable a WPS connect ion on your device, see the device’s user guide. 8 4 Conf iguring your B310 1. After a client is connected to the B310 through Wi-Fi or LAN port, launch a browser on the client and visit http://192.168.8.1. 2. Enter the user name (admin by default) and password (admin by default) to log in to the web management page. 3. Follow the quick setup wizard to check or set network…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-12-16 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISB310S-518 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-06-15 External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755- 28970299

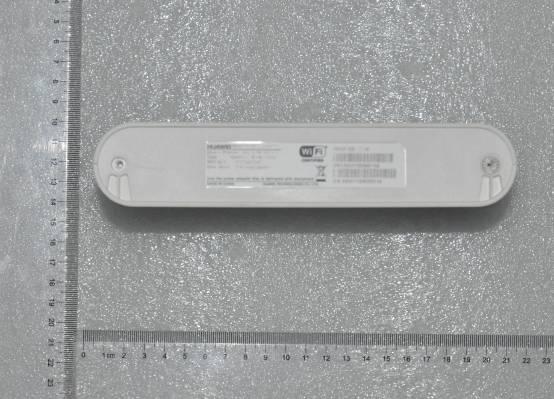

HUAWEI B310s-518 LTE CPE SECRET Page1 Total5 Photo documentation of external of product HUAWEI B310s-518 LTE CPE SECRET Page2 Total5 HUAWEI B310s-518 LTE CPE SECRET Page3 Total5 HUAWEI B310s-518 LTE CPE SECRET Page4 Total5 HUAWEI B310s-518 LTE CPE SECRET Page5 Total5

B310s-518 SECRET Page1, Total 1 B310s-518 ID Label: B310s-518 LTE CPE SECRET Page1, Total 1 B310s-518 Label location:

HUAWEI B310s-518 LTE CPE SECRET Page1,Total 5 Photo documentation of interior of product HUAWEI B310s-518 LTE CPE SECRET Page2,Total 5 HUAWEI B310s-518 LTE CPE SECRET Page3,Total 5 HUAWEI B310s-518 LTE CPE SECRET Page4,Total 5 HUAWEI B310s-518 LTE CPE SECRET Page5,Total 5

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Maximum Permissible Exposure(MPE) Estimation Report Product Name: LTE CPE Model: B310s-518 Report No.: SYBH(Z-SAR)005122014-2 FCC ID: QISB310S-518 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2014-12-15 2014-12-15 The test results of this test report relate exclusively to the item(s) tested . The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report NO.: SYBH(Z-SAR)005122014-2 FCC ID: QISB310S-518 2014-12-15 Page 2 of 20 ※ ※ Modified History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release 2014-12-15 Sun Shanbin Report NO.: SYBH(Z-SAR)005122014-2 FCC ID: QISB310S-518 2014-12-15 Page 3 of 20 Table of Contents 1 EUT Description ............................................................................................................................. 5 1.1 General Description ............................................................................................................ 6 2 Test specification(s) ....................................................................................................................... 7 3 Testing laboratory .......................................................................................................................... 7 4 Applicant and Manufacturer ........................................................................................................... 7 5 Application details .......................................................................................................................... 7 6 Ambient Condition .......................................................................................................................... 7 7 RF Exposure Requirements ........................................................................................................... 8 8 RF Exposure Evaluation .............................................................................................................. 11 8.1 Operation in GSM850 ....................................................................................................... 11 8.2 Operation in GSM1900 ..................................................................................................... 12 8.3 Operation in UMTS Band II ............................................................................................... 13 8.4 Operation in UMTS Band IV ............................................................................................. 13 8.5 Operation in UMTS Band V .............................................................................................. 13 8.6 Operation in LTE Band II .................................................................................................. 14 8.7 Operation in LTE Band IV ................................................................................................. 14 8.8 Operation in LTE Band V .................................................................................................. 14 8.9 Operation in LTE Band VII ................................................................................................ 15 8.10 Operation in WLAN 2.4G SISO ......................................................................................... 15 9 Exposure calculations for multiple sources ................................................................................. 16 9.1 Estimation for WLAN2.4G MIMO ...................................................................................... 17 9.2 Estimation for GSM850 & WLAN2.4G .............................................................................. 17 9.3 Estimation for GSM1900 & WLAN2.4G ............................................................................ 17 9.4 Estimation for UMTS Band II & WLAN2.4G...................................................................... 18 9.5 Estimation for UMTS Band IV & WLAN2.4G .................................................................... 18 9.6 Estimation for UMTS Band V & WLAN2.4G ..................................................................... 18 9.7 Estimation for LTE Band II & WLAN2.4G ......................................................................... 19 Report NO.: SYBH(Z-SAR)005122014-2 FCC ID: QISB310S-518 2014-12-15 Page 4 of 20 9.8 Estimation for LTE Band IV & WLAN2.4G ........................................................................ 19 9.9 Estimation for LTE Band V & WLAN2.4G ......................................................................... 19 9.10 Estimation for LTE Band VII & WLAN2.4G ....................................................................... 20 Report NO.: SYBH(Z-SAR)005122014-2 FCC ID: QISB310S-518 2014-12-15 Page 5 of 20 1 EUT Description Device Information： DUT Name: LTE CPE Type Identification: B310s-518 Device Type : Mobile Device FCC ID: QISB310S-518 Device Phase: Identical Prototype Exposure Category: Uncontrolled environment/general population Hardware Version : WL1B310I Software Version : V100R001 Antenna Type : Internal Antenna Device Operating Configurations: Supporting Mode(s) GSM850/1900, UMTS Band II/IV/V, LTE band II/IV/V/VII, WLAN 2.4G Test Modulation GSM(GMSK/8PSK),UMTS(QPSK),LTE(QPSK/16QAM),WLAN(DSSS/OFDM) Operating Frequency Range(s) Band Tx (MHz) Rx (MHz) GSM850 824-849 869-894 GSM1900 1850-1910 1930-1990 UMTS Band II 1850-1910 1930-1990 UMTS Band IV 1710-1755 2110-2155 UMTS Band V 824-849 869-894 LTE Band II 1850–1910 1930–1990 LTE Band IV 1…

Text truncated - open the document above for the full version.

FCC RF Test Report Product Name: LTE CPE Model Number: B310s-518 Report No: SYBH(Z-RF)003122014-2001 FCC ID：QISB310S-518 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 29 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 29 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2014-12-02 Start Date of Test: 2014-12-05 End Date of Test: 2014-12-13 Test Result: Pass Approved by Senior Engineer: 2014-12-14 Liu Chunlin Date Name Signature Prepared by: 2014-12-14 Ling Kaiyun Date Name Signature RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 29 Modification Record No. Last Report No. Modification Description 1 First report. RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 29 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard ........................................................................................................................................ 6 1.2 Test Location.............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 2.1 Cellular Band (824-849 MHz paired with 869-894 MHz) ............................................................................ 7 2.2 PCS Band (1850-1915 MHz paired with 1930-1995 MHz) ......................................................................... 8 2.3 AWS Band (1710-1755 MHz paired with 2110-2155 MHz) ........................................................................ 9 2.4 BRS&EBS Band (2500-2570 MHz) .......................................................................................................... 10 3 Description of the Equipment under Test (EUT) ................................................................................................... 11 3.1 General Description ................................................................................................................................. 11 3.2 EUT Identity ............................................................................................................................................. 11 3.3 Technical Specification ............................................................................................................................ 12 4 General Test Conditions / Configurations ............................................................................................................. 15 4.1 Test Modes .............................................................................................................................................. 15 4.2 Test Environment ..................................................................................................................................... 15 4.3 Test Frequency ........................................................................................................................................ 16 4.4 DESCRIPTION OF TESTS ...................................................................................................................... 21 4.5 Test Setups .............................................................................................................................................. 24 4.6 Test Conditions ........................................................................................................................................ 26 5 Main Test Instruments .......................................................................................................................................... 28 6 Measurement Uncertainty ..................................................................................................................................... 29 RF Test Report of B310s-518 Report No: SYBH(Z-RF)0…

Text truncated - open the document above for the full version.

RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 1103 Appendix for test report RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 1103 APPENDIX FOR TEST REPORT ..................................................................................................................... 1 1APPENDIX_A: EFFECTIVE (ISOTROPIC) RADIATED POWER OUTPUT DATA ............................................................ 4 Part I - Test Results ............................................................................................................................................. 4 2APPENDIX_B: PEAK-TO-AVERAGE RATIO .............................................................................................................. 26 Part I - Test Results ........................................................................................................................................... 26 3APPENDIX_C: MODULATION CHARACTERISTICS ................................................................................................... 49 Part I - Test Plots ................................................................................................................................................ 49 3.3 For LTE ......................................................................................................................................................... 56 3.3.1 Test Band = BAND2................................................................................................................................. 56 3.3.2 Test Band = BAND4 ................................................................................................................................. 68 3.3.3 Test Band = BAND5................................................................................................................................. 80 3.3.4 Test Band = BAND7................................................................................................................................. 88 4APPENDIX_D: BANDWIDTH .................................................................................................................................... 96 Part I - Test Results ........................................................................................................................................... 96 Part II - Test Plots ............................................................................................................................................. 101 4.3.1 Test Band = BAND2............................................................................................................................... 122 4.3.2 Test Band = BAND4............................................................................................................................... 158 4.3.3 Test Band = BAND5............................................................................................................................... 194 4.3.4 Test Band = BAND7............................................................................................................................... 218 5APPENDIX_E: BAND EDGES COMPLIANCE .......................................................................................................... 242 Part I - Test Plots .............................................................................................................................................. 242 5.3 For LTE ....................................................................................................................................................... 256 5.3.1 Test Band = BAND2............................................................................................................................... 256 5.3.2 Test Band = BAND4............................................................................................................................... 352 5.3.3 Test Band = BAND5............................................................................................................................... 449 5.3.4 Test Band = BAND7............................................................................................................................... 513 6APPENDIX_F: SPURIOUS EMISSION AT ANTENNA TERMINAL .............................................................................. 577 Part I - Test Plots .............................................................................................................................................. 577 6.2 For UMTS ................................................................................................................................................... 619 6.2.1 Test Band = WCDMA850 ...................................................................................................................... 619 6.2.2 Test Band = WCDMA1900 ................................................................................................................... 626 6.2.3 Test Band = WCDMA1700 ................................................................................................................... 632 6.3 For LTE ....................................................................................................................................................... 638 6.3.1 Test Band = BAND2............................................................................................................................... 638 6.3.2 Test Band = BAND4............................................................................................................................... 746 6.3.3 Test Band = BAND5............................................................................................................................... 854 6.3.4 Test Band = BAND7..........................…

Text truncated - open the document above for the full version.

RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 92 of 1103 3.3.4.2 Test Mode = LTE/TM2 3.3.4.2.1 Test Bandwidth = 5 3.3.4.2.1.1 Test Channel = MCH 3.3.4.2.1.1.1 Test RB = RB25#0 RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 93 of 1103 3.3.4.2.2 Test Bandwidth = 10 3.3.4.2.2.1 Test Channel = MCH 3.3.4.2.2.1.1 Test RB = RB50#0 RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 94 of 1103 3.3.4.2.3 Test Bandwidth = 15 3.3.4.2.3.1 Test Channel = MCH 3.3.4.2.3.1.1 Test RB = RB75#0 RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 95 of 1103 3.3.4.2.4 Test Bandwidth = 20 3.3.4.2.4.1 Test Channel = MCH 3.3.4.2.4.1.1 Test RB = RB100#0 RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 96 of 1103 4Appendix_D: Bandwidth Part I - Test Results Test Band Test Mode Test Channel Occupied Bandwidth [kHz] Emission Bandwidth [kHz] Verdict GSM850 GSM/TM1 LCH 245.39 315.80 Pass MCH 246.21 312.29 Pass HCH 243.71 312.00 Pass GSM/TM2 LCH 242.18 311.64 Pass MCH 244.13 309.88 Pass HCH 247.19 315.05 Pass GSM1900 GSM/TM1 LCH 243.54 312.94 Pass MCH 243.30 315.44 Pass HCH 245.57 313.19 Pass GSM/TM2 LCH 248.05 318.55 Pass MCH 244.67 317.67 Pass HCH 243.07 315.73 Pass Test Band Test Mode Test Channel Occupied Bandwidth [MHz] Emission Bandwidth [MHz] Verdict WCDMA850 UMTS/TM1 LCH 4.15 4.70 Pass MCH 4.16 4.71 Pass HCH 4.15 4.69 Pass WCDMA190 0 UMTS/TM1 LCH 4.15 4.71 Pass MCH 4.17 4.71 Pass HCH 4.15 4.71 Pass WCDMA170 0 UMTS/TM1 LCH 4.18 4.74 Pass MCH 4.17 4.72 Pass HCH 4.15 4.72 Pass RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 97 of 1103 Test Band Test Mode Test Bandwidth Test Channel Test RB Occupied Bandwidth [MHz] Emission Bandwidth [MHz] Verdict BAND2 LTE/TM1 1.4 LCH RB6#0 1.09 1.23 Pass MCH RB6#0 1.09 1.22 Pass HCH RB6#0 1.09 1.23 Pass 3 LCH RB15#0 2.71 2.93 Pass MCH RB15#0 2.71 2.94 Pass HCH RB15#0 2.70 2.92 Pass 5 LCH RB25#0 4.49 4.86 Pass MCH RB25#0 4.50 4.87 Pass HCH RB25#0 4.49 4.85 Pass 10 LCH RB50#0 8.99 9.62 Pass MCH RB50#0 9.00 9.66 Pass HCH RB50#0 8.99 9.58 Pass 15 LCH RB75#0 13.48 14.39 Pass MCH RB75#0 13.49 14.44 Pass HCH RB75#0 13.48 14.39 Pass 20 LCH RB100#0 17.97 19.07 Pass MCH RB100#0 17.97 19.02 Pass HCH RB100#0 18.01 19.11 Pass LTE/TM2 1.4 LCH RB6#0 1.09 1.23 Pass MCH RB6#0 1.09 1.22 Pass HCH RB6#0 1.09 1.23 Pass 3 LCH RB15#0 2.70 2.92 Pass MCH RB15#0 2.71 2.93 Pass HCH RB15#0 2.70 2.93 Pass 5 LCH RB25#0 4.49 4.87 Pass MCH RB25#0 4.50 4.89 Pass HCH RB25#0 4.50 4.88 Pass 10 LCH RB50#0 8.99 9.63 Pass MCH RB50#0 9.01 9.63 Pass HCH RB50#0 9.00 9.65 Pass 15 LCH RB75#0 13.48 14.37 Pass MCH RB75#0 13.49 14.43 Pass HCH RB75#0 13.49 14.35 Pass 20 LCH RB100#0 17.98 19.09 Pass MCH RB100#0 17.97 19.07 Pass HCH RB100#0 18.00 19.09 Pass BAND4 LTE/TM1 1.4 LCH RB6#0 1.09 1.23 Pass RF Test Report of B310s-518 Report No: SYBH(Z-RF)003122014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9…

Text truncated - open the document above for the full version.
