QISB5142B43 TD-LTE Indoor CPE

WLTFSR-115GN Quick Start Guide Issue 01 Date 2014-10-15 HU AW E I TECHNOLOGIES CO., LTD. Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] Issue 01 (2014-10-15) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. i WLTFSR-115GN Quick Start Guide For FCC-rev Contents Contents Contents ............................................................................................................................................ ii 1 About This Document .................................................................................................................. 1 2 What You Need .............................................................................................................................. 2 3 LED Indicators ............................................................................................................................... 3 4 Connectors ...................................................................................................................................... 5 5 Installation ....................................................................................................................................... 7 6 Easy Setup....................................................................................................................................... 8 Issue 01 (2014-10-15) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. ii WLTFSR-115GN Quick Start Guide For FCC-rev 1 About This Document 1 About This Document Change History Changes between document issues are cumulative. The latest document issue contains all the changes made in earlier issues. Issue 01 (2014-10-15) This is the first release. Issue 01 (2014-10-15) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 1 WLTFSR-115GN Quick Start Guide For FCC-rev 2 What You Need 2 What You Need The LTE I ndoor CPE Quick Start Guide RJ45 Cable for connecting the CPE and the computer Power Adapter Issue 01 (2014-10-15) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 2 WLTFSR-115GN Quick Start Guide For FCC-rev 3 LED Indicators 3 LED Indicators 3 4 5 2 1 6 Issue 01 (2014-10-15) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 3 WLTFSR-115GN Quick Start Guide For FCC-rev 3 LED Indicators 1 Power ON Power ON OFF Power OFF 2 LAN ON LAN activated OFF LAN deactivated Flashing Transmitting data 3 Vo I P ON SIP Register OFF SIP Unregister Flashing Unhook 4 WiFi Status ON Wi-Fi ON OFF Wi-Fi OFF Flashing Transmitting data 5 SIM Card Status ON SIM card detected OFF No SIM card inside 6 Signal Strength ON Display signal strength 1 LED: 0<=CINR<8 2 LED: 8<=CINR<12 3 LED: 12<=CINR<16 4 LED: 16<=CINR<24 5 LED: 24<=CINR OFF No signal Flashing Scanning Base Station Issue 01 (2014-10-15) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 4 WLTFSR-115GN Quick Start Guide For FCC-rev 4 Connectors 4 Connectors 1 2 3 4 5 Issue 01 (2014-10-15) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 5 WLTFSR-115GN Quick Start Guide For FCC-rev 4 Connectors 1. Reset Button: Press “Reset” button for less than 5 seconds to reboot the device. Or press and hold the Reset button for more than 10 seconds to set the device to factory default settings. 2. SIM card slot: Insert SIM card into the slot with right direction. 3. Telephone Port (RJ-11): Connect your telephone to LTE Indoor CPE using RJ-11 telephone cable. 4. LAN Port (RJ-45): This port is for connecting LTE Indoor CPE to your PC or other network equipments (such as hubs or switches) with a RJ-45 Ethernet cable. 5. DC-12V Port (Power Adapter Socket): Connect the power adapter provided with LTE Indoor CPE. Issue 01 (2014-10-15) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 6 WLTFSR-115GN Quick Start Guide For FCC-rev 5 Installation 5 Installation Please follow the steps below to install the device: Step1: Connect the device LAN port to your PC with a RJ-45 Ethernet cable that is supplied. Step2: Insert SIM card into the device with right direction. Step3: Insert the power cord into the LTE Indoor CPE's DC-12V power jack; and insert the plug into power outlet. Step4: Switch ON the power. The device will start the booting process. After a few seconds, the LED lights will start blinking. Issue 01 (2014-10-15) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. 7 WLTFSR-115GN Quick Start Guide For FCC-rev 6 Easy Setup 6 Easy Setup Issue 01 (2014-10-15) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., …

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Bantian, Longgang District Shenzhen, 518129 P.R.C. Date: October 20, 2014 Subject: Ad Hoc Mode Function Declaration FCC ID: QISB5142 To Whom it may concern, We, Huawei Technologies Co., Ltd. declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. Regards, Zhang Xinghai Huawei Technologies Co., Ltd. Tel: +86-755-2897-0299 Fax: +86-755-8965-0226 E-mail: [email protected]

Huawei Technologies Co., Ltd. Bantian, Longgang District Shenzhen, 518129 P.R.C. Confidentiality Request Letter Date: 2014/10/14 Federal Communications Commission Authorization and Evaluation Division FCC ID：QISB5142 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description 4. Tune up procedure 5. BOM (Part list) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Zhang Xinghai Huawei Technologies Co., Ltd. Tel: +86-755-2897-0299 Fax: +86-755-8965-0226 E-mail: [email protected]

Huawei Technologies Co., Ltd. Bantian, Longgang District Shenzhen, 518129 P.R.C. Date: 2014/10/14 Federal Communications Commission 7435 Oakland Mills Rd, Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: QISB5142 To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model B5142 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Zhang Xinghai Huawei Technologies Co., Ltd. Tel: +86-755-2897-0299 Fax: +86-755-8965-0226 E-mail: [email protected]

Huawei Technologies Co., Ltd. Bantian, Longgang District Shenzhen, 518129 P.R.C. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: October 17, 2014 Subject: FCC Application for FCC ID: QISB5142 To Whom it may concern, Please be notified that we, the undersigned, Huawei Technologies Co., Ltd. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is FD491904. Testing in regards to this report was done by Internation Certifiation Corp., located at No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.), which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Zhang Xinghai Huawei Technologies Co., Ltd. Tel: +86-755-2897-0299 Fax: +86-755-8965-0226 E-mail: [email protected]

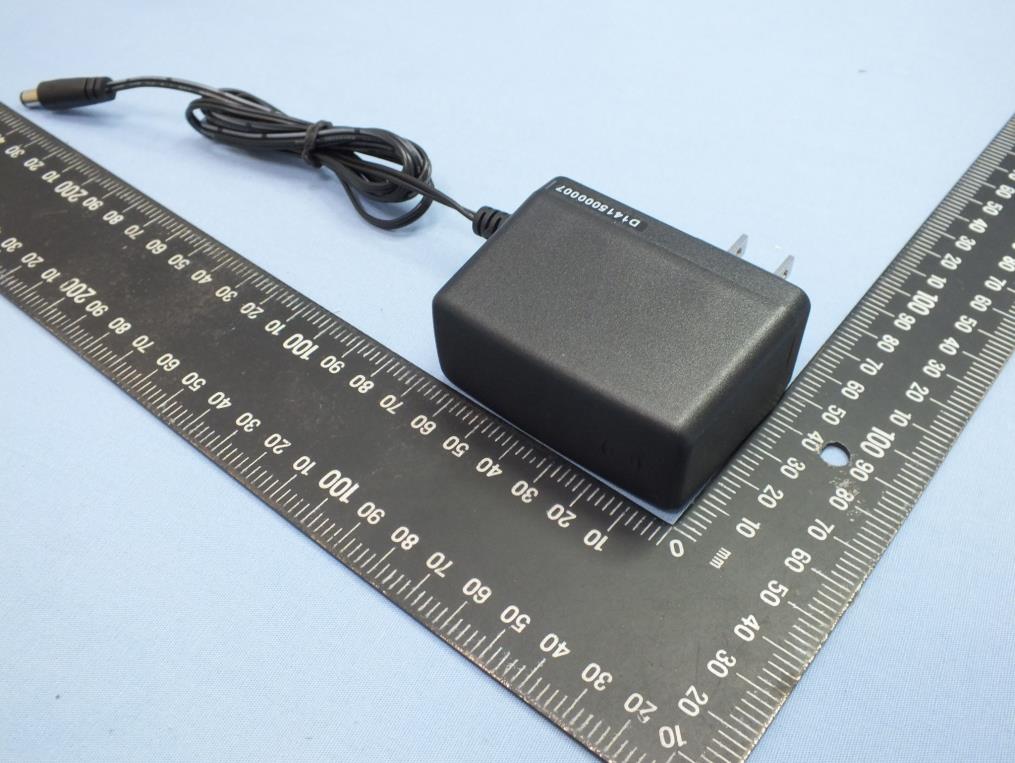

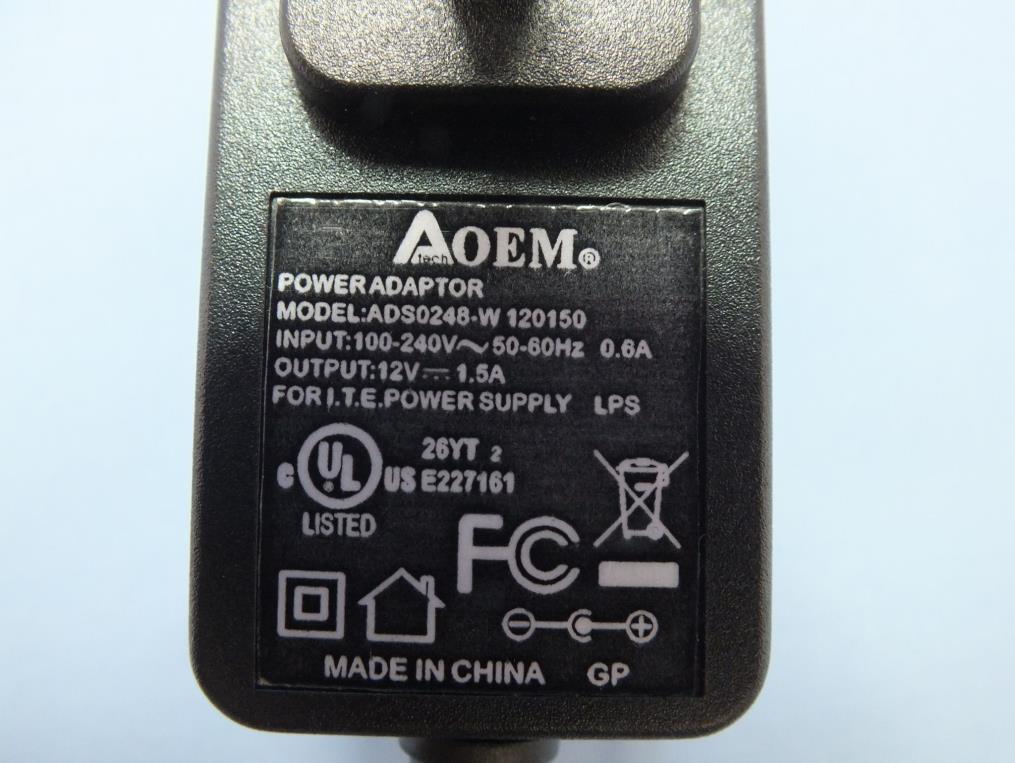

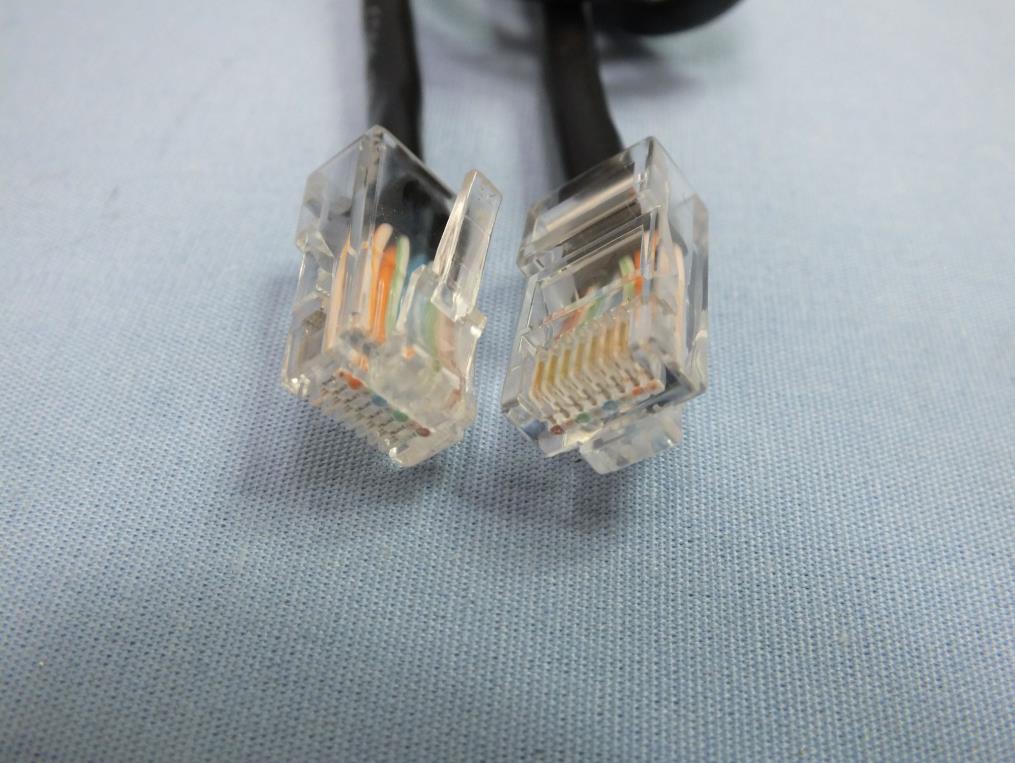

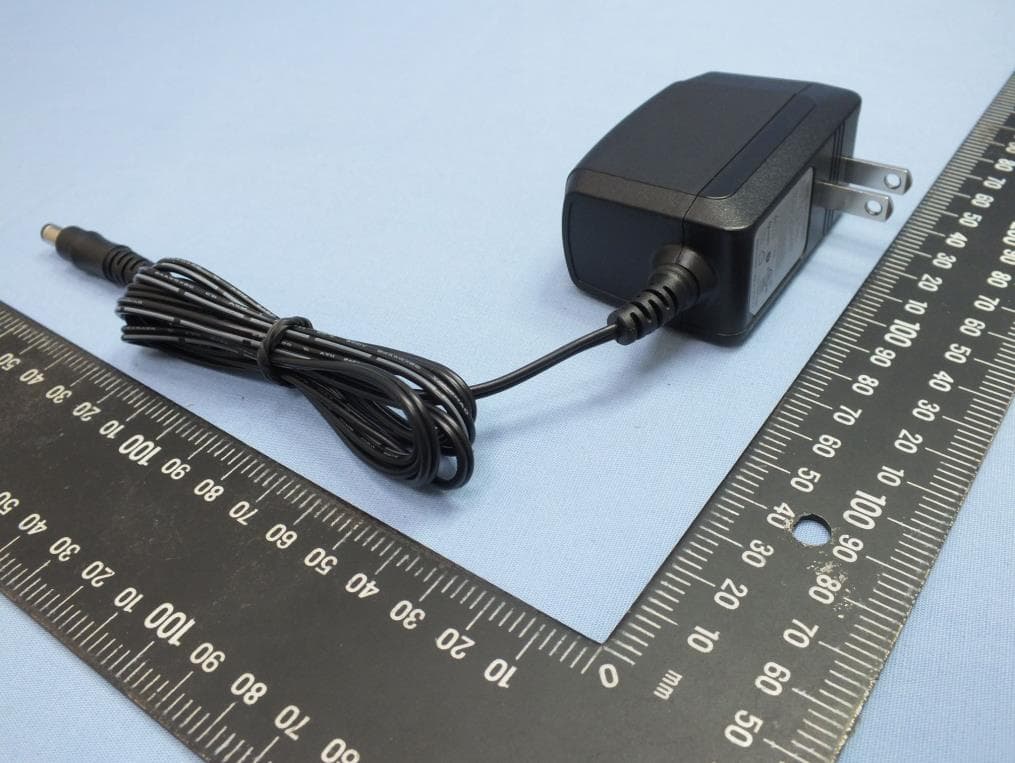

Project No.: 491904 Page No. : 1 of 22 Photographs of EUT Project No.: 491904 Page No. : 2 of 22 Project No.: 491904 Page No. : 3 of 22 Project No.: 491904 Page No. : 4 of 22 Project No.: 491904 Page No. : 5 of 22 Project No.: 491904 Page No. : 6 of 22

Project No.: 491904 Page No. : 7 of 22 Wi-Fi antenna 1 LTE antenna Project No.: 491904 Page No. : 8 of 22 Project No.: 491904 Page No. : 9 of 22 Wi-Fi antenna 2 LTE transmitter Wi-Fi transmitter Project No.: 491904 Page No. : 10 of 22 Project No.: 491904 Page No. : 11 of 22 Project No.: 491904 Page No. : 12 of 22 Project No.: 491904 Page No. : 13 of 22 LTE transmitter Project No.: 491904 Page No. : 14 of 22 Project No.: 491904 Page No. : 15 of 22 Project No.: 491904 Page No. : 16 of 22 Wi-Fi transmitter Project No.: 491904 Page No. : 17 of 22 Project No.: 491904 Page No. : 18 of 22 Project No.: 491904 Page No. : 19 of 22 Project No.: 491904 Page No. : 20 of 22 Project No.: 491904 Page No. : 21 of 22 Project No.: 491904 Page No. : 22 of 22

Report No.: FA491904 Page : 1 of 5 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : QISB5142 Equipment : B42/B43 TD-LTE Indoor CPE Model No. : B5142 Brand Name : Huawei Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Standard : 47 CFR FCC Part 2.1091 Received Date : Sep. 19, 2014 Tested Date : Sep. 26 ~ Oct. 07, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA491904 Page : 2 of 5 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 5 Report No.: FA491904 Page : 3 of 5 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA491904 Rev. 01 Initial issue Oct. 15, 2014 Report No.: FA491904 Page : 4 of 5 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Frequency range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 (Wi-Fi) 21.86 2 20 0.048 1 3652.5~3672.5 (LTE) 23.46 5.5 20 0.157 1 MPE Evaluation of Simultaneous Transmission Wi-Fi 2.4 GHz and LTE can transmit at the same time, MPE evaluation is as below formula PD1 / Limit1 + PD2 / Limit 2 + ..... < 1, PD = Power density MPE Evaluation = Maximum MPE of 2.4GHz + Maximum MPE of LTE = 0.048 / 1 + 0.157 / 1 = 0.205 < 1 Conclusion MPE evaluations of single and simultaneous transmission meet the requirement of standard. Report No.: FA491904 Page : 5 of 5 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FW491904 Page : 1 of 63 Report Version: Rev. 01 FCC Test Report FCC ID : QISB5142 Equipment : B43 TD-LTE Indoor CPE Model No. : B5142 Brand Name : Huawei Applicant : Huawei Technologies Co., Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Standard : 47 CFR FCC Part 90 Subpart Z Received Date : Sep. 19, 2014 Tested Date : Sep. 26 ~ Oct. 07, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FW491904 Page : 2 of 63 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition and Location Information ......................................................................................... 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TEST RESULTS................................................................................................................................... 12 3.1 Equivalent Isotropically Radiated Power and Peak EIRP Power Density ............................................ 12 3.2 Radiated Emissions .............................................................................................................................. 26 3.3 Conducted Emissions ........................................................................................................................... 34 3.4 Emission Mask ..................................................................................................................................... 39 3.5 26dBc Bandwidth ................................................................................................................................. 56 3.6 Frequency Stability ............................................................................................................................... 61 4 TEST LABORATORY INFORMATION ............................................................................................... 63 Report No.: FW491904 Page : 3 of 63 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FW491904 Rev. 01 Initial issue Oct. 15, 2014 Report No.: FW491904 Page : 4 of 63 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 2.1046 / 90.1321 Equivalent Isotropically Radiated Power Maximum EIRP: 0.736 W / 5MHz 0.787 W / 10MHz 0.773 W / 15MHz 0.721 W / 20MHz Pass 2.1046 / 90.1321 Peak EIRP Power Density Meet the requirement of limit Pass 2.1053 / 90.1323 Radiated Emissions Meet the requirement of limit Pass 2.1051 / 90.1323 Conducted Emissions Meet the requirement of limit Pass 90.210 Emission Mask Meet the requirement of limit Pass 2.1049(h) / 90.1323 26dBc Bandwidth Meet the requirement of limit Pass 2.1055 / 90.213 Frequency Stability Meet the requirement of limit Pass Report No.: FW491904 Page : 5 of 63 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) Operating Frequency (MHz) Channel Bandwidth: 5MHz: 3652.5~3672.5 Channel Bandwidth: 10MHz: 3655.0~3670.0 Channel Bandwidth: 15MHz: 3657.5~3667.5 Channel Bandwidth: 20MHz: 3660.0~3665.0 Uplink Modulation Type QPSK, 16QAM Downlink Modulation Type QPSK, 16QAM, 64QAM Duplex Mode TDD UE Category 4 H/W Version Mother board: V01; daughter board: V00B S/W Version V100R001C00B020 1.1.2 Maximum EIRP & Emission Designator Channel Bandwidth Modulation Maximum EIRP (W) Emission Designator 5MHz QPSK 0.695 4M46G7D 5MHz 16QAM 0.736 4M48W7D 10MHz QPSK 0.750 8M93G7D 10MHz 16QAM 0.787 8M93W7D 15MHz QPSK 0.764 13M4G7D 15MHz 16QAM 0.773 13M4W7D 20MHz QPSK 0.582 17M8G7D 20MHz 16QAM 0.721 17M9W7D Report No.: FW491904 Page : 6 of 63 Report Version: Rev. 01 1.1.3 Antenna Details Ant. No. Type Connector Gain (dBi) Remarks 1 Directional PCB antenna - 1 IPEX PLUG 5.5 - 1.1.4 EUT Operational Condition Power Supply Type 12Vdc from adapter Operational Voltage Vnom (120 V) Vmax (138 V) Vmin (102 V) Operational Climatic Tnom (20°C) Tmax (55°C) Tmin (-10°C) 1.1.5 Accessories Accessories No. Equipment Description 1 Adapter 1 Brand Name: APD Model Name: WB-18D12FU Power Rating: I/P: 100-240Vac, 50-60Hz, 0.5A O/P: 12Vdc, 1.5A Power Line: 1.5m non-shielded cable w/o core 2 Adapter 2 Brand Name: AOEM Model Name: ADS0248-W 120150 Power Rating: I/P: 100-240Vac, 50-60Hz, 0.6A O/P: 12Vd…

Text truncated - open the document above for the full version.

Report No.: FW491904 Page : 39 of 63 Report Version: Rev. 01 3.4 Emission Mask 3.4.1 Limit of Emission Mask The power of any emission must be attenuated below the unmodulated carrier power (P) as follows. (1) On any frequency removed from the assigned frequency by more than 50 percent, but not more than 100 percent of the authorized bandwidth: At least 25 dB. (2) On any frequency removed from the assigned frequency by more than 100 percent, but not more than 250 percent of the authorized bandwidth: At least 35 dB. (3) On any frequency removed from the assigned frequency by more than 250 percent of the authorized bandwidth: At least 43 + 10 log (P) dB. 3.4.2 Test Procedures 1. Set RBW=1% of 26dBc bandwidth, VBW=3 X RBW, detector=RMS, Sweep time = Auto. 2. Set EUT to transmit modulation signal to spectrum analyzer and confirm that the signal complies the limit or not. 3. Record the max trace value and capture the test plot. 3.4.3 Test Setup Report No.: FW491904 Page : 40 of 63 Report Version: Rev. 01 3.4.4 Test Result of Emission Mask Low Ch. QPSK, CB: 5MHz, 1RB-H Mid. Ch. QPSK, CB: 5MHz, 1RB-H Low Ch. QPSK, CB: 5MHz, 1RB-L Mid. Ch. QPSK, CB: 5MHz, 1RB-L Low Ch. QPSK, CB: 5MHz, 100%RB Mid. Ch. QPSK, CB: 5MHz, 100%RB Report No.: FW491904 Page : 41 of 63 Report Version: Rev. 01 High Ch. QPSK, CB: 5MHz, 1RB-H --- --- High Ch. QPSK, CB: 5MHz, 1RB-L --- --- High Ch. QPSK, CB: 5MHz, 100%RB --- --- Report No.: FW491904 Page : 42 of 63 Report Version: Rev. 01 Low Ch. 16QAM, CB: 5MHz, 1RB-H Mid. Ch. 16QAM, CB: 5MHz, 1RB-H Low Ch. 16QAM, CB: 5MHz, 1RB-L Mid. Ch. 16QAM, CB: 5MHz, 1RB-L Low Ch. 16QAM, CB: 5MHz, 100%RB Mid. Ch. 16QAM, CB: 5MHz, 100%RB Report No.: FW491904 Page : 43 of 63 Report Version: Rev. 01 High Ch. 16QAM, CB: 5MHz, 1RB-H --- --- High Ch. 16QAM, CB: 5MHz, 1RB-L --- --- High Ch. 16QAM, CB: 5MHz, 100%RB --- --- Report No.: FW491904 Page : 44 of 63 Report Version: Rev. 01 Low Ch. QPSK, CB: 10MHz, 1RB-H Mid. Ch. QPSK, CB: 10MHz, 1RB-H Low Ch. QPSK, CB: 10MHz, 1RB-L Mid. Ch. QPSK, CB: 10MHz, 1RB-L Low Ch. QPSK, CB: 10MHz, 100%RB Mid. Ch. QPSK, CB: 10MHz, 100%RB Report No.: FW491904 Page : 45 of 63 Report Version: Rev. 01 High Ch. QPSK, CB: 10MHz, 1RB-H --- --- High Ch. QPSK, CB: 10MHz, 1RB-L --- --- High Ch. QPSK, CB: 10MHz, 100%RB --- --- Report No.: FW491904 Page : 46 of 63 Report Version: Rev. 01 Low Ch. 16QAM, CB: 10MHz, 1RB-H Mid. Ch. 16QAM, CB: 10MHz, 1RB-H Low Ch. 16QAM, CB: 10MHz, 1RB-L Mid. Ch. 16QAM, CB: 10MHz, 1RB-L Low Ch. 16QAM, CB: 10MHz, 100%RB Mid. Ch. 16QAM, CB: 10MHz, 100%RB Report No.: FW491904 Page : 47 of 63 Report Version: Rev. 01 High Ch. 16QAM, CB: 10MHz, 1RB-H --- --- High Ch. 16QAM, CB: 10MHz, 1RB-L --- --- High Ch. 16QAM, CB: 10MHz, 100%RB --- ---

Report No.: FW491904 Page : 48 of 63 Report Version: Rev. 01 Low Ch. QPSK, CB: 15MHz, 1RB-H Mid. Ch. QPSK, CB: 15MHz, 1RB-H Low Ch. QPSK, CB: 15MHz, 1RB-L Mid. Ch. QPSK, CB: 15MHz, 1RB-L Low Ch. QPSK, CB: 15MHz, 100%RB Mid. Ch. QPSK, CB: 15MHz, 100%RB Report No.: FW491904 Page : 49 of 63 Report Version: Rev. 01 High Ch. QPSK, CB: 15MHz, 1RB-H --- --- High Ch. QPSK, CB: 15MHz, 1RB-L --- --- High Ch. QPSK, CB: 15MHz, 100%RB --- --- Report No.: FW491904 Page : 50 of 63 Report Version: Rev. 01 Low Ch. 16QAM, CB: 15MHz, 1RB-H Mid. Ch. 16QAM, CB: 15MHz, 1RB-H Low Ch. 16QAM, CB: 15MHz, 1RB-L Mid. Ch. 16QAM, CB: 15MHz, 1RB-L Low Ch. 16QAM, CB: 15MHz, 100%RB Mid. Ch. 16QAM, CB: 15MHz, 100%RB Report No.: FW491904 Page : 51 of 63 Report Version: Rev. 01 High Ch. 16QAM, CB: 15MHz, 1RB-H --- --- High Ch. 16QAM, CB: 15MHz, 1RB-L --- --- High Ch. 16QAM, CB: 15MHz, 100%RB --- --- Report No.: FW491904 Page : 52 of 63 Report Version: Rev. 01 Low Ch. QPSK, CB: 20MHz, 1RB-H Mid. Ch. QPSK, CB: 20MHz, 1RB-H Low Ch. QPSK, CB: 20MHz, 1RB-L Mid. Ch. QPSK, CB: 20MHz, 1RB-L Low Ch. QPSK, CB: 20MHz, 100%RB Mid. Ch. QPSK, CB: 20MHz, 100%RB Report No.: FW491904 Page : 53 of 63 Report Version: Rev. 01 High Ch. QPSK, CB: 20MHz, 1RB-H --- --- High Ch. QPSK, CB: 20MHz, 1RB-L --- --- High Ch. QPSK, CB: 20MHz, 100%RB --- --- Report No.: FW491904 Page : 54 of 63 Report Version: Rev. 01 Low Ch. 16QAM, CB: 20MHz, 1RB-H Mid. Ch. 16QAM, CB: 20MHz, 1RB-H Low Ch. 16QAM, CB: 20MHz, 1RB-L Mid. Ch. 16QAM, CB: 20MHz, 1RB-L Low Ch. 16QAM, CB: 20MHz, 100%RB Mid. Ch. 16QAM, CB: 20MHz, 100%RB Report No.: FW491904 Page : 55 of 63 Report Version: Rev. 01 High Ch. 16QAM, CB: 20MHz, 1RB-H --- --- High Ch. 16QAM, CB: 20MHz, 1RB-L --- --- High Ch. 16QAM, CB: 20MHz, 100%RB --- ---

Report No.: FW491904 Page : 56 of 63 Report Version: Rev. 01 3.5 26dBc Bandwidth 3.5.1 Test Procedures 1. Set resolution bandwidth (RBW) = 100 kHz, Video bandwidth=300kHz. 2. Detector = Peak, Trace mode = max hold. 3. Sweep = auto couple, Allow the trace to stabilize. 4. Using 26dBc and occupied bandwidth measurement function of spectrum analyzer to measure 26dBc and occupied bandwidth. 3.5.2 Test Setup Report No.: FW491904 Page : 57 of 63 Report Version: Rev. 01 3.5.3 Test Result of 26dBc Bandwidth Mode Modulation Channel Frequency (MHz) 26dB BW (MHz) Occupied Bandwidth (MHz) LTE-BW 5MHz QPSK 44115 3652.5 4.903 4.4397 LTE-BW 5MHz QPSK 44215 3662.5 4.977 4.4573 LTE-BW 5MHz QPSK 44315 3672.5 4.835 4.4575 LTE-BW 5MHz 16QAM 44115 3652.5 4.709 4.4716 LTE-BW 5MHz 16QAM 44215 3662.5 4.907 4.4824 LTE-BW 5MHz 16QAM 44315 3672.5 4.907 4.4826 Worst plots Report No.: FW491904 Page : 58 of 63 Report Version: Rev. 01 Mode Modulation Channel Frequency (MHz) 26dB BW (MHz) Occupied Bandwidth (MHz) LTE-BW 10MHz QPSK 44140 3655.0 9.311 8.9339 LTE-BW 10MHz QPSK 44215 3662.5 9.514 8.8901 LTE-BW 10MHz QPSK 44290 3672.5 9.514 8.8872 LTE-BW 10MHz 16QAM 44140 3655.0 9.877 8.9162 LTE-BW 10MHz 16QAM 44215 3662.5 9.928 8.9255 LTE-BW 10MHz 16QAM 44290 3672.5 9.803 8.8996 Worst plots Report No.: FW491904 Page : 59 of 63 Report Version: Rev. 01 Mode Modulation Channel Frequency (MHz) 26dB BW (MHz) Occupied Bandwidth (MHz) LTE-BW 15MHz QPSK 44165 3657.5 14.09 13.403 LTE-BW 15MHz QPSK 44215 3662.5 14.38 13.414 LTE-BW 15MHz QPSK 44265 3667.5 14.38 13.407 LTE-BW 15MHz 16QAM 44165 3657.5 14.00 13.367 LTE-BW 15MHz 16QAM 44215 3662.5 14.42 13.430 LTE-BW 15MHz 16QAM 44265 3667.5 14.19 13.368 Worst plots Report No.: FW491904 Page : 60 of 63 Report Version: Rev. 01 Mode Modulation Channel Frequency (MHz) 26dB BW (MHz) Occupied Bandwidth (MHz) LTE-BW 20MHz QPSK 44190 3660.0 18.84 17.815 LTE-BW 20MHz QPSK 44215 3662.5 18.84 17.815 LTE-BW 20MHz QPSK 44315 3672.5 18.84 17.811 LTE-BW 20MHz 16QAM 44190 3660.0 18.84 17.861 LTE-BW 20MHz 16QAM 44215 3662.5 18.84 17.863 LTE-BW 20MHz 16QAM 44315 3672.5 18.83 17.877 Worst plots Report No.: FW491904 Page : 61 of 63 Report Version: Rev. 01 3.6 Frequency Stability 3.6.1 Limit of Frequency Stability The frequency stability shall be less +/- 2.5ppm. 3.6.2 Test Procedures 1. EUT was placed at temperature chamber and connected to an external power supply. 2. Temperature and voltage condition shall be tested to confirm frequency stability. 3. Temperature range is from -30~50 o C and voltage range is from lowest to highest working voltage. 4. Tem Link up EUT and simulator. Confirm frequency drift value of simulator and record it. 3.6.3 Test Setup Report No.: FW491904 Page : 62 of 63 Report Version: Rev. 01 3.6.4 Test Result of Frequency Stability Frequency: 3662.5 MHz Frequency Drift (ppm) Temperature ( o C) Frequency Error (ppm) Limit (ppm) T20°CVmax -0.004 2.5 T20°CVmin -0.001 2.5 T55°CVnom -0.003 2.5 T50°CVnom -0.002 2.5 T40°CVnom -0.002 2.5 T30°CVnom -0.001 2.5 T20°CVnom -0.001 2.5 T10°CVnom -0.002 2.5 T0°CVnom -0.002 2.5 T-10°CVnom -0.003 2.5 T-20°CVnom -0.004 2.5 T-30°CVnom -0.004 2.5 Vnom [Vac]: 120 Vmax [Vac]: 138 Vmin [Vac]: 102 Tnom [°C]: 20 Tmax [°C]: 55 Tmin [°C]: -30 Report No.: FW491904 Page : 63 of 63 Report Version: Rev. 01 4 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No.…
