QISB593S-516LTE CPE

Thank you for purchasing the CPE. This CPE brings you a high speed wireless network connection. This document will help you understand your CPE so you can start using it right away. Please read this document carefully before using your CPE. For detailed information about the functions and configurations of the CPE, refer to the online help on the web management page that comes with the CPE. Note: You must install Adobe Reader version 6.0 or higher to read the online help. Getting to Know Your CPE Note: The CPE function descriptions and illustrations in this document are for your reference only. The product you have purchased may vary. Application Scenario The CPE can:  Provide Internet access for Wi-Fi devices and computers.  Connect to telephones for voice services.  Connect to fax machines for fax services (optional).  Be used to save and share files in USB storage devices.  Expand LAN coverage together with hubs and switches. Note:  During thunderstorms and rainy weather, turn off and disconnect the CPE.  When the CPE is in use, you can alter its position or orientation to improve signal reception.  Use a supplied external antenna to avoid CPE malfunctions. Selecting the Installation Environment Obstacles such as concrete and wooden walls will affect the transmission of the network signal. It is recommended that when you install CPE you choose an open space. Keep the CPE away from equipment that generates strong magnetic and electric fields, for instance microwaves, refrigerators, and satellite receivers. Appearance 1 2 3 9 7 8 10 11 12 13 15 16 14 4 5 6 17 ○ 1 Power indicator  On: CPE turned on  Off: CPE turned off ○ 2 WLAN indicator  On: WLAN function enabled  Blinking: Transmitting data through WLAN  Off: WLAN function disabled ○ 3 WPS indicator  On: WPS function enabled  Blinking: WPS interconnection verification is in progress. This process should not take longer than 2 minutes.  Off: WPS function disabled ○ 4 TEL indicator  Off: On-hook condition  Blinking: Incoming call  On: Off-hook condition ○ 5 Mode indicator  Steady blue: The CPE is connected to an LTE network, but no data is being transmitted.  Blinking blue: The CPE is connected to an LTE network and is transmitting data.  Steady green: The CPE is connected to a UMTS network, but no data is being transmitted.  Blinking green: The CPE is connected to a UMTS network and is transmitting data.  Steady yellow: The CPE is connected to a GSM network, but no data is being transmitted.  Blinking yellow: The CPE is connected to a GSM network and is transmitting data.  Steady red: The CPE failed to connect to a wireless network.  Steady purple: The SIM card is not recognized, the PIN has not been entered, or the PIN verification failed. ○ 6 Signal indicator  On: Indicates network signal strength. Full light indicates strong signal.  Off: No network signal. ○ 7 USIM card slot Accommodate a USIM card. ○ 8 Power button Press this button to power the CPE on or off. ○ 9 Power port Connect to the CPE's power adapter. ○ 10 USB port Connect to a USB storage device. Note:  Only USB storage devices in FAT and FAT32 formats are supported.  This port cannot be connected to USB host devices, such as computers. ○ 11 TEL port Connect to telephones or a fax machine (optional). Note: Do not connect a telephone and fax machine to the CPE simultaneously. ○ 12 LAN port Connect to computers, switches, or other network devices. ○ 13 LAN indicator  On: The port is connected to a device.  Blinking: Data is being transmitted through the port.  Off: No device is connected to the port. ○ 14 WPS button After the WPS function is enabled, press and hold this button for more than 0.5 seconds to initiate WPS interconnection. ○ 15 Reset button Press and hold for more than 2 seconds to restore the CPE to its factory settings. Note: Restoring the default settings of the CPE will override all the previous settings. ○ 16 WLAN button Press and hold for more than 2 seconds to enable or disable the WLAN function. ○ 17 External antenna port Connect to an external antenna. Note: Do not power off the CPE during the upgrade. Otherwise, the CPE may be damaged. Getting Started Installing the USIM Card Install the USIM card according to the illustration. Note:  When removing the USIM card, gently press the USIM card in, then release. The card will automatically pop out.  Do not remove the USIM card when it is in use. Doing so will affect the performance of your CPE, and data stored on the USIM card may be lost. Connecting to a Power Adapter Install the power adapter according to the illustration. Note:  Only use power adapters compatible with the CPE and provided by a designated manufacturer. Use of an incompatible power adapter or one from an unknown manufacturer may cause the CPE to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product.  The CPE's power adapter model is HW-120100XYW, HW-120200XYW, HKA01212010-XY or HKA02412020-XY. X and Y represent letters or numbers that vary by region. For details about the specific adapter model, contact an authorized dealer. Logging In to the Web Management Page The web-based configuration utility can be used for initial CPE installation, parameter configuration, and function management through the browser. The Windows XP operating system and Internet Explorer 7.0 are used as an example. Ensure that the CPE is connected to the computer. Follow these steps to log in to the web management page: 1. Connect CPE cables. 2. Configure the computer's IP address so that the IP addresses of the computer and the CPE are in the same network segment. Note:  The CPE's default IP address is 192.168.1.1, the subnet mask is 255.255.255.0.  It is recommended that you use the automatically obtained IP addresses for the computer and domain name system (DNS) server. If you manually configure the computer IP address, you must set the DNS server IP addres…

Text truncated - open the document above for the full version.

Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/en/privacy-policy/index.htm. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Before connecting and disconnecting cables, stop using the device and disconnect it from the power supply. Ensure that your hands are dry during operation.  Place the device on a stable surface.  Keep the device away from electronic appliances that generate strong magnetic or electric fields, such as a microwave oven or refrigerator.  During thunderstorms, power off your device and remove all cables connected to it to protect against lightning strikes.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are 0°C to +40°C. Ideal storage temperatures are -20°C to +70°C. Extreme heat or cold may damage your device or accessories.  Keep the device and accessories in a well-ventilated and cool area away from direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device i…

Text truncated - open the document above for the full version.

Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853A. Equipment: B593s-516, FCC ID: QISB593S-516 Date: 2013-07-31 Signature: _____________________________________ Name: __ Zhang Xinghai___ Title: EMC Laboratory Manager Company: _ Huawei Technologies Co., Ltd. Telephone: 0086-755-89651014

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: INTERTEK Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISB593S-516 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

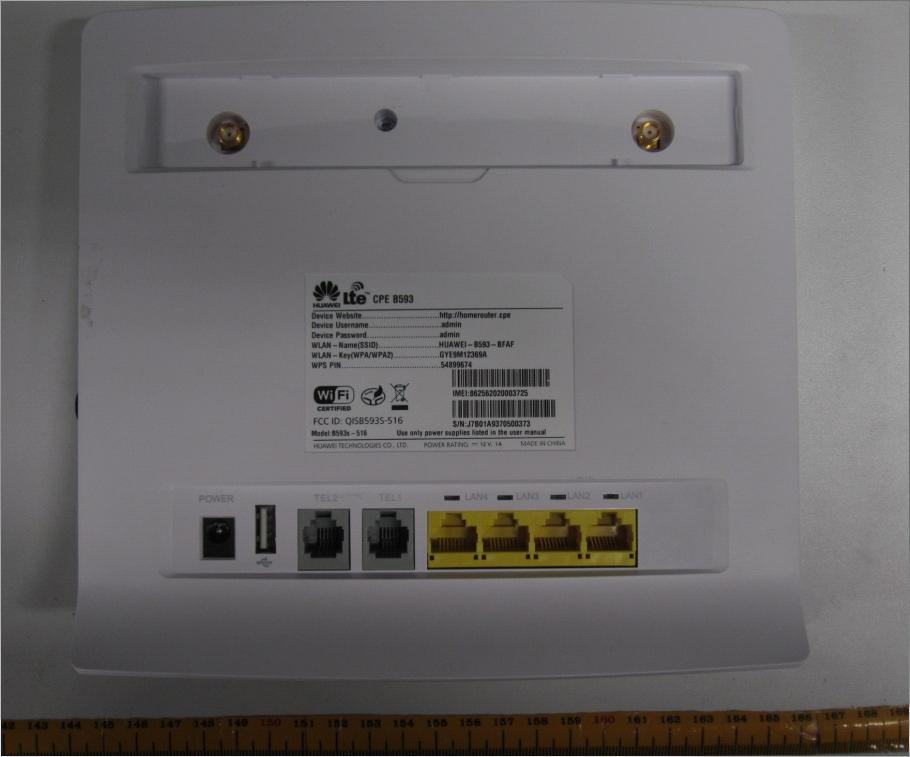

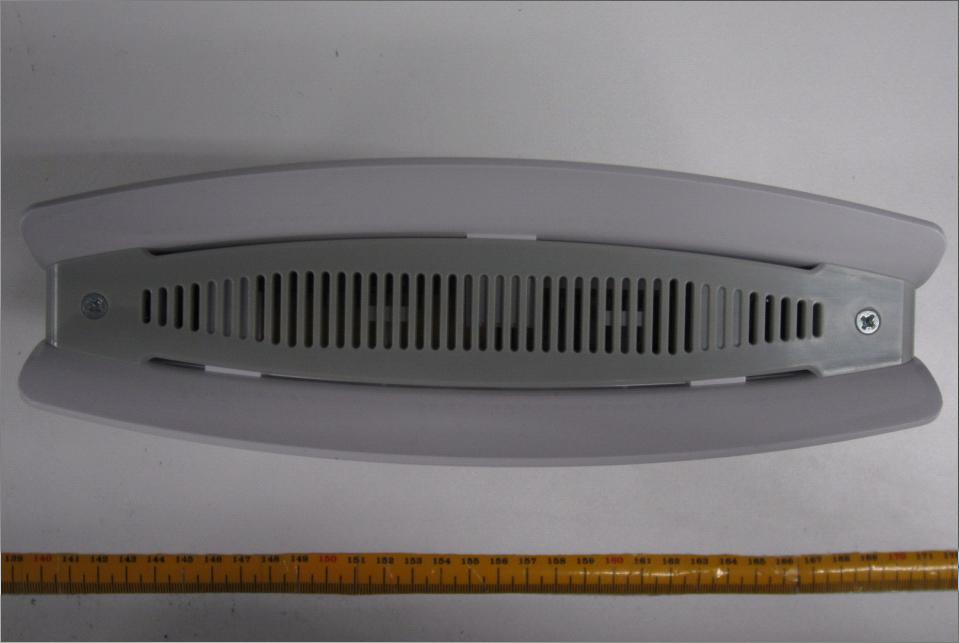

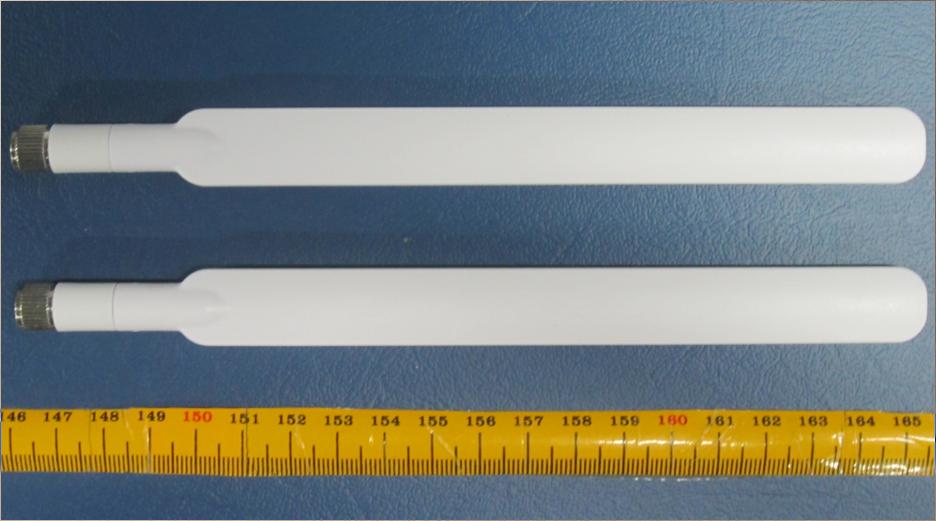

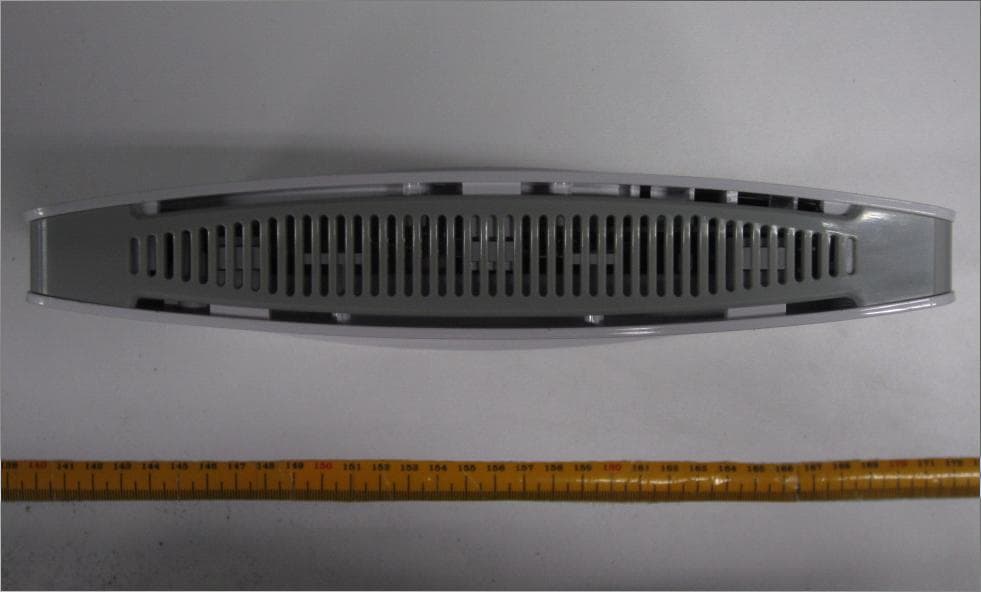

B593s-516 SECRET Page1,Total 7 External Photos of B593s-516 B593s-516 SECRET Page2,Total 7 B593s-516 SECRET Page3,Total 7 B593s-516 SECRET Page4,Total 7 B593s-516 SECRET Page5,Total 7 B593s-516 SECRET Page6,Total 7 B593s-516 SECRET Page7,Total 7

B593s-516 SECRET Page1, Total 1 ID Label Location of B593s-516

B593s-516 SECRET Page1, Total 1 ID Label B593s-516

B593s-516 SECRET Page1, Total4 Internal Photos of B593s-516 B593s-516 SECRET Page2, Total4 B593s-516 SECRET Page3, Total4 B593s-516 SECRET Page4, Total4

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Maximum Permissible Exposure(MPE) Estimation Report Product Name: LTE CPE Model: B593s-516 Report No.: SYBH(Z-SAR)020072013-2 FCC ID: QISB593S-516 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2013-08-07 2013-08-07 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report NO.: SYBH(Z-SAR)020072013-2 FCC ID: QISB593S-516 2013-08-07 Page 2 of 19 ※ ※ Modified History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release 2013-07-26 Sun Shaobin Rev.1.1 1) Remove the DC battery calculation and information on page 11&12; 2) Update the turn up limit for Wi-Fi to19dBm according to turn up procedure on page 15&17,and the tables 9.1-9.10 is updated accordingly. 2013-08-07 Sun Shaobin Report NO.: SYBH(Z-SAR)020072013-2 FCC ID: QISB593S-516 2013-08-07 Page 3 of 19 Table of Contents 1 EUT Description ................................................................................................................. 5 1.1 General Description ................................................................................................. 6 2 Test specification(s) ............................................................................................................ 7 3 Testing laboratory ............................................................................................................... 7 4 Applicant and Manufacturer ............................................................................................... 7 5 Application details ............................................................................................................... 7 6 Ambient Condition .............................................................................................................. 7 7 RF Exposure Requirements ............................................................................................... 8 8 RF Exposure Evaluation ................................................................................................... 11 8.1 Operation in GSM850 ............................................................................................ 11 8.2 Operation in GSM1900 .......................................................................................... 12 8.3 Operation in UMTS Band II ................................................................................... 13 8.4 Operation in UMTS Band IV .................................................................................. 13 8.5 Operation in UMTS Band V ................................................................................... 13 8.6 Operation in LTE Band II ....................................................................................... 14 8.7 Operation in LTE Band IV ..................................................................................... 14 8.8 Operation in LTE Band V ...................................................................................... 14 8.9 Operation in LTE Band VII .................................................................................... 15 8.10 Operation in WLAN 2.4G ....................................................................................... 15 9 Exposure calculations for multiple sources ...................................................................... 16 9.1 Estimation for WLAN2.4G MIMO .......................................................................... 17 9.2 Estimation for GSM850& WLAN2.4G ................................................................... 17 9.3 Estimation for GSM1900& WLAN2.4G ................................................................. 17 9.4 Estimation for UMTS Band II & WLAN2.4G .......................................................... 17 9.5 Estimation for UMTS Band IV & WLAN2.4G......................................................... 18 9.6 Estimation for UMTS Band V & WLAN2.4G.......................................................... 18 9.7 Estimation for LTE Band II & WLAN2.4G .............................................................. 18 Report NO.: SYBH(Z-SAR)020072013-2 FCC ID: QISB593S-516 2013-08-07 Page 4 of 19 9.8 Estimation for LTE Band IV & WLAN2.4G ............................................................ 18 9.9 Estimation for LTE Band V & WLAN2.4G ............................................................. 19 9.10 Estimation for LTE Band VII & WLAN2.4G ........................................................... 19 Report NO.: SYBH(Z-SAR)020072013-2 FCC ID: QISB593S-516 2013-08-07 Page 5 of 19 1 EUT Description Device Information： DUT Name: LTE CPE Type Identification: B593s-516 Device Type : Mobile FCC ID: QISB593S-516 Device Phase: Identical Prototype Exposure Category: Uncontrolled environment/general population Hardware Version : Router Board: CL1B593SR Modem Board: CL1E5172M Software Version : V200R001 Antenna Type : Internal Antenna, External Antenna Device Operating Configurations: Supporting Mode(s) GSM850/1900,UMTS Band II / IV / V, LTE band II / IV / V / VII,WiFi 2.4G(Tested) Test Modulation GMSK/8PSK/QPSK/16QAM/BPSK Operating Frequency Range(s) Band Tx (MHz) Rx (MHz) GSM850 824-849 869-894 GSM1900 1850-1910 1930-1990 UTMS Band II 1850-1910 1930-1990 UTMS Band IV 1710-1755 2110-2155 UTMS Band V 824-849 869-894 LTE Band II 1850-1910 1930-1990 LTE Band IV 1710-1755 2110-2155 LTE band V 824-849 869-894 LTE Band VII 2500-2570 26…

Text truncated - open the document above for the full version.

RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 833 Appendix for Test report RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 833 1Appendix_A: Effective (Isotropic) Radiated Power Output Data Part I - Test Results Test Band Test Mode Test Channel Conducted Power [dBm] ERP [dBm] Limit [dBm] Verdict GSM850 GSM/TM1 LCH 32.19 30.53 38.5 PASS MCH 31.92 30.26 38.5 PASS HCH 31.63 29.97 38.5 PASS GSM/TM2 LCH 25.73 24.07 38.5 PASS MCH 25.69 24.03 38.5 PASS HCH 25.75 24.09 38.5 PASS WCDMA850 UMTS/TM1 LCH 22.73 21.07 38..5 PASS MCH 22.76 21.1 38.5 PASS HCH 22.82 21.16 38.5 PASS RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 833 Test Band Test Mode Test Channel Conducted Power [dBm] EIRP [dBm] Limit [dBm] Verdict GSM1900 GSM/TM1 LCH 28.92 31.62 33 PASS MCH 28.87 31.57 33 PASS HCH 28.9 31.6 33 PASS GSM/TM2 LCH 24.88 27.58 33 PASS MCH 24.91 27.61 33 PASS HCH 24.9 27.6 33 PASS WCDMA1900 UMTS/TM1 LCH 22.49 25.19 33 PASS MCH 22.46 25.16 33 PASS HCH 22.23 24.93 33 PASS WCDMA1700 UMTS/TM1 LCH 22.36 25.23 30 PASS MCH 22.24 25.11 30 PASS HCH 22.21 25.08 30 PASS RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 833 Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured [dBm] ERP/EIRP [dBm] Limit [dBm] Verdict BAND2 LTE/TM1 5 LCH RB1#0 21.99 24.73 33 PASS RB1#13 22.52 25.26 33 PASS RB1#24 22.43 25.17 33 PASS RB12#0 21.82 24.56 33 PASS RB12#6 22.02 24.76 33 PASS RB12#13 22.06 24.8 33 PASS RB25#0 21.92 24.66 33 PASS MCH RB1#0 21.26 24 33 PASS RB1#13 21.82 24.56 33 PASS RB1#24 21.68 24.42 33 PASS RB12#0 21.25 23.99 33 PASS RB12#6 21.29 24.03 33 PASS RB12#13 21.31 24.05 33 PASS RB25#0 21.32 24.06 33 PASS HCH RB1#0 21.92 24.66 33 PASS RB1#13 22.14 24.88 33 PASS RB1#24 21.91 24.65 33 PASS RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 833 Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured [dBm] ERP/EIRP [dBm] Limit [dBm] Verdict RB12#0 21.65 24.39 33 PASS RB12#6 21.78 24.52 33 PASS RB12#13 21.61 24.35 33 PASS RB25#0 21.69 24.43 33 PASS 10 LCH RB1#0 21.9 24.64 33 PASS RB1#25 22.73 25.47 33 PASS RB1#49 22.73 25.47 33 PASS RB25#0 21.67 24.41 33 PASS RB25#13 22.15 24.89 33 PASS RB25#25 22.02 24.76 33 PASS RB50#0 21.9 24.64 33 PASS MCH RB1#0 21.31 24.05 33 PASS RB1#25 21.95 24.69 33 PASS RB1#49 22.29 25.03 33 PASS RB25#0 21 23.74 33 PASS RB25#13 21.38 24.12 33 PASS RB25#25 21.35 24.09 33 PASS RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 833 Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured [dBm] ERP/EIRP [dBm] Limit [dBm] Verdict RB50#0 21.22 23.96 33 PASS HCH RB1#0 22.19 24.93 33 PASS RB1#25 22.25 24.99 33 PASS RB1#49 22.27 25.01 33 PASS RB25#0 21.56 24.3 33 PASS RB25#13 21.64 24.38 33 PASS RB25#25 21.52 24.26 33 PASS RB50#0 21.59 24.33 33 PASS 15 LCH RB1#0 22.04 24.78 33 PASS RB1#38 22.9 25.64 33 PASS RB1#74 22.54 25.28 33 PASS RB36#0 22.05 24.79 33 PASS RB36#18 22.3 25.04 33 PASS RB36#39 22.17 24.91 33 PASS RB75#0 22.28 25.02 33 PASS MCH RB1#0 21.51 24.25 33 PASS RB1#38 22.05 24.79 33 PASS RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 833 Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured [dBm] ERP/EIRP [dBm] Limit [dBm] Verdict RB1#74 22.4 25.14 33 PASS RB36#0 21.25 23.99 33 PASS RB36#18 21.46 24.2 33 PASS RB36#39 21.51 24.25 33 PASS RB75#0 21.35 24.09 33 PASS HCH RB1#0 22.53 25.27 33 PASS RB1#38 22.3 25.04 33 PASS RB1#74 22.18 24.92 33 PASS RB36#0 22.22 24.96 33 PASS RB36#18 22.07 24.81 33 PASS RB36#39 21.77 24.51 33 PASS RB75#0 22.04 24.78 33 PASS 20 LCH RB1#0 22.3 25.04 33 PASS RB1#50 22.86 25.6 33 PASS RB1#99 22.24 24.98 33 PASS RB50#0 22.28 25.02 33 PASS RB50#25 22.31 25.05 33 PASS RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 833 Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured [dBm] ERP/EIRP [dBm] Limit [dBm] Verdict RB50#50 22.11 24.85 33 PASS RB100#0 22.19 24.93 33 PASS MCH RB1#0 21.82 24.56 33 PASS RB1#50 22.08 24.82 33 PASS RB1#99 22.74 25.48 33 PASS RB50#0 21.35 24.09 33 PASS RB50#25 21.51 24.25 33 PASS RB50#50 21.65 24.39 33 PASS RB100#0 21.5 24.24 33 PASS HCH RB1#0 22.49 25.23 33 PASS RB1#50 22.74 25.48 33 PASS RB1#99 22.22 24.96 33 PASS RB50#0 22.29 25.03 33 PASS RB50#25 22.14 24.88 33 PASS RB50#50 21.84 24.58 33 PASS RB100#0 22.02 24.76 33 PASS LTE/TM2 5 LCH RB1#0 21.12 23.86 33 PASS RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 833 Test Band(LTE) Test Mode Test Bandwidth Test Channel Test RB Measured [dBm] ERP/EIRP [dBm] Limit [dBm] Verdict RB1#13 21.71 24.45 33 PASS RB1#24 21.62 24.36 33 PASS RB12#0 21.35 24.09 33 PASS RB12#6 21.57 24.31 33 PASS RB12#13 21.6 24.34 33 PASS RB25#0 21.51 24.25 33 PASS MCH RB1#0 20.57 23.31 33 PASS RB1#13 21.04 23.78 33 PASS RB1#24 20.91 23.65 33 PASS RB12#0 20.75 23.49 33 PASS RB12#6 20.8 23.54 33 PASS RB12#13 20.83 23.57 33 PASS RB25#0 20.82 23.56 33 PASS HCH RB1#0 21.14 23.88 33 PASS RB1#13 21.3 24.04 33 PASS RB1#24 21.14 23.88 33 PASS RB12#0 21.…

Text truncated - open the document above for the full version.

RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 93 of 831 4.1.1.2.3 Test Channel = HCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 94 of 831 4.1.2 Test Band = GSM1900 4.1.2.1 Test Mode = GSM/TM1 4.1.2.1.1 Test Channel = LCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 95 of 831 4.1.2.1.2 Test Channel = MCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 96 of 831 4.1.2.1.3 Test Channel = HCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 97 of 831 4.1.2.2 Test Mode = GSM/TM2 4.1.2.2.1 Test Channel = LCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 98 of 831 4.1.2.2.2 Test Channel = MCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 99 of 831 4.1.2.2.3 Test Channel = HCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 100 of 831 4.2 For UMTS 4.2.1 Test Band = WCDMA850 4.2.1.1 Test Mode = UMTS/TM1 4.2.1.1.1 Test Channel = LCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 101 of 831 4.2.1.1.2 Test Channel = MCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 102 of 831 4.2.1.1.3 Test Channel = HCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 103 of 831 4.2.2 Test Band = WCDMA1900 4.2.2.1 Test Mode = UMTS/TM1 4.2.2.1.1 Test Channel = LCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 104 of 831 4.2.2.1.2 Test Channel = MCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 105 of 831 4.2.2.1.3 Test Channel = HCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 106 of 831 4.2.3 Test Band = WCDMA1700 4.2.3.1 Test Mode = UMTS/TM1 4.2.3.1.1 Test Channel = LCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 107 of 831 4.2.3.1.2 Test Channel = MCH RF Test Report of B593s-516 Security Level: Public Report No: SYBH(Z-RF)012072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 108 of 831 4.2.3.1.3 Test Channel = HCH RF Test Report of B593s-516 Security Lev…

Text truncated - open the document above for the full version.
