QISB681-54Wireless gateway

B681 Quick Start Note:  Figures in this guide are only for your reference. For details about the particular model you have chosen, contact your service provider.  Check the information about the product and its accessories when you purchase it. Some accessories are not provided in the product package. If necessary, contact your local dealer to purchase them.  This guide briefly describes the device functions. For details about how to set the management parameters, see the help information on the web management page. 1 Getting to Know Your Device Application Scenarios Scenario 1: You can connect your computer to the device to access the Internet. The specific connection steps depend on your computer's operating system. Follow the displayed instructions to connect the device to your computer. Scenario 2: You can connect a telephone to the device's telephone port to make voice calls. 1 Appearance 1. Power button 2. Wi-Fi/WPS button 3. Wi-Fi/WPS indicator 4. Network status indicator 5. Power indicator 6. LAN indicators 7. External antenna port 8. Telephone port 9. Power port 10. LAN ports Indicators Indicator Status Wi-Fi/WPS indicator  Steady on: Wi-Fi turned on or data transfer in progress.  Blinking: WPS connection being set up.  Off: Wi-Fi turned off. Network status indicator  Blinking red fast: Subscriber Identity Module (SIM) card unavailable (SIM card not installed or malfunctioning, or PIN code not verified).  Steady yellow: device registered with the network.  Steady green: device connected to the Internet.  Off: no signal received. Power indicator  Steady on: device powered on.  Off: device powered off. / LAN indicators  Steady on: Ethernet cable connected.  Blinking: data transfer in progress.  Off: Ethernet cable not connected. 2 2 Installation Installing the SIM Card Step 1 Slide the card cover off. Step 2 Insert the SIM card into the card slot. Ensure that the gold contact area faces down and that the beveled edge of the SIM card aligns with that of the card slot. Step 3 Slide the card cover back onto the device. Attention: Before removing the SIM card, ensure that the device is powered off and disconnected from the power outlet. (Optional) Using the Table Stand You can place the device on a flat surface such as a table or a desk, or hang it on a wall. You can also use the table stand on the device to place it upright. To use the table stand, insert its latches into the device's table stand slots, as shown in the following figure. Note:  To ensure good signal reception, place the device in a high place or near a window.  To prevent interference caused by radio signals, place the device at least 1 meter (3.28 feet) away from other electrical devices. 3 (Optional) Installing an External Antenna In areas with poor network coverage, connect an external antenna to the device's external antenna port. Screw the external antenna in fully, as shown in the following figure. Note:  Skip this section if you do not need to connect an external antenna to the device.  Before using an external antenna, log in to the web management page (http://192.168.1.1) and set antenna mode to external. For details, see the help information on the web management page.  Only use the external antenna indoors.  You cannot switch between the internal antenna and the external antenna while using a voice or data service. (Optional) Connecting to a Telephone If you want to use the device to make voice calls, connect the device to a telephone, as shown in the following figure. Note:  Skip this section if you do not plan to use the device's voice services.  Radio signals can interfere with telephone call connection and quality. To eliminate the risk of possible interference, place the telephone at least 1 meter (3.28 feet) away from the device.  Do not connect the device to the telephone wall outlet (or any Public Switched Telephone Network), which will cause excessive heat or even damage the device. 4 Connecting to a Computer Use an Ethernet cable to connect a computer to one of the device's LAN ports, as shown in the following figure. When the connection between the device and the computer is set up, the device's corresponding LAN indicator turns on. Ensure that the Ethernet cable is no longer than 100 meters (328 feet). Connecting to a Power Outlet Connect a compatible power adapter to the device's power port, and then plug the power adapter into a power outlet. Note: Using an incompatible power adapter may damage the device. 3 Powering the Device On or Off After connecting to a power outlet, the device will power on automatically.  To manually power the device off, press and hold until all indicators turn off.  To manually power the device on, press and hold until all indicators turn on. 5 4 Setting Up a Wireless Connection Turning the Device's Wi-Fi On By default, the device's Wi-Fi automatically turns on when the device is powered on.  To manually turn Wi-Fi off, press and hold for 2 seconds, and then release your finger. turns off.  To manually turn Wi-Fi on, press and hold until turns steady on. Setting Up a Wi-Fi Connection Note: Before setting up a Wi-Fi connection, ensure that a wireless network adapter has been installed on your computer. If the wireless network adapter is functioning correctly, you will be able to find a wireless network connection in your computer's connection manager application. Method 1: Set up a Wi-Fi connection. Step 1 Ensure that is steady on. Step 2 Scan for available wireless network connections using your computer's connection manager application. Step 3 Connect to the wireless network that has the same service set identification (SSID) as the device. Note:  If a security mechanism has been enabled for the wireless network connection, enter the correct Wi-Fi key.  The SSID and the Wi-Fi key are printed on the device label.  To protect your wireless network from unauthorized access, change the SSID and Wi-Fi key a regular intervals. For details, s…

Text truncated - open the document above for the full version.

MET Laboratories TCB - Samples Long Term Confidentiality Request Letter 07/08/2013 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Wireless Gateway/HUAWEI B681-54/B681-54# FCC ID: QISB681-54) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that: 1. Schematics 2. Block Diagram 3. Operational Description 4. BOM List 5. Tune up procedure Required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, _________________________ Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

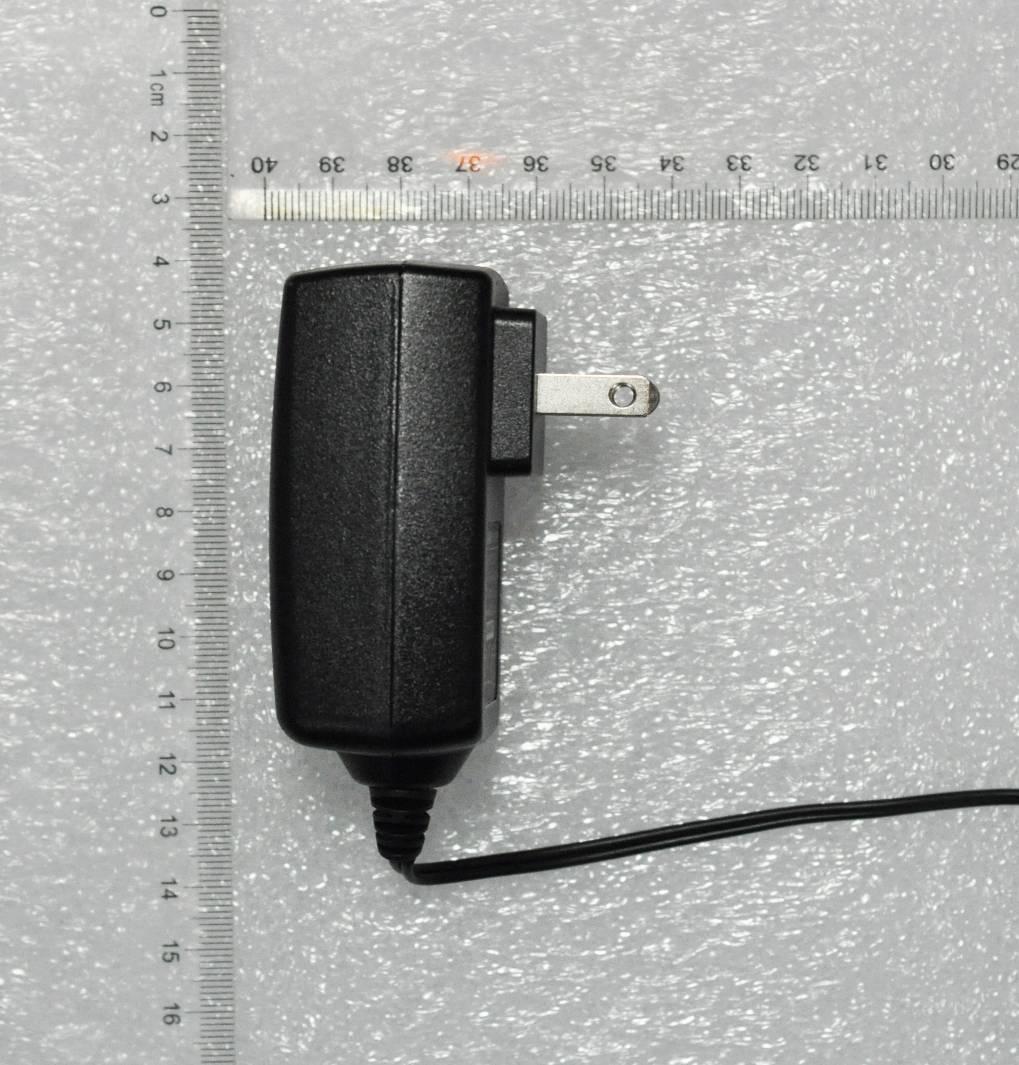

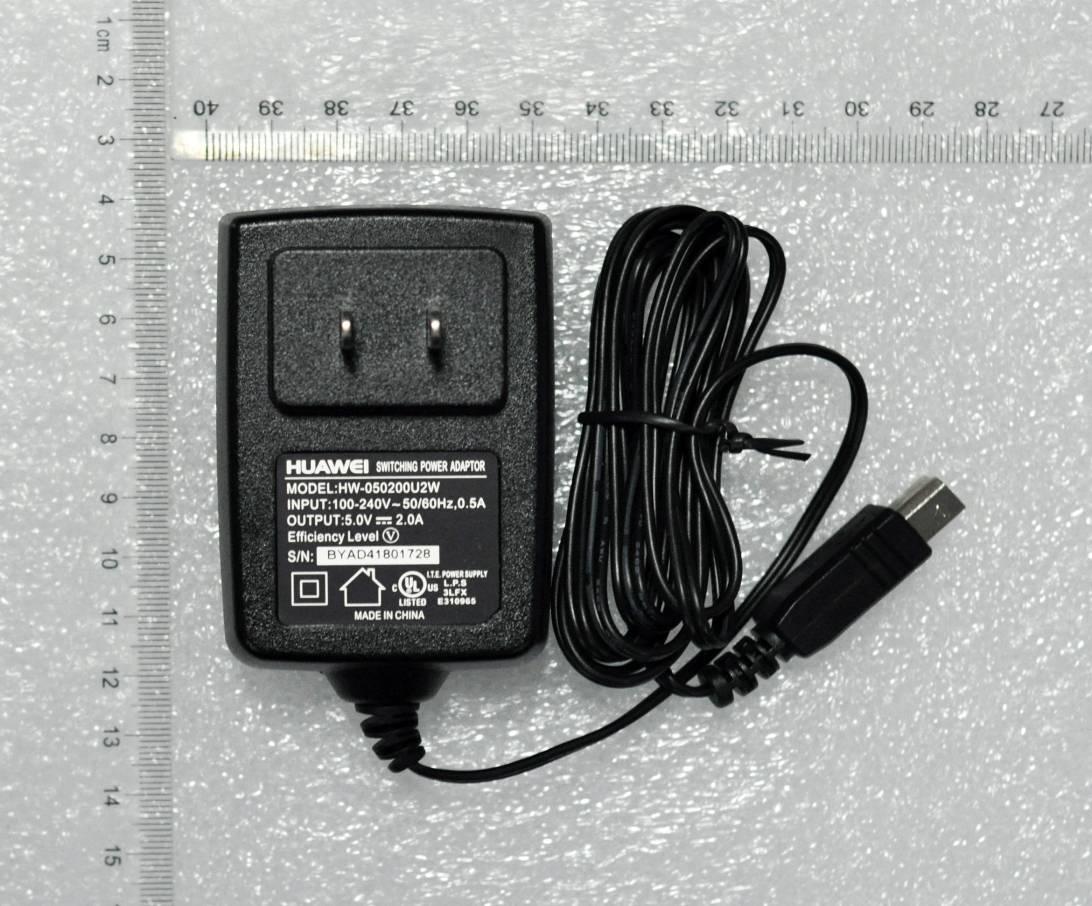

HUAWEI B681-54 Wireless Gateway SECRET Page 1 Total 5 External Photos of HUAWEI B681-54 Wireless Gateway HUAWEI B681-54 Wireless Gateway SECRET Page 2 Total 5 HUAWEI B681-54 Wireless Gateway SECRET Page 3 Total 5 HUAWEI B681-54 Wireless Gateway SECRET Page 4 Total 5 HUAWEI B681-54 Wireless Gateway SECRET Page 5 Total 5 HUAWEI B681-54 Wireless Gateway SECRET Page 6 Total 5

HUAWEI B681-54 Wireless Gateway SECRET Page1, Total 1 ID Label Location: EUT demensions: 179.79mm × 122.22mm × 32.39mm

HUAWEI B681-54 Wireless Gateway SECRET Page 1 Total 1 ID Label: Label size: 650mm x 250mm

HUAWEI B681-54 Wireless Gateway SECRET Page 1 Total 7 Internal Photos of HUAWEI B681-54 Wireless Gateway HUAWEI B681-54 Wireless Gateway SECRET Page 2 Total 7 HUAWEI B681-54 Wireless Gateway SECRET Page 3 Total 7 HUAWEI B681-54 Wireless Gateway SECRET Page 4 Total 7 HUAWEI B681-54 Wireless Gateway SECRET Page 5 Total 7

Huawei B681-54 Electromagnetic Radiation Exposure Estimation SECRET 1 Maximum Permissible Exposure (MPE) Estimation for 1 Introduction The HUAWEI wireless gateway B681-54 (hereinafter referred to as the B681-54) is a wireless HSPA+3G gateway, which provides users with flexible and diversified 3G and 2G data access services, routing function, and network address translation (NAT) function. The WCDMA frequency is Band II and Band V. The GSM frequency is GSM850/ 1900.The WLAN frequency is 2.4G. GSM850 transmit frequency is 824-849MHZ,and Receive Frequency is 869-894MHZ ;GSM1900 transmit frequency is 1850-1910MHZ,and Receive Frequency is 1930-1990 MHZ;WCDMA 1900 transmit frequency is 1850-1910MHZ,and Receive Frequency is 1930-1990MHZ. The WLAN frequency range is 2400-2483.5MHZ。WCDMA 850 transmit frequency is 824-849MHZ .and Receive Frequency is 869-894MHz. B681-54 implements such functions as RF signal receiving/transmitting, HSPA+ / WCDMA / GPRS/EDGE protocol processing, data service, etc. Externally it provides USB type B interface（For power supply）, USIM card interface, two auto-sensing Ethernet interfaces and external antenna interface. And RJ11 interface (to connect to fixed telephone), provide voice service. 2 Limits and Guidelines on Exposure to Electromagnetic Fields According to the FCC Part 2.1091, we know: mobile device (transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters radiating structure(s) and the body of the user or nearby persons). And the Cellular radiotelephone service and PCS services are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or above and their effective radiated power (ERP) is 1.5 watts or more, or if they operate at frequencies below 1.5 GHz and their ERP is 3 watts or more. The maximum radiated power of 850MHz for B681-54 is 2.52W, the maximum radiated power of 1900MHz for B681-54 is 1.26W, and the maximum radiated power of 2400MHz for B681-54 is 0.1W. So the B681-54 is excluded from routine environmental evaluation for RF exposure according to the requirement of FCC Part 2.1091. The present document is given just only for reference. Huawei B681-54 Electromagnetic Radiation Exposure Estimation SECRET 2 Uncontrolled limits are used for general public. General population/uncontrolled exposure apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. The exposure levels can be expressed in terms of power density, electric field strength, or magnetic field strength, as averaged over 30 minutes for the general public and 6 minutes for trained personnel. The exposure criterion is frequency dependent, and a chart covering the range from 3 kHz to 100 GHz can be found in NCRP No.86 (references IEEE C95.1-1999). Below are the limits. Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) 0.3-3.0 3.0-30 30-300 300-1500 15,00-100,000 614 1842/f 61.4 -- -- 16.3/f 16.3/f 0.163 -- -- (100)* (900/f2)* 1.0 f/300 5 Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) 0.3-1.34 1.34-30 30-300 300-15,00 15,00-100,000 614 824/f 27.5 -- -- 1.63 2.19/f 0.073 -- -- (100)* (180/f2)* 0.2 f/1500 1.0 For GSM/WCDMA 850M Power density S [mW/cm2] for controlled area at 800 MHz 57.2 300 428 300 )(  MHzf S mW/cm 2 Power density S [mW/cm2] for uncontrolled area at 800 MHz Huawei B681-54 Electromagnetic Radiation Exposure Estimation SECRET 3 945.0 1500 824 1500 )(  MHzf S mW/cm 2 S= 0.549 mW/cm 2 = 5.49 W/m 2 for uncontrolled exposure For GSM/WCDMA 1900M, WLAN2400M Power density S [mW/cm2] for controlled area at 1900/2400 MHz 5S mW/cm 2 Power density S [mW/cm2] for uncontrolled area at 1900/2400 MHz 0.1S mW/cm 2 S= 1.0 mW/cm 2 = 10 W/m 2 for uncontrolled exposure Reference levels are provided for exposure assessment to determine whether the basic restrictions on exposure of humans to electromagnetic fields are exceeded. The basic restrictions on exposure to electromagnetic fields are based directly on established health effects and biological considerations. 3 Location of EUT The EUT uses one omnidirectional antenna. The source of the radiation is mounted on board of the terminal. The highest level of emission would be expected in close vicinity of the antenna. 4 Prediction of the Exposure to Electromagnetic Fields Calculations can be made on a site by site basis to ensure the power density is below the limits given above, or guidelines can be done beforehand to ensure the minimum distances from the antenna is maintained through the site planning. The calculations are based on FCC OET 65 Appendix B. 4.1 Calculation of the Safe Distance Below method describes a theoretical approach to calculate possible exposure to electromagnetic radiation around a base station transceiver antenna. Precise statements are basically only possible either with measurements or complex calculations considering the complexity of the environment (e.g. soil conditions, near buildings and other obstacles) which causes reflections, scattering of electromagnetic fields. Huawei B681-54 Electromagnetic Radiation Exposure Estimation SECRET 4 The maximum output power (given in EIRP) of a base station is usually limited by license conditions of the network operator. A rough estimation of the expected exposure in power flux density on a given point can be made with the following equation. The calculations are based on FCC OET 65 Appendix B.    )(4 )( 2 mr GWP S numeric W…

Text truncated - open the document above for the full version.

FCC RF Test Report Product Name: Wireless Gateway Model Number: B681-54 Report No: SYBH(Z-RF)004062013-2001 FCC ID：QISB681-54 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of B681-54 Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 21 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The laboratory has been listed by the VCCI to perform EMC measurements. The accreditation numbers of test site No.1 are R-2364, G-415, C-2583, and T-256, and the accreditation numbers of test site No.2 are R-3760, G-485, C-4210 and T-1237. 6. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 7. The test report is invalid if there is any evidence of erasure and/or falsification. 8. The test report is only valid for the test samples. 9. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of B681-54 Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 21 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2013-06-17 Start Date of Test: 2013-06-17 End Date of Test: 2013-06-23 Test Result: Pass Approved by Senior Engineer: 2013-06-26 Dai Linjun Date Name Signature Prepared by: 2013-06-26 Feng Nianwei Date Name Signature RF Test Report of B681-54 Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 21 Modification Record No. Last Report No. Modification Description 1 First report. RF Test Report of B681-54 Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 21 CONTENT Model Number: B681-54 ............................................................................................................................................... 1 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 2.1 Cellular Band (824-849 MHz paired with 869-894 MHz) ............................................................................ 7 2.2 PCS Band (1850-1915 MHz paired with 1930-1995 MHz) ......................................................................... 8 3 Description of the Equipment under Test (EUT) ..................................................................................................... 9 3.1 General Description ................................................................................................................................... 9 3.2 EUT Identity ............................................................................................................................................... 9 3.3 Technical Specification ............................................................................................................................ 10 4 General Test Conditions / Configurations ............................................................................................................. 11 4.1 Test Modes .............................................................................................................................................. 11 4.2 Test Environment ..................................................................................................................................... 11 4.3 Test Frequency ........................................................................................................................................ 12 4.4 DESCRIPTION OF TESTS ...................................................................................................................... 13 4.5 Test Setups .............................................................................................................................................. 16 4.6 Test Conditions ........................................................................................................................................ 18 5 Main Test Instruments .......................................................................................................................................... 20 6 Measurement Uncertainty...................................................…

Text truncated - open the document above for the full version.

RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 122 Appendix for Test report RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 122 1Appendix_A: Effective (Isotropic) Radiated Power Output Data Part I - Test Results Test Band Test Mode Test Channel Conducted Power [dBm] ERP [dBm] Limit [dBm] Verdict GSM850 GSM/TM1 LCH 32.45 31.26 38.5 PASS MCH 32.34 31.15 38.5 PASS HCH 32.52 31.33 38.5 PASS GSM/TM2 LCH 25.98 24.79 38.5 PASS MCH 26.01 24.82 38.5 PASS HCH 25.99 24.8 38.5 PASS WCDMA850 UMTS/TM1 LCH 22.95 21.76 38.5 PASS MCH 22.89 21.7 38.5 PASS HCH 22.71 21.52 38.5 PASS Test Band Test Mode Test Channel Conducted Power [dBm] EIRP [dBm] Limit [dBm] Verdict GSM1900 GSM/TM1 LCH 29.95 31.03 33 PASS MCH 29.73 30.81 33 PASS HCH 29.63 30.71 33 PASS GSM/TM2 LCH 25.46 26.54 33 PASS MCH 25.46 26.54 33 PASS HCH 25.41 26.49 33 PASS WCDMA1900 UMTS/TM1 LCH 22.76 23.84 33 PASS MCH 22.98 24.06 33 PASS HCH 22.87 23.95 33 PASS Note1: a, For getting the ERP (Efficient Radiated Power) or EIRP (Efficient Isotropic Radiated Power) in substitution method, the following formula should be taken to calculate it, ERP [dBm] = SGP [dBm] – Cable Loss [dB] + Gain [dBd] EIRP [dBm] = SGP [dBm] – Cable Loss [dB] + Gain [dBi] b, SGP=Signal Generator Level Note2: RBW > emission bandwidth, VBW > 3 x RBW. RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 122 2Appendix_B: Peak-to-Average Ratio Part I - Test Results Test Band Test Mode Test Channel Measured[dB] Limit [dB] Verdict GSM1900 GSM/TM1 LCH 0.12 13 PASS MCH 0.12 13 PASS HCH 0.12 13 PASS GSM/TM2 LCH 3.19 13 PASS MCH 3.19 13 PASS HCH 3.13 13 PASS GSM/TM1 LCH 0.11 13 PASS MCH 0.11 13 PASS HCH 0.12 13 PASS GSM/TM2 LCH 3.18 13 PASS MCH 3.14 13 PASS HCH 3.23 13 PASS Test Band Test Mode Test Channel Measured[dB] Limit [dB] Verdict WCDMA1900 UMTS/TM1 LCH 3.22 13 PASS MCH 3.46 13 PASS HCH 3.41 13 PASS UMTS/TM2 LCH 3.41 13 PASS MCH 3.48 13 PASS HCH 3.45 13 PASS RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 122 3Appendix_C: Modulation Characteristics Part I - Test Plots 3.1 For GSM 3.1.1 Test Band = GSM1900 3.1.1.1 Test Mode = GSM/TM1 3.1.1.1.1 Test Channel = MCH RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 122 3.1.1.2 Test Mode = GSM/TM2 3.1.1.2.1 Test Channel = MCH RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 122 3.1.2 Test Band = GSM850 3.1.2.1 Test Mode = GSM/TM1 3.1.2.1.1 Test Channel = MCH RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 122 3.1.2.2 Test Mode = GSM/TM2 3.1.2.2.1 Test Channel = MCH RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 122 3.2 For UMTS 3.2.1 Test Band = WCDMA1900 3.2.1.1 Test Mode = UMTS/TM1 3.2.1.1.1 Test Channel = MCH RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 122 3.2.2 Test Band = WCDMA850 3.2.2.1 Test Mode = UMTS/TM1 3.2.2.1.1 Test Channel = MCH RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 122 4Appendix_D: Bandwidth Part I - Test Results Test Band Test Mode Test Channel Occupied Bandwidth [kHz] Emission Bandwidth [kHz] Verdict GSM1900 GSM/TM1 LCH 242.86 311.08 Pass MCH 243.40 313.95 Pass HCH 244.77 313.42 Pass GSM/TM2 LCH 242.53 299.97 Pass MCH 242.61 309.51 Pass HCH 242.58 307.82 Pass GSM850 GSM/TM1 LCH 244.94 314.31 Pass MCH 241.74 316.68 Pass HCH 243.81 318.35 Pass GSM/TM2 LCH 243.49 308.10 Pass MCH 236.22 306.64 Pass HCH 244.79 313.65 Pass Test Band Test Mode Test Channel Occupied Bandwidth [MHz] Emission Bandwidth [MHz] Verdict WCDMA1900 UMTS/TM1 LCH 4.18 4.67 Pass MCH 4.18 4.69 Pass HCH 4.16 4.67 Pass WCDMA850 UMTS/TM1 LCH 4.18 4.68 Pass MCH 4.20 4.70 Pass HCH 4.20 4.68 Pass RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 122 Part II - Test Plots 4.1 For GSM 4.1.1 Test Band = GSM1900 4.1.1.1 Test Mode = GSM/TM1 4.1.1.1.1 Test Channel = LCH RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 122 4.1.1.1.2 Test Channel = MCH RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 122 4.1.1.1.3 Test Channel = HCH RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 122 4.1.1.2 Test Mode = GSM/TM2 4.1.1.2.1 Test Channel = LCH RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 122 4.1.1.2.2 Test Channel = MCH RF Test Report of B681-54 Security Level: Public Report No: SYBH(Z-RF)004062013-2001 Huawei Proprietary …

Text truncated - open the document above for the full version.
