QISB68L-54Wireless gateway

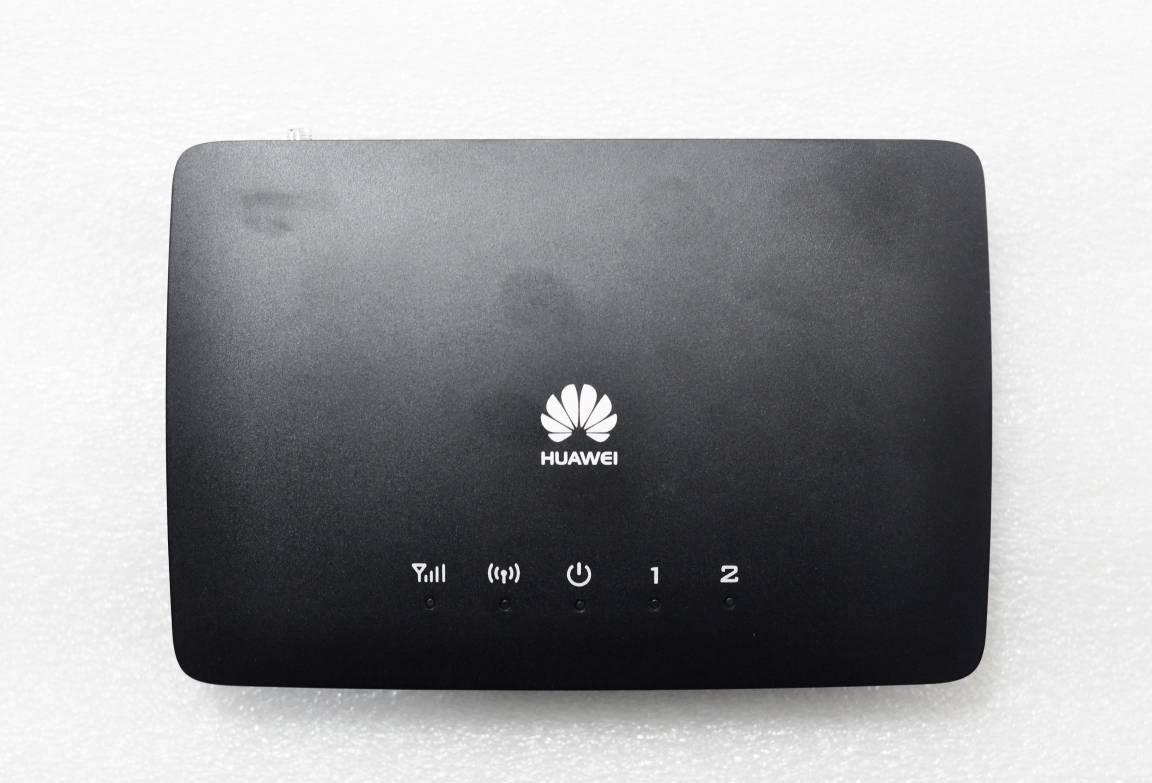

B68L Wireless Gateway Quick Start 2 1 Getting to know your B68L Power button Press and hold for about 3 seconds to power the B68L on or off. WPS button Press and hold for 3 or more seconds to active WPS connection when Wi-Fi is turned on. LAN port Connect to computer, switch, or other LAN device. Power port Connect to compatible power adapter. Telephone port Connect to telephone. 3 Network mode indicator  Fast red blinking: no SIM/USIM card is found, the PIN is not verified, or the SIM/USIM card is not working properly.  Steady yellow: registered with a 3G/2G network.  Steady green: connected to the Internet.  Off: no signal. Wi-Fi/WPS indicator  Steady on: Wi-Fi turned on or data transfer in progress.  Blinking: a WPS connection is being set up.  Off: Wi-Fi turned off. Power indicator  On: the B68L is powered on.  Off: the B68L is powered off. / LAN indicator  Steady on: LAN port is connected to a client.  Off: no client is connected to LAN port. SIM/USIM card slot Install a SIM/USIM card to access to the Internet via a 3G/2G data connection. Reset button Restoring the default settings of the B68L will erase all previous settings. When the B68L is powered on, use a sharply pointed object to press and hold for about 3 seconds until all indicators are blinking to restore the B68L to its factory settings. After the factory defaults are restored, the B68L will restart automatically. 4 2 Installation Installing the SIM/USIM card 1. Slide off the card slot cover. 2. Insert the SIM/USIM card into the card slot. Ensure that the beveled edge of the SIM/USIM card aligns with that of the card slot. 3. Close the card slot cover. (Optional) Installing the table stand You can place the B68L on a flat surface such as a table or a desk, or hang it on a wall. You can also use the table stand of the B68L to place it upright. Insert the latches into the table stand slots on the bottom of the B68L. Reset Before removing the SIM/USIM card, ensure that the B68L is powered off and disconnected from the power outlet. The table stand is an optional accessory, and may not included in the packaging box. If required, please contact your local dealer purchase it. 5 Connecting cables Once connected to a power outlet, the B68L automatically powers on. Power adapter Telephone Computer Laptop, tablet, or smart phone To prevent interference caused by radio signals, place the B68L at least 1 meter (3.28 feet) away from telephone and other electrical devices. Do not connect the B68L to the telephone wall outlet (or any Public Switched Telephone Network), because doing so could damage the B68L due to excessive heat. 6 3 Setting up a Wi-Fi connection Turning on Wi-Fi on the B68L When the indicator is steady on, the Wi-Fi of the B68L is turned on. To manually turn Wi-Fi on, log in to the web management page (default address: http://192.168.1.1, default password: admin), and choose Home Network > WLAN Settings. On the displayed page, select Enable WLAN 2.4 GHz and click Save. Recording the SSID and Wi-Fi key The default SSID and Wi-Fi key are printed on the B68L's rear label. Make sure your client (computer, tablet, or smart phone) also supports Wi-Fi. To prevent unauthorized parties from accessing your wireless network, it is recommended that you change the SSID and Wi-Fi key from time to time. Log in to the web management page (default address: http://192.168.1.1, default password: admin), choose Home and click Set Up WLAN to set WLAN 2.4 GHz SSID and Password. 7 Setting up a Wi-Fi connection from a client On Windows 7 1. Click on the status bar on the PC desktop. 2. A dialog box is displayed, and the computer scans for available wireless networks within range. From the search results, select the wireless network with the same SSID as the B68L, and click Connect. 3. In the Connect to a Network dialog box, enter the B68L's Wi-Fi key, and click OK. Note that the Wi-Fi key is case sensitive. 4. When Connected is displayed next to the B68L's SSID, the PC is connected to the wireless network. 8 On Mac OS 1. Click on the status bar on the Mac desktop. Choose Turn AirPort On from the displayed menu. 2. The Mac then scans for available wireless networks within range. From the search results, select the wireless network with the same SSID as the B68L. 3. In the displayed dialog box, enter the B68L's Wi-Fi key, and click Join. Note that the Wi-Fi key is case sensitive. 4. When a check mark appears next to the B68L's SSID, the Mac is connected to the wireless network. 9 On Android 4.0 1. From the home screen, touch > Settings. In the WIRELESS & NETWORKS section, turn Wi-Fi on. 2. Touch WLAN to display the settings screen. Your device then scans for available wireless networks within range. From the search results, touch the wireless network with the same SSID as the B68L. 3. In the displayed dialog box, enter the Wi-Fi key, and touch Connect. Note that the Wi-Fi key is case sensitive. 4. When Connected is displayed under the B68L's SSID, the device is connected to the wireless network. 10 Setting up a Wi-Fi connection through WPS If the client supports WPS, you can set up a WPS connection as follows: 1. Ensure that Wi-Fi is enabled on the client. 2. Press and hold the button for 3 or more seconds. The indicator then starts blinking. 3. Activate the WPS connection on the client in 2 minutes. 4 Configuring your B68L 1. After a client is connected to the B68L through Wi-Fi or LAN port, launch a browser on the client and visit http://192.168.1.1. 2. Enter the password (admin by default) to log in to the web management page. 3. Follow the Start Wizard to quickly configure basic parameters, such as SSID and Wi-Fi key. After finish the configuration, you can then access the Internet. If you cannot active WPS connection by WPS button, log in to the web management page (default address: http://192.168.1.1, default password: admin), and choose Home Network > WLAN Access. On the displayed page, select Enable WPS, click WPS by push but…

Text truncated - open the document above for the full version.

MET Laboratories TCB - Samples Long Term Confidentiality Request Letter 12/27/2013 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Wireless Gateway/HUAWEI B68L-54/B68L-54# FCC ID: QISB68L-54) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that: 1. Schematics 2. Block Diagram 3. Operational Description 4. BOM List 5. Tune up procedure Required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, _________________________ Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

HUAWEI B68L-54 Wireless Gateway SECRET Page 1 Total 5 External Photos of HUAWEI B68L-54 Wireless Gateway HUAWEI B68L-54 Wireless Gateway SECRET Page 2 Total 5 HUAWEI B68L-54 Wireless Gateway SECRET Page 3 Total 5 HUAWEI B68L-54 Wireless Gateway SECRET Page 4 Total 5 HUAWEI B68L-54 Wireless Gateway SECRET Page 5 Total 5 HUAWEI B68L-54 Wireless Gateway SECRET Page 6 Total 5 HUAWEI B68L-54 Wireless Gateway SECRET Page 7 Total 5 HUAWEI B68L-54 Wireless Gateway SECRET Page 8 Total 5

HUAWEI B68L-54 Wireless Gateway SECRET Page1, Total 1 ID Label Location: 180mm (Width) x 123mm (Height) x 32.5mm (Depth)

HUAWEI B68L-54 Wireless Gateway SECRET Page 1 Total 1 ID Label: Label size: 650mm x 250mm

HUAWEI B68L-54 Wireless Gateway SECRET Page 1 Total 7 Internal Photos of HUAWEI B68L-54 Wireless Gateway HUAWEI B68L-54 Wireless Gateway SECRET Page 2 Total 7 HUAWEI B68L-54 Wireless Gateway SECRET Page 3 Total 7 HUAWEI B68L-54 Wireless Gateway SECRET Page 4 Total 7 HUAWEI B68L-54 Wireless Gateway SECRET Page 5 Total 7 HUAWEI B68L-54 Wireless Gateway SECRET Page 6 Total 7 HUAWEI B68L-54 Wireless Gateway SECRET Page 7 Total 7

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Maximum Permissible Exposure(MPE) Estimation Report Product Name: Wireless Gateway Model: B68L-54 Report No.: SYBH(Z-SAR)004122013-2 FCC ID: QISB68L-54 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2014-01-02 2014-01-02 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report NO.: SYBH(Z-SAR)004122013-2 FCC ID: QISB68L-54 2014-01-02 Page 2 of 15 ※ ※ Modified History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release 2014-01-02 Gong Zhong Report NO.: SYBH(Z-SAR)004122013-2 FCC ID: QISB68L-54 2014-01-02 Page 3 of 15 Table of Contents 1 EUT Description ................................................................................................................. 4 1.1 General Description ................................................................................................. 5 2 Test specification(s) ............................................................................................................ 6 3 Testing laboratory ............................................................................................................... 6 4 Applicant and Manufacturer ............................................................................................... 6 5 Application details ............................................................................................................... 6 6 Ambient Condition .............................................................................................................. 6 7 RF Exposure Requirements ............................................................................................... 7 8 RF Exposure Evaluation ................................................................................................... 10 8.1 Operation in GSM850 ............................................................................................ 10 8.2 Operation in GSM1900 .......................................................................................... 11 8.3 Operation in UMTS Band II ................................................................................... 12 8.4 Operation in UMTS Band V ................................................................................... 12 8.5 Operation in WLAN 2.4G ....................................................................................... 12 9 Exposure calculations for multiple sources ...................................................................... 13 9.1 Estimation for WLAN2.4G MIMO .......................................................................... 14 9.2 Estimation for GSM850& WLAN2.4G ................................................................... 14 9.3 Estimation for GSM1900& WLAN2.4G ................................................................. 14 9.4 Estimation for UMTS Band II & WLAN2.4G .......................................................... 14 9.5 Estimation for UMTS Band V & WLAN2.4G.......................................................... 15 Report NO.: SYBH(Z-SAR)004122013-2 FCC ID: QISB68L-54 2014-01-02 Page 4 of 15 1 EUT Description Device Information： DUT Name: Wireless Gateway Type Identification: B68L-54 Device Type : Mobile device FCC ID: QISB68L-54 Device Phase: Identical Prototype Exposure Category: Uncontrolled environment/general population Hardware Version : WL1B680I Software Version : V100R001 Antenna Type : Internal Antenna Device Operating Configurations: Supporting Mode(s) GSM850/1900,UMTS Band II /V, WiFi 2.4G Test Modulation GMSK/8PSK/QPSK/BPSK Operating Frequency Range(s) Band Tx (MHz) Rx (MHz) GSM850 824-849 869-894 GSM1900 1850-1910 1930-1990 UTMS Band II 1850-1910 1930-1990 UTMS Band V 824-849 869-894 WiFi 2.4G 2400-2483.5 2400-2483.5 Report NO.: SYBH(Z-SAR)004122013-2 FCC ID: QISB68L-54 2014-01-02 Page 5 of 15 1.1 General Description The HUAWEI wireless gateway B68L-54 (hereinafter referred to as the B68L-54) is a wireless HSPA+3G gateway, which provides users with flexible and diversified 3G and 2G data access services, routing function, and network address translation (NAT) function. The WCDMA frequency is Band I/II/V. The GSM/GPRS/EDGE frequency band is Band II/V. The WLAN frequency is 2.4G. And the WLAN frequency range is 2400-2483.5MHz. B68L-54 implements such functions as RF signal receiving/transmitting, HSPA+ / WCDMA / GPRS/EDGE protocol processing, data service, etc. Externally it provides power supply interface, USIM card interface, two auto-sensing Ethernet interfaces and external antenna interface. And RJ11 interface (to connect to fixed telephone), provide voice service. Report NO.: SYBH(Z-SAR)004122013-2 FCC ID: QISB68L-54 2014-01-02 Page 6 of 15 2 Test specification(s) ANSI Std C95.1-1992 Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.(IEEE Std C95.1-1991) RSS-102 Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands (Issue 4 of March 2010)) KDB 447498 D01 General RF Exposure Guidance v05r01 3 Testing laboratory Test Site The Reliability Laboratory of Huawei Technologies Co., Ltd. Test Location Zone K3,Huawei Industrial Base, Bantian Industry Area, Longgang District, Shenzhen, Guangdong, China Telephone +86 755 28780808 Fax +86 755 89652518 State of accreditation The Test laboratory (area of testing) is accredited according to ISO/IEC 17025. CN…

Text truncated - open the document above for the full version.

RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 114 Appendix for Test report RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 114 Appendix A: DTS (6 dB) Bandwidth In this document, the "DTS6dBBW" refers to the measured "DTS (6 dB) Bandwidth" value. In this Appendix, the "fc(DTS6dBBW)" refers to the centre of the measured "DTS6dBBW". The introduction of the "fc(DTS6dBBW)" is due to that other measurements use it as the spectrum analyzer setting. For measurements on smart antenna systems (devices with multiple transmit chains), the test is performed at each chain, and used as respective results for each chain. Part I - Test Results Test Mode Test Channel Frequency[MHz] DTS6dBBW[MHz] Verdict 11B L 2412 10.34 pass 11B M 2437 9.81 pass 11B H 2462 10.29 pass 11G L 2412 16.42 pass 11G M 2437 16.44 pass 11G H 2462 16.44 pass 11N20 L 2412 16.94 pass 11N20 M 2437 16.93 pass 11N20 H 2462 16.38 pass RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 114 Part II - Test Plots 2.1 11B_L RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 114 2.2 11B_M RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 114 2.3 11B_H RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 114 2.4 11G_L RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 114 2.5 11G_M RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 114 2.6 11G_H RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 114 2.7 11N20_L RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 114 2.8 11N20_M RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 114 2.9 11N20_H RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 114 Appendix B: Maximum Peak Conducted Output Power Part I - Test Results Test Mode Test Channel Frequency[MHz] Meas. Level (Cond.) [dBm] Verdict 11B L 2412 20.88 pass 11B M 2437 19.33 pass 11B H 2462 20.15 pass 11G L 2412 20.43 pass 11G M 2437 19.89 pass 11G H 2462 20.4 pass 11N20 L 2412 20.4 pass 11N20 M 2437 19.13 pass 11N20 H 2462 20.21 pass RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 114 Part II - Test Plots 2.1 11B_L RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 114 2.1 11B_M RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 114 2.1 11B_H 2.1 11G_L RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 114 2.1 11G_M RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 114 2.1 11G_H RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 114 2.1 11N20_L RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 114 2.1 11N20_M RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 20 of 114 2.1 11N20_H RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 21 of 114 RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 22 of 114 Appendix C: Maximum Power Spectral Density Level Part I - Test Results Test Mode Test Channel Frequency[MHz] PD[MHz] Verdict 11B L 2412 -4.60 pass 11B M 2437 -5.91 pass 11B H 2462 -5.37 pass 11G L 2412 -6.91 pass 11G M 2437 -8.92 pass 11G H 2462 -7.32 pass 11N20 L 2412 -6.98 pass 11N20 M 2437 -7.90 pass 11N20 H 2462 -7.42 pass RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 23 of 114 Part II - Test Plots 2.1 11B_L RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 24 of 114 2.2 11B_M RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 25 of 114 2.3 11B_H RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 26 of 114 2.4 11G_L RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 27 of 114 2.5 11G_M RF Test Report of B68L-54 Report No: SYBH(Z-RF)004…

Text truncated - open the document above for the full version.

FCC RF Test Report Product Name: Wireless Gateway Product Model: B68L-54 Report Number: SYBH(Z-RF)004122013-2002 FCC ID: QISB68L-54 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 20 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-1 and 6369A-3. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 20 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2013-12-11 Start Date of Test: 2013-12-11 End Date of Test: 2013-12-18 Test Result: Pass Approved by Senior Engineer: 2013-12-23 Dai Linjun Date Name Signature Prepared by: 2013-12-23 Feng Nianwei Date Name Signature RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 20 Modification Record No. Last Report No. Modification Description First Report RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 20 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description ................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................... 8 3.3 Technical Description ................................................................................................................................. 9 4 General Test Conditions / Configurations ............................................................................................................. 10 4.1 Test Modes .............................................................................................................................................. 10 4.2 EUT Configurations .................................................................................................................................. 11 4.3 Test Environments ................................................................................................................................... 12 4.4 Antenna requirements .............................................................................................................................. 12 4.5 Description of tests................................................................................................................................... 13 4.6 Test Setups .............................................................................................................................................. 15 4.7 Test Conditions ........................................................................................................................................ 18 5 Main Test Instruments .......................................................................................................................................... 20 RF Test Report of B68L-54 Report No: SYBH(Z-RF)004122013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 20 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2, Subpart J 2012 47 CFR FCC Part 15, Subpart C 2012 Test Method: FCC KDB 558074 D01 DTS Meas Guidance v03r01 ANSI C63.10-2009, American National Standard for Testing Unlicensed Wireless Devices. 1.2 Test Location Test Location 1: Reliability Laboratory of Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei T…

Text truncated - open the document above for the full version.

FCC Test Report of B68L-54 Security Level: Public Report No: SYBH(Z-RF)004122013 Confidential Information of Huawei. No Distribution without Written Permission Page1, Total7 Photos of Test Setup FCC Test Report of B68L-54 Security Level: Public Report No: SYBH(Z-RF)004122013 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total7 For GSM&WCDMA 1 Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) FCC Test Report of B68L-54 Security Level: Public Report No: SYBH(Z-RF)004122013 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total7 Radiated Spurious Emission (1GHz to18GHz) Radiated Spurious Emission (above 18GHz) FCC Test Report of B68L-54 Security Level: Public Report No: SYBH(Z-RF)004122013 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total7 For WLAN 2 Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) FCC Test Report of B68L-54 Security Level: Public Report No: SYBH(Z-RF)004122013 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total7 Radiated Spurious Emission (1GHz to18GHz) FCC Test Report of B68L-54 Security Level: Public Report No: SYBH(Z-RF)004122013 Confidential Information of Huawei. No Distribution without Written Permission Page6, Total7 Radiated Spurious Emission (above 18GHz) FCC Test Report of B68L-54 Security Level: Public Report No: SYBH(Z-RF)004122013 Confidential Information of Huawei. No Distribution without Written Permission Page7, Total7 3 Conducted Emissions Conducted Emissions for AC Ports
