QISBM622IWiMAX CPE

WiMAX CPE Quick Start Huawei Technologies Co., Ltd. Huawei Industrial Base, Bantian, Longgang Shenzhen 518129 People’s Republic of China www.huawei.com Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd. and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers. Thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd. reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. i Contents Before you begin ............................................................................................................................ 1 Getting to Know Your CPE ............................................................................................................ 1 Preparing for Installation ................................................................................................................ 5 Logging In to the Web-Based Utility ............................................................................................. 7 Troubleshooting .............................................................................................................................. 8 Specifications ................................................................................................................................ 10 Warnings and Precautions .......................................................................................................... 11 1 Thank you for purchasing WiMAX CPE! Before you begin Check the following items in the product package. If you find anything missing or damaged, contact the service provider.  WiMAX CPE  Dedicated Power Adapter  Ethernet Cable  Quick Start Getting to Know Your CPE The supported functions and actual appearance of the CPE may vary with the product you purchase. The following pictures are provided for illustration purpose only. 2 Front Panel 3 Indicator Status Description WiMAX On The indicators indicate the signal strength of the WiMAX network. When all the indicators are on, it indicates that the signal strength is at the highest level. Blink The CPE is being upgraded when they blink sequentially. The software is damaged when they blink randomly. Off There is no WiMAX network signal. POWER On The CPE is powered on. Off The CPE is powered off. LAN On The LAN port is being used. Blink The data is being transmitted. Off The LAN port is unused. TEL On The TEL interface is being used. Blink The TEL interface has an incoming call. Off The telephone connected to the TEL port hangs up or the TEL interface is disabled. NOTE:  WiMAX: Worldwide Interoperability for Microwave Access  CPE: Customer Premises Equipment  LAN: Local Area Network 4 Rear Panel 5 Interface Description POWER The interface is used to connect to the output interface of the power adapter. TEL The interface is used to connect a telephone line. LAN The interface is used to connect the CPE to the computer. RESET Press and hold the button for one to eight seconds to restart the CPE. Press and hold the button for over eight seconds to restore the default settings of the CPE. Once you restore the default settings, all the customized data will be lost. Use this function with caution. The port is used to connect a compatible external antenna (optional accessory and sold separately). For details about how to install a compatible external antenna and enable it, refer to the Online Help in the Web-based utility. CAUTION: Do not touch the port. Preparing for Installation Selecting a Proper Installation Position  Obstacles such as concrete or wooden walls may affect the transmission of WiMAX network signals. Therefore, install the CPE in an open space.  Keep the CPE away from any household appliance that produces a strong electric or magnetic field, such as a microwave oven, a refrigerator, or a satellite dish antenna. 6 Connecting the Cables Use the cables and the power adapter provided with the product. The cable connection figure is provided for illustration purpose. You can connec…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: Intertek Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISBM622I to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base, Bantian, Longgang, Shenzhen, P.R China Post ZIP：518129 Page ：1/1 To: Intertek Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Authorization 2011-4-12 To whom it may concern: We the undersigned, hereby authorize Intertek to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Intertek on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Huawei Technologies Co., Ltd. . Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

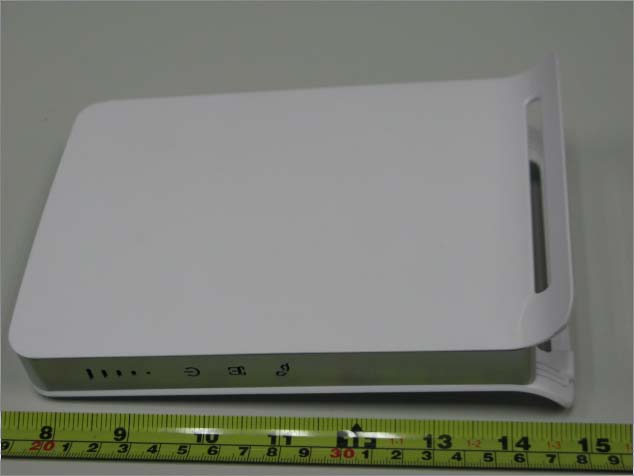

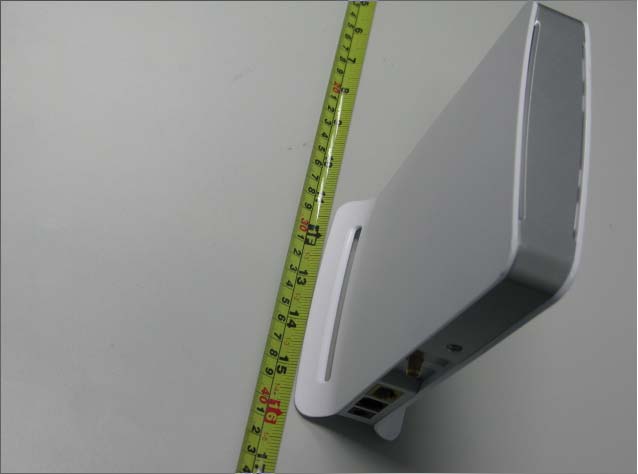

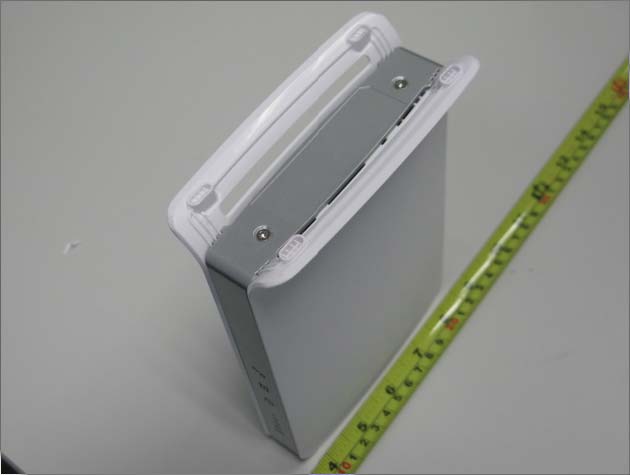

BM622i WiMAX CPE SECRET Page1，To t a l 2 Photo Documentation of External of Product BM622i WiMAX CPE SECRET Page2，To t a l 2

BM622i WiMAX CPE SECRET Page1，To t a l 1 BM622i Label Location：

BM622i WiMAX CPE SECRET Page1，To t a l 1 BM622i ID Label：

BM622i WiMAX CPE SECRET Page1，To t a l 4 Photo Documentation of Internal of Product BM622i WiMAX CPE SECRET Page2，To t a l 4 BM622i WiMAX CPE SECRET Page3，To t a l 4 BM622i WiMAX CPE SECRET Page4，To t a l 4

QISBM622I Electromagnetic Radiation Exposure Estimation Maximum Permissible Exposure (MPE) Estimation for EUT 1 Introduction BM622i, a WiMAX CPE, is a proprietary product developed by HUAWEI based on IEEE 802.16e-2005, and works in range of 2.496-2.69GHz, The product is composed of three PCB boards, a WiMAX RF board, a home gate board, and an antenna PCB board, providing two ports for the user service: 1×RJ45:10/100M LAN port; 1×RJ11: TEL port for VOIP; 2 Limits and Guidelines on Exposure to Electromagnetic Fields According to the FCC Part 2.1091( which reference the part1.1310), we know: mobile device (transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters radiating structure(s) and the body of the user or nearby persons). And the Cellular radiotelephone service and PCS services are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more, or if they operate at frequencies above 1.5 GHz and their ERP is 3 watts or more. Uncontrolled limits are used for general public. General population/uncontrolled exposure apply in situations is which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. The exposure levels can be expressed in terms of power density, electric field strength, or magnetic field strength, as averaged over 30 minutes for the general public and 6 minutes for trained personnel. The exposure criterion is frequency dependent, and a chart covering the range from 3 kHz to 100 GHz can be found in NCRP No.86 (references IEEE C95.1-1999). Below are the limits. QISBM622I Electromagnetic Radiation Exposure Estimation Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) 0.3-3.0 3.0-30 30-300 300-1500 15,00-100,000 614 1842/f 61.4 -- -- 16.3/f 16.3/f 0.163 -- -- (100)* (900/f 2 )* 1.0 f/300 5 Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) 0.3-1.34 1.34-30.0 30-300 300-1500 15,00-100,000 614 824/f 27.5 -- -- 1.63 2.19/f 0.073 -- -- (100)* (180/f 2 )* 0.2 f/1500 1 Power density S [mW/cm2] for controlled area at 2.5GHz (TX: 2496M-2690MHz) S=5 mW/cm 2 Power density S [mW/cm2] for uncontrolled area at 2.5GHz (TX: 2496M-2690MHz) S=1 mW/cm 2 Reference levels are provided for exposure assessment to determine whether the basic restrictions on exposure of humans to electromagnetic fields are exceeded. The basic restrictions on exposure to electromagnetic fields are based directly on established health effects and biological considerations. 3 Location of EUT The source of the radiation is mounted on terminal; generally the direction of the antenna position is uprightness tabletop. The highest level of emission would be expected in close vicinity of the antenna and in line of sight to the antenna. QISBM622I Electromagnetic Radiation Exposure Estimation 4 Prediction of the Exposure to Electromagnetic Fields Calculations can be made on a site by site basis to ensure the power density is below the limits given above, or guidelines can be done beforehand to ensure the minimum distances from the antenna is maintained through the site planning. The calculations are based on FCC OET 65 Appendix B. 4.1 Calculation of the Safe Distance Below method describes a theoretical approach to calculate possible exposure to electromagnetic radiation around a base station transceiver antenna. Precise statements are basically only possible either with measurements or complex calculations considering the complexity of the environment (e.g. soil conditions, near buildings and other obstacles) which causes reflections, scattering of electromagnetic fields. The maximum output power (given in EIRP) of a base station is usually limited by license conditions of the network operator. A rough estimation of the expected exposure in power flux density on a given point can be made with the following equation. The calculations are based on FCC OET 65 Appendix B. π∗∗ ∗ = )(4 )( 2 mr GWP S numeric Whereas: P = Maximum output power in W of the site G numeric = Numeric gain of the antenna relative to isotropic antenna R = distance between the antenna and the point of exposure in meters 4.2 Technical Description EIRP: =Maximum conducted power + Gain 33.79dBm =26.79dBm+7dBi TX Frequency range: 2496M-2690MHz Note: For WiMAX, the maximum conducted output power is 26.79dBm, and it’s antenna’s max gain is 7.0dBi, so we can get the max EIRP 33.79dBm. QISBM622I Electromagnetic Radiation Exposure Estimation 4.3 Estimation of compliance boundary for indoor antenna For EUT the following compliance boundary is calculated: EIRP: 2393.32mW (33.79dBm) π∗∗ = 2 204 2393.32 S ＝0.48 mW/cm 2 Modulation MPE Limit (mW/cm 2 ) Con Output Power (mW) Duty cycle (%) Max Anna Gain (dBi) EIRP (dBm) Pd at 20cm (mW/c m2) % of limit 2496M-2690MHz 802.16e 1 477.53 1 7.0 33.790.48 48% The maximum power spectral density 20cm from the antenna relative to the limit is the highlighted row and the power density is 48% of the limit. The S at the position which is 20cm far from the EUT is smaller than the uncontrolled exposure limit line. So the EUT also complies with the Limits for Occupational/Controlled Exposure.

FCC EMC Test Report Product Name: WiMAX CPE Model Number: BM622i Report No: SYBH(Z-EMC) 049032011-2 FCC ID: QISBM622I Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 Report No: SYBH(Z-EMC)049032011-2 Confidential Information of Huawei. No Distribution without Written Permission Page1, Total27 FCC Test Report of BM622i FCC ID:QISBM622I Report No: SYBH(Z-EMC)049032011-2 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total27 Notice 1 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 3. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 4. The test report is invalid if not marked with "exclusive stamp for the test report". 5. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 8. Normally, the test report is only responsible for the samples that have undergone the test. 9. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of BM622i FCC ID:QISBM622I Notice 2 Modification Information: Modification Information 1 2 Report No: SYBH(Z-EMC)049032011-2 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total27 3 4 5 6 Modification Information 7 FCC Test Report of BM622i FCC ID:QISBM622I REPORT ON WiMAX CPE M/N: BM622i REGULATION FCC CFR47 Part 15: Subpart B; FCC CFR47 Part 27: Subpart C&M; START OF TEST Mar.25,2011 END OF TEST Mar.31,2011 Final Judgement: Pass Approved By 2011-04-12 Liuchunlin Date Name Signature Reviewed By 2011-04-12 Dailinjun Date Name Signature Operator 2011-04-12 daniel Date Name Signature Report No: SYBH(Z-EMC)049032011-2 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total27 FCC Test Report of BM622i FCC ID:QISBM622I Report No: SYBH(Z-EMC)049032011-2 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total27 REPORT BODY CONTENT 1 Status ............................................................................................................................................6 1.1 Product Information.......................................................................................................................6 1.2 Test Site ........................................................................................................................................6 1.3 Test environment condition...........................................................................................................6 2 Summary of Results......................................................................................................................7 3 Equipment Specification ...............................................................................................................8 3.1 General Description ......................................................................................................................8 4 System Configuration during EMC Test .......................................................................................9 4.1 Cables Used during Test ..............................................................................................................9 4.2 Associated Equipment Used during Test .....................................................................................9 4.3 Test Configurations and Test Mode..............................................................................................9 4.4 Test conditions and test Connections...........................................................................................9 5 Electromagnetic Interference (EMI) ............................................................................................12 5.1 Radiated Disturbance 30MHz to 18GHz....................................................................................12 5.2 Conducted Disturbance 0.15 MHz to 30MHz.............................................................................14 5.3 Radiated Spurious Emissions.................................................................................................... .15 6 Main Test Instruments ................................................................................................................17 7 System Measurement Uncertainty..............................................................................................17 8 Graph and Data of Emission Test...............................................................................................18 8.1 Radiated Disturbance .................................................................................................................18 8.2 Conducted Disturbance ..............................................................................................................20 8.3 Radiated Spurious Emission.......................................................................................................23 FCC Test Report of BM622i FCC ID:QISBM622I Report No: SYBH(Z-EMC)049032011-2 Confidential Information of Huawei. No Distribution without Written Permission Page6, Total27 1 Status 1.1 Product In…

Text truncated - open the document above for the full version.

FCC RF Test Report Product Name: WiMAX CPE Model Number: BM622i Report No: SYBH(Z-RF)020032011 FCC ID:QISBM622I Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 Security Level: Public Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 3. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-1. 4. The test report is invalid if not marked with "exclusive stamp for the test report". 5. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 8. Normally, the test report is only responsible for the samples that have undergone the test. 9. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. Report No: SYBH(Z-RF) 020032011 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total32 Security Level: Public Notice 2 Modification Information: Modification Information 1 2 3 4 5 6 Modification Information 7 Report No: SYBH(Z-RF) 020032011 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total32 Security Level: Public FCC CFR47 Part 2: Subpart J; 47 CFR FCC Part 27, Subpart C&M START OF TEST Mar.18, 2011 END OF TEST Apr.26, 2011 Final Judgement: Pass Approved By 2011-05-03 Chen Xiaohong Date Name Signature Reviewed By 2011-05-03 Xu Guangyi Date Name Signature Operator 2011-04-26 Jingjinhua Date Name Report No: SYBH(Z-RF) 020032011 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total32 Security Level: Public Contents 1 Summary....................................................................................................................................... 6 1.1 R ESULTS SUMMARY.................................................................................................................. 6 1.2 S UPPORTING STANDARDS.......................................................................................................... 6 2 Product Description ...................................................................................................................... 7 2.1 P RODUCTION INFORMATION OF EUT .......................................................................................... 7 3 Test Site Description ..................................................................................................................... 8 3.1 T ESTING PERIOD....................................................................................................................... 8 4 Product Description ...................................................................................................................... 9 4.1 T ECHNICAL CHARACTERISTICS................................................................................................... 9 4.2 EUT IDENTIFICATION LIST........................................................................................................ 11 5 Main Test Instruments ................................................................................................................. 12 6 Transmitter & Receiver Measurements...................................................................................... 13 6.1 M AXIMUM CHANNEL POWER..................................................................................................... 14 6.2 M ODULATION CHARACTERISTICS.............................................................................................. 17 6.3 O CCUPIED BANDWIDTH............................................................................................................ 19 6.4 B AND EDGES COMPLIANCE...................................................................................................... 21 6.5 S PURIOUS EMISSION AT ANTENNA TERMINAL............................................................................ 24 6.6 F REQUENCY STABILITY............................................................................................................ 27 7 System Measurement Uncertainty .............................................................................................. 31 8 Appendices.................................................................................................................................. 32 Report No: SYBH(Z-RF) 020032011 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total32 Security Level: Public 1 Summary 1.1 Results Summary The table below summarizes the measurements and results for the equipment of QISBM622I WiMAX CPE-BM622i. Detailed results and descriptions are shown in the following pages. Table 1. Summary of results for FCC requirements for BRS&EBS Band 47 CFR FCC Part(s) Requirements Specification Limits Description Result 2.1046 27.50(h)(2) Transmitter Output Power PASS 2.1047 --- Modulation Characteristics PASS 2.1049 --- Occupied Bandwidth PASS 2.1051 27.53(m)(4) 27.53(m)(6) Band Edges Compliance PASS 2.1051 27.53(m)(4) 27.53(m)(6) Spurious Emission at Antenna Terminal PASS 2.1053 27.53(m)(4) 27.53(m)(6) Radiated Spurious Emission PASS 2.1055 27.54 Frequency Stability PASS Note1: If no limits were applied, limit…

Text truncated - open the document above for the full version.

FCC Test Report of BM622i FCC ID:QISBM622I Security Level: Public Report No: SYBH(Z-RF)020032011 Confidential Information of Huawei. No Distribution without Permission Page1, Total26 Appendix A Modulation Characteristic Measurement According to FCC part 2.1047 and part 27 subpart C FCC Test Report of BM622i FCC ID:QISBM622I Security Level: Public Report No: SYBH(Z-RF)020032011 Confidential Information of Huawei. No Distribution without Permission Page2, Total26 1. Channel Bandwidth = 5 MHz 1) TM 1 B Measurement C omplete IEEE 802.16e-2005 OFDMA Frequency/Fs :2.4985 GHz/5.6 MHzSignal Lvl. Setting/Ext. A tt:14.9 dBm/11.5 dBCapture Time/No.Samples:2.3 ms/12881 Seg=0, UL-PUSC, ID=A 1/1 (1)Meas Setup:1TX x1RXZone O ffs et / Len:0 / 18 Symbols SINGLETRG:POWER RF BC onstellation vs Symbol -1.001.00 -1.00 1.00 Mk r 1 : Q0.0216 @ I-1.3522 1 PO Date: 18.MAR.2011 14:59:29 FCC Test Report of BM622i FCC ID:QISBM622I Security Level: Public Report No: SYBH(Z-RF)020032011 Confidential Information of Huawei. No Distribution without Permission Page3, Total26 M Measurement C omplete IEEE 802.16e-2005 OFDMA Frequency/Fs :2.593 GHz/5.6 MHzSignal Lvl. Setting/Ext. A tt:14.9 dBm/11.5 dBCapture Time/No.Samples:2.3 ms/12881 Seg=0, UL-PUSC, ID=A 1/1 (1)Meas Setup:1TX x1RXZone O ffs et / Len:0 / 18 Symbols SINGLETRG:POWER RF BC onstellation vs Symbol -1.001.00 -1.00 1.00 Mk r 1 : Q-0.0318@ I1.4555 1 PO Date: 18.MAR.2011 14:58:50 FCC Test Report of BM622i FCC ID:QISBM622I Security Level: Public Report No: SYBH(Z-RF)020032011 Confidential Information of Huawei. No Distribution without Permission Page4, Total26 T Measurement C omplete IEEE 802.16e-2005 OFDMA Frequency/Fs :2.6875 GHz/5.6 MHzSignal Lvl. Setting/Ext. A tt:14.9 dBm/11.5 dBCapture Time/No.Samples:2.3 ms/12881 Seg=0, UL-PUSC, ID=A 1/1 (1)Meas Setup:1TX x1RXZone O ffs et / Len:0 / 18 Symbols SINGLETRG:POWER RF BC onstellation vs Symbol -1.001.00 -1.00 1.00 Mk r 1 : Q0.0018@ I-1.4578 1 PO Date: 18.MAR.2011 14:58:11 FCC Test Report of BM622i FCC ID:QISBM622I Security Level: Public Report No: SYBH(Z-RF)020032011 Confidential Information of Huawei. No Distribution without Permission Page5, Total26 2) TM 2 B Measurement C omplete IEEE 802.16e-2005 OFDMA Frequency/Fs :2.4985 GHz/5.6 MHzSignal Lvl. Setting/Ext. A tt:14.9 dBm/11.5 dBCapture Time/No.Samples:2.3 ms/12881 Seg=0, UL-PUSC, ID=A 1/1 (1)Meas Setup:1TX x1RXZone O ffs et / Len:0 / 18 Symbols SINGLETRG:POWER RF BC onstellation vs Symbol -1.001.00 -1.00 1.00 Mk r 1 : Q-0.0123@ I-1.4288 1 PO Date: 18.MAR.2011 15:01:26 FCC Test Report of BM622i FCC ID:QISBM622I Security Level: Public Report No: SYBH(Z-RF)020032011 Confidential Information of Huawei. No Distribution without Permission Page6, Total26 M Measurement C omplete IEEE 802.16e-2005 OFDMA Frequency/Fs :2.593 GHz/5.6 MHzSignal Lvl. Setting/Ext. A tt:14.9 dBm/11.5 dBCapture Time/No.Samples:2.3 ms/12881 Seg=0, UL-PUSC, ID=A 1/1 (1)Meas Setup:1TX x1RXZone O ffs et / Len:0 / 18 Symbols SINGLETRG:POWER RF BC onstellation vs Symbol -1.001.00 -1.00 1.00 Mk r 1 : Q-0.0322@ I1.4073 1 PO Date: 18.MAR.2011 15:00:47 FCC Test Report of BM622i FCC ID:QISBM622I Security Level: Public Report No: SYBH(Z-RF)020032011 Confidential Information of Huawei. No Distribution without Permission Page7, Total26 T Measurement C omplete IEEE 802.16e-2005 OFDMA Frequency/Fs :2.6875 GHz/5.6 MHzSignal Lvl. Setting/Ext. A tt:14.9 dBm/11.5 dBCapture Time/No.Samples:2.3 ms/12881 Seg=0, UL-PUSC, ID=A 1/1 (1)Meas Setup:1TX x1RXZone O ffs et / Len:0 / 18 Symbols SINGLETRG:POWER RF BC onstellation vs Symbol -1.001.00 -1.00 1.00 Mk r 1 : Q0.0012@ I-1.4130 1 PO Date: 18.MAR.2011 15:00:08 FCC Test Report of BM622i FCC ID:QISBM622I Security Level: Public Report No: SYBH(Z-RF)020032011 Confidential Information of Huawei. No Distribution without Permission Page8, Total26 3) TM 3 B Measurement C omplete IEEE 802.16e-2005 OFDMA Frequency/Fs :2.4985 GHz/5.6 MHzSignal Lvl…

Text truncated - open the document above for the full version.
