QISC2205800 MHz CDMA Mobile Phone

Copyright © 2006 Huawei Technologies Co., Ltd. All Rights Reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei. The information in this manual is subject to change without notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this manual do not constitute the warranty of any kind, express or implied. Safety Precautions Do not switch on the phone when phone use is prohibited. Do not use the phone while driving. Switch off the phone near medical apparatus. Switch off the phone in an aircraft. Switch off the phone near high-precision electronic devices. Do not attempt to disassemble the phone or its accessories. Do not place the phone or its accessories in containers with strong electromagnetic field. Do not place magnetic storage media near the phone. Do not put the phone in a high-temperature place or use it in a place with flammable gas such as a gas station. Do not allow children to use the phone without guidance. Use approved batteries and chargers only to avoid explosion. Observe the laws or regulations on phone use. i Table of Contents Getting to Know Your Phone.....................................................................1 Your Phone........................................................................................1 Keys and Functions...........................................................................2 Screen Icons......................................................................................3 Interfaces...........................................................................................4 Getting Started............................................................................................5 Installing the Battery ..........................................................................5 Removing the Battery ........................................................................5 Installing and Removing the UIM card ...............................................5 Charging the Battery..........................................................................6 Powering On/Off the Phone ...............................................................6 Changing the Language.....................................................................6 Using the Function Menu ...................................................................6 Voice Services ............................................................................................8 Making a Call.....................................................................................8 Receiving a Call.................................................................................8 Options during a Call .........................................................................8 Text Entry..................................................................................................10 Text Input Modes.............................................................................10 Entering English ..............................................................................10 Entering Symbols............................................................................. 11 Menu Tree .................................................................................................12 Writing and Sending Messages ...............................................................13 Phone Book..............................................................................................14 Adding a New Contact .....................................................................14 Searching a Contact ........................................................................14 ii Alarm Clock.............................................................................................. 15 Activating the Alarm Clock............................................................... 15 Deactivating the Alarm Clock .......................................................... 15 Security .................................................................................................... 16 Enabling/Disabling the Phone Lock................................................. 16 Changing the Phone Lock Code......................................................16 Setting the PIN Lock ....................................................................... 16 Changing the PIN Code ..................................................................17 Menu Commands ..................................................................................... 18 Warnings and Precautions...................................................................... 27 1 Getting to Know Your Phone Your Phone Screen Earpiece Direction key Left soft key key Number keys # key Right soft key End/Power key * HUAWEI 2 Keys and Functions Key Function z Powers on or off the phone. z Ends a call. z Returns to the home screen. z Makes a call. z Views dialed calls. z Displays the menu. z Selects the highlighted menu option. Returns to the previous menu. z : Displays the Brew Lite menu; increases the volume during a call. z : Displays the Write Message menu (by pressing it); displays the Messages menu (by pressing and holding it for two seconds); decreases the volume during a call. z : Displays the Scheduler menu; decreases the volume during a call. z : Displays the Ringer menu; increases the volume during a call. ... z Enters numbers and characters. z Selects a menu item. 3 Key Function z Enters the * symbol. z You can switch between the conference mode and the current mode (by pressing and holding it for two seconds). z If the phone is locked, press + to unlock. z Locks the keypad in the standby mode (by pressing and holding it for two seconds). z Enters the # symbol. z When editing texts, press it to change input modes. Screen Icons Icon Meaning Indicates the signal strength. The …

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISC2205 to be kept confidential: 1. Schematic diagram & PCB layout. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

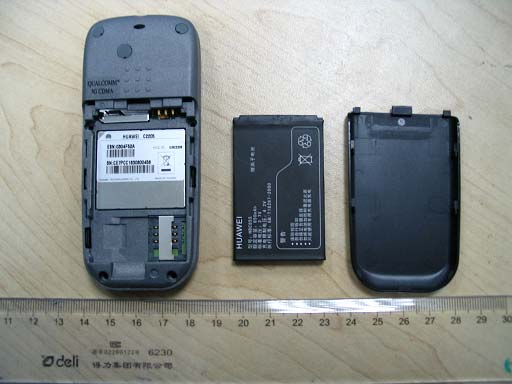

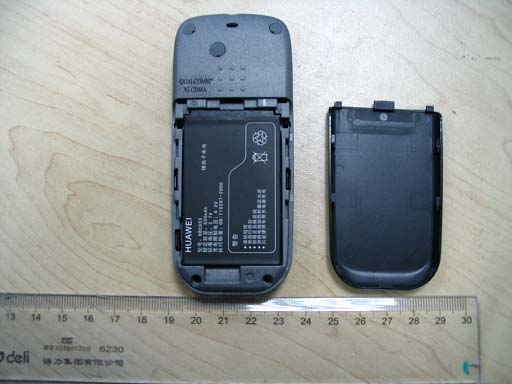

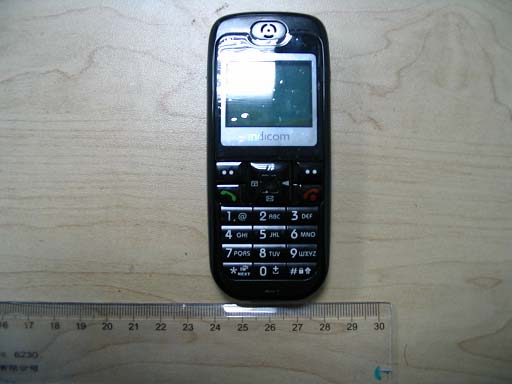

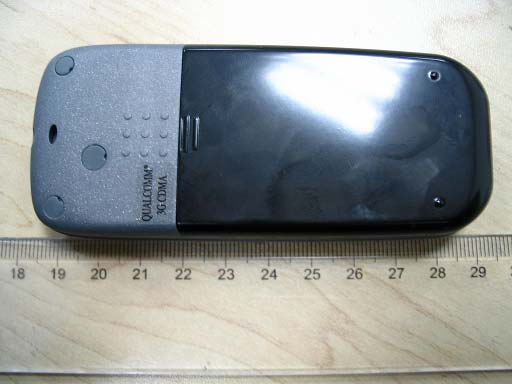

Huawei C2205 CDMA Handset SECRET Page1,Total 6 External Photo of Huawei C2205 Huawei C2205 CDMA Handset SECRET Page2,Total 6 Huawei C2205 CDMA Handset SECRET Page3,Total 6 Huawei C2205 CDMA Handset SECRET Page4,Total 6 Huawei C2205 CDMA Handset SECRET Page5,Total 6 Huawei C2205 CDMA Handset SECRET Page6,Total 6

Huawei C2205 CDMA Handset SECRET Page1, Total 1 ID Label Location_C2205 ID Label_C2205

Huawei C2205 CDMA Handset SECRET Page1,Total 4 Internal Photo of Huawei C2205 Huawei C2205 CDMA Handset SECRET Page2,Total 4 Huawei C2205 CDMA Handset SECRET Page3,Total 4 Huawei C2205 CDMA Handset SECRET Page4,Total 4

Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 2 of 68 Notes 1. . The test report shall be invalid if there is no “specified stamp for the test report” or the stamp of the test organization on it. 2. Copies of the test report shall be invalid if there is no “specified stamp for the test report” or the stamp of the test organization on it. 3. The test report shall be invalid if there are no signatures of the testing person, reviewing person and approving person on it. 4. The test report shall be invalid if it is altered. 5. Any demurral about the test shall be put forward to the testing organization within 15 days after the receiving of the test report. 6. This test report standalone dose not constitute or imply by its own an approval of the product by any Certification Authorities or Competent Bodies. 7. This report is only valid if complete, and test report shall not be reproduced except in full, without written approval of the laboratory. 8. This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of Telecommunication Metrology Center of MII and the Accreditation Bodies, if it applies. Address: No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China (Telecommunication Metrology Center of MII) Post code: 100083 Telephone: +86 10 62302041 Fax: +86 10 62304793 Web site: http://www.emcite.com E-mail: [email protected] Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 3 of 68 TABLE OF CONTENT 1 COMPETENCE AND WARRANTIES ............................................................................... 5 2 GENERAL CONDITIONS................................................................................................... 5 3 DESCRIPTION OF EUT...................................................................................................... 5 3.1 ADDRESSING INFORMATION RELATED TO EUT...................................................................... 5 3.2 CONSTITUENTS OF EUT ........................................................................................................ 6 3.3 GENERAL DESCRIPTION......................................................................................................... 6 4 OPERATIONAL CONDITIONS DURING TEST ............................................................. 7 4.1 SCHEMATIC TEST CONFIGURATION........................................................................................ 7 4.2 SAR MEASUREMENT SET-UP................................................................................................. 8 4.3 DASY4 E-FIELD PROBE SYSTEM............................................................................................ 8 4.4 E-FIELD PROBE CALIBRATION............................................................................................... 9 4.5 OTHER TEST EQUIPMENT.................................................................................................... 10 4.6 EQUIVALENT TISSUES.......................................................................................................... 10 4.7 SYSTEM SPECIFICATIONS..................................................................................................... 11 5 CHARACTERISTICS OF THE TEST ............................................................................. 11 5.1 APPLICABLE LIMIT REGULATIONS....................................................................................... 11 5.2 APPLICABLE MEASUREMENT STANDARDS........................................................................... 12 6 LABORATORY ENVIRONMENT ................................................................................... 12 7 CONDUCTED OUTPUT POWER MEASUREMENT................................................... 12 7.1 SUMMARY........................................................................................................................... 12 7.2 CONDUCTED POWER........................................................................................................... 12 8 TEST RESULTS ..................................................................................................................13 8.1 DIELECTRIC PERFORMANCE................................................................................................ 13 8.2 SYSTEM VALIDATION........................................................................................................... 13 8.3 SUMMARY OF MEASUREMENT RESULTS.............................................................................. 14 8.4CONCLUSION........................................................................................................................ 15 9 MEASUREMENT UNCERTAINTY ................................................................................. 15 10 MAIN TEST INSTRUMENTS......................................................................................... 16 11 TEST PERIOD................................................................................................................... 16 12 TEST LOCATION............................................................................................................. 17 ANNEX A MEASUREMENT PROCESS ............................................................................ 18 ANNEX B TEST LAYOUT ................................................................................................... 19 ANNEX C GRAPH RESULTS.............................................................................................. 23 ANNEX D SYSTEM VALIDATION RESULTS.................................................................. 59 ANNEX E PROBE CALIBRATION CERTIFICATE........................................................ 60 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 5 of 68 1 COMPETENCE AND WARRANTIES Telecommunication Metrology Center of Ministry of Information Industry…

Text truncated - open the document above for the full version.

Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 34 of 68 Fig. 12 Z-Scan at power reference point (CDMA 835MHz CH1013) Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 35 of 68 CDMA 1X Right Cheek High Electronics: DAE3 Sn536 Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Cheek High/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.978 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.8 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 1.20 W/kg SAR(1 g) = 0.851 mW/g; SAR(10 g) = 0.558 mW/g Maximum value of SAR (measured) = 0.917 mW/g 0 dB = 0.917mW/g Fig. 13 Right Hand Touch Cheek CDMA 835MHz CH777 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 36 of 68 Fig. 14 Z-Scan at power reference point (CDMA 835MHz CH777) Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 37 of 68 CDMA 1X Right Cheek Middle Electronics: DAE3 Sn536 Communication System: CDMA 1X-new Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Cheek Middle/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.04 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.4 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.917 mW/g; SAR(10 g) = 0.606 mW/g Maximum value of SAR (measured) = 0.983 mW/g 0 dB = 0.983mW/g Fig.15 Right Hand Touch Cheek CDMA 835MHz CH384 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 38 of 68 Fig. 16 Z-Scan at power reference point (CDMA 835MHz CH384) Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 39 of 68 CDMA 1X Right Cheek Low Electronics: DAE3 Sn536 Communication System: CDMA 1X-new Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Cheek Low/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.552 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.2 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.689 W/kg SAR(1 g) = 0.491 mW/g; SAR(10 g) = 0.324 mW/g Maximum value of SAR (measured) = 0.528 mW/g 0 dB = 0.528mW/g Fig. 17 Right Hand Touch Cheek CDMA 835MHz CH1013 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 40 of 68 Fig. 18 Z-Scan at power reference point (CDMA 835MHz CH1013) Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 41 of 68 CDMA 1X Right Tilt High Electronics: DAE3 Sn536 Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt High/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.548 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.5 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.693 W/kg SAR(1 g) = 0.492 mW/g; SAR(10 g) = 0.326 mW/g Maximum value of SAR (measured) = 0.529 mW/g 0 dB = 0.529mW/g Fig. 19 Right Hand Tilt 15°CDMA 835MHz CH777 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 42 of 68 Fig. 20 Z-Scan at power reference point (CDMA 835MHz CH777) Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 43 of 68 CDMA 1X Right Tilt Middle Electronics: DAE3 Sn536 Communication System: CDMA 1X-new Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Middle/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.577 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.1 V/m; Power Drift = -0.199 dB Peak SAR (extrapolated) = 0.725 W/kg SAR(1 g) = 0.521 mW/g; SAR(10 g) = 0.345 mW/g Maximum value of SAR (measured) = 0.562 mW/g 0 dB = 0.562mW/g Fig. 21 Right Hand Tilt 15°CDMA 835MHz CH384 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 44 of 68 Fig. 22 Z-Scan at power reference point (CDMA 835MHz CH384) Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 45 of 68 CDMA 1X Right Tilt Low Electronics: DAE3 Sn536 Communication System: CDMA 1X-new Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Low/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.298 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.2 V/m; Power Drift = -0.193 dB Peak SAR (extrapolated) = 0.375 W/kg SAR(1 g) = 0.269 mW/g; SAR(10 g) = 0.179 mW/g Maximum value of SAR (measured) = 0.290 mW/g 0 dB = 0.290mW/g Fig. 23 Right Hand Tilt 15°CDMA 835MHz CH1013 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 46 of 68 Fig. 24 Z-Scan at power reference point (CDMA 835MHz CH1013) Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 47 of 68 CDMA 1X Body Toward Phantom High Electronics: DAE3 Sn536 Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Phantom High/Area Scan (71x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.370 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.2 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.414 W/kg SAR(1 g) = 0.322 mW/g; SAR(10 g) = 0.229 mW/g Maximum value of SAR (me…

Text truncated - open the document above for the full version.

Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 51 of 68 CDMA 1X Body Toward Phantom Low Electronics: DAE3 Sn536 Communication System: CDMA 1X-new Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Phantom Low/Area Scan (71x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.219 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.9 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.241 W/kg SAR(1 g) = 0.186 mW/g; SAR(10 g) = 0.133 mW/g Maximum value of SAR (measured) = 0.199 mW/g 0 dB = 0.199mW/g Fig. 28 CDMA 835MHz, Body, Towards Phantom, CH1013 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 52 of 68 Fig. 30 Z-Scan at power reference point (CDMA 835MHz, Body, Towards Phantom, CH1013) Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 53 of 68 CDMA 1X Body Toward Ground High Electronics: DAE3 Sn536 Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground High/Area Scan (71x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.890 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.0 V/m; Power Drift = 0.043 dB Peak SAR (extrapolated) = 1.12 W/kg SAR(1 g) = 0.830 mW/g; SAR(10 g) = 0.579 mW/g Maximum value of SAR (measured) = 0.887 mW/g 0 dB = 0.887mW/g Fig. 31 CDMA 835MHz, Body, Towards Ground, CH777 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 54 of 68 Fig. 232 Z-Scan at power reference point (CDMA 835MHz, Body, Towards Ground, CH777) Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 55 of 68 CDMA 1X Body Toward Ground Middle Electronics: DAE3 Sn536 Communication System: CDMA 1X-new Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground Middle/Area Scan (71x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.899 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.0 V/m; Power Drift = -0.071 dB Peak SAR (extrapolated) = 1.12 W/kg SAR(1 g) = 0.831 mW/g; SAR(10 g) = 0.582 mW/g Maximum value of SAR (measured) = 0.883 mW/g 0 dB = 0.883mW/g Fig. 33 CDMA 835MHz, Body, Towards Ground, CH384 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 56 of 68 Fig. 34 Z-Scan at power reference point (CDMA 835MHz, Body, Towards Ground, CH384) Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 57 of 68 CDMA 1X Body Toward Ground Low Electronics: DAE3 Sn536 Communication System: CDMA 1X-new Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground Low/Area Scan (71x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.645 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.7 V/m; Power Drift = 0.118 dB Peak SAR (extrapolated) = 0.803 W/kg SAR(1 g) = 0.598 mW/g; SAR(10 g) = 0.419 mW/g Maximum value of SAR (measured) = 0.635 mW/g 0 dB = 0.635mW/g Fig. 35 CDMA 835MHz, Body, Towards Ground, CH1013 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 58 of 68 Fig. 36 Z-Scan at power reference point (CDMA 835MHz, Body, Towards Ground, CH1013) Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 59 of 68 ANNEX D SYSTEM VALIDATION RESULTS 835MHzDAE536Probe1736 Electronics: DAE3 Sn536 Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) 835MHz/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 56.8 V/m; Power Drift = -0.0 dB Maximum value of SAR (interpolated) = 2.68 mW/g 835MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.8 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 2.69 mW/g Peak SAR (extrapolated) = 3.67 W/kg SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.62 mW/g 0 dB = 2.69mW/g Fig.37 validation 835MHz 250mW Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 60 of 68 ANNEX E PROBE CALIBRATION CERTIFICATE Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 61 of 68 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 62 of 68 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 63 of 68 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 64 of 68 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 65 of 68 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 66 of 68 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 67 of 68 Telecommunication Metrology Center of Ministry of Information Industry No. 2006E00192 Page 68 of 68

FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page1, Total83 Appendix A Effective Radiated Power of Transmitter According to CFR 47 (FCC) part 2.1046 & 22.913 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page2, Total83 Channel 1013 TM1: FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page3, Total83 TM3: FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page4, Total83 Channel 283 TM1: FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page5, Total83 TM3: FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page6, Total83 Channel 777 TM1: FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page7, Total83 TM3: FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page8, Total83 Appendix B Modulation Characteristic Measurement According to CFR 47 (FCC) part 2.1047 & 22.915 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page9, Total83 Channel 283（TM1） FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page10, Total83 Channel 283（TM3） FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page11, Total83 Appendix C Occupied Bandwidth Measurement According to CFR 47 (FCC) part 2.1049& 22.917 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page12, Total83 Channel 1013（TM1） FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page13, Total83 Channel 1013（TM3） FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page14, Total83 Channel 283（TM1） FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page15, Total83 Channel 283（TM3） FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page16, Total83 Channel 777（TM1） FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page17, Total83 Channel 777（TM3） FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page18, Total83 Appendix D Measurement Results Band Edges According to CFR 47 (FCC) part 2.1051 & 22.917(e) FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page19, Total83 TM1 Left Edge (824 MHz) Channel 1013 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page20, Total83 Right Edge (849MHz) Channel 777 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page21, Total83 TM3 Left Edge (824 MHz) Channel 1013 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page22, Total83 Right Edge (849MHz) Channel 777 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page23, Total83 Appendix E Spurious Emission at Antenna Terminal According to CFR 47 (FCC) part 2.1051 & 22.917(e) FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page24, Total83 1.1 TM1 Channel 1013 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page25, Total83 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page26, Total83 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page27, Total83 Channel 283 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page28, Total83 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page29, Total83 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No Distribution without Permission Page30, Total83 Channel 777 FCC ID: QISC2205 Report No: SYBH (R)32022006EB Confidential Information of Huawei. No…
