QISC2605CDMA Mobile Phone

C2605 CDMA 1X Mobile Phone Copyright © 2007 Huawei Technologies Co., Ltd. and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd. in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the property of their respective holders. The information in this manual is subject to change without notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this manual do not constitute the warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China Te l : +86-755-28780808 Global Hotline: +86-755-28560808 E-mail: [email protected] Website: www.huawei.com i Table of Contents Your Phone ............................................................................... 1 Keys and Functions .................................................................. 2 Screen Icons.............................................................................. 3 Menu Tree................................................................................. 4 Installing the UIM Card and Battery ........................................ 5 Removing the Battery and UIM Card ...................................... 5 Charging the Battery................................................................. 5 Using the Function Menu ......................................................... 6 Making a Call ........................................................................... 6 Answering a Call ...................................................................... 7 Activating your Speaker phone ................................................ 7 Recording a Voice Clip ............................................................. 7 Phone Lock ............................................................................... 8 PIN and PUK ............................................................................ 8 Locking the Keypad.................................................................. 8 Changing the Text Input Modes ............................................... 8 Entering English (eZiEn).......................................................... 9 Entering English (ABC, Abc and abc) ..................................... 9 Entering Hindi ........................................................................ 10 Entering Numbers................................................................... 10 Entering Symbols ................................................................... 10 Warnings and Precautions ...................................................... 10 1 Your Phone Screen Dial/Send Key Number Keys Navigation Keys Left Soft Key RightSoftKey Earpiece Key Charger Interface Key End/Power Key Microphone 2 Keys and Functions Press... To... z View the dialled calls in the standby mode. z Make or answer a call. z Power on or off the phone (by pressing and holding it). z End a call or reject an incoming call. z Return to the standby mode. z Select the option displayed on the lower left corner of the screen. z Select the option displayed on the lower right corner of the screen. z Display the Brew and UTK interface (), the Messages interface ( ), the Write Message interface (by pressing and holding ), the Scheduler interface ( ), and the Alarm interface ( ) in the standby mode. z Increase the volume ( or ) or decrease the volume ( or ) during a call. z Enter numbers and characters. z Speed-dial phone numbers in the standby mode (by pressing and holding the 1-9 keys). z Select a submenu item labeled the corresponding number. 3 Press... To... z Enter the * symbol. z Enable or disable the Vibrate Only profile (by pressing and holding it). z Provide different functions according to the phone features being used. z Enter the # symbol. z Lock the keypad in the standby mode (by pressing and holding it). z Provide different functions according to the phone features being used. Screen Icons Icon Description IconDescription Network signal strength Battery power level Calling... General profile Voice Privacy Vibrate Only profile Roaming... Silent profile CDMA 1X network Outdoor profile Message received Keypad locked Emergency message received Alarm clock on Memory for messages full Voice message received 4 Menu Tree 1 Missed Calls 2 Received Calls 3 Dialled Calls 4 Call Duration 5 In Call Memo 6 Delete All 1 Write Message 2Inbox 3Outbox 4Draft 5Voice Mail 6 Templates 7 Message Settings 8 Delete All Settings Messages Profiles 1 Search 2 Add New 3 Groups 4 Speed Dial 5Copy All 6 Delete All 7 My Phone No. 8 Memory Status 1 Recorder 2Alarm 3 Scheduler 4Calculator 5 Gallery 1 General 2 Vibrate Only 3Silent 4 Outdoor 1Display 2 Call Settings 3 Phone Settings 4Security Tools Call Log Contacts 1 Missed Calls 2 Received Calls 3 Dialled Calls 4 Call Duration 5 In Call Memo 6 Delete All 1 Write Message 2Inbox 3Outbox 4Draft 5Voice Mail 6 Templates 7 Message Settings 8 Delete All Settings Messages Profiles 1 Search 2 Add New 3 Groups 4 Speed Dial 5Copy All 6 Delete All 7 My Phone No. 8 Memory Status 1 Recorder 2Alarm 3 Scheduler 4Calculator 5 Gallery 1 General 2 Vibrate Only 3Silent 4 Outdoor 1Display 2 Call Settings 3 Phone Settings 4Security Tools Call Log Contacts 2 SMS Services TATA Zone 1 TATA Zone 5 Installing the UIM Card and Battery The User Identity Module (UIM) card and the T-SIM card are the same, that is, Subscriber Identity Module. Make sure that the golden area on the UIM card is facing downwards and the cut-off edge is correctly aligned with the card holder. a b Removing the Battery and UIM Card Make sure that your phone is powered off. a b Charging the Battery 1. Connect the charger to the charger interface at the bottom of your phone. 2. Connect the charger to an AC power socket. 3. During the charging, the charging ic…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. AddressHuawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP518129 Page 1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com SubjectLetter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISC2605 to be kept confidential: 1. Schematic diagram & PCB layout. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei C2605 CDMA Handset SECRET Page1,Total 5 External Photo of HUAWEI C2605 Huawei C2605 CDMA Handset SECRET Page2,Total 5 Huawei C2605 CDMA Handset SECRET Page3,Total 5 Huawei C2605 CDMA Handset SECRET Page4,Total 5 Huawei C2605 CDMA Handset SECRET Page5,Total 5

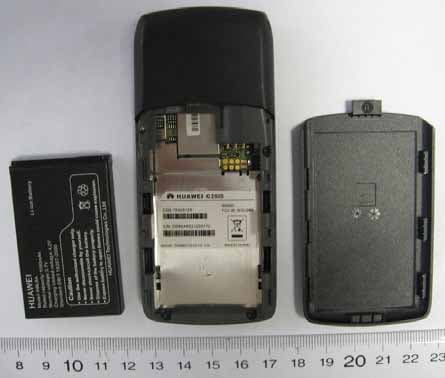

Huawei C2605 CDMA Handset SECRET Page1, Total 1 Label _C2605 Label Location_C2605

Huawei C2605 CDMA Handset SECRET Page1,Total 3 Internal Photo of HUAWEI C2605 Huawei C2605 CDMA Handset SECRET Page2,Total 3 Huawei C2605 CDMA Handset SECRET Page3,Total 3

NO.: RZA2007-0779 TEST REPORT Test name Electromagnetic Field (Specific Absorption Rate) Product CDMA 1X Digital Mobile Telephone Model HUAWEI C2605 FCC ID QISC2605 Client HUAWEI Technologies Co., Ltd. TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 2of 74 GENERAL TERMS 1. The test report is invalid if not marked with “exclusive stamp for the data report” or the stamp of the TA. 2. Any copy of the test report is invalid if not re-marked with the “exclusive stamp for the test report” or the stamp of TA. 3. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 4. The test report is invalid if there is any evidence of erasure and/or falsification. 5. If there is any dissidence for the test report, please file objection to the test center within 15 days from the date of receiving the test report. 6. Normally, entrust test is only responsible for the samples that have undergone the test. 7. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permissions of TA. Address: Room4,No.399,Cailun Rd,Zhangjiang Hi-Tech Park, Pudong Shanghai,China Post code: 201203 Telephone: +86-021-50791141/2/3 Fax：+86-021-50791147 Website: http://www.ta-shanghai.com E-mail: [email protected] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 3of 74 GENERAL SUMMARY Product CDMA 1X Digital Mobile Telephone Model HUAWEI C2605 Client HUAWEI Technologies Co., Ltd. Type of test Entrusted Manufacturer HUAWEI Technologies Co., Ltd. Arrival Date of sample Aug.24 th , 2007 Place of sampling (Blank) Carrier of the samples Yaohui Gu Quantity of the samples One Date of product (Blank) Base of the samples (Blank) Items of test SAR Series number 0F8B62E7 Standard(s) EN 50360–2001: Product standard for the measurement of Specific Absorption Rate related to human exposure to electromagnetic fields from mobile phones. EN 50361–2001: Basic standard for the measurement of Specific Absorption Rate related to human exposure to electromagnetic fields from mobile phones. ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE 1528–2003: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques. OET Bulletin 65 (Edition 97-01) and Supplement C (Edition 01-01): Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits. IEC 62209-1: Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 1: Procedure to determine the Specific Absorption Rate (SAR) for hand-held devices used in close proximity to the ear (frequency range of 300 MHz to 3 GHz) Conclusion Localized Specific Absorption Rate (SAR) of this portable wireless equipment has been measured in all cases requested by the relevant standards cited in Clause 5.2 of this test report. Maximum localized SAR is below exposure limits specified in the relevant standards cited in Clause 5.1 of this test report. General Judgment: Pass (Stamp) Date of issue: Sep. 3 rd , 2007 Comment TX Freq. Band: 824–849MHz (CDMA) Max. Power: 0.25W(CDMA) The test result only responds to the measured sample. Approved by Revised by Performed by TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 4of 74 TABLE OF CONTENT 1 COMPETENCE AND WARRANTIES ............................................................................................... 5 2 GENERAL CONDITIONS................................................................................................................. 5 3 DESCRIPTION OF EUT................................................................................................................... 5 3.1 ADDRESSING INFORMATION RELATED TO EUT.................................................................................................... 5 3.2 CONSTITUENTS OF EUT ...................................................................................................................................... 6 3.3 GENERAL DESCRIPTION....................................................................................................................................... 6 4 OPERATIONAL CONDITIONS DURING TEST ............................................................................... 6 4.1 SCHEMATIC TEST CONFIGURATION...................................................................................................................... 6 4.2 SAR MEASUREMENT SET-UP...............................................................................................................................7 4.3 DASY4 E-FIELD PROBE SYSTEM.......................................................................................................................... 8 4.4 E-FIELD PROBE CALIBRATION............................................................................................................................. 9 4.5 OTHER TEST EQUIPMENT................................................................................................................................... 10 4.6 EQUIVALENT TISSUES........................................................................................................................................ 11 4.7 SYSTEM SPECIFICATIONS................................................................................................................................... 11 5 CHARACTERISTICS OF THE TEST ............................................................................................. 12 5.1 APPLICABLE LIMIT REGULATIONS.................................................................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 31of 74 CDMA Cellular Left Tilt Middle Communication System: CDMA Cellular; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: Head 835MHz Medium parameters used: f = 837 MHz; σ = 0.936 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737 ConvF(6.85, 6.85, 6.85); - Electronics: DAE3 Sn452; CDMA Cellular Left Tilt Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.474 mW/g CDMA Cellular Left Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.6 V/m; Power Drift = -0.147 dB Peak SAR (extrapolated) = 0.594 W/kg SAR(1 g) = 0.432 mW/g; SAR(10 g) = 0.303 mW/g Maximum value of SAR (measured) = 0.459 mW/g Fig. 15 Left Hand Tilt 15° CDMA Cellular CH384 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 32of 74 Fig. 16 Z-Scan at power reference point (CDMA Cellular CH384) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 33of 74 CDMA Cellular Left Tilt Low Communication System: CDMA Cellular; Frequency: 824.7 MHz; Duty Cycle: 1:1 Medium: Head 835MHz Medium parameters used: f = 825 MHz; σ = 0.925 mho/m; ε r = 42; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737 ConvF(6.85, 6.85, 6.85); - Electronics: DAE3 Sn452; CDMA Cellular Left Tilt Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.634 mW/g CDMA Cellular Left Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.3 V/m; Power Drift = -0.166 dB Peak SAR (extrapolated) = 0.794 W/kg SAR(1 g) = 0.576 mW/g; SAR(10 g) = 0.406 mW/g Maximum value of SAR (measured) = 0.620 mW/g Fig. 17 Left Hand Tilt 15° CDMA Cellular CH1013 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 34of 74 Fig.18 Z-Scan at power reference point (CDMA Cellular CH1013) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 35of 74 CDMA Cellular Right Cheek High Communication System: CDMA Cellular; Frequency: 848.31 MHz; Duty Cycle: 1:1 Medium: Head 835MHz Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.942 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737 ConvF(6.85, 6.85, 6.85); - Electronics: DAE3 Sn452; CDMA Cellular Right Cheek High/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.12 mW/g CDMA Cellular Right Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.4 V/m; Power Drift = -0.137 dB Peak SAR (extrapolated) = 1.55 W/kg SAR(1 g) = 1.12 mW/g; SAR(10 g) = 0.763 mW/g Maximum value of SAR (measured) = 1.20 mW/g Fig. 19 Right Hand Touch Cheek CDMA Cellular CH777 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 36of 74 Fig. 20 Z-Scan at power reference point (CDMA Cellular CH777) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 37of 74 CDMA Cellular Right Cheek Middle Communication System: CDMA Cellular; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: Head 835MHz Medium parameters used: f = 837 MHz; σ = 0.936 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737 ConvF(6.85, 6.85, 6.85); - Electronics: DAE3 Sn452; CDMA Cellular Right Cheek Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.08 mW/g CDMA Cellular Right Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.9 V/m; Power Drift = 0.092 dB Peak SAR (extrapolated) = 1.29 W/kg SAR(1 g) = 0.948 mW/g; SAR(10 g) = 0.649 mW/g Maximum value of SAR (measured) = 1.01 mW/g Fig. 21 Right Hand Touch Cheek CDMA Cellular CH384 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 38of 74 Fig. 22 Z-Scan at power reference point (CDMA Cellular CH384) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 39of 74 CDMA Cellular Right Cheek Low Communication System: CDMA Cellular; Frequency: 824.7 MHz; Duty Cycle: 1:1 Medium: Head 835MHz Medium parameters used: f = 825 MHz; σ = 0.925 mho/m; ε r = 42; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737 ConvF(6.85, 6.85, 6.85); - Electronics: DAE3 Sn452; CDMA Cellular Right Cheek Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.21 mW/g CDMA Cellular Right Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.6 V/m; Power Drift = 0.097 dB Peak SAR (extrapolated) = 1.65 W/kg SAR(1 g) = 1.2 mW/g; SAR(10 g) = 0.817 mW/g Maximum value of SAR (measured) = 1.29 mW/g Fig. 23 Right Hand Touch Cheek CDMA Cellular CH1013 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 40of 74 Fig. 24 Z-Scan at power reference point (CDMA Cellular CH1013) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 41of 74 CDMA Cellular Right Tilt High Communication System: CDMA Cellular; Frequency: 848.31 MHz; Duty Cycle: 1:1 Medium: Head 835MHz Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.942 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737 ConvF(6.85, 6.85, 6.85); - Electronics: DAE3 Sn452; CDMA Cellular Right Tilt High/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.495 mW/g CDMA Cellular Right Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.5 V/m; Power Drift = 0.045 dB Peak SAR (extrapolated) = 0.671 W/kg SAR(1 g) = 0.499 mW/g; SAR(10 g) = 0.348 mW/g Maximum value of SAR (measured) = 0.536 mW/g Fig. 25 Right Hand Tilt 15° CDMA Cellular CH777 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 42of 74 Fig. 26 Z-Scan at power reference point (CDMA Cellular CH777) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 43of 74 CDMA Cellular Right Tilt Middle Communication System: CDMA Cellular; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: Head 83…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 51of 74 CDMA Cellular towards the phantom Low Communication System: CDMA Cellular; Frequency: 824.7 MHz; Duty Cycle: 1:1 Medium: Body 835MHz Medium parameters used: f = 825 MHz; σ = 0.982 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737 ConvF(6.85, 6.85, 6.85); - Electronics: DAE3 Sn452; CDMA Cellular Display of EUT towards the phantom, Low frequency/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.483 mW/g CDMA Cellular Display of EUT towards the phantom, Low frequency/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.80 V/m; Power Drift = -0.146 dB Peak SAR (extrapolated) = 0.575 W/kg SAR(1 g) = 0.449 mW/g; SAR(10 g) = 0.322 mW/g Maximum value of SAR (measured) = 0.477 mW/g Fig. 35 Body, Towards Phantom, CDMA Cellular CH1013 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 52of 74 Fig. 36 Z-Scan at power reference point (Body, Towards Phantom, CDMA Cellular CH1013) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 53of 74 CDMA Cellular towards the ground High Communication System: CDMA Cellular; Frequency: 848.31 MHz; Duty Cycle: 1:1 Medium: Body 835MHz Medium parameters used (interpolated): f = 848.31 MHz; σ = 1.01 mho/m; ε r = 55.2; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737 ConvF(6.85, 6.85, 6.85); - Electronics: DAE3 Sn452; CDMA Cellular Display of EUT towards the ground, High frequency/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.999 mW/g CDMA Cellular Display of EUT towards the ground, High frequency/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.4 V/m; Power Drift = -0.110 dB Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.897 mW/g; SAR(10 g) = 0.650 mW/g Maximum value of SAR (measured) = 0.956 mW/g Fig. 37 Body, Towards Ground, CDMA Cellular CH777 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 54of 74 Fig. 38 Z-Scan at power reference point (Body, Towards Ground, CDMA Cellular CH777) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 55of 74 CDMA Cellular towards the ground Middle Communication System: CDMA Cellular; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium: Body 835MHz Medium parameters used: f = 837 MHz; σ = 0.996 mho/m; ε r = 55.3; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737 ConvF(6.85, 6.85, 6.85); - Electronics: DAE3 Sn452; CDMA Cellular Display of EUT towards the ground, Middle frequency/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.838 mW/g CDMA Cellular Display of EUT towards the ground, Middle frequency/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.3 V/m; Power Drift = 0.037 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.805 mW/g; SAR(10 g) = 0.583 mW/g Maximum value of SAR (measured) = 0.852 mW/g Fig. 39 Body, Towards Ground, CDMA Cellular CH384 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 56of 74 Fig. 40 Z-Scan at power reference point (Body, Towards Ground, CDMA Cellular CH384) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 57of 74 CDMA Cellular towards the ground Low Communication System: CDMA Cellular; Frequency: 824.7 MHz; Duty Cycle: 1:1 Medium: Body 835MHz Medium parameters used: f = 825 MHz; σ = 0.982 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737 ConvF(6.85, 6.85, 6.85); - Electronics: DAE3 Sn452; CDMA Cellular Display of EUT towards the ground, Low frequency/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.986 mW/g CDMA Cellular Display of EUT towards the ground, Low frequency /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.8 V/m; Power Drift = 0.148 dB Peak SAR (extrapolated) = 1.20 W/kg SAR(1 g) = 0.949 mW/g; SAR(10 g) = 0.689 mW/g Maximum value of SAR (measured) = 1.01 mW/g Fig. 41 Body, Towards Ground, CDMA Cellular CH1013 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 58of 74 Fig. 42 Z-Scan at power reference point (Body, Towards Ground, CDMA Cellular CH1013) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 59of 74 ANNEX D： SYSTEM VALIDATION RESULTS System Performance Check at 835 MHz Communication System: CW; Frequency: 835 MHz; Duty Cycle: 1:1 Medium: Head 835MHz Medium parameters used: f = 835 MHz; σ = 0.899 mho/m; ε r = 42.8; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737; ConvF(6.52, 6.52, 6.52); - Electronics: DAE3 Sn452; d=15mm, Pin=250mW/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.54 mW/g d=15mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.0 V/m; Power Drift = -0.061 dB Peak SAR (extrapolated) = 3.44 W/kg SAR(1 g) = 2.34 mW/g; SAR(10 g) = 1.53 mW/g Maximum value of SAR (measured) = 2.52 mW/g 0 dB = 2.52mW/g Fig. 43 System Performance Check 835MHz 250mW TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 60of 74 ANNEX E： PROBE CALIBRATION CERTIFICATE TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 61of 74 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 62of 74 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 63of 74 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 64of 74 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 65of 74 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 66of 74 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 67of 74 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 68of 74 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0779 Page 69of 74 ANNEX F： DIPOLE CALIBRATION CERTIFICATE TA Technology (Shanghai) Co., Ltd. Test R…

Text truncated - open the document above for the full version.

FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page1, Total3 Appendix A Modulation Characteristics According to FCC Part 2.1047 & Part22 Subpart H FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page2, Total3 Channel 283TM1 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total3 Channel 283TM3 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page1, Total5 Appendix B Occupied Bandwidth According to FCC Part 2.1049 & Part 22 Subpart H FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page2, Total5 Channel 1013TM1 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page3, Total5 Channel 1013TM3 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page4, Total5 Channel 777TM1 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page5, Total5 Channel 777TM3 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page1, Total5 Appendix C Band Edges Compliance According to FCC Part 2.1051 & 22.917 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page2, Total5 TM1 Left Edge Channel 1013 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page3, Total5 Right Edge Channel 777 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page4, Total5 TM3 Left Edge Channel 1013 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page5, Total5 Right Edge Channel 777 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total13 Appendix D Spurious Emission at Antenna Terminal According to FCC Part 2.1051 & 22.917 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total13 TM1 Channel 1013 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total13 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page4, Total13 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page5, Total13 Channel 777 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page6, Total13 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page7, Total13 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page8, Total13 TM3 Channel 1013 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page9, Total13 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page10, Total13 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page11, Total13 Channel 777 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page12, Total13 FCC ID: QISC2605 Report No: SYBH(R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page13, Total13 FCC ID: QISC2605 Report No: SYBH (R)84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total2 Appendix E Radiated Spurious Emission According to FCC Part 2.1053 & 22.917 FCC ID: QISC2605 Report No: SYBH (R) 84072007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total2 Traffic Mode …

Text truncated - open the document above for the full version.
