QISC2831CDMA 1X Digital Mobile Phone

C2831 CDMA 1X Mobile Phone USER GUIDE Please refer color and shape to product. Huawei reserves the right to make changes or improvements to any of the products without prior notice. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People’s Republic of China Tel: +86-755-28780808 Global Hotline: +86-755-28560808 E-mail: [email protected] Website: www.huawei.com Copyright © Huawei Technologies Co., Ltd. 2010. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Contents 1 Installing the UIM Card and the Battery ............................ 1 2 Charging the Battery ........................................................... 1 3 Getting to Know Your Phone.............................................. 2 4 Keys and Functions ............................................................ 3 5 Screen Icons ........................................................................ 4 6 Locking the Keypad ............................................................ 5 7 Call Function........................................................................ 5 Making a Call ....................................................................... 5 Answering a Call ................................................................. 6 8 Creating and Sending a Text Message .............................. 6 9 Enabling the Power-Saving Mode...................................... 7 10 Enabling the Phone Lock ................................................. 7 11 PIN and PUK....................................................................... 7 12 Text input............................................................................ 8 Entering an English Word (in "En" Mode) ........................ 8 Entering English Letters (in "Abc" Mode) ........................ 8 Entering a Number.............................................................. 9 Entering a Symbol .............................................................. 9 13 Alarms ................................................................................ 9 14 FM Radio .......................................................................... 10 Switching On/Off the Radio ............................................. 10 Automatic Tuning.............................................................. 10 Manual Tuning ................................................................... 10 Listening to a Radio Program.......................................... 11 Recording a Radio Program ............................................ 11 15 Recording an Audio Clip................................................. 11 16 Warnings and Precautions ............................................. 12 1 1 Installing the UIM Card and the Battery Contact your network operator to check whether a User Identity Module (UIM) card is required for the phone. When installing the UIM card, ensure that the gold contact area on the UIM card is facing downward and that the beveled edge of the UIM card is properly aligned with that of the UIM card slot. 2 Charging the Battery 1. Connect the charger to the charger connector of the phone. 2. Connect the charger to a power socket. Charging starts and the charging icon is displayed in animation. 2 3. When the charging icon animation stops, indicating that the charging is complete, disconnect the charger from the phone. 3 Getting to Know Your Phone 1. Strap hole 2. Earpiece 3. Screen 4. Confirm key 5. Right soft key 6. End key 7. Number keys 8. Charger connector 9. # key 10. Microphone 11. * key 12. Headset jack 13. Call key 14. Left soft key 15. Navigation keys Note The preceding figure is provided for your reference only. 3 4 Keys and Functions Press... To... End key z Power on or off the phone (press and hold the key). z End or reject a call. Call key Dial a nu…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Huawei Industrial Base, Bantian, Longgang ,Shenzhen 518219, People’s Republic of China Tel: +86-755-2878-1879, Fax: +86-755-2878-1889 Date: February 16, 2011 Statement We, Huawei Technologies Co.,Ltd , states that our device, FCC ID: QISC2831, has no space to put the label except the battery compartment of this device. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Zhang Xinghai

Huawei Technologies Co.,Ltd Huawei Industrial Base, Bantian, Longgang ,Shenzhen 518219, People’s Republic of China Tel: +86-755-2878-1879, Fax: +86-755-2878-1889 Date: February 16, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: QISC2831 To Whom It May Concern: We, Huawei Technologies Co.,Ltd , hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Zhang Xinghai

Rev. 1/1/03 Huawei Technologies Co.,Ltd Huawei Industrial Base, Bantian, Longgang ,Shenzhen 518219, People’s Republic of China Tel: +86-755-2878-1879, Fax: +86-755-2878-1889 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QISC2831 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: HUAWEI C2831_Schem.pdf) Block Diagram (file: HUAWEI C2831_BlkDia.pdf) Parts List (file: HUAWEI C2831_PartsLst.pdf) Operation Description (file: HUAWEI C2831_OpDes.doc) Tune Up Procedure (file: HUAWEI C2831_TunPro.doc) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Zhang Xinghai

Huawei Technologies Co.,Ltd Huawei Industrial Base, Bantian, Longgang ,Shenzhen 518219, People’s Republic of China Tel: +86-755-2878-1879, Fax: +86-755-2878-1889 Date: February 16, 2011 Power of Attorney To whom it may concern, Please be notified that we, Huawei Technologies Co.,Ltd., have designated Roy Wu in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: QISC2831 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Zhang Xinghai Company: Huawei Technologies Co.,Ltd TEL: +86-755-2878-1879 FAX: +86-755-2878-1889 E-mail: [email protected]

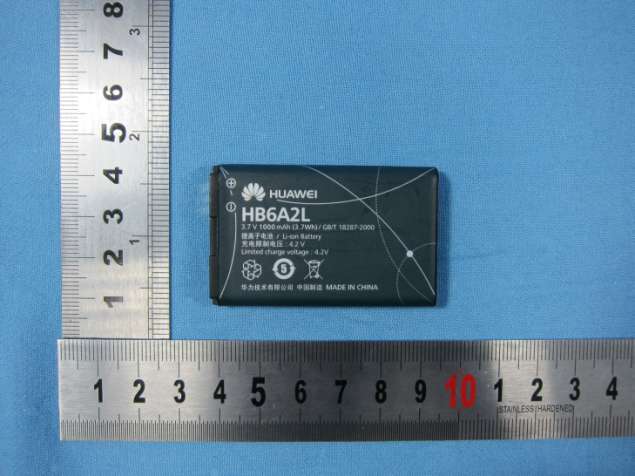

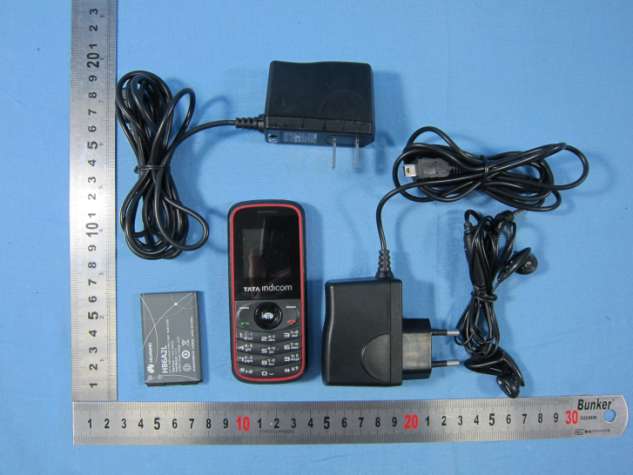

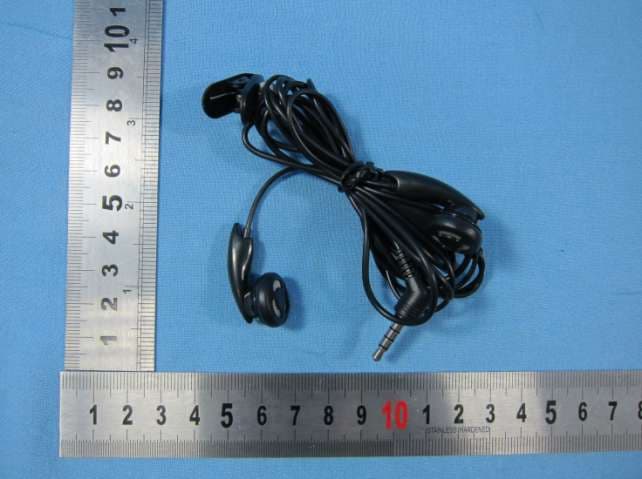

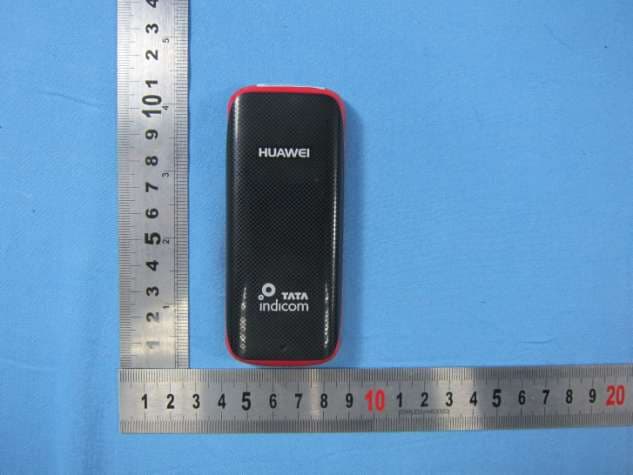

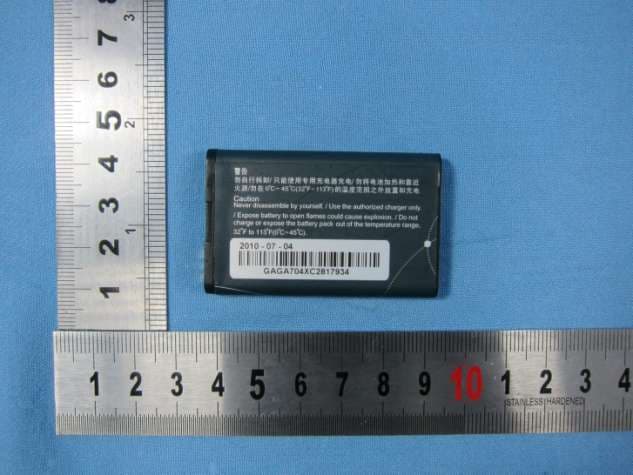

Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 1. External Photograph of EUT Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 720510 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HUAWEI Model Name HS-050040E1 AC Adapter 2 Brand Name HUAWEI Model Name HS-050040U2 Battery Brand Name HUAWEI Model Name HB6A2L Earphone Brand Name HUAWEI Model Name EMC179P-YE24SPEC Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 Adapter 1 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 Adapter 2 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 Battery Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 720510 Earphone

HUAWEI C2831 CDMA Handset SECRET Label Location_HUAWEI C2831 Page1, Total 1

HUAWEI C2831 CDMA Handset SECRET Label _HUAWEI C2831 Page1, Total 1

Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 3. Internal Photograph of EUT Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 720510 Photographs of EUT Report No.: EP111806 Brand Name: HUAWEI / Model Name: HUAWEI C2831 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 CDMA Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 FCC SAR Test Report Report No. : FA111806 FCC SAR Test Report APPLICANT : HUAWEI TECHNOLOGIES CO., LTD. EQUIPMENT : CDMA 1X Digital Mobile Phone BRAND NAME : HUAWEI MODEL NAME : HUAWEI C2831 FCC ID : QISC2831 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jan. 18, 2011 and completely tested on Jan. 26, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 FCC SAR Test Report Report No. : FA111806 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................15 5.7.1 Data Storage…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/1/26 #01 CDMA2000 BC0_RC3 SO55_Right Cheek_Ch1013 DUT: 111704 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_850_110126 Medium parameters used: f = 825 MHz; σ = 0.891 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - ; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (41x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.893 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.88 V/m; Power Drift = 0.078 dB Peak SAR (extrapolated) = 1.35 W/kg SAR(1 g) = 0.882 mW/g; SAR(10 g) = 0.580 mW/g Maximum value of SAR (measured) = 1.02 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/1/26 #01 CDMA2000 BC0_RC3 SO55_Right Cheek_Ch1013_2D DUT: 111704 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_850_110126 Medium parameters used: f = 825 MHz; σ = 0.891 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - ; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (41x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.893 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.88 V/m; Power Drift = 0.078 dB Peak SAR (extrapolated) = 1.35 W/kg SAR(1 g) = 0.882 mW/g; SAR(10 g) = 0.580 mW/g Maximum value of SAR (measured) = 1.02 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/1/26 #02 CDMA2000 BC0_RC3 SO55_Right Tilted_Ch1013 DUT: 111704 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_850_110126 Medium parameters used: f = 825 MHz; σ = 0.891 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - ; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (41x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.463 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11 V/m; Power Drift = 0.060 dB Peak SAR (extrapolated) = 0.588 W/kg SAR(1 g) = 0.440 mW/g; SAR(10 g) = 0.309 mW/g Maximum value of SAR (measured) = 0.470 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/1/26 #03 CDMA2000 BC0_RC3 SO55_Left Cheek_Ch1013 DUT: 111704 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_850_110126 Medium parameters used: f = 825 MHz; σ = 0.891 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - ; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (41x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.835 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.49 V/m; Power Drift = -0.054 dB Peak SAR (extrapolated) = 1.12 W/kg SAR(1 g) = 0.797 mW/g; SAR(10 g) = 0.543 mW/g Maximum value of SAR (measured) = 0.841 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/1/26 #04 CDMA2000 BC0_RC3 SO55_Left Tilted_Ch1013 DUT: 111704 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_850_110126 Medium parameters used: f = 825 MHz; σ = 0.891 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - ; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (41x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.441 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.7 V/m; Power Drift = 0.054 dB Peak SAR (extrapolated) = 0.566 W/kg SAR(1 g) = 0.412 mW/g; SAR(10 g) = 0.292 mW/g Maximum value of SAR (measured) = 0.435 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/1/26 #07 CDMA2000 BC0_RC3 SO55_Bottom_1.5cm_Ch1013 DUT: 111704 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_850_110126 Medium parameters used: f = 825 MHz; σ = 0.961 mho/m; ε r = 56.4; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - ; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.676 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.1 V/m; Power Drift = 0.089 dB Peak SAR (extrapolated) = 0.758 W/kg SAR(1 g) = 0.573 mW/g; SAR(10 g) …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F1 of F3 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 FCC SAR Test Report Report No. : FA111806 Appendix F. FCC 3G SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the 3.1.2.3.4. A detailed analysis of the output power verification is provided as the table below: Function Type Reverse Traffic Channel Test Mode Radio Configuration Service Option Data Rates (kbps) Power Control Low Ch Mid. Ch High Ch Forward Traffic Channel (Fwd) Reverse Traffic Channel (Rvs) 1013 384 777 CDMA2000 Cellular FCH 1 1 1 55 Full All Up 24.58 24.53 24.25 3 3 3 55 Full All Up 24.68 24.61 24.28 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F2 of F3 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 24, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : QISC2831 FCC SAR Test Report Report No. : …

Text truncated - open the document above for the full version.
