QISC2857CDMA 1X Digital Mobile Phone

C2857 CDMA 1X Mobile Phone USER GUIDE Please refer color and shape to product. Huawei reserves the right to make changes or improvements to any of the products without prior notice. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People’s Republic of China Tel: +86-755-28780808 Global Hotline: +86-755-28560808 E-mail: [email protected] Website: www.huawei.com 1 Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. 2 NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Contents 3 1 Installing the UIM Card and the Battery ................................................... 1 2 Charging the Battery................................................................................... 1 3 Getting to Know Your Phone ..................................................................... 2 4 Keys and Functions .................................................................................... 3 5 Screen Icons ................................................................................................ 4 6 Call Function ................................................................................................ 5 Making a Call............................................................................................... 5 Answering a Call ........................................................................................ 6 7 Creating and Sending a Text Message ..................................................... 6 8 Security......................................................................................................... 7 Locking the Keypad ................................................................................... 7 Enabling the Phone Lock .......................................................................... 7 PIN and PUK ................................................................................................ 7 9 Text input ...................................................................................................... 8 Entering English Letters (in Abc Mode) .................................................. 8 Entering an English Word (in En Mode) .................................................. 8 Entering a Number ..................................................................................... 8 Entering a Symbol ...................................................................................... 9 10 Enabling the Power-Saving Mode .......................................................... 9 11 Alarms ........................................................................................................ 9 Enabling an Alarm ...................................................................................... 9 Disabling One or All Alarms.................................................................... 10 12 FM Radio .................................................................................................. 10 Switching On/Off the Radio .................................................................... 10 Automatic Tuning ..................................................................................... 10 Manual Tuning .......................................................................................... 10 Listening to a Radio Program................................................................. 11 Recording a Radio Program ................................................................... 11 13 Recording an Audio Clip ........................................................................ 11 4 14 Warnings and Precautions .................................................................... 12 1 1 Installing the UIM Card and the Battery Contact your network operator to check whether a User Identity Module (UIM) card is required for the phone…

Text truncated - open the document above for the full version.

HUAWEI TECHNOLOGIES CO.,LTD. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 Tel: +86-755-2878-1879 ; Fax: +86-755-2878-1889 Date: August 2, 2011 Statement We, HUAWEI TECHNOLOGIES CO.,LTD., states that our device, FCC ID: QISC2587, has no space to put the label except the battery compartment of this device. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, Contact Person: Xinghai Zhang Company: HUAWEI TECHNOLOGIES CO.,LTD. TEL: +86-755-2878-1879 FAX: +86-755-2878-1889 E-mail: [email protected]

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Declaration of Letter To whom it may concern: FCC ID: QISC2857, Model: HUAWEI C2857 This is to advise and officially, that we, HUAWEI TECHNOLOGIES CO., LTD., declare that HUAWEI C2857 only supports Us cellular 800MHz: 824MHz to 849MHz/869MHz to 894MHz (uplink/downlink) in North America. HUAWEI C2857 I/O connect can only support charging. It can’t support USB with PC for data transfer. Sincerely, Zhang Xinghai EMC Laboratory Manager For and Behalf of: Huawei Technologies Co., Ltd. Huawei Industrial Base, Bantian, Longgang, Shenzhen, P.R China 0086-755-89651014

Rev. 1/1/03 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QISC2857 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: HUAWEI C2857_Schem.pdf) Block Diagram (file: HUAWEI C2857_BlkDia.pdf) Parts List (file: HUAWEI C2857_PartsLst.pdf) Operation Description (file: HUAWEI C2857_OpDes.doc) Tune Up Procedure (file: HUAWEI C2857_TunPro.doc) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Contact Person: Xinghai Zhang Company: Huawei Technologies Co.,Ltd TEL: +86-755-2878-1879 FAX: +86-755-2878-1889 E-mail: [email protected]

HUAWEI C2857 CDMA Handset SECRET Page1, Total 1 Label Location_HUAWEI C2857

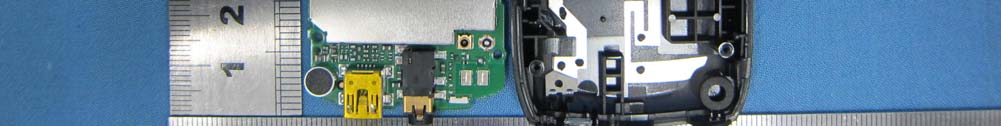

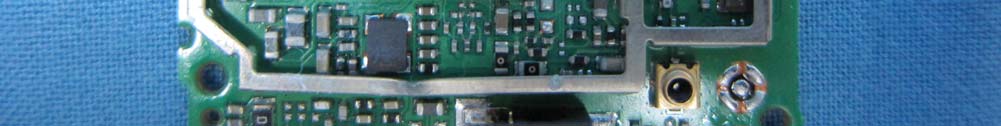

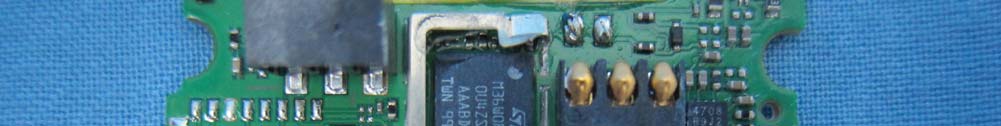

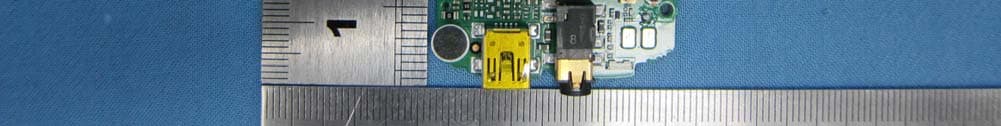

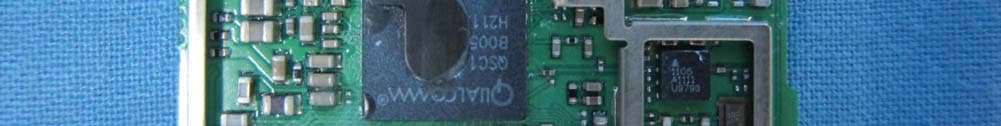

Photographs of EUT Report No.: EP172111 Brand Name: HUAWEI / Model Name: HUAWEI C2857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 3. Internal Photograph of EUT Photographs of EUT Report No.: EP172111 Brand Name: HUAWEI / Model Name: HUAWEI C2857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 Photographs of EUT Report No.: EP172111 Brand Name: HUAWEI / Model Name: HUAWEI C2857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 Photographs of EUT Report No.: EP172111 Brand Name: HUAWEI / Model Name: HUAWEI C2857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 Photographs of EUT Report No.: EP172111 Brand Name: HUAWEI / Model Name: HUAWEI C2857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 Photographs of EUT Report No.: EP172111 Brand Name: HUAWEI / Model Name: HUAWEI C2857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 Photographs of EUT Report No.: EP172111 Brand Name: HUAWEI / Model Name: HUAWEI C2857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 Photographs of EUT Report No.: EP172111 Brand Name: HUAWEI / Model Name: HUAWEI C2857 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 WWAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 FCC SAR Test Report Report No. : FA172111 FCC SAR Test Report APPLICANT : HUAWEI TECHNOLOGIES CO., LTD. EQUIPMENT : CDMA 1X Digital Mobile Phone BRAND NAME : HUAWEI MODEL NAME : HUAWEI C2857 FCC ID : QISC2857 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jul. 21, 2011 and completely tested on Jul. 21, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 FCC SAR Test Report Report No. : FA172111 Table of Contents Revision History .................................................................................................................................................................3 1. Statement of Compliance ...........................................................................................................................................4 2. Administration Data ....................................................................................................................................................5 2.1 Testing Laboratory .............................................................................................................................................5 2.2 Applicant ............................................................................................................................................................5 2.3 Manufacturer .....................................................................................................................................................5 2.4 Application Details .............................................................................................................................................5 3. General Information ....................................................................................................................................................6 3.1 Description of Device Under Test (DUT) ............................................................................................................6 3.2 Product Photos ..................................................................................................................................................6 3.3 Applied Standards .............................................................................................................................................7 3.4 Device Category and SAR Limits ......................................................................................................................7 3.5 Test Conditions ..................................................................................................................................................7 5.1.1 Ambient Condition ...................................................................................................................................7 5.1.2 Test Configuration ....................................................................................................................................7 4. Specific Absorption Rate (SAR) .................................................................................................................................8 4.1 Introduction ........................................................................................................................................................8 4.2 SAR Definition ...................................................................................................................................................8 5. SAR Measurement System .........................................................................................................................................9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................15 5.7.1 Data Sto…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F1 of F3 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 FCC SAR Test Report Report No. : FA172111 Appendix F. FCC CDMA2000 SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the 3.1.2.3.4. A detailed analysis of the output power verification is provided as the table below: Function Type Reverse Traffic Channel Test Mode Radio Configuration Service Option Data Rates (kbps) Power Control Low ChMid. ChHigh Ch Forward Traffic Channel (Fwd) Reverse Traffic Channel (Rvs) 1013 384 777 BC0 FCH 1 1 1 55 Full All Up 24.03 24.20 24.47 3 3 3 55 Full All Up 24.06 24.21 24.58 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F2 of F3 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 FCC SAR Test Report Report No. : FA172111 CDMA2000 Setup Configuration: Setup Configuration 1. The EUT was connected to System Simulator, Agilent 8960. Refer to the drawing of Setup Configuration. 2. The RF path losses were compensated into the measurements. 3. A call was established between EUT and System Simulator with following setting: a. For 1xRTT, set the Radio Configuration and the Service Option b. For 1xEV-DO, set the Protocol Release and Data Rate c. Set the Power Control to All Up Bits 4. The transmitted maximum output power was recorded. 1xRTT setting for Radio Configuration 1 with Service Option 55 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F3 of F3 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 FCC SAR Test Report Report No. : FA172111 1xRTT setting for Radio Configuration 3 with Service Option 55 Reference: [1] SAR Measurement Procedures for 3G Devices CDMA 2000/Ev-Do/WCDMA/HSDPA, June 2006 Laboratory Division Office of Engineering and Technology Federal Communications Commission [2] 3.1.2.3.4 Maximum RF Output Power 3GPP2 C.S0033-0 Version 2.0, Date: 12 December 2003 Recommended Minimum Performance Standards for cdma2000 High Rate Packet Data Access Terminal

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : B1 of B1 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 FCC RF Test Report Report No. : FG172111 Appendix B. Setup Photographs <Radiated Emission>

SPORTON INT TEL : 86-0512- FAX : 86-0512 FCC ID : QIS C APPL EQU BRA MOD FCC STAN CLAS Tx/Rx MAX EMIS The p SPOR evalu sho w The te appro repro Revi e TERNATIONAL -5790-0158 -5790-0958 C2857 FCC RF LICANT IPMENT ND NAME DEL NAME ID NDARD SSIFICATI x FREQUE X. ERP POW SSION DES product was RTON INTER ated in acc wn complianc est results i oval of SPO oduced exce ewed by: Jones T s SP No. 3- L (KUNSHAN) I F Test Rep FCC E E ION ENCY RAN WER SIGNATOR s received RNATIONAL cordance w ce with the n this repo r ORTON INT ept in full. sai / Manage PORTON -2, PingXia NC. port C RF :H :C :H : H :Q :F :P NGE :8 :0 R :1 on Jul. 21, L INC., wou with the pro applicable t rt apply excl TERNATIONA er N INTERN ang Road, Tes HUAWEI T CDMA 1X D HUAWEI HUAWEI C QISC2857 FCC 47 CF PCS Licen 824.70 ~ 84 0.11 W M27F9W 2011 and ld like to d cedures giv technical sta lusively to t AL (KUNSH NATIONA , Kunshan t Re ECHNOLO Digital Mo C2857 FR Part 2, sed Trans 48.31 MHz completely declare that ven in ANS andards. he tested m HAN) INC., AL (KUNS n, Jiangsu Page Numb Report Issu Report Vers port OGIES CO obile Phon 22(H) smitter He z /869.70 ~ tested on the tested SI / TIA / EI odel / samp the test re SHAN) IN u Province ber : 1 o ued Date : Ju sion : Re Report No. O., LTD. ne eld to Ear ( ~ 893.31 M Jul. 22, 201 sample ha IA-603-C-20 ple. Without eport shall NC. e, P.R.C. of 30 l. 25, 2011 ev. 01 . : FG172111 (PCE) MHz 11. We, as been 04 and written not be 1 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 FCC RF Test Report Report No. : FG172111 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ....................................................................................................................................... 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Test Mode.......................................................................................................................................... 7 2.2 Connection Diagram of Test System ................................................................................................ 8 3 TEST RESULT ............................................................................................................................................. 9 3.1 Conducted Output Power Measurement ........................................................................................... 9 3.2 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ......................... 11 3.3 Occupied Bandwidth Measurement ................................................................................................ 14 3.4 Band Edge Measurement ................................................................................................................ 16 3.5 Conducted Emission Measurement ................................................................................................ 18 3.6 Field Strength of Spurious Radiation Measurement ....................................................................... 21 3.7 Frequency Stability Measurement ................................................................................................... 25 4 LIST OF MEASURING EQUIPMENTS ..................................................................................................... 29 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 30 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 FCC RF Test Report Report No. : FG172111 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG172111 Rev. 01 Initial issue of report Jul. 25, 2011 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Jul. 25, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC2857 FCC RF Test Report Report No. : FG172111 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 §2.1046 N/A Conducted Output Power N/A PASS - 3.2 §22.913(a)(2) RSS-132(4.4) SRSP-503(5.1.3) Effective Radiated Power < 7 Watts PASS - 3.3 §22.917(a) N/A Occupied BandwidthN/A PASS - 3.4 §2.1051 §22.917(a) RSS-132 (4.5.1) Band Edge Measurement < 43+10log 10 (P[Watts]) PASS - 3.5 §2.1051 §22.917(a) RSS-132 (4.5.1) Conducted Emission< 43+10log 10 (P[Watts]) PASS - 3.6 §2.1053 §22.917(a) RSS-132 (4.5.1) Field Strength of Spurious Radiation < 43+10log 10 (P[Watt…

Text truncated - open the document above for the full version.
