QISC2905CDMA Mobile Phone

C2905 CDMA 1X Mobile Phone Copyright © 2007 Huawei Technologies Co., Ltd. and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd. in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the property of their respective holders. The information in this manual is subject to change without notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this manual do not constitute the warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China Tel: +86-755-28780808 Global Hotline: +86-755-28560808 E-mail: [email protected] Website: www.huawei.com i Table of Contents Your Phone ............................................................................... 1 Installing the UIM Card and Battery ........................................ 1 Removing the Battery and UIM Card ...................................... 2 Charging the Battery................................................................. 2 Keys and Functions .................................................................. 3 Screen Icons.............................................................................. 4 Menu Tree ................................................................................. 6 Using the Function Menu ......................................................... 7 Making a Call ........................................................................... 7 Answering a Call ...................................................................... 8 Recording a Voice Clip ............................................................. 8 Switching On the Radio............................................................ 8 Phone Lock ............................................................................... 9 PIN and PUK ............................................................................ 9 Locking the Keypad.................................................................. 9 Changing the Text Input Modes ............................................. 10 Entering English (En) ............................................................. 10 Entering English (Abc) ........................................................... 11 Entering Hindi ........................................................................ 11 Entering Numbers ................................................................... 11 Entering Symbols ................................................................... 11 Warnings and Precautions....................................................... 12 1 Your Phone Earpiece Number Keys Navigation Keys Left Soft Key Right Soft Key End/Power Key Talk/Send Key Speaker OK Key Charger Interface Headset Jack Screen Key Key Installing the UIM Card and Battery The User Identity Module (UIM) card and the T-SIM card are the same, that is, Subscriber Identity Module. Make sure that the golden area on the UIM card is facing downwards and the cut-off edge is correctly aligned with the card holder. 2 b a 1 2 3 4 Removing the Battery and UIM Card Make sure that your phone is powered off. 1 2 3 4 Charging the Battery 1. Connect the charger to the charger interface at the bottom of your phone. 2. Connect the charger to an AC power socket. 3. During the charging, the charging icon is displaying in animation. 4. When the charging icon becomes static, the battery is fully charged. Disconnect the charger from the AC power socket. 3 Keys and Functions Press... To... z View the call log in the standby mode. z Make or answer a call. z Power on or off the phone (by pressing and holding it). z End a call or reject an incoming call. z Return to the standby mode. z Display the TATA Zon e interface in the standby mode. z Confirm a selection. Select the option displayed on the lower left corner of the screen. Select the option displayed on the lower right corner of the screen. z Display the TATA Zon e interface ( ), the Messages main menu ( ), the Create Message interface (by pressing and holding ), the Scheduler interface ( ), and the Profiles main menu ( ) in the standby mode. z Increase the volume ( or ) or decrease the volume ( or ) during a call. 4 Press... To... – z Enter numbers, letters, and symbols. z Access Voice Mail in the standby mode (by pressing and holding the 1 key). z Speed-dial phone numbers in the standby mode (by pressing and holding the 2-9 keys). z Select a submenu item labeled the corresponding number. z Enter the * symbol, + symbol, P character, or T character by pressing it once, twice, three times or four times. z Enable or disable the Meeting profile (by pressing and holding it). z Provide different functions according to the phone features being used. z Enter the # symbol. z Lock the keypad in the standby mode (by pressing and holding it). z Provide different functions according to the phone features being used. Screen Icons Icon Description Indicates the signal strength. The more the bars are, the stronger the signal is. There is no network signal. There is an incoming call, a call is being set up, or your phone is in conversation. 5 Icon Description The keypad is locked. An alarm clock is set. The Voice Privacy function is activated during a call. A new message is received. The memory for saving messages is full. An urgent message is received. A new voice mail is received. General profile is activated. Meeting profile is activated. Silence profile is activated. Outdoor profile is activated. My profile 1 or My profile 2 is activated. The hands free function is activated. The current network type of the phone is CDMA 2000-1X. The phone is in the domestic roaming status. The phone is in the overseas roaming status. Indicates the battery power level. The more the bars are, the more power of…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. AddressHuawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP518129 Page 1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com SubjectLetter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISC2905 to be kept confidential: 1. Schematic diagram & PCB layout. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

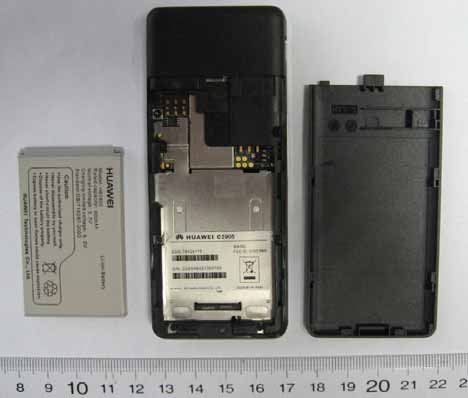

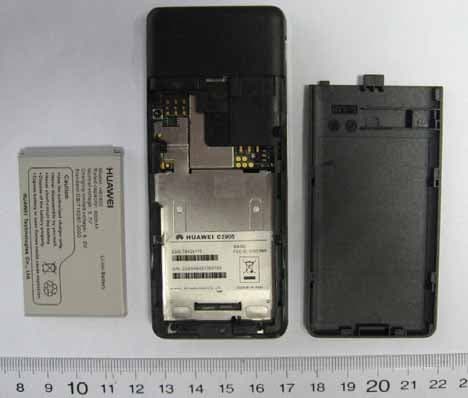

HUAWEI C2905 CDMA Handset SECRET Page1,Total 6 External Photo of HUAWEI C2905 HUAWEI C2905 CDMA Handset SECRET Page2,Total 6 HUAWEI C2905 CDMA Handset SECRET Page3,Total 6 HUAWEI C2905 CDMA Handset SECRET Page4,Total 6 HUAWEI C2905 CDMA Handset SECRET Page5,Total 6 HUAWEI C2905 CDMA Handset SECRET Page6,Total 6

HUAWEI C2905 CDMA Handset SECRET Page1, Total 1 Label _C2905 Label Location_C2905

HUAWEI C2905 CDMA Handset SECRET Page1,Total 3 Internal Photo of HUAWEI C2905 HUAWEI C2905 CDMA Handset SECRET Page2,Total 3 HUAWEI C2905 CDMA Handset SECRET Page3,Total 3

` HUAWEI C2905 CDMA Handset SECRET Page1, Total 1 Tune-up procedures 1.1Test Equipment List –CDMA2000 tester: CMU200 –Dummy battery or Power Supply: Agilent 66319D –PC with serial port –GPIB card 1.2 VCTCXO frequency accuracy adjust procedure Function: To calibrate the VCTCXO frequency accuracy Procedure: step1: The computer sets C2905 to the Factory test mode and works at US cellular band, sets the CMU200 to CDMA2000 Cellular Analyzer mode. Step2:C2905 was adjusted to transmit 24dBm by tuning the ADC. Use the CMU200 to measure the frequency error. Tuning the PDM parameter until the frequency error ≤300Hz. 1.3 The CDMA2000 power adjust procedure Function: After the CDMA2000 transmit POWER calibration the C2905 can find the relationship between the TX-AGC and output power. So it can transmit the specific power according to the 3GPP2 protocol. Procedure: Step1: The computer sets C2905 to the Factory test mode and works at CDMA2000 Bandclass0, sets the CMU200 to CDMA2000 Cellular Analyzer mode. Step2: Tuning the TX-AGC of C2905 from 60 to 460 and measure the output power of the C2905 via CMU200, so we can find the relationship between the TX-AGC and output power. NoteThe user has no possibility to change these settings later on.

No. 2007EEE02163 Page 2 of 74 Notes 1. . The test report shall be invalid if there is no “specified stamp for the test report” or the stamp of the test organization on it. 2. Copies of the test report shall be invalid if there is no “specified stamp for the test report” or the stamp of the test organization on it. 3. The test report shall be invalid if there are no signatures of the testing person, reviewing person and approving person on it. 4. The test report shall be invalid if it is altered. 5. Any demurral about the test shall be put forward to the testing organization within 15 days after the receiving of the test report. 6. This test report standalone dose not constitute or imply by its own an approval of the product by any Certification Authorities or Competent Bodies. 7. This report is only valid if complete, and test report shall not be reproduced except in full, without written approval of the laboratory. 8. This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of Telecommunication Metrology Center of MII and the Accreditation Bodies, if it applies. Address: No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China (Telecommunication Metrology Center of MII) Post code: 100083 Telephone: +86 10 62302041 Fax: +86 10 62304793 Web site: http://www.emcite.com E-mail: [email protected] No. 2007EEE02163 Page 3 of 74 TABLE OF CONTENT 1 COMPETENCE AND WARRANTIES....................................................................................................5 2 GENERAL CONDITIONS ....................................................................................................................... 5 3 DESCRIPTION OF EUT .......................................................................................................................... 5 3.1 ADDRESSING INFORMATION RELATED TO EUT ......................................................................................... 5 3.2 CONSTITUENTS OF EUT.............................................................................................................................6 3.3 GENERAL DESCRIPTION............................................................................................................................. 6 4 OPERATIONAL CONDITIONS DURING TEST ................................................................................. 7 4.1 SCHEMATIC TEST CONFIGURATION............................................................................................................ 7 4.2 SAR MEASUREMENT SET-UP..................................................................................................................... 8 4.3 DASY4 E-FIELD PROBE SYSTEM................................................................................................................ 8 4.4 E-FIELD PROBE CALIBRATION................................................................................................................... 9 4.5 OTHER TEST EQUIPMENT......................................................................................................................... 10 4.5.2 PHANTOM............................................................................................................................................. 10 4.6 EQUIVALENT TISSUES.............................................................................................................................. 11 4.7 SYSTEM SPECIFICATIONS......................................................................................................................... 11 5 CHARACTERISTICS OF THE TEST..................................................................................................12 5.1 APPLICABLE LIMIT REGULATIONS........................................................................................................... 12 5.2 APPLICABLE MEASUREMENT STANDARDS.............................................................................................. 12 6 LABORATORY ENVIRONMENT........................................................................................................13 7 CONDUCTED OUTPUT POWER MEASUREMENT ....................................................................... 13 7.1 SUMMARY................................................................................................................................................ 13 7.2 CONDUCTED POWER................................................................................................................................ 13 8 TEST RESULTS....................................................................................................................................... 14 8.1 DIELECTRIC PERFORMANCE.................................................................................................................... 14 8.2 SYSTEM VALIDATION...............................................................................................................................14 8.3 SUMMARY OF MEASUREMENT RESULTS.................................................................................................. 14 8.4 CONCLUSION........................................................................................................................................... 16 9 MEASUREMENT UNCERTAINTY ..................................................................................................... 16 10 MAIN TEST INSTRUMENTS ............................................................................................................. 17 11 TEST PERIOD ....................................................................................................................................... 17 12 TEST LOCATION ................................................................................................................................. 17 ANNEX A MEASUREMENT PROCESS................................................................................................…

Text truncated - open the document above for the full version.

No. 2007EEE02163 Page 31 of 74 CDMA 1X Left Tilt Middle Date/Time: 2007-8-15 14:29:19 Electronics: DAE3 Sn536 Medium: Head 835 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.906 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Middle/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.410 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.1 V/m; Power Drift = -0.063 dB Peak SAR (extrapolated) = 0.484 W/kg SAR(1 g) = 0.380 mW/g; SAR(10 g) = 0.272 mW/g Maximum value of SAR (measured) = 0.391 mW/g 0 dB = 0.391mW/g Fig. 9 Left Hand Tilt 15°CDMA 835MHz CH384 No. 2007EEE02163 Page 32 of 74 Fig. 10 Z-Scan at power reference point (CDMA 835MHz CH384) No. 2007EEE02163 Page 33 of 74 CDMA 1X Left Tilt Low Date/Time: 2007-8-15 15:12:37 Electronics: DAE3 Sn536 Medium: Head 835 Medium parameters used: f = 825 MHz; σ = 0.896 mho/m; ε r = 43.5; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Low/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.248 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.1 V/m; Power Drift = -0.137 dB Peak SAR (extrapolated) = 0.267 W/kg SAR(1 g) = 0.208 mW/g; SAR(10 g) = 0.149 mW/g Maximum value of SAR (measured) = 0.214 mW/g 0 dB = 0.214mW/g Fig. 11 Left Hand Tilt 15°CDMA 835MHz CH1013 No. 2007EEE02163 Page 34 of 74 Fig. 12 Z-Scan at power reference point (CDMA 835MHz CH1013) No. 2007EEE02163 Page 35 of 74 CDMA 1X Right Cheek High Date/Time: 2007-8-15 10:57:32 Electronics: DAE3 Sn536 Medium: Head 835 Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.917 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Cheek High/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.656 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.0 V/m; Power Drift = -0.158 dB Peak SAR (extrapolated) = 0.722 W/kg SAR(1 g) = 0.560 mW/g; SAR(10 g) = 0.392 mW/g Maximum value of SAR (measured) = 0.572 mW/g 0 dB = 0.572mW/g Fig. 13 Right Hand Touch Cheek CDMA 835MHz CH777 No. 2007EEE02163 Page 36 of 74 Fig. 14 Z-Scan at power reference point (CDMA 835MHz CH777) No. 2007EEE02163 Page 37 of 74 CDMA 1X Right Cheek Middle Date/Time: 2007-8-15 12:16:38 Electronics: DAE3 Sn536 Medium: Head 835 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.906 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Cheek Middle/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.996 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.2 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 1.10 W/kg SAR(1 g) = 0.850 mW/g; SAR(10 g) = 0.596 mW/g Maximum value of SAR (measured) = 0.870 mW/g 0 dB = 0.870mW/g Fig.15 Right Hand Touch Cheek CDMA 835MHz CH384 No. 2007EEE02163 Page 38 of 74 Fig. 16 Z-Scan at power reference point (CDMA 835MHz CH384) No. 2007EEE02163 Page 39 of 74 CDMA 1X Right Cheek Low Date/Time: 2007-8-15 13:11:25 Electronics: DAE3 Sn536 Medium: Head 835 Medium parameters used: f = 825 MHz; σ = 0.896 mho/m; ε r = 43.5; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Cheek Low/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.467 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.19 V/m; Power Drift = -0.027 dB Peak SAR (extrapolated) = 0.522 W/kg SAR(1 g) = 0.402 mW/g; SAR(10 g) = 0.281 mW/g Maximum value of SAR (measured) = 0.414 mW/g 0 dB = 0.414mW/g Fig. 17 Right Hand Touch Cheek CDMA 835MHz CH1013 No. 2007EEE02163 Page 40 of 74 Fig. 18 Z-Scan at power reference point (CDMA 835MHz CH1013) No. 2007EEE02163 Page 41 of 74 CDMA 1X Right Tilt High Date/Time: 2007-8-15 11:08:24 Electronics: DAE3 Sn536 Medium: Head 835 Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.917 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt High/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.293 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.7 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.354 W/kg SAR(1 g) = 0.272 mW/g; SAR(10 g) = 0.193 mW/g Maximum value of SAR (measured) = 0.280 mW/g 0 dB = 0.280mW/g Fig. 19 Right Hand Tilt 15°CDMA 835MHz CH777 No. 2007EEE02163 Page 42 of 74 Fig. 20 Z-Scan at power reference point (CDMA 835MHz CH777) No. 2007EEE02163 Page 43 of 74 CDMA 1X Right Tilt Middle Date/Time: 2007-8-15 12:26:40 Electronics: DAE3 Sn536 Medium: Head 835 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.906 mho/m; ε r = 43.4; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.51, 6.51, 6.51) Tilt Middle/Area Scan (51x81x1): Measurem…

Text truncated - open the document above for the full version.

No. 2007EEE02163 Page 46 of 74 Fig. 24 Z-Scan at power reference point (CDMA 835MHz CH1013) No. 2007EEE02163 Page 47 of 74 CDMA 1X Body Toward Phantom High Date/Time: 2007-8-15 9:42:53 Electronics: DAE3 Sn536 Medium: Body 835 Medium parameters used (interpolated): f = 848.31 MHz; σ = 1.01 mho/m; ε r = 53.1; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Phantom High/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.400 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.2 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.462 W/kg SAR(1 g) = 0.348 mW/g; SAR(10 g) = 0.245 mW/g Maximum value of SAR (measured) = 0.361 mW/g 0 dB = 0.361mW/g Fig. 25 CDMA 835MHz, Body, Towards Phantom, CH777 No. 2007EEE02163 Page 48 of 74 Fig. 26 Z-Scan at power reference point (CDMA 835MHz, Body, Towards Phantom, CH777) No. 2007EEE02163 Page 49 of 74 CDMA 1X Body Toward Phantom Middle Date/Time: 2007-8-15 9:56:36 Electronics: DAE3 Sn536 Medium: Body 835 Medium parameters used (interpolated): f = 836.52 MHz; σ = 1 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Phantom Middle/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.539 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=8mm, dz=5mm Reference Value = 22.3 V/m; Power Drift = -0.192 dB Peak SAR (extrapolated) = 0.646 W/kg SAR(1 g) = 0.494 mW/g; SAR(10 g) = 0.347 mW/g Maximum value of SAR (measured) = 0.527 mW/g 0 dB = 0.527mW/g Fig. 27 CDMA 835MHz, Body, Towards Phantom, CH384 No. 2007EEE02163 Page 50 of 74 Fig. 28 Z-Scan at power reference point (CDMA 835MHz, Body, Towards Phantom, CH384) No. 2007EEE02163 Page 51 of 74 CDMA 1X Body Toward Phantom Low Date/Time: 2007-8-15 10:20:16 Electronics: DAE3 Sn536 Medium: Body 835 Medium parameters used: f = 825 MHz; σ = 0.99 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Phantom Low/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.275 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.0 V/m; Power Drift = -0.163 dB Peak SAR (extrapolated) = 0.321 W/kg SAR(1 g) = 0.241 mW/g; SAR(10 g) = 0.170 mW/g Maximum value of SAR (measured) = 0.249 mW/g 0 dB = 0.249mW/g Fig. 29 CDMA 835MHz, Body, Towards Phantom, CH1013 No. 2007EEE02163 Page 52 of 74 Fig. 30 Z-Scan at power reference point (CDMA 835MHz, Body, Towards Phantom, CH1013) No. 2007EEE02163 Page 53 of 74 CDMA 1X Body Toward Ground High Date/Time: 2007-8-15 8:53:21 Electronics: DAE3 Sn536 Medium: Body 835 Medium parameters used (interpolated): f = 848.31 MHz; σ = 1.01 mho/m; ε r = 53.1; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 848.31 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground High/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.453 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.9 V/m; Power Drift = -0.200 dB Peak SAR (extrapolated) = 0.532 W/kg SAR(1 g) = 0.401 mW/g; SAR(10 g) = 0.283 mW/g Maximum value of SAR (measured) = 0.427 mW/g 0 dB = 0.427mW/g Fig. 31 CDMA 835MHz, Body, Towards Ground, CH777 No. 2007EEE02163 Page 54 of 74 Fig. 32 Z-Scan at power reference point (CDMA 835MHz, Body, Towards Ground, CH777) No. 2007EEE02163 Page 55 of 74 CDMA 1X Body Toward Ground Middle Date/Time: 2007-8-15 8:20:24 Electronics: DAE3 Sn536 Medium: Body 835 Medium parameters used (interpolated): f = 836.52 MHz; σ = 1 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 836.52 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground Middle/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.768 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.6 V/m; Power Drift = -0.127 dB Peak SAR (extrapolated) = 0.870 W/kg SAR(1 g) = 0.654 mW/g; SAR(10 g) = 0.460 mW/g Maximum value of SAR (measured) = 0.696 mW/g 0 dB = 0.696mW/g Fig. 33 CDMA 835MHz, Body, Towards Ground, CH384 No. 2007EEE02163 Page 56 of 74 Fig. 34 Z-Scan at power reference point (CDMA 835MHz, Body, Towards Ground, CH384) No. 2007EEE02163 Page 57 of 74 CDMA 1X Body Toward Ground Low Date/Time: 2007-8-15 9:09:42 Electronics: DAE3 Sn536 Medium: Body 835 Medium parameters used: f = 825 MHz; σ = 0.99 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Ambient Temperature:23.3 o C Liqiud Temperature: 22.5 o C Communication System: CDMA 1X-new Frequency: 824.7 MHz Duty Cycle: 1:1 Probe: ET3DV6 - SN1736 ConvF(6.45, 6.45, 6.45) Toward Ground Low/Area Scan (51x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.312 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.9 V/m; Power Drift = -0.087 dB Peak SAR (extrapolated) = 0.384 W/kg SAR(1 g) = 0.289 mW/g; SAR(10 g) = 0.204 mW/g Maximum value of SAR (measured) = 0.296 mW/g 0 dB = 0.296mW/g Fig. 35 CDMA 835MHz, Body, Towards Ground, CH1013 No. 2007EEE02163 Page 58 of 74 Fig. 36 Z-Scan at power reference point (CDMA 835MHz, Body, Towards Ground, CH1013) No. 2007EEE02163 Page 59 of 74 ANNEX D SYSTEM VALIDA…

Text truncated - open the document above for the full version.

No. 2007EEE02163 Page 61 of 74 No. 2007EEE02163 Page 62 of 74 No. 2007EEE02163 Page 63 of 74 No. 2007EEE02163 Page 64 of 74 No. 2007EEE02163 Page 65 of 74 No. 2007EEE02163 Page 66 of 74 No. 2007EEE02163 Page 67 of 74 No. 2007EEE02163 Page 68 of 74 No. 2007EEE02163 Page 69 of 74 ANNEX F DIPOLE CALIBRATION CERTIFICATE No. 2007EEE02163 Page 70 of 74 No. 2007EEE02163 Page 71 of 74 No. 2007EEE02163 Page 72 of 74 No. 2007EEE02163 Page 73 of 74 No. 2007EEE02163 Page 74 of 74

FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page1, Total3 Appendix A Modulation Characteristics According to FCC Part 2.1047 & Part22 Subpart H FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page2, Total3 Channel 283TM1 FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total3 Channel 283TM3

FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page1, Total5 Appendix B Occupied Bandwidth According to FCC Part 2.1049 & Part 22 Subpart H FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page2, Total5 Channel 1013TM1 FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page3, Total5 Channel 1013TM3 FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page4, Total5 Channel 777TM1 FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page5, Total5 Channel 777TM3

FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page1, Total5 Appendix C Band Edges Compliance According to FCC Part 2.1051 & 22.917 FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page2, Total5 TM1 Left Edge Channel 1013 FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page3, Total5 Right Edge Channel 777 FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page4, Total5 TM3 Left Edge Channel 1013 FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of HUAWEI. No Distribution without Permission Page5, Total5 Right Edge Channel 777

FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total13 Appendix D Spurious Emission at Antenna Terminal According to FCC Part 2.1051 & 22.917 FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total13 TM1 Channel 1013 FCC ID: QISC2905 Report No: SYBH(R)25082007EB-1 Confidential Information of Huawei. No Distribution without Permissi…
