QISC6005CDMA 1X Digital Mobile Phone

C6005 CDMA 1X Mobile Phone USER GUIDE Please refer color and shape to product. Huawei reserves the right to make changes or improvements to any of the products without prior notice. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People’s Republic of China Tel: +86-755-28780808 Global Hotline: +86-755-28560808 E-mail: [email protected] Website: www.huawei.com Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Contents 1 Installing the UIM Card,microSD Card and the Battery ... 1 2 Charging the Battery ........................................................... 2 3 Getting to Know Your Phone.............................................. 2 4 Keys and Functions ............................................................ 3 5 Screen Icons ........................................................................ 6 6 Using the Shortcut Menus on the Standby Screen .......... 7 7 Call Function........................................................................ 8 Making a Call ....................................................................... 8 Answering a Call ................................................................. 9 8 Creating and Sending a Text Message .............................. 9 9 Security ................................................................................ 9 Locking the Keypad............................................................ 9 Enabling the Phone Lock ................................................... 9 PIN and PUK ...................................................................... 10 10 Text input.......................................................................... 10 Entering English Letters (in Abc Mode).......................... 10 Entering an English Word (in En Mode) ......................... 11 Entering Indonesian (in In Mode) .................................... 11 Entering a Number............................................................ 11 Entering a Symbol ............................................................ 12 11 Enabling the Power-Saving Mode .................................. 12 12 Alarms .............................................................................. 12 Enabling an Alarm ............................................................ 12 Disabling One or All Alarms............................................. 12 13 Music Player..................................................................... 13 Setting the Playlist............................................................ 13 i Playing Music .................................................................... 13 ii 14 Radio................................................................................. 14 Switching On/Off the Radio ............................................. 14 Automatic Tuning.............................................................. 14 Manual Tuning ................................................................... 14 Listening to a Radio Program.......................................... 14 Recording a Radio Program ............................................ 15 15 Recording an Audio Clip................................................. 15 16 CD-ROM Provided with Your Phone .............................. 15 17 Dial-Up Network Access ................................................. 16 18 Warnings and Precautions ............................................. 17 1 Installing the UIM Card,microSD Card and the Battery Contact your network operator to check whether a User Identity Module (UIM) card is required for the phone. When installing the UIM card, ensure that the gold contact area on the UIM card is facing downward and that the beveled edge of the UIM card is properly aligned with that of …

Text truncated - open the document above for the full version.

Rev. 1/1/03 HUAWEI Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, China Tel:86-755-2878-1879 Fax:86-755-2878-1889 APR 29 ,2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QISC6005 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: HUAWEI C6005_Schem.pdf) Block Diagram (file: HUAWEI C6005 _BlkDia.pdf) Parts List (file: HUAWEI C6005 _PartsLst.pdf) Operation Description (file: HUAWEI C6005 _OpDes.doc) Tune Up Procedure (file: HUAWEI C6005 _TunPro.doc) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Xinghai Zhang

Huawei Technologies Co.,Ltd Bantian, Longgang District,Shenzhen, China Te l : +86-755-2878-1879, Fax: +86-755-2878-1889 Date: April 20, 2011 Power of Attorney To whom it may concern, Please be notified that we, Huawei Technologies Co.,Ltd., have designated Roy Wu in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: QISC6005 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Xinghai Zhang Company: Huawei Technologies Co.,Ltd TEL: +86-755-2878-1879 FAX: +86-755-2878-1889 E-mail: [email protected]

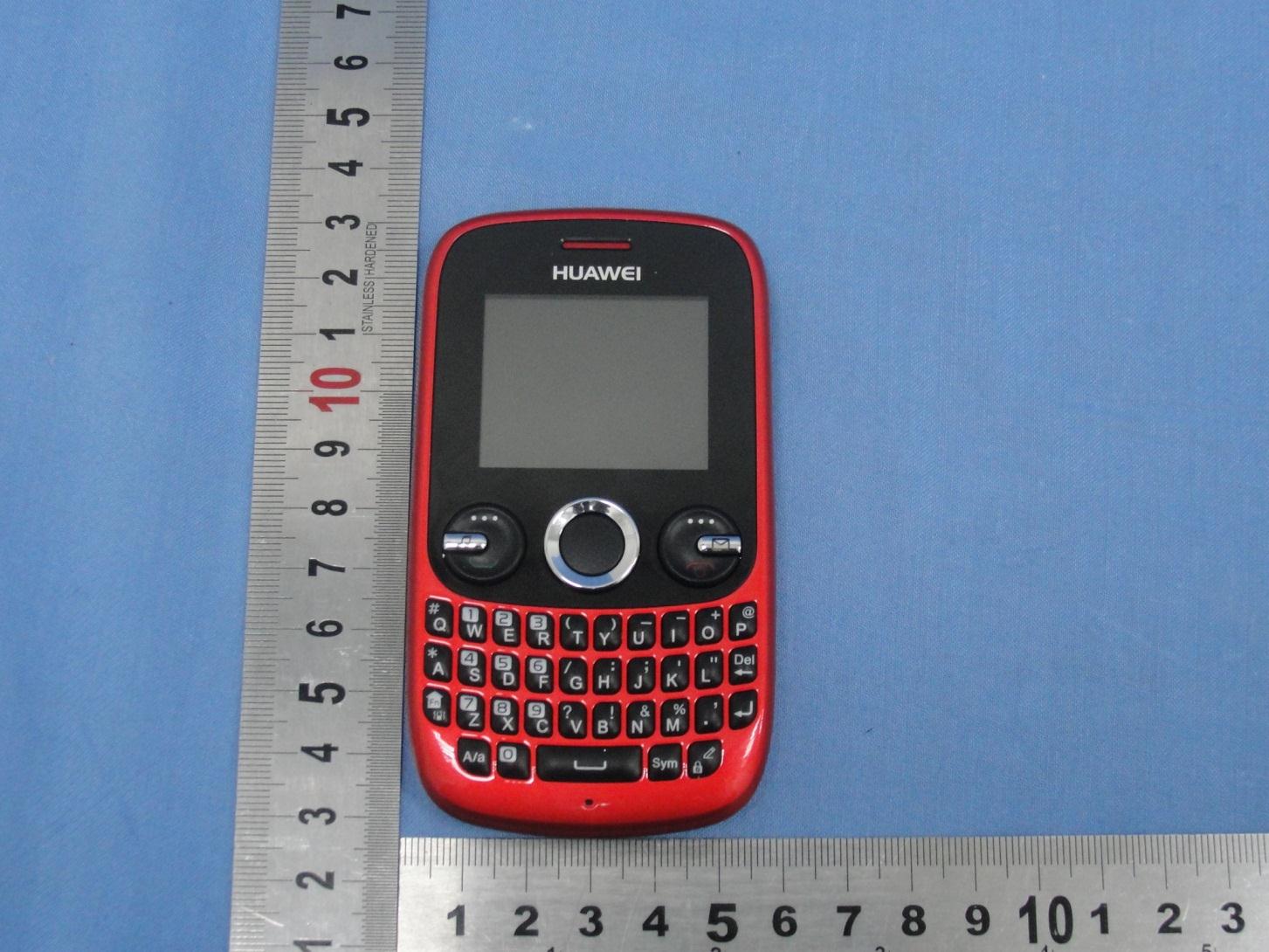

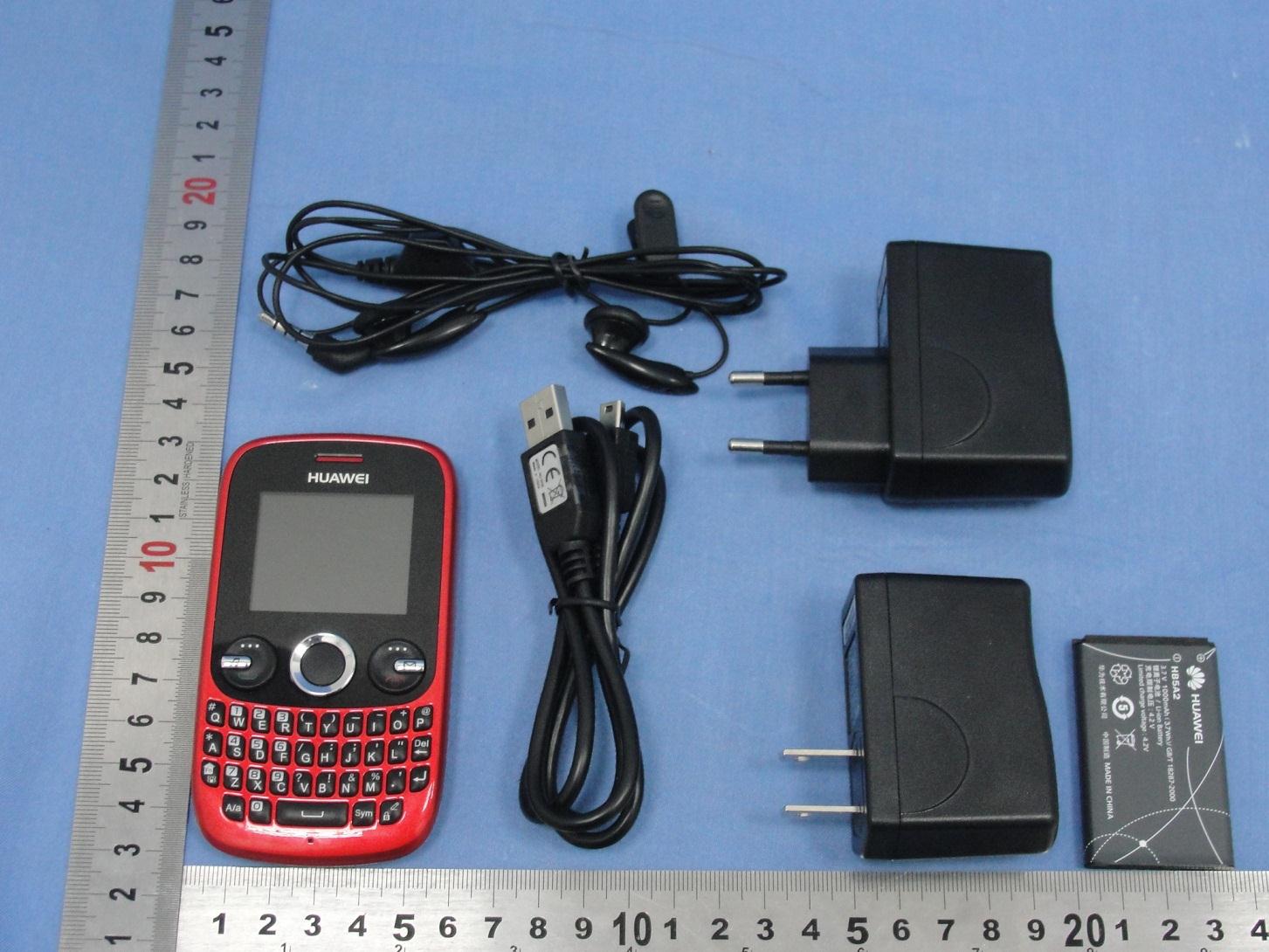

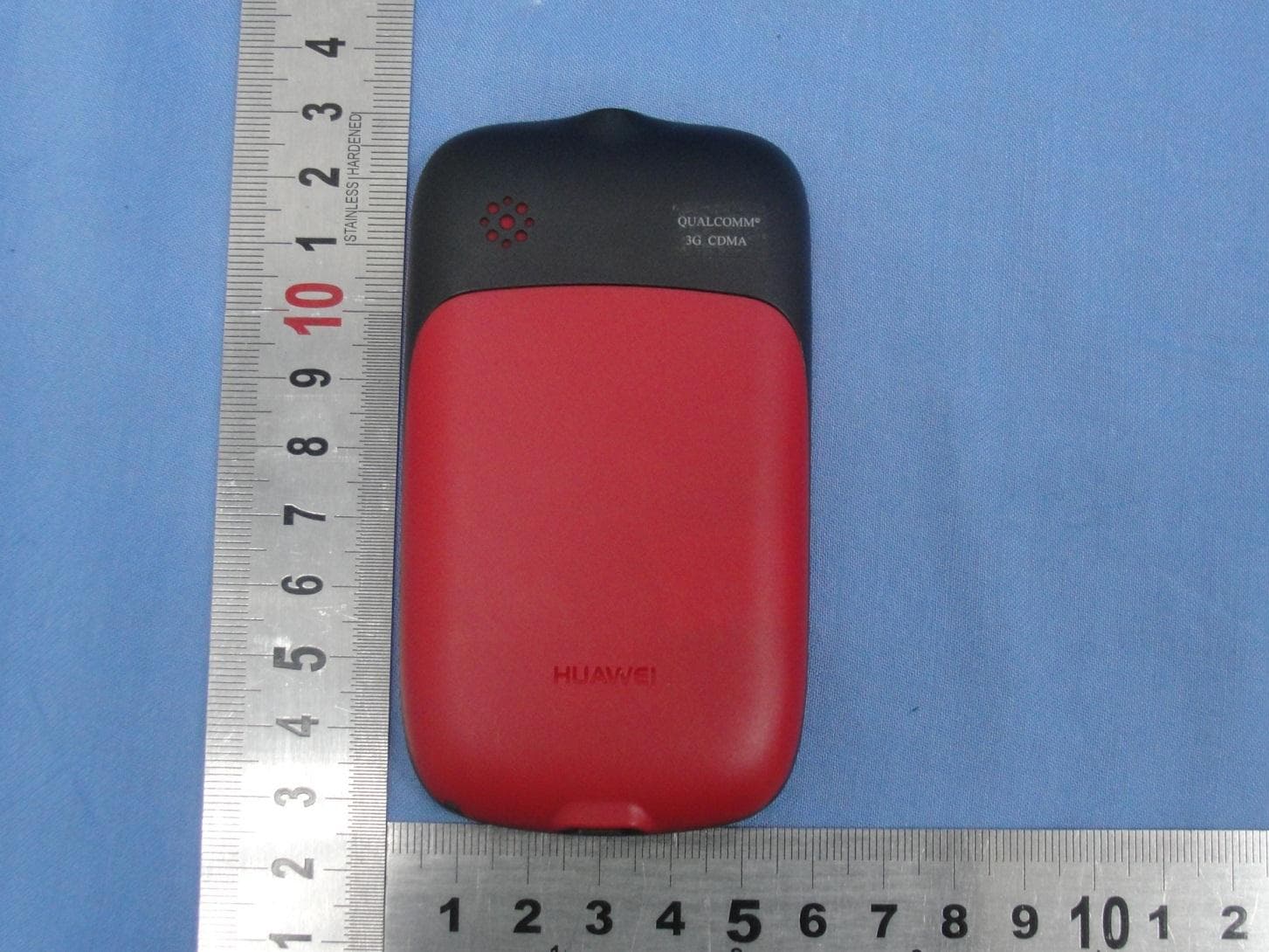

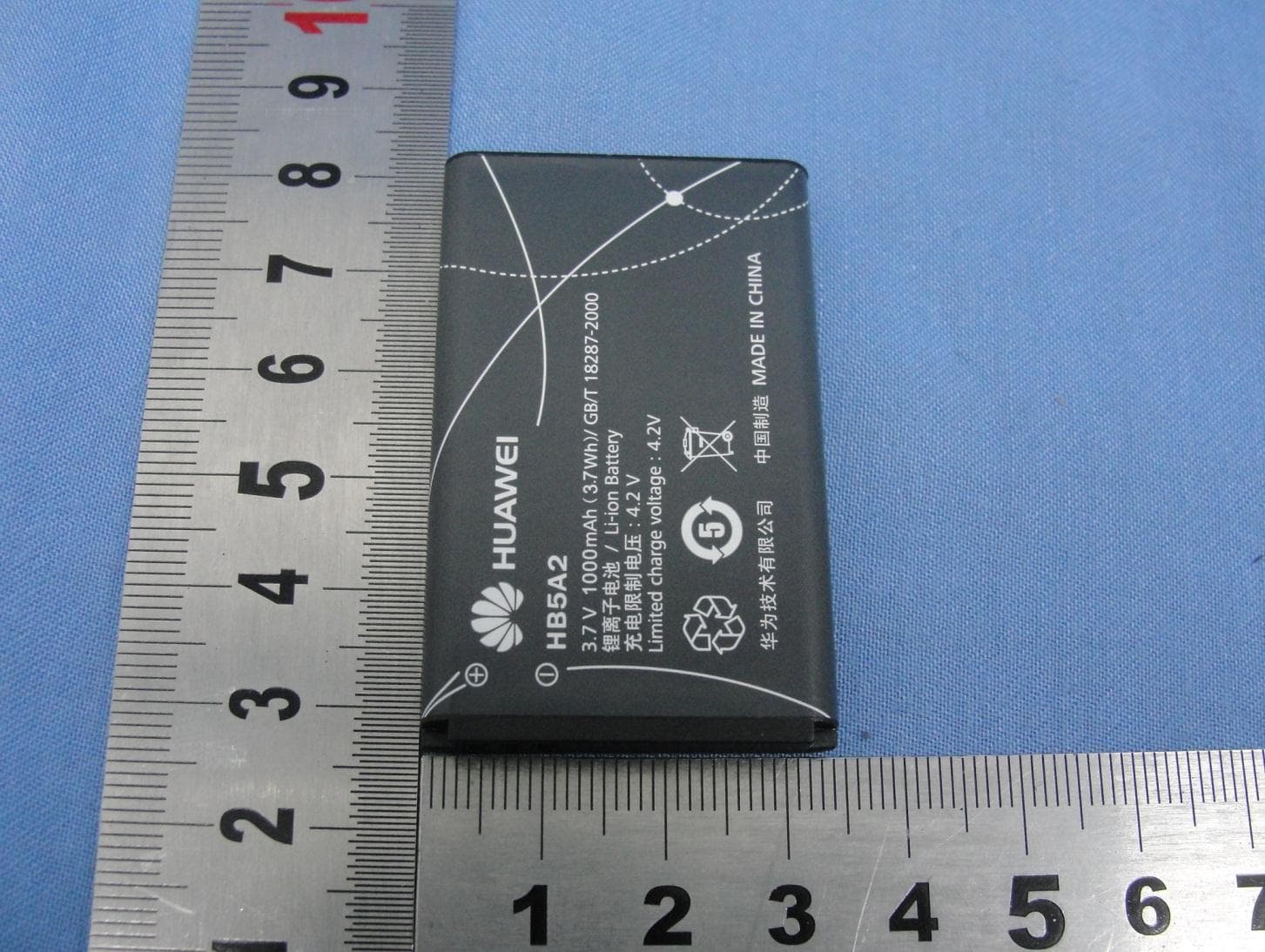

Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 1 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 1. External Photograph of EUT Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 2 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 3 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 4 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 5 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 6 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 720510 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 7 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HUAWEI Model Name HS-050040E5 AC Adapter 2 Brand Name HUAWEI Model Name HS-050040U6 Battery Brand Name HUAWEI Model Name HB5A2 Earphone Brand Name HUAWEI Model Name C6005 USB Cable Brand Name HUAWEI Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 8 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 9 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Adapter 1 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 10 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 11 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 12 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Adapter 2 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 13 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 14 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 15 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 720510

HUAWEI C6005 CDMA Handset SECRET Label Location_HUAWEI C6005 Page1, Total 1

HUAWEI C6005 CDMA Handset SECRET Label _HUAWEI C6005 Page1, Total 1

Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 16 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 3. Internal Photograph of EUT Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 17 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 18 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 19 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 20 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 Photographs of EUT Report No.: EP132822 Brand Name: HUAWEI / Model Name: HUAWEI C6005 SPORTON INTERNATIONAL INC. Page Number : 21 of 21 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 720510 WWAN Antenna <Tx/Rx>

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-25 System Check_Head_835MHz_110325 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_110325 Medium parameters used: f = 835 MHz; σ = 0.911 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.66 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.8 V/m; Power Drift = -0.0014 dB Peak SAR (extrapolated) = 3.66 W/kg SAR(1 g) = 2.46 mW/g; SAR(10 g) = 1.63 mW/g Maximum value of SAR (measured) = 2.65 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-25 System Check_Body_835MHz_110325 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110325 Medium parameters used: f = 835 MHz; σ = 0.978 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.79 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53 V/m; Power Drift = 0.023 dB Peak SAR (extrapolated) = 3.89 W/kg SAR(1 g) = 2.6 mW/g; SAR(10 g) = 1.71 mW/g Maximum value of SAR (measured) = 2.81 mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-25 #01 CDMA2000 BC0_RC3 SO55_Right Cheek_Ch1013 DUT: 132502 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_835_110325 Medium parameters used: f = 825 MHz; σ = 0.901 mho/m; ε r = 42; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.841 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.2 V/m; Power Drift = -0.064 dB Peak SAR (extrapolated) = 1.03 W/kg SAR(1 g) = 0.799 mW/g; SAR(10 g) = 0.581 mW/g Maximum value of SAR (measured) = 0.832 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-25 #02 CDMA2000 BC0_RC3 SO55_Right Tilted_Ch1013 DUT: 132502 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_835_110325 Medium parameters used: f = 825 MHz; σ = 0.901 mho/m; ε r = 42; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.464 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.3 V/m; Power Drift = 0.083 dB Peak SAR (extrapolated) = 0.554 W/kg SAR(1 g) = 0.438 mW/g; SAR(10 g) = 0.332 mW/g Maximum value of SAR (measured) = 0.461 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-25 #06 CDMA2000 BC0_RC3 SO55_Left Cheek_Ch777 DUT: 132502 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: HSL_835_110325 Medium parameters used: f = 848.31 MHz; σ = 0.924 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch777/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.18 mW/g Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.8 V/m; Power Drift = 0.029 dB Peak SAR (extrapolated) = 1.5 W/kg SAR(1 g) = 1.08 mW/g; SAR(10 g) = 0.761 mW/g Maximum value of SAR (measured) = 1.15 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-25 #06 CDMA2000 BC0_RC3 SO55_Left Cheek_Ch777_2D DUT: 132502 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: HSL_835_110325 Medium parameters used: f = 848.31 MHz; σ = 0.924 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch777/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.18 mW/g Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.8 V/m; Power Drift = 0.029 dB Peak SAR (extrapolated) = 1.5 W/kg SAR(1 g) = 1.08 mW/g; SAR(10 g) = 0.761 mW/g Maximum value of SAR (measured) = 1.15 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-25 #04 CDMA2000 BC0_RC3 SO55_Left Tilted_Ch1013 DUT: 132502 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_835_110325 Medium parameters used: f = 825 MHz; σ = 0.901 mho/m; ε r = 42; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.524 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.2 V/m; Power Drift = 0.142 dB Peak SAR (extrapolated) = 0.618 W/kg SAR(1 g) = 0.491 mW/g; SAR(10 g) = 0.366 mW/g Maximum value of SAR (measured) = 0.516 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-25 #07 CDMA2000 BC0_RC3 SO32_Bottom_1.5cm_Ch1013 DUT: 132502 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_835_110325 Medium parameters used: f = 825 MHz; σ = 0.968 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpola…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL INC. Page Number : F1 of F6 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 FCC SAR Test Report Report No. : FA132822 Appendix F. FCC 3G SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the 3.1.2.3.4. A detailed analysis of the output power verification is provided as the table below: Function Type Reverse Traffic Channel Test Mode Radio Configuration Service Option Data Rates (kbps) Power Control Low Ch Mid. Ch High Ch Forward Traffic Channel (Fwd) Reverse Traffic Channel (Rvs) 1013 384 777 CDMA2000 Cellular FCH 1 1 1 55 Full All Up 24.56 24.52 24.57 3 3 3 55 Full All Up 24.64 24.55 24.60 3 3 3 32 Full All Up 24.62 24.53 24.59 SCH 3 3 3 32 FCH:Full,SCH 9.6 All Up 24.62 24.58 24.55 SPORTON INTERNATIONAL INC. Page Number : F2 of F6 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 FCC SAR Test Report Report No. : FA132822 CDMA2000 Setup Configuration: Setup Configuration 1. The EUT was connected to System Simulator, Agilent 8960. Refer to the drawing of Setup Configuration. 2. The RF path losses were compensated into the measurements. 3. A call was established between EUT and System Simulator with following setting: a. For 1xRTT, set the Radio Configuration and the Service Option b. For 1xEV-DO, set the Protocol Release and Data Rate c. Set the Power Control to All Up Bits 4. The transmitted maximum output power was recorded. 1xRTT setting for Radio Configuration 1 with Service Option 55 SPORTON INTERNATIONAL INC. Page Number : F3 of F6 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 FCC SAR Test Report Report No. : FA132822 1xRTT setting for Radio Configuration 3 with Service Option 55 1xRTT setting for Radio Configuration 3 with Service Option 32 SPORTON INTERNATIONAL INC. Page Number : F4 of F6 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 FCC SAR Test Report Report No. : FA132822 1xEV-DO setting for Protocol Release (Rev.0 or Rev.A) 1xEV-DO setting for RTAP data rate (9.6 or 38.4 or 153.6 kbps) SPORTON INTERNATIONAL INC. Page Number : F5 of F6 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 FCC SAR Test Report Report No. : FA132822 1xEV-DO setting for RETAP data rate (128 or 2048 or 12288 kbps) SPORTON INTERNATIONAL INC. Page Number : F6 of F6 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC6005 FCC SAR Test Report Report No. : FA132822 Reference: [1] SAR Measurement Procedures for 3G Devices CDMA 2000/Ev-Do/WCDMA/HSDPA, June 2006 Laboratory Division Office of Engineering and Technology Federal Communications Commission [2] 3.1.2.3.4 Maximum RF Output Power 3GPP2 C.S0033-0 Version 2.0, Date: 12 December 2003 Recommended Minimum Performance Standards for cdma2000 High Rate Packet Data Access Terminal

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : May 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC6005 FCC SAR Test Report Report No. : FA132822 FCC SAR Test Report APPLICANT : HUAWEI TECHNOLOGIES CO., LTD. EQUIPMENT : CDMA 1X Digital Mobile Phone BRAND NAME : HUAWEI MODEL NAME : HUAWEI C6005 FCC ID : QISC6005 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Mar. 25, 2011 and completely tested on Mar. 25, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : May 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC6005 FCC SAR Test Report Report No. : FA132822 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Descript…

Text truncated - open the document above for the full version.
