QISC8100CDMA2000 DIGITAL MOBILE PHONE

Statement We, Huawei Technologies Co., Ltd., states that our device, FCC ID: QISC8100, has no space to put the label except the battery compartment of this device. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. _______________ Zhang Xinghai

Rev. 1/1/03 Huawei Technologies Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QISC8100 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: Schem.pdf) Block Diagram (file: BlkDia.pdf) Parts List (file: PartsLst.pdf) Operation Description (file: OpDes.pdf) Tune Up Procedure (file: TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, __ ______________________ Zhang Xinghai Attached: Copy of FCC Confidentiality Policy

Huawei Technologies Co., Ltd. Huawei industrial Base, Bantian, Longgang, Shenzhen 518129, P.R. China Date: May 1, 2010 Power of Attorney To whom it may concern, Please be notified that I, Zhang Xinghai have designated Roy Wu in Sporton International Inc., a as the person responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. This authorization is limited to the product of as following: FCC ID: QISC8100 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Zhang Xinghai Company: Huawei Technologies Co., Ltd. TEL: +86-755-2878-1879 FAX: 86-755-2878-1889 E-mail: [email protected]

1/1 Huawei Technologies Co., Ltd. Date: May 12, 2010 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : QISC8100 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 days:  External Photos (HUAWEI C8100_ExtPho)  Internal Photos (HUAWEI C8100_IntPho)  Test set-up photos(HUAWEI C8100_TSup)  Users Manual(HUAWEI C8100_UserMan) The application contains technical information, which Huawei Technologies Co., Ltd. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Zhang Xinghai Company: Huawei Technologies Co., Ltd. TEL: +86-755-2878-1879 FAX: 86-755-2878-1889 E-mail: [email protected]

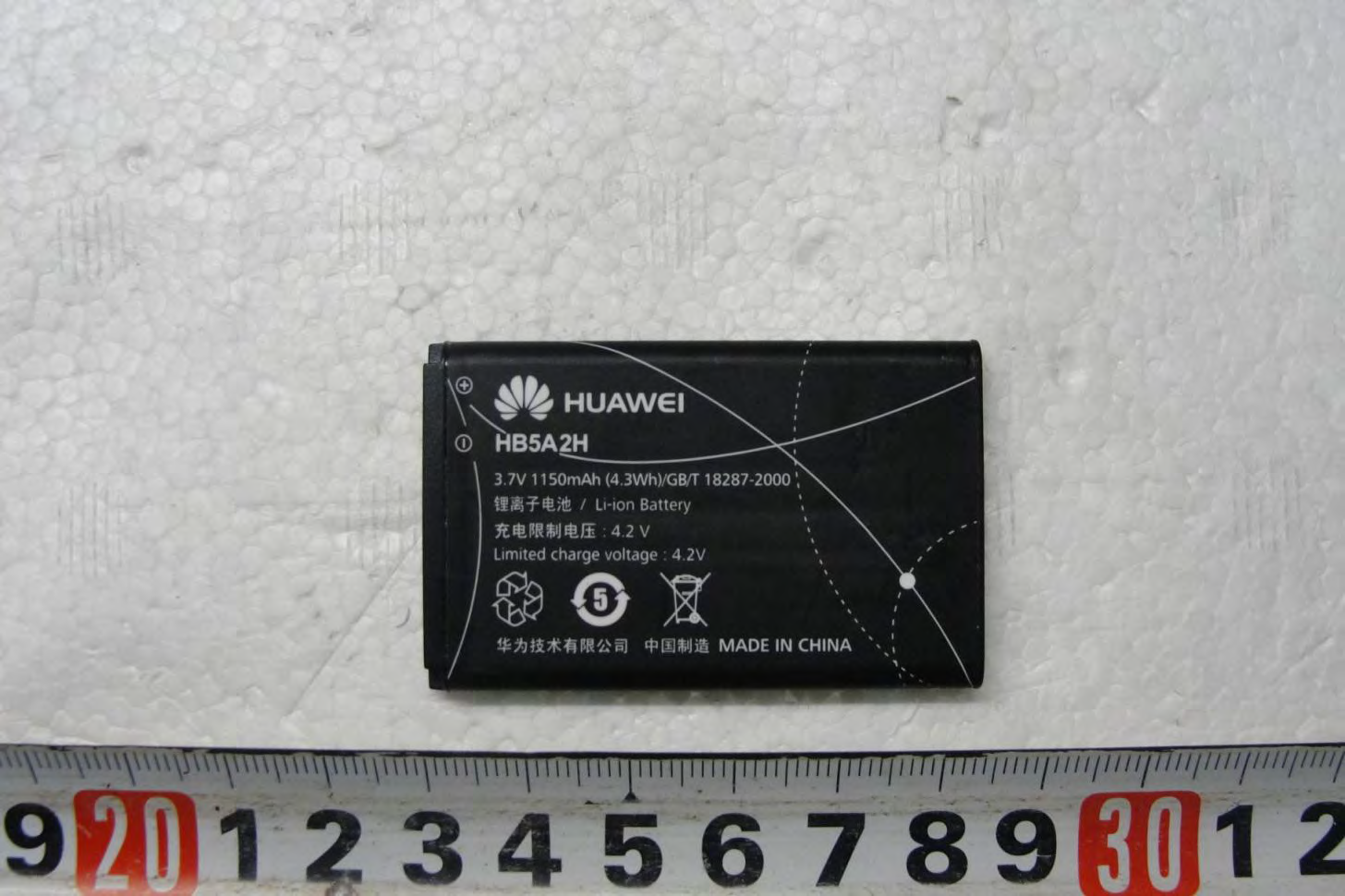

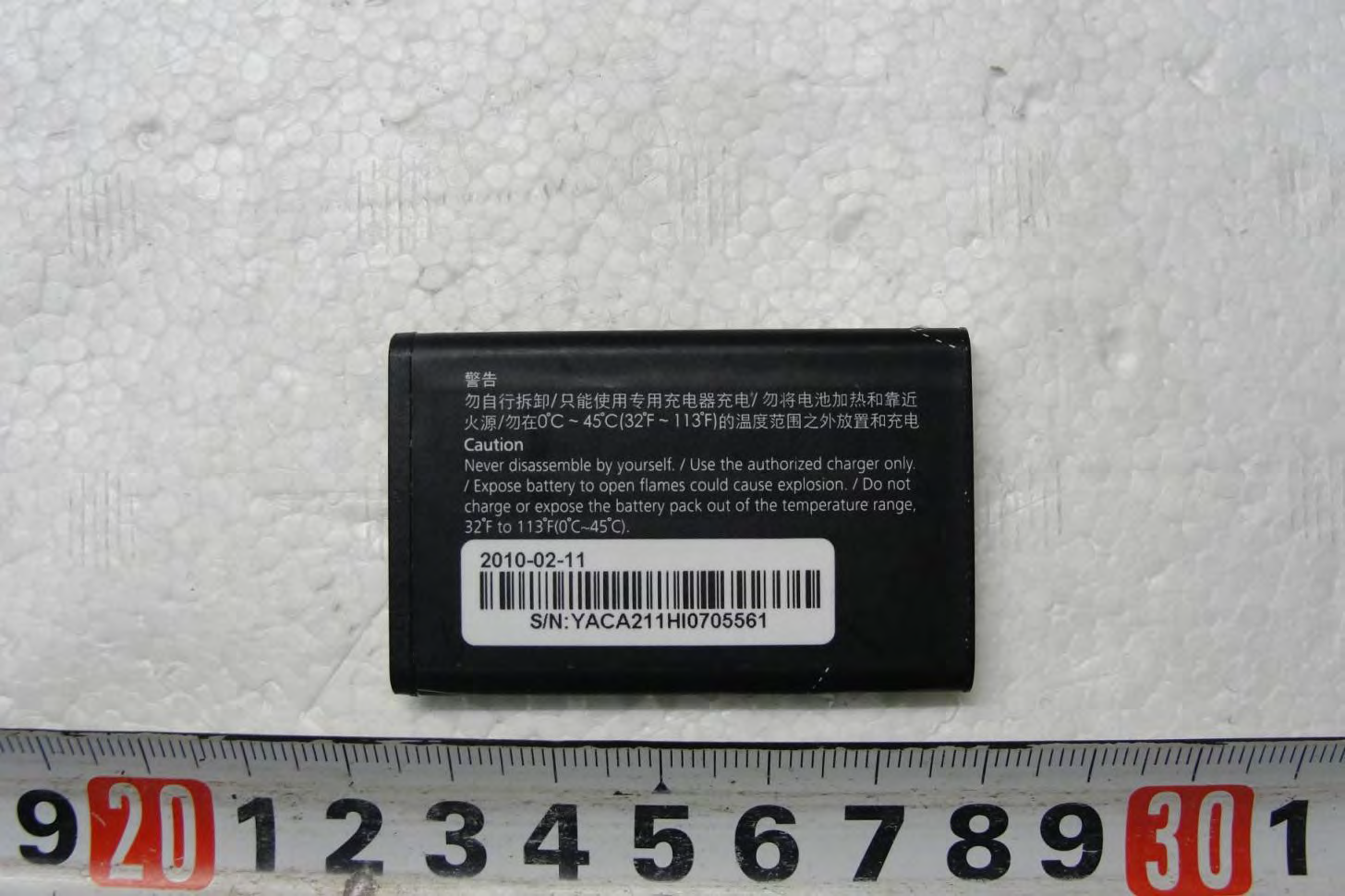

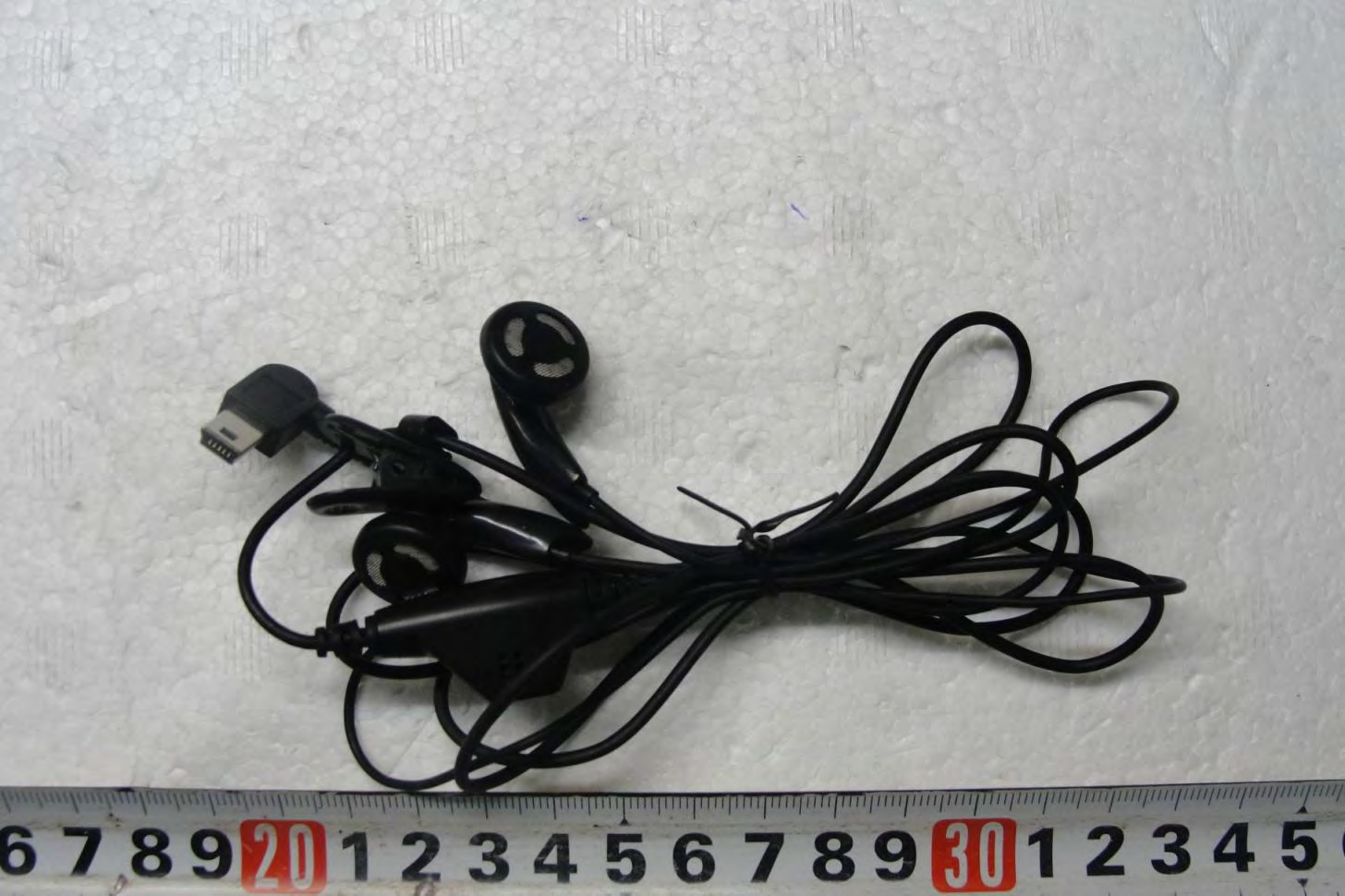

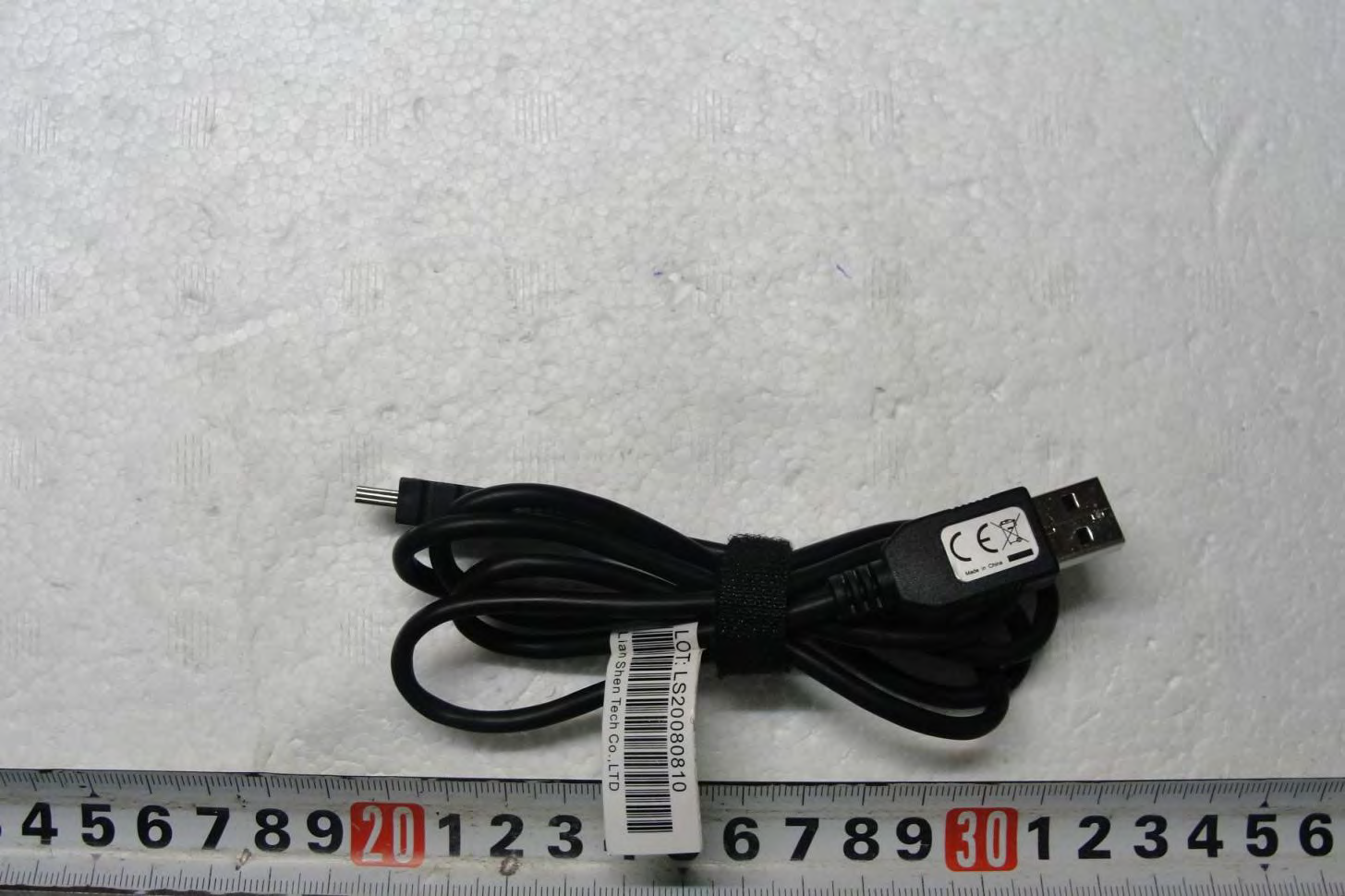

Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 1. External Photograph of EUT Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 720510 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 List of Accessory: Specification of Accessory AC Adapter Brand Name HUAWEI Model Name HS-050040U6 Power Rating I/P:100-240Vac, 50-60Hz, 0.2A; O/P: 5.0Vdc, 400mA Battery Brand Name HUAWEI Model Name HB5A2H Power Rating 3.7Vdc, 1150mAh Type Li-ion Earphone Brand Name HUAWEI Model Name EMC179P-YE29 Signal Line Type 1.55 meter non-shielded cable without ferrite core USB Cable Brand Name HUAWEI Model Name LSA00017 Signal Line Type 1.03 meter shielded cable without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 720510

Label Location Label location Back Cover

Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 3. Internal Photograph of EUT Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 720510 Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 WWAN Antenna <Tx/Rx> WLAN Antenna <Tx/Rx> Bluetooth Antenna <Tx/Rx> GPS Antenna <Rx> 4.3 cm 1.6 cm 4.5 cm Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 WLAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 WLAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Bluetooth Antenna <Tx/Rx> Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 Bluetooth Antenna <Tx/Rx> Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 GPS Antenna <Rx> Photographs of EUT Report No.: EP042027 Brand Name: Huawei / Model Name: Huawei_C8100 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 32 of 32 TEL : 86-0512-5790-0158 Issued Date : May 06, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 GPS Antenna <Rx>

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/4/20 System Check_2450MHz_100420 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100420 Medium parameters used: f = 2450 MHz; σ = 1.83 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.69, 6.69, 6.69); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 6.52 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.7 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 12 W/kg SAR(1 g) = 5.49 mW/g; SAR(10 g) = 2.51 mW/g Maximum value of SAR (measured) = 6.26 mW/g 0 dB = 6.26mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/04/20 #19 802.11b_11M_Right Cheek_Ch11 DUT: 040201 Communication System: Wifi; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100420 Medium parameters used: f = 2462 MHz; σ = 1.84 mho/m; ε r = 40; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid Temperature : 21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.69, 6.69, 6.69); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch11/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.207 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.86 V/m; Power Drift = 0.154 dB Peak SAR (extrapolated) = 0.436 W/kg SAR(1 g) = 0.185 mW/g; SAR(10 g) = 0.079 mW/g Maximum value of SAR (measured) = 0.211 mW/g 0 dB = 0.211mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/04/20 #19 802.11b_11M_Right Cheek_Ch11_2D DUT: 040201 Communication System: Wifi; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100420 Medium parameters used: f = 2462 MHz; σ = 1.84 mho/m; ε r = 40; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid Temperature : 21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.69, 6.69, 6.69); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch11/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.207 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.86 V/m; Power Drift = 0.154 dB Peak SAR (extrapolated) = 0.436 W/kg SAR(1 g) = 0.185 mW/g; SAR(10 g) = 0.079 mW/g Maximum value of SAR (measured) = 0.211 mW/ g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/04/20 #14 802.11b_11M_Right Tilted_Ch6 DUT: 040201 Communication System: Wifi; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100420 Medium parameters used: f = 2437 MHz; σ = 1.81 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid Temperature : 21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.69, 6.69, 6.69); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch6/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.062 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.05 V/m; Power Drift = -0.171 dB Peak SAR (extrapolated) = 0.092 W/kg SAR(1 g) = 0.031 mW/g; SAR(10 g) = 0.015 mW/g Maximum value of SAR (measured) = 0.038 mW/g 0 dB = 0.038mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/04/21 #25 802.11b_11M_Left Cheek_Ch11 DUT: 040201 Communication System: Wifi; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100420 Medium parameters used: f = 2462 MHz; σ = 1.84 mho/m; ε r = 40; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid Temperature : 21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.69, 6.69, 6.69); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch11/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.156 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.75 V/m; Power Drift = -0.113 dB Peak SAR (extrapolated) = 0.333 W/kg SAR(1 g) = 0.141 mW/g; SAR(10 g) = 0.058 mW/g Maximum value of SAR (measured) = 0.168 mW/g 0 dB = 0.168mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/04/20 #16 802.11b_11M_Left Tilted_Ch6 DUT: 040201 Communication System: Wifi; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100420 Medium parameters used: f = 2437 MHz; σ = 1.81 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid Temperature : 21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.69, 6.69, 6.69); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch6/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.061 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.63 V/m; Power Drift = -0.127 dB Peak SAR (extrapolated) = 0.203 W/kg SAR(1 g) = 0.041 mW/g; SAR(10 g) = 0.021 mW/g Maximum value of SAR (measured) = 0.048 mW/g 0 dB = 0.048mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/04/20 #26 Bluetooth_DH3_Right Cheek_Ch0 DUT: 040201 Communication System: Bluetooth; Frequency: 2402 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100420 Medium parameters used: f = 2402 MHz; σ = 1.77 mho/m; ε r = 40.2; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid Temperature : 21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.69, 6.69, 6.69); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch0/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 33 TEL : 86-0512-5790-0158 Report Issued Date : May 07, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 FCC SAR Test Report Report No. : FA042027B FCC SAR Test Report APPLICANT : Huawei Technologies Co. Ltd. EQUIPMENT : cdma2000 Digital Mobile Phone BRAND NAME : HUAWEI MODEL NAME : HUAWEI C8100 FCC ID : QISC8100 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Apr. 09, 2010 and completely tested on Apr. 20, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 33 TEL : 86-0512-5790-0158 Report Issued Date : May 07, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISC8100 FCC SAR Test Report Report No. : FA042027B Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 8 3.3 Applied Standards ............................................................................................................................................ 8 3.4 Device Category and SAR Limits ..................................................................................................................... 8 3.5 Test Conditions ................................................................................................................................................. 8 3.5.1 Ambient Condition .................................................................................................................................. 8 3.5.2 Test Configuration ................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................17 5.7.1 Data Storage .…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 52 TEL : 886-3-327-3456 Report Issued Date : May 07, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC8100 FCC RF Test Report Report No. : FR042027A FCC RF Test Report APPLICANT : Huawei Technologies Co. Ltd. EQUIPMENT : cdma2000 Digital Mobile Phone BRAND NAME : HUAWEI MODEL NAME : HUAWEI C8100 FCC ID : QISC8100 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : Digital Transmission System (DTS) The product was received on Apr. 09, 2010 and completely tested on Apr. 20, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 52 TEL : 886-3-327-3456 Report Issued Date : May 07, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISC8100 FCC RF Test Report Report No. : FR042027A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 7 1.5 Applied Standard…
