QISC8511cdma2000 Digital Mobile Phone

What is in Your Box Phone at a Glance All the pictures in this guide are for your reference only. The actual appearance and display features depend on the mobile phone you purchase. • Mobile phone • Charger • USB cable • Battery • Quick Start Guide 1Power key 2Earpiece 3Menu key4Back key 5Microphone6Home key 7Search key8Volume control keys 1 2 3 5 4 9 10 7 6 8 11 12 13 Key Functions at Your Fingertips 9Wrist strap hole10Headset jack 11Camera12Speaker 13 Charging/Data interface • Press to power on your mobile phone. • Press and hold to open the Phone options menu. • Press to lock the screen when your mobile phone is active. • Touch to return to the previous screen. • Touch to exit any application you are running. • Touch to hide the keyboard. Touch to open the menu on an active screen. • Touch to open Google search for searching your mobile phone and the web. • Touch and hold to open Google search by voice. • Press to return to the Home screen. • Press and hold to show the most recently used applications. Before getting started 1 Removing battery cover 2 Installing UIM card 3 Installing *micro SD card 4 Installing battery 5 Installing battery cover *micro SD card is optional Charging the Battery If your mobile phone is charged when it is powered on, the battery icon on the Notification bar shows the charging status. When the battery icon changes to , it indicates that your mobile phone is fully charged. Powering On Your Mobile Phone Press . The first time you power on your phone, you will be asked to sign in to your account and set up your mobile phone. Powering Off Your Mobile Phone 1. Press and hold to open the Phone options menu. 2. Touch Power off. 3. Touch OK. Using the Touchscreen Touchscreen Actions • Touch: Use the touch of your finger to select an item, confirm a selection, or start an application. • Touch and hold: Touch an item with your finger and continue to press down until your mobile phone responds. For example, to open the options menu for the active screen, touch the screen and hold down until the menu appears. • Flick: Move your finger either vertically or horizontally across the screen. • Drag: Touch and hold the desired item with your finger. To move an item, drag the item to any part of the screen. You can drag an icon to move or delete it. Home Screen Touch and hold one of the shortcuts until the mobile phone vibrates, you can drag it to your desired location or move it to the trash. You can also drag a screen item to the shortcut position. 10:23 Touch to view all your applications. Shortcuts Notifications bar: Displays the reminders and status icons of your phone. Flick down to open the notifications panel. Display area: Shows the operation and display areas of your phone. Indicate the serial number of current screens Touch to view thumbnails of the Home screen and its extensions. Viewing Other Parts of the Home Screen Touch > Home settings > Advanced settings > Screen number to set the screen number. Locking the Screen • When your phone is on, press to lock the screen. When the screen is locked, you can still receive messages and calls. • If your phone is idle for a while, the screen will lock automatically. Unlocking the Screen 1. Press or to wake up the screen. 2. Drag the lock icon from left to right to unlock the screen. Flick your finger left or right across the Home screen. Press to view thumbnails of the Home screen and its extensions. Touch a thumbnail to open the screen. 10:23 10:23 Adding a New Screen Item 1. Touch and hold a blank area on the Home screen until the Select action menu is displayed. 2. Select an item to add it to the Home screen. Importing Contacts from a UIM Card 1. In the contact list, touch > Manage contacts. 2. Touch Copy from UIM card. 3. Wait for the UIM card contents to be loaded. Select the contacts you want to import or touch Select all to select all contacts. 4. Touch Copy. 5. If you have more than one account on your phone, touch the account into which you want to import the contacts. Adding a Contact 1. In the contact list, touch > Create contact. 2. If you have more than one account with contacts, touch the account to which you want to add the contact. 3. Enter the contact's name, and then add detailed information such as phone number or address. 4. When you are finished, touch Done to save the contact information. Making a Call To make a call, you can use the Dialer application, or select a number from Contacts or Call log. When you are on a call, you can press to return to the Home screen and use other functions. To return to the calling screen, flick the notification bar down and touch Current call. Do not block the microphone at the bottom of your phone if you want your voice heard. Making a Call with the Phone Application 1. Touch > Dialer to display the dialer. 2. Touch the appropriate numeric keys to enter the phone number. 3. Touch to initiate the call. Answering an Incoming Call Drag the to the right to answer the call. Rejecting an Incoming Call Drag the to the left to reject the call. Ending a Call During a call, touch End to hang up. Displaying the Keyboard Panel To enter text, use the onscreen keyboard. Some applications open the keyboard automatically. In others, touch a text field to open the keyboard. Touch the space where you want to write text to display the keyboard. Touch to hide the keyboard. Touch and hold the space where you usually write your text to open the options menu. Choosing an Input Method 1. Touch and hold the space where you enter your text until the Edit text menu is displayed. 2. Touch Input method. 3. Select the input method. The keyboard panel will be displayed automatically. Creating and Sending a Text Message 1. Touch > Messaging > New message. 2. Enter a phone number in the To field. As you enter the phone number, matching contacts appear. You can touch a suggested recipient or continue entering the phone number. 3. Touch the composition text box to start entering your message. 4. Once …

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CECTCOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISC8511 to be kept confidential: 1. Schematic diagram 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

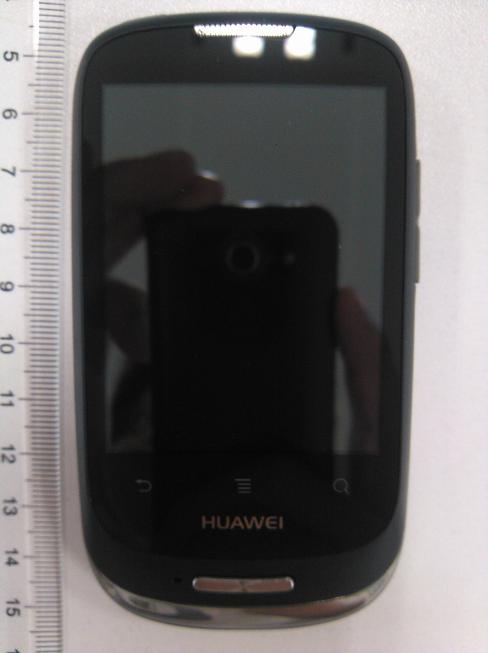

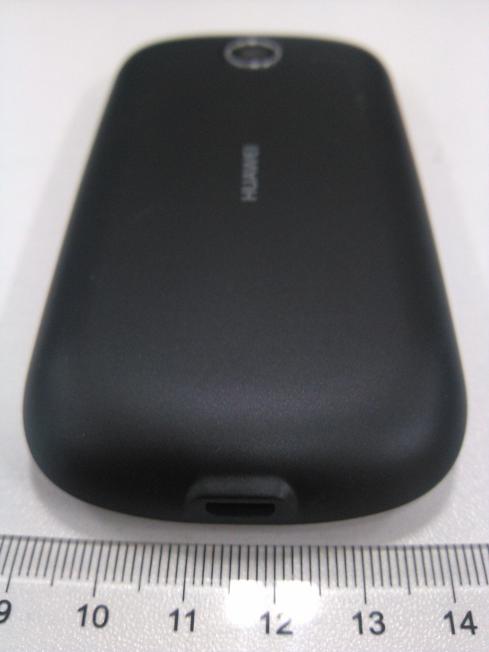

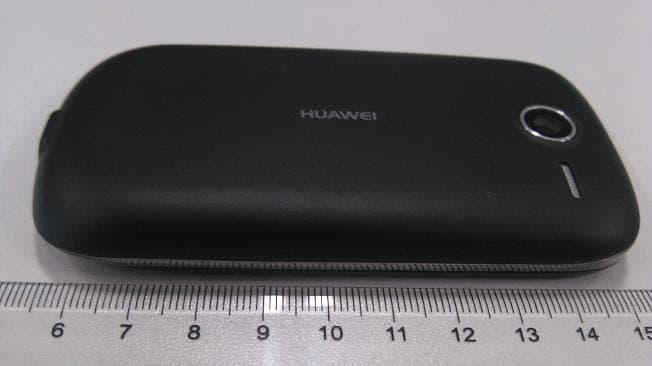

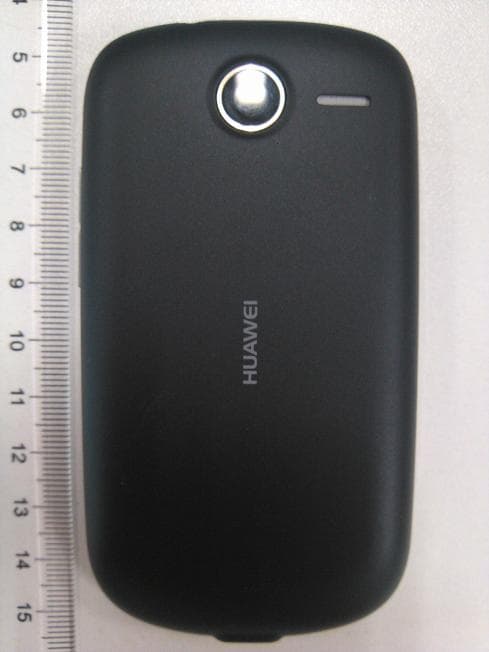

HUAWEI C C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page1,Total 6 External Photos of HUAWEI C8511/C8511 HUAWEI C C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page2,Total 6 HUAWEI C C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page3,Total 6 HUAWEI C C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page4,Total 6 HUAWEI C C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page5,Total 6 HUAWEI C C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page6,Total 6

HUAWEI C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page1, Total 2 Label Location HUAWEI C8511/C8511 HUAWEI C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page2, Total 2 HUAWEI C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page3, Total 2

HUAWEI C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page1,Total 8 Internal Photos of HUAWEI C8511/C8511 HUAWEI C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page2,Total 8 HUAWEI C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page3,Total 8 HUAWEI C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page4,Total 8 HUAWEI C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page5,Total 8 HUAWEI C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page6,Total 8 HUAWEI C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page7,Total 8 HUAWEI C8511/C8511 cdma2000 Digital Mobile Phone SECRET Page8,Total 8

Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28785513 Fax: +86 755 36834474 FCC SAR Compliance Test Report Project Name: _______________________ Model : _______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED CHECKED PREPARED BY DATE 2011-09-14 2011-09-14 2011-09-14 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. cdma2000 Digital Mobile Phone HUAWEI C8511/ C8511 QISC8511 SYBH(Z-SAR)015092011-2 Report No.: SYBH (Z-SAR) 015092011-2 FCC ID:QISC8511 2011-09-14 Page 2 of 28 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 4 1.3 EUT Description.......................................................................................................................................................... 5 1.3.1 General Description ........................................................................................................................................... 5 1.4 Test specification(s) .................................................................................................................................................. 6 1.5 Testing laboratory ....................................................................................................................................................... 6 1.6 Applicant and Manufacturer ...................................................................................................................................... 6 1.7 Application details ...................................................................................................................................................... 6 1.8 Ambient Condition ..................................................................................................................................................... 6 2 SAR Measurement System ............................................................................................................................................. 7 2.1 SAR Measurement Set-up ....................................................................................................................................... 7 2.2 Test environment ........................................................................................................................................................ 8 2.3 Data Acquisition Electronics description ................................................................................................................ 8 2.4 Probe description........................................................................................................................................................ 9 2.5 Phantom description ................................................................................................................................................ 10 2.6 Device holder description ........................................................................................................................................ 10 2.7 Test Equipment List ................................................................................................................................................. 11 3 SAR Measurement Procedure ...................................................................................................................................... 12 3.1 Scanning procedure ................................................................................................................................................. 12 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 13 3.3 Data Storage and Evaluation .................................................................................................................................. 14 4 System Verification Procedure ........................................................................................................................................ 16 4.1 Tissue Verification .................................................................................................................................................... 16 4.2 System Check ........................................................................................................................................................... 18 4.3 Validation Procedure................................................................................................................................................ 18 5 Measurement Uncertainty Evaluation .......................................................................................................................... 19 5.1 Measurement uncertainty evaluation for SAR test .............................................................................................. 19 5.2 Measurement uncertainty evaluation for system validation ............................................................................... 20 6 SAR Test Configuration .............…

Text truncated - open the document above for the full version.

Report No:SYBH (Z-SAR) 015092011-2 FCC ID:QISC8511 Appendix A. System Check Plots Table of contens SystemPerformanceCheck-D900-EX-Head SystemPerformanceCheck-D900-EX-Body SystemPerformanceCheck-D2450-EX-Head SystemPerformanceCheck-D2450-EX-Body Date/Time: 2011-9-9 11:00:37, Date/Time: 2011-9-9 11:06:55 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D900-EX-Head DUT: Dipole 900 MHz D900V2; Type: D900V2; Serial: D900V2 - SN:1d112 Communication System: CW; Communication System Band: D900 (900.0 MHz); Frequency: 900 MHz;Communication System PAR: 0 dB Medium parameters used: f = 900 MHz; σ = 0.937 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.06, 9.06, 9.06); Calibrated: 2010-12-13  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1235; Calibrated: 2010-10-22  Phantom: SAM1; Type: SAM; Serial: TP-1475  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/d=15mm, Pin=250mW/Area Scan (5x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.89 mW/g Configuration/d=15mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54 V/m; Power Drift = -0.018 dB Peak SAR (extrapolated) = 4.18 W/kg SAR(1 g) = 2.72 mW/g; SAR(10 g) = 1.73 mW/g Maximum value of SAR (measured) = 2.91 mW/g 0 dB = 2.91mW/g Date/Time: 2011-9-5 9:26:20, Date/Time: 2011-9-5 9:33:35 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D900-EX-Body DUT: Dipole 900 MHz D900V2; Type: D900V2; Serial: D900V2 - SN:1d112 Communication System: CW; Communication System Band: D900 (900.0 MHz); Frequency: 900 MHz;Communication System PAR: 0 dB Medium parameters used: f = 900 MHz; σ = 1.02 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.07, 9.07, 9.07); Calibrated: 2010-12-13  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1235; Calibrated: 2010-10-22  Phantom: SAM2; Type: SAM; Serial: TP-1474  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/d=15mm, Pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.7 mW/g Configuration/d=15mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.7 V/m; Power Drift = 0.086 dB Peak SAR (extrapolated) = 4.22 W/kg SAR(1 g) = 2.79 mW/g; SAR(10 g) = 1.8 mW/g Maximum value of SAR (measured) = 3.01 mW/g 0 dB = 3.01mW/g Date/Time: 2011-9-2 10:46:55, Date/Time: 2011-9-2 10:49:39 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-EX-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Communication System Band: D2450 (2450.0 MHz); Frequency: 2450 MHz;Communication System PAR: 0 dB Medium parameters used: f = 2450 MHz; σ = 1.84 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(7.11, 7.11, 7.11); Calibrated: 2010-12-13  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1235; Calibrated: 2010-10-22  Phantom: SAM1; Type: SAM; Serial: TP-1475  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/d=10mm,pin=250mW/Area Scan (4x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 16.1 mW/g Configuration/d=10mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 82.1 V/m; Power Drift = 0.111 dB Peak SAR (extrapolated) = 30.5 W/kg SAR(1 g) = 14.3 mW/g; SAR(10 g) = 6.51 mW/g Maximum value of SAR (measured) = 16.2 mW/g 0 dB = 16.2mW/g Date/Time: 2011-9-3 1:39:33, Date/Time: 2011-9-3 1:43:38 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-EX-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Communication System Band: D2450 (2450.0 MHz); Frequency: 2450 MHz;Communication System PAR: 0 dB Medium parameters used: f = 2450 MHz; σ = 1.98 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(6.91, 6.91, 6.91); Calibrated: 2010-12-13  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1235; Calibrated: 2010-10-22  Phantom: SAM1; Type: SAM; Serial: TP-1475  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.3 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 75.6 V/m; Power Drift = 0.144 dB Peak SAR (extrapolated) = 29.1 W/kg SAR(1 g) = 14.2 mW/g; SAR(10 g) = 6.48 mW/g Maximum value of SAR (measured) = 16.4 mW/g 0 dB = 16.4mW/g

Report No:SYBH (Z-SAR) 015092011-2 FCC ID:QISC8511 Appendix B. SAR Measurement Plots Table of contents CDMA 800 MHz Head CDMA 800 MHz Body WiFi 802.11b Head WiFi 802.11b Body Date/Time: 2011-9-9 13:03:52, Date/Time: 2011-9-9 13:10:27 Test Laboratory: HUAWEI SAR Lab C8511 CDMA800 777CH Left hand touch cheek DUT: C8511; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: T5C2C11161300004 Communication System: HW-CDMA2000; Communication System Band: CDMA 800 BC0; Frequency: 848.31 MHz;Communication System PAR: 0 dB Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.886 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.06, 9.06, 9.06); Calibrated: 2010-12-13  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1235; Calibrated: 2010-10-22  Phantom: SAM1; Type: SAM; Serial: TP-1475  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/Head/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.965 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.4 V/m; Power Drift = 0.060 dB Peak SAR (extrapolated) = 1.36 W/kg SAR(1 g) = 0.900 mW/g; SAR(10 g) = 0.637 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.958 mW/g 0 dB = 0.958mW/g Date/Time: 2011-9-9 12:09:32, Date/Time: 2011-9-9 12:31:23 Test Laboratory: HUAWEI SAR Lab C8511 CDMA800 384CH Left hand touch cheek DUT: C8511; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: T5C2C11161300004 Communication System: HW-CDMA2000; Communication System Band: CDMA 800 BC0; Frequency: 836.52 MHz;Communication System PAR: 0 dB Medium parameters used: f = 837 MHz; σ = 0.879 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.06, 9.06, 9.06); Calibrated: 2010-12-13  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1235; Calibrated: 2010-10-22  Phantom: SAM1; Type: SAM; Serial: TP-1475  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/Head/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.01 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.2 V/m; Power Drift = -0.111 dB Peak SAR (extrapolated) = 1.39 W/kg SAR(1 g) = 0.928 mW/g; SAR(10 g) = 0.658 mW/g Maximum value of SAR (measured) = 0.980 mW/g 0 dB = 0.980mW/g Date/Time: 2011-9-9 14:10:28, Date/Time: 2011-9-9 14:17:05 Test Laboratory: HUAWEI SAR Lab C8511 CDMA800 1013CH Left hand touch cheek DUT: C8511; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: T5C2C11161300004 Communication System: HW-CDMA2000; Communication System Band: CDMA 800 BC0; Frequency: 824.7 MHz;Communication System PAR: 0 dB Medium parameters used: f = 825 MHz; σ = 0.874 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.06, 9.06, 9.06); Calibrated: 2010-12-13  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1235; Calibrated: 2010-10-22  Phantom: SAM1; Type: SAM; Serial: TP-1475  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/Head/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.969 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.5 V/m; Power Drift = 0.130 dB Peak SAR (extrapolated) = 1.33 W/kg SAR(1 g) = 0.882 mW/g; SAR(10 g) = 0.622 mW/g Maximum value of SAR (measured) = 0.940 mW/g 0 dB = 0.940mW/g Date/Time: 2011-9-9 14:39:38, Date/Time: 2011-9-9 14:53:12 Test Laboratory: HUAWEI SAR Lab C8511 CDMA800 384CH Left hand tilt 15 DUT: C8511; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: T5C2C11161300004 Communication System: HW-CDMA2000; Communication System Band: CDMA 800 BC0; Frequency: 836.52 MHz;Communication System PAR: 0 dB Medium parameters used: f = 837 MHz; σ = 0.879 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.06, 9.06, 9.06); Calibrated: 2010-12-13  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1235; Calibrated: 2010-10-22  Phantom: SAM1; Type: SAM; Serial: TP-1475  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/Head/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.551 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.2 V/m; Power Drift = 0.057 dB Peak SAR (extrapolated) = 0.685 W/kg SAR(1 g) = 0.539 mW/g; SAR(10 g) = 0.402 mW/g Maximum value of SAR (measured) = 0.565 mW/g 0 dB = 0.565mW/g Date/Time: 2011-9-9 16:19:22, Date/Time: 2011-9-9 16:25:36 Test Laboratory: HUAWEI SAR Lab C8511 CDMA800 777CH right hand touch cheek DUT: C8511; Type: CDMA2000 Mobile Phone with Bluetooth; Serial: T5C2C11161300004 Communication System: HW-CDMA2000; Communication System Band: CDMA 800 BC0; Frequency: 848.31 MHz;Communication System PAR: 0 dB Medium parameters used (interpolated): f = 848.31 MHz; σ = 0.886 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN3753; ConvF(9.06, 9.06, 9.06); Calibrated: 2010-12-13  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1235; Calibrated: 2010-10-22  Phantom: SAM1; Type: SAM; Serial: TP-1475  Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Configuration/Head/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.875 mW/g Configuration/Head/Zoom Scan (7x7x7…

Text truncated - open the document above for the full version.

Report No:SYBH (Z-SAR) 015092011-2 FCC ID:QISC8511 Appendix C. Calibration Certificate Table of contends Calibration report “D900-SN1d112” Calibration report “D2450-SN860” Calibration report “DAE4-SN1235” Calibration report “Probe EX3DV4-SN3753” Annex 1.9 Calibration report “D2450-SN860”

Report No:SYBH (Z-SAR) 015092011-2 FCC ID:QISC8511 Appendix D. Photo documentation Table of contens Test Facility Test Positions Liquid depth Test Facility Photo 1: Measurement System DASY 5 Test Positions Photo 2: Front View Photo 3: Rear View Photo 4: Left Hand Touched Photo 5: Left Hand Tilted 15° Photo 6: Right Hand Touched Photo 7: Right Hand Tilted 15° Photo 8: Towords Phantom (10mm) Photo 9: Towords Ground (10mm) Photo 10: Left edge (10mm) Photo 11: Right edge (10mm) Photo 12: Towords Ground with Headset (10mm) Photo 13: Bottom edge (10mm) Liquid depth Photo 14: HSL835MHz depth (15.2cm) Photo 15: MSL835depth (15.00cm) Photo 16: HSL2450MHz depth (15cm) Photo 17: MSL2450MHz depth (15cm)

FCC Test Report Product Name: cdma2000 Digital Mobile Phone Model Number: HUAWEI C8511/C8511 Report No: SYBH(Z-RF)008082011-2004 FCC ID: QISC8511 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of HUAWEI C8511/ C8511 FCC ID: QISC8511 Security Level: Public Report No: SYBH(Z-RF)008082011-2004 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total29 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 3. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 4. The test report is invalid if not marked with "exclusive stamp for the test report". 5. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 8. Normally, the test report is only responsible for the samples that have undergone the test. 9. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of HUAWEI C8511/ C8511 FCC ID: QISC8511 Security Level: Public Report No: SYBH(Z-RF)008082011-2004 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total29 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 15: Subpart C; START OF TEST Aug.04, 2011 END OF TEST Aug.08, 2011 Final Judgement: Pass Approved By Aug.10, 2011 Dai Linjun Date Name Signature Reviewed By Aug.10, 2011 Xuguangyi Date Name Signature Operator Aug.10, 2011 huangqiuliang Date Name Signature FCC Test Report of HUAWEI C8511/ C8511 FCC ID: QISC8511 Security Level: Public Report No: SYBH(Z-RF)008082011-2004 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total29 Contents 1 Summary .....................................................................................................................................................5 2 Product Description ...................................................................................................................................6 2.1 PRODUCTION INFORMATION ....................................................................................................................6 2.2 MODIFICATION INFORMATION ..................................................................................................................6 3 Test Site Description ..................................................................................................................................7 3.1 TESTING PERIOD ....................................................................................................................................7 3.2 GENERAL SET UP DESCRIPTION ..............................................................................................................7 4 Product Description ....................................................................................................................…

Text truncated - open the document above for the full version.
