QISC8688Vcdma2000 Digital Mobile Phone

Welcome to huawei Quick Start Guide HUAWEI Ascend Y 201C Phone at a Glance All the pictures in this guide are for your reference only. Your phone’s actual display features may be different to those described here, depending on its software version. Key Functions at Your Fingertips • Press and hold to power on your mobile phone. • Press and hold to open the Phone options menu. • Press to lock the screen when your mobile phone is active. • Touch to return to the Home screen. • Touch and hold to open Task Manager . Touch to open the menu on an active screen. Menu Home Back Earphone Power key Speaker Volume keys Camera micro USB charging port Headset jack (Optional) Installing the microSD Card If you want to expand your phone memory, you can also insert a microSD card. 1. Remove the battery cover. 2. Insert the microSD card into the card slot as shown in the diagram. Installing the Battery 1. Angle the edge labeled a (with the contacts) into the bottom end of the battery compartment. 2. Push the edge labeled b into the compartment until the battery clicks firmly into place. • Touch to return to the previous screen. • Touch to exit any application you are running. • Touch to hide the keyboard. Charging the Battery Before charging the battery, ensure that it has been properly installed on your phone. 1. Connect the USB cable that came with your mobile phone to the charger. 2. Connect the other end of the USB cable to your mobile phone. Then, to start charging, plug the charger into an electrical outlet. If you charge your mobile phone while it is powered on, the battery icon on the notification bar indicates the charging status. When the battery icon changes to , your mobile phone is fully charged. Status Indicator The color of the status indicator tells you the status of your mobile phone’s battery. Status Indicator Green: Fully charged (when connected to charger). Orange: Charging in progress (when connected to charger). Red: Battery low. Touchscreen Actions Using your finger on the touchscreen, you can operate your phone conveniently. Home Screen You can set up the Home screen according to your own preferences, for example by adding a shortcut or a widget to your Home screen, changing the wallpaper, or setting the number of Home screen extensions. Touch & hold TouchDouble touch RotateFlickDrag 10:23 Flick your finger left or right across the Home screen. When a new notification icon appears on the notification bar, place your finger on the notification bar and flick down to open the notification panel. Adding a New Home Screen Item 1. Touch and hold a blank area on the Home screen until the Add to home screen menu is displayed. 2. Select an item to add it to the Home screen. Removing a Home Screen Item 1. Touch and hold an item on the Home screen until the item expands and the mobile phone vibrates. 2. Without lifting your finger, drag the item to the trash can. When the item and the trash can turn red, the item is ready to be removed. 3. Release the item to remove it from the Home screen. Adding a Contact 1. In the contact list, touch > Create contact. 2. If you have more than one account with contacts, touch the account to which you want to add the contact. 10:23 10:23 3. Enter the contact's name, and then add detailed information such as phone number and address. 4. When you are finished, touch Done to save the contact information. Making a Call with the Dialer Application On the home screen, touch to open the Dialer. Your mobile phone supports the SmartDial function, that is, when you touch numbers on the dialer, the phone automatically searches among your contacts and lists the matching results ordered according to the accuracy of the match. If no contacts match the information entered, the phone will not display any result. Creating and Sending a Multimedia Message On the home screen, touch to open the Message. You can use multimedia messages to make everyday communications very special. You can record a message and send it as an audio file, sing 'Happy Birthday' and send it to friend, or send a slideshow of photographs of a special event. The possibilities are endless. 1. Enter a phone number in the field, or touch to select a contact from Contacts or Groups. 2. Touch the composition text box to start entering your message. 3. When the message is ready to be sent, touch . Connecting Internet Get online using your phone’s Wi-Fi to save your money. Turning On Wi-Fi 1. Touch > Settings. 2. Touch Wireless & networks, and then select the Wi-Fi check box to turn on Wi-Fi. Opening the Browser Touch > to open the home page. When known or open Wi-Fi networks and mobile data networks are available at the same time, your phone will preferably select a Wi-Fi network for Internet access. Opening a Webpage 1. In a browser window, touch the URL field at the top of the screen. 2. Use the keyboard to enter a webpage address. 10:23 3. As you enter the address, matching webpage addresses will appear on the screen. If you see the address you want, touch it and go directly to that webpage or complete entering your desired webpage. Turning Off Your Data Service When you are not using your data service, to eliminate unwanted data traffic, you can turn it off quickly. 1. Open the notification bar. 2. Touch at the top of the screen to switch data services on or off. Opening Your Camera You can take and share photos using the camera. Your camera supports multiple capture modes and photo effects. After taking a picture, access the Gallery to view it. For information on how to share photos and videos, see the User Guide. Capture Screen 3 5 Touch to customize the camera settings. Thumbnail of the last photo. Touch to preview the photos or videos. Slide up to record videos; slide down to take photos. Touch to take a photo. Using the microSD Card as a USB Mass Storage 1. Connect your mobile phone to your PC with the USB cable provided. Your PC will detect the microSD card as a removable storage device. 2. Open the…

Text truncated - open the document above for the full version.

Secret 2012-6-1 华为保密信息,未经授权禁止扩散 第1页, 共1页 Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, 518129 Guangdong, P.R.China Tel: +86-755-2878-1879 ; Fax: +86-755-2878-1889 Date: June 1, 2012 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISC8688V use Broadcom’s chip BCM4330, though BCM4330 support BT4.0+HS and 5.0G Wi-Fi., but C8655 doesn’t support BLE, 5 GHz client, ad-hoc, Wi-Fi Direct function. C8655 only support BT2.1+EDR and 2.4G Wi-Fi. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, 518129 Guangdong, P.R.China Tel: +86-755-2878-1879 ; Fax: +86-755-2878-1889 Date: June 1, 2012 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISC8688V, has a battery, But the battery will not be placed in the battery compartment when delivery, it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CECEECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISC8688V to be kept confidential: 1. Schematic diagram 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2012-05-31 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISC8688V Product Name: cdma2000 Digital Mobile Phone Product Model: C8655,Orinoquia C8655,C8688V,Orinoquia C8688V To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 90 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely ,

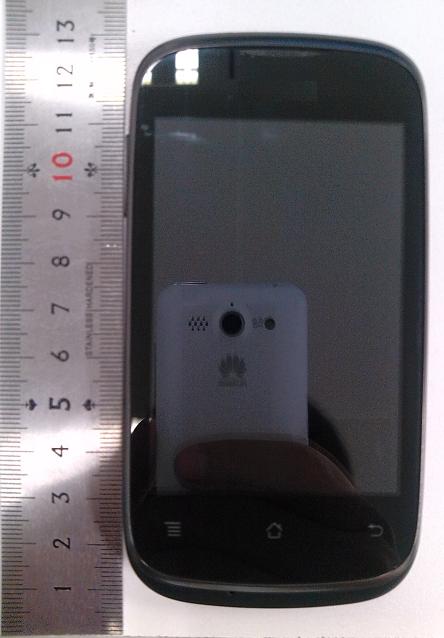

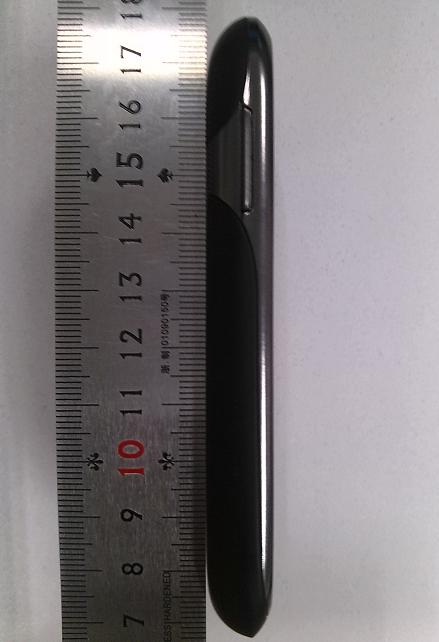

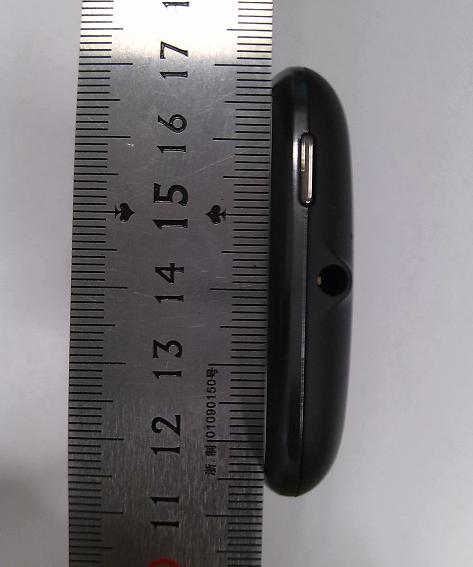

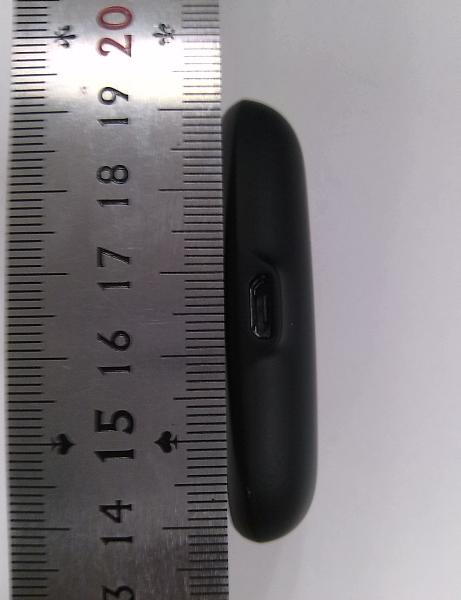

C8655, Orinoquia C8655,C8688V,Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page1,Total 7 External Photos of C8655, Orinoquia C8655,C8688V,Orinoquia C8688V C8655, Orinoquia C8655,C8688V,Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page2,Total 7 C8655, Orinoquia C8655,C8688V,Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page3,Total 7 C8655, Orinoquia C8655,C8688V,Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page4,Total 7 C8655, Orinoquia C8655,C8688V,Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page5,Total 7 C8655, Orinoquia C8655,C8688V,Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page6,Total 7 C8655, Orinoquia C8655,C8688V,Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page7,Total 7

C8655, Orinoquia C8655,C8688V,Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page1, Total 5 Label&Label Location of C8655, Orinoquia C8655,C8688V, Orinoquia C8688V C8655, Orinoquia C8655,C8688V,Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page2, Total 5 C8655, Orinoquia C8655,C8688V,Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page3, Total 5 C8655, Orinoquia C8655,C8688V,Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page4, Total 5 C8655, Orinoquia C8655,C8688V,Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page5, Total 5

C8655, Orinoquia C8655, C8688V, Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page1,Total 9 Internal Photos of C8655, Orinoquia C8655, C8688V, Orinoquia C8688V C8655, Orinoquia C8655, C8688V, Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page2,Total 9 C8655, Orinoquia C8655, C8688V, Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page3,Total 9 C8655, Orinoquia C8655, C8688V, Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page4,Total 9 C8655, Orinoquia C8655, C8688V, Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page5,Total 9 C8655, Orinoquia C8655, C8688V, Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page6,Total 9 C8655, Orinoquia C8655, C8688V, Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page7,Total 9 C8655, Orinoquia C8655, C8688V, Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page8,Total 9 C8655, Orinoquia C8655, C8688V, Orinoquia C8688V cdma2000 Digital Mobile Phone; SECRET Page9,Total 9

Report No.: SYBH(Z-SAR)007052012-2 FCC ID: QISC8688V Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D 835-ES-Head SystemPerformanceCheck-D 835-ES-Body SystemPerformanceCheck-D 2450-ES-Head SystemPerformanceCheck-D 2450-ES-Body Date/Time: 5/4/2012 17:53:54 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-ES-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.896 mho/m; ε r = 40.257; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.0(692); SEMCAD X 14.6.5(6469) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.61 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.090 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 3.596 mW/g SAR(1 g) = 2.44 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 2.64 mW/g 0 dB = 2.61 mW/g = 8.35 dB mW/g Date/Time: 5/4/2012 23:59:52 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-ES-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.988 mho/m; ε r = 56.611; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.11, 6.11, 6.11); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.0(692); SEMCAD X 14.6.5(6469) Configuration/d=15mm,pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.71 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 41.248 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 3.826 mW/g SAR(1 g) = 2.51 mW/g; SAR(10 g) = 1.63 mW/g 0 dB = 2.71 mW/g = 8.67 dB mW/g Date/Time: 5/5/2012 14:39:49 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-ES-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.839 mho/m; ε r = 38.995; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.4, 4.4, 4.4); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.0(692); SEMCAD X 14.6.5(6469) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.7 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.484 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 30.901 mW/g SAR(1 g) = 14.2 mW/g; SAR(10 g) = 6.43 mW/g Maximum value of SAR (measured) = 16.2 mW/g 0 dB = 14.7 mW/g = 23.35 dB mW/g Date/Time: 5/7/2012 9:09:51 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-ES-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.977 mho/m; ε r = 52.28; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.19, 4.19, 4.19); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.523 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.703 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 30.1530 SAR(1 g) = 13.5 mW/g; SAR(10 g) = 6 mW/g Maximum value of SAR (measured) = 15.329 mW/g 0 dB = 15.330mW/g = 23.71 dB mW/g

Report No.: SYBH(Z-SAR)007052012-2 FCC ID: QISC8688V Appendix B. SAR Measurement Plots Table of contents CDMA800 MHz Head CDMA800 MHz Body WiFi(802.11b) 2450 MHz Head WiFi(802.11b) 2450 MHz Body Date/Time: 5/4/2012 18:27:51 Test Laboratory: HUAWEI SAR Lab C8655 CDMA800 384CH Left hand touch cheek DUT: C8655; Type: cdma2000 Digital Mobile Phone; Serial: SAR1 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.887 mho/m; ε r = 40.327; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.412 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.568 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.485 mW/g SAR(1 g) = 0.393 mW/g; SAR(10 g) = 0.296 mW/g Maximum value of SAR (measured) = 0.420 mW/g 0 dB = 0.412 mW/g = -7.71 dB mW/g Date/Time: 5/4/2012 18:58:04 Test Laboratory: HUAWEI SAR Lab C8655 CDMA800 384CH Left hand tilt 15 degree DUT: C8655; Type: cdma2000 Digital Mobile Phone; Serial: SAR1 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.887 mho/m; ε r = 40.327; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.321 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.493 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 0.395 mW/g SAR(1 g) = 0.317 mW/g; SAR(10 g) = 0.242 mW/g Maximum value of SAR (measured) = 0.334 mW/g 0 dB = 0.321 mW/g = -9.87 dB mW/g Date/Time: 5/4/2012 19:26:12 Test Laboratory: HUAWEI SAR Lab C8655 CDMA800 384CH Right hand touch cheek DUT: C8655; Type: cdma2000 Digital Mobile Phone; Serial: SAR1 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.887 mho/m; ε r = 40.327; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.504 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.399 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.597 mW/g SAR(1 g) = 0.480 mW/g; SAR(10 g) = 0.361 mW/g Maximum value of SAR (measured) = 0.506 mW/g 0 dB = 0.506 mW/g = -5.92 dB mW/g Date/Time: 5/4/2012 19:55:36 Test Laboratory: HUAWEI SAR Lab C8655 CDMA800 384CH Right hand tilt 15 degree DUT: C8655; Type: cdma2000 Digital Mobile Phone; Serial: SAR1 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.887 mho/m; ε r = 40.327; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.348 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.970 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.430 mW/g SAR(1 g) = 0.347 mW/g; SAR(10 g) = 0.263 mW/g Maximum value of SAR (measured) = 0.363 mW/g 0 dB = 0.348 mW/g = -9.16 dB mW/g Date/Time: 5/4/2012 20:28:37 Test Laboratory: HUAWEI SAR Lab C8655 CDMA800 384CH Right hand touch cheek with battery UAIBC20X03007197 DUT: C8655; Type: cdma2000 Digital Mobile Phone; Serial: SAR1 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.887 mho/m; ε r = 40.327; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 3/28/2012 lPhantom: SAM 2; Type: SAM; Serial: TP-1474 lDASY52 52.8.1(838); SEMCAD X 14.6.5(6469) Configuration/Head/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.501 mW/g Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.565 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.579 mW/g SAR(1 g) = 0.461 mW/g; SAR(10 g) = 0.346 mW/g Maximum value of SAR (measured) = 0.482 mW/g 0 dB = 0.501 mW/g = -6.01 dB mW/g Date/Time: 5/4/2012 21:00:38 Test Laboratory: HUAWEI SAR Lab C8655 CDMA800 384CH Right hand touch cheek with battery UNDC306X03000317 DUT: C8655; Type: cdma2000 Digital Mobile Phone; Serial: SAR1 Communication System: HW-CDMA2000; Frequency: 836.52 MHz Medium parameters used: f = 837 MHz; σ = 0.887 mho/m; ε r = 40.327; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.07, 6.07, 6.07); Calibrated: 9/27/2011; lSensor-Surface: 4mm (Mechanical Surface Detec…

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D2450V2 SN: 860 Per KDB 450824, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Calibration Date 2011-03-08 Measured Date 2012-03-07 Dipole2450 Head TST Target Value Measured Value Difference Impedance transformed to feed point 54.0Ω+2.2jΩ 54.1Ω+2.36jΩ R=0.1Ω, X=0.16Ω Return Loss -27.2dB -27.34dB -0.51% Dipole2450 Body TST Target Value Measured Value Difference Impedance transformed to feed point 49.0Ω+4.9jΩ 49.48Ω+5.13jΩ R=0.48Ω, X=0.23Ω Return Loss - 26.0dB -26.38dB -1.46% Measured Date 2011-03-08 2012-03-07 ------- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

CalibrationLaboratoryof Schmid& Partner EngineeringAG Zeughausstrasse43,8004Zurich,Switzerland SSchweizerischerKalibrierdienst CServicesuissed'etalonnage SServiziosvizzeroditaratura SwissCalibrationService AccreditedbytheSwissAccreditationService(SAS) TheSwissAccreditationServiceisoneofthesignatoriestotheEA MultilateralAgreementfortherecognitionofcalibrationcertificates QACAL-01.v8,QACAL-23.v4,QACAL-25.v4 CalibrationprocedurefordosimetricE-fieldprobes Thiscalibrationcertificatedocumentsthetraceabilitytonationalstandards,whichrealizethephysicalunitsofmeasurements(SI). Themeasurementsandtheuncertaintieswithconfidenceprobabilityaregivenonthefollowingpagesandarepartofthecertificate. PrimaryStandards PowermeterE4419B PowersensorE4412A Reference3 dBAttenuator Reference20dBAttenuator Reference30dBAttenuator ReferenceProbeES3DV2 DAE4 SecondaryStandards RFgeneratorHP8648C NetworkAnalyzerHP8753E ID GB41293874 MY41498087 SN:S5054(3c) SN:S5086(20b) SN:S5129(30b) SN:3013 SN:654 CalDate(CertificateNo.) 31-Mar-11(No.217-01372) 31-Mar-11(No.217-01372) 29-Mar-11(No.217-01369) 29-Mar-11(No.217-01367) 29-Mar-11(No.217-01370) 29-Dec-10(No.ES3-3013_Dec10) 3-May-11(No.DAE4-654_May11) ScheduledCalibration Apr-12 Apr-12 Apr-12 Apr-12 Apr-12 Dec-11 May-12 ID US3642U01700 US37390585 CheckDate(inhouse) 4-Aug-99(inhousecheckOct-09) 18-0ct-01(inhousecheckOct-10) ScheduledCheck Inhousecheck:Oct-11 Inhousecheck:Oct-11 Name ClaudioLeubler Function LaboratoryTechnician CalibrationLaboratoryof Schmid&Partner EngineeringAG Zeughausstrasse43,8004Zurich,Switzerland SchweizerischerKalibrierdienst Servicesuissed'etalonnage Serviziosvizzeroditaratura SwissCalibrationService Accreditedby theSwissAccreditationService(SAS) TheSwissAccreditationServiceisoneofthesignatoriestotheEA MultilateralAgreementfortherecognitionofcalibrationcertificates Glossary: TSL NORMx,y,z ConvF DCP CF A,S,C Polarization<p PolarizationS tissuesimulatingliquid sensitivityin freespace sensitivityin TSL/ NORMx,y,z diodecompressionpoint crestfactor(1/duty_cycle)oftheRFsignal modulationdependentlinearizationparameters <p rotationaroundprobeaxis S rotationaroundanaxisthatis in theplanenormaltoprobeaxis(atmeasurementcenter), i.e.,S = 0 is normaltoprobeaxis Calibrationis PerformedAccordingto theFollowingStandards: a)IEEEStd1528-2003,"IEEERecommendedPracticeforDeterminingthePeakSpatial-AveragedSpecific AbsorptionRate(SAR)in theHumanHeadfromWirelessCommunicationsDevices:Measurement Techniques",December2003 b)IEC62209-1,"ProceduretomeasuretheSpecificAbsorptionRate(SAR)forhand-helddevicesusedin close proximitytotheear(frequencyrangeof300MHzto3 GHz)",February2005 MethodsAppliedandInterpretationof Parameters: •NORMx,y,z:AssessedforE-fieldpolarizationS= 0 (f:s;900MHzin TEM-cell;f>1800MHz:R22waveguide). NORMx,y,zareonlyintermediatevalues,i.e.,theuncertaintiesofNORMx,y,zdoesnotaffecttheE 2 -field uncertaintyinsideTSL(seebelowConvF). •NORM(f)x,y,z= NORMx,y,z* frequencYJesponse(seeFrequencyResponseChart).Thislinearizationis implementedinDASY4 softwareversionslaterthan4.2.Theuncertaintyofthefrequencyresponseis included in thestateduncertaintyofConvF. •DCPx,y,z:DCParenumericallinearizationparametersassessedbasedonthedataofpowersweepwithCW signal(nouncertaintyrequired).DCPdoesnotdependonfrequencynormedia. •PAR:PARis thePeaktoAverageRatiothatis notcalibratedbutdeterminedbasedonthesignal characteristics •Ax,y,z;Bx,y,z;Cx,y,z,VRx,y,z:A,B,C arenumericallinearizationparametersassessedbasedonthedataof powersweepforspecificmodulationsignal.Theparametersdonotdependonfrequencynormedia.VRis the maximumcalibrationrangeexpressedinRMSvoltageacrossthediode. •ConvFandBoundaryEffectParameters:Assessedin flatphantomusingE-field(orTemperatureTransfer Standardforf :s; 800MHz)andinsidewaveguideusinganalyticalfielddistributionsbasedonpower measurementsforf > 800MHz.Thesamesetupsareusedforassessmentoftheparametersappliedfor boundarycompensation(alpha,depth)ofwhichtypicaluncertaintyvaluesaregiven.Theseparametersare usedinDASY4softwaretoimproveprobeaccuracyclosetotheboundary.Thesensitivityin TSLcorresponds toNORMx,y,z* ConvFwherebytheuncertaintycorrespondstothatgivenforConvF.A frequencydependent ConvFis usedinDASYversion4.4andhigherwhichallowsextendingthevalidityfrom± 50MHzto± 100 MHz. •Sphericalisotropy(3Ddeviationfromisotropy):in a fieldoflowgradientsrealizedusinga flatphantom exposedbya patchantenna. •SensorOffset:Thesensoroffsetcorrespondstotheoffsetofvirtualmeasurementcenterfromtheprobetip (onprobeaxis).Notolerancerequired. Probe ES3DV3 SN:3168 Manufactured: Calibrated: October3, 2007 September27,2011 CalibratedforDASY/EASYSystems (Note:non-compatiblewithDASY2system!) ES3DV3-SN:3168 DASY/EASY- Para BasicCalibrationParameter Norm(uV/(V/m)2)A DCP(mV)" ModulationCalibrationPara UIDCommunicationSystem 10000CW Thereporteduncertaintyofm multipliedbythecoveragefac probabilityofapproximately9 A TheuncertaintiesofNormX,Y,Zdonotaffect BNumericallinearizationparameter:uncertain EUncertaintyis determinedusingthemax.de fieldvalue. CertificateNo:ES3-3168_Sep11 S SensorX 1.05 93.6 SensorY 1.22 95.6 SensorZ 1.04 90.6 Unc(k=2) ± 10.1% meters NamePAR A B C VR Unc dBdBdB mV (k=2) 0.00 X0.000.001.00 135.8 ±3.0% Y0.000.001.00 110.3 Z0.000.001.00 134.6 easurementis statedasthestandarduncertaintyofmeasurement tork=2,whichfora normaldistributioncorrespondstoa coverage 5%. theE 2 -fielduncertaintyinsideTSL(seePages5 and6). tynotrequired. viationfromlinearresponseapplyingrectangulardistributionandis expressedforthesquareofthe RelativeConductivity Depth Unct. f (MHz)c PermittivityF (8/m)F ConvFXConvFY ConvFZAlpha(mm) (k=2) 83541.50.90 6.076.076.070.80 1.24± 12.0% 90041.50.97 6.036.036.030.801.00± 12.0% 175040.11.375.355.35 5.35 0.80 1.22± 12.0% 190040.0 1.40 5.105.105.100.801.21± 12.0% 200040.0 1.40 5.06 5.06 5.060.801.19± 12.0% 245039.21.80 4.40 4.404.40 0.751.27± 12.0% CFrequencyvalidityof± 100MHzonlyappliesforDASYv4.4andhigher(seePage2).elseit is restrictedto± 50MHz.Theuncertaintyis theRSS oftheConvFuncertaintyatcalib…

Text truncated - open the document above for the full version.

Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28785513 Fax: +86 755 36834474 FCC SAR Compliance Test Report Project Name: _______________________ Model : _______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED CHECKED PREPARED BY DATE 2012-05-28 2012-05-28 2012-05-28 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsi…
