QISCM990cdma2000 Digital Mobile Phone

Quick Start Guide CM990 Getting to know your phone Thank you for choosing the HUAWEI smartphone. First, let's take a look at a few basics: Press and hold the power button to power on your phon e. After your phone is powered up, you can use the power button to turn the screen off and on. Headset jack Power Volume key Charger/Data port Front camera Earpiece Back Home Menu Status indicator Preparing your phone To insert a card, the battery and a microSD card please perform the steps shown in the following figures. Your phone is shipped with the battery pa rtially charged. It is recommended that you fully charge the battery before using it for the first time. Installing the battery Charging the battery Close the battery cover 12 3 5 4 a b Remove the battery cover Insert the microSD card (optional) Locking and unlocking the screen When you are not using your phone, press the power button to turn off the screen. After being idle for a specified period of time, your phone au tomatically locks its screen. Follow the onscreen instructions and drag to unlock the screen or open an application. Personalizing your home screen The unique Me Widget can group widgets that you often use. You can touch an icon to open a widget. Touch and hold Me Widget until your phone vibrates, then release your f inger and touch to customize your Me Widget. Status bar Display area 10:30 Managing contacts Touch to open People. From the contact list, touch > Manage contacts to import contacts from the SIM card, microSD card, or another B luetooth device. Touch the Groups tab page to group your contacts for easier management. Create contact 10:30 Making a call Touch to open the dialer. You can dial a phone number directly or touch to choose a contact. You can also touch a phone number in places like messa ges, email and webpages to make a call. To answer an incoming call, drag to . ********** 10:30 Sending messages Touch to open Messaging. Adding a photo or audio clip to a text message turns it into a multimedia message. You can also save attachments from multimedia messa ges. Attach file ********** 10:30 Happy birthday! Taking a photo or video Touch to open Camera. n photo mode, let your camera focus automatically or touch th e screen to focus the camera. Then touch to take a photo. In video mode, frame the scene and touch to record a video. Open option menu Zoom in or out Replay photo or video Switch between photo and video modes A Listening to music Touch to open Play Music. You can copy songs to your phone and immerse yourself with extraordinary audio experience anytime. You can play songs by name, artist, album and more. Progress bar Playlist screen Music player controls Back 10:30 For more help Need more help? Touch to open Help Center. Want to obtain the user guide? Search for and download the User Guide from www.huaweidevice.com. Want to learn more about Huawei Emotion UI? Visit en.ui.vmall.com for the latest information. ?? Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wireless devices may affect the performance of he aring aids or pacemakers. Consult your service provider for more information. • Pacemaker manufacturers recommend that a mini mum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high volumes may damage your he aring. To reduce this risk, lower the headset volume to a safe and comfortable level. • Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives • Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. • Do not store or transport the device in containers with fla mmable liquids, gases, or explosives. Traffic security • Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. • Concentrate on driving. Your first responsibility is to driv e safely. • Do not hold the device while driving. Use hands-free acces sories. • When you must make or answer a call, pull off the road safely and park the vehicle first. • RF signals may affect the electronic systems of motor vehi cles. For more information, consult the vehicle manufacturer. • Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates. • Do not use your device while flying in an aircraft or im mediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment • Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions. • Do not use your device during thunderstorms to protect yo ur device against any danger caused by lightning. • Ideal operating temperatures are 0 °C to 35 °C. Ideal storage t emperatures are -20 °C to 70 °C. Extr…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2013-07-31 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISCM990 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2013-10-30: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

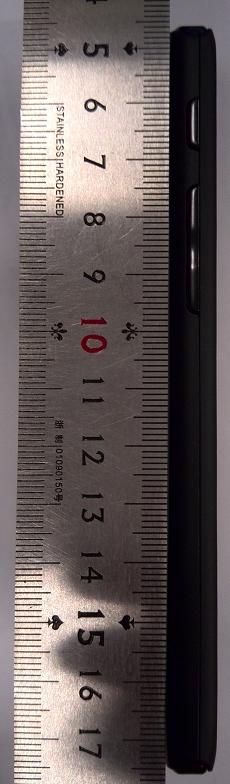

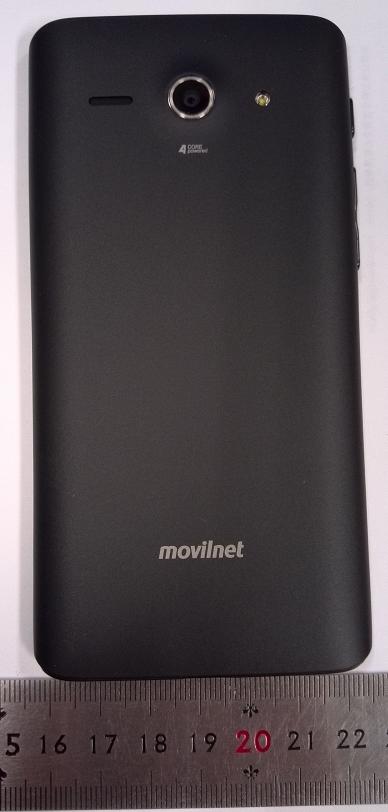

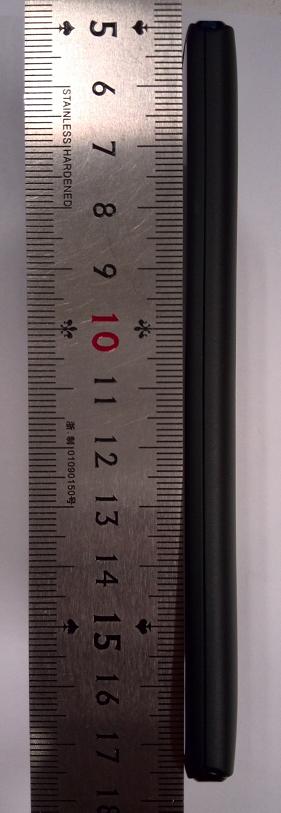

HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page1,Total 5 External Photos of HUAWEI CM990, CM990 HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page2,Total 5 HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page3,Total 5 HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page4,Total 5 HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page5,Total 5

HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page1, Total 4 Label Location HUAWEI CM990, CM990 HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page2, Total 4 HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page3, Total 4

HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page1,Total 6 Internal Photos of HUAWEI CM990, CM990 HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page2,Total 6 HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page3,Total 6 HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page4,Total 6 HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page5,Total 6 HUAWEI CM990, CM990 cdma2000 Digital Mobile Phone; Evolution III SECRET Page6,Total 6

Report No.:SYBH (Z-SAR)021072013-2 FCC ID: QISCM990 QISU2801-346369A-U280134 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-EX-Head SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D2450-EX-Head SystemPerformanceCheck-D2450-EX-Body Date: 2013-7- 20 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.898 S/m; ε r = 41.926; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.28, 9.28, 9.28); Calibrated: 2013-5- 10; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.61 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.999 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 3.58 W/kg SAR(1 g) = 2.38 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.56 W/kg 0 dB = 2.56 W/kg = 4.08 dBW/kg Date: 2013-7- 20 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.988 S/m; ε r = 55.611; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.28, 9.28, 9.28); Calibrated: 2013-5- 10; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.82 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.320 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.92 W/kg SAR(1 g) = 2.59 W/kg; SAR(10 g) = 1.7 W/kg Maximum value of SAR (measured) = 2.80 W/kg 0 dB = 2.80 W/kg = 4.47 dBW/kg Date: 2013-7- 22 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-EX-Head DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.864 S/m; ε r = 38.726; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.22, 7.22, 7.22); Calibrated: 2013-5- 10; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (6x11x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 15.0 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 80.827 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 28.8 W/kg SAR(1 g) = 13.3 W/kg; SAR(10 g) = 6.1 W/kg 0 dB = 15.0 W/kg = 11.76 dBW/kg Date: 2013-7- 23 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-EX-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.982 S/m; ε r = 52.27; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.36, 7.36, 7.36); Calibrated: 2013-5- 10; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (6x11x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 13.5 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 75.941 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 29.3 W/kg SAR(1 g) = 12.9 W/kg; SAR(10 g) = 5.75 W/kg Maximum value of SAR (measured) = 14.7 W/kg 0 dB = 14.7 W/kg = 11.67 dBW/kg

Report No.:SYBH (Z-SAR)021072013-2 FCC ID: QISCM990 6369A-U280134 Appendix B. SAR Measurement Plots Table of contents CDMA BC 0 Head CDMA BC 0 Body WiFi 2450 MHz Head WiFi 2450 MHz Body Date: 2013-7-20 Test Laboratory: HUAWEI SAR/HAC Lab CM990 CDMA BC0 384CH Left Hand touch cheek DUT: HUAWEI CM990; Type: cdma2000 Digital Mobile Phone; Evolution III; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.889 S/m; ε r = 41.897; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.28, 9.28, 9.28); Calibrated: 2013-5- 10; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.395 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.101 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.515 W/kg SAR(1 g) = 0.405 W/kg; SAR(10 g) = 0.308 W/kg Maximum value of SAR (measured) = 0.428 W/kg 0 dB = 0.428 W/kg = -3.69 dBW/kg Date: 2013-7-20 Test Laboratory: HUAWEI SAR/HAC Lab CM990 CDMA BC0 384CH Left Hand tilt 15 degree DUT: HUAWEI CM990; Type: cdma2000 Digital Mobile Phone; Evolution III; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.889 S/m; ε r = 41.897; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.28, 9.28, 9.28); Calibrated: 2013-5- 10; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.275 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.270 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.319 W/kg SAR(1 g) = 0.258 W/kg; SAR(10 g) = 0.198 W/kg Maximum value of SAR (measured) = 0.269 W/kg 0 dB = 0.269 W/kg = -5.70 dBW/kg Date: 2013-7-20 Test Laboratory: HUAWEI SAR/HAC Lab CM990 CDMA BC0 384CH Right Hand touch cheek DUT: HUAWEI CM990; Type: cdma2000 Digital Mobile Phone; Evolution III; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.889 S/m; ε r = 41.897; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.28, 9.28, 9.28); Calibrated: 2013-5- 10; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.351 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.765 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.406 W/kg SAR(1 g) = 0.329 W/kg; SAR(10 g) = 0.253 W/kg Maximum value of SAR (measured) = 0.346 W/kg 0 dB = 0.346 W/kg = -4.61 dBW/kg Date: 2013-7-20 Test Laboratory: HUAWEI SAR/HAC Lab CM990 CDMA BC0 384CH Right Hand tilt 15 degree DUT: HUAWEI CM990; Type: cdma2000 Digital Mobile Phone; Evolution III; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.889 S/m; ε r = 41.897; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.28, 9.28, 9.28); Calibrated: 2013-5- 10; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.264 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.526 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.328 W/kg SAR(1 g) = 0.262 W/kg; SAR(10 g) = 0.202 W/kg Maximum value of SAR (measured) = 0.276 W/kg 0 dB = 0.276 W/kg = -5.59 dBW/kg Date: 2013-7-20 Test Laboratory: HUAWEI SAR/HAC Lab CM990 CDMA BC0 384CH Left Hand touch cheek-with battery 2# DUT: HUAWEI CM990; Type: cdma2000 Digital Mobile Phone; Evolution III; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.889 S/m; ε r = 41.897; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.28, 9.28, 9.28); Calibrated: 2013-5- 10; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Head/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.413 W/kg Configuration/Head/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.040 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.511 W/kg SAR(1 g) = 0.410 W/kg; SAR(10 g) = 0.311 W/kg Maximum value of SAR (measured) = 0.431 W/kg 0 dB = 0.431 W/kg = -3.66 dBW/kg Date: 2013-7-20 Test Laboratory: HUAWEI SAR/HAC Lab CM990 CDMA BC0 384CH Left Hand touch cheek-with battery 3# DUT: HUAWEI CM990; Type: cdma2000 Digital Mobile Phone; Evolution III; Serial: SAR1 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.889 S/m; ε r = 41.897; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration: lProbe…

Text truncated - open the document above for the full version.

Justification of the extended calibration of Dipole D835V2 SN: 4d126 Referred to 450824 D02 Dipole SAR Validation Verification v01, Published on Nov 17 2009, Otherwise, according to the IEEE Standard 1528a-2005 recommended annual calibration is expected, when happened as below the following: 1) When the most recent return-loss, measured at least annually, deviates by more than 20% from the previous measurement (i.e. 0.2 of the dB value) or not meeting the required -20 dB return-loss specification; 2) When the most recent measurement of the real or imaginary parts of the impedance, measured at least annually, deviates by more than 5 Ω from the previous measurement. Dipole835 Head TST Target Value Measured Value Difference Impedance transformed to feed point 52.2Ω-2.4jΩ 50.4Ω+1.17jΩ R=-1.8Ω, X=3.57Ω Return Loss - 30.0dB -31.73dB -5.77% Dipole835 Body TST Target Value Measured Value Difference Impedance transformed to feed point 47.8Ω-4.4jΩ 50.36Ω-0.85jΩ R=2.56Ω, X=3.55Ω Return Loss -25.9dB -27.3dB -5.41% Measure Data 2011-11-07 2012-09-13 -- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Justification of the extended calibration of Dipole D2450V2 SN: 860 Per KDB 450824, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Calibration Date 2011-03-08 Measured Date 2013-03-07 Dipole2450 Head TST Target Value Measured Value Difference Impedance transformed to feed point 54.0Ω+2.2jΩ 53.99Ω+2.33jΩ R=-0.01Ω, X=0.13Ω Return Loss -27.2dB -27.4dB -0.74% Dipole2450 Body TST Target Value Measured Value Difference Impedance transformed to feed point 49.0Ω+4.9jΩ 48.93Ω+4.96jΩ R=-0.07Ω, X=0.06Ω Return Loss - 26.0dB -26.04dB -0.15% Measured Date 2011-03-08 2013-03-07 ------- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test-Body

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Project Name:_______________________ Model :_______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2013-08-01 2013-08-01 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. HUAWEI CM990, CM990 QISCM990 SYBH(Z-SAR)021072013-2 cdma2000 Digital Mobile Phone; Evolution III Report No.: SYBH(Z-SAR)021072013-2 FCC ID:QISCM990 2013-08-01 Page 2 of 34 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 4 1.3 EUT Description ......................................................................................................................................................... 5 1.3.1 General Description ........................................................................................................................................... 5 1.4 Test specification(s) .................................................................................................................................................. 6 1.5 Testing laboratory ....................................................................................................................................................... 6 1.6 Applicant and Manufacturer ...................................................................................................................................... 6 1.7 Application details ...................................................................................................................................................... 6 1.8 Ambient Condition ..................................................................................................................................................... 6 2 SAR Measurement System ............................................................................................................................................. 7 2.1 SAR Measurement Set-up ....................................................................................................................................... 7 2.2 Test environment ........................................................................................................................................................ 8 2.3 Data Acquisition Electronics description ................................................................................................................ 8 2.4 Probe description ....................................................................................................................................................... 9 2.5 Phantom description ................................................................................................................................................ 10 2.6 Device holder description ........................................................................................................................................ 10 2.7 Test Equipment List ................................................................................................................................................. 11 3 SAR Measurement Procedure ...................................................................................................................................... 12 3.1 Scanning procedure ................................................................................................................................................. 12 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 13 3.3 Data Storage and Evaluation .................................................................................................................................. 14 4 System Verification Procedure ........................................................................................................................................ 16 4.1 Tissue Verification .................................................................................................................................................... 16 4.2 System Check ........................................................................................................................................................... 18 4.3 System check Procedure ........................................................................................................................................ 19 5 Measurement Uncertainty Evaluation .......................................................................................................................... 20 5.1 Measurement uncertainty evaluation for SAR test .............................................................................................. 20 5.2 Measurement uncertainty evaluation for system check.......................................................…

Text truncated - open the document above for the full version.

FCC RF Test Report Product Name: cdma2000 Digital Mobile Phone; Evolution III Model Number: HUAWEI CM990, CM990 Report No: SYBH(Z-RF)015072013-2001 FCC ID：QISCM990 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of HUAWEI CM990, CM990 Report No: SYBH(Z-RF)015072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 19 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of HUAWEI CM990, CM990 Report No: SYBH(Z-RF)015072013-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 19 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2013-07-18 Start Date of Test: 2013-07-18 End Date of Test: 2013-07-24 Test Result: Pass Approved by Senior Engineer: 2013-07-25 Dai Linjun Date Name Signature Prepared by: 2013-07-25 Zhu Mingjing Date Name Signature RF Test Report of HUAWEI CM990…

Text truncated - open the document above for the full version.
