QISCP12VHSDPA USB Stick

0197

HUAWEI K4505 HSPA+ USB Stick Quick Start Thank you for choosing this USB Stick. With the USB Stick, you can access the Internet through wireless network at a high speed. Note: This manual describes the appearance, installation and removal of the USB Stick. For the operation of the management program, refer to the User Manual. Getting to Know Your USB Stick The following figure shows the appearance of the USB Stick. It is only for your reference. The actual product may differ. 1 5 2 3 4 n USB Interface It connects the USB Stick to a computer. o Stick It reveals the USB connector p Indicator It indicates the status of the USB Stick. ƒ Green, blinking (on for 100ms and off for 100ms; then on for 100ms and off for 2700ms), the USB Stick is powered on. ƒ Green, blinking (on for 100ms and off for 2900ms), the USB Stick is registered to a GSM/GPRS/EDGE network. ƒ Blue, blinking (on for 100ms and off for 2900ms), the USB Stick is registered to a UMTS network. ƒ Green, on, the USB Stick is connected to a GPRS/EDGE network. ƒ Blue, on, the USB Stick is connected to a WCDMA network. ƒ Cyan, on, the USB Stick is connected to a HSPA+ network. ƒ Off, the USB Stick is removed. q SIM/USIM Card Slot It is where you insert the subscriber identity module/UMTS subscriber identity module (SIM/USIM) card. r Micro SD Card Slot It is where you insert the Micro Secure Digital Memory (SD) card Getting Your USB Stick Ready 1. Remove the back cover of the USB Stick. 2. Insert the USIM/SIM card and the micro SD card into the card slots. Make sure that the cards are properly inserted. 3. Install the back cover of the USB Stick. Note: Do not remove the Micro SD card when it is being used. Removing the card during an operation may damage the Micro SD card as well as the device, and data stored on the card may be corrupted. Installation/Removal Guide On different operating systems (OSs), the installation and removal procedures may differ. Follow the system prompts during operation. Connecting the USB Stick with a Computer Note: First, power on the computer. Then connect the USB Stick with the computer. Otherwise, the USB Stick cannot be installed as normal. 1. Plug the USB Stick into the USB interface of the laptop or desktop computer. 2. The OS automatically detects and recognises new hardware and starts the installation wizard. 3. Follow the prompts of the installation wizard. 4. After the program is installed, a shortcut icon for the USB Stick management program is displayed on the desktop. Starting the Management Program After the USB Stick is installed, the management program is launched automatically. Then every time the USB Stick is connected to the PC, the management program is launched automatically. You can also double-click the shortcut icon on the desktop to launch the management program. Removing the USB Stick Exit the management program and then remove the USB Stick directly. Removing the Management Program 1. Click Start Menu. 2. Click Control Panel. 3. Click Add/Remove Program to remove the management program of the USB Stick. Note: Before removing the management program, exit the management program. Version: V100R001_01 Part Number: 31010AEG

Copyright © Huawei Technologies Co., Ltd. 2009. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Safety Information Read the safety information carefully to ensure the correct and safe use of your wireless device. Interference Do not use your wireless device if using the device is prohibited or when it cause danger or interference with electric devices. Medical Device z Do not use your wireless device and follow the rules and regulations set forth by the hospitals and health care facilities. z Some wireless devices may affect the performance of the hearing aids. For any such problems, consult your service provider. z If you are using an electronic medical device, consult the doctor or device manufacturer to confirm whether the radio wave affects the operation of this device. Area with Inflammables and Explosives To prevent explosions and fires in areas that are stored with inflammable and explosive devices, do not use your wireless device and observe the rules. Areas stored with inflammables and explosives include but are not limited to the following: z Gas station z Fuel depot (such as the bunk below the deck of a ship) z Container/Vehicle for storing or transporting fuels or chemical products z Area where the air contains chemical substances and particles (such as granule, dust, or metal powder) z Area indicated with the "Explosives" sign z Area indicated with the "Power off bi-direction wireless equipment" sign z Area where you are generally suggested to stop the engine of a vehicle Traffic Security z Observe local laws and regulations while using the wireless device. To prevent accidents, do not use your wireless device while driving. z RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. z In a motor vehicle, do not place the wireless device over the air bag or in the air bag deployment area. Otherwise, the wireless device may hurt you owing to the strong force when the air bag inflates. z Observe the rules and regulations of airline companies. When boarding, switch off your wireless device. Otherwise, the radio signal of the wireless device may interfere with the plane control signals. Safety of Children Do not allow children to use the wireless device without guidance. Small and sharp components of the wireless device may cause danger to children or cause suffocation if children swallow the components. Environment Protection Observe the local regulations regarding the disposal of your packaging materials, used wireless device and accessories, and promote their recycling. WEEE Approval The wireless device is in compliance with the essential requirements and other relevant provisions of the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE Directive). RoHS Approval The wireless device is in compliance with the restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2002/95/EC (RoHS Directive). Laws and Regulations Observance Observe laws and regulations when using your wireless device. Respect the privacy and legal rights of the others. Care and Maintenance It is normal that your wireless device gets hot when you use or charge it. Before you clean or maintain the wireless device, stop all applications and disconnect the wireless device from your PC. z Use your wireless device and accessories with care and in clean environment. Keep the wireless device from a fire or a lit cigarette. z Protect your wireless device and accessories from water and vapor and keep them dry. z Do not drop, throw or bend your wireless device. z Clean your wireless device with a piece of damp and soft antistatic cloth. Do not use any chemical agents (such as alcohol and benzene), chemical detergent, or powder to clean it. z Do not leave your wire…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISCP12V to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

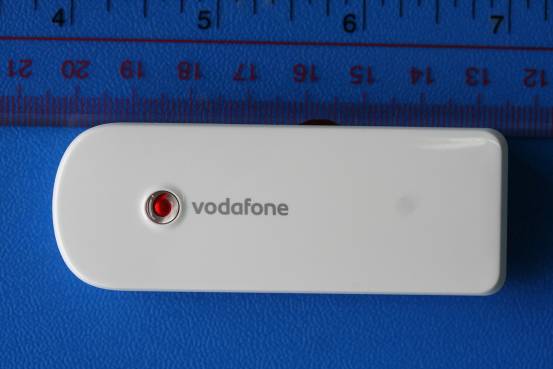

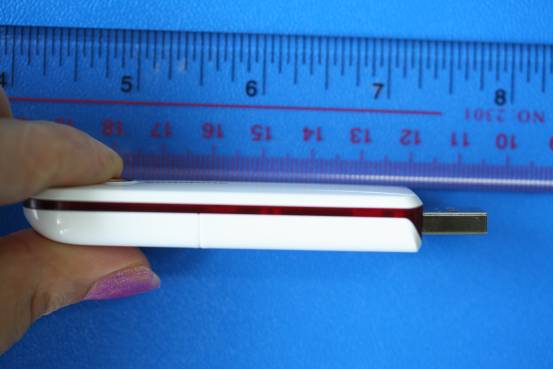

K4505 SECRET Page1,Total 6 External Photos of K4505 K4505 SECRET Page2,Total 6 K4505 SECRET Page3,Total 6 K4505 SECRET Page4,Total 6 K4505 SECRET Page5,Total 6 K4505 SECRET Page6,Total 6

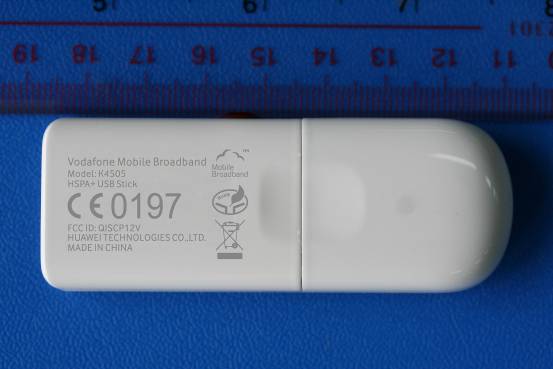

K4505 SECRET Page1, Total 1 ID Label Location-K4505

K4505 SECRET Page1,Total8 Internal Photos of K4505 K4505 SECRET Page2,Total8 K4505 SECRET Page3,Total8 K4505 SECRET Page4,Total8 K4505 SECRET Page5,Total8 K4505 SECRET Page6,Total8 K4505 SECRET Page7,Total8 K4505 SECRET Page8,Total8

Report NO.: RZA2009-0958FCC OET 65 TEST REPORT Product Name HSPA+ USB Stick Model K4505 FCC ID QISCP12V Client Huawei Technologies Co., Ltd. TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name HSPA+ USB Stick Model K4505 FCC ID QISCP12V Report No. RZA2009-0958 Client HUAWEI Technologies Co., Ltd. Manufacturer HUAWEI Technologies Co., Ltd. Standard(s) ANSI/IEEE C95.1-1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. OET Bulletin 65 supplement C, published June 2001 including DA 02-1438, published June 2002: Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits. Transition Period for the Phantom Requirements of Supplement C to OET Bulletin 65. IEC 62209-2:2008(106/162/CDV): Human exposure to radio frequency fields from handheld and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 2: Procedure to determine the Specific Absorption Rate (SAR)for wireless communication devices used in close proximity to the human body .( frequency rang of 30MHz to 6GHz ) Conclusion Localized Specific Absorption Rate (SAR) of this portable wireless equipment has been measured in all cases requested by the relevant standards cited in Clause 5.2 of this test report. Maximum localized SAR is below exposure limits specified in the relevant standards cited in Clause 5.1 of this test report. General Judgment: Pass (Stamp) Date of issue: August 11 th , 2009 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Li Jinchang TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-0958FCC Page 3of 158 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. N OTES OF THE TEST REPORT...................................................................................................5 1.2. T ESTING LABORATORY............................................................................................................5 1.3. A PPLICANT INFORMATION........................................................................................................6 1.4. M ANUFACTURER INFORMATION................................................................................................6 1.5. I NFORMATION OF EUT.............................................................................................................7 1.6. T EST PERIOD..........................................................................................................................8 2. Operational Conditions Test ......................................................................................................... 9 2.1. G ENERAL DESCRIPTION OF TEST PROCEDURES.........................................................................9 2.2. GSM TEST CONFIGURATION....................................................................................................9 2.3. WCDMA TEST CONFIGURATION............................................................................................10 2.4. HSDPA TEST CONFIGURATION..............................................................................................10 2.5. P OSITION OF MODULE IN PORTABLE DEVICES..........................................................................13 2.6. P ICTURE OF HOST PRODUCT..................................................................................................14 3. SAR Measurements System Configuration................................................................................ 16 3.1. SAR MEASUREMENT SET-UP.................................................................................................16 3.2. D ASY4 E-FIELD PROBE SYSTEM............................................................................................17 3.2.1. EX3DV4 Probe Specification .......................................................................................17 3.2.2. E-field Probe Calibration ..............................................................................................18 3.3. O THER TEST EQUIPMENT......................................................................................................18 3.3.1. Device Holder for Transmitters....................................................................................18 3.3.2. Phantom ......................................................................................................................19 3.4. S CANNING PROCEDURE.........................................................................................................19 3.5. D ATA STORAGE AND EVALUATION...........................................................................................21 3.5.1. Data Storage................................................................................................................21 3.5.2. Data Evaluation by SEMCAD ......................................................................................21 3.6. S YSTEM CHECK....................................................................................................................24 3.7. E QUIVALENT TISSUES............................................................................................................25 4. Laboratory Environment............................................................................................................. 25 5. Characteristics of the Test .......................................................................................................... 26 5.1. A PPLICABLE LIMIT REGULATIONS...........................................................................................26 5.2. A PPLICABLE MEASUREMENT STANDARDS...............................................................................26 6. Conducted Output Power Measurement.....................…

Text truncated - open the document above for the full version.

FCC Test Report Product Name: HSPA+ USB Stick Model Number: K4505 Report No: SYBH(R) E016082009EB-2 FCC ID: QISCP12V Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of K4505 FCC ID: QISCP12V Security Level: Public Report No: SYBH(R) E016082009EB-2 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total34 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has obtained the accreditation of THE AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION (A2LA), and Accreditation Council Certificate Number: 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-1. 5. The laboratory also has been listed by the VCCI to perform EMC measurements. The accreditation number is R2364, C2583, and T256. 6. The test report is invalid if not marked with "exclusive stamp for the test report". 7. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 8. The test report is invalid if there is any evidence of erasure and/or falsification. 9. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 10. Normally, the test report is only responsible for the samples that have undergone the test. 11. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of K4505 FCC ID: QISCP12V Security Level: Public Report No: SYBH(R) E016082009EB-2 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total34 Huawei Technologies Co Ltd Huawei Industrial Base, Bantian Longgang Shenzhen 518128, P.R China Tel: +86 755 89651014 Fax: +86 755 89652518 REPORT ON FCC Test of HSPA+ USB Stick M/N: K4505 Report No: SYBH(R) E016082009EB-2 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 22: Subpart H; CONCLUSION Pass General Manager Aug. 17, 2009 张兴海 Date Name signature Technical Responsibility For Area of Testing Aug. 17, 2009 余 辉 Date Name signature Test Lab Engineer Aug. 17, 2009 胡 俊 Date Name signature FCC Test Report of K4505 FCC ID: QISCP12V Security Level: Public Report No: SYBH(R) E016082009EB-2 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total34 Contents 1 Summary....................................................................................................................................................5 2 Product Description...................................................................................................................................6 2.1 PRODUCTION INFORMATION....................................................................................................................6 2.2 MODIFICATION INFORMATION..................................................................................................................6 3 Test Site Description..................................................................................................................................7 3.1 TESTING PERIOD....................................................................................................................................7 3.2 GENERAL SET UP DESCRIPTION..............................................................................................................7 4 Product Description...................................................................................................................................8 4.1 TECHNICAL CHARACTERISTICS................................................................................................................8 4.2 EUT IDENTIFICATION LIST.....................................................................................................................10 5 Main Test Instruments.............................................................................................................................11 6 Transmitter Measurements......................................................................................................................12 6.1 EFFECTIVE RADIATED POWER OF TRANSMITTER (ERP) .........................................................................12 6.2 CONDUCTED POWER OF TRANSMITTER.................................................................................................16 6.3 MODULATION CHARACTERISTICS...........................................................................................................19 6.4 OCCUPIED BANDWIDTH.........................................................................................................................21 6.5 BAND EDGES COMPLIANCE...................................................................................................................24 6.6 SPURIOUS EMISSION AT ANTENNA TERMINAL.........................................................................................26 6.7 FREQUENCY STABILITY.........................................................................................................................29 7 System Measurement Uncertainty..........................................................................................................33 8 Appendices...............................................................................................................................................34 FCC Test Re…

Text truncated - open the document above for the full version.

In diesem PDF-Paket sind mehrere Dateien zusammengefasst. Zum Arbeiten mit Dokumenten eines PDF-Pakets wird die Verwendung von Adobe Reader oder Adobe Acrobat Version 8 oder höher empfohlen. folgende Vorteile stehen Ihnen bei einem Update auf die neueste Version zur Verfügung: • Optimierte und integrierte PDF-Anzeige • Einfaches Drucken • Schnelle Suchfunktionen Sie haben die aktuelle Version von Adobe Reader noch nicht? Klicken Sie hier zum Herunterladen der neuesten Version von Adobe Reader Verfügen Sie bereits über Adobe Reader 8, klicken Sie auf eine in diesem PDF-Paket enthaltene Datei, um diese anzuzeigen.

FCC Test Report of K4505 FCC ID: QISCP12V Security Level: secret Report No: SYBHZ(R)E016082009EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total6 Photos of EUT FCC Test Report of K4505 FCC ID: QISCP12V Security Level: secret Report No: SYBHZ(R)E016082009EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total6 K4505 Appearance FCC Test Report of K4505 FCC ID: QISCP12V Security Level: secret Report No: SYBHZ(R)E016082009EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total6 Photos of Test Setup FCC Test Report of K4505 FCC ID: QISCP12V Security Level: secret Report No: SYBHZ(R)E016082009EB-1 Confidential Information of Huawei. No Distribution without Permission Page4, Total6 1. Radiated Emissions Radiated Disturbance 2. Radiated Spurious Emissions Radiated Spurious Emission (below 2GHz) FCC Test Report of K4505 FCC ID: QISCP12V Security Level: secret Report No: SYBHZ(R)E016082009EB-1 Confidential Information of Huawei. No Distribution without Permission Page5, Total6 Radiated Spurious Emission (2GHz to18GHz) Radiated Spurious Emission 18G~26.5GHz FCC Test Report of K4505 FCC ID: QISCP12V Security Level: secret Report No: SYBHZ(R)E016082009EB-1 Confidential Information of Huawei. No Distribution without Permission Page6, Total6 3. Conducted Emissions Conducted Emissions for AC Port
