QISCRR-L09Smart Phone

For more information Read the Quick Start Guide included with your device. Go to http://consumer.huawei.com/en/ to download the user guide for your device (including safety information) and read th e FAQ, privacy policy, and other information. Go to Settings > All > About phone > Legal information to read the legal information. Please visit http://consumer.huawei.com/en/support/hotline/ for the most up-to-date contact information for your country or region. Your phone at a glance Before you start, let's take a look at your new phone. Press and hold the power button to turn your phone on or off. To forcibly restart your phone, press and hold the power button until your phone vibrates. Power button Volume button Micro USB port Microphone Fingerprint scanner Microphone Status indicator Earpiece Headset jack Front flash camera Front Dual colour temperature flash Light sensor Getting started Follow the instructions in the following figures to set up your phone. Do not insert or remove a SIM card while your phone is on. Please exercise caution when using the SIM ejector pin to avoid hurting your fingers or damaging your phone. Store your pin in a safe place out of the reach of children to prevent them from swallowing it or injuring themselves by accident. Caution Insert the SIM card into the correct card slot to ensure that it can be recognized by the phone. CRR-L09: CRR-UL00: +PKIZZUUR +PKIZZUUR 58 Locking and unlocking the screen Press the power button to lock the screen. If your phone is idle for a specified period of time, the screen will automatically lock itself. If the screen is off, press the power button to turn it on. Slide your finger in any direction to unlock the screen. Swipe up from the bottom of the screen to open the control panel for magazine unlock. You can also quickly launch commonly used applications without unlocking the screen. Calling and messaging Touch to make a call using the dialer. You can also touch a phone number in your contacts, or a number in a message, email, web page, or other source to place a call. Touch to send a text or multimedia message. You can save photos, audio clips, videos, and other at tachments from received multimedia messages. Camera Touch . Frame the scene you want to capture. Let your camera focu s automatically or touch the screen to focus on a specific object. Then touch to take a photo. Swipe left or right to switch between different capture modes. Light painting mode uses long exposure times to capture illuminated objects in a dark background. Time-lapse mode lets you record the slow transformation of objects or scenes, such as a blooming flower or the setting sun. Internet connection You can access the Internet over Wi-Fi or a mobile data network. Swipe down from the status bar to open the not ification panel. Touch to turn on mobile data. Touch and hold to go to the Wi-Fi settings screen. Turn on Wi-Fi a nd connect to a Wi- Fi network. Backing up data Touch . Touch to open the settings menu. You can set how often yo u want to back up your data by following the onscreen instructions. Touch and select the data that you want to back up, such as your contacts, messa ges, and photos. Then follow the onscreen instructions to complete the backup. Phone manager Touch . You can quickly scan your phone for potential risks with one touch. Follow the onscreen instructions to use one-touch optimization, or manually clean the system storage and manage your applications. Touch the options on the screen to clean your system trash, set the harassment filter, activate power saving mode, manage your applications' notification permissions, and more. Screen off gestures Touch and then . Turn on screen off gestures. When the screen is off, you can turn it on or open an app using a predefined gesture. One-hand layout Swipe the navigation bar to the left or right to adjust the screen display area so that you can use the phone with one hand. When in the dialer, contacts, messages, or email app, swipe down on the screen to access the content on the top of the screen with one hand. Voice commands Touch > Voice wakeup and enable voive wakeup. Follow the onscreen instructions to set up voice commands. You can then issue commands to make calls and find your phone. Fingerprint identification Touch > Fingerprint ID. Follow the onscreen instructions to ent er your password and record your fingerprint. You can place your finger on the fingerprint scanner on the back of your phone to unlock the screen. You can also access encrypted files, answer incomi ng calls, take pictures, or br owse photos by touching or swiping on the fingerprint sensor. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. • Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. • Exposure to high volumes while driving may cause distraction and increase your risk of an acc…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-08-04 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISCRR-L09 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-09-26: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

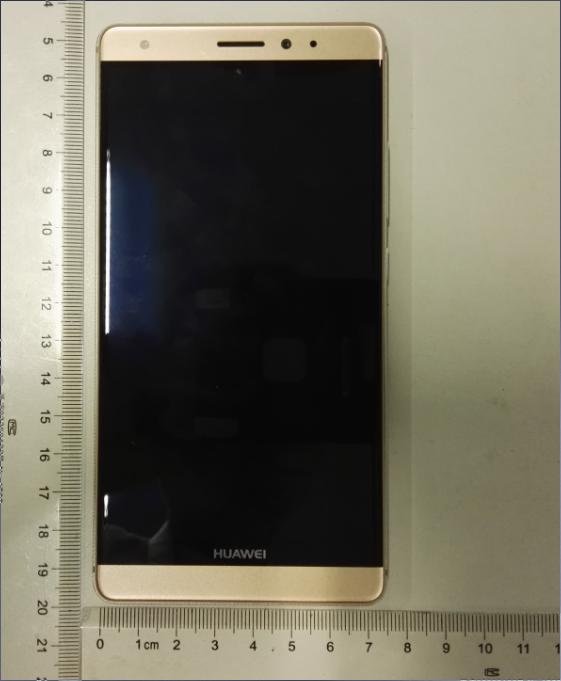

External Photos of HUAW EI CRR-L09 SECRET Page1,Total 4 External Photos of HUAWEI CRR-L09 External Photos of HUAW EI CRR-L09 SECRET Page2,Total 4 External Photos of HUAW EI CRR-L09 SECRET Page3,Total 4 External Photos of HUAW EI CRR-L09 SECRET Page4,Total 4

HUAWEI CRR-L09 SECRET Page1, Total 1 ID Label HUAWEI CRR-L09 HUAWEI CRR-L09 SECRET Page2, Total 1 HUAWEI CRR-L09 SECRET Page3, Total 1

HUAWEI CRR-L09 SECRET Page1,Total 5 Internal Photos of HUAWEI CRR-L09 HUAWEI CRR-L09 SECRET Page2,Total 5 HUAWEI CRR-L09 SECRET Page3,Total 5 HUAWEI CRR-L09 SECRET Page4,Total 5 HUAWEI CRR-L09 SECRET Page5,Total 5

FCC RF Test Report Product Name: Smart Phone Model Number: HUAWEI CRR-L09 Report No: SYBH(Z-RF)017052015-2005 FCC ID: QISCRR-L09 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of HUAWEI CRR-L09 Report No: SYBH(Z-RF)017052015-2005 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 17 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of HUAWEI CRR-L09 Report No: SYBH(Z-RF)017052015-2005 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 17 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2015-06-01 Start Date of Test: 2015-06-01 End Date of Test: 2015-06-20 Test Result: Pass Approved by Senior Engineer: 2015-06-25 Liu Chunlin Date Name Signature Prepared by: 2015-06-25 Wu Tingsi Date Name Signature RF Test Report of HUAWEI CRR-L09 Report No: SYBH(Z-RF)017052015-2005 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 17 Contents 1 General Information ................................................................................................................................. 5 1.1 APPLIED STANDARD ............................................................................................................................. 5 1.2 TEST LOCATION ................................................................................................................................... 5 1.3 TEST ENVIRONMENTAL CONDITION ........................................................................................................ 5 2 Summary .................................................................................................................................................. 6 3 Product Description ................................................................................................................................. 7 3.1 PRODUCT INFORMATION ....................................................................................................................... 7 3.2 EUT IDENTITY ...................................................................................................................................... 7 4 Main Test Instruments ............................................................................................................................. 9 6 Test Results............................................................................................................................................ 10 6.1 20DB BANDWIDTH MEASUREMENT ...................................................................................................... 10 6.2 IN-BAND RADIATED SPURIOUS EMISSION MEASUREMENTS.................................................................... 11 6.3 RADIATED SPURIOUS EMISSION MEASUREMENTS, OUT-OF-BAND .......................................................... 13 6.4 FREQUENCY STABILITY ....................................................................................................................... 17 RF Test Report of HUAWEI CRR-L09 Report No: SYBH(Z-RF)017052015-2005 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 17 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 02: 2014 FCC Part 15 Subpart C (15.225): 2014 1.2 Test Location Test Location 1: Reliability Laboratory of Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Test Location 2: Address : BTL Laboratory No.3,Jinshagang 1st Road,ShiXia,Dalang Town,DongGuan,China. 1.3 Test Environmental Condition Ambient Temperature: 20 – 25 °C Ambient Relative Humidity: 45 – 55 % Atmospheric Pressure: 101 kPa RF Test Report of HUAWEI CRR-L09 Report No: SYBH(Z-RF)017052015-2005 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 17 2 Summary FCC Part Section Test Description Test Limit Test Condition Test Result Referenc e 15.225 (a) In-Band Emissions 15,848μV/m @ 30m 13.553 – 13.567 MHz RADIATED Pass Section 5.2 2.1049 20 dB Bandwidth N/A Pass Section 5.1 15.225(b) In-Band Emissions 334μV/m @ 30m 13.410 – 13.553 MHz 13.567 – 13.710 MHz Pass Section 5.2 15.225(c) In-Band Emissions 106μV/m @ 30m 13.110 – 13.410 MHz 13.710 – 14.010 MHz Pass Section 5.2 15.225(d) 15.209 Out-of-Band Emissions Emissions outside of the specified band (13.110 – 14.010 MHz) must meet the radiated limits detailed in 15.209 Pass Section 5.3 15.225(e) Frequency Stability Tolerance ± 0.01% of Operating Frequency Temperatur e Chamber Pass Section 5.4 15.207 AC Conducted Emissions …

Text truncated - open the document above for the full version.

Photos of Test Setup For GSM&WCDMA&LTE 1．Radiated Spurious Emissions Radiated Spurious Emission (below 3GHz) Radiated Spurious Emission (3GHz to18GHz) Radiated Spurious Emission (18GHz to26.5GHz) For Wlan/BT 2．Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) Radiated Spurious Emission (1GHz to18GHz) Radiated Spurious Emission (above 18GHz) For NFC 2．Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) Radiated Spurious Emission (1GHz to18GHz) Radiated Spurious Emission (above 18GHz) Conducted Emissions --------------------------------------------The END-------------------------------------------
