QISD-01GHUAWEI MediaPad M1 8.0

MediaPad M1 8.0 Quick Start 1 Congratulations on your purchase of the MediaPad M1 8.0. Press and hold the power key to power on or off your device or restart it. Press the power key once to turn on or off the screen. MediaPad M1 8.0 at a Glance 2 Installing the SIM and microSD Cards 3 Charging the Battery 4 This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset  To prevent possible hearing damage, do not listen at high volume levels for long periods.  Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. Safety information 5  Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  Do not hold the device while driving. Use hands-free accessories.  When you must make or answer a call, pull off the road safely and park the vehicle first.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. 6 Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to 70 °C. Extreme heat or cold may damage your device or accessories.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Do not place sharp metal objects, such as pins, near the earpiece or speaker. The earpiece may attract these objects and result in injury.  Stop using your device or applications for a while if the device is overheated. If skin is exposed to an overheated device for an extended period, low temperature burn symptoms, such as red spots and darker pigmentation, may occur.  Do not touch the device's antenna. Otherwise, communication quality may be reduced.  Do not allow children or pets to bite or suck the device or accessories. Doing so may result in damage or explosion.  Observe local laws and regulations, and respect the privacy and legal rights of others. 7 Child's safety  Comply with all precautions with regard to child's safety. Letting children play with the device or its accessories may be dangerous. The device includes detachable parts that may present a choking hazard. Keep away from children.  The device and its accessories are not intended for use by children. Children should only use the device with adult supervision. Accessories  Using an unapproved or incompatible power adapter, charger or battery may cause fire, explosion or other hazards.  Choose only accessories approved for use with this model by the device manufacturer. The use of any other types of accessories may void the warranty, may violate local regulations and laws, and may be dangerous. Please contact your retailer for information about the availability of approved accessories in your area. Charger safety  For pluggable devices, the socket-outlet shall be installed near the devices and shall be easily accessible.  Unplug the charger from electrical outlets and the device when not in use.  Do not drop or cause an impact to the charger.  If the power cable is damaged (for example, the cord is exposed or broken), or the plug loosens, stop using it at once. Continued use may lead to electric shocks, short circuits, or fire.  Do not touch the power cord with wet hands or pull the power cord to disconnect the charger. 8  Do not touch the device or the charger with wet hands. Doing so may lead to short circuits, malfunctions, or electric shocks.  If your charger has been exposed to water, other liquids, or excessive moisture, take it to…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Date (01/07/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISD-01G Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-12-17 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISD-01G To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-03-20: External Photos Internal Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755- 28970299

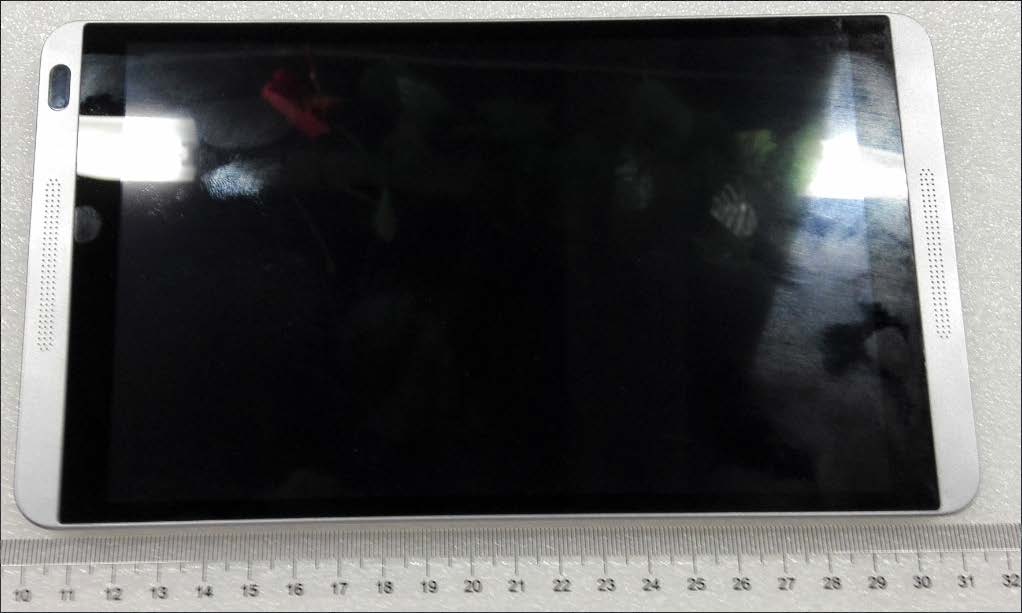

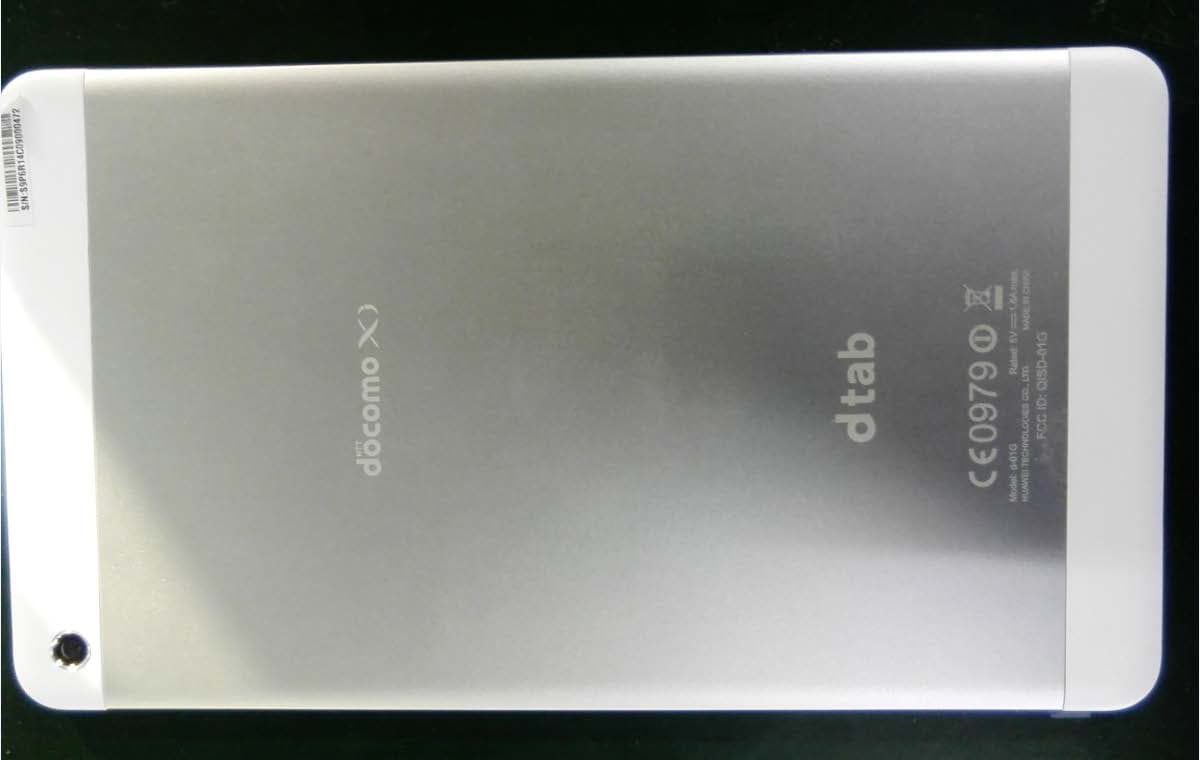

SECRET Page1, Total3 Photo documentation of external of product SECRET Page2, Total3 SECRET Page3, Total3

MediaPad M1 8.0 SECRET Page1, Total 1

SECRET Page1, Total 1 Label Location

MediaPad M1 8.0 SECRET Page1, Total5 Photo documentation of interior of product MediaPad M1 8.0 SECRET Page2, Total5 MediaPad M1 8.0 SECRET Page3, Total5 MediaPad M1 8.0 SECRET Page4, Total5 MediaPad M1 8.0 SECRET Page5, Total5

Report No.: RHA1406-0060SAR01R1 Page 1 of 233 TESTING No. L2264 SAR TEST REPORT Product Name MediaPad M1 8.0 Model Name d-01G FCC ID QISD-01G Applicant Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Date of issue December 20, 2014 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 2 of 233 GENERAL SUMMARY Reference Standard(s) FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1- 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. RSS-102 Issue 4 March 2010: Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands). KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 General RF Exposure Guidance v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 941225 D01 3G SAR Procedures v03: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA, GSM,GPRS and EDGE. KDB 616217 D04 SAR for laptop and tablets v01r01: SAR Evaluation Considerations for Laptop, Notebook, Netbook and Tablet Computers KDB 648474 D04 Handset SAR v01r02 : SAR Evaluation Considerations for Wireless Handsets 248227 D01 SAR meas for 802 11 a b g v01r02 : SAR Measurement Procedures for 802.11 a/b/g Transmitters Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Kai Xu Director Revised by Minbao Ling SAR Manager Performed by Jian Qi SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 3 of 233 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report ............................................................................................................................... 5 1.2. Testing Laboratory ........................................................................................................................................ 5 1.3. Applicant Information ..................................................................................................................................... 6 1.4. Manufacturer Information .............................................................................................................................. 6 1.5. Information of EUT ........................................................................................................................................ 7 1.6. EUT Antenna Locations ................................................................................................................................. 8 1.7. The Maximum Reported SAR 1g ..................................................................................................................... 9 1.8. Maximum Conducted Power of Each Tested Mode .................................................................................... 10 1.9. Test Date ..................................................................................................................................................... 10 2. SAR Measurements System Configuration ................................................................................ 11 2.1. SAR Measurement Set-up ........................................................................................................................... 11 2.2. DASY5 E-field Probe System ...................................................................................................................... 12 2.2.1. EX3DV4 Probe Specification ....................................................................................... 12 2.2.2. E-field Probe Calibration .............................................................................................. 12 2.3. Other Test Equipment .................................................................................................................................. 13 2.3.1. Device Holder for Transmitters .................................................................................... 13 2.3.2. Phantom ...................................................................................................................... 14 2.4. Scanning Procedure .................................................................................................................................... 14 2.5. Data Storage and Evaluation ....................................................................................................................... 16 2.5.1. Data Storage ................................................................................................................ 16 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 16 3. Laboratory Environment ............................................................................................................. 18 4. Tissue-equivalent Liquid ............................................................................................................ 19 4.1. Tissue-equivalent Liquid Ingredients ........................................................................................................... 19 4.2. Tissue-equivalent Liquid Properties ........................................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 174 of 233 ANNEX D: Probe Calibration Certificate(SN:3677) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 175 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 176 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 177 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 178 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 179 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 180 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 181 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 182 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 183 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 184 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 185 of 233 ANNEX E: D835V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 186 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 187 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 188 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 189 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 190 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 191 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 192 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 193 of 233 ANNEX F: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 194 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 195 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 196 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 197 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 198 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 199 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 200 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 201 of 233 ANNEX G: D2450V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 202 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 203 of 233

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 204 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 205 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 206 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 207 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 208 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 209 of 233 ANNEX H: D5GHzV2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 210 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 211 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 212 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 213 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 214 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 215 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 216 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 217 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 218 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 219 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 220 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 221 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 222 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 223 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 224 of 233 ANNEX I: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 225 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 226 of 233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 227 of 233 ANNEX J: The EUT Appearances and Test Configuration a: EUT Picture 14: Constituents of EUT 21.5cm 12cm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 228 of 233 Picture 15: Left Hand Touch Cheek Position Picture 16: Left Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 229 of 233 Picture 17: Right Hand Touch Cheek Position Picture 18: Right Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 230 of 233 Picture 19: Test position 1 Picture 20: Test position 2 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 231 of 233 Picture 21: Test Position 3 Picture 22: Test Position 4 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 232 of 233 Picture 23: Test Position 5 Picture 24: Test position 1 with Earphone TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RHA1406-0060SAR01R1 Page 233 of 233 ANNEX K: Product Change Description The differences between S8-302L and d-01G are band different: S8-302L d-01G PCB the same the same WIFI/BT 2.4G the same the same WIFI 5G the same the same GSM850/1900 the same the same WCDMA850 the same the same WCDMA1900/1700 the same Not support LTE band 4/7/17 the same Not support

Report No.: BTL-FCCP-3-1406C083A Page 1 of 48 FCC Radio Test Report FCC ID: QISD-01G This report concerns (check one): Original Grant Change in ID Project No. : 1406C083A Equipment : MediaPad M1 8.0 Model Name : d-01G Applicant : Huawei Technologies Co.,Ltd. Address : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District Shenzhen China Date of Receipt : Jun. 12, 2014 Date of Test : Jun. 12, 2014 ~ Jun. 18, 2014 Issued Date : Dec. 24, 2014 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-3-1406C083A Page 2 of 48 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or an y agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-3-1406C083A Page 3 of 48 Table of Contents Page 1 . CERTIFICATION 5 2 . EUT INFORMATION 6 2.1 EUT SPECIFICATION TABLE 6 2.4 EUT MAXIMUM AND MINIMUM E.I.R.P. POWER 8 3 . U-NII DFS RULE REQUIREMENTS 9 3.1 WORKING MODES AND REQUIRED TEST ITEMS 9 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS 10 4 . TEST INSTRUMENTS 12 5 . EMC EMISSION TEST 13 5.1 DFS MEASUREMENT SYSTEM: 13 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL: 15 5.3 DEVIATION FROM TEST STANDARD 15 6 . TEST RESULTS 16 6.1 SUMMARY OF TEST RESULT 16 6.2 DETELED TEST RESULTS 17 6.2.1 TEST MODE: DEVICE OPERATING IN MASTER MODE. 17 6.2.2 DFS DETECTION THRESHOLD 17 6.2.4 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME WLAN TRAFFIC 21 6.2.5 NON- OCCUPANCY PERIOD 47 Report No.: BTL-FCCP-3-1406C083A Page 4 of 48 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-3-1406C083 Original Issue. Jun. 19, 2014 BTL-FCCP-3-1406C083A Compared with the previous report (NEI-FCCP-3-1406C083), differences as follow: A. Product name and model name are changed. B. Brand name is removed. C. WCDMA 1900/1700 and LTE band 4,7,17 are removed. D. FCC ID is changed. E. Hardware version is changed. These changes do not affect the test results. Change ID: 1) The original identification is FCC ID:QISS8-302L 2) The original grant date is 2014/7/13 3) The equipment is electrically and functionally identical. Dec. 24, 2014 Report No.: BTL-FCCP-3-1406C083A Page 5 of 48 1. CERTIFICATION Equipment : MediaPad M1 8.0 Trade Name N/A Model Name. d-01G Applicant : Huawei Technologies Co.,Ltd. Manufacturer : Huawei Technologies Co.,Ltd. Address : Administration Building, Huawei Base, Bantian, Longgang District ,Shenzhen 518129, P.R.China Factory : Huawei Technologies Co.,Ltd. Address : Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R.China Date of Test: : Jun. 12, 2014 ~ Jun. 18, 2014 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part 15, Subpart E (Section 15.407) FCC 06-96 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-3-1406C083A) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-3-1406C083A Page 6 of 48 2. EUT INFORMATION 2.1 EUT SPECIFICATION TABLE Table 1: Specification of EUT Product name MediaPad M1 8.0 Brand Name N/A Model d-01G FCC ID QISD-01G Operational Mode Slave Operating Frequency Range 5150MHz~5350MHz&5470MHz~5725MHz Modulation OFDM . NOTE: THIS DEVICE WAS FUNCTIONED AS A  □MASTER ■SLAVE DEVICE DURING THE DFS 2.2 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT Table 2: Antenna list. Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 SkyCross.inc, Shanghai. Branch N/A Monopole Antenna N/A 2.55 TX/RX Report No.: BTL-FCCP-3-1406C083A Page 7 of 48 2.3 CONDUCTED OUTPUT POWER AND EIRP POWER TABLE 3: THE CONDUCTED OUTPUT POWER LIST TX (11a) FREQUENCY BAND (MHz) MAX. POWER OUTPUT POWER(dBm) OUTPUT POWER(mW) 5150~5250 12.89 19.4536 5250~5350 12.97 19.8153 5470~5725 12.98 19.8609 TX (11n 20MHz) FREQUENCY BAND (MHz) MAX. POWER OUTPUT POWER(dBm) OUTPUT POWER(mW) 5150~5250 12.69 18.5780 5250~5350 12.74 18.7932 5470~5725 12.85 19.2752 Report No.: BTL-FCCP-3-1406C083A Page 8 of 48 2.4 EUT MAXIMUM AND MINIMUM E.I.R.P. POWER TABLE 4: THE MAX EIRP LIST TX (11a) FREQUENCY BAND (MHz) MAX. POWER OUTPUT POWER(dBm) OUTPUT POWER(mW) 5150~5250 15.44 34.9945 5250~5350 15.52 35.6451 5470~5725 15.53 35.7273 TX (11n 20MHz) FREQUENCY BAND (MHz) MAX. POWER OUTPUT POWER(dBm) OUTPUT POWER(mW) 5150~…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 351 of 356 ANNEX N: The EUT Appearances and Test Configuration a: EUT Picture 18: Constituents of EUT 21.5cm 12cm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 352 of 356 Picture 19: Left Hand Touch Cheek Position Picture 20: Left Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 353 of 356 Picture 21: Right Hand Touch Cheek Position Picture 22: Right Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 354 of 356 Picture 23: Test position 1 Picture 24: Test position 2 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 355 of 356 Picture 25: Test Position 3 Picture 26: Test Position 4 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1406-0060SAR Page 356 of 356 Picture 27: Test Position 5 Picture 28: Test position 1 with Earphone

Report No.: NEI-FCCP-1-1406C083 Page 33 of 187 12. EUT TEST PHOTOS Conducted Measurement Photos Report No.: NEI-FCCP-1-1406C083 Page 34 of 187 Radiated Measurement Photos 9KHz~30MHz Report No.: NEI-FCCP-1-1406C083 Page 35 of 187 Radiated Measurement Photos 30~1000MHz Report No.: NEI-FCCP-1-1406C083 Page 36 of 187 Radiated Measurement Photos Above 1000MHz
