QISDA3100SODB Box

DA3100 Evaluation Sample User Manual V1.2 Security Level 2013-05-30 Huawei Proprietary - Restricted Distribution Page1, Total12 1. Introduction DA3100 is an on-board diagnostic (OBD-II) device that enables collection of data from vehicle OBD-II port, GPS and Accelerometer. It supports 2G/3G and Bluetooth 4.0 LE (optional) communication with telematics service terminal (TST) servers and smart phones respectively. 2. Objective This manual provides users with guidance of DA3100’s installation, viewing and processing of data collected. Section 3 describes viewing of data collected on Huawei’s demo web portal. For performance evaluation proposes, section 4 outlines the steps to amend server address and message format decoding at the server of choice. 3. Functional Usage 3.1. DA3100 Installation i. Insert a valid 2/3G SIM into the SIM slot with the contact points facing the bottom as follow: Note: only support GSM, GPRS and WCDMA ii. Plug it into the vehicle OBD-II connector with the ignition on. Location varies between vehicles. Normally, it is below the dashboard near the leg room area. DA3100 Evaluation Sample User Manual V1.2 Security Level 2013-05-30 Huawei Proprietary - Restricted Distribution Page2, Total12 3.2. DA3100 Operation Steps Step Pre-condition Action Response Remark 1 Ignition On and locate the OBD-II connection Plug DA3100 into the vehicle OBD-II connection All 3 LEDs will be On for 3 sec. If any LED is off, it indicates that particular LED is faulty. 2 Step 1 DA3100 checking vehicle OBD-II protocol a. OBD LED Flashing with Cellular and Power LED On for 20 sec. a. Vehicle OBD-II supported b. OBD LED Off with Cellular and Power LED On for 20 sec. b. Vehicle OBD-II not supported 3 Step 2 DA3100 registering network a. Cellular LED Flashing with Power LED On and OBD LED status as in Step 2 a. Carrier network registration success b. Cellular LED Off with Power LED On and OBD LED status as in Step 2 b. Carrier network registration fails. Disconnect and repeat step 1 4 Step 3a Setting APN through SMS as described in Section 3.3 (i) a. SMS reply OK a. APN set success b. SMS reply fail or no SMS reply b. Repeat Step 4 after 5 sec. Possible fault: SIM does not support APN or server is down 5 Step 4a Data view as described in Section 3.4 a. If vehicle OBD-II supported as in Step 2a a. Data view display VIN code read from vehicle b. If vehicle OBD-II not supported as in Step 2b b. Data view display VIN code as “OBD fail” 6 Ignition Off DA3100 to go into sleep mode and heartbeat send according to SMS setting as described in Section 3.3 (iv) All 3 LEDs Off and heartbeat send Data view display VIN code as “Heartbeat” 7 Step 6 Ignition On DA3100 back to status before ignition Off DA3100 Evaluation Sample User Manual V1.2 Security Level 2013-05-30 Huawei Proprietary - Restricted Distribution Page3, Total12 3.3. Configuration through SMS Device can be configured via SMS commands. These commands are sent to the device SIM number and the device will reply with an SMS response. Below are the commands and responses. i. Set the APN according to the network carrier provided (Note: APN MUST be set upon initialization of device usage. There is no default setting) SMS Command: +MTP:1000,<USN>,<PWD>,<NAME> Response (via SMS): Tips:APN UserName:<USN>,APN Password:<PWD>,APN Name: <NAME> setting ok! <USN>: APN user name, blank if not applicable <PWD>: APN password, blank if not applicable <NAME>: APN name ii. Set the data upload time (default is 30 second) SMS Command: +MTP:1001,<TIME> Response (via SMS): Tips:MTP Report Period:<TIME> setting ok! < TIME >: upload time in seconds (min is 1 second) iii. Retrieve system parameters and status for settings confirmation SMS Command: +MTP:1002 Response (via SMS): Tips:SoftVer:<VER>,APN UserName:<USN>,APN Password:<PWD>,APN Name:<NAME>,IP:<IP>,PORT: <PORT>,Report Period: < TIME >,Server Connect Status:OK! <VER>: software version, eg. V1.000.20130108 <USN>: APN user name, blank if not applicable <PWD>: APN password, blank if not applicable <IP>: IP address, eg. 172.22.44.33 (Note: Huawei server IP address) <PORT>: Port number, eg. 12001 (Note: Huawei server port number) <TIME>: upload time in seconds iv. Set the heartbeat time (default is 1 second) SMS Command: +MTP:1004,<TIME> Response (via SMS): Tips:Heartbeat Period:<TIME> setting ok! < TIME >: heartbeat time in seconds DA3100 Evaluation Sample User Manual V1.2 Security Level 2013-05-30 Huawei Proprietary - Restricted Distribution Page4, Total12 3.4. Web Data View (TST) i. Log on to http://124.238.215.168:8080/TSP-PORTAL/ ii. Enter the following: Username: 88888888888 Password: 11111111 iii. Click on “Road Safety” Click on “Road Safety” Login Password Username DA3100 Evaluation Sample User Manual V1.2 Security Level 2013-05-30 Huawei Proprietary - Restricted Distribution Page5, Total12 Screen change to the following: iv. Click on “OBD Display” Click on “OBD Display” DA3100 Evaluation Sample User Manual V1.2 Security Level 2013-05-30 Huawei Proprietary - Restricted Distribution Page6, Total12 v. Select drop list for device serial and select as follows: vi. Click on the “Detail” to view the other data Note: Receive Time is based on the time the server received the data. Server time error could cause this to be inaccurate. For accurate timing, please refer to the UTC time under “Detail” Drop list “Detail” DA3100 Evaluation Sample User Manual V1.2 Security Level 2013-05-30 Huawei Proprietary - Restricted Distribution Page7, Total12 Detail data as follows: DA3100 Evaluation Sample User Manual V1.2 Security Level 2013-05-30 Huawei Proprietary - Restricted Distribution Page8, Total12 4. Performance Usage This section allows users to send data message to their server and decode it. The installation and configuration settings are identical as described in section 3.1 and 3.2 respectively. Additional SMS command is available to set the IP and Port number of the user server. This must be set before data can be sent to the …

Text truncated - open the document above for the full version.

Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd. and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd. reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD. BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/en/privacy-policy/index.htm. Safety Information Warnings and Precautions This section contains important information pertaining to the operating instructions of your device. It also contains information about how to use your device safely. Read this information carefully before using the device. Electronic Device Do not use your device if using the device is prohibited. Do not use the device when using the device causes danger or interference with electronic devices. Medical Device  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device when using the device is prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. For any such problems, consult your service provider.  If you are using an electronic medical device, consult the doctor or the device manufacturer to confirm whether radio waves affect the operation of this device. Potentially Explosive Atmosphere Do not use your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not use your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity. Traffic Security  Observe local laws and regulations while using the device. To prevent accidents, do not use your wireless device while driving.  RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  In a motor vehicle, do not place the device over the air bag or in the air bag deployment area. Otherwise, the device may hurt you owing to the strong force when the air bag inflates.  Do not use your device while flying in an aircraft and before boarding an aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft and disrupt the wireless telephone network. It may also be considered illegal. Operating Environment  Do not use the device in dusty, damp, and dirty places or places with magnetic fields. Otherwise, it may result in malfunction of the circuit.  On a stormy day with thunder, do not use your device when it is being charged, to prevent any danger caused by lightning.  While using the device, observe the local laws and regulations, and respect others' privacy and legal rights.  The device should be installed and operated with a minimum distance of 20 cm between the radiator and your body. Safety of Children Comply with all precautions with regard to children's safety. Letting the child play with your device or its accessories, which may include parts that can be detached from the device, may be dangerous, as it may present a choking hazard. Ensure that sma…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISDA3100S to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Justification Letter Date (25/02/2014) Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby to do the Justification on original FCC application: OBD BOX, DA3100, FCC ID: QISDA3100S as following: DA3100 FCC ID:QISDA3100 is a OBD BOX, DA3100 is an OBD BOX for AUTO. DA3100 can support the wireless communication of 3G (UMTS850/1900MHz), 2G (GPRS/EDGE850/1900 MHz), and GPS, G-Sensor, BT4.0 function. And the new DA3100 FCC ID:QISDA3100S will stay valid as the reason for this new application is SAR examination and that there are no differences in software nor hardware between QISDA3100 andQIS DA3100S. So in new FCC application for DA3100 (FCC ID: QISDA3100S): So the test date for RF from report : SYBH(Z-RF)016072013-2001 in FCC application for DA3100(FCC ID:QISDA3100), and this data according to part 22/24 and Part 15C remains valid and applicable and the are representative of the compliance of DA3100(FCC ID:QISDA3100S) Test data for Part 15B Unintentional Radiator is from report “ SYBH(Z-EMC)088072013-2”,and this data according to Part 15 remains valid and applicable and they are representative of the compliance of DA3100(FCC ID:QISDA3100S). New SAR report “SYBH(Z-SAR)015112013-2 demonstrate DA3100(FCC ID:QISDA3100S) comply with the RF exposure requirement. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

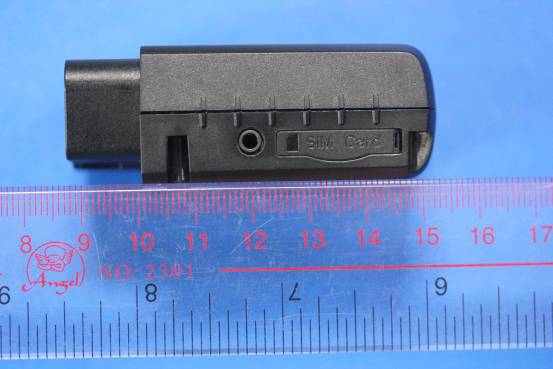

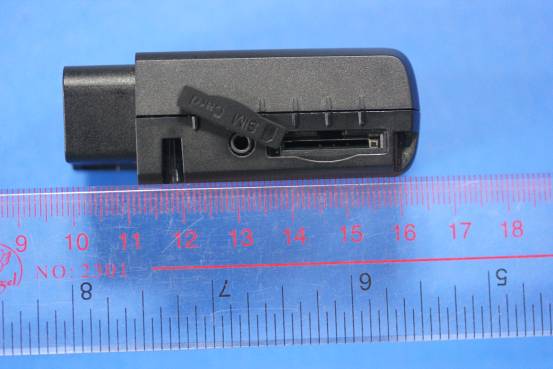

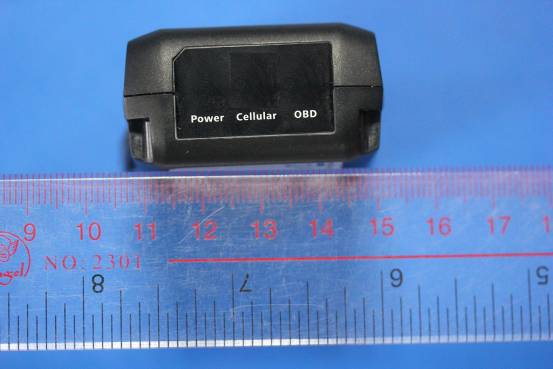

DA3100 SECRET Page1, Total7 External Photos of DA3100 DA3100 SECRET Page2, Total7 DA3100 SECRET Page3, Total7 DA3100 SECRET Page4, Total7 DA3100 SECRET Page5, Total7 DA3100 SECRET Page6, Total7 DA3100 SECRET Page7, Total7

DA3100 SECRET Page1, Total1 ID Label Location_ DA3100

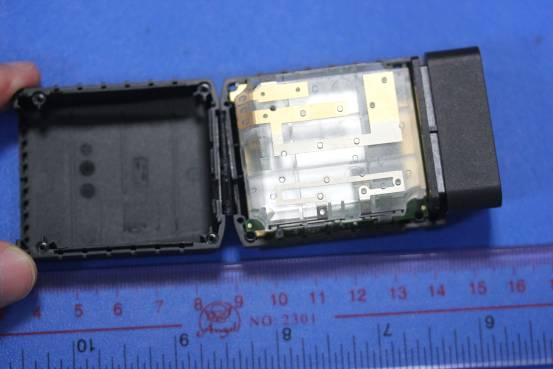

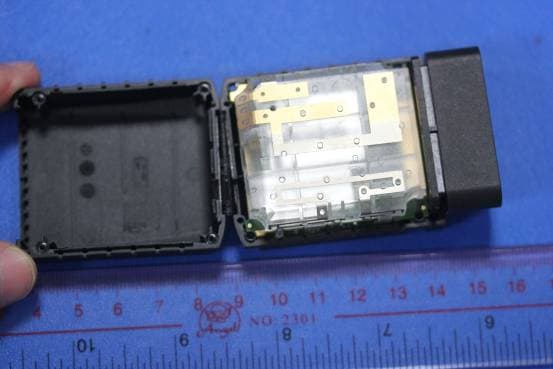

DA3100 SECRET Page1, Total10 Internal Photos of DA3100 DA3100 SECRET Page2, Total10 DA3100 SECRET Page3, Total10 DA3100 SECRET Page4, Total10 DA3100 SECRET Page5, Total10 DA3100 SECRET Page6, Total10 DA3100 SECRET Page7, Total10 DA3100 SECRET Page8, Total10 DA3100 SECRET Page9, Total10 DA3100 SECRET Page10, Total10

FCC RF Test Report Product Name: OBD BOX Model Number: DA3100 Report No: SYBH(Z-RF)016072013-2002 FCC ID：QISDA3100 Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 16 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 16 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2013-07-21 Start Date of Test: 2013-07-29 End Date of Test: 2013-08-06 Test Result: Pass Approved by Senior Engineer: 2013-08-06 Dai Linjun Date Name Signature Prepared by: 2013-08-06 Guo Xingxing Date Name Signature RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 16 Modification Record No. Last Report No. Modification Description 1 First report. RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 16 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description ................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................... 8 3.3 Technical Description ................................................................................................................................. 9 4 General Test Conditions / Configurations ............................................................................................................. 10 4.1 EUT Configurations .................................................................................................................................. 10 4.2 Test Environments ................................................................................................................................... 10 4.3 Test Setups .............................................................................................................................................. 11 4.4 Test Conditions ........................................................................................................................................ 14 5 Main Test Instruments .......................................................................................................................................... 16 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 16 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2, Subpart J 2012 47 CFR FCC Part 15, Subpart C 2012 Test Method: FCC KDB 558074 D01 DTS Meas Guidance v03r01 ANSI C63.4-2003/-2009, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C63.10-2009, American National Standard for Testing Unlicensed Wireless Devices. 1.2 Test Location Test Location 1: Reliability Laboratory of Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C 1.3 Test Environment Condition Ambient Temperature: 19.5 to 25 °C Ambient Relative Humidity: 45 to 55 % Atmospheric Pressure: Not applicable RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 16 2 Test…

Text truncated - open the document above for the full version.

RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 48 Appendix A: 6dB Emission Bandwidth (EBW) RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 48 1 Result Table EUT Conf. EBW [KHz] Verdict TM1_DH5_Ch0 700.809 Pass TM1_DH5_Ch19 710.461 Pass TM1_DH5_Ch39 698.835 Pass RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 48 2 Test Plot 2.1 TM1_DH5_Ch0 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 48 2.2 TM1_DH5_Ch19 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 48 2.3 TM1_DH5_Ch39 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 48 Appendix B: Maximum Peak Conducted Output Power RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 48 1 Result Table EUT Conf. Max. Peak Power [dBm] Verdict TM1_DH5_Ch0 -1.48 Pass TM1_DH5_Ch19 -2.21 Pass TM1_DH5_Ch39 -2.33 Pass RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 48 2 Test Plot 2.1 TM1_DH5_Ch0 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 48 2.2 TM1_DH5_Ch19 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 48 2.3 TM1_DH5_Ch39 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 48 Appendix C: Maximum Power Spectral Density Level RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 48 1 Result Table EUT Conf. Max. Power Spectral Density Level [dBm] Verdict TM1_DH5_Ch0 -9.59 Pass TM1_DH5_Ch19 -10.54 Pass TM1_DH5_Ch39 -11.16 Pass 2 Test Plot 2.1 TM1_DH5_Ch0 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 48 2.2 TM1_DH5_Ch19 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 48 2.3 TM1_DH5_Ch39 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 48 Appendix D: Band edge spurious emission RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 48 3 Result Table EUT Conf. Chann el No. Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max. Spurious Level [dBm] Limit [dBm] Result TM1_DH5_Ch 0 0 2402 -1.72 Off -37.10 -21.72 Pass TM1_DH5_Ch 39 39 2480 -3.04 Off -48.81 -23.04 Pass 2 Test Plot 2.1 TM1_DH5_Ch0 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 48 2.2 TM1_DH5_Ch39 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 48 Appendix E: Unwanted Emissions into Non-Restricted Frequency Bands RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 48 1 Result Table In this Appendix, the “Pref” refers to the peak power level in any 100 kHz bandwidth within the fundamental emission which is used as the reference level, the “Puw” referrers to the maximum emission power in 100 kHz band segments outside of the authorized frequency band. Considering that the higher ratio of RBW to the span for the frequency ranges below 30 MHz makes the results determination be complicated, a narrower RBW other than 100 kHz is used for these ranges. The measured value should add a RBW correction factor (RBWCF) where RBWCF [dB] = 10 x lg(100 [kHz]/narrower RBW [kHz]). As to this Appendix, the narrower RBW is 1 kHz and RBWCF is 20 dB for the frequency 9 kHz to 150 kHz, and the narrower RBW is 10 kHz and RBWCF is 10 dB for the frequency 150 kHz to 30 MHz. In the result table, the “< Limit” denotes that “The Puw [dBm] is less than Pref [dBm] - 20 [dB], see test plots for detailed”. EUT Conf. Pref [dBm/100 kHz] Puw [dBm/100 kHz] Verdict TM1_DH5_Ch0 -1.893 < Limit Pass TM1_DH5_Ch39 -2.593 < Limit Pass TM1_DH5_Ch78 -3.251 < Limit Pass RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 20 of 48 2 Test Plot 2.1 TM1_DH5_Ch0 2.1.1 Pref RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 21 of 48 2.1.2 Puw RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 22 of 48 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 23 of 48 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 24 of 48 RF Test Report of DA3100 Report No: SYBH(Z-RF)016072013-2002 Huawei Proprietary and Confidential Co…

Text truncated - open the document above for the full version.

Photos of Test Setup For GSM&WCDMA 1．Radiated Spurious Emissions Radiated Spurious Emission (below 3GHz) Radiated Spurious Emission (3GHz to18GHz) Radiated Spurious Emission (18GHz to26.5GHz) For Bluetooth 1．Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) Radiated Spurious Emission (1GHz to18GHz) Radiated Spurious Emission (above 18GHz) 2. Conducted Emissions Conducted Emissions for AC Ports END
