QISE170GSM/GPRS/EDGE USB Stick

6 „ The OS automatically detects and recognises new hardware and starts the installation wizard. „ Follow the prompts of the installation wizard. „ After the program is installed, a shortcut icon for the E170 management program is displayed on the desktop. Starting the Management Program „ Double-click the shortcut icon on the desktop to start the management program of the E170. „ Enter the personal identity number (PIN) code if you have enabled the PIN lock. Removing the E170 „ Double-click in the status area. The Unplug or Eject Hardware interface is displayed. „ Select and stop the hardware related to the E170. „ At the prompt "It is safe to remove the device", remove the E170. Note: Before removing the E170, exit the management program. Removing the Management Program „ Click Start Menu. „ Click Control Panel. „ Click Add/Remove Program to remove the management program of the E170. Note: Before removing the management program, remove the E170. 7 Warnings and Precautions Please read the safety information carefully to ensure the correct and safe use of your wireless device. General Recommendations for Use „ Always handle your wireless device with care and keep it in a clean and dust-free place. Do not expose your wireless device to open flames or lit tobacco products. „ Always keep your wireless device dry. „ Do not drop, throw or try to bend your wireless device. „ Do not paint or scratch your wireless device. „ Do not attempt to disassemble your wireless device. Doing so will void warranty. Only authorized personnel are allowed to do so. „ Use approved accessories only. Do not connect your wireless device to any incompatible products. Laws and Regulations „ Do not operate your wireless device where it may be unsafe to do so or where you are required not to do so. „ To deactivate your wireless device, stop all applications using the wireless device first and then remove the wireless device from your PC. „ Obey all local laws, regulations, rules, orders, signs and notices while using the wireless device. Signs about the use of mobile phones should also be obeyed as referring to other wireless equipment including wireless devices provided by Huawei. 8 Electronic Device „ Deactivate your wireless device near high-precision electronic devices. The wireless device may affect the performance of these devices. „ Pacemaker manufacturers recommend that a minimum separation of 15 cm be maintained between a wireless device and a pacemaker to avoid potential interference with the pacemaker. Deactivate your wireless device, if it may have disturbance to the pacemaker. Deactivate in Explosive Areas Deactivate your wireless device where the air is potentially explosive. It is rare, but your PC could generate sparks. Deactivate in Blasting Areas Deactivate your wireless device where blasting is in progress. Remote-controlled radio frequency (RF) devices are often used at construction sites to set off blasting. Deactivate in Aircrafts Deactivate your wireless device before boarding or in any aircraft. Wireless devices can cause interference in aircrafts. Deactivate at Hospitals Obey regulations or rules at hospitals. Deactivate your wireless device near medical equipment. Wireless devices can cause interference to cardiac pacemakers, implanted defibrillators or other medical equipment. Deactivate near Hearing Devices Deactivate your wireless device near hearing devices. People with hearing aids may experience interfering noise near wireless devices. 9 Recommendations for Children Do not allow children to play with your wireless device. They could hurt themselves or others, or could accidentally damage the wireless device. Your wireless device contains small parts with sharp edges that may cause an injury or a choking hazard. Deactivate While Driving Do not use the wireless device while driving. Immunity to Interference Your wireless device is immune to interferences caused by audible signals. Cleaning and Maintenance „ Before you clean or maintain the wireless device, stop all applications using the wireless device and remove your wireless device from your PC. „ Clean your wireless device with a piece of soft antistatic cloth. „ If the wireless device or any of its accessories does not work, turn to an authorized service centre for help. Environmental Protection Observe the local regulations regarding the disposal of your packaging materials, old wireless device and its accessories. Please promote their recycling. SIM/USIM Cards While inserting or removing the SIM card, protect yourself against electrostatic discharge (ESD). Do not touch the connector of the SIM card. As a precaution, always make sure that the wireless device is already in your hand before you insert or remove the SIM card. 10 Restart on ESDs Software will attempt to re-initialise a connection once a substantial electrostatic discharge causes the device to reset. If the software is not operational after an ESD, restart the software application. Agency/Regulatory Information The wireless device is approved for use in many regions of the world. In these regions, the device meets all radio frequency exposure requirements. The following approvals and notices apply in specific regions as noted. CE Approval (European Union) The wireless device is approved to be used in the member states of the EU. Huawei declares that the wireless device is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC (R&TTE Directive). Radio Frequency Exposure Warning To ensure compliance at all times with the R&TTE Directive* 1999/5/EC, this product requires a minimum distance of 20 cm from the body when in operation. * The general public RF exposure limits referenced in the R&TTE Directive are consistent with the published Guidelines of the International Commission on Non-Ionising Radiation Protection (ICNIRP) 1998. ICNIRP is a formally recognized non-governmental o…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. AddressHuawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP518129 Page 1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com SubjectLetter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISE170 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

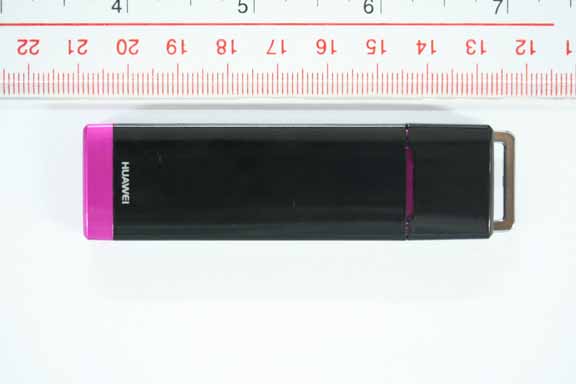

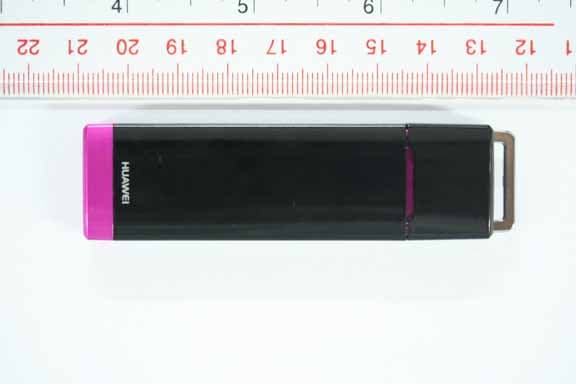

E170 SECRET Page1,Total 5 External Photos of HUAWEI E170 E170 SECRET Page2,Total 5 E170 SECRET Page3,Total 5 E170 SECRET Page4,Total 5 E170 SECRET Page5,Total 5

E170 Secret Page1, Total 1 ID Label E170

E170 Secret Page1, Total 1 ID Label Location_E170

E170 SECRET Page1,Total 9 Internal Photos of HUAWEI E170 E170 SECRET Page2,Total 9 E170 SECRET Page3,Total 9 E170 SECRET Page4,Total 9 E170 SECRET Page5,Total 9 E170 SECRET Page6,Total 9 E170 SECRET Page7,Total 9 E170 SECRET Page8,Total 9 E170 SECRET Page9,Total 9

NO.: RZA2007-0951FCC TEST REPORT Test name Electromagnetic Field (Specific Absorption Rate) Product HSPA USB STICK Model E170 FCC ID QISE170 Client HUAWEI Technologies Co., Ltd. TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 2of 103 GENERAL TERMS 1. The test report is invalid if not marked with “exclusive stamp for the data report” or the stamp of the TA. 2. Any copy of the test report is invalid if not re-marked with the “exclusive stamp for the test report” or the stamp of TA. 3. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 4. The test report is invalid if there is any evidence of erasure and/or falsification. 5. If there is any dissidence for the test report, please file objection to the test center with in 15 days from the date of receiving the test report. 6. Normally, entrust test is only responsible for the samples that have undergone the test. 7. This test report cannot be used partially or in full for publicity and/or promotional purposes with out previous written permissions of TA. Address: Room4,No.399,Cailun Rd,Zhangjiang Hi-Tech Park, Pudong Shanghai,China Post code: 201203 Telephone: +86-021-50791141/2/3 Fax：+86-021-50791147 Website: http://www.ta-shanghai.com E-mail: [email protected] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 3of 103 Product HSPA USB STICK Model E170 Client HUAWEI Technologies Co., Ltd. Type of test Entrusted Manufacturer HUAWEI Technologies Co., Ltd. Arrival Date of sample Sep.29 th , 2007 Place of sampling (Blank) Carrier of the samples Xie Yan Quantity of the samples One Date of product (Blank) Base of the samples (Blank) Items of test SAR Series number EV01AA1792800008 Standard(s) EN 50360–2001: Product standard for the measurement of Specific Absorption Rate related to human exposure to electromagnetic fields from mobile phones. EN 50361–2001: Basic standard for the measurement of Specific Absorption Rate related to human exposure to electromagnetic fields from mobile phones. ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE 1528–2003: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques. OET Bulletin 65 (Edition 97-01) and Supplement C (Edition 01-01): Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits. IEC 62209-2 (Draft): Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 2: Procedure to determine the Specific Absorption Rate (SAR)in the head and body for 30MHz to 6GHz Handheld and Body-Mounted Devices used in close proximity to the body. Vodafone SAR_Data_cards_V1.1: Global Test Specification for Terminals for Performance Measurements –Performance TST- Specific Absorption Rate (SAR) for Data Cards and External Antennas. Conclusion Localized Specific Absorption Rate (SAR) of this portable wireless equipment has been measured in all cases requested by the relevant standards cited in Clause 5.2 of this test report. Maximum localized SAR is below exposure limits specified in the relevant standards cited in Clause 5.1 of this test report. General Judgment: Pass (Stamp) Date of issue: Oct.8 th ,2007 Comment The test result only responds to the measured sample. Approved by (Zhengchenguang) Revised by (Yangweizhong) Performed by (Lingminbao) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 4of 103 TABLE OF CONTENT 1 COMPETENCE AND WARRANTIES ............................................................................................... 5 2 GENERAL CONDITIONS................................................................................................................. 5 3 DESCRIPTION OF EUT................................................................................................................... 5 3.1 ADDRESSING INFORMATION RELATED TO EUT ......................................................................................... 5 3.2 CONSTITUENTS OF EUT ......................................................................................................................... 6 3.3 GENERAL DESCRIPTION......................................................................................................................... 6 4 OPERATIONAL CONDITIONS DURING TEST ............................................................................... 7 4.1 SCHEMATIC TEST CONFIGURATION......................................................................................................... 7 4.2 SAR MEASUREMENT SET-UP............................................................................................................... 11 4.3 DASY4 E-FIELD PROBE SYSTEM........................................................................................................... 12 4.4 E-FIELD PROBE CALIBRATION............................................................................................................... 13 4.5 OTHER TEST EQUIPMENT..................................................................................................................... 13 4.6 EQUIVALENT TISSUES........................................................................................................................... 14 4.7 SYSTEM SPECIFICATIONS..................................................................................................................... 14 5 CHARACTERISTICS OF THE TEST ............................................................................................. 15 5.1 APPLICABLE LIMIT REGULATIONS.................................................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 51of 103 Test Position 6 GSM 850 GPRS with BenQ R55V Middle (2 timeslots in uplink) Communication System: GSM850 + GPRS(2Up); Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium: Body 835MHz Medium parameters used: f = 837 MHz; σ = 0.993 mho/m; ε r = 56.2; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737; ConvF(6.52, 6.52, 6.52); - Electronics: DAE3 Sn452; Test Position 6 Middle/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.208 mW/g Test Position 6 Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.7 V/m; Power Drift = -0.096 dB Peak SAR (extrapolated) = 0.264 W/kg SAR(1 g) = 0.196 mW/g; SAR(10 g) = 0.134 mW/g Maximum value of SAR (measured) = 0.209 mW/g Figure 29 GSM 850 GPRS with BenQ R55V Test Position 6 CH190 (2 timeslots in uplink) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 52of 103 Figure 30 Z-Scan at power reference point [GSM 850 GPRS with BenQ R55V Test Position 6 CH190 (2 timeslots in uplink)] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 53of 103 Test Position 1 GSM 1900 GPRS with BenQ Joy book S72 Middle (4 timeslots in uplink) Communication System: GSM1900+GPRS (4Up); Frequency: 1880 MHz; Duty Cycle: 1:2 Medium: Body 1900MHz Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737; ConvF(4.64, 4.64, 4.64); - Electronics: DAE3 Sn452; Test Position 1 Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.607 mW/g Test Position 1 Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.3 V/m; Power Drift = -0.118 dB Peak SAR (extrapolated) = 0.864 W/kg SAR(1 g) = 0.540 mW/g; SAR(10 g) = 0.311 mW/g Maximum value of SAR (measured) = 0.598 mW/g Figure 31 GSM 1900 GPRS with BenQ Joy book S72 Test Position 1 CH661 (4 timeslots in uplink) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 54of 103 Figure 32 Z-Scan at power reference point [GSM 1900 GPRS with BenQ Joy book S72 Test Position 1 CH661 (4 timeslots in uplink)] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 55of 103 Test Position 1 GSM 1900 GPRS with Acer ZH1 Middle (4 timeslots in uplink) Communication System: GSM1900+GPRS (4Up); Frequency: 1880 MHz; Duty Cycle: 1:2 Medium: Body 1900MHz Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737; ConvF(4.64, 4.64, 4.64); - Electronics: DAE3 Sn452; Test Position 1 Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.358 mW/g Test Position 1 Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.9 V/m; Power Drift = -0.180 dB Peak SAR (extrapolated) = 0.644 W/kg SAR(1 g) = 0.326 mW/g; SAR(10 g) = 0.187 mW/g Maximum value of SAR (measured) = 0.356 mW/g Figure 33 GSM 1900 GPRS with Acer ZH1 Test Position 1 CH661 (4 timeslots in uplink) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 56of 103 Figure 34 Z-Scan at power reference point [GSM 1900 GPRS with Acer ZH1 Test Position 1 CH661 (4 timeslots in uplink)] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 57of 103 Test Position 1 GSM 1900 GPRS with BenQ Joy book S72 Middle (3 timeslots in uplink) Communication System: GSM1900+GPRS (3Up); Frequency: 1880 MHz; Duty Cycle: 1:2.67 Medium: Body 1900MHz Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737; ConvF(4.64, 4.64, 4.64); - Electronics: DAE3 Sn452; Test Position 1 Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.749 mW/g Test Position 1 Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.7 V/m; Power Drift = 0.151 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.668 mW/g; SAR(10 g) = 0.358 mW/g Maximum value of SAR (measured) = 0.748 mW/g Figure 35 GSM 1900 GPRS with BenQ Joy book S72 Test Position 1 CH661 (3 timeslots in uplink) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 58of 103 Figure 36 Z-Scan at power reference point [GSM 1900 GPRS with BenQ Joy book S72 Test Position 1 CH661 (3 timeslots in uplink)] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 59of 103 Test Position 1 GSM 1900 GPRS with BenQ Joy book S72 Middle (2 timeslots in uplink) Communication System: GSM1900+GPRS (2Up); Frequency: 1880 MHz; Duty Cycle: 1:4 Medium: Body 1900MHz Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737; ConvF(4.64, 4.64, 4.64); - Electronics: DAE3 Sn452; Test Position 1 Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.732 mW/g Test Position 1 Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.4 V/m; Power Drift = -0.170 dB Peak SAR (extrapolated) = 0.926 W/kg SAR(1 g) = 0.645 mW/g; SAR(10 g) = 0.371 mW/g Maximum value of SAR (measured) = 0.748 mW/g Figure 37 GSM 1900 GPRS with BenQ Joy book S72 Test Position 1 CH661 (2 timeslots in uplink) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 60of 103 Figure 38 Z-Scan at power reference point [GSM 1900 GPRS with BenQ Joy book S72 Test Position 1 CH661 (2 timeslots in uplink)] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 61of 103 Test Position 1 GSM 1900 GPRS with BenQ Joy book S72 Middle (1 timeslot in uplink) Communication System: GSM1900+GPRS (1Up); Frequency: 1880 MHz; Duty Cycle: 1:8 Medium: Body 1900MHz Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737; ConvF(4.64, 4.64, 4.64); - Electronics: DAE3 Sn452; Test Posit…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 76of 103 Figure 54 Z-Scan at power reference point [GSM 1900 GPRS with BenQ R55V Test Position 4 CH661 (3 timeslots in uplink)] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 77of 103 Test Position 5 GSM 1900 GPRS with BenQ R55V Middle (3 timeslots in uplink) Communication System: GSM 1900+GPRS(3Up); Frequency: 1880 MHz;Duty Cycle: 1:2.67 Medium: Body 1900MHz Medium parameters used: f = 1880 MHz; σ = 1.5 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737; ConvF(4.64, 4.64, 4.64); - Electronics: DAE3 Sn452; Test Position 5 Middle/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.165 mW/g Test Position 5 Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.3 V/m; Power Drift = 0.028 dB Peak SAR (extrapolated) = 0.234 W/kg SAR(1 g) = 0.147 mW/g; SAR(10 g) = 0.088 mW/g Maximum value of SAR (measured) = 0.166 mW/g Figure 55 GSM 1900 GPRS with BenQ R55V Test Position 5 CH661 (3 timeslots in uplink) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 78of 103 Figure 56 Z-Scan at power reference point [GSM 1900 GPRS with BenQ R55V Test Position 5 CH661 (3 timeslots in uplink)] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 79of 103 Test Position 6 GSM 1900 GPRS with BenQ R55V Middle (3 timeslots in uplink) Communication System: GSM 1900+GPRS(3Up); Frequency: 1880 MHz;Duty Cycle: 1:2.67 Medium: Body 1900MHz Medium parameters used: f = 1880 MHz; σ = 1.5 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737; ConvF(4.64, 4.64, 4.64); - Electronics: DAE3 Sn452; Test Position 6 Middle/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.728 mW/g Test Position 6 Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.1 V/m; Power Drift = 0.001 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.605 mW/g; SAR(10 g) = 0.314 mW/g Maximum value of SAR (measured) = 0.685 mW/g Figure 57 GSM 1900 GPRS with BenQ R55V Test Position 6 CH661 (3 timeslots in uplink) TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 80of 103 Figure 58 Z-Scan at power reference point [GSM 1900 GPRS with BenQ R55V Test Position 6 CH661 (3 timeslots in uplink)] TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 81of 103 ANNEX D： SYSTEM VALIDATION RESULTS System Performance Check at 835 MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:443 Communication System: CW; Frequency: 835 MHz; Duty Cycle: 1:1 Medium: Head 835MHz Medium parameters used: f = 835 MHz; σ = 0.899 mho/m; ε r = 42.8; ρ = 1000 kg/m 3 - Probe: ET3DV6 - SN1737; ConvF(6.52, 6.52, 6.52); - Electronics: DAE3 Sn452; d=15mm, Pin=250mW/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.54 mW/g d=15mm, Pin=250mW/Zoom Scan (7x7x7) /Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.0 V/m; Power Drift = -0.061 dB Peak SAR (extrapolated) = 3.44 W/kg SAR(1 g) = 2.34 mW/g; SAR(10 g) = 1.53 mW/g Maximum value of SAR (measured) = 2.52 mW/g 0 dB = 2.52mW/g Figure 59 System Performance Check 835MHz 250mW TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 82of 103 System Performance Check at 1900 MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN: 541 Communication System: CW; Frequency: 1900 MHz; Duty Cycle: 1:1 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm, Pin=250mW/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.7 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7) /Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.4 V/m; Power Drift = -0.045 dB Peak SAR (extrapolated) = 16.8 W/kg SAR(1 g) = 9.69 mW/g; SAR(10 g) = 5.12 mW/g Maximum value of SAR (measured) = 10.9 mW/g Figure 60 System Performance Check 1900MHz 250mW TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 83of 103 ANNEX E： PROBE CALIBRATION CERTIFICATE TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 84of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 85of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 86of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 87of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 88of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 89of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 90of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 91of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 92of 103 ANNEX F： D835V2 DIPOLE CALIBRATION CERTIFICATE TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 93of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 94of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 95of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 96of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 97of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 98of 103 ANNEX G： D1900V2 DIPOLE CALIBRATION CERTIFICATE TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 99of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 100of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 101of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 102of 103 TA Technology (Shanghai) Co., Ltd. Test Report No. RZA2007-0951FCC Page 103of 103

Report No: SYBH(E)123092007EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total31 Report No: SYBH(E)123092007EB-1 FCC ID: QISE170 FCC TEST REPORT OF HSPA USB STICK M/N: E170 Oct. 23, 2007 Reliability Laboratory of Huawei Technologies Co., Ltd. All Right Reserved Report No: SYBH(E)123092007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total31 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Committee for Laboratories (CNAL), and accreditation number: L0310. 2. The laboratory has obtained the accreditation of THE AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION (A2LA), and Accreditation Council Certificate Number: 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory also has been listed by the VCCI to perform EMC measurements. The accreditation number is C2583, R2364, and T256. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. Any copy of the test report is invalid if not re-marked with the "exclusive stamp for the test report". 7. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 8. The test report is invalid if there is any evidence of erasure and/or falsification. 9. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 10. Normally, the test report is only responsible for the samples that have undergone the test. 11. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. Report No: SYBH(E)123092007EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total31 Huawei Technologies Co Ltd Huawei Industrial Base, Bantian Longgang Shenzhen 518128, P.R China Tel: +86 755 89651014 Fax: +86 755 89652518 REPORT ON FCC Test of HSPA USB STICK M/N: E170 Report No: SYBH(E)123092007EB-1 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 22: Subpart H; CONCLUSION There are 6 items need to be tested, 6 items have been tested. The sample of the model completely meets the requirements Final Judgement: Pass General Manager 2007.10.23 Date Name signature Technical Responsibility For Area of Testing 2007.10.23 Date Name signature Test Lab Engineer 2007.10.22 Date Name signature Report No: SYBH(E)123092007EB-1 Confidential Information of Huawei. No Distribution without Permission Page4, Total31 Contents 1 Summary.................................................................................................................................................... 5 2 Product Description.................................................................................................................................. 6 2.1 PRODUCTION INFORMATION................................................................................................................... 6 2.2 MODIFICATION INFORMATION.................................................................................................................. 6 3 Test Site Description................................................................................................................................. 7 3.1 TESTING PERIOD................................................................................................................................... 7 3.2 GENERAL SET UP DESCRIPTION............................................................................................................. 7 4 Product Description.................................................................................................................................. 8 4.1 TECHNICAL CHARACTERISTICS............................................................................................................... 8 4.2 EUT IDENTIFICATION LIST.................................................................................................................... 10 5 Main Test Instruments............................................................................................................................. 11 6 Transmitter Measurements.............…
