QISE173S-2HSPA USB Stick

Thank you for choosing the Mobile Broadband USB Stick. With your USB Stick, you can access a wireless network at high speed. Note: This manual describes the appearance of the USB Stick, as well as the procedures for preparation, installation, and removal. For operation details about the management program, see the online help included in the management program. Getting to Know Your USB Stick The following figure shows the appearance of the USB Stick. It is provided only for your reference. The actual product may be different. 2 1 2 3 4 5 n USB Connector It connects the USB Stick to a PC. o Strap Hole You can tie the cap and the USB Stick together by threading a strap through the strap holes, so that the cap will not be easily lost. p Indicator It indicates the status of the USB Stick. z Green, blinking twice every 3s: The USB Stick is powered on. z Green, blinking once every 3s: The USB Stick is registering with a 2G network. z Blue, blinking once every 3s: The USB Stick is registering with a 3G/3G+ network. z Green, solid: The USB Stick is connected to a 2G network. z Blue, solid: The USB Stick is connected to a 3G network. z Cyan, solid: The USB Stick is connected to a 3G+ network. z Off: The USB Stick is removed. q SIM/USIM Card Slot It holds a Subscriber Identity Module (SIM)/Universal Subscriber Identity Module (USIM) card. r MicroSD Card Slot It holds a microSD card. Getting Your USB Stick Ready Installing the SIM/USIM and mircoSD Card 1. Slide the front cover to remove it from the USB Stick. 2. Insert the SIM/USIM card and the microSD card into the corresponding card slots, as shown in the following figure. 3. Replace the back cover and slide it into place. Note: z The microSD card is an optional accessory. If it is not provided in the package, you can buy one yourself. z Ensure that the beveled edge of the SIM/USIM card is properly aligned with that of the SIM/USIM card slot and the microSD card is inserted according to the direction as labeled on the microSD card slot. z Do not remove the microSD or SIM/USIM card when the card is in use. Otherwise, the card as well as your USB Stick may get damaged and the data stored on the card may be corrupted. Installation/Removal Guide The procedure for installing the management program depends on the operating system (OS) installed on your PC. The following sections take Windows XP as an example. Connecting the USB Stick to a PC Push the stick on the side of the USB Stick to fully extend the USB connector. Then plug the USB Stick into the USB port of your PC. Installing the USB Stick Management Program 1. Connect the USB Stick with the PC. 2. The OS automatically detects and recognizes the new hardware and starts the installation wizard. Note: If the auto-run program does not respond, find the AutoRun.exe file in the driver path. Then double-click AutoRun.exe to run the program. 3. Follow the on-screen instructions of the installation wizard. 4. After the program is installed, a shortcut icon for the management program appears on the desktop. Starting the Management Program After being installed, the management program starts automatically. Then every time the USB Stick is connected to the PC, the management program starts automatically. You can also double-click the shortcut icon on the desktop to start the management program. Removing the USB Stick 1. Double-click in the notification area. Then the Unplug or Eject Hardware dialog box appears. 2. Select the corresponding hardware and then click Stop. 3. When the message "It is safe to remove the device" appears, remove the USB Stick. Uninstalling the Management Program 1. Choose Start > Control Panel > Add or Remove Programs. 2. Find the management program and click Remove to uninstall the management program. Note: Exit the management program before uninstalling it. CAUTION: This USB modem is approved for use in normal-size laptop computers only. To comply with FCC RF exposure requirements, this modem should not be used in configurations that cannot maintain at least 5 mm from users and bystanders. For example, this modem should not be used in certain laptop and tablet computers and configurations where the USB connectors are unable to provide or ensure the necessary separation is available between the modem and its users to satisfy compliance. See detailed operating requirements in users manual. Version: V100R001_01 Part Number: 3101****

Safety Information CAUTION: This USB modem is approved for use in normal-size laptop computers only. To comply with FCC RF exposure requirements, this modem should not be used in configurations that cannot maintain at least 5 mm from users and bystanders. For example, this modem should not be used in certain laptop and tablet computers and configurations where the USB connectors are unable to provide or ensure the necessary separation is available between the modem and its users to satisfy compliance. See detailed operating requirements in users manual.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISE173S-2 to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2010-06-02 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISE173S-2 Product Name: HSPA USB Stick Product Model: E173s-2 To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 90 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely,

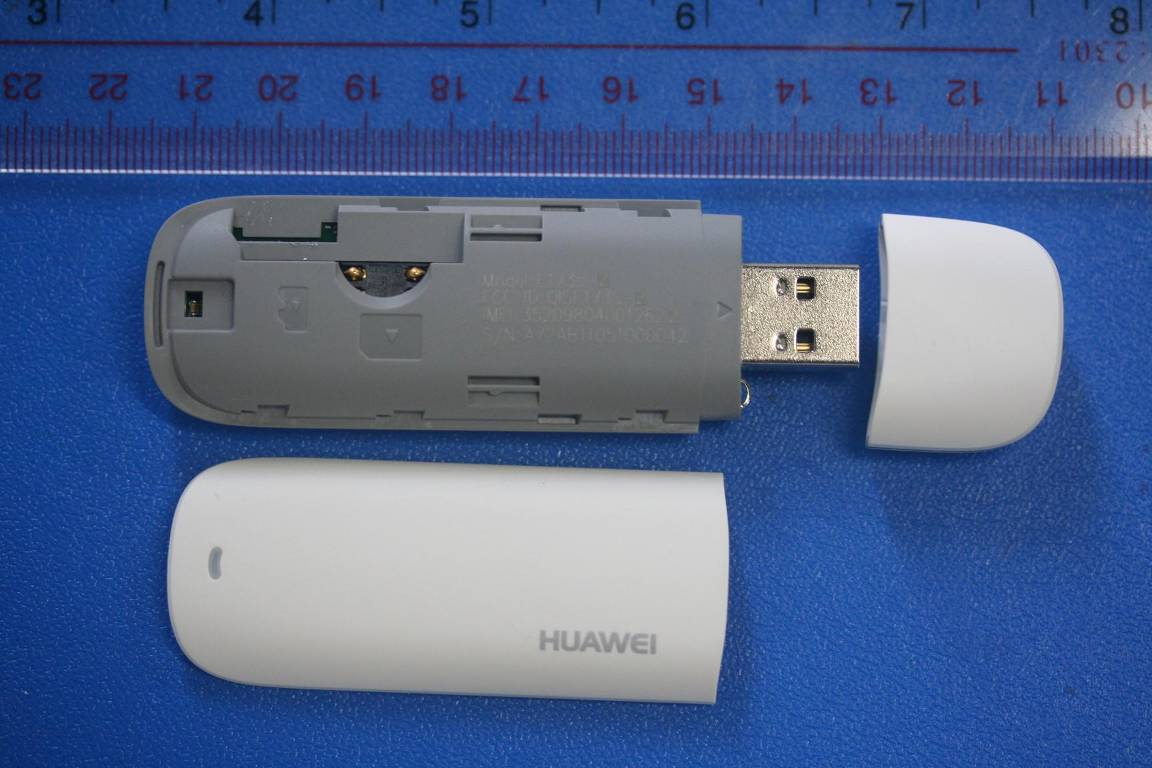

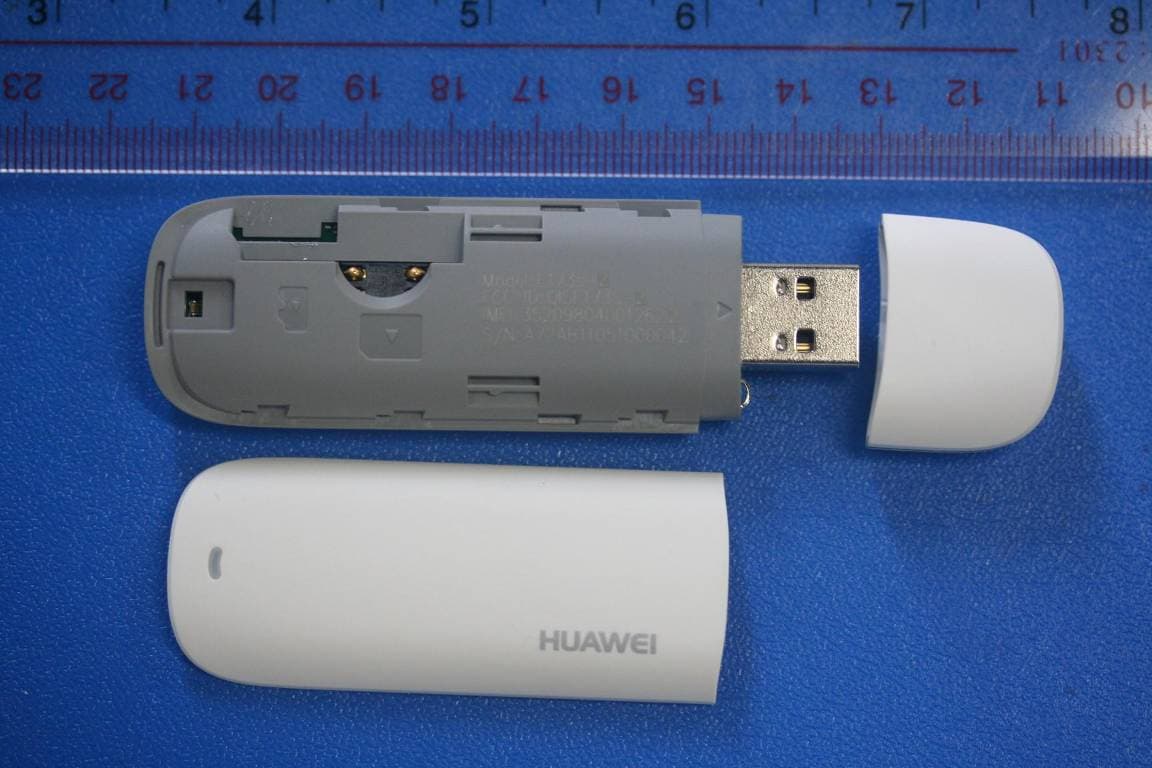

E173s-2 SECRET Page1,Total 5 External Photos of E173s-2 E173s-2 SECRET Page2,Total 5 E173s-2 SECRET Page3,Total 5 E173s-2 SECRET Page4,Total 5 E173s-2 SECRET Page5,Total 5

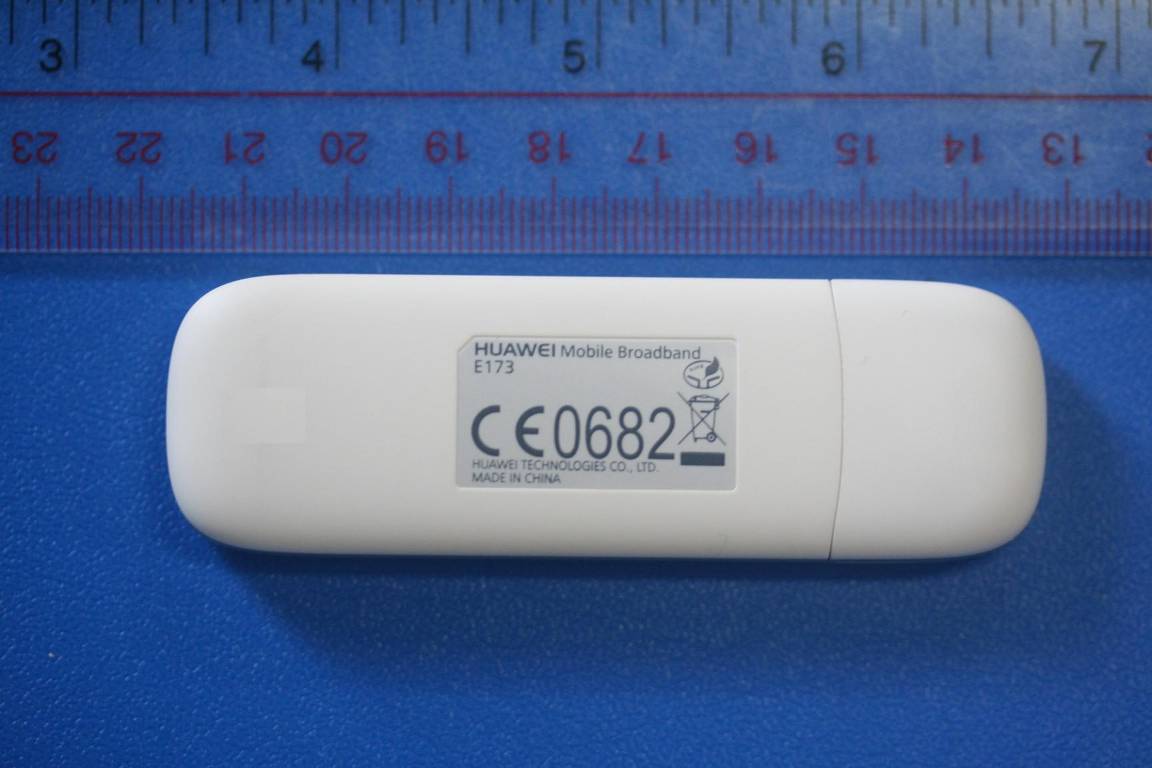

E173s-2 SECRET Page1, Total 1 ID Label Location_E173s-2

E173s-2 SECRET Page1,Total3 Internal Photos of E173s-6 E173s-2 SECRET Page2,Total3 E173s-2 SECRET Page3,Total3

Report No: SYBHZ(R)E031032010EB-1 Confidential Information of Huawei. No Distribution without Written Permission Page1, Total28 EMC Test Report Product Name: HSPA USB Stick Model Number:E173s-2 Report No: SYBHZ(R)E031032010EB-1 FCC ID: QISE173S-2 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of E173s-2 FCC ID: QISE173S-2 Report No: SYBHZ(R) E031032010EB-1 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total28 Notice 1 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has obtained the accreditation of THE AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION (A2LA), and Accreditation Council Certificate Number: 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-1. 5. The laboratory also has been listed by the VCCI to perform EMC measurements. The accreditation number is R2364, C2583, and T256. 6. The test report is invalid if not marked with "exclusive stamp for the test report". 7. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 8. The test report is invalid if there is any evidence of erasure and/or falsification. 9. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 10. Normally, the test report is only responsible for the samples that have undergone the test. 11. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of E173s-2 FCC ID: QISE173S-2 Report No: SYBHZ(R) E031032010EB-1 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total28 Notice 2 Modification Information: Table 1 Modification Information 1 2 3 4 5 6 Modification Information 7 FCC Test Report of E173s-2 FCC ID: QISE173S-2 Report No: SYBHZ(R) E031032010EB-1 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total28 REPORT ON HSPA USB Stick M/N: E173s-2 REGULATION FCC CFR47 Part 15: Subpart B; FCC CFR47 Part 22:Subpart H; FCC CFR47 Part 24: Subpart E; START OF TEST Mar.26, 2010 END OF TEST Mar.31, 2010 Final Judgement: Pass Approver 2010-04-15 张兴海 Date Name Signature Operator 2010-04-15 廖小平 Date Name Signature FCC Test Report of E173s-2 FCC ID: QISE173S-2 Report No: SYBHZ(R) E031032010EB-1 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total28 REPORT BODY CONTENT 1 Status ............................................................................................................................................6 1.1 Product Information.......................................................................................................................6 1.2 Applied Standard ..........................................................................................................................6 1.3 Test Site ........................................................................................................................................7 1.4 Test environment condition...........................................................................................................7 2 Summary of Results......................................................................................................................8 3 Equipment Specification ...............................................................................................................9 3.1 General Description ......................................................................................................................9 3.2 Sub-Assembly Identity ..................................................................................................................9 4 System Configuration during EMC Test .....................................................................................10 4.1 Cables Used during Test ............................................................................................................10 4.2 Associated Equipment Used during Test ...................................................................................10 4.3 Test Configurations and Test Mode............................................................................................10 4.4 Test conditions and test Connections.........................................................................................10 5 Electromagnetic Interference (EMI) ............................................................................................12 5.1 Radiated Disturbance 30MHz to18000MHz...............................................................................12 5.2 Conducted Disturbance 0.15 MHz to 30MHz.............................................................................13 5.3 Radiated Spurious Emissions.....................................................................................................14 6 Main Test Instruments ................................................................................................................17 7 System Measurement Uncertainty..............................................................................................18 8 Graph and Data of Emission Test...............................................................................................19 8.1 Radiated Disturbance ..........…

Text truncated - open the document above for the full version.

FCC Test Report of E173s-2 FCC ID: QISE173S-2 Security Level: secret Report No: SYBHZ(R)E031032010EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total7 Photos of EUT FCC Test Report of E173s-2 FCC ID: QISE173S-2 Security Level: secret Report No: SYBHZ(R)E031032010EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total7 E173s-2 Appearance FCC Test Report of E173s-2 FCC ID: QISE173S-2 Security Level: secret Report No: SYBHZ(R)E031032010EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total7 Photos of Test Setup FCC Test Report of E173s-2 FCC ID: QISE173S-2 Security Level: secret Report No: SYBHZ(R)E031032010EB-1 Confidential Information of Huawei. No Distribution without Permission Page4, Total7 1 Radiated Emissions Radiated Disturbance (30MHZ-1GHZ) Radiated Disturbance (1GHZ-18GHZ) FCC Test Report of E173s-2 FCC ID: QISE173S-2 Security Level: secret Report No: SYBHZ(R)E031032010EB-1 Confidential Information of Huawei. No Distribution without Permission Page5, Total7 2 Radiated Spurious Emissions Radiated Spurious Emission (below 2GHz) Radiated Spurious Emission (2GHz to18GHz) FCC Test Report of E173s-2 FCC ID: QISE173S-2 Security Level: secret Report No: SYBHZ(R)E031032010EB-1 Confidential Information of Huawei. No Distribution without Permission Page6, Total7 Radiated Spurious Emission 18G~26.5GHz FCC Test Report of E173s-2 FCC ID: QISE173S-2 Security Level: secret Report No: SYBHZ(R)E031032010EB-1 Confidential Information of Huawei. No Distribution without Permission Page7, Total7 3 Conducted Emissions Conducted Emissions for AC Power
