QISE173U-63HSPA USB Stick

Thank you for choosing the Mobile Broadband USB Stick. With your USB Stick, you can access a wireless network at high speed. Note: This manual describes the appearance of the USB Stick, as well as the procedures for preparation, installation, and removal. For operation details about the management program, see the online help included in the management program. Getting to Know Your USB Stick The following figure shows the appearance of the USB Stick. It is provided only for your reference. The actual product may be different. 2 1 2 3 4 5 n USB Connector It connects the USB Stick to a PC. o Strap Hole You can tie the cap and the USB Stick together by threading a strap through the strap holes, so that the cap will not be easily lost. p Indicator It indicates the status of the USB Stick. z Green, blinking twice every 3s: The USB Stick is powered on. z Green, blinking once every 3s: The USB Stick is registering with a 2G network. z Blue, blinking once every 3s: The USB Stick is registering with a 3G/3G+ network. z Green, solid: The USB Stick is connected to a 2G network. z Blue, solid: The USB Stick is connected to a 3G network. z Cyan, solid: The USB Stick is connected to a 3G+ network. z Off: The USB Stick is removed. q SIM/USIM Card Slot It holds a Subscriber Identity Module (SIM)/Universal Subscriber Identity Module (USIM) card. r MicroSD Card Slot It holds a microSD card. Getting Your USB Stick Ready 1. Slide the front cover to remove it from the USB Stick. 2. Insert the SIM/USIM card and the microSD card into the corresponding card slots, as shown in the following figure. 3. Replace the front cover and slide it into place. Note: z The microSD card is an optional accessory. If it is not provided in the package, you can buy one yourself. z Ensure that the beveled edge of the SIM/USIM card is properly aligned with that of the SIM/USIM card slot and the microSD card is inserted according to the direction as labeled on the microSD card slot. z Do not remove the microSD or SIM/USIM card when the card is in use. Otherwise, the card as well as your USB Stick may get damaged and the data stored on the card may be corrupted. Installation/Removal Guide The procedure for installing the management program depends on the operating system (OS) installed on your PC. The following sections take Windows XP as an example. Connecting the USB Stick to a PC Plug the USB Stick into the USB port of your PC. Installing the USB Stick Management Program 1. Connect the USB Stick with the PC. 2. The OS automatically detects and recognizes the new hardware and starts the installation wizard. Note: If the auto-run program does not respond, find the AutoRun.exe file in the driver path. Then double-click AutoRun.exe to run the program. 3. Follow the on-screen instructions of the installation wizard. 4. After the program is installed, a shortcut icon for the management program appears on the desktop. Starting the Management Program After being installed, the management program starts automatically. Then every time the USB Stick is connected to the PC, the management program starts automatically. You can also double-click the shortcut icon on the desktop to start the management program. Removing the USB Stick 1. Double-click in the notification area. Then the Unplug or Eject Hardware dialog box appears. 2. Select the corresponding hardware and then click Stop. 3. When the message "It is safe to remove the device" appears, remove the USB Stick. Uninstalling the Management Program 1. Choose Start > Control Panel > Add or Remove Programs. 2. Find the management program and click Remove to uninstall the management program. Note: Exit the management program before uninstalling it. Version: V100R001_03 Part Number: 31010DDD

Copyright © Huawei Technologies Co., Ltd. 2009. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Warnings and Precautions This section contains important information pertaining to the operating instructions of your device. It also contains information about how to use your device safely. Read this information carefully before using the device. Electronic Device Do not use your device if using the device is prohibited. Do not use the device when using the device causes danger or interference with electronic devices. Medical Device z Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device when using the device is prohibited. z Some wireless devices may affect the performance of hearing aids or pacemakers. For any such problems, consult your service provider. z If you are using an electronic medical device, consult the doctor or the device manufacturer to confirm whether radio waves affect the operation of this device. Potentially Explosive Atmosphere Do not use your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not use your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity. Traffic Security z Observe local laws and regulations while using the device. To prevent accidents, do not use your wireless device while driving. z RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. z In a motor vehicle, do not place the device over the air bag or in the air bag deployment area. Otherwise, the device may hurt you owing to the strong force when the air bag inflates. z Do not use your device while flying in an aircraft and before boarding an aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft and disrupt the wireless telephone network. It may also be considered illegal. Operating Environment z Do not use the device in dusty, damp, and dirty places or places with magnetic fields. Otherwise, it may result in malfunction of the circuit. z On a stormy day with thunder, do not use your device when it is being charged, to prevent any danger caused by lightning. z While using the device, observe the local laws and regulations, and respect others' privacy and legal rights. Safety of Children Comply with all precautions with regard to children's safety. Letting the child play with your device or its accessories, which may include parts that can be detached from the device, may be dangerous, as it may present a choking hazard. Ensure that small children are kept away from the device and accessories. Accessories Use the accessories delivered only by the manufacturer. Using accessories of other manufacturers or vendors with this device model may invalidate any approval or warranty applicable to the device, result in the non-operation of the d…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R ChinaPost ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISE173U-63 to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Declaration of Letter To whom it may concern: FCC ID: QISE173U-63, Model: E173u-63; QISE173U-6, Model: E173u-6. This is to advise and officially, that we, HUAWEI TECHNOLOGIES CO., LTD., declare that E173u-63 disabled band I and replaced band V with band II from E173u-6, and also reduced the output power of GSM1900M and an angle RF testing switch is used for E173u-63, they have the same PCB and antenna; the EMC test result of E173u-63 is the same as E173u-6 for FCC band, the SAR and RF were retest. E173u-63 E173u-6 GSM four band support support WCDMA 2100M No support WCDMA 1900M support support WCDMA 850M No, replaced by W900Msupport WCDMA 900M support No antenna same PCB same Appearance same Sincerely, Zhang Xinghai EMC Laboratory Manager For and Behalf of: Huawei Technologies Co., Ltd. Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei Industrial Base, Bantian, Longgang, Shenzhen, P.R China 0086-755-89651014

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2010-12-01 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QIS E173U-63 Product Name: HSPA USB Stick Product Model: E173u-63 To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 90 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely,

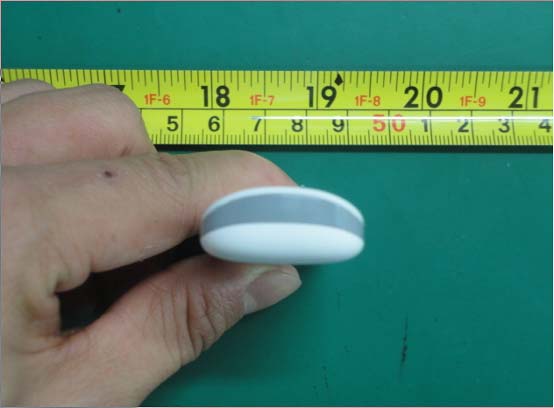

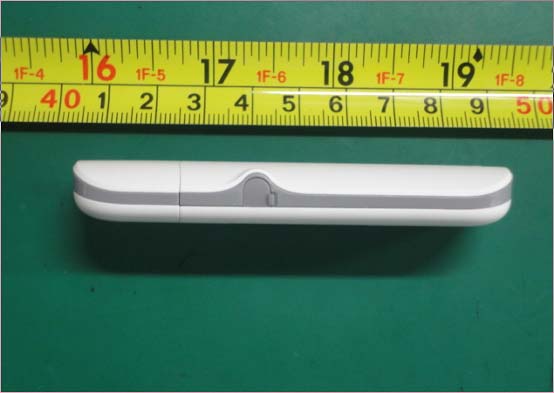

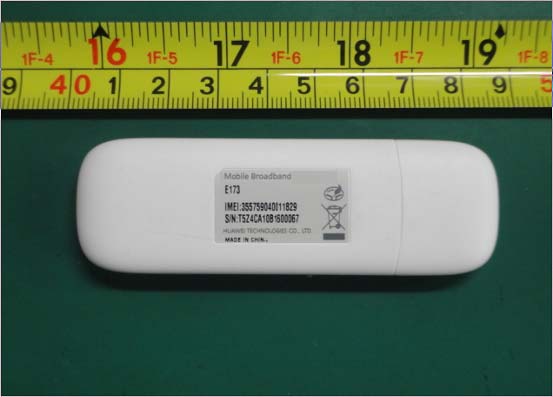

E173u-63 SECRET Page1，Total 5 External Photos of E173u-63 E173u-63 SECRET Page2，Total 5 E173u-63 SECRET Page3，Total 5 E173u-63 SECRET Page4，Total 5 E173u-63 SECRET Page5，Total 5

E173u-63 SECRET Page1, Total 1 ID Label E173u-63

E173u-63 SECRET Page1, Total 1 ID Label Location_E173u-63

E173u-63 SECRET Page1，Total3 Internal Photos of E173u-63 E173u-63 SECRET Page2，Total3 E173u-63 SECRET Page3，Total3

Huawei Technologies Co.,Ltd. Huawei Base, Bantian, Longgang District, Shenzhen, P.R.China Phone: +86-755-28785278 SAR-Laboratory Fax: +86-755-36834474 . As of 2010-11-27 Page 1 of 101 Accredited testing laboratory CNAS Registration number: L0310 Report On SAR Test of HSPA USB Stick M/N: E173u-63 Test report no. : SYBH(Z-SAR)008112010-2 Type identification : E173u-63 FCC ID : QISE173U-63 Test specification : IEEE 1528-2003 : ANSI C95.1-1999 : OET Bulletin 65 Supplement C : EN 62209-2: 2010 Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)008112010-2 As of 2010-11-27 Page 2 of 101 Table of Contents 1 General Information............................................................................................................................................................ 3 1.1 Notes............................................................................................................................................................................ 3 1.1.1 Statement of Compliance................................................................................................................................. 3 1.2 Testing laboratory....................................................................................................................................................... 4 1.3 Applicant and Manufacturer...................................................................................................................................... 4 1.4 Details of Test Date................................................................................................................................................... 4 1.5 Test Item...................................................................................................................................................................... 5 1.5.1 EUT Description................................................................................................................................................. 5 1.6 Test specification(s)................................................................................................................................................... 7 1.6.1 RF exposure limits............................................................................................................................................. 7 1.7 Operating conditions during test.............................................................................................................................. 8 1.7.1 General description of test procedures........................................................................................................... 8 1.7.2 GSM/GPRS/EGPRS Test Configurations...................................................................................................... 8 1.7.3 WCDMA/HSPDA/HSUPA Test Configurations.............................................................................................. 8 2 Technical test..................................................................................................................................................................... 12 2.1 Summary of test results........................................................................................................................................... 12 2.2 Test environment...................................................................................................................................................... 12 2.3 Measurement and test set-up................................................................................................................................. 12 2.4 Measurement system.............................................................................................................................................. 13 2.4.1 System Description.......................................................................................................................................... 13 2.4.2 Test environment............................................................................................................................................. 14 2.4.3 Probe description............................................................................................................................................. 14 2.4.4 Phantom description........................................................................................................................................ 15 2.4.5 Device holder description...............................................................................................................................15 2.4.6 Scanning procedure........................................................................................................................................ 16 2.4.7 Spatial Peak SAR Evaluation......................................................................................................................... 17 2.4.8 Data Storage and Evaluation......................................................................................................................... 18 2.4.9 Test equipment utilized................................................................................................................................... 20 2.4.10 Tissue simulating liquids: dielectric properties............................................................................................ 21 2.4.11 Tissue simulating liquids: parameters........................................................................................................... 21 2.4.12 Measurement uncertainty evaluation for SAR test...................................................................................... 22 2.4.13 Measurement uncertainty evaluation for system validation....................................................................... 23 2.4.14 System validation........................................................................................................…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)008112010-2 As of 2010-11-27 Page 51 of 101 Date/Time: 2010-11-25 10:12:11 P1528_OET65-EGPRS (3 timeslots in uplink) with ThinkPad T61 rear side- GSM850 DUT: E173u-63 Communication System: HW -GSM/GPRS/EDGE 3TS; Frequency: 824.2 MHz Medium parameters used: f = 825 MHz; σ = 0.966 mho/m; ε r = 54.5; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: z Probe: ES3DV3 - SN3168; ConvF(5.97, 5.97, 5.97); Calibrated: 2009-12-18 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE4 Sn852; Calibrated: 2009-12-18 z Phantom: SAM2; Type: SAM; Serial: Serial: TP-1474 z Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 E173u-63/Body/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.152 mW/g E173u-63/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.3 V/m; Power Drift = -0.030 dB Peak SAR (extrapolated) = 0.231 W/kg SAR(1 g) = 0.147 mW/g; SAR(10 g) = 0.090 mW/g Maximum value of SAR (measured) = 0.160 mW/g Additional information: position or distance of DUT to SAM: 5 mm ambient temperature: 22.0 °C; liquid temperature: 22.1 °C Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)008112010-2 As of 2010-11-27 Page 52 of 101 Annex 2.2 GSM 1900 MHz body Date/Time: 2010-11-23 21:58:11 P1528_OET65-GPRS (1 timeslots in uplink) with ThinkPad X301 front side- GSM1900 DUT: E173u-63 Communication System: HW -GSM/GPRS/EDGE 1TS; Frequency: 1880 MHz Medium parameters used: f = 1880 MHz; σ = 1.53 mho/m; ε r = 51.5; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: z Probe: ES3DV3 - SN3168; ConvF(4.62, 4.62, 4.62); Calibrated: 2009-12-18 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE4 Sn852; Calibrated: 2009-12-18 z Phantom: SAM1; Type: SAM; Serial: TP-1475 z Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 E173u-63/Body/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.593 mW/g E173u-63/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.18 V/m; Power Drift = 0.099 dB Peak SAR (extrapolated) = 0.960 W/kg SAR(1 g) = 0.590 mW/g; SAR(10 g) = 0.330 mW/g Maximum value of SAR (measured) = 0.655 mW/g Additional information: position or distance of DUT to SAM: 5 mm ambient temperature: 22.0 °C; liquid temperature: 22.1°C Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)008112010-2 As of 2010-11-27 Page 53 of 101 Date/Time: 2010-11-23 22:46:32 P1528_OET65-GPRS (2 timeslots in uplink) with ThinkPad X301 front side- GSM1900 DUT: E173u-63 Communication System: HW -GSM/GPRS/EDGE 2TS; Frequency: 1880 MHz Medium parameters used: f = 1880 MHz; σ = 1.53 mho/m; ε r = 51.5; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: z Probe: ES3DV3 - SN3168; ConvF(4.62, 4.62, 4.62); Calibrated: 2009-12-18 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE4 Sn852; Calibrated: 2009-12-18 z Phantom: SAM1; Type: SAM; Serial: TP-1475 z Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 E173u-63/Body/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.609 mW/g E173u-63/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.7 V/m; Power Drift = 0.123 dB Peak SAR (extrapolated) = 0.993 W/kg SAR(1 g) = 0.613 mW/g; SAR(10 g) = 0.343 mW/g Maximum value of SAR (measured) = 0.688 mW/g Additional information: position or distance of DUT to SAM: 5 mm ambient temperature: 22.0 °C; liquid temperature: 22.1°C Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)008112010-2 As of 2010-11-27 Page 54 of 101 Date/Time: 2010-11-23 23:27:26 P1528_OET65-GPRS (3 timeslots in uplink) with ThinkPad X301 front side- GSM1900 DUT: E173u-63 Communication System: HW -GSM/GPRS/EDGE 3TS; Frequency: 1850.2 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.48 mho/m; ε r = 51.2; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: z Probe: ES3DV3 - SN3168; ConvF(4.62, 4.62, 4.62); Calibrated: 2009-12-18 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE4 Sn852; Calibrated: 2009-12-18 z Phantom: SAM1; Type: SAM; Serial: TP-1475 z Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 E173u-63/Body/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.738 mW/g E173u-63/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.1 V/m; Power Drift = -0.066 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.715 mW/g; SAR(10 g) = 0.401 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.798 mW/g Additional information: position or distance of DUT to SAM: 5 mm ambient temperature: 22.0 °C; liquid temperature: 22.1°C Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)008112010-2 As of 2010-11-27 Page 55 of 101 Date/Time: 2010-11-24 00:18:40 P1528_OET65-GPRS (4 timeslots in uplink) with ThinkPad X301 front side- GSM1900 DUT: E173u-63 Communication System: HW -GSM/GPRS/EDGE 4TS; Frequency: 1880 MHz Medium parameters used: f = 1880 MHz; σ = 1.53 mho/m; ε r = 51.5; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: z Probe: ES3DV3 - SN3168; ConvF(4.62, 4.62, 4.62); Calibrated: 2009-12-18 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE4 Sn852; Calibrated: 2009-12-18 z Phantom: SAM1; Type: SAM; Serial: TP-1475 z Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Ver…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)008112010-2 As of 2010-11-27 Page 71 of 101 Date/Time: 2010-11-23 03:05:33 P1528_OET65-WCDMA with ThinkPad T61 rear side-WCDMA1900 DUT: E173u-63 Communication System: HW -UMTS-FDD; Frequency: 1907.6 MHz Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.55 mho/m; ε r = 51.4; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: z Probe: ES3DV3 - SN3168; ConvF(4.62, 4.62, 4.62); Calibrated: 2009-12-18 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE4 Sn852; Calibrated: 2009-12-18 z Phantom: SAM1; Type: SAM; Serial: TP-1475 z Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 E173u-63/Body/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.650 mW/g E173u-63/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.2 V/m; Power Drift = 0.015 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 0.766 mW/g; SAR(10 g) = 0.392 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.877 mW/g Additional information: position or distance of DUT to SAM: 5 mm ambient temperature: 22.0 °C; liquid temperature: 22.1°C Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)008112010-2 As of 2010-11-27 Page 72 of 101 Date/Time: 2010-11-23 03:47:25 P1528_OET65-WCDMA with ThinkPad T61 rear side-WCDMA1900 DUT: E173u-63 Communication System: HW -UMTS-FDD; Frequency: 1852.4 MHz Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.5 mho/m; ε r = 51.5; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: z Probe: ES3DV3 - SN3168; ConvF(4.62, 4.62, 4.62); Calibrated: 2009-12-18 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE4 Sn852; Calibrated: 2009-12-18 z Phantom: SAM1; Type: SAM; Serial: TP-1475 z Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 E173u-63/Body/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.798 mW/g E173u-63/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.9 V/m; Power Drift = 0.00719 dB Peak SAR (extrapolated) = 1.21 W/kg SAR(1 g) = 0.759 mW/g; SAR(10 g) = 0.428 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.844 mW/g Additional information: position or distance of DUT to SAM: 5 mm ambient temperature: 22.0 °C; liquid temperature: 22.1°C Huawei Technologies Co.,Ltd. Test report no.: SYBH(Z-SAR)008112010-2 As of 2010-11-27 Page 73 of 101 Date/Time: 2010-11-23 04:26:13 P1528_OET65-HSDPA with ThinkPad T61 rear side-WCDMA1900 DUT: E173u-63 Communication System: HW -UMTS-FDD; Frequency: 1880 MHz Medium parameters used: f = 1880 MHz; σ = 1.53 mho/m; ε r = 51.5; ρ = 1000 kg/m3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: z Probe: ES3DV3 - SN3168; ConvF(4.62, 4.62, 4.62); Calibrated: 2009-12-18 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE4 Sn852; Calibrated: 2009-12-18 z Phantom: SAM1; Type: SAM; Serial: TP-1475 z Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 E173u-63/Body/Area Scan (7x14x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 1.1 mW/g E173u-63/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.2 V/m; Power Drift = 0.016 dB Peak SAR (extrapolated) = 1.63 W/kg SAR(1 g) = 1.000 mW/g; SAR(10 g) = 0.552 mW/g Maximum value of SAR (measured) = 1.12 mW/g Additional information: position or distance of DUT to S…

Text truncated - open the document above for the full version.
