QISE303H-6HSPA USB Stick

Quick Start Thank you for choosing the Mobile Broadband USB Stick. With your USB Stick, you can access a wireless network at high speed. Note: This manual describes the appearance of the USB Stick, as well as the procedures for preparation, and connection steps. Getting to Know Your USB Stick The following figure shows the appearance of the USB Stick. It is provided only for your reference. The actual product may be different. 1 2 3 4  USB Connector It connects the USB Stick to a PC.  Indicator It indicates the status of the USB Stick.  Green, blinking twice every 2s: The USB Stick is powered on.  Green, blinking once every 2s: The USB Stick is registering with a 2G network.  Blue, blinking once every 2s: The USB Stick is registering with a 3G/3G+ network.  Green, solid: The USB Stick is connected to a 2G network.  Blue, solid: The USB Stick is connected to a 3G network.  Cyan, solid: The USB Stick is connected to a 3G+ network.  Off: The USB Stick is removed.  SIM Card Slot It holds a Subscriber Identity Module (SIM) card.  microSD Card Slot It holds a microSD card. Getting Your USB Stick Ready 1. Slide the cover to remove it from the USB Stick. 2. Insert the SIM card and the microSD card into the corresponding card slots, as shown in the following figure. 3. Replace the cover and slide it into place. Note:  The microSD card is an optional accessory. If it is not provided in the package, you can buy one yourself.  Ensure that the beveled edge of the SIM card is properly aligned with that of the SIM card slot and the microSD card is inserted according to the direction as labeled on the microSD card slot.  Do not remove the microSD or SIM card when the card is in use. Otherwise, the card as well as your USB Stick may get damaged and the data stored on the card may be corrupted. Using Your USB Stick The procedure for installation depends on your computer's operating system. The following sections are based on Windows OS. Connecting to a Network 1. Insert the USB Stick into one of your computer's USB ports. The computer identifies the new hardware and starts its installation automatically. 2. When the installation is complete, the USB Stick's web management page is displayed and the USB Stick connects to the network automatically. The USB Stick's web management page will be automatically displayed every time the USB Stick is inserted into the co mp uter. Note:  If the computer does not start the USB Stick's installation automatically, find the AutoRun.exe file in the USB Stick's root directory, and double-click the file to run it.  If you are not connected to the network, access http://192.168.8.1 to check the device status.  If you cannot access http://192.168.8.1, disconnect other network connections, such as an Ethernet or Wireless Fidelity (Wi-Fi) connection, remove and then insert the USB Stick, or restart the computer. Disconnecting from a Network Remove the USB Stick from the computer. Note:  If you do not need to connect to a network, it is recommended that you remove the USB Stick from your computer to eliminate unwanted data traffic.  Disconnect the USB Stick's dial-up connection through its web management page. Before you remove the USB Stick, make sure that the dial-up connection has been disconnected. Viewing Service Information Visit http://192.168.8.1 to view your service information. Version: V100R001_01 Part Number: 31010PRE

Safety Information Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawe i"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTE NTS OF T HIS MA NUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUC H A LI MITATION) OF HUAW EI ARISING FROM T HE USE OF THE PROD UCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical d ata there in. Priv acy Policy To better understand how we protect your personal information, please see the privac y polic y at http ://co nsume r.huawe i.com/e n/privac y-policy/index.htm. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic dev ice Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flamm able liq uids, g ases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environme nts may result in circ uit m alf unc tio ns.  Do not use your device during thunderstorms to protect your device against any dange r caused by lightning.  Ideal operating temperatures are -10 °C to +45 °C. Ideal storage temperatures are -20°C to +70 °C. Extreme heat or cold may damage your device or accessories.  Keep the device and accessories in a well-ventilated and cool area away from direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device in a container with poor heat dissipation, such as a box or bag.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture .  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Stop us…

Text truncated - open the document above for the full version.

Date (19/12/2013) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISE303H-6 This authorization is valid until further written notice from Huawei Technologies Co., Ltd. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2013-11-28 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISE303H-6 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram and PCB layout Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Statements Date (30/12/2013) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Company name: Huawei Technologies Co., Ltd. Address: Administration Building, Headquartersof Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen 518129, China Hereby to confirm that our device, FCC ID: QISE303H-6, Its cover can be removed during package and the FCC ID is readily visible when users open the product box. Sincerely, For and Behalf of: EMC Laboratory Manager: Zhangxinghai Telephone Number: 0755-28970299 FAX No.: 0755-89650226 Email: [email protected]

Justification Letter Date (30/12/2013) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby to do the Justification on original FCC application: HSPA USB Stick, E303h-6, FCC ID: QISE303H-6 as following: E303h-6 is a HSPA/HSUPA/HSDPA/EDGE/GPRS/GSM USB Stick. The GSM supports four bands. The WCDMA supports WCDMA2100、WCDMA1900 and WCDMA850. E3531s-6 is a GSM/GPRS/EDGE/UMTS/HSDPA/HSUPA/HSPA+ USB Stick. The GSM supports four bands. The WCDMA supports WCDMA2100、WCDMA1900 and WCDMA850. The difference between E3531s-6 (Product Type: HSPA+ USB Stick; Model No.: E3531s-6; FCC ID: QISE3531S-6, Grant date: 2013-08-29) and E303h-6: 1) E303h-6 changes appearance base on E3531s-6, but dimensions are the same. 2) E303h-6 degrade downlink rate from 21Mbps to 7.2Mbps by software, the silk-screen are different for distinguish downlink rate, the hardware are the same. 3) E303h-6 and E3531s-6 USB direction is opposite, but will not affect any performance. The followed table shows the different between the 2 Models. E303h-6 E3531s-6 GSM four band support support WCDMA 2100M support support WCDMA 1900M support support WCDMA 850M support support FLASH the same the same PCB the same the same Antenna the same the same USB port Different(reverse) Different(positive) Downlink rate Different(7.2Mbps) Different(21Mbps) Appearance Different with E3531s-6 Different with E303h-6 The difference photos between E303h-6 and E3531s-6: E303h-6 appearance 84x27x10.5 (mm3) E3531s-6 appearance 84x27x10.5 (mm3) E303h-6 and E3531s-6 USB port opposite So in FCC application for E303h-6 (FCC ID: QISE303H-6): Test data for GSM/GPRS/EDGE/UMTS/HSDPA/HSUPA/HSPA 850/1900MHz is from report “SYBH(Z-RF) 007082013-2001” in FCC application for E3531s-6(FCC ID: QISE3531S-6), and this data according to Part 22/24 remains valid and applicable and they are representative of the compliance of E303h-6. Test data for Part 15B Unintentional Radiator is refer to new test report “SYBH(Z-EMC)025082013-2”, and this data according to Part 15B are representative of the compliance of E303h-6. New SAR Test report “SYBH(Z-SAR)011122013-2” demonstrate E303h-6 comply with the SAR requirement. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

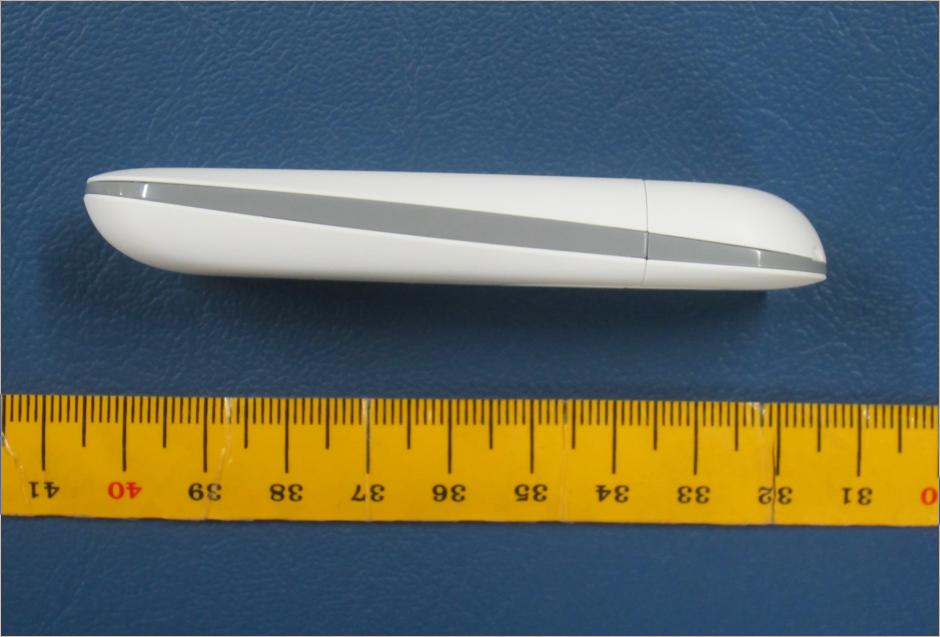

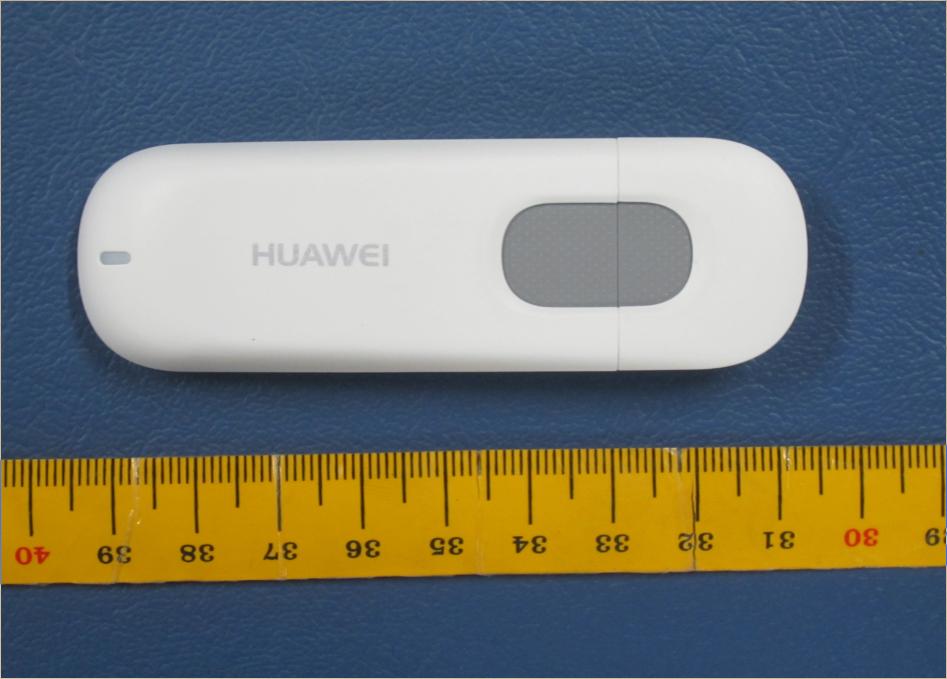

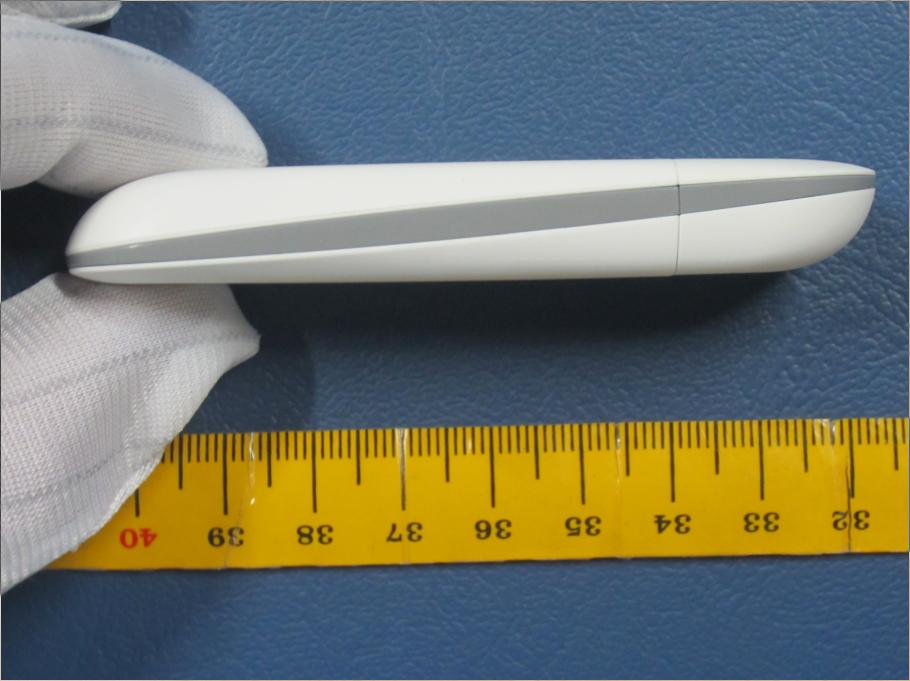

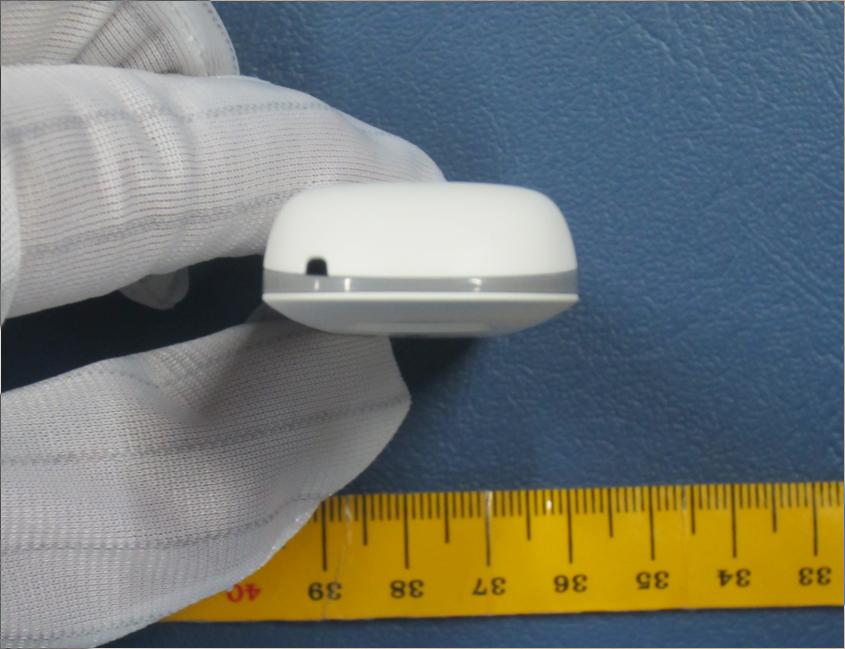

E303h-6 SECRET 2013-12-30 Page1, Total5 External Photos of E303h-6 E303h-6 SECRET 2013-12-30 Page2, Total5 E303h-6 SECRET 2013-12-30 Page3, Total5 E303h-6 SECRET 2013-12-30 Page4, Total5 E303h-6 SECRET 2013-12-30 Page5, Total5

E303h-6 SECRET Page 1 Total 1 ID Label Location_ E303h-6

E303h-6 SECRET Page 1 Total 1 ID Label E303h-6:

E303h-6 SECRET 2013-12-31 Page1, Total2 Internal Photos of E303h-6 E303h-6 SECRET 2013-12-31 Page2, Total2

EMC Test Report Product Name: HSPA USB Stick Model Number: E303h-6 Report No: SYBH(Z-EMC)033122013-2 FCC ID: QISE303H-6 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 EMC Test Report of E303h-6 FCC ID:QISE303H-6 Security Level: secret Report No.: SYBH(Z-EMC)033122013-2 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total16 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing and approving the test report. 7. The test report is invalid if there is any evidence of erasure and/or falsification. 8. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 9. Normally, the test report is only responsible for the samples that have undergone the test. 10. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. EMC Test Report of E303h-6 FCC ID:QISE303H-6 Security Level: secret Report No.: SYBH(Z-EMC)033122013-2 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total16 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Test Item: Jul.04,2013 Start Date of Test: Dec.12,2013 End Date of Test: Dec.13,2013 Test Result: Pass Approved By 2013-12-18 Liu Chunlin (Lab Manager) Date Name Signature Prepared by 2013-12-18 Wu Yafeng (Test Engineer) Date Name Signature EMC Test Report of E303h-6 FCC ID:QISE303H-6 Security Level: secret Report No.: SYBH(Z-EMC)033122013-2 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total16 TABLE OF CONTENT 1 General Information .......................................................................................................................... 5 1.1 EUT Description ........................................................................................................................ 5 1.2 Test Site Information .................................................................................................................. 5 1.3 Applied Standards ..................................................................................................................... 5 2 Summary of Results ......................................................................................................................... 6 3 System Configuration during EMC Test ........................................................................................... 7 3.1 Test Mode .................................................................................................................................. 7 3.2 Test System Configuration ........................................................................................................ 7 3.3 Cables Used during Test ........................................................................................................... 8 3.4 Associated Equipment Used during Test .................................................................................. 8 4 Electromagnetic Interference (EMI) ................................................................................................. 9 4.1 Radiated Disturbance 30MHz to 18GHz ................................................................................... 9 4.2 Conducted Disturbance 0.15 MHz to 30MHz.......................................................................... 11 5 Main Test Instruments .................................................................................................................... 12 6 System Measurement Uncertainty ................................................................................................. 13 7 Test Data and Graph ...................................................................................................................... 14 7.1 Radiated Disturbance .............................................................................................................. 14 7.2 Conducted Disturbance ........................................................................................................... 16 EMC Test Report of E303h-6 FCC ID:QISE303H-6 Security Level: secret Report No.: SYBH(Z-EMC)033122013-2 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total16 1 General Information 1.1 EUT Description EUT Description Product Name HSPA USB Stick Model Number E303h-6 Input voltage DC 5V TX Frequency GSM 850:824MHz To 849MHz GSM1900:1850MHz To 1910MHz WCDMA Band II:1850MHz To 1910MHz WCDMA Band V: 824MHz To 849MHz RX Frequency GSM850:869MHz To 894MHz GSM1900:1930MHz To 1990MHz WCDMA BAND II:1930MHz To 1990MHz WCDMA BAND V: 869MHz To 894MHz S/N X9U01A9381400251 HW Version CH1E3531SM SW Version 22.318.24.00.00 EUT Accessory Data cable Data Cable USB Male to USB Female, shielded Remark: The above EUT’…

Text truncated - open the document above for the full version.

EMC Test Report of E303h-6 FCC ID: QISE303H-6 Security Level: secret Report No.: SYBH(Z-EMC)033122013-2 Confidential Information of Huawei. No Distribution without Permission Page1, Total5 Photos of EUT EMC Test Report of E303h-6 FCC ID: QISE303H-6 Security Level: secret Report No.: SYBH(Z-EMC)033122013-2 Confidential Information of Huawei. No Distribution without Permission Page2, Total5 Figure1 EUT Appearance EMC Test Report of E303h-6 FCC ID: QISE303H-6 Security Level: secret Report No.: SYBH(Z-EMC)033122013-2 Confidential Information of Huawei. No Distribution without Permission Page3, Total5 Photos of Test Setup EMC Test Report of E303h-6 FCC ID: QISE303H-6 Security Level: secret Report No.: SYBH(Z-EMC)033122013-2 Confidential Information of Huawei. No Distribution without Permission Page4, Total5 1 Radiated Emissions Radiated Disturbance Emissions (below 1GHz) Radiated Disturbance Emissions (1GHz to18GHz) EMC Test Report of E303h-6 FCC ID: QISE303H-6 Security Level: secret Report No.: SYBH(Z-EMC)033122013-2 Confidential Information of Huawei. No Distribution without Permission Page5, Total5 2 Conducted Emissions Conducted Emissions with AC Ports ----------------------------------------------------------- END-----------------------------------------------------------
