QISE3131I-81HSPA+ USB Stick

Quick Start Thank you for choosing the Mobile Broadband USB Stick. With your USB Stick, you can access a wireless network at high speed. Note: This manual describes the appearance of the USB Stick, as well as the procedures for preparation, installation, and removal. For operation details about the management program, see the online help included in the management program. Getting to Know Your USB Stick The following figure shows the appearance of the USB Stick. It is provided only for your reference. The actual product may be different. 1 2 3 4  USB Connector It connects the USB Stick to a PC.  Indicator It indicates the status of the USB Stick.  Green, blinking twice every 2s: The USB Stick is powered on.  Green, blinking once every 2s: The USB Stick is registering with a 2G network.  Blue, blinking once every 2s: The USB Stick is registering with a 3G/3G+ network.  Green, solid: The USB Stick is connected to a 2G network.  Blue, solid: The USB Stick is connected to a 3G network.  Cyan, solid: The USB Stick is connected to a 3G+ network.  Off: The USB Stick is removed.  SIM Card Slot It holds a Subscriber Identity Module (SIM) card.  microSD Card Slot It holds a microSD card. Getting Your USB Stick Ready 1. Open the cover to remove it from the USB Stick. 2. Insert the SIM card and the microSD card into the corresponding card slots, as shown in the following figure. 3. Replace the cover and click it into place. Note:  The microSD card is an optional accessory. If it is not provided in the package, you can buy one yourself.  Ensure that the beveled edge of the SIM card is properly aligned with that of the SIM card slot and the microSD card is inserted according to the direction as labeled on the microSD card slot.  Do not remove the microSD or SIM card when the card is in use. Otherwise, the card as well as your USB Stick may get damaged and the data stored on the card may be corrupted. Installation/Removal Guide The procedure for installing the management program depends on the operating system (OS) installed on your PC. The following sections take Windows 7 as an example. Connecting the USB Stick to a PC Plug the USB Stick into the USB port of your PC. Installing the USB Stick Management Program 1. Connect the USB Stick with the PC. 2. The OS automatically detects and recognizes the new hardware and starts the installation wizard. Note: If the auto-run program does not respond, find the AutoRun application in the driver path. Then double-click AutoRun application to run the program. 3. Follow the on-screen instructions of the installation wizard. 4. After the program is installed, a shortcut icon for the management program appears on the desktop. Starting the Management Program After being installed, the management program starts automatically. Then every time the USB Stick is connected to the PC, the management program starts automatically. You can also double-click the shortcut icon on the desktop to start the management program. Removing the USB Stick 1. Exit the management program before removing the USB Stick. 2. Click in the notification area. 3. Select the corresponding hardware and then click it. 4. Remove the USB Stick after a while. Uninstalling the Management Program 1. Choose Start > Control Panel > Uninstall a program. 2. Find the management program and double-click it to uninstall the management program. Note: Exit the management program before uninstalling it. Version: V100R001_01 Part Number: 31010PRH

Safety Information Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/en/privacy-policy/index.htm. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are -10 °C to +45 °C. Ideal storage temperatures are -20 °C to +70 °C. Extreme heat or cold may damage your device or accessories.  Keep the device and accessories in a well-ventilated and cool area away from direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device in a container with poor heat dissipation, such as a box or bag.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Stop using your device or applications…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISE3131I-81 to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

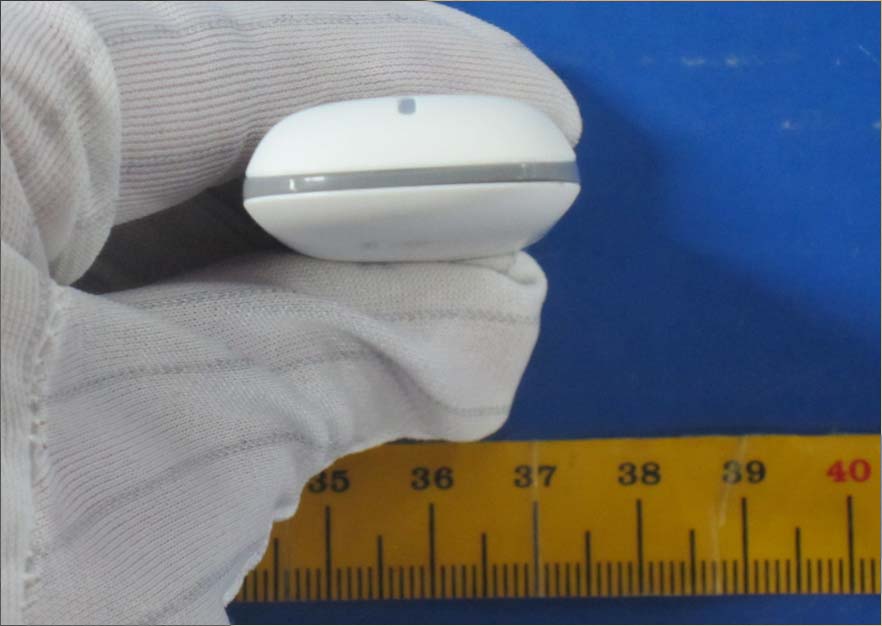

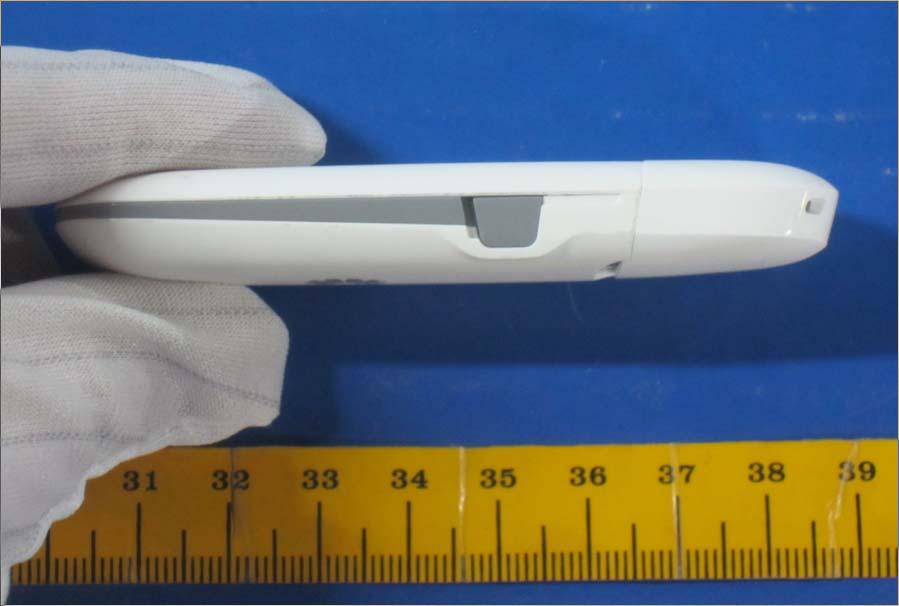

E3131i-81 SECRET 2014-3-17 Page1, Total5 External Photos of E3131i-81 E3131i-81 SECRET 2014-3-17 Page2, Total5 E3131i-81 SECRET 2014-3-17 Page3, Total5 E3131i-81 SECRET 2014-3-17 Page4, Total5 E3131i-81 SECRET 2014-3-17 Page5, Total5

E3131i-81 SECRET Page 1 Total 1 ID Label E3131i-81: ID Label Location_ E3131i-81:

E3131i-81 SECRET 2014-3-17 Page1, Total2 Internal Photos of E3131i-81 E3131i-81 SECRET 2014-3-17 Page2, Total2

Report No. RHA1403-0019SAR01R1 Page 1 of 104 TESTING No. L2264 SAR TEST REPORT Product Name HSPA+ USB Stick Model E3131i-81 FCC ID QISE3131I-81 Client Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Date of issue March 19, 2014 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0019SAR01R1 Page 2 of 104 GENERAL SUMMARY Reference Standard(s) FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. RSS-102 Issue 4 March 2010: Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands). KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03 SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 Mobile Portable RF Exposure v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 447498 D02 SAR Procedures for Dongle Xmtr v02: SAR Measurement Procedures for USB Dongle Transmitters. KDB 941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D03 SAR Test Reduction GSM/GPRS/EDGE v01: Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Weizhong Yang Director Revised by Minbao Ling SAR Manager Performed by Yi Zhang SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1403-0019SAR01R1 Page 3 of 104 TABLE OF CONTENT 1. General Information ........................................................................................................................ 5 1.1. Notes of the Test Report.......................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................... 5 1.3. Applicant Information ............................................................................................................... 6 1.4. Manufacturer Information ......................................................................................................... 6 1.5. Information of EUT................................................................................................................... 7 1.6. The Maximum Reported SAR 1g ............................................................................................... 8 1.7. Maximum Conducted Power of Each Tested Mode................................................................. 8 1.8. Test Date ................................................................................................................................. 8 2. SAR Measurements System Configuration ..................................................................................... 9 2.1. SAR Measurement Set-up ....................................................................................................... 9 2.2. DASY5 E-field Probe System ................................................................................................ 10 2.2.1. EX3DV4 Probe Specification .......................................................................................... 10 2.2.2. E-field Probe Calibration ..................................................................................................11 2.3. Other Test Equipment ............................................................................................................11 2.3.1. Device Holder for Transmitters ........................................................................................11 2.3.2. Phantom .........................................................................................................................12 2.4. Scanning Procedure ..............................................................................................................12 2.5. Data Storage and Evaluation ................................................................................................. 14 2.5.1. Data Storage...................................................................................................................14 2.5.2. Data Evaluation by SEMCAD ......................................................................................... 14 3. Laboratory Environment................................................................................................................ 16 4. Tissue-equivalent Liquid ............................................................................................................... 17 4.1. Tissue-equivalent Liquid Ingredients...................................................................................... 17 4.2. Tissue-equivalent Liquid Properties ....................................................................................... 17 5. System Check ............................................................................................................................... 18 5.1. Description of System Check ................................................................................................. 18 5.2. System Check Results ...........................................................................................................19 6. Operational Conditions during Test ...............................................................................…

Text truncated - open the document above for the full version.

RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 100 Appendix for test report RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 100 1Appendix_A: Effective (Isotropic) Radiated Power Output Data Part I - Test Results Test Band Test Mode Test Channel Conducted Power [dBm] ERP [dBm] Limit [dBm] Verdict GSM850 GSM/TM1 LCH 32.43 31.28 38.5 PA SS MCH 32.46 31.31 38.5 PA SS HCH 32.43 31.28 38.5 PA SS GSM/TM2 LCH 25.42 24.64 38.5 PA SS MCH 25.41 24.26 38.5 PA SS HCH 25.43 24.28 38.5 PA SS Test Band Test Mode Test Channel Conducted Power [dBm] EIRP [dBm] Limit [dBm] Verdict GSM1900 GSM/TM1 LCH 28.7 32.4 33 PA SS MCH 28.78 32.48 33 PA SS HCH 28.8 32.5 33 PA SS GSM/TM2 LCH 23.58 27.28 33 PA SS MCH 23.59 27.29 33 PA SS HCH 23.65 27.35 33 PA SS WCDMA1900 UMTS/TM1 LCH 22.03 26.09 33 PA SS MCH 21.78 25.48 33 PA SS HCH 21.83 25.53 33 PA SS RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 100 Note1: a, For getting the ERP (Efficient Radiated Power) or EIRP (Efficient Isotropic Radiated Power) in substitution method, the following formula should be taken to calculate it, ERP [dBm] = SGP [dBm] - Cable Loss [dB] + Gain [dBd] EIRP [dBm] = SGP [dBm] - Cable Loss [dB] + Gain [dBi] b, SGP=Signal Generator Level Note2: RBW > emission bandwidth, VBW > 3 x RBW. Detector: RMS RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 100 2Appendix_B: Peak-to-Average Ratio Part I - Test Results Test Band Test Mode Test Channel Measured[dB] Limit [dB] Verdict GSM1900 GSM/TM1 LCH 0.13 13 PA SS MCH 0.12 13 PA SS HCH 0.12 13 PA SS GSM/TM2 LCH 2.8 13 PA SS MCH 2.68 13 PA SS HCH 2.66 13 PA SS Test Band Test Mode Test Channel Measured[dB] Limit [dB] Verdict WCDMA1900 UMTS/TM1 LCH 3.31 13 PA SS MCH 3.60 13 PA SS HCH 3.39 13 PA SS RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 100 3Appendix_C: Modulation Characteristics Part I - Test Plots 3.1 For GSM 3.1.1 Test Band = GSM850 3.1.1.1 Test Mode = GSM/TM1 3.1.1.1.1 Test Channel = MCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 100 3.1.1.2 Test Mode = GSM/TM2 3.1.1.2.1 Test Channel = MCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 100 3.1.2 Test Band = GSM1900 3.1.2.1 Test Mode = GSM/TM1 3.1.2.1.1 Test Channel = MCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 100 3.1.2.2 Test Mode = GSM/TM2 3.1.2.2.1 Test Channel = MCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 100 3.2 For UMTS 3.2.1 Test Band = WCDMA1900 3.2.1.1 Test Mode = UMTS/TM1 3.2.1.1.1 Test Channel = MCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 100 4Appendix_D: Bandwidth Part I - Test Results Test Band Test Mode Test Channel Occupied Bandwidth [kHz] Emission Bandwidth [kHz] Verdict GSM850 GSM/TM1 LCH 245.97 322.70 Pass MCH 241.36 313.45 Pass HCH 239.55 315.61 Pass GSM/TM2 LCH 245.01 317.35 Pass MCH 247.87 317.08 Pass HCH 248.70 317.33 Pass GSM1900 GSM/TM1 LCH 245.22 319.11 Pass MCH 240.67 314.98 Pass HCH 245.57 315.71 Pass GSM/TM2 LCH 250.55 326.82 Pass MCH 250.49 322.33 Pass HCH 249.53 323.39 Pass Test Band Test Mode Test Channel Occupied Bandwidth [MHz] Emission Bandwidth [MHz] Verdict WCDMA1900 UMTS/TM1 LCH 4.18 4.72 Pass MCH 4.18 4.74 Pass HCH 4.17 4.73 Pass RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 100 Part II - Test Plots 4.1 For GSM 4.1.1 Test Band = GSM850 4.1.1.1 Test Mode = GSM/TM1 4.1.1.1.1 Test Channel = LCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 100 4.1.1.1.2 Test Channel = MCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 13 of 100 4.1.1.1.3 Test Channel = HCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 14 of 100 4.1.1.2 Test Mode = GSM/TM2 4.1.1.2.1 Test Channel = LCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 15 of 100 4.1.1.2.2 Test Channel = MCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 16 of 100 4.1.1.2.3 Test Channel = HCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 17 of 100 4.1.2 Test Band = GSM1900 4.1.2.1 Test Mode = GSM/TM1 4.1.2.1.1 Test Channel = LCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 18 of 100 4.1.2.1.2 Test Channel = MCH RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 19 of 100 4.1.2.1.3 Test Channel = HCH RF Test Report of E31…

Text truncated - open the document above for the full version.

FCC RF Test Report Product Name: HSPA+ USB Stick Model Number: E3131i-81 Report No: SYBH(Z-RF)033022014-2001 FCC ID：QISE3131I-81 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 21 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 21 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2014-02-24 Start Date of Test: 2014-02-24 End Date of Test: 2014-02-28 Test Result: Pass Approved by Senior Engineer: 2014-03-07 Dai Linjun Date Name Signature Prepared by: 2014-03-07 Feng Nianwei Date Name Signature RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 21 Modification Record No. Last Report No. Modification Description 1 First report. RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 21 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 2.1 Cellular Band (824-849 MHz paired with 869-894 MHz) ............................................................................ 7 2.2 PCS Band (1850-1915 MHz paired with 1930-1995 MHz) ......................................................................... 8 3 Description of the Equipment under Test (EUT) ..................................................................................................... 9 3.1 General Description ................................................................................................................................... 9 3.2 EUT Identity ............................................................................................................................................... 9 3.3 Technical Specification ............................................................................................................................ 10 4 General Test Conditions / Configurations ............................................................................................................. 11 4.1 Test Modes .............................................................................................................................................. 11 4.2 Test Environment ..................................................................................................................................... 11 4.3 Test Frequency ........................................................................................................................................ 12 4.4 DESCRIPTION OF TESTS ...................................................................................................................... 13 4.5 Test Setups .............................................................................................................................................. 16 4.6 Test Conditions ........................................................................................................................................ 18 5 Main Test Instruments .......................................................................................................................................... 20 6 Measurement Uncertainty..................................................................................................................................... 21 RF Test Report of E3131i-81 Report No: SYBH(Z-RF)033022014-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 21 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 02:2012 47 CFR FCC Part 22: 2012 47 CFR FCC Part 24: 2012 Test Method: FCC KDB 971168…

Text truncated - open the document above for the full version.

RF Test Report of E3131i-81 Photos of Test Setups RF Test Report of E3131i-81 For GSM&WCDMA 1. Radiated Spurious Emissions Radiated Spurious Emission (below 3GHz) Radiated Spurious Emission (3GHz to18GHz) RF Test Report of E3131i-81 Radiated Spurious Emission (18GHz to26.5GHz) END
