QISE3272S-506LTE USB Stick

Quick Start is a tr ademark of ETSI. TM

Thank you for choosing the Mobile Broadband USB Stick. With your USB Stick, you can access a wireless network at high speed. Note: This manual describes the appearance of the USB Stick, as well as the procedures for preparation, installation, and removal. For operation details about the management program, see the online help included in the management program. Getting to Know Your USB Stick The following figure shows the appearance of the USB Stick. It is provided only for your reference. The actual product may be different. 2 1 2 3 4 5  USB Connector It connects the USB Stick to a PC.  Strap Hole You can tie the cap and the USB Stick together by threading a strap through the strap holes, so that the cap will not be easily lost.  Indicator It indicates the status of the USB Stick.  Green, blinking twice every 2s: The USB Stick is powered on.  Green, blinking once every 0.2s: The software of the USB Stick is being upgraded.  Green, blinking once every 2s: The USB Stick is registering with a 2G network.  Blue, blinking once every 2s: The USB Stick is registering with a 3G/3G+ network.  Cyan, blinking once every 2s: The USB Stick is registering with a LTE network.  Green, solid: The USB Stick is connected to a 2G network.  Blue, solid: The USB Stick is connected to a 3G network.  Cyan, solid: The USB Stick is connected to a 3G+/LT E network.  Off: The USB Stick is removed.  SIM It holds a Subscriber Identity Module (SIM) card.  microSD Card Slot It holds a microSD card. Getting Started 1. Slide the cover off. 2. Insert the SIM card into the card slot. 3. Slide the cover back onto the USB Stick until it snaps into place. Note:  The microSD card is an optional accessory. If it is not provided in the package, you can buy one yourself.  Ensure that the beveled edge of the SIM card is properly aligned with that of the SIM card slot and the microSD card is inserted according to the direction as labeled on the microSD card slot.  Do not remove the microSD or SIM card when the card is in use. Otherwise, the card as well as your USB Stick may get damaged and the data stored on the card may be corrupted. Installation/Removal Guide The procedure for installing the management program depends on the operating system (OS) installed on your PC. The following sections take Windows XP as an example. Connecting the USB Stick to a PC Plug the USB Stick into the USB port of your PC. Installing the USB Stick Management Program 1. Connect the USB Stick with the PC. 2. The OS automatically detects and recognizes the new hardware and starts the installation wizard. Note: If the auto-run program does not respond, find the AutoRun.exe file in the driver path. Then double-click AutoRun.exe to run the program. 3. Follow the on-screen instructions of the installation wizard. 4. After the program is installed, a shortcut icon for the management program appears on the desktop. Starting the Management Program After being installed, the management program starts automatically. Then every time the USB Stick is connected to the PC, the management program starts automatically. You can also double-click the shortcut icon on the desktop to start the management program. Removing the USB Stick 1. Double-click in the notification area. Then the Unplug or Eject Hardware di alog box appears. 2. Select the corresponding hardware and then click Stop. 3. When the message "It is safe to remove the device" appears, remove the USB Stick. Uninstalling the Management Program 1. Choose Start > Control Panel > Add or Remove Programs. 2. Find the management program and click Remove to uninstall the management program. Note: Exit the management program before uninstalling it. Version: V100R001_00 Part Number: 31010MNT

Safety Information Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/en/privacy-policy/index.htm. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are -10 °C to +40 °C. Ideal storage temperatures are -20 °C to +70 °C. Extreme heat or cold may damage your device or accessories.  Keep the device and accessories in a well-ventilated and cool area away from direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device in a container with poor heat dissipation, such as a box or bag.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Stop using your device or applications…

Text truncated - open the document above for the full version.

HUAWEI Technologies Co., Ltd. Date (03/09/2013) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: Type of equipment: LTE USB Rotator Model no.: E3272s-506 FCC ID: QISE3 E3272S-506 This authorization is valid until further written notice from Huawei Technologies Co., Ltd. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Statements Date (03/09/2013) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China Hereby to confirm that our device, Models: E3272s-506, FCC ID: QISE3272S-506, the cover can be removed during package and the FCC ID is readily visible when users open the product box. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: TUVPS Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality 2013-9-3 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISE3272S-506 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

E3272s-506 SECRET Page1,Total 5 External Photos of E3272s-506 E3272s-506 SECRET Page2,Total 5 E3272s-506 SECRET Page3,Total 5 E3272s-506 SECRET Page4,Total 5 E3272s-506 SECRET Page5,Total 5

E3272s-506 SECRET Page1, Total1 ID Label E3272s-506:

E3272s-506 SECRET Page1, Total 1 ID Label Location_ E3272s-506

E3272s-506 SECRET Page1, Total3 Internal Photos of E3272s-506 E3272s-506 SECRET Page2, Total3 E3272s-506 SECRET Page3, Total3

EMC Test Report Product Name: LTE USB Stick Model Number: E3272s-506 Report No: SYBH(Z-EMC)098072013-2 FCC ID: QISE3272S-506 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 EMC Test Report of E3272s-506 FCC ID: QISE3272S-506 Security Level: secret Report No.: SYBH(Z-EMC)098072013-2 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total18 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing and approving the test report. 7. The test report is invalid if there is any evidence of erasure and/or falsification. 8. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 9. Normally, the test report is only responsible for the samples that have undergone the test. 10. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. EMC Test Report of E3272s-506 FCC ID: QISE3272S-506 Security Level: secret Report No.: SYBH(Z-EMC)098072013-2 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total18 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Test Item: Jul.29.2013 Start Date of Test: Aug.01.2013 End Date of Test: Aug.05.2013 Test Result: Pass Approved By 2013-08-21 Liu Chunlin (Lab Manager) Date Name Signature Prepared by 2013-08-21 Kong Xiangdeng (Test Engineer) Date Name Signature EMC Test Report of E3272s-506 FCC ID: QISE3272S-506 Security Level: secret Report No.: SYBH(Z-EMC)098072013-2 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total18 TABLE OF CONTENT 1 General Information .......................................................................................................................... 5 1.1 EUT Description ........................................................................................................................ 5 1.2 Test Site Information .................................................................................................................. 6 1.3 Applied Standards ..................................................................................................................... 6 2 Summary of Results ......................................................................................................................... 7 3 System Configuration during EMC Test ........................................................................................... 8 3.1 Test Mode .................................................................................................................................. 8 3.2 Test System Configuration ........................................................................................................ 8 3.3 Cables Used during Test ........................................................................................................... 9 3.4 Associated Equipment Used during Test .................................................................................. 9 4 Electromagnetic Interference (EMI) ............................................................................................... 10 4.1 Radiated Disturbance 30MHz to 18GHz ................................................................................. 10 4.2 Conducted Disturbance 0.15 MHz to 30MHz.......................................................................... 12 5 Main Test Instruments .................................................................................................................... 13 6 System Measurement Uncertainty ................................................................................................. 14 7 Test Data and Graph ...................................................................................................................... 15 7.1 Radiated Disturbance .............................................................................................................. 15 7.2 Conducted Disturbance ........................................................................................................... 17 EMC Test Report of E3272s-506 FCC ID: QISE3272S-506 Security Level: secret Report No.: SYBH(Z-EMC)098072013-2 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total18 1 General Information 1.1 EUT Description EUT Description Product Name LTE USB Stick Model Number E3272s-506 Input voltage 5V TX Frequency GSM 850:824 MHz To 849 MHz GSM1900:1850MHz To 1910MHz WCDMA BAND II:1850 MHz To 1910 MHz WCDMA BAND IV:1750 MHz To 1755 MHz WCDMA BAND V: 824 MHz To 849 MHz LTE BAND II: 1850 MHz To 1910 MHz LTE BAND IV: 1750 MHz To 1755 MHz LTE BAND V: 824 MHz To 849 MHz LTE BAND VII: 2500 MHz To 2570 MHz RX Frequency GSM850:869MHz To 894MHz GSM1900:1930MHz To 1990MHz WCDMA BAND II:1…

Text truncated - open the document above for the full version.

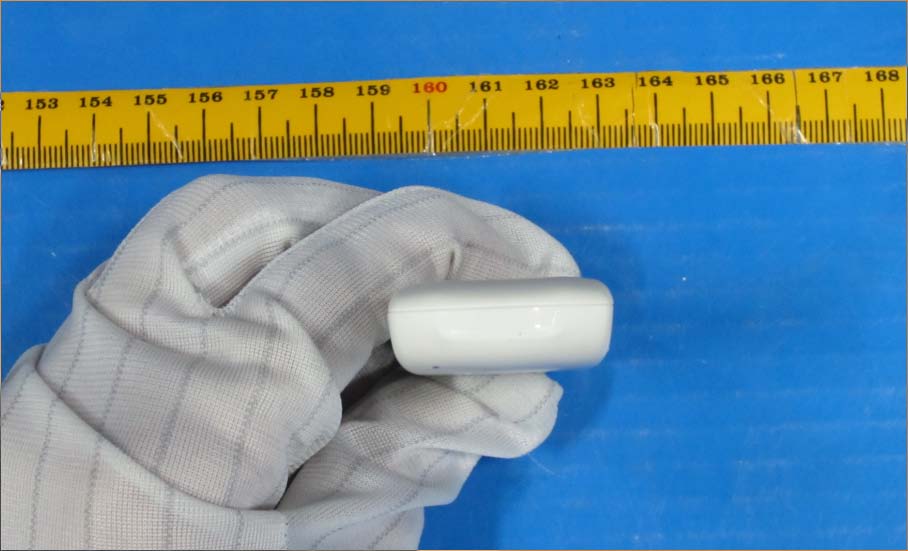

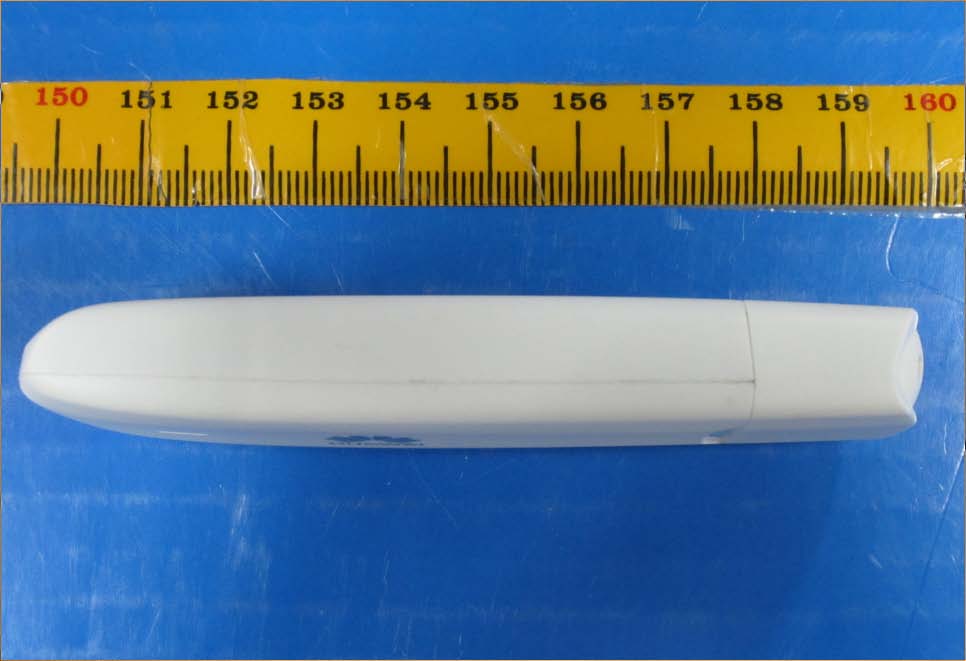

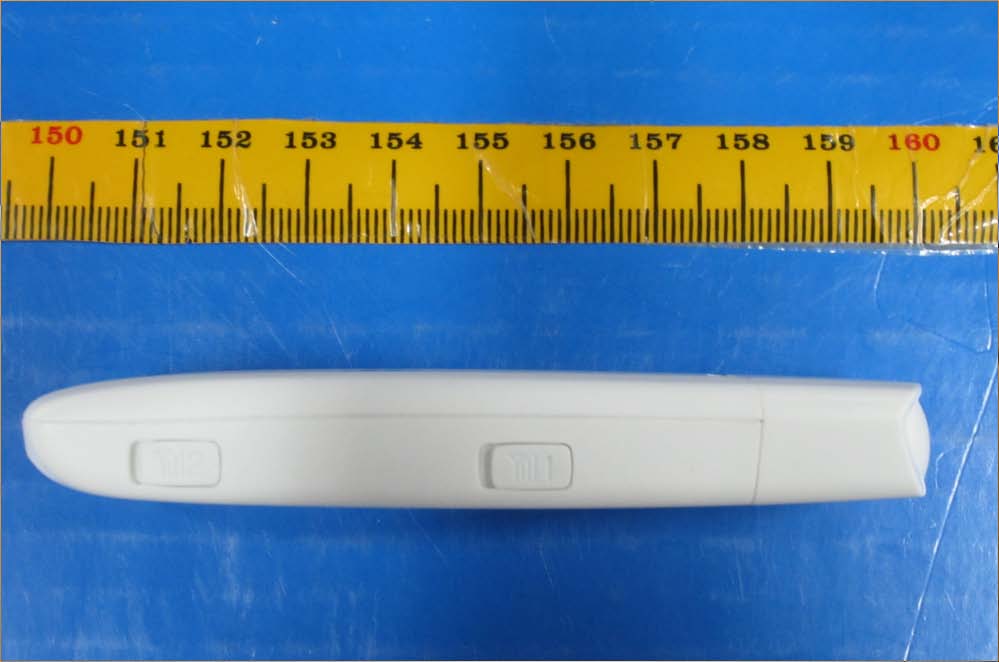

FCC Test Report of E3272s-506 FCC ID: QISE3272S-506 Security Level: secret Report No: SYBH(Z-EMC)098072013-2 Confidential Information of Huawei. No Distribution without Permission Page1, Total5 Photos of EUT FCC Test Report of E3272s-506 FCC ID: QISE3272S-506 Security Level: secret Report No: SYBH(Z-EMC)098072013-2 Confidential Information of Huawei. No Distribution without Permission Page2, Total5 Figure1 EUT Appearance FCC Test Report of E3272s-506 FCC ID: QISE3272S-506 Security Level: secret Report No: SYBH(Z-EMC)098072013-2 Confidential Information of Huawei. No Distribution without Permission Page3, Total5 Photos of Test Setup FCC Test Report of E3272s-506 FCC ID: QISE3272S-506 Security Level: secret Report No: SYBH(Z-EMC)098072013-2 Confidential Information of Huawei. No Distribution without Permission Page4, Total5 1 Radiated Emissions Radiated Disturbance Emissions (below 1GHz) Radiated Disturbance Emissions (1GHz to18GHz) FCC Test Report of E3272s-506 FCC ID: QISE3272S-506 Security Level: secret Report No: SYBH(Z-EMC)098072013-2 Confidential Information of Huawei. No Distribution without Permission Page5, Total5 2 Conducted Emissions Conducted Emissions with AC Ports ----------------------------------------------------------- END-----------------------------------------------------------
