QISE355S-6Mobile WiFi Smart

For the best experience, open this PDF portfolio in Acrobat 9 or Adobe Reader 9, or later. Get Adobe Reader Now!

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISE355S-6 to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

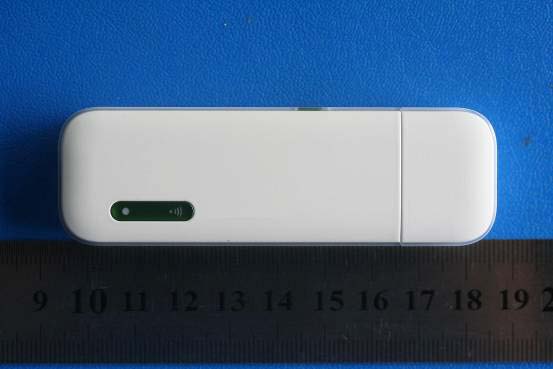

E355s-6 SECRET Page1, Total5 External Photos of E355s-6 E355s-6 SECRET Page2, Total5 E355s-6 SECRET Page3, Total5 E355s-6 SECRET Page4, Total5 E355s-6 SECRET Page5, Total5

E355s-6 SECRET Page 1 Total 1 ID Label E355s-6 ：

E355s-6 SECRET Page1, Total5 Internal Photos of E355s-6 E355s-6 SECRET Page2, Total5 E355s-6 SECRET Page3, Total5 E355s-6 SECRET Page4, Total5 E355s-6 SECRET Page5, Total5

Report No:SYBH (Z-SAR) 047122011-2 FCC ID:QISE355S-6 Appendix A. System Check Plots Table of contens SystemPerformanceCheck-D900-ES-Body SystemPerformanceCheck-D900-ES-Body SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D2450-ES-Body Date/Time: 12/19/2011 22:21:32 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D900-ES-Body DUT: Dipole 900 MHz D900V2; Type: D900V2; Serial: D900V2 - SN:1d112 Communication System: CW; Frequency: 900 MHz Medium parameters used: f = 900 MHz; σ = 1.057 mho/m; ε r = 54.239; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.02, 6.02, 6.02); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.043 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.924 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 4.3140 SAR(1 g) = 2.81 mW/g; SAR(10 g) = 1.81 mW/g Maximum value of SAR (measured) = 3.044 mW/g 0 dB = 3.040mW/g = 9.66 dB mW/g Date/Time: 12/22/2011 23:00:32 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D900-ES-Body DUT: Dipole 900 MHz D900V2; Type: D900V2; Serial: D900V2 - SN:1d112 Communication System: CW; Frequency: 900 MHz Medium parameters used: f = 900 MHz; σ = 1.083 mho/m; ε r = 53.034; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.02, 6.02, 6.02); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.110 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.009 V/m; Power Drift = 0.00023 dB Peak SAR (extrapolated) = 4.4300 SAR(1 g) = 2.88 mW/g; SAR(10 g) = 1.86 mW/g Maximum value of SAR (measured) = 3.121 mW/g 0 dB = 3.120mW/g = 9.88 dB mW/g Date/Time: 1/18/2012 11:01:46 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.592 mho/m; ε r = 51.147; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.26, 7.26, 7.26); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.704 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.905 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 18.7110 SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.3 mW/g Maximum value of SAR (measured) = 11.500 mW/g 0 dB = 11.500mW/g = 21.21 dB mW/g Date/Time: 12/23/2011 10:57:38 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D2450-ES-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.994 mho/m; ε r = 50.666; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.19, 4.19, 4.19); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm,pin=250mW/Area Scan (4x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.163 mW/g Configuration/d=10mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.834 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 29.5790 SAR(1 g) = 13.7 mW/g; SAR(10 g) = 6.3 mW/g Maximum value of SAR (measured) = 15.572 mW/g 0 dB = 15.570mW/g = 23.85 dB mW/g

Report No:SYBH (Z-SAR) 047122011-2 FCC ID:QISE355S-6 Appendix B. SAR Measurement Plots Table of contents GSM850 MHz Body GSM1900 MHz Body WCDMA850 MHz Body WCDMA1900 MHz Body WiFi 802.11b Body Date/Time: 12/19/2011 23:05:03 Test Laboratory: HUAWEI SAR Lab E355s-6 GSM850 GPRS 1TS 190CH Front side 5mm DUT: E355s-6; Type: Mobile WiFi Smart; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.999 mho/m; ε r = 54.791; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.11, 6.11, 6.11); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.070 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.797 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.6400 SAR(1 g) = 1.02 mW/g; SAR(10 g) = 0.629 mW/g Maximum value of SAR (measured) = 1.102 mW/g 0 dB = 1.100mW/g = 0.83 dB mW/g Date/Time: 12/20/2011 0:29:30 Test Laboratory: HUAWEI SAR Lab E355s-6 GSM850 GPRS 2TS 190CH Front side 5mm DUT: E355s-6; Type: Mobile WiFi Smart; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.999 mho/m; ε r = 54.791; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.11, 6.11, 6.11); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.833 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.395 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.1790 SAR(1 g) = 0.788 mW/g; SAR(10 g) = 0.496 mW/g Maximum value of SAR (measured) = 0.864 mW/g 0 dB = 0.860mW/g = -1.31 dB mW/g Date/Time: 12/20/2011 0:52:35 Test Laboratory: HUAWEI SAR Lab E355s-6 GSM850 GPRS 3TS 190CH Front side 5mm DUT: E355s-6; Type: Mobile WiFi Smart; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-3TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.999 mho/m; ε r = 54.791; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.11, 6.11, 6.11); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.882 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.427 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 1.3470 SAR(1 g) = 0.861 mW/g; SAR(10 g) = 0.535 mW/g Maximum value of SAR (measured) = 0.942 mW/g 0 dB = 0.940mW/g = -0.54 dB mW/g Date/Time: 12/20/2011 1:15:27 Test Laboratory: HUAWEI SAR Lab E355s-6 GSM850 GPRS 4TS 190CH Front side 5mm DUT: E355s-6; Type: Mobile WiFi Smart; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-4TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.999 mho/m; ε r = 54.791; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.11, 6.11, 6.11); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.796 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.304 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 1.2190 SAR(1 g) = 0.778 mW/g; SAR(10 g) = 0.482 mW/g Maximum value of SAR (measured) = 0.855 mW/g 0 dB = 0.850mW/g = -1.41 dB mW/g Date/Time: 12/20/2011 10:17:38 Test Laboratory: HUAWEI SAR Lab E355s-6 GSM850 GPRS 1TS 190CH Rear side 5mm DUT: E355s-6; Type: Mobile WiFi Smart; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.999 mho/m; ε r = 54.791; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.11, 6.11, 6.11); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = -13.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.864 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.044 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 1.4750 SAR(1 g) = 0.891 mW/g; SAR(10 g) = 0.545 mW/g Maximum value of SAR (measured) = 0.972 mW/g 0 dB = 0.970mW/g = -0.26 dB mW/g Date/Time: 12/20/2011 2:54:14 Test Laboratory: HUAWEI SAR Lab E355s-6 GSM850 GPRS 1TS 190CH Left side 5mm DUT: E355s-6; Type: Mobile WiFi Smart; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.999 mho/m; ε r = 54.791; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.11, 6.11, 6.11); Calibrated: 9/27/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM…

Text truncated - open the document above for the full version.

Report No.:SYBH (Z-SAR) 047122011-2 FCC ID:QISE355S-6 \ Appendix C. Calibration Certificate Table of contends Calibration report “D900-SN1d112” Calibration report “D1900-SN5d143” Calibration report “D2450-SN860” Calibration report “DAE4-SN1236” Calibration report “Probe ES3DV3-SN3168” Calibration report “Probe EX3DV4-SN3736”

Report No:SYBH (Z-SAR) 047122011-2 FCC ID:QISE355S-6 Appendix D. Photo documentation Table of contens Test Facility Test Positions Liquid depth Test Facility Photo 1: Measurement System DASY 5 Test Positions Photo 2: Front View Photo 3: Rear View Photo 4: Front Side 5mm Photo 5: Rear Side 5mm Photo 6: Left Side 5mm Photo 7: Right Side 5mm Photo 8: Top Side 5mm NA NA Liquid depth Photo 9: MSL835MHz depth (15.2cm) Photo 10: MSL1900MHz depth (15.1cm) Photo 11: MSL2450MHz depth (15.1cm) NA NA

Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28785513 Fax: +86 755 36834474 FCC SAR Compliance Test Report Project Name: _______________________ Model : _______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED CHECKED PREPARED BY DATE 2012-01-18 2012-01-18 2012-01-18 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Mobile WiFi Smart E355s-6 SYBH (Z-SAR)047122011-2 QISE355S-6 Report No.: SYBH (Z-SAR) 047122011-2 FCC ID: QISE355S-6 2012-01-18 Page 2 of 34 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 4 1.3 EUT Description.......................................................................................................................................................... 5 1.3.1 General Description ........................................................................................................................................... 5 1.4 Test specification(s) .................................................................................................................................................. 6 1.5 Testing laboratory ....................................................................................................................................................... 6 1.6 Applicant and Manufacturer ...................................................................................................................................... 6 1.7 Application details ...................................................................................................................................................... 6 1.8 Ambient Condition ..................................................................................................................................................... 6 2 SAR Measurement System ............................................................................................................................................. 7 2.1 SAR Measurement Set-up ....................................................................................................................................... 7 2.2 Test environment ........................................................................................................................................................ 8 2.3 Data Acquisition Electronics description ................................................................................................................ 8 2.4 Probe description........................................................................................................................................................ 9 2.5 Phantom description ................................................................................................................................................ 10 2.6 Device holder description ........................................................................................................................................ 10 2.7 Test Equipment List ................................................................................................................................................. 11 3 SAR Measurement Procedure ...................................................................................................................................... 12 3.1 Scanning procedure ................................................................................................................................................. 12 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 13 3.3 Data Storage and Evaluation .................................................................................................................................. 14 4 System Verification Procedure ........................................................................................................................................ 16 4.1 Tissue Verification .................................................................................................................................................... 16 4.2 System Check ........................................................................................................................................................... 18 4.3 Validation Procedure................................................................................................................................................ 18 5 Measurement Uncertainty Evaluation .......................................................................................................................... 19 5.1 Measurement uncertainty evaluation for SAR test .............................................................................................. 19 5.2 Measurement uncertainty evaluation for system validation ............................................................................... 20 6 SAR Test Configuration ...............................…

Text truncated - open the document above for the full version.

For the best experience, open this PDF portfolio in Acrobat 9 or Adobe Reader 9, or later. Get Adobe Reader Now!

FCC Test Report of E355s-6 FCC ID: QISE355S-6 Security Level: Public Report No: SYBH(Z-RF)008122011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total9 1 Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) FCC Test Report of E355s-6 FCC ID: QISE355S-6 Security Level: Public Report No: SYBH(Z-RF)008122011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total9 Radiated Spurious Emission (below 1GHz) FCC Test Report of E355s-6 FCC ID: QISE355S-6 Security Level: Public Report No: SYBH(Z-RF)008122011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total9 Radiated Spurious Emission (1GHz to18GHz) FCC Test Report of E355s-6 FCC ID: QISE355S-6 Security Level: Public Report No: SYBH(Z-RF)008122011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total9 Radiated Spurious Emission (1GHz to18GHz) FCC Test Report of E355s-6 FCC ID: QISE355S-6 Security Level: Public Report No: SYBH(Z-RF)008122011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page6, Total9 Radiated Spurious Emission (above 18GHz) FCC Test Report of E355s-6 FCC ID: QISE355S-6 Security Level: Public Report No: SYBH(Z-RF)008122011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page7, Total9 Radiated Spurious Emission (above 18GHz) FCC Test Report of E355s-6 FCC ID: QISE355S-6 Security Level: Public Report No: SYBH(Z-RF)008122011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page8, Total9 2 Conducted Emissions Conducted Emissions for AC Ports FCC Test Report of E355s-6 FCC ID: QISE355S-6 Security Level: Public Report No: SYBH(Z-RF)008122011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page9, Total9 Conducted Emissions for AC Ports
