1 Thank you for purchasing the Mobile WiFi. This Mobile WiFi brings you a high speed wireless network connection. This document will help you understand your Mobile WiFi so you can start using it right away. Please read this document carefully before using your Mobile WiFi. For detailed information about the functions and configurations of the Mobile WiFi, refer to the online help on the web management page that comes with the Mobile WiFi. For detailed instructions for logging in to the web management page, refer to "Logging In to the Web Management Page". 2 Getting to Know Your Mobile WiFi Note: The Mobile WiFi function descriptions and illustrations in this document are for your reference only. The product you have purchased may vary. Application Scenarios Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or computers can all access the Internet through the Mobile WiFi. The specific connection procedure depends on the operating system of the Wi-Fi device or computer. Establish a connection according to your device's specific instructions. 3 Scenario 1: Accessing the Internet Using a 3G, or 2G Network The Mobile WiFi uses your operator's 3G or 2G network to access the Internet. 3G/2G 4 Scenario 2: Accessing the Internet Using a Wi-Fi Network When you use the Mobile WiFi in Wi-Fi coverage areas, for example, an airport, cafe, hotel, or your home, the Mobile WiFi can access the Internet via Wi-Fi networks, helping save your 3G or 2G network usage. WLAN 5 Appearance 1 2 3 4 5 7 8 6  Power indicator Blinks slowly: The Mobile WiFi enters the standby mode.  Messages indicator  Green: New message.  Blinking green: Inbox full. 6  Battery indicator  Green: Sufficient battery.  Blinking green: Charging the battery.  Red: Low battery.  Wi-Fi indicator Green: Wi-Fi turned on. Blue: Connected to WLAN.  Micro USB port  Signal indicator  Green: Strong signal.  Orange: Weak signal.  Red: No signal.  Lanyard hole  Power button 7 SSID and Wireless Network Encryption Key When a Wi-Fi device establishes a connection to the Mobile WiFi for the first time, you may need to enter the default Service Set Identifier (SSID) and wireless network encryption key. The default SSID and encryption key are printed on the Mobile WiFi label. It is recommended that you can log in to the web management page and change your SSID and wireless network encryption key. 8 Getting Started Installing Install the SIM card and battery according to the illustration. 41 2 3 9 Charging the Battery If the Mobile WiFi has not been used for a long time or if the battery is fully depleted, the Mobile WiFi may not power on immediately after the charger is plugged in. Please charge the battery for a while before attempting to power on the Mobile WiFi. Method 1: Use the charger to charge the device Note:  Only use chargers compatible with the Mobile WiFi and provided by a designated manufacturer. Use of an incompatible charger or one from an unknown manufacturer may cause the Mobile WiFi to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product.  The charger is an optional accessory. If it is not included in the package, you may contact an authorized dealer to buy a charger compatible with the Mobile WiFi. 10  The Mobile WiFi’s charger model is HW-050100XYW. X and Y represent letters or numbers that vary by region. For details about the specific charger model, contact an authorized dealer. Method 2: Charge the device through a computer connection Use the data cable provided with your device to connect the Mobile WiFi to the computer. 11 Turning on the Mobile WiFi Press and hold the button until indicator lights up, indicating that the Mobile WiFi is turned on. You can log in to the web management page and turn the fast boot function on or off. This function greatly reduces the Mobile WiFi's boot-up time. Note: Press and hold the button to turn off the Mobile WiFi. 12 Connecting to the Internet Using a 3G or 2G Network The Mobile WiFi's management parameters have been preset according to your operator's requirements. If data is transmitted, the Mobile WiFi will automatically connect to the Internet. If data is not transmitted for a period of time, the Mobile WiFi will automatically disconnect from the network connection. Note: You can log in to the web management page and enable or disable the automatic dialing while roaming function. If this function is turned off, when the Mobile WiFi enters a roaming network, it will automatically disconnect from the Internet connection that has already been established. You will need to manually establish this network connection again. 13 Using a Wi-Fi Network 1. Ensure that the Internet WLAN function is enabled. 2. The Mobile WiFi automatically connects to a Wi-Fi hotspot set by your service provider or yourself. When the Mobile WiFi is connected to a Wi-Fi network, is blue. Note:  After connecting to a Wi-Fi network, the Mobile WiFi automatically reconnects to the network the next time you are under that network's coverage.  For details about adding Wi-Fi hotspots, see “Adding a Wi-Fi Hotspot”. 14 Logging In to the Web Management Page 1. Make sure the connection between the Mobile WiFi and the Wi-Fi device or computer is working normally. 2. Open the browser, and enter http://192.168.8.1 in the address box. Note: If the IP address conflicts with other IP addresses on the network, the IP address of the Mobile WiFi automatically changes. Please try http://192.168.9.1. If you cannot log in, contact an authorized dealer. 3. Enter the user name and password to log in to the web management page. Note:  The default user name is admin.  The default password is admin. 15 Battery Saving Mode If the Mobile WiFi has been inactive for some time, the Mobile WiFi enters the standby mode, the power indicator ( ) blinks slowly and the other indicators are off. Pressing the button causes the display screen to l…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Date (24/02/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISE5330BS-6 Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Statements Date (13/03/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Company name: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen 518129, China Hereby to confirm that our device, FCC ID: QISE5330BS-6, is not shipped with the battery pre-installed and the FCC ID is readily visible when users open the product Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-02-20 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISE5330BS-6 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2014-04-15: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

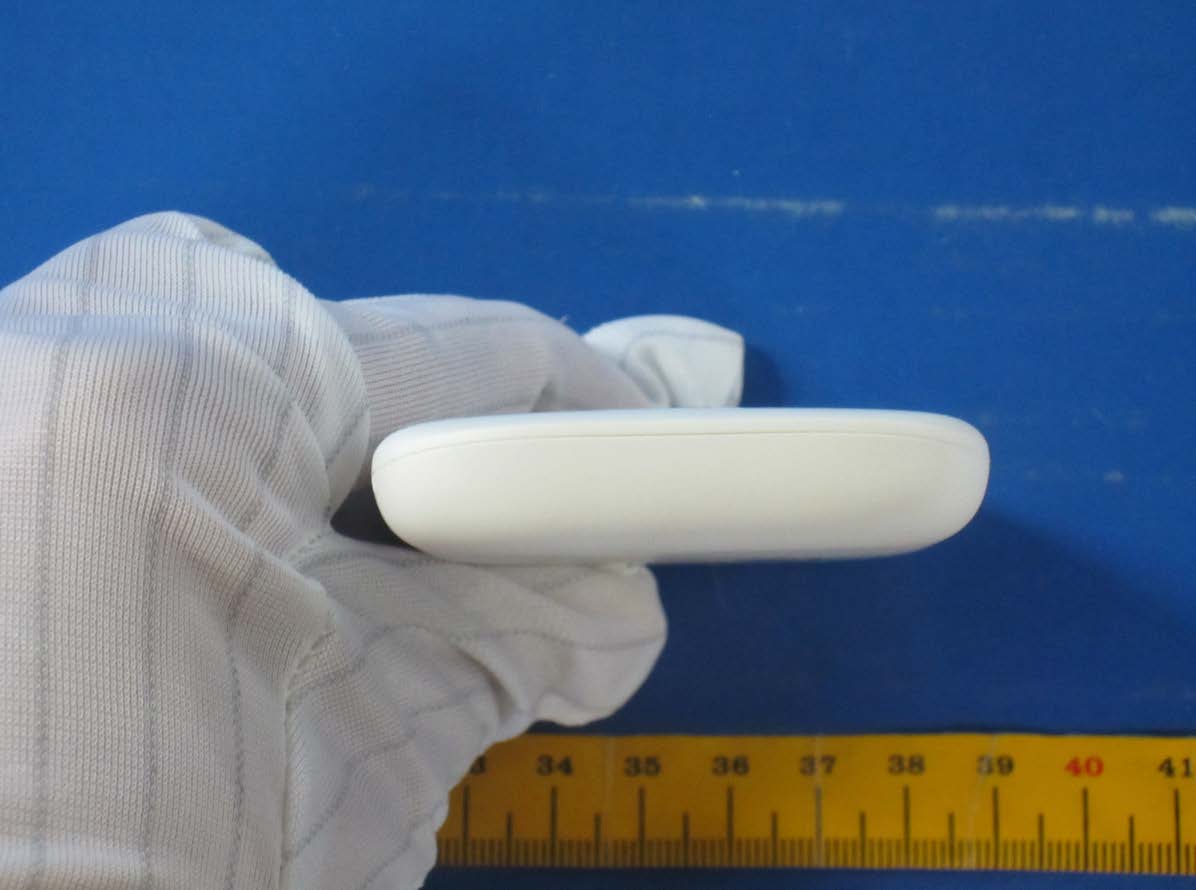

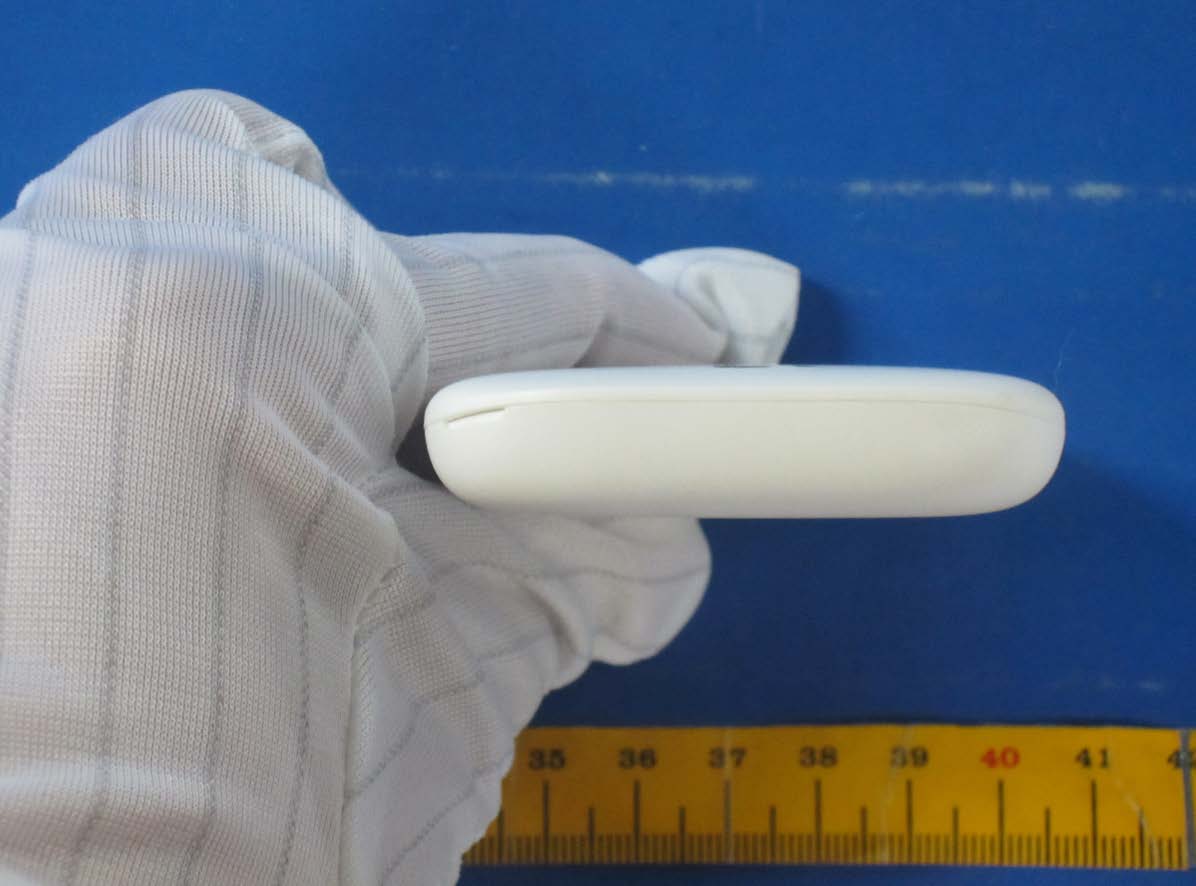

E5330Bs-6 Mobile WiFi SECRET Page1，Total 6 External Photos of E5330Bs-6 E5330Bs-6 Mobile WiFi SECRET Page2，Total 6 E5330Bs-6 Mobile WiFi SECRET Page3，Total 6 E5330Bs-6 Mobile WiFi SECRET Page4，Total 6 E5330Bs-6 Mobile WiFi SECRET Page5，Total 6 E5330Bs-6 Mobile WiFi SECRET Page6，Total 6

E5330Bs-6 Mobile WiFi SECRET Page 1 Total 1 E5330Bs- 6 Label & Label Location: Back of EUT

Label Location

E5330Bs-6 Mobile WiFi SECRET Page1，Total4 Internal Photos of E 5330Bs-6 E5330Bs-6 Mobile WiFi SECRET Page2，Total4 E5330Bs-6 Mobile WiFi SECRET Page3，Total4 E5330Bs-6 Mobile WiFi SECRET Page4，Total4

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Product Name: Mobile WiFi Model: E5330Bs-6 Report No.: SYBH(Z-SAR)005022014-2 FCC ID: QISE5330BS-6 APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2014-03-10 2014-03-10 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Report No.: SYBH(Z-SAR)005022014-2 FCC ID:QISE5330BS-6 2014-03-10 Page 2 of 45 Table of Contents 1 General Information ............................................................................................................................................... 4 1.1 Statement of Compliance .............................................................................................................................. 4 1.2 RF exposure limits ......................................................................................................................................... 5 1.3 EUT Description ............................................................................................................................................ 6 1.3.1 General Description ............................................................................................................................... 7 1.4 Test specification(s) ...................................................................................................................................... 8 1.5 Testing laboratory .......................................................................................................................................... 8 1.6 Applicant and Manufacturer .......................................................................................................................... 8 1.7 Application details .......................................................................................................................................... 8 1.8 Ambient Condition ........................................................................................................................................ 8 2 SAR Measurement System ................................................................................................................................. 9 2.1 SAR Measurement Set-up ........................................................................................................................... 9 2.2 Test environment ......................................................................................................................................... 10 2.3 Data Acquisition Electronics description .................................................................................................... 10 2.4 Probe description ......................................................................................................................................... 11 2.5 Phantom description .................................................................................................................................... 12 2.6 Device holder description ............................................................................................................................ 13 2.7 Test Equipment List ..................................................................................................................................... 14 3 SAR Measurement Procedure .......................................................................................................................... 15 3.1 Scanning procedure .................................................................................................................................... 15 3.2 Spatial Peak SAR Evaluation ...................................................................................................................... 16 3.3 Data Storage and Evaluation ...................................................................................................................... 17 4 System Verification Procedure ............................................................................................................................ 19 4.1 Tissue Verification ....................................................................................................................................... 19 4.2 System Check ............................................................................................................................................. 21 4.3 System check Procedure............................................................................................................................. 22 5 SAR measurement variability and uncertainty .................................................................................................... 23 5.1 SAR measurement variability ...................................................................................................................... 23 5.2 SAR measurement uncertainty ................................................................................................................... 23 6 SAR Test Configuration ...................................................................................................................................... 24 6.1 GSM Test Configuration .............................................................................................................................. 24 6.2 UMTS Test Configuration .........................................................................…

Text truncated - open the document above for the full version.

Report No.:SYBH (Z-SAR)005022014-2 FCC ID: QISE5330BS-6 QISU2801-346369A-U280134 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-ES-Body SystemPerformanceCheck-D1900-ES- Body SystemPerformanceCheck-D2450-ES-Body Date: 2014-3-7 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.986 S/m; ε r = 55.197; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.06, 6.06, 6.06); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11- 27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=15mm, Pin=250mW/Area Scan (6x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.60 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 51.719 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 3.56 W/kg SAR(1 g) = 2.44 W/kg; SAR(10 g) = 1.6 W/kg Maximum value of SAR (measured) = 2.84 W/kg 0 dB = 2.60 W/kg = 4.14 dBW/kg Date: 2014-3- 7 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-ES-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.514 S/m; ε r = 51.545; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.72, 4.72, 4.72); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11- 27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.63 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 89.733 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 18.0 W/kg SAR(1 g) = 10.4 W/kg; SAR(10 g) = 5.45 W/kg Maximum value of SAR (measured) = 13.1 W/kg 0 dB = 8.63 W/kg = 9.36 dBW/kg Date: 2014-3- 5 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-ES-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:860 Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.028 S/m; ε r = 51.703; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(4.25, 4.25, 4.25); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11- 27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/d=10mm, Pin=250mW/Area Scan (6x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 18.0 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 69.814 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 28.5 W/kg SAR(1 g) = 13.7 W/kg; SAR(10 g) = 6.29 W/kg Maximum value of SAR (measured) = 17.9 W/kg 0 dB = 18.0 W/kg = 12.55 dBW/kg

Report No.:SYBH (Z-SAR)005022014-2 FCC ID: QISE5330BS-6 6369A-U280134 Appendix B. SAR Measurement Plots Table of contents GSM850 Body GSM1900 Body UMTS Band V Body UMTS Band II Body WiFi 2450 MHz Body Date: 2014-3-7 Test Laboratory: HUAWEI SAR/HAC Lab E5330Bs-6 GSM850 GPRS 2TS 251CH Front side 10mm DUT: E5330Bs-6; Type: Mobile WiFi; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-2TS (0); Frequency: 848.8 MHz;Duty Cycle: 1:4.10015 Medium parameters used: f = 849 MHz; σ = 1.007 S/m; ε r = 54.942; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.06, 6.06, 6.06); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/Body/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.835 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.966 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 1.04 W/kg SAR(1 g) = 0.752 W/kg; SAR(10 g) = 0.525 W/kg Maximum value of SAR (measured) = 0.856 W/kg 0 dB = 0.856 W/kg = -0.67 dBW/kg Date: 2014-3-7 Test Laboratory: HUAWEI SAR/HAC Lab E5330Bs-6 GSM850 GPRS 2TS 190CH Front side 10mm DUT: E5330Bs-6; Type: Mobile WiFi; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-2TS (0); Frequency: 836.6 MHz;Duty Cycle: 1:4.10015 Medium parameters used: f = 837 MHz; σ = 0.987 S/m; ε r = 55.114; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.06, 6.06, 6.06); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/Body/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.736 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.311 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.917 W/kg SAR(1 g) = 0.665 W/kg; SAR(10 g) = 0.464 W/kg Maximum value of SAR (measured) = 0.755 W/kg 0 dB = 0.755 W/kg = -1.22 dBW/kg Date: 2014-3-7 Test Laboratory: HUAWEI SAR/HAC Lab E5330Bs-6 GSM850 GPRS 2TS 128CH Front side 10mm DUT: E5330Bs-6; Type: Mobile WiFi; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-2TS (0); Frequency: 824.4 MHz;Duty Cycle: 1:4.10015 Medium parameters used (interpolated): f = 824.4 MHz; σ = 0.988 S/m; ε r = 55.282; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.06, 6.06, 6.06); Calibrated: 2013-9- 30; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn852; Calibrated: 2013-11-27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.7(1137); SEMCAD X 14.6.10(7164) Configuration/Body/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.666 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.190 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.848 W/kg SAR(1 g) = 0.615 W/kg; SAR(10 g) = 0.428 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.700 W/kg 0 dB = 0.700 W/kg = -1.55 dBW/kg Date: 2014-3-7 Test Laboratory: HUAWEI SAR/HAC Lab E5330Bs-6 GSM850 GPRS 2TS 251CH Back side 10mm DUT: E5330Bs-6; Type: Mobile WiFi; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-2TS (0); Frequency: 848.8 MHz…
