QISE5336BS-6Mobile Wi-Fi

Quick Start Thank you for purchasing the Mobile WiFi. This Mobile WiFi brings you a high speed wireless network connection. This document will help you understand your Mobile WiFi so you can start using it right away. Please read this document carefully before using your Mobile WiFi. For detailed information about the functions and configurations of the Mobile WiFi, refer to the online help on the web management page that comes with the Mobile WiFi. For detailed instructions for logging in to the web management page, refer to "Logging In to the Web Management Page". 1 Getting to Know Your Mobile WiFi Note: The Mobile WiFi function descriptions and illustrations in this document are for your reference only. The product you have purchased may vary. Application Scenarios Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or computers can all access the Internet through Mobile WiFi. The specific connection procedure depends on the operating system of the Wi-Fi device or computer. Establish a connection according to your device's specific instructions. 2 Scenario 1: Accessing the Internet Using a 3G, or 2G Network The Mobile WiFi uses your operator's 3G, or 2G network to access the Internet. 3G/2G 3 Scenario 2: Accessing the Internet Using a Wi-Fi Network When you use the Mobile WiFi in Wi-Fi coverage areas, for example, an airport, cafe, hotel, or your home, the Mobile WiFi can access the Internet via Wi-Fi networks, helping save your 3G, or 2G network usage. WLAN 4 Appearance 1 3 2 4 5  Power button  Screen  Micro USB port  MENU button  Lanyard hole 5 Screen Home screen  Roaming R: Data roaming turned on.  Signal strength : Signal strength from weak to strong.  Network type  3G/2G: Connected to a 3G/2G network.  : Connected to WLAN.  Network connection status  Battery : Battery level from low to high.  SMS  New messages. 3G R 1 1 2 3 4 5 7 6 8 0 B/2GB 6  Number of new messages.  Wi-Fi  Wi-Fi turned on.  Number of connected Wi-Fi devices.  Traffic statistics  Data usage this month.  Monthly data usage limit. Note:  To set the start date of the monthly data usage statistics and data usage limit, go to the web management page.  Data traffic information is for your reference only. For more accurate data traffic information, please consult your service provider. 7 Menu screen Press the button to display the menu.  Back Return to the previous screen.  Options  Operation tips  Press the button to scroll down.  Press the button to confirm your selection. Back Device Info 2D Barcode Next OK WPS 2 1 3 8 Update screen When updates are available, you will be prompted to update the Mobile WiFi.  New software Updates are available.  Update Press the button to start the update.  Cancel Press the button to ignore the update. New software Update Cancel 3G 1 2 1 3 9 SSID and Wireless Network Encryption Key When a Wi-Fi device establishes a connection to the Mobile WiFi for the first time, you may need to enter the default Service Set Identifier (SSID) and wireless network encryption key. The default SSID and encryption key are printed on the Mobile WiFi label. It is recommended that you log in to the web management page and change your SSID and network encryption key. 10 Back Device Info 2D Barcode Next OK WPS To view the current SSID and wireless network encryption key on the screen: 1. Press the button to display the menu. 2. Press the button to scroll to Device Info. 3. Press the button to enter Device Info. Back Next OK SSID: XXXXXXXXXX PWD: XXXXXX IP: XXXXXXXX XXXX Back Device Info 2D Barcode Next OK WPS 11 Getting Started Installing Install the SIM card, microSD card, and battery according to the illustration. RESET RESET 4 1 2 3 1 2 2 1 1 2 12 Note: The microSD card is an optional accessory. If no microSD card is included in the package, please purchase one separately. Charging the Battery If the Mobile WiFi has not been used for a long time or if the battery is fully depleted, the Mobile WiFi may not power on immediately after the charger is plugged in. Please charge the battery for a while before attempting to power on the Mobile WiFi. Method 1: Use the charger to charge the device Note:  Only use chargers compatible with the Mobile WiFi and provided by a designated manufacturer. Use of an incompatible charger or one from an unknown manufacturer may cause the Mobile WiFi to malfunction, fail, or could even cause a fire. Such use 13 voids all warranties, whether expressed or implied, on the product.  The charger is an optional accessory. If it is not included in the package, you may contact an authorized dealer to buy a charger compatible with the Mobile WiFi.  The Mobile WiFi's charger model is HW-050100XYW. X and Y represent letters or numbers that vary by region. For details about the specific charger model, contact an authorized dealer. Method 2: Charge the device through a computer connection Use the data cable provided with your device to connect the Mobile WiFi to the computer. 14 Turning on the Mobile WiFi Press and hold the button until the screen lights up, indicating that the Mobile WiFi is turned on. You can use the menu screen or log in to the web management page and turn the fast boot function on or off. This function greatly reduces the Mobile WiFi's boot-up time. Note: Press and hold the button to turn off the Mobile WiFi. Verifying the PIN If the Mobile WiFi's network parameters have been correctly configured but you cannot access the Internet after powering it on, PIN verification may be enabled. Log in to the web management page and enter the PIN when prompted. To avoid entering the PIN every time you power on the Mobile WiFi, disable PIN verification from the web management page. The PIN/PUK is delivered with your SIM card. For more details, contact your service provider. 15 Connecting to the Internet Using a 3G, or 2G Network By default, the Mobile WiFi's management parameters have been preset according to your operator's re…

Text truncated - open the document above for the full version.

Safety Information Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/privacy-policy. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are 0 to °C+35 . Ideal storage temperat°Cures are -10 to °C+45 . Extreme heat or cold may damage your device or accessories.°C  Keep the device and accessories in a well-ventilated and cool area away from direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device in a container with poor heat dissipation, such as a box or bag.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Stop using your device or applications for a while if t…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd Date (14/05/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISE5336BS-6 Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: TUV PS Fax : NULL From:Zhang Xinghai Fax:0086-755-89650226 Tel:0086-755-2 8970299 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISE5336BS-6 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

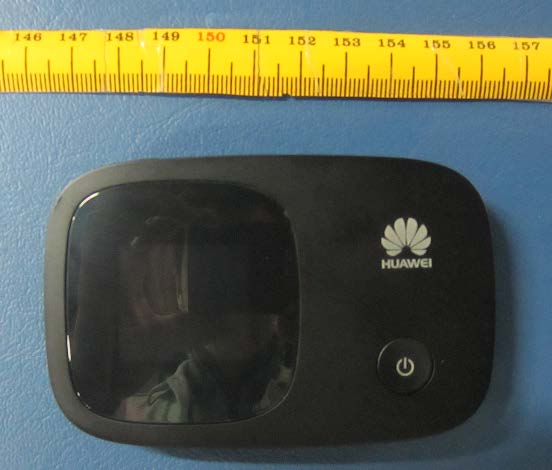

E5336Bs-6 Mobile WiFi SECRET Page1，Total 5 External Photos of E5336Bs-6 E5336Bs-6 Mobile WiFi SECRET Page2，Total 5 E5336Bs-6 Mobile WiFi SECRET Page3，Total 5 E5336Bs-6 Mobile WiFi SECRET Page4，Total 5 E5336Bs-6 Mobile WiFi SECRET Page5，Total 5

Huawei Technologies Co.,Ltd. Date: May 16, 2014 Statement We, Huawei Technologies Co., Ltd., states that our device, FCC ID: QISE5336BS-6, Its cover can be removed during package and the FCC ID is readily visible when users open the product box. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

E5336Bs-6 SECRET Page1, Total1 ID Label E5336Bs-6

E5336Bs-6 SECRET Page1, Total 1 ID Label Location_ E5336Bs-6

E5336Bs-6 SECRET Page1, Total3 Internal Photos of E5336Bs-6 E5336Bs-6 SECRET Page2, Total3 E5336Bs-6 SECRET Page3, Total3

EMC Test Report Product Name: Mobile WiFi Model Number: E5336Bs-6 Report No: SYBH(Z-EMC)024042014-2 FCC ID：QISE5336BS-6 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 Test Report of E5336Bs-6 FCC ID: QISE5336BS-6 Security Level: secret Report No: SYBH(Z-EMC)024042014-2 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total17 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 7. The test report is invalid if there is any evidence of erasure and/or falsification. 8. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 9. Normally, the test report is only responsible for the samples that have undergone the test. 10. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. Test Report of E5336Bs-6 FCC ID: QISE5336BS-6 Security Level: secret Report No: SYBH(Z-EMC)024042014-2 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total17 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Test Item: Apr.16, 2014 Start Date of Test: Apr.16, 2014 End Date of Test: Apr.20, 2014 Test Result: Pass Approved By 2014-05-08 Liu Chunlin (Lab Manager) Date Name Signature Operator 2014-05-08 Xiang Zaiji (Test Engineer) Date Name Signature Test Report of E5336Bs-6 FCC ID: QISE5336BS-6 Security Level: secret Report No: SYBH(Z-EMC)024042014-2 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total17 Modification Record No. Last Report No. Modification Description 1 NA First Report. Test Report of E5336Bs-6 FCC ID: QISE5336BS-6 Security Level: secret Report No: SYBH(Z-EMC)024042014-2 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total17 TABLE OF CONTENT 1 General Information ............................................................................................................................. 6 1.1 EUT Description ........................................................................................................................... 6 1.2 Test Site Information .................................................................................................................... 7 1.3 Applied Standards ........................................................................................................................ 7 2 Summary of Results ............................................................................................................................. 8 3 System Configuration during EMC Test .............................................................................................. 9 3.1 Test Mode ..................................................................................................................................... 9 3.2 Test System Configuration ......................................................................................................... 10 3.3 Cables Used during Test ............................................................................................................ 10 3.4 Associated Equipment Used during Test .................................................................................. 10 4 Electromagnetic Interference (EMI) ................................................................................................... 11 4.1 Radiated Disturbance 30MHz to 18GHz ................................................................................... 11 4.2 Conducted Disturbance 0.15 MHz to 30MHz ............................................................................ 13 5 Main Test Instruments ........................................................................................................................ 14 6 System Measurement Uncertainty .................................................................................................... 14 7 Test Data and Graph .......................................................................................................................... 15 7.1 Radiated Disturbance ................................................................................................................. 15 7.2 Conducted Disturbance .............................................................................................................. 17 Test Report of E5336Bs-6 FCC ID: QISE5336BS-6 Security Level: secret Report No: SYBH(Z-EMC)024042014-2 Confidential Information of Huawei. No Distribution without Written Permission Page6, Total17 1 General Information 1.1 EUT Description EUT Description Product Name Mobile WiFi Model Number E5336Bs-6 Serials Number #1 TX Frequency GSM850: 824MHz To 849MHz GSM1900: 1850MHz To 1910MHz WCDMA Band I…

Text truncated - open the document above for the full version.

FCC Test Report of E5336Bs-6 FCC ID: QISE5336BS-6 Security Level:secret Report No: SYBH(Z-EMC)024042014-2 Confidential Information of Huawei. No Distribution without Permission Page1, Total5 Photos of EUT FCC Test Report of E5336Bs-6 FCC ID: QISE5336BS-6 Security Level:secret Report No: SYBH(Z-EMC)024042014-2 Confidential Information of Huawei. No Distribution without Permission Page2, Total5 Figure1 EUT Appearance FCC Test Report of E5336Bs-6 FCC ID: QISE5336BS-6 Security Level:secret Report No: SYBH(Z-EMC)024042014-2 Confidential Information of Huawei. No Distribution without Permission Page3, Total5 Photos of Test Setup FCC Test Report of E5336Bs-6 FCC ID: QISE5336BS-6 Security Level:secret Report No: SYBH(Z-EMC)024042014-2 Confidential Information of Huawei. No Distribution without Permission Page4, Total5 1 Radiated Emissions Radiated Disturbance （30MHz-1GHz） Radiated Disturbance （above 1GHz） FCC Test Report of E5336Bs-6 FCC ID: QISE5336BS-6 Security Level:secret Report No: SYBH(Z-EMC)024042014-2 Confidential Information of Huawei. No Distribution without Permission Page5, Total5 2 Conducted Emissions Conducted Emissions for AC Ports -------------------------------------------END--------------------------------------
