QISE5372S-32Mobile Wi-Fi

Quick Start 1 Thank you for purchasing the Mobile WiFi. This Mobile WiFi brings you a high speed wireless network connection. This document will help you understand your Mobile WiFi so you can start using it right away. Please read this document carefully before using your Mobile WiFi. For detailed information about the functions and configurations of the Mobile WiFi, refer to the online help on the web management page that comes with the Mobile WiFi. For detailed instructions for logging in to the web management page, refer to "Logging In to the Web Management Page" on page 18. 2 Getting to Know Your Mobile WiFi Note: The Mobile WiFi function descriptions and illustrations in this document are for your reference only. The product you have purchased may vary. Application Scenarios Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or computers can all access the Internet through Mobile WiFi. The specific connection procedure depends on the operating system of the Wi-Fi device or computer. Establish a connection according to your device's specific instructions. To access the Internet through a USB port connection, install the driver according to the instructions. 3 Scenario 1: Accessing the Internet Using an LTE, 3G, or 2G Network The Mobile WiFi uses your operator's LTE, 3G, or 2G network to access the Internet. 3G/2G 4 Scenario 2: Accessing the Internet Using a Wi-Fi Network When you use the Mobile WiFi in Wi-Fi coverage areas, for example, an airport, cafe, hotel, or your home, the Mobile WiFi can access the Internet via Wi-Fi networks, helping save your LTE, 3G, or 2G network usage. Wi-Fi 5 Appearance 1 4 5 2 3  Power button  Screen  Micro USB port  Menu button  Lanyard hole 6 Screen 3G R 1 1 2 3 4 5 7 6 8 Inter WLAN on  Signal strength  : Signal strength from weak to strong.  R: Data roaming turned on.  Network type 2G/3G/4G: Connected to a 2G/3G/LTE network. 7  Wi-Fi  Wi-Fi turned on.  Number of connected Wi-Fi devices.  Battery : Battery level from low to high.  SMS  New messages.  Number of new messages.  Network connection status Internet connection is set up.  Internet WLAN status Internet WLAN turned on. 8  Traffic statistics  Data traffic information.  Connection time. Note: Data traffic information is for your reference only. For more accurate data traffic information, please consult your service provider. 9 SSID and Wireless Network Encryption Key When a Wi-Fi device establishes a connection to the Mobile WiFi for the first time, you may need to enter the default Service Set Identifier (SSID) and wireless network encryption key. These are printed on the Mobile WiFi. It is recommended that you can log in to the web management page and change your SSID and wireless network encryption key. To view the current SSID and wireless network encryption key on the screen, perform the following steps: 1. Press the MENU button. 10 2. Press the MENU button. 3. Press the button. 11 Getting Started Installing Caution: Use a standard SIM card compatible with the Mobile WiFi, otherwise you will damage your Mobile WiFi. Install the SIM card, microSD card, and battery according to the illustration. Reset Reset Reset Reset 4 1 2 3 12 Note: The microSD card is an optional accessory. If no microSD card is included in the package, please purchase one separately. Charging the Battery If the Mobile WiFi has not been used for a long time or if the battery is fully depleted, the Mobile WiFi may not power on immediately after the charger is plugged in. Please charge the battery for a while before attempting to power on the Mobile WiFi. Method 1: Use the charger to charge the device Note:  Only use chargers compatible with the Mobile WiFi and provided by a designated manufacturer. Use of an incompatible charger or one from an unknown manufacturer may cause the Mobile WiFi to malfunction, fail, or could even cause a fire. Such use voids 13 all warranties, whether expressed or implied, on the product.  The charger is an optional accessory. If it is not included in the package, you may contact an authorized dealer to buy an adapter compatible with the Mobile WiFi.  The Mobile WiFi’s charger model is HW-050100X1W. X represents U, E, B, A, or J, depending on your region. For details about the specific adapter model, contact an authorized dealer. Method 2: Charge the device through a computer connection Use the data cable provided with your device to connect the Mobile WiFi to the computer. 14 Supplying Power to Devices You can connect the Mobile WiFi to the AF10, and then connect the AF10 to other devices, such as a mobile phone, MP3 player, MP4 player, or Bluetooth headset. In this case, the Mobile WiFi works as a charger and supplies power to those devices. 1 2 3 Note:  The AF10 is an optional accessory. If it is not included in the package, you can purchase one separately.  For details about the AF10, see its user manual. 15 Turning on the Mobile WiFi Press and hold the button until the screen lights up, indicating that the Mobile WiFi is turned on. You can log in to the web management page and turn the fast boot function on or off. This function greatly reduces the Mobile WiFi's boot-up time. Note:  Press and hold the button to turn off the Mobile WiFi.  If your Mobile WiFi malfunctions or cannot be properly powered off, press and hold the button for at least 10 seconds to forcibly power off your Mobile WiFi.  Please turn the fast boot function off when you are on an airplane. 16 Connecting to the Internet Using an LTE, 3G, or 2G Network The Mobile WiFi's management parameters have been preset according to your operator's requirements. If data is transmitted, the Mobile WiFi will automatically connect to the Internet. If data is not transmitted for a period of time, the Mobile WiFi will automatically disconnect from the network connection. Note: You can log in to the web management page and enable or disable the automatic dialing while roaming function. I…

Text truncated - open the document above for the full version.

Safety Information Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/privacy-policy. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are 0°C to +35°C. Ideal storage temperatures are -10°C to +45°C. Extreme heat or cold may damage your device or accessories.  Keep the device and accessories in a well-ventilated and cool area away from direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device in a container with poor heat dissipation, such as a box or bag.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Stop using your device or applications for a while if the…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2014-02-26 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISE5372S-32 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co.,Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To Whom It May Concern: This is to advise and officially, that we, HUAWEI TECHNOLOGIES CO., LTD., declare that R215 and E5372s-32 are electrically identical, they have the same PCB and same antenna, the difference is E5372s-32 enable WCDMA 1900M by software, and add a new adapter, and the MENU key is a little different, those change will not affect the test result of other bands, E5372s-32 will apply a new FCC ID and reuse the test result of R215. The following table shows differences between the 2 Models. R215 E5372s-32 GSM four band support support WCDMA 1900M no Enable by software WCDMA 850M support support LTE Band7 support support WiFi 2.4G&5G support support All antenna The same The same PCB The same The same Adapter HW-050100U1W HW-050100U1W HW-050100U2W Size The same The same Different Menu key Component figure as following: E5372s-32: R215: Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Tel: 0086-0755-28970299; Fax: 0086-0755-89650226

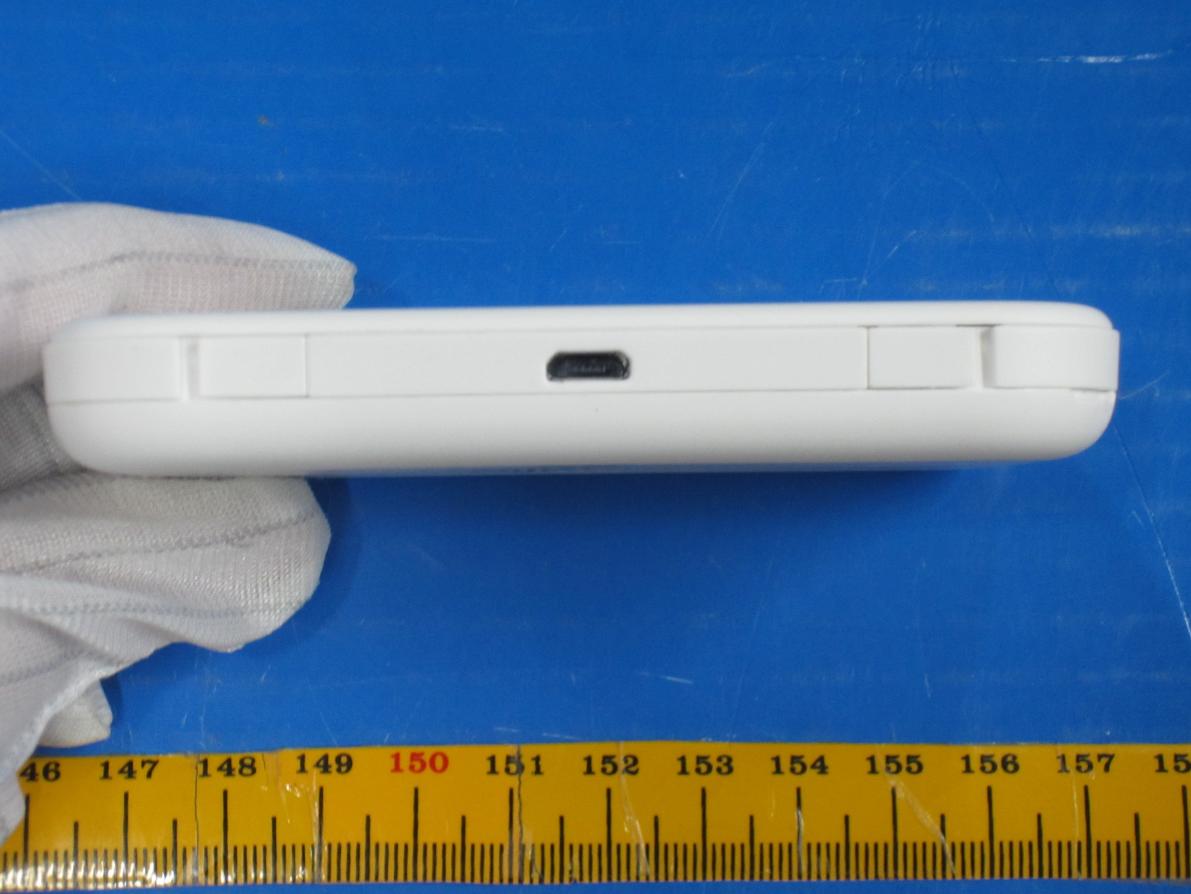

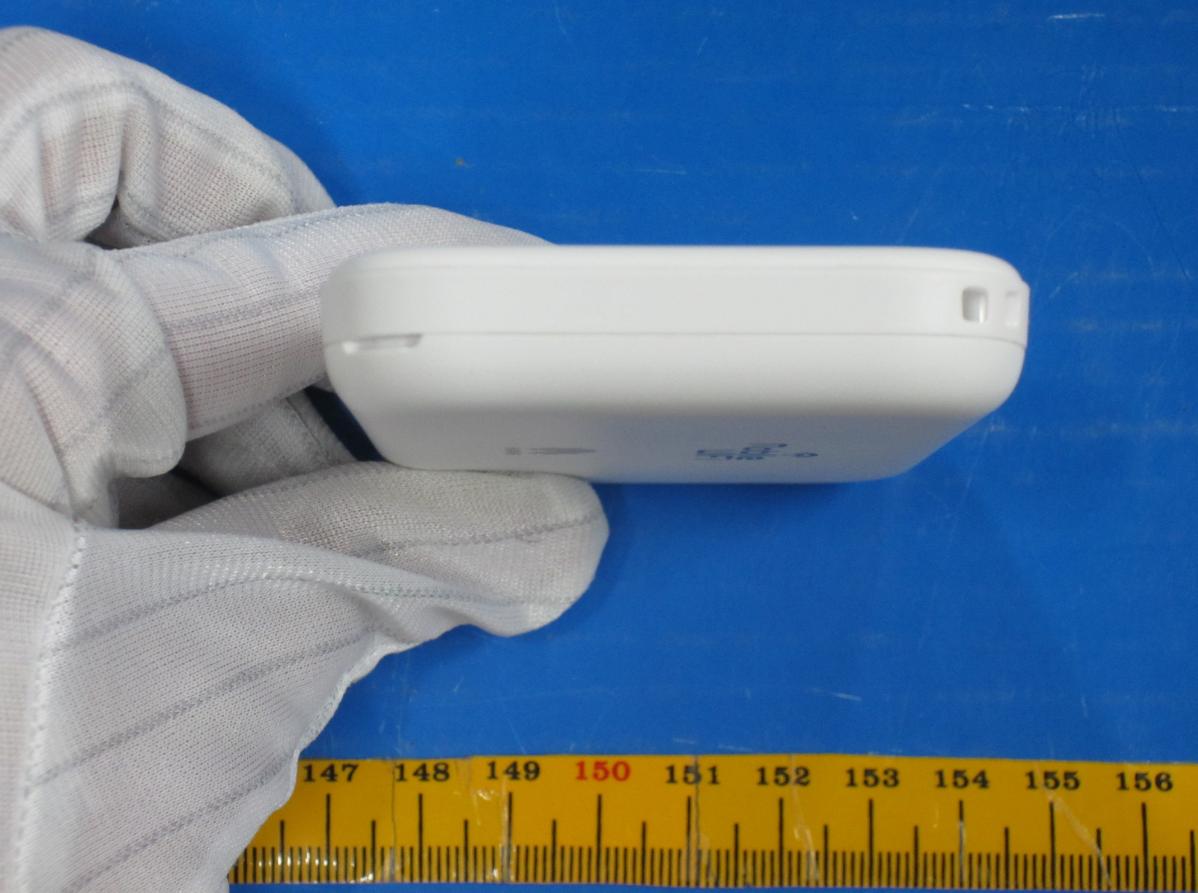

E5372s-32 Mobile WiFi SECRET Page1，Total 5 External Photos of E5372s-32 E5372s-32 Mobile WiFi SECRET Page2，Total 5 E5372s-32 Mobile WiFi SECRET Page3，Total 5 E5372s-32 Mobile WiFi SECRET Page4，Total 5 E5372s-32 Mobile WiFi SECRET Page5，Total 5

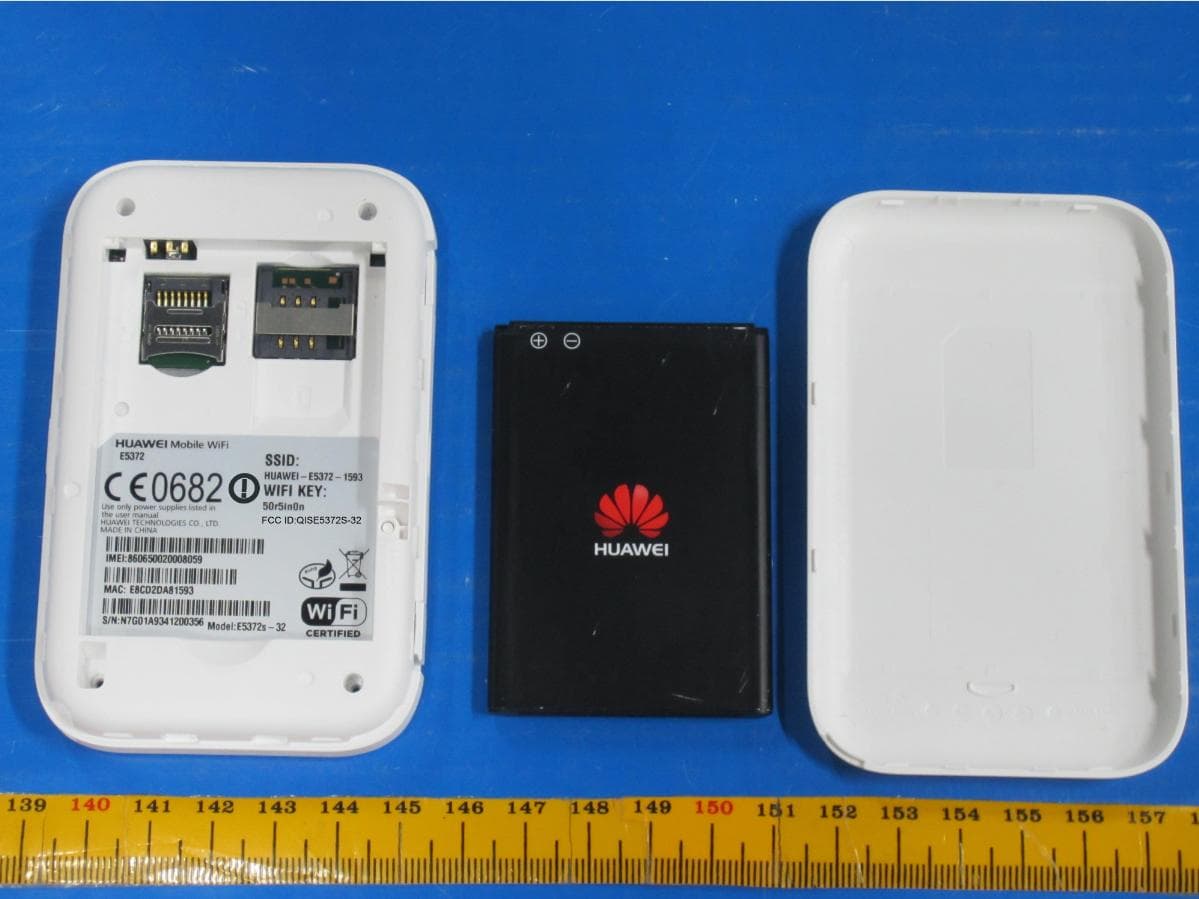

E5372s-32 Mobile WiFi SECRET Page 1 Total 1 E5372s-32 Label & Label Location: In battery warehouse

Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, 518129 Guangdong, P.R.China Tel: +86-755-2878-1879 ; Fax: +86-755-2878-1889 Date: February 27, 2014 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISE5372S-32, has a battery, But the battery will not be placed in the battery compartment when delivery, it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

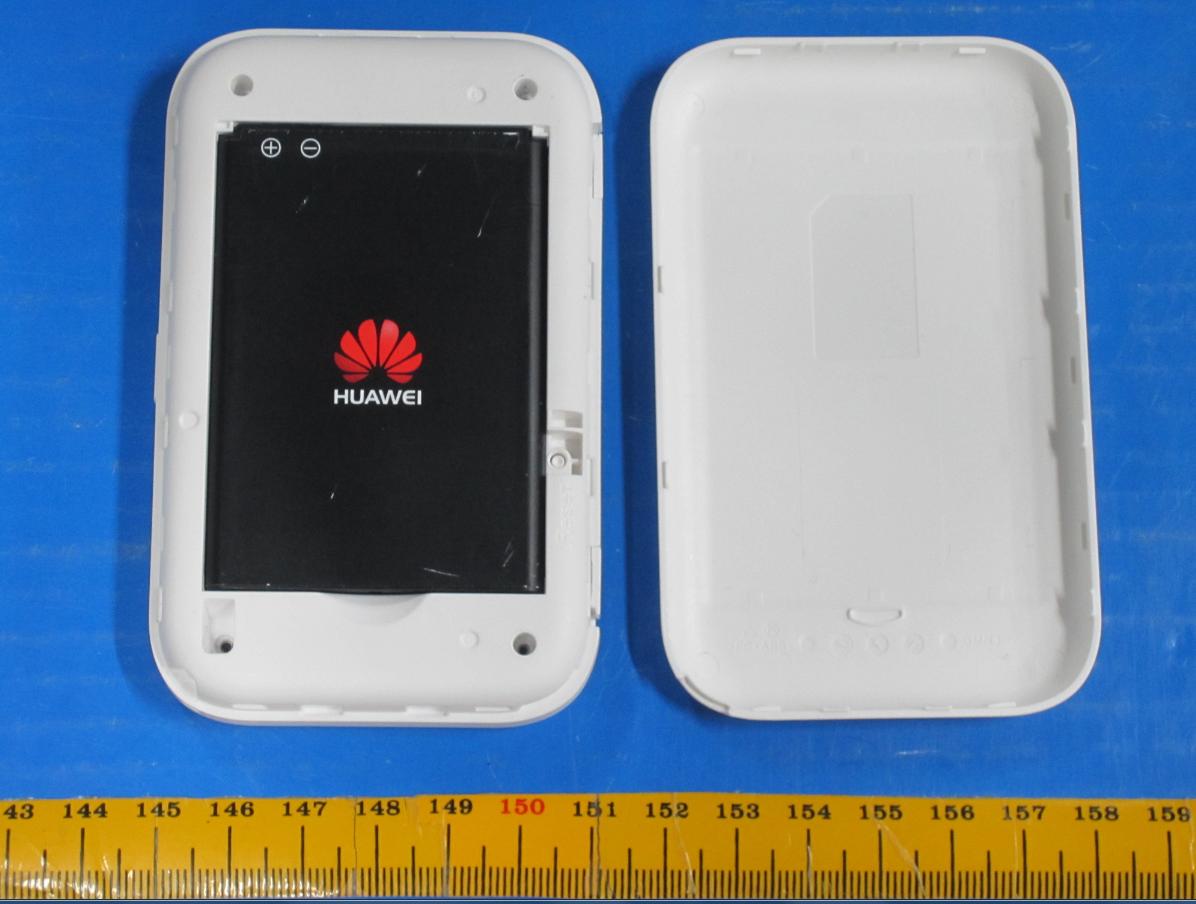

E5372s-32 Mobile WiFi SECRET Page1，Total5 Internal Photos of E5372s-32 E5372s-32 Mobile WiFi SECRET Page2，Total5 E5372s-32 Mobile WiFi SECRET Page3，Total5 E5372s-32 Mobile WiFi SECRET Page4，Total5 E5372s-32 Mobile WiFi SECRET Page5，Total5

Report No. RHA1402-0011SAR01R2 Page 1 of 320 TESTING No. L2264 SAR TEST REPORT Product Name Mobile WiFi Model Name E5372s-32 FCC ID QIS5372S-32 Client Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Date of issue March 5, 2014 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1402-0011SAR01R2 Page 2 of 320 GENERAL SUMMARY Reference Standard(s) FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. RSS-102 Issue 4 March 2010: Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands). KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 General RF Exposure Guidance v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D02 HSPA and 1x Advanced v02r02 SAR Guidance for HSPA, HSPA+, DC-HSDPA and 1x-Advanced KDB 941225 D03 SAR Test Reduction GSM/GPRS/EDGE v01: Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE KDB 941225 D06 Hot Spot SAR v01r01 SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities KDB 941225 D05 SAR for LTE Devices v02r03 SAR Test Considerations for LTE Handsets and Data Modems KDB 248227 D01 SAR meas for 802 11 a b g v01r02: SAR Measurement Procedures for 802.11a/b/g Transmitters. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1402-0011SAR01R2 Page 3 of 320 TABLE OF CONTENT 1. General Information ........................................................................................................................ 5 1.1. Notes of the Test Report ............................................................................................................. 5 1.2. Testing Laboratory ...................................................................................................................... 5 1.3. Applicant Information ................................................................................................................... 6 1.4. Manufacturer Information ............................................................................................................ 6 1.5. Information of EUT ...................................................................................................................... 7 1.6. The Maximum Reported SAR 1g ................................................................................................. 10 1.7. Maximum Conducted Power of Each Tested Mode .................................................................. 11 1.8. Test Date ................................................................................................................................... 11 2. SAR Measurements System Configuration ................................................................................... 12 2.1. SAR Measurement Set-up ......................................................................................................... 12 2.2. DASY5 E-field Probe System .................................................................................................... 13 2.2.1. EX3DV4 Probe Specification .......................................................................................... 13 2.2.2. E-field Probe Calibration ................................................................................................. 14 2.3. Other Test Equipment ................................................................................................................ 14 2.3.1. Device Holder for Transmitters ....................................................................................... 14 2.3.2. Phantom ......................................................................................................................... 15 2.4. Scanning Procedure .................................................................................................................. 15 2.5. Data Storage and Evaluation ..................................................................................................... 17 2.5.1. Data Storage ................................................................................................................... 17 2.5.2. Data Evaluation by SEMCAD ......................................................................................... 17 3. Laboratory Environment ................................................................................................................ 19 4. Tissue-equivalent Liquid ............................................................................................................... 20 4.1. Tissue-equivalent Liquid Ingredients ......................................................................................... 20 4.2. Tissue-equivalent Liquid Properties ........................................................................................... 22 5. System Check ............................................................................................................................... 23 5.1. Description of System Check .................…
