Quick Start 1 Thank you for purchasing the Mobile WiFi. This Mobile WiFi brings you a high speed wireless network connection. This document will help you understand your Mobile WiFi so you can start using it right away. Please read this document carefully before using your Mobile WiFi. For detailed information about the functions and configurations of the Mobile WiFi, refer to the online help on the web management page that comes with the Mobile WiFi. For detailed instructions for logging in to the web management page, refer to "Logging In to the Web Management Page". 2 Getting to Know Your Mobile WiFi Note: The Mobile WiFi function descriptions and illustrations in this document are for your reference only. The product you have purchased may vary. Application Scenarios Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or computers can all access the Internet through Mobile WiFi. The specific connection procedure depends on the operating system of the Wi-Fi device or computer. Establish a connection according to your device's specific instructions. 3 Scenario 1: Accessing the Internet Using an LT E , 3G, or 2G Network The Mobile WiFi uses your operator's LTE, 3G, or 2G network to access the Internet. 4 Scenario 2: Accessing the Internet Using a Wi-Fi Network When you use the Mobile WiFi in Wi-Fi coverage areas, for example, an airport, cafe, hotel, or your home, the Mobile WiFi can access the Internet via Wi-Fi networks, helping save your LT E , 3G, or 2G network usage. 5 Appearance  Power button  Screen  Micro USB port  MENU button 6 Screen Home screen  Roaming R: Data roaming turned on.  Signal strength : Signal strength from weak to strong.  Network type  4G/3G/2G: Connected to an LT E /3G/2G network.  : Connected to WLAN.  Data connection status  Battery  SMS  New messages.  Number of new messages. 7  Wi-Fi  Wi-Fi turned on.  Number of connected Wi-Fi devices.  Traffic statistics  Data usage this month.  Monthly data usage limit. Note:  To set the start date of the monthly data usage statistics and data usage limit, go to the web management page.  Data traffic information is for your reference only. For more accurate data traffic information, please consult your service provider. 8 Menu screen Press the MENU button to display the menu.  Back Return to the previous screen.  Options  Operation tips  Press the MENU button to scroll down.  Press the button to confirm your selection. 9 Update screen When updates are available, you will be prompted to update the Mobile WiFi.  Update When Update is selected, press the button to update the Mobile WiFi.  Ignore When Ignore is selected, press the button to ignore the update. 10 SSID and Wireless Network Encryption Key When a Wi-Fi device establishes a connection to the Mobile WiFi for the first time, you may need to enter the default Service Set Identifier (SSID) and wireless network encryption key. The default SSID and encryption key are printed on the Mobile WiFi label. It is recommended that you log in to the web management page and change your SSID and network encryption key. 11 To view the current SSID and wireless network encryption key on the screen: 1. Press the MENU button to display the menu. 2. Press the MENU button to scroll to Device Info. 3. Press the button to enter Device Info. 12 Getting Started Installing Install the SIM card, microSD card, and battery according to the illustration. Note: The microSD card is an optional accessory. If no microSD card is included in the package, please purchase one separately. 13 Charging the Battery If the Mobile WiFi has not been used for a long time or if the battery is fully depleted, the Mobile WiFi may not power on immediately after the charger is plugged in. Please charge the battery for a while before attempting to power on the Mobile WiFi. Method 1: Use the charger to charge the device Note:  Only use chargers compatible with the Mobile WiFi and provided by a designated manufacturer. Use of an incompatible charger or one from an unknown manufacturer may cause the Mobile WiFi to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product.  The charger is an optional accessory. If it is not included in the package, you may contact an authorized dealer to buy a charger compatible with the Mobile WiFi. 14  The Mobile WiFi's charger model is HW-050100XYW. X and Y represent letters or numbers that vary by region. For details about the specific charger model, contact an authorized dealer. Method 2: Charge the device through a computer connection Use the data cable provided with your device to connect the Mobile WiFi to the computer. 15 Turning on the Mobile WiFi Press and hold the button until the screen lights up, indicating that the Mobile WiFi is turned on. You can use the menu screen or log in to the web management page and turn the fast boot function on or off. This function greatly reduces the Mobile WiFi's boot-up time. Note: Press and hold the button to turn off the Mobile WiFi. Verifying the PIN If the Mobile WiFi's network parameters have been correctly configured but you cannot access the Internet after powering it on, PIN verification may be enabled. Log in to the web management page and enter the PIN when prompted. To avoid entering the PIN every time you power on the Mobile WiFi, disable PIN verification from the web management page. The PIN/PUK is delivered with your SIM card. For more details, contact your service provider. 16 Connecting to the Internet Using an LT E , 3G, or 2G Network By default, the Mobile WiFi's management parameters have been preset according to your operator's requirements. The Mobile WiFi will be connected to the Internet after its startup. If data is transmitted, the Mobile WiFi will automatically connect to the Internet. If data is not transmitted for a period of time, the Mobile WiFi will automatically disconnect from the network conn…

Text truncated - open the document above for the full version.

Quick Start 1 Thank you for purchasing the Mobile WiFi. This Mobile WiFi brings you a high speed wireless network connection. This document will help you understand your Mobile WiFi so you can start using it right away. Please read this document carefully before using your Mobile WiFi. For detailed information about the functions and configurations of the Mobile WiFi, refer to the online help on the web management page that comes with the Mobile WiFi. For detailed instructions for logging in to the web management page, refer to "Logging In to the Web Management Page". 2 Getting to Know Your Mobile WiFi Note: The Mobile WiFi function descriptions and illustrations in this document are for your reference only. The product you have purchased may vary. Application Scenarios Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or computers can all access the Internet through Mobile WiFi. The specific connection procedure depends on the operating system of the Wi-Fi device or computer. Establish a connection according to your device's specific instructions. 3 Scenario 1: Accessing the Internet Using an LT E , 3G, or 2G Network The Mobile WiFi uses your operator's LTE, 3G, or 2G network to access the Internet. 4 Scenario 2: Accessing the Internet Using a Wi-Fi Network When you use the Mobile WiFi in Wi-Fi coverage areas, for example, an airport, cafe, hotel, or your home, the Mobile WiFi can access the Internet via Wi-Fi networks, helping save your LT E , 3G, or 2G network usage. 5 Appearance  Power button  Screen  Micro USB port  MENU button 6 Screen Home screen  Roaming R: Data roaming turned on.  Signal strength : Signal strength from weak to strong.  Network type  4G/3G/2G: Connected to an LT E /3G/2G network.  : Connected to WLAN.  Data connection status  Battery  SMS  New messages.  Number of new messages. 7  Wi-Fi  Wi-Fi turned on.  Number of connected Wi-Fi devices.  Traffic statistics  Data usage this month.  Monthly data usage limit. Note:  To set the start date of the monthly data usage statistics and data usage limit, go to the web management page.  Data traffic information is for your reference only. For more accurate data traffic information, please consult your service provider. 8 Menu screen Press the MENU button to display the menu.  Back Return to the previous screen.  Options  Operation tips  Press the MENU button to scroll down.  Press the button to confirm your selection. 9 Update screen When updates are available, you will be prompted to update the Mobile WiFi.  Update When Update is selected, press the button to update the Mobile WiFi.  Ignore When Ignore is selected, press the button to ignore the update. 10 SSID and Wireless Network Encryption Key When a Wi-Fi device establishes a connection to the Mobile WiFi for the first time, you may need to enter the default Service Set Identifier (SSID) and wireless network encryption key. The default SSID and encryption key are printed on the Mobile WiFi label. It is recommended that you log in to the web management page and change your SSID and network encryption key. 11 To view the current SSID and wireless network encryption key on the screen: 1. Press the MENU button to display the menu. 2. Press the MENU button to scroll to Device Info. 3. Press the button to enter Device Info. 12 Getting Started Installing Install the SIM card, microSD card, and battery according to the illustration. Note: The microSD card is an optional accessory. If no microSD card is included in the package, please purchase one separately. 13 Charging the Battery If the Mobile WiFi has not been used for a long time or if the battery is fully depleted, the Mobile WiFi may not power on immediately after the charger is plugged in. Please charge the battery for a while before attempting to power on the Mobile WiFi. Method 1: Use the charger to charge the device Note:  Only use chargers compatible with the Mobile WiFi and provided by a designated manufacturer. Use of an incompatible charger or one from an unknown manufacturer may cause the Mobile WiFi to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product.  The charger is an optional accessory. If it is not included in the package, you may contact an authorized dealer to buy a charger compatible with the Mobile WiFi. 14  The Mobile WiFi's charger model is HW-050100XYW. X and Y represent letters or numbers that vary by region. For details about the specific charger model, contact an authorized dealer. Method 2: Charge the device through a computer connection Use the data cable provided with your device to connect the Mobile WiFi to the computer. 15 Turning on the Mobile WiFi Press and hold the button until the screen lights up, indicating that the Mobile WiFi is turned on. You can use the menu screen or log in to the web management page and turn the fast boot function on or off. This function greatly reduces the Mobile WiFi's boot-up time. Note: Press and hold the button to turn off the Mobile WiFi. Verifying the PIN If the Mobile WiFi's network parameters have been correctly configured but you cannot access the Internet after powering it on, PIN verification may be enabled. Log in to the web management page and enter the PIN when prompted. To avoid entering the PIN every time you power on the Mobile WiFi, disable PIN verification from the web management page. The PIN/PUK is delivered with your SIM card. For more details, contact your service provider. 16 Connecting to the Internet Using an LT E , 3G, or 2G Network By default, the Mobile WiFi's management parameters have been preset according to your operator's requirements. The Mobile WiFi will be connected to the Internet after its startup. If data is transmitted, the Mobile WiFi will automatically connect to the Internet. If data is not transmitted for a period of time, the Mobile WiFi will automatically disconnect from the network conn…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: TUV PS Fax : NULL From:Zhang Xinghai Fax:0086-755-89650226 Tel:0086-755-2 8970299 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISE5377BS-508 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Date: July 4, 2014 Statement We, Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISE5377BS-508, has a battery, But the battery will not be placed in the battery compartment when delivery, it is visible to the users as they purchase the products and install the battery. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Te l : 0086-0755-28970299 Fax: 0086-0755-89650226

Huawei Technologies Co., Ltd. Address：Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Post ZIP：518129 Page ：1/1 To: TUV PS Fax : NULL From:Zhang Xinghai Fax:0086-755-89650226 Tel:0086-755-28970299 Email address: [email protected] Http: www.huawei.com Subject：Letter of Authorization 2014-06-06 To whom it may concern: We the undersigned, hereby authorize TUV PS to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by TUV PS on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Huawei Technologies Co., Ltd. . Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

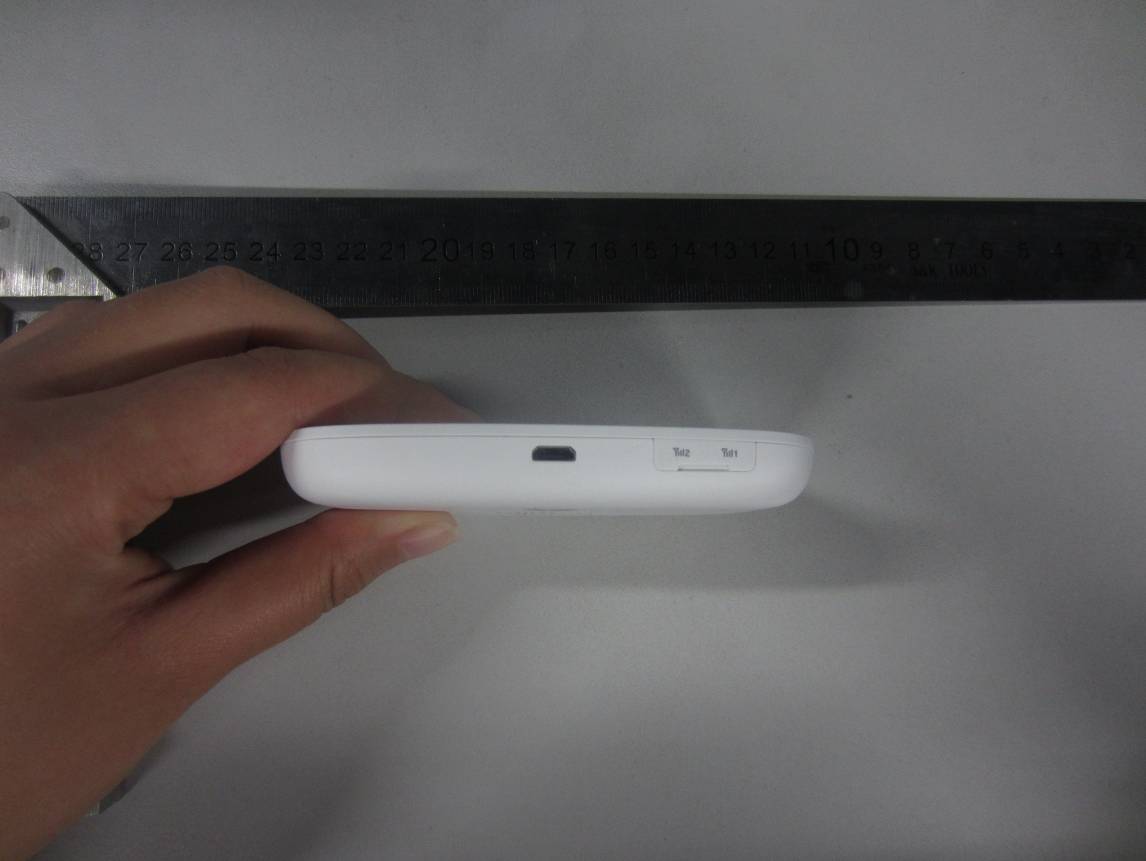

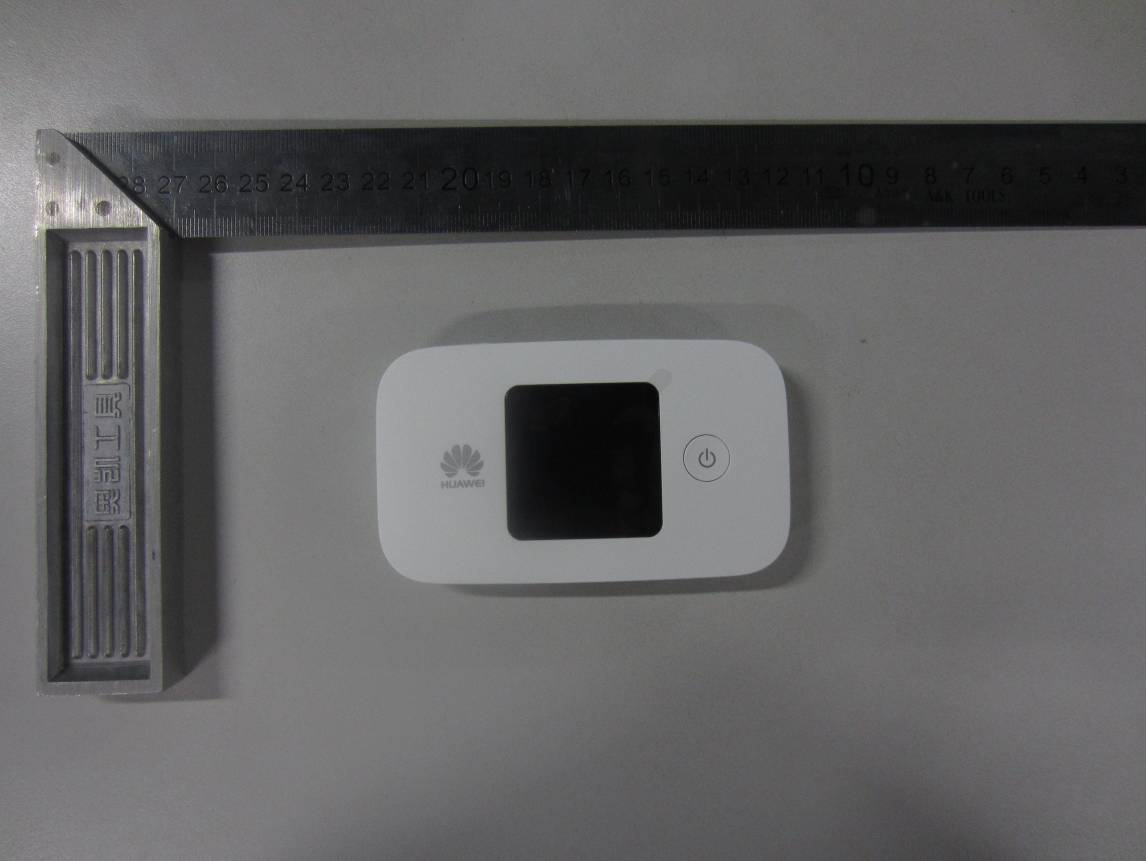

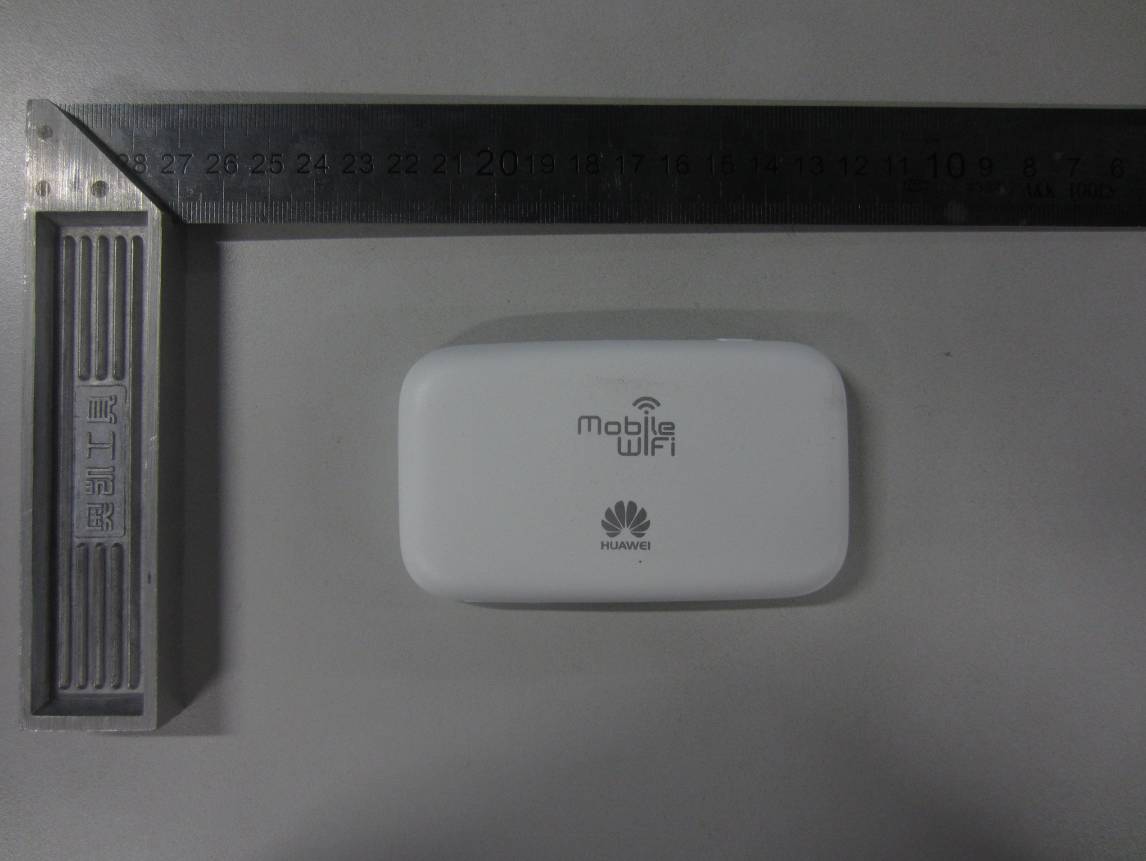

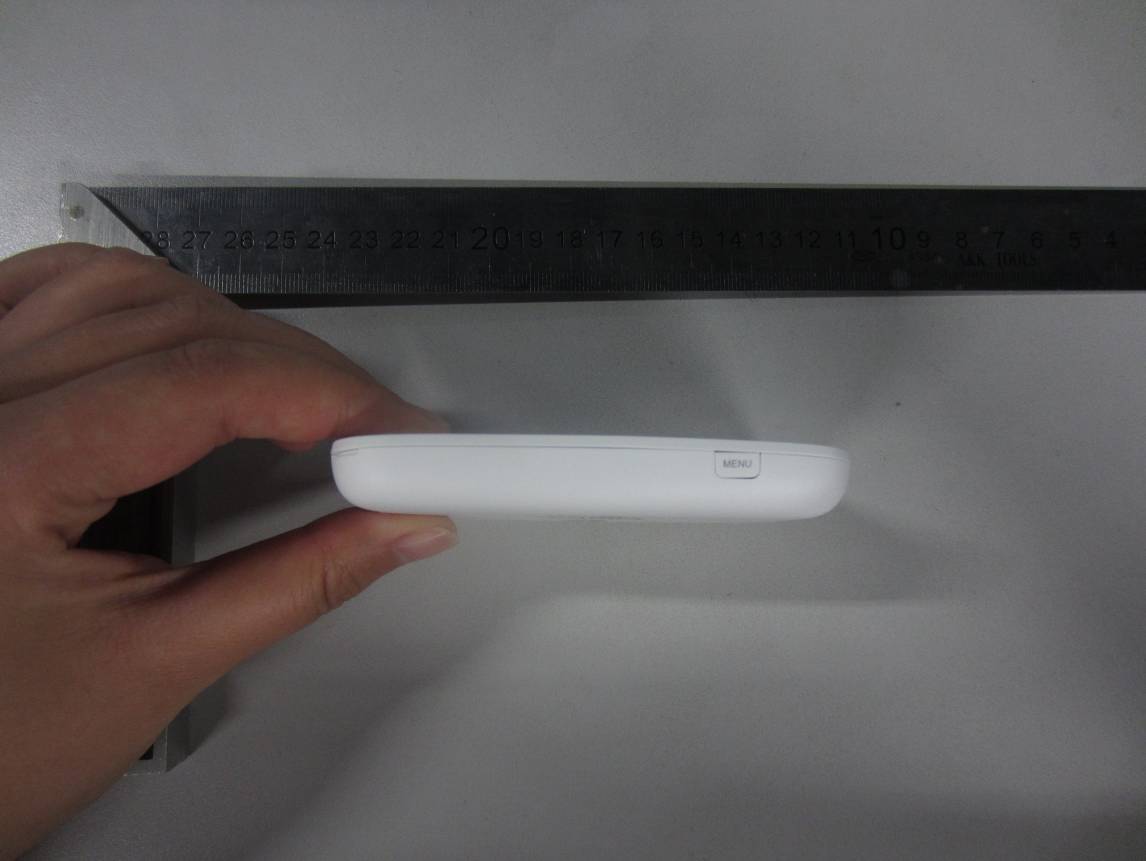

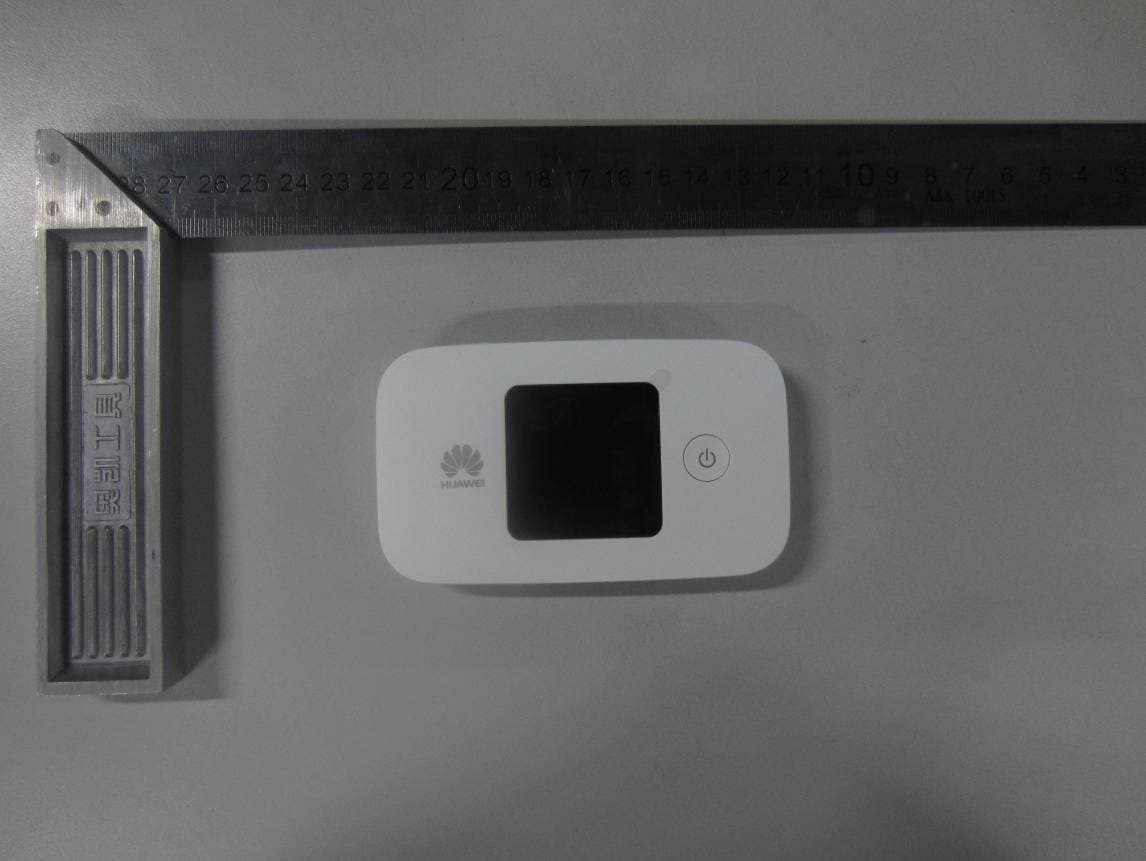

E5377Bs-508 Mobile WiFi SECRET Page1，Total 5 External Photos of E5377Bs-508 E5377Bs-508 Mobile WiFi SECRET Page2，Total 5 E5377Bs-508 Mobile WiFi SECRET Page3，Total 5 E5377Bs-508 Mobile WiFi SECRET Page4，Total 5 E5377Bs-508 Mobile WiFi SECRET Page5，Total 5

E5377Bs-508 Mobile WiFi SECRET Page 1 Total 1 E5377Bs-508 Label & Label Location: E5377Bs-508 Mobile WiFi SECRET Page 2 Total 1

E5377Bs-508 Mobile WiFi SECRET Page1，Total2 Internal Photos of E5377Bs-508 E5377Bs-508 Mobile WiFi SECRET Page2，Total2

EMC Test Report Product Name: Mobile WiFi Model Number: E5377Bs-508 Report No: SYBH(Z-EMC)037052014-2 FCC ID：QISE5377BS-508 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 Test Report of E5377Bs-508 FCC ID: QISE5377BS-508 Security Level: secret Report No: SYBH(Z-EMC)037052014-2 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total18 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 7. The test report is invalid if there is any evidence of erasure and/or falsification. 8. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 9. Normally, the test report is only responsible for the samples that have undergone the test. 10. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. Test Report of E5377Bs-508 FCC ID: QISE5377BS-508 Security Level: secret Report No: SYBH(Z-EMC)037052014-2 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total18 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Test Item: June.05, 2014 Start Date of Test: June.10, 2014 End Date of Test: June.19, 2014 Test Result: Pass Approved By 2014-06-23 Liu Chunlin (Lab Manager) Date Name Signature Operator 2014-06-23 Xiang Zaiji (Test Engineer) Date Name Signature Test Report of E5377Bs-508 FCC ID: QISE5377BS-508 Security Level: secret Report No: SYBH(Z-EMC)037052014-2 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total18 Modification Record No. Last Report No. Modification Description 1 NA First Report. Test Report of E5377Bs-508 FCC ID: QISE5377BS-508 Security Level: secret Report No: SYBH(Z-EMC)037052014-2 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total18 TABLE OF CONTENT 1 General Information ............................................................................................................................. 6 1.1 EUT Description ........................................................................................................................... 6 1.2 Test Site Information .................................................................................................................... 8 1.3 Applied Standards ........................................................................................................................ 8 2 Summary of Results ............................................................................................................................. 9 3 System Configuration during EMC Test ............................................................................................ 10 3.1 Test Mode ................................................................................................................................... 10 3.2 Test System Configuration ......................................................................................................... 11 3.3 Cables Used during Test ............................................................................................................ 11 3.4 Associated Equipment Used during Test .................................................................................. 11 4 Electromagnetic Interference (EMI) ................................................................................................... 12 4.1 Radiated Disturbance 30MHz to 18GHz ................................................................................... 12 4.2 Conducted Disturbance 0.15 MHz to 30MHz ............................................................................ 14 5 Main Test Instruments ........................................................................................................................ 15 6 System Measurement Uncertainty .................................................................................................... 15 7 Test Data and Graph .......................................................................................................................... 16 7.1 Radiated Disturbance ................................................................................................................. 16 7.2 Conducted Disturbance .............................................................................................................. 18 Test Report of E5377Bs-508 FCC ID: QISE5377BS-508 Security Level: secret Report No: SYBH(Z-EMC)037052014-2 Confidential Information of Huawei. No Distribution without Written Permission Page6, Total18 1 General Information 1.1 EUT Description EUT Description Product Name Mobile WiFi Model Number E5377Bs-508 Serials Number #1 TX Frequency GSM850: 824MHz To 849MHz GSM1900: 1850…
