Quick Start 1 Thank you for purchasing the Mobile WiFi. This Mobile WiFi brings you a high speed wireless network connection. This document will help you understand your Mobile WiFi so you can start using it right away. Please read this document carefully before using your Mobile WiFi. For detailed information about the functions and configurations of the Mobile WiFi, refer to the online help on the web management page that comes with the Mobile WiFi. For detailed instructions for logging in to the web management page, refer to "Logging In to the Web Management Page". 2 Getting to Know Your Mobile WiFi Note: The Mobile WiFi function descriptions and illustrations in this document are for your reference only. The product you have purchased may vary. Application Scenarios Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or computers can all access the Internet through the Mobile WiFi. The specific connection procedure depends on the operating system of the Wi-Fi device or computer. Establish a connection according to your device's specific instructions. 3 Scenario 1: Accessing the Internet Using an LTE, 3G, or 2G Network The Mobile WiFi uses your operator's LTE, 3G, or 2G network to access the Internet. LTE/3G/2G 4 Scenario 2: Accessing the Internet Using a Wi-Fi Network The Mobile WiFi supports the Wi-Fi Extender function. When you use the Mobile WiFi in Wi-Fi coverage areas, for example, an airport, cafe, hotel, or your home, your Mobile WiFi will connect to known Wi-Fi hotspots, helping you save mobile data usage. For details about adding Wi-Fi hotspots, see "Adding a Wi-Fi Hotspot". WLAN 5 Appearance  Battery indicator  Green: Sufficient battery.  Blinking green: Charging the battery.  Red: Low battery.  Power button  Micro USB port  Signal indicator  Green: Strong signal.  Orange: Weak signal.  Red: No signal. 1 3 2 4 6 SSID and Wireless Network Encryption Key When a Wi-Fi device establishes a connection to the Mobile WiFi for the first time, you may need to enter the default Service Set Identifier (SSID) and wireless network encryption key. The default SSID and encryption key are printed on the Mobile WiFi label. It is recommended that you can log in to the web management page and change your SSID and wireless network encryption key. Connecting an Android Device to the Mobile WiFi Using a 2D Barcode 1. Search for HUAWEI Mobile WiFi in Google Play or HUAWEI App Center and download the app to your Android device. 2. Scan the 2D Barcode on the Mobile WiFi label using the HUAWEI Mobile WiFi App. Your Android device will then connect to the Mobile WiFi. 7 Getting Started Installing Install the SIM card, and battery according to the illustration. 4 1 2 3 2 1 8 Charging the Battery If the Mobile WiFi has not been used for a long time or if the battery is fully depleted, the Mobile WiFi may not power on immediately after the charger is plugged in. Please charge the battery for a while before attempting to power on the Mobile WiFi. Method 1: Use the charger to charge the device Note:  Only use chargers compatible with the Mobile WiFi and provided by a designated manufacturer. Use of an incompatible charger or one from an unknown manufacturer may cause the Mobile WiFi to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product.  The charger is an optional accessory. If it is not included in the package, you may contact an authorized dealer to buy a charger compatible with the Mobile WiFi. 9  The Mobile WiFi’s charger model is HW-050100XYW. X and Y represent letters or numbers that vary by region. For details about the specific charger model, contact an authorized dealer. Method 2: Charge the device through a computer connection Use the data cable provided with your device to connect the Mobile WiFi to the computer. 10 Turning on the Mobile WiFi Press and hold the power button until indicator lights up, indicating that the Mobile WiFi is turned on. Note: Press and hold the power button to turn off the Mobile WiFi. Verifying the PIN If the Mobile WiFi's network parameters have been correctly configured but you cannot access the Internet after powering it on, PIN verification may be enabled. Log in to the web management page and enter the PIN when prompted. To avoid entering the PIN every time you power on the Mobile WiFi, disable PIN verification from the web management page. The PIN/PUK is delivered with your SIM card. For more details, contact your service provider. 11 Connecting to the Internet Using an LTE, 3G, or 2G Network The Mobile WiFi's management parameters have been preset according to your operator's requirements. If data is transmitted, the Mobile WiFi will automatically connect to the Internet. If data is not transmitted for a period of time, the Mobile WiFi will automatically disconnect from the network connection. Note: You can log in to the web management page and enable or disable the automatic dialing while roaming function. If this function is turned off, when the Mobile WiFi enters a roaming network, it will automatically disconnect from the Internet connection that has already been established. You will need to manually establish this network connection again. 12 Using a Wi-Fi Network 1. Ensure that the Wi-Fi extender function is enabled. 2. The Mobile WiFi automatically connects to a Wi-Fi hotspot set by your service provider or yourself. Note:  After connecting to a Wi-Fi network, the Mobile WiFi automatically reconnects to the network the next time you are under that network's coverage.  For details about adding Wi-Fi hotspots, see “Adding a Wi-Fi Hotspot”. 13 Logging In to the Web Management Page 1. Make sure the connection between the Mobile WiFi and the Wi-Fi device or computer is working normally. 2. Open the browser, and enter http://192.168.8.1 in the address box. Note: If the IP address conflicts with other IP addresses on the network, the IP address of the Mo…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Date: 09 Mar, 2015 To : Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Huawei Technologies Co., Ltd. the undersigned, hereby authorizes Mr. Zhang Shangwen from CCIC-SET to act on the behalf of the Huawei Technologies Co., Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID: QISE5573S-508 including the signing of documents in connection with this Application. Necessary acts carried out by CCIC-SET on our behalf of the Huawei Technologies Co., Ltd. in connection with the application shall have the same effect as acts of the Huawei Technologies Co., Ltd. The Huawei Technologies Co., Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Name(in print): Zhang Xinghai Title: EMC Laboratory Manager

Huawei Technologies Co., Ltd. Statements Date (03 /25 /2015) Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China Hereby to confirm that our device, Models: E5573s-508, FCC ID: QIS E5573S-508, the label with FCC ID is placed in the battery compartment, and the battery will not be placed in the battery compartment at the time of purchase, the FCC ID is visible to the users when they purchase the products and install the battery. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-03-10 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISE5573S-508 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-4- 15: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

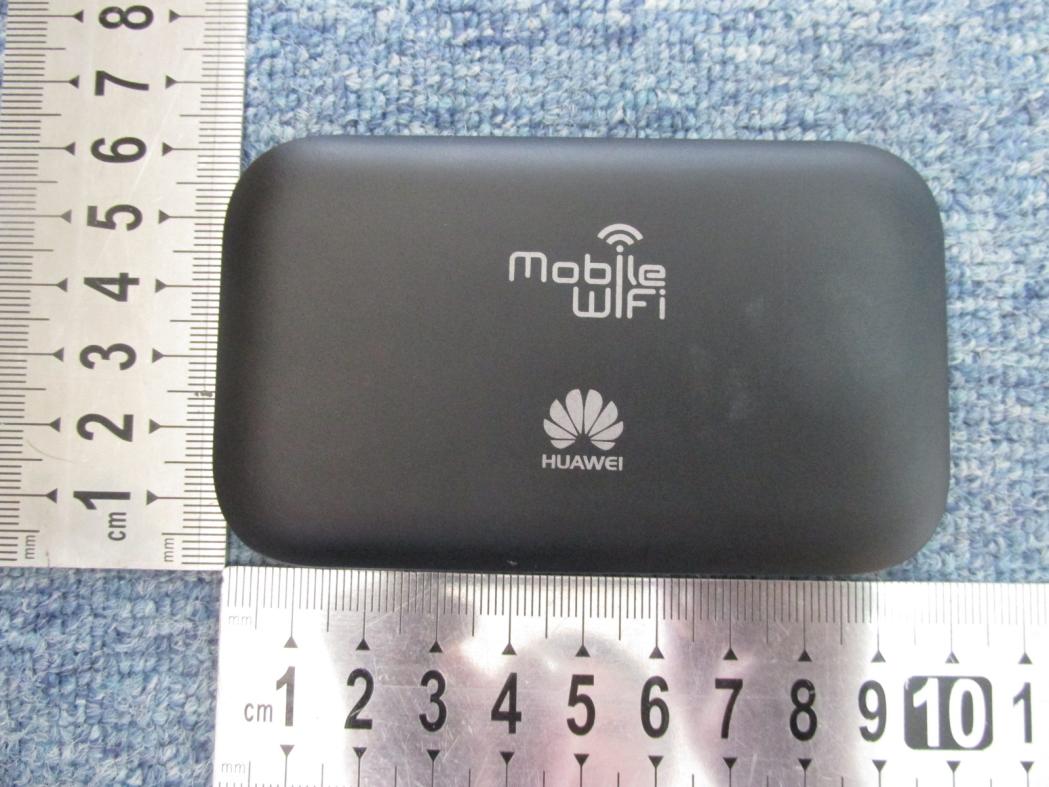

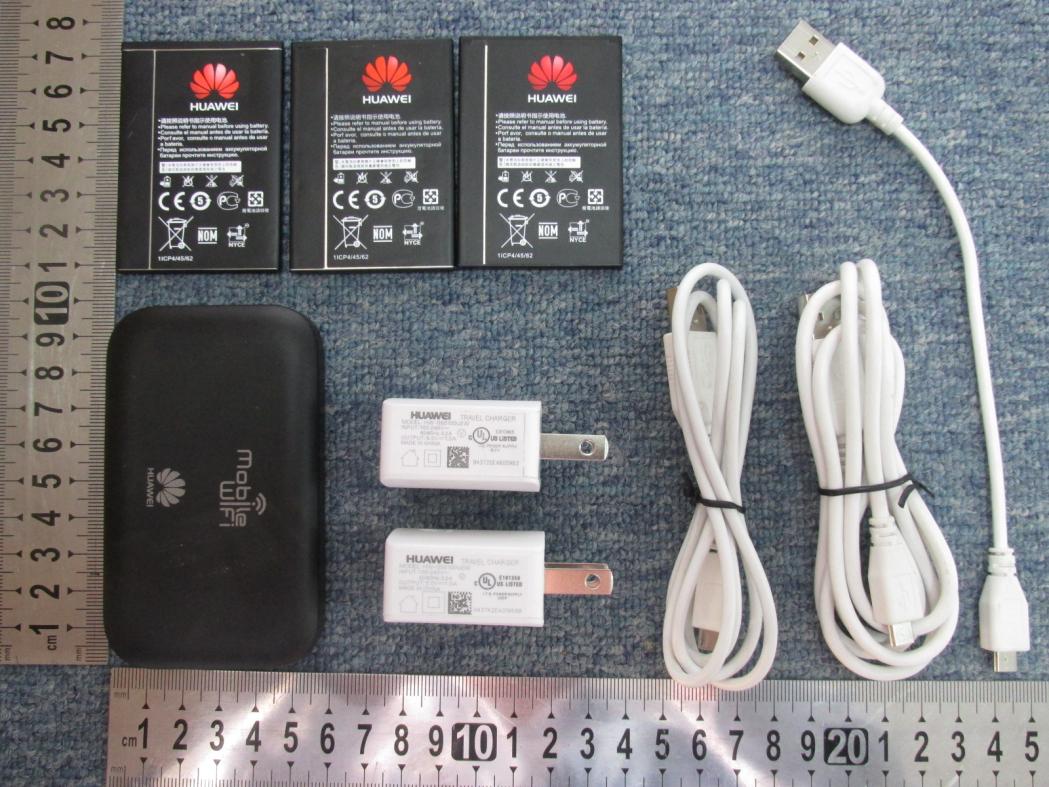

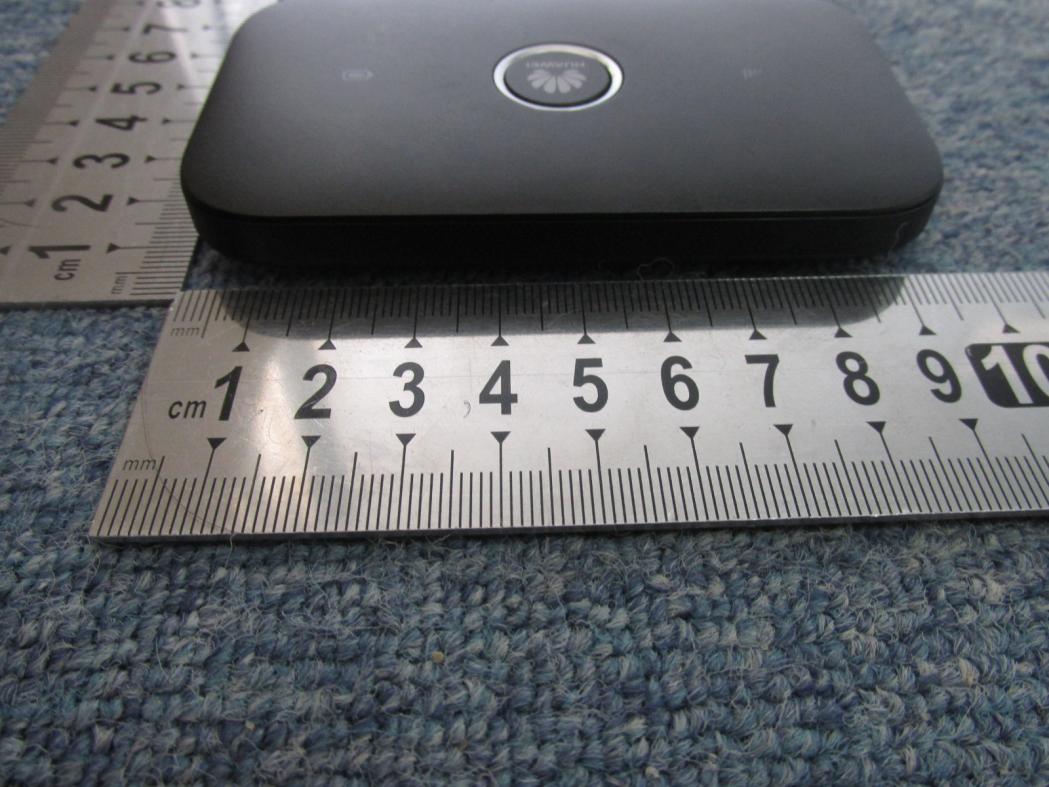

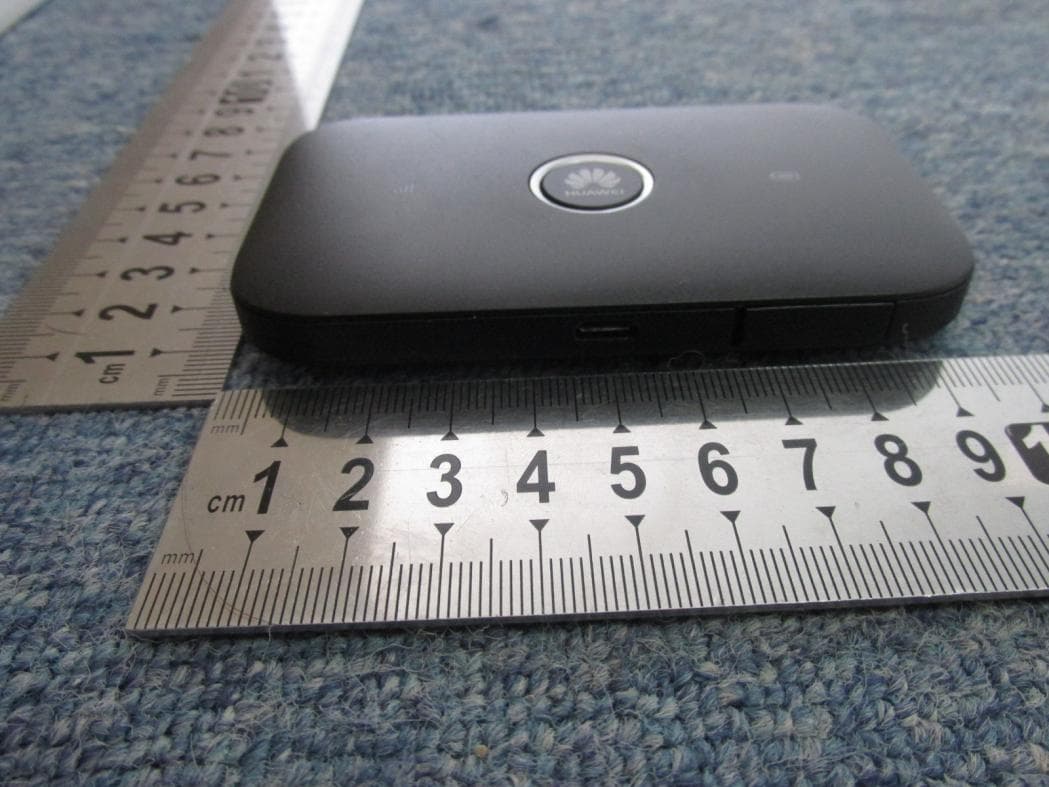

External Photo

E5573s-508 SECRET Page 1 Total 1 ID Label Location_ E5573s-508 In the middle shell of model

Internal Photo

Report No. SET2015-03028 CCIC-SET/T-I (00) Page 1 of 187 FCC SAR TEST REPORT Report No.： SET2015-03028 Product： Mobile WiFi Brand Name： Huawei Model No.： E5573s-508 FCC ID： QISE5573S-508 Applicant： Huawei Technologies Co., Ltd. Address： Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Issued by： CCIC-SET Lab Location： Electronic Testing Building, Shahe Road，Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 187 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2015-03028 CCIC-SET/T-I (00) Page 2 of 187 Test Report Product. ...................: Mobile WiFi Model No. .................: E5573s-508 Brand Name..............: Huawei FCC ID.......................: QISE5573S-508 Applicant....................: Huawei Technologies Co., Ltd. Applicant Address.......: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer............: Huawei Technologies Co., Ltd. Manufacturer Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Test Standards..........: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques; Test Result...............: Pass Tested by ..............: 2015-03-23 Chun Mei, Test Engineer Reviewed by.............: 2015-03-23 Shuangwen Zhang,Senior Egineer Approved by...............: 2015-03-23 Wu Li‟an , Manager Report No. SET2015-03028 CCIC-SET/T-I (00) Page 3 of 187 Contents 1. General Conditions----------------------------------------------------------------------------4 2. Administrative Data---------------------------------------------------------------------------5 3. Equipment Under Test (EUT)---------------------------------------------------------------6 4. SAR Summary ---------------------------------------------------------------------------------8 5. Specific Absorption Rate (SAR)-------------------------------------------------------------9 6. Operational Conditions During Test ------------------------------------------------------12 7. Applicable Measurement Standards ------------------------------------------------------25 8. Laboratory Environment --------------------------------------------------------------------26 9. Conducted RF Output Power --------------------------------------------------------------26 10. Test Results-------------------------------------------------------------------------------------41 11. Measurement Uncertainty-------------------------------------------------------------------52 12. Main Test Instruments------------------------------------------------------------------------55 This Test Report consists of the following Annexes: Annex A: Accreditation Certificate ----------------------------------------------------56 Annex B: Test Layout ---------------------------------------------------------------------58 Annex C: Sample Photographs----------------------------------------------------------65 Annex D: System Performance Check Data and Highest SAR Plots------------68 Annex E: Calibration Certificate of Probe and Dipoles----------------------------106 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 4 of 187 1．General Conditions 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone does not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of CCIC-SET 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of CCIC-SET and the Accreditation Bodies, if it applies. Report No. SET2015-03028 CCIC-SET/T-I (00) Page 5 of 187 2. Administrative Date 2.1. Identification of the Responsible Testing Laboratory Company Name: CCIC-SET Department: EMC & RF Department Address: Electronic Testing Building, Shahe Road, Nanshan District, ShenZhen, P. R. China Telephone: +86-755-26629676 Fax: +86-755-26627238 Responsible Test Lab Managers: Mr. Wu Li‟an 2.2. Identification of the Responsible Testing Location(s) Company Name: CCIC-SET Address: Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, P. R. China 2.3. Organization Item CCIC-SET Report No.: SET2015-03028 CCIC-SET Project Leader: Mr. Li Sixiong CCIC-SET Responsible for accreditation scope: Mr. Wu Li‟an Start of Testing: 2015-03-09 End of Testing: 2015-03-22 2.4. Identification of Applicant Company Name: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C 2.5. Identification of Manufacture Company Name: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhe…

Text truncated - open the document above for the full version.

Report No. SET2015-03028 CCIC-SET/T-I (00) Page 105 of 187 LTE Band7, 20M,Edge B, Middle,1RB#0 Type: Phone measurement (Complete) Date of measurement: 22/3/2015 Measurement duration: 20 minutes 37 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 7x7x8,dx=5mm dy=5mm dz=4mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Edge B Band LTE band 7 Channels Middle Signal Duty cycle: 1:1 B. SAR Measurement Results Frequency (MHz) 2535.000000 Relative permittivity (real part) 54.725899 Relative permittivity (imaginary part) 14.683100 Conductivity (S/m) 2.067870 Variation (%) 0.260000 ConvF: 5.22 SURFACE SAR VOLUME SAR Maximum location: X=-6.00, Y=9.00 SAR Peak: 1.26 W/kg SAR 10g (W/Kg) 0.336224 SAR 1g (W/Kg) 0.691965 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 106 of 187 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.1584 0.7116 0.3700 0.1883 0.0974 3D screen shot Hot spot position Report No. SET2015-03028 CCIC-SET/T-I (00) Page 107 of 187 Wi-Fi 802.11b , Ant. A, Face, Middle Type: Phone measurement (Complete) Date of measurement: 22/3/2015 Measurement duration: 20 minutes 36 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 7x7x8,dx=5mm dy=5mm dz=4mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Face Band IEEE 802.11b Channels 5 Signal DSSS (Crest factor: 1:1) B. SAR Measurement Results Frequency (MHz) 2432.000000 Relative permittivity (real part) 55.231300 Relative permittivity (imaginary part) 13.664860 Conductivity (S/m) 1.846274 Variation (%) 0.290000 ConvF: 4.91 SURFACE SAR VOLUME SAR Maximum location: X=-11.00, Y=-36.00 SAR Peak: 0.20 W/kg SAR 10g (W/Kg) 0.051632 SAR 1g (W/Kg) 0.107987 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 108 of 187 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1841 0.1061 0.0507 0.0243 0.0128 3D screen shot Hot spot position Report No. SET2015-03028 CCIC-SET/T-I (00) Page 109 of 187 Wi-Fi 802.11n-20 , Ant. A +B, Face, Middle Type: Phone measurement (Complete) Date of measurement: 22/3/2015 Measurement duration: 21 minutes 9 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 7x7x8,dx=5mm dy=5mm dz=4mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Face Band IEEE 802.11n-20 Channels 5 Signal DSSS (Crest factor: 1:1) B. SAR Measurement Results Frequency (MHz) 2432.000000 Relative permittivity (real part) 55.231300 Relative permittivity (imaginary part) 13.664860 Conductivity (S/m) 1.846274 Variation (%) -1.490000 ConvF: 4.91 SURFACE SAR VOLUME SAR Maximum location: X=6.00, Y=34.00 SAR Peak: 0.16 W/kg SAR 10g (W/Kg) 0.046829 SAR 1g (W/Kg) 0.093058 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 110 of 187 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1593 0.0998 0.0533 0.0279 0.0149 3D screen shot Hot spot position Report No. SET2015-03028 CCIC-SET/T-I (00) Page 111 of 187 Wi-Fi 802.11n-40 , Ant. A +B, Edge D, Middle Type: Phone measurement (Complete) Date of measurement: 22/3/2015 Measurement duration: 20 minutes 53 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 7x7x8,dx=5mm dy=5mm dz=4mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Back Band IEEE 802.11n-40 Channels 5 Signal DSSS (Crest factor: 1:1) B. SAR Measurement Results Frequency (MHz) 2432.000000 Relative permittivity (real part) 55.231300 Relative permittivity (imaginary part) 13.664860 Conductivity (S/m) 1.846274 Variation (%) 1.130000 ConvF: 4.91 SURFACE SAR VOLUME SAR Maximum location: X=-5.00, Y=-5.00 SAR Peak: 0.23 W/kg SAR 10g (W/Kg) 0.071876 SAR 1g (W/Kg) 0.137851 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 112 of 187 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.2019 0.1352 0.0789 0.0444 0.0240 3D screen shot Hot spot position Report No. SET2015-03028 CCIC-SET/T-I (00) Page 113 of 187 ANNEX E of CCIC-SET CONFORMANCE TEST REPORT FOR HUMAN EXPOSURE TO ELECTROMAGNETIC FIELDS SET2015-03028 Mobile WiFi Type Name: E5573s-508 Hardware Version： CL1E5573SM Software Version： 21.200.01.01.00 Calibration Certificate of Probe and Dipoles This Annex consists of 64 pages Date of Report：2015-03-23 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 114 of 187 Probe Calibration Ceriticate Report No. SET2015-03028 CCIC-SET/T-I (00) Page 115 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 116 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 117 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 118 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 119 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 120 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 121 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 122 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 123 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 124 of 187 SID835 Dipole Calibration Ceriticate Report No. SET2015-03028 CCIC-SET/T-I (00) Page 125 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 126 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 127 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 128 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 129 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 130 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 131 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 132 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 133 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 134 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 135 of 187 SID1900 Dipole Calibration Ceriticate Report No. SET2015-03028 CCIC-SET/T-I (00) Page 136 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 137 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 138 of 187

Report No. SET2015-03028 CCIC-SET/T-I (00) Page 139 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 140 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 141 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 142 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 143 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 144 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 145 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 146 of 187 SID2450 Dipole Calibration Ceriticate Report No. SET2015-03028 CCIC-SET/T-I (00) Page 147 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 148 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 149 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 150 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 151 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 152 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 153 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 154 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 155 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 156 of 187 Report No. SET2015-03028 CCIC-SET/T-I (00) Page 157 of 187 SID1800 Dipole Calibration Ceriticate Report No. SET2015-03028 CCIC-SET/T-I (00) Page 158 of 187
