QISE560S-6Mobile WiFi

Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd. and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd. reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD. BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Warnings and Precautions This section contains important information pertaining to the operating instructions of your device. It also contains information about how to use your device safely. Read this information carefully before using the device. Electronic Device Do not use your device if using the device is prohibited. Do not use the device when using the device causes danger or interference with electronic devices. Medical Device  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device when using the device is prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. For any such problems, consult your service provider.  If you are using an electronic medical device, consult the doctor or the device manufacturer to confirm whether radio waves affect the operation of this device. Potentially Explosive Atmosphere Do not use your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not use your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity. Traffic Security  Observe local laws and regulations while using the device. To prevent accidents, do not use your wireless device while driving.  RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  In a motor vehicle, do not place the device over the air bag or in the air bag deployment area. Otherwise, the device may hurt you owing to the strong force when the air bag inflates.  Do not use your device while flying in an aircraft and before boarding an aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft and disrupt the wireless telephone network. It may also be considered illegal. Operating Environment  Do not use or charge the device in dusty, damp, and dirty places or places with magnetic fields. Otherwise, it may result in a malfunction of the circuit.  While using the device, observe the local laws and regulations, and respect others' privacy and legal rights.  Place the device or accessories in well-ventilated, cool, and out-of-direct-sunlight place. Avoid enveloping the device, or covering towels and placing articles on the device. Place the device out of a box or case to avoid poor heat dissipation that results in the damage to the device.  On a stormy day with thunder, do not use your device, to prevent any danger caused by lightning.  Keep the ambient temperature between -10 °C to +35°C for using the device. Safety of Children Comply with all precautions with regard to children's safety. Letting the child play with your device or its accessories, which may include parts that can be detached from the device, may be dangerous,…

Text truncated - open the document above for the full version.

1 Smart Device Simple World Thank you for choosing HUAWEI Mobile WiFi Supported functions and actual appearance depend on the specific models you purchased. The illustrations are provided for your reference only. For details about the model you selected, consult your service provider. This guide briefly describes the functions of the Mobile WiFi. For details about how to set management parameters, see help on the web management page. Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved. THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTITUTE ANY KIND OF WARRANTIES. 2 Getting to Know HUAWEI Mobile WiFi Connection Scenarios A Wi-Fi device or computer can be connected to the Internet through the Mobile WiFi. The actual connection procedure depends on the operating system of the Wi-Fi device or computer. The connection scenarios illustrated here are for your reference. Scenario 1: Multi-device access via Wi-Fi Scenario 2: One-device access via USB Smart phone Game machine Digital camera Laptop 3 Scenario 3: Multi-device access via Wi-Fi and USB at the same time Smart phone Game machine Digital camera Laptop 4 1 4 3 2 6 7 5 Appearance No. Item 1 Screen 2 WPS button 3 Power button 4 USB port 5 microSD card slot 6 Battery button 7 Strap hole 5 7 124 8 3 5 6 0B 00:00 Screen No. Item 1 Signal strength 2 Network 3  Wi-Fi enabled  Number of devices connected 4 Internet connection status 5  New messages  Number of new messages 6 Battery level 7 International roaming state 8  Traffic data  Connection duration 6 Note:  Wi-Fi: Wireless fidelity  WPS: Wi-Fi protected setup  Traffic statistics are for your reference only. To obtain the actual traffic data, contact your service provider. 7 Before You Start Installing the SIM Card and the Battery Caution: Do not use any SIM card that is not standard or is incompatible with the Mobile WiFi. Otherwise, the Mobile WiFi may be damaged. Insert the SIM card in the card slot. Be sure that the SIM card is facing in the right direction, as shown in figure 2, and then slide the SIM card into the slot. 1 2 3 4 8 Installing the microSD Card 1. Remove the rubber cap from the microSD card slot. Then insert the microSD card into the slot. 2. After inserting the microSD card completely, attach the rubber cap. Note:  The microSD card is an optional accessory. If a microSD card did not come with your Mobile WiFi, you may purchase one yourself.  To remove the microSD card, press in the card gently. The microSD card will pop out for removal.  Do not remove the microSD card when it is in use. Doing so may damage the card and the Mobile WiFi, and data stored on the card may be lost. 9 Charging the Battery Note: If the battery has not been used for a long time, it must be charged first. Method 1: Using the charger Caution: Only use chargers compatible with the Mobile WiFi and provided by a designated manufacturer. Use of an incompatible charger or one from an unknown manufacturer may cause the Mobile WiFi to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product. Method 2: Connecting to a PC for charging Connect the Mobile WiFi to a PC using a compatible data cable. 10 POWER Accessing the Internet via Wi-Fi Connection Note: By default, management parameters are preset on the Mobile WiFi according to the requirements of the service provider. Follow the steps below to quickly access the Internet. For the details about how to set management parameters, see help on the web management page. Step1: Power on the Mobile WiFi Press and hold POWER until the screen lights up. The Mobile WiFi is powered on. Note: Press and hold POWER to power off the Mobile WiFi. Step2: Establish a Wi-Fi Connection (Take a computer with Windows ® XP operating system as an example) 1. Make sure that the Wi-Fi is enabled. 11 2. Select Start > Control Panel > Network Connections > Wireless Network Connection. Note: To set up a Wi-Fi connection, the PC must have a wireless network adapter installed. If Wireless Network Connection is displayed, a wireless network adapter is available. Otherwise, check to make sure you have a wireless network adapter installed. 3. Click View available wireless networks to display a list of wireless networks available. 4. Select a network that has the same SSID as that of the Mobile WiFi, and then click Connect. Note:  If the encryption parameter is already set for the Mobile WiFi, the Wireless Network Connection dialog box is displayed. Enter the network key in the dialog box.  The SSID and network key label are affixed to your Mobile WiFi. 5. Wait until the wireless connection icon is displayed in the status area in the lower right corner of the PC screen. 12 Step3: Access the Internet After you establish a Wi-Fi connection successfully, you can access the Internet using the following modes. Caution: Please select a proper Internet connection mode based on your service expense. For example, if you are subscribed to the time-based network service, you are recommended to select Manual mode. For details about the service expense, consult your service provider. Mode Operations Auto After the Mobile WiFi is powered on, it will connect to the Internet automatically if data transmission is required. If there is no data transmission over a period of time, the Mobile WiFi automatically terminates the Internet connection. Manual Launch the web management page and follow the prompts to connect to or disconnect from the network. 13 Note:  Launch the web management page to select the mode for accessing the Internet.  If you roam to a different network with the Mobile WiFi, it will automatically disconnect an established network connection. If you need to access the Internet from the new network, you must re-establish a network connection. Accessing the Web Management Page 1. Make sure that the connection between the Mobile WiFi and the client is a proper one. 2. Start the Interne…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Declaration of Letter To whom it may concern: FCC ID: QISE560S-6, Model: E560s-6; QISE586BS-6, Model: E586Bs-6. This is to advise and officially, that we, HUAWEI TECHNOLOGIES CO., LTD., declare that E560s-6 only reduce the speed of HSDPA and change ID from E586Bs-6, they have same PCB and antenna, FCC band is also exactly same; so the RF test result, the SAR test result and EMC test result of E560s-6 is same as E586Bs-6 for FCC band. E560s-6 E586Bs-6 GSM four band support support WCDMA 2100M support support WCDMA 1900M support support WCDMA 850M support support HSUPA same,5.76Mbps HSDPA 7.2Mbps 21.6Mbps FLASH same, Support 1G antenna same PCB same , CH1E586M Appearance Different ID, same size (95.5mm*48.6mm*14.1mm) Sincerely, Zhang Xinghai EMC Laboratory Manager For and Behalf of: Huawei Technologies Co., Ltd. [email protected]

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISE560S-6 to be kept confidential: 1. Schematic diagram . 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2011-08-30 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISE560S-6 Product Name: Mobile WiFi Product Model: E560s-6 To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely,

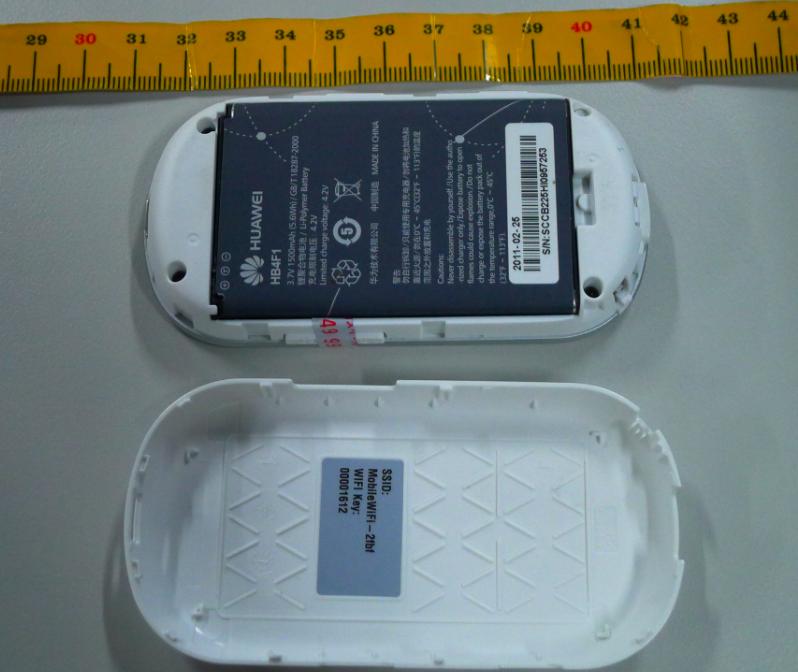

E560s-6 SECRET Page1，Total 5 External Photos of E560s-6 E560s-6 SECRET Page2，Total 5 E560s-6 SECRET Page3，Total 5 E560s-6 SECRET Page4，Total 5 E560s-6 SECRET Page5，Total 5

E560s-6 SECRET Page1, Total 1 ID Label Location_E560s-6

E560s-6 SECRET Page1，Total2 Internal Photos of E560s-6 E560s-6 SECRET Page2，Total2

FCC Test Report Product Name: Mobile WiFi Model Number: E586Bs-6 Report No: SYBH(Z-RF)019072011-2003 FCC ID: QISE586BS-6 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of E586Bs-6 FCC ID: QISE586BS-6 Security Level: Public Report No: SYBH(Z-RF)019072011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total29 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 3. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-2. 4. The test report is invalid if not marked with "exclusive stamp for the test report". 5. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 8. Normally, the test report is only responsible for the samples that have undergone the test. 9. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of E586Bs-6 FCC ID: QISE586BS-6 Security Level: Public Report No: SYBH(Z-RF)019072011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total29 REPORT ON FCC 47CFR part 15 subpart C test of Mobile WiFi； REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 15: Subpart C; CONCLUSION PASS Approved By Jul.30, 2011 Chen Xiaohong Date Name Signature Reviewed By Jul.30, 2011 Xu Guangyi Date Name Signature Operator Jul.30, 2011 Huang Qiuliang Date Name Signature FCC Test Report of E586Bs-6 FCC ID: QISE586BS-6 Security Level: Public Report No: SYBH(Z-RF)019072011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total29 Contents 1 Summary .....................................................................................................................................................5 2 Product Description ...................................................................................................................................6 2.1 PRODUCTION INFORMATION ....................................................................................................................6 2.2 MODIFICATION INFORMATION ..................................................................................................................6 3 Test Site Description ..................................................................................................................................7 3.1 TESTING PERIOD ....................................................................................................................................7 3.2 GENERAL SET UP DESCRIPTION ..............................................................................................................7 4 Product Description ...................................................................................................................................8 4.1 TECHNICAL CHARACTERISTICS ................................................................................................................8 4.2 EUT IDENTIFICATION LIST .....................................................................................................................10 5 Main Test Instruments .............................................................................................................................11 6 Transmitter Measurements .....................................................................................................................12 6.1 6DB BANDWIDTH MEASUREMENT ...........................................................................................................12 6.2 PEAK OUTPUT POWER ..........................................................................................................................14 6.3 BAND EDGE SPURIOUS EMISSION ...........................................................................................................16 6.4 CONDUCTED RF SPURIOUS ...................................................................................................................18 6.5 POWER SPECTRAL DENSITY ..................................................................................................................20 6.6 RADIATED SPURIOUS EMISSION & SPURIOUS IN RESTRICTED BAND ..........................................................22 6.7 CONDUCTED EMISSION AT POWER PORT ...............................................................................................26 7 System Measurement Uncertainty ..........................................................................................................28 8 Appendices ...............................................................................................................................................29 FCC Test Report of E586Bs-6 FCC ID: QISE586BS-6 Security Level: Public Report No: SYBH(Z-RF)019072011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total29 1 Summary The table below summarizes the measurements and results for the EUT. Detailed results and descriptions are shown in the following pages. Table 1 Summary of results FCC Measurement Specification Description Result 15.247 (a) (2) 6dB bandwidt…

Text truncated - open the document above for the full version.

FCC Test Report of E586Bs-6 FCC ID: QISE586BS-6 Security Level: Public Report No: SYBH(Z-RF)019072011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page1, Total3 Appendix H Photos of Test Setup FCC Test Report of E586Bs-6 FCC ID: QISE586BS-6 Security Level: Public Report No: SYBH(Z-RF)019072011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total3 1 Radiated Spurious Emissions Radiated Spurious Emission (below 1GHz) Radiated Spurious Emission (1GHz to18GHz) FCC Test Report of E586Bs-6 FCC ID: QISE586BS-6 Security Level: Public Report No: SYBH(Z-RF)019072011-2003 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total3 Radiated Spurious Emission (above 18GHz) 2 Conducted Emissions Conducted Emissions for AC Ports
