QISE586ES-5Mobile WiFi

Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd. and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd. reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, I NCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXI MUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD. BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Warnings and Precautions This section contains important information pertaining to the operating instructions of your device. It also contains information about how to use your device safely. Read this information carefully before using the device. Electronic Device Do not use your device if using the device is prohibited. Do not use the device when using the device causes danger or interference with electronic devices. Medical Device  Follow rules and regulations set forth by hospitals and health care f acilities. Do not use your device when using the device is prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. For any such problems, consult your service provider.  If you are using an electronic medical device, consult the doctor or the device manufacturer to confirm whether radio waves affect the operation of this device. Potentially Explosive Atmosphere Do not use your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not use your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity. Traffic Security  Observe local laws and regulations while using the device. To prevent accidents, do not use your wireless device while driving.  RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  In a motor vehicle, do not place the device over the air bag or in the air bag deployment area. Otherwise, the device may hurt you owing to the strong force when the air bag inflates.  Do not use your device while flying in an aircraft and before boarding an aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft and disrupt the wireless telephone network. It may also be considered illegal. Operating Environment  Do not use or charge the device in dusty, damp, and dirty places or places with magnetic fields. Otherwise, it may result in a malfunction of the circuit.  While using the device, observe the local laws and regulations, and respect others' privacy and legal rights.  Place the device or accessories in well-ventilated, cool, and out-of-direct-sunlight place. Avoid enveloping the device, or covering towels and placing articles on the device. Place the device out of a box or case to avoid poor heat dissipation that results in the damage to the device.  On a stormy day with thunder, do not use your device, to prevent any danger caused by lightning.  Keep the ambient temperature between 0 °C to +35°C for using the device. Safety of Children Comply with all precautions with regard to children's safety. Letting the child play with your device or its accessories, which may include parts that can be detached from the device, may be dangerous…

Text truncated - open the document above for the full version.

1 Smart Device Simple World Thank you for choosing HUAWEI Mobile WiFi Supported functions and actual appearance depend on the specific models you purchased. The illustrations are provided for your reference only. For details about the model you selected, consult your service provider. This guide briefly describes the functions of the Mobile WiFi. For details about how to set management parameters, see help on the web management page. Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved. THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTITUTE ANY KIND OF WARRANTIES. 2 Getting to Know HUAWEI Mobile WiFi Connection Scenarios A Wi-Fi device or computer can be connected to the Internet through the Mobile WiFi. The actual connection procedure depends on the operating system of the Wi-Fi device or computer. The connection scenarios illustrated here are for your reference. Scenario 1: Multi-device access via Wi-Fi Scenario 2: One-device access via USB Smart phone Game machine Digital camera Laptop 3 Scenario 3: Multi-device access via Wi-Fi and USB at the same time Smart phone Game machine Digital camera Laptop 4 Appearance No. Item 1 Screen 2  Reset button  RF Output Power Port 3 Power button 4 WPS button 5 USB port 6 microSD card slot 7 Strap hole Note: The RF Output Power Port connects an RF cable to the Mobile WiFi for RF tests. 5 7 124 8 3 5 6 0B 00:00 Screen No. Item 1 Signal strength 2 Network 3  Wi-Fi enabled  Number of devices connected 4 Internet connection status 5  New messages  Number of new messages 6 Battery level 7 International roaming state 8  Traffic data  Connection duration 6 Note:  Wi-Fi: Wireless fidelity  WPS: Wi-Fi protected setup  Traffic statistics are for your reference only. To obtain the actual traffic data, contact your service provider. 7 Before You Start Installing the SIM Card and the Battery Caution: Do not use any SIM card that is not standard or is incompatible with the Mobile WiFi. Otherwise, the Mobile WiFi may be damaged. Insert the SIM card in the card slot. Be sure that the SIM card is facing in the right direction, as shown in figure 2, and then slide the SIM card into the slot. 8 Installing the microSD Card 1. Remove the rubber cap from the microSD card slot. Then insert the microSD card into the slot. 2. After inserting the microSD card completely, attach the rubber cap. Note:  The microSD card is an optional accessory. If a microSD card did not come with your Mobile WiFi, you may purchase one yourself.  To remove the microSD card, press in the card gently. The microSD card will pop out for removal.  Do not remove the microSD card when it is in use. Doing so may damage the card and the Mobile WiFi, and data stored on the card may be lost. Charging the Battery Note: If the battery has not been used for a long time, it must be charged first. 9 Method 1: Using the charger Caution:  Only use chargers compatible with the Mobile WiFi and provided by a designated manufacturer. Use of an incompatible charger or one from an unknown manufacturer may cause the Mobile WiFi to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product.  The charger is an optional accessory. If the charger is not provided in the package, you can contact your local dealer to buy one yourself. Method 2: Connecting to a PC for charging Connect the Mobile WiFi to a PC using a compatible data cable. 10 Accessing the Internet via Wi-Fi Connection Note: By default, management parameters are preset on the Mobile WiFi according to the requirements of the service provider. Follow the steps below to quickly access the Internet. For the details about how to set management parameters, see help on the web management page. Step1: Power on the Mobile WiFi Press and hold until the screen lights up. The Mobile WiFi is powered on. Note: Press and hold to power off the Mobile WiFi. Step2: Establish a Wi-Fi Connection (Take a computer with Windows ® XP operating system as an example) 1. Make sure that the Wi-Fi is enabled. 11 2. Select Start > Control Panel > Network Connections > Wireless Network Connection. Note: To set up a Wi-Fi connection, the PC must have a wireless network adapter installed. If Wireless Network Connection is displayed, a wireless network adapter is available. Otherwise, check to make sure you have a wireless network adapter installed. 3. Click View available wireless networks to display a list of wireless networks available. 4. Select a network indicated by the SSID of the Mobile WiFi, and then click Connect. Note:  If the encryption parameter is already set for the Mobile WiFi, the Wireless Network Connection dialog box is displayed. Enter the network key in the dialog box.  The SSID and network key label are affixed to your Mobile WiFi. 5. Wait until the wireless connection icon is displayed in the status area in the lower right corner of the PC screen. 12 Step3: Access the Internet After you establish a Wi-Fi connection successfully, you can access the Internet using the following modes. Caution: Please select a proper Internet connection mode based on your service expense. For example, if you are subscribed to the time-based network service, you are recommended to select Manual mode. For details about the service expense, consult your service provider. Mode Operations Auto After the Mobile WiFi is powered on, it will connect to the Internet automatically if data transmission is required. If there is no data transmission over a period of time, the Mobile WiFi automatically terminates the Internet connection. Manual Launch the web management page and follow the prompts to connect to or disconnect from the network. 13 Note:  Launch the web management page to select the mode for accessing the Internet.  You can choose whether to enable the Mobile WiFi to connect to the Internet automatically even while you are roaming. If this function is disabled, the Mobile WiFi au…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISE586ES-5 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Turn-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2012-02-22 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISE586ES-5 Product Name: Mobile WiFi Product Model: E586Es-5 To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely ,

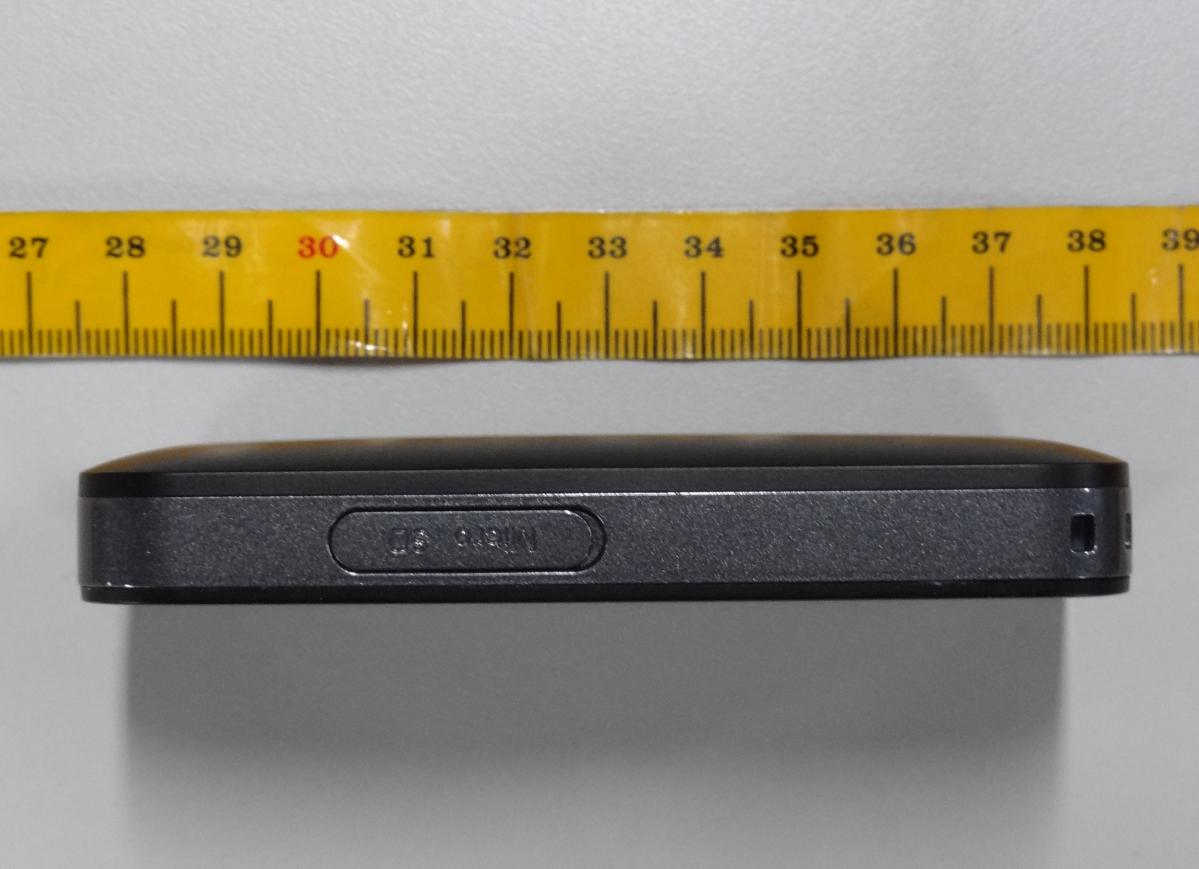

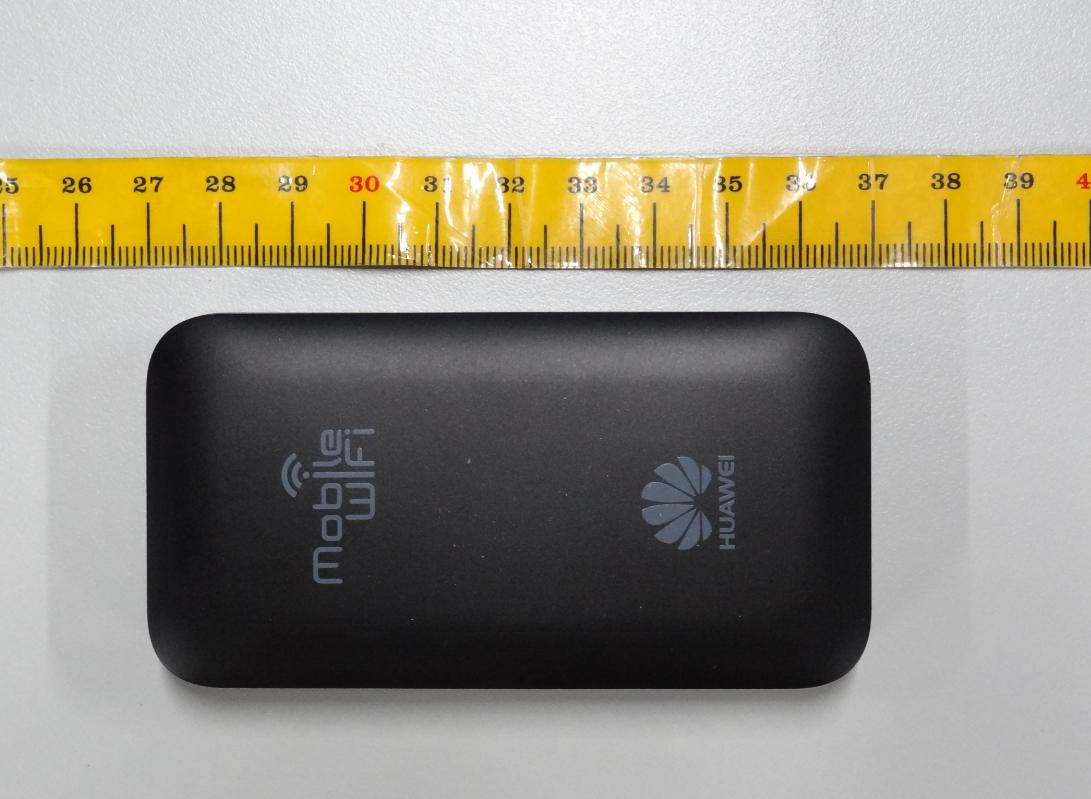

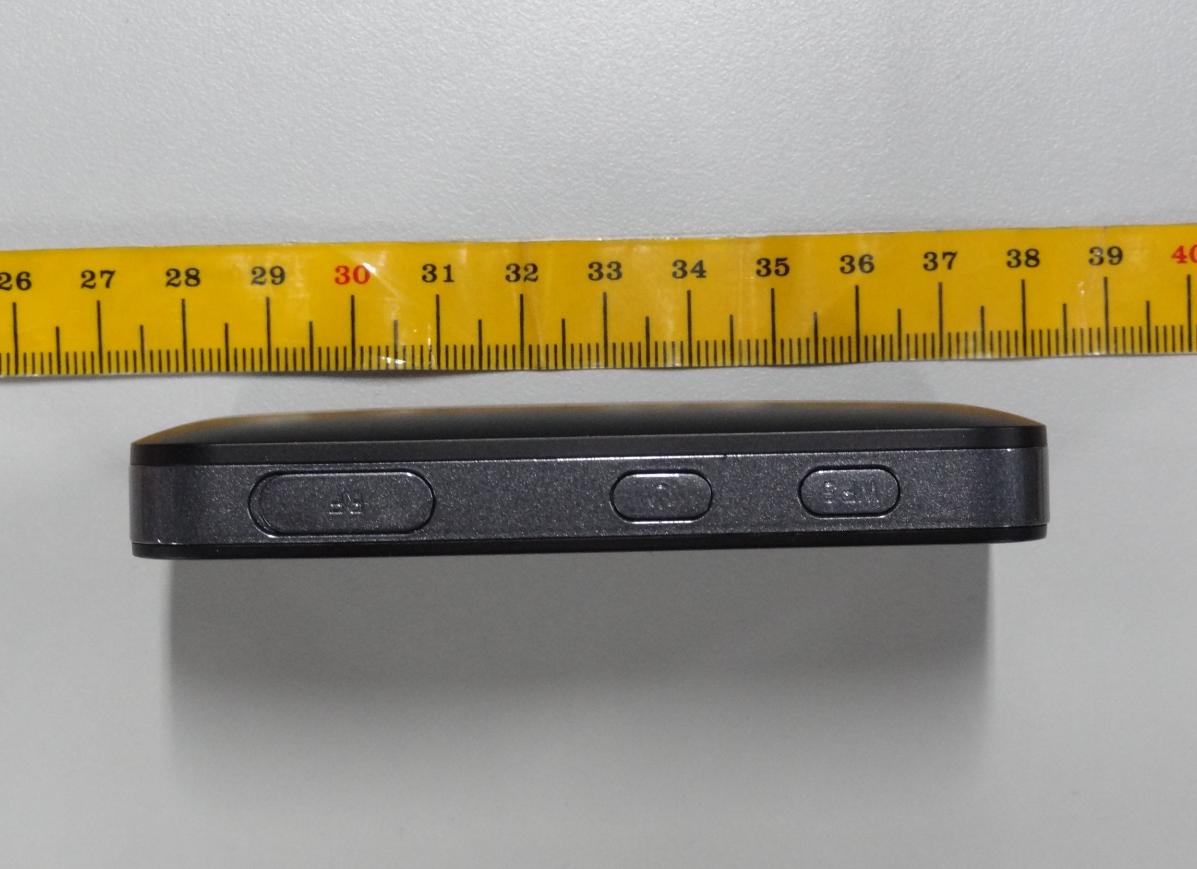

E586Es-5 Mobile WiFi SECRET Page1，Total 5 External Photos of E586Es-5 E586Es-5 Mobile WiFi SECRET Page2，Total 5 E586Es-5 Mobile WiFi SECRET Page3，Total 5 E586Es-5 Mobile WiFi SECRET Page4，Total 5 E586Es-5 Mobile WiFi SECRET Page5，Total 5

E586Es-5 Mobile WiFi SECRET Page 1 Total 1 ID Label Location_ E586Es-5:

E586Es-5 Mobile WiFi SECRET Page 1 Total 1 ID Label E586Es-5：

E586Es-5 Mobile WiFi SECRET Page1，Total6 Internal Photos of E586Es-5 E586Es-5 Mobile WiFi SECRET Page2，Total6 E586Es-5 Mobile WiFi SECRET Page3，Total6 E586Es-5 Mobile WiFi SECRET Page4，Total6 E586Es-5 Mobile WiFi SECRET Page5，Total6 E586Es-5 Mobile WiFi SECRET Page6，Total6

Report No.:SYBH (Z-SAR) 006022012-2 FCC ID:QISE586ES-5 Appendix C. Calibration Certificate Table of contends Calibration report “DAE4-SN852” Calibration report “DAE4-SN1236” Calibration report “Probe EX3DV4-SN3736” Calibration report “D835-SN4d126” Calibration report “D1800-SN2d 184” Calibration report “D1900- SN5d143”

Report No.:SYBH (Z-SAR) 006022012-2 FCC ID:QISE586ES-5 Appendix B. SAR Measurement Plots Table of contents GSM 850 MHz Body GSM 1900 MHz Body WCDMA 850 MHz Body WCDMA 1700 MHz Body WCDMA 1900 MHz Body Date/Time: 2/18/2012 14:17:24 Test Laboratory: HUAWEI SAR Lab E586Es-5 GSM850 GPRS 1TS 128CH Front side 10mm DUT: E586Es-5; Type: Mobile WiFi; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 824.2 MHz Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.965 mho/m; ε r = 55.624; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.11, 9.11, 9.11); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.945 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 31.055 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 1.2540 SAR(1 g) = 0.940 mW/g; SAR(10 g) = 0.670 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.999 mW/g 0 dB = 1.000mW/g = 0 dB mW/g Date/Time: 2/18/2012 11:11:17 Test Laboratory: HUAWEI SAR Lab E586Es-5 GSM850 GPRS 1TS 190CH Front side 10mm DUT: E586Es-5; Type: Mobile WiFi; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.979 mho/m; ε r = 55.557; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.11, 9.11, 9.11); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.874 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.385 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.2150 SAR(1 g) = 0.862 mW/g; SAR(10 g) = 0.604 mW/g Maximum value of SAR (measured) = 0.917 mW/g 0 dB = 0.920mW/g = -0.72 dB mW/g Date/Time: 2/18/2012 12:51:45 Test Laboratory: HUAWEI SAR Lab E586Es-5 GSM850 GPRS 1TS 251CH Front side 10mm DUT: E586Es-5; Type: Mobile WiFi; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-1TS; Frequency: 848.8 MHz Medium parameters used: f = 849 MHz; σ = 0.99 mho/m; ε r = 55.432; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.11, 9.11, 9.11); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.024 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.358 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 1.3890 SAR(1 g) = 1 mW/g; SAR(10 g) = 0.691 mW/g Maximum value of SAR (measured) = 1.071 mW/g 0 dB = 1.070mW/g = 0.59 dB mW/g Date/Time: 2/18/2012 15:17:38 Test Laboratory: HUAWEI SAR Lab E586Es-5 GSM850 GPRS 2TS 128CH Front side 10mm DUT: E586Es-5; Type: Mobile WiFi; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 824.2 MHz Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.965 mho/m; ε r = 55.624; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.11, 9.11, 9.11); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.158 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.474 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 1.5560 SAR(1 g) = 1.14 mW/g; SAR(10 g) = 0.817 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.211 mW/g 0 dB = 1.210mW/g = 1.66 dB mW/g Date/Time: 2/18/2012 11:35:08 Test Laboratory: HUAWEI SAR Lab E586Es-5 GSM850 GPRS 2TS 190CH Front side 10mm DUT: E586Es-5; Type: Mobile WiFi; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 836.6 MHz Medium parameters used: f = 837 MHz; σ = 0.979 mho/m; ε r = 55.557; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.11, 9.11, 9.11); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/Body/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.039 mW/g Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 31.515 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 1.4070 SAR(1 g) = 1.05 mW/g; SAR(10 g) = 0.737 mW/g Maximum value of SAR (measured) = 1.109 mW/g 0 dB = 1.110mW/g = 0.91 dB mW/g Date/Time: 2/18/2012 14:54:09 Test Laboratory: HUAWEI SAR Lab E586Es-5 GSM850 GPRS 2TS 251CH Front side 10mm DUT: E586Es-5; Type: Mobile WiFi; Serial: SAR1 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 848.8 MHz Medium parameters used: f = 849 MHz; σ = 0.99 mho/m; ε r = 55.432; ρ = 1000 kg/m…

Text truncated - open the document above for the full version.

Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28785513 Fax: +86 755 36834474 FCC SAR Compliance Test Report Project Name: _______________________ Model : _______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED CHECKED PREPARED BY DATE 2012-02-21 2012-02-21 2012-02-21 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. Mobile WiFi E586Es-5 SYBH (Z-SAR)006022012-2 QISE586ES-5 Report No.: SYBH (Z-SAR) 006022012-2 FCC ID: QISE586ES-5 2012-02-21 Page 2 of 37 Table of Contents 1 General Information............................................................................................................................................................ 4 1.1 Statement of Compliance.......................................................................................................................................... 4 1.2 RF exposure limits..................................................................................................................................................... 5 1.3 EUT Description......................................................................................................................................................... 6 1.3.1 General Description........................................................................................................................................... 7 1.4 Test specification(s).................................................................................................................................................. 8 1.5 Testing laboratory....................................................................................................................................................... 8 1.6 Applicant and Manufacturer...................................................................................................................................... 8 1.7 Application details...................................................................................................................................................... 8 1.8 Ambient Condition..................................................................................................................................................... 8 2 SAR Measurement System............................................................................................................................................. 9 2.1 SAR Measurement Set-up....................................................................................................................................... 9 2.2 Test environment...................................................................................................................................................... 10 2.3 Data Acquisition Electronics description.............................................................................................................. 10 2.4 Probe description..................................................................................................................................................... 11 2.5 Phantom description................................................................................................................................................ 12 2.6 Device holder description........................................................................................................................................ 12 2.7 Test Equipment List................................................................................................................................................. 13 3 SAR Measurement Procedure...................................................................................................................................... 14 3.1 Scanning procedure................................................................................................................................................. 14 3.2 Spatial Peak SAR Evaluation................................................................................................................................. 15 3.3 Data Storage and Evaluation.................................................................................................................................. 16 4 System Verification Procedure........................................................................................................................................ 18 4.1 Tissue Verification.................................................................................................................................................... 18 4.2 System Check........................................................................................................................................................... 20 4.3 Validation Procedure................................................................................................................................................ 20 5 Measurement Uncertainty Evaluation.......................................................................................................................... 21 5.1 Measurement uncertainty evaluation for SAR test.............................................................................................. 21 5.2 Measurement uncertainty evaluation for system validation............................................................................... 22 6 SAR Test Configuration..................................................................…

Text truncated - open the document above for the full version.

Report No.:SYBH (Z-SAR) 006022012-2 FCC ID:QISE586ES-5 Appendix A. System Check Plots Table of contens SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1800-EX-Body SystemPerformanceCheck-D1900-EX-Body Date/Time: 2/18/2012 10:28:57 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: CW; Frequency: 835 MHz Medium parameters used: f = 835 MHz; σ = 0.977 mho/m; ε r = 55.525; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.11, 9.11, 9.11); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 11/16/2011 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=15mm,pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.710 mW/g Configuration/d=15mm,pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.882 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.7990 SAR(1 g) = 2.53 mW/g; SAR(10 g) = 1.65 mW/g Maximum value of SAR (measured) = 2.732 mW/g 0 dB = 2.730mW/g = 8.72 dB mW/g Date/Time: 2/9/2012 13:19:41 Test Laboratory: HUAWEI SAR Lab SystemPerformanceCheck-D1800-EX-Body DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.549 mho/m; ε r = 52.47; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(7.49, 7.49, 7.49); Calibrated: 11/23/2011 lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn1236; Calibrated: 11/11/2011 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.0(692); SEMCAD X 14.6.4(4989) Configuration/d=10mm, Pin=250mW/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.973 mW/g Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.061 V/m; Power Drift = 0.0018 dB Peak SAR (extrapolated) = 18.1040 SAR(1 g) = 9.81 mW/g; SAR(10 g) = 5.1 mW/g Maximum value of SAR (me…
