QISE8278S-603LTE and WiFi USB Stick

Safety Information Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/privacy-policy. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are -10 °C to +40 °C. Ideal storage temperatures are -20 °C to +70 °C. Extreme heat or cold may damage your device or accessories.  Keep the device and accessories in a well-ventilated and cool area away from direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device in a container with poor heat dissipation, such as a box or bag.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Stop using your device or applications for a while …

Text truncated - open the document above for the full version.

is a tr ademark of ETSI. TM Safety Information

1 Thank you for choosing the LTE Mobile WiFi Smart. The LTE Mobile WiFi Smart allows you to access a wireless network at high speeds. Note: This guide briefly describes the appearance of the LTE Mobile WiFi Smart and the procedures for using the LTE Mobile WiFi Smart. For details about how to set the management parameters, see help information on the web management page. 2 Connection Scenarios Scenario 1: One-device Internet access using computer Scenario 2: Multi-device Internet access using Wi-Fi (connected to a computer) 3 Scenario 3: Multi-device Internet access using Wi-Fi (connected to the power adapter) 4 Getting to Know Your LTE Mobile WiFi Smart The following figure shows the LTE Mobile WiFi Smart. It is provided only for your reference. The actual product may be different. 1 5 6 2 3 4 5  USB connector It connects the LTE Mobile WiFi Smart to a computer.  Wi-Fi indicator It indicates the status of a Wi-Fi network.  Steady green: A Wi-Fi connection is set up.  Off: The Wi-Fi function is turned off or fails, or the LTE Mobile WiFi Smart has been removed.  SM S indicator It indicates the status of an SMS.  Steady green: There are unread messages in your inbox.  Blinking green once every 2s: The message storage is full.  Off: The LTE Mobile WiFi Smart is powered off, there are no unread messages, or the message storage is not full. 6  2G/3G/LT E indicator It indicates the LTE Mobile WiFi Smart's status.  Blinking green twice every 2s: The LTE Mobile WiFi Smart is powered on.  Blinking green once every 0.2s: The software of the LTE Mobile WiFi Smart is being upgraded.  Blinking green once every 2s: The LTE Mobile WiFi Smart is registered with a 2G network.  Steady green: The LTE Mobile WiFi Smart is connected to a 2G network .  Blinking blue once every 2s: The LTE Mobile WiFi Smart is registered with a 3G network.  Steady blue: The LTE Mobile WiFi Smart is connected to a 3G network.  Blinking cyan once every 2s: The USB Stick is registered with a LTE network.  Steady cyan: The USB Stick is connected to a 3G+/LTE network.  Off: The LTE Mobile WiFi Smart is removed.  m icroSD card slot It holds a microSD card. 7  SIM card slot It holds a Subscriber Identity Module (SIM) card. Getting Started Installing the SIM Card 1. Slide the cover off. 2. Insert the SIM card into the card slot. 3. Slide the cover back onto the LTE Mobile WiFi Smart until it snaps into place. 8 Inserting the microSD Card Insert the microSD card into the USB Stick, as shown in the following figure. Note:  The microSD card is an optional accessory. If it is not provided in the package, you can buy one yourself.  Ensure that the beveled edge of the SIM card is properly aligned with that of the SIM card slot and the microSD card is inserted according to the direction as labeled on the microSD card slot. 9  Do not remove the microSD or SIM card when the card is in use. Otherwise, the card as well as your USB Stick may get damaged and the data stored on the card may be corrupted.  Do not use any SIM card that is not standard or is incompatible with the LTE Mobile WiFi Smart. Otherwise, the card as well as your LTE Mobile WiFi Smart may get damaged and the data stored on the card may be corrupted. Using the P ow er Adapter Connect the LTE Mobile WiFi Smart to the power adapter's USB port, and connect the power adapter to a power outlet. 10 Note:  Only use power adapters compatible with the LTE Mobile WiFi Smart and provided by a designated manufacturer (HW-050100xxW: The first x represents U, E, B, A, or J, depending on your region. The second x represents generation number.). For details about the specific adapter model, contact an authorized dealer. Use of an incompatible power adapter or one from an unknown manufacturer may cause the LTE Mobile WiFi Smart to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product.  The power adapter is an optional accessory. If it is not included in the product package, purchase one separately. 11 Using Your LTE Mobile WiFi Smart The procedure for installing the management program depends on your computer's operating system. The following sections are based on Windows XP. Connecting to a N etw ork 1. Connect the LTE Mobile WiFi Smart to one of your computer's USB ports. 12 2. Complete the installation as prompted. When the installation is complete, the LTE Mobile WiFi Smart's web management page is displayed. 3. A dial-up connection is set up and you are connected to the network. Note:  If the installation wizard does not run automatically, find the AutoRun.exe file in the driver path, and double-click the file to run it.  The default user name and password of the web management page are admin.  If your SIM card's personal identification number (PIN) verification function is enabled, log in to the web management page, and enter and save the PIN.  If you are not using the default Profile, log in to the web management page, and configure and save the Profile settings.  When using the LTE Mobile WiFi Smart to access a network, do not use other devices to access the network, because doing so may cause conflicts.  A maximum of ten WiFi devices can connect to the LTE Mobile WiFi Smart to access the Internet.  By default, the LTE Mobile WiFi Smart automatically disconnects from the Internet when you are roaming. 13  If you are not connected to the network, access http://192.168.1.1 to check the device status.  If you cannot access http://192.168.1.1, disconnect other network connections, such as an Ethernet or Wireless Fidelity (Wi-Fi) connection, remove and then insert the LTE Mobile WiFi Smart, or restart the computer. Disconnecting from a N etw ork Remove the LTE Mobile WiFi Smart from your computer. Note:  By default, the LTE Mobile WiFi Smart automatically disconnects from the network if no data is transferred within 10 minutes.  If you do not need to connect to the network, it is recomm…

Text truncated - open the document above for the full version.

Quick Start is a tr ademark of ETSI. TM

Huawei Technologies Co.,Ltd. Federal Communications Commission 2013-11-28 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISE8278S-603 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

Date (28/11/2013) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISE8278S-603 This authorization is valid until further written notice from Huawei Technologies Co., Ltd. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Date: December 4, 2013 Statement We, Huawei Technologies Co., Ltd., states that our device, FCC ID: QISE8278S-603, Its cover can be removed during package and the FCC ID is readily visible when users open the product box. For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

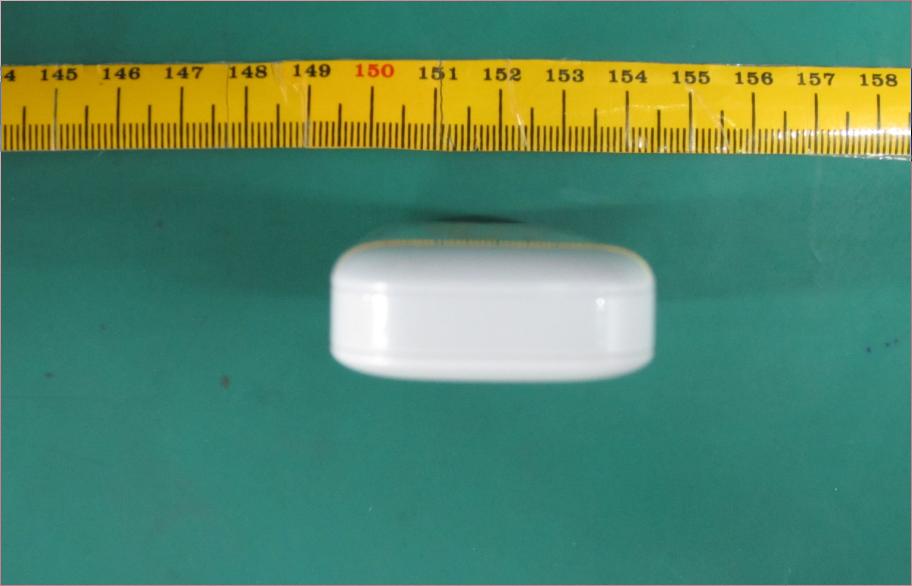

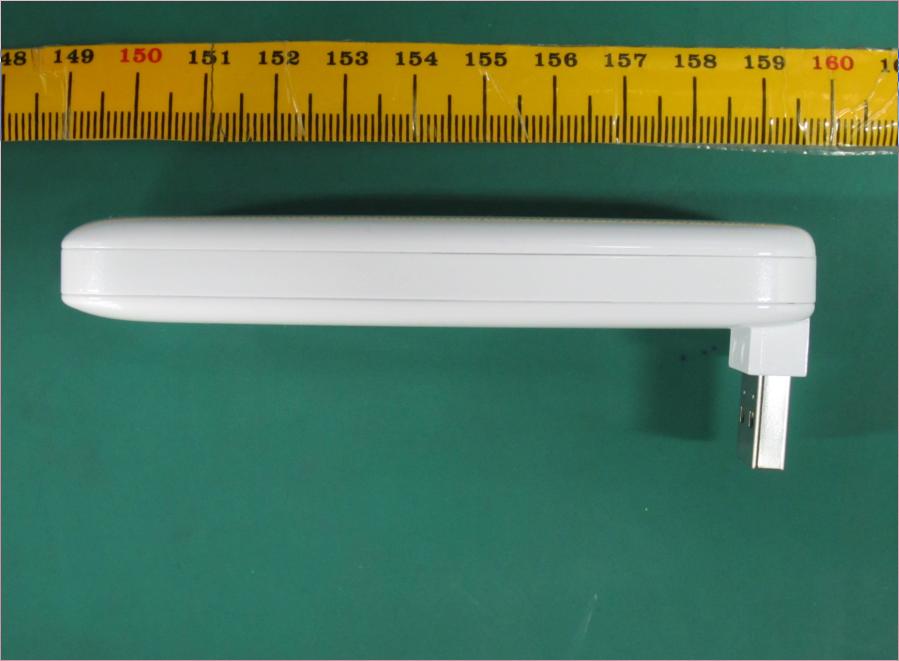

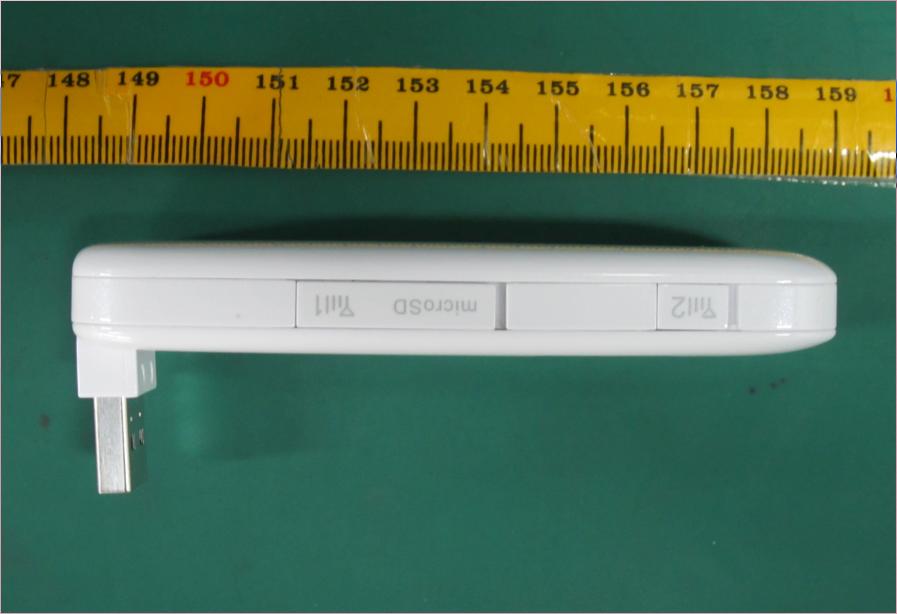

E8278s-603 SECRET Page1,Total 4 External Photos of E8278s-603 E8278s-603 SECRET Page2,Total 4 E8278s-603 SECRET Page3,Total 4 E8278s-603 SECRET Page4,Total 4

E8278s-603 SECRET Page1, Total 1 ID Label Location_ E8278s-603

E8278s-603 SECRET Page1, Total1 ID Label E8278s-603

E8278s-603 SECRET Page1, Total4 Internal Photos of E8278s-603 E8278s-603 SECRET Page2, Total4 E8278s-603 SECRET Page3, Total4 E8278s-603 SECRET Page4, Total4

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Project Name:_______________________ Model :_______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2013-11-22 2013-11-22 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. E8278s-603 QISE8278S-603 SYBH(Z-SAR) 015102013-2 Mobile WiFi Smart Report No.:SYBH(Z-SAR)015102013-2 FCC ID:QISE8278S-603 2013-11-22 Page 2 of 55 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 5 1.3 EUT Description ......................................................................................................................................................... 6 1.3.1 General Description ........................................................................................................................................... 7 1.4 Test specification(s) .................................................................................................................................................. 8 1.5 Testing laboratory ....................................................................................................................................................... 8 1.6 Applicant and Manufacturer ...................................................................................................................................... 8 1.7 Application details ...................................................................................................................................................... 8 1.8 Ambient Condition ..................................................................................................................................................... 8 2 SAR Measurement System ............................................................................................................................................. 9 2.1 SAR Measurement Set-up ....................................................................................................................................... 9 2.2 Test environment ...................................................................................................................................................... 10 2.3 Data Acquisition Electronics description .............................................................................................................. 10 2.4 Probe description ..................................................................................................................................................... 11 2.5 Phantom description ................................................................................................................................................ 12 2.6 Device holder description ........................................................................................................................................ 12 2.7 Test Equipment List ................................................................................................................................................. 13 3 SAR Measurement Procedure ...................................................................................................................................... 14 3.1 Scanning procedure ................................................................................................................................................. 14 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 15 3.3 Data Storage and Evaluation .................................................................................................................................. 16 4 System Verification Procedure ........................................................................................................................................ 18 4.1 Tissue Verification .................................................................................................................................................... 18 4.2 System Check ........................................................................................................................................................... 20 4.3 System check Procedure ........................................................................................................................................ 21 5 Measurement Uncertainty Evaluation .......................................................................................................................... 22 6 SAR Test Configuration .................................................................................................................................................. 24 6.1 GSM Test Configuration .......................................................................................…

Text truncated - open the document above for the full version.

Report No.:SYBH (Z-SAR)015102013-2 FCC ID: QISE8278S-603 QISU2801-346369A-U280134 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D835-EX-Body SystemPerformanceCheck-D1800-EX-Body SystemPerformanceCheck-D1900-EX- Body SystemPerformanceCheck-D1900-EX-Body SystemPerformanceCheck-D2450-EX-Body Date: 2013-11-3 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.966 S/m; ε r = 53.747; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(9.07, 9.07, 9.07); Calibrated: 2013-7- 26; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn851; Calibrated: 2013-7-31 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=15mm, Pin=250mW/Area Scan (5x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.63 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.068 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 2.4 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 2.60 W/kg 0 dB = 2.63 W/kg = 4.21 dBW/kg Date: 2013-11-12 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Body DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.943 S/m; ε r = 52.76; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3736; ConvF(9.28, 9.28, 9.28); Calibrated: 2013-5-10; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn851; Calibrated: 2013-7-31 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=15mm, Pin=250mW/Area Scan (5x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.76 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 51.682 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.59 W/kg SAR(1 g) = 2.42 W/kg; SAR(10 g) = 1.59 W/kg Maximum value of SAR (measured) = 2.83 W/kg 0 dB = 2.76 W/kg = 4.41 dBW/kg Date: 2013-11-12 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1800-EX-Body DUT: Dipole 1800 MHz D1800V2; Type: D1800V2; Serial: D1800V2 - SN:2d184 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1800 MHz; σ = 1.539 S/m; ε r = 51.072; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.48, 7.48, 7.48); Calibrated: 2013-7- 26; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn851; Calibrated: 2013-7-31 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.8 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 65.071 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 17.3 W/kg SAR(1 g) = 9.64 W/kg; SAR(10 g) = 5.06 W/kg Maximum value of SAR (measured) = 10.9 W/kg 0 dB = 10.8 W/kg = 10.34 dBW/kg Date: 2013-11-2 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.555 S/m; ε r = 51.64; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.27, 7.27, 7.27); Calibrated: 2013-7- 26; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn851; Calibrated: 2013-7-31 lPhantom: SAM4; Type: SAM; Serial: TP-1620 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.3 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 80.132 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 20.1 W/kg SAR(1 g) = 11 W/kg; SAR(10 g) = 5.67 W/kg Maximum value of SAR (measured) = 12.4 W/kg 0 dB = 10.3 W/kg = 10.14 dBW/kg Date: 2013-11-18 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-EX-Body DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.565 S/m; ε r = 51.343; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.27, 7.27, 7.27); Calibrated: 2013-7- 26; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn851; Calibrated: 2013-7-31 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=10mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 12.3 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (7x7x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 89.320 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 20.1 W/kg SAR(1 g) = 11 W/kg; SAR(10 g) = 5.69 W/kg Maximum value of SAR (measured) = 12.4 W/kg 0 dB = 12.3 W/kg = 10.91 dBW/kg Date: 2013-11-19 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D2450-EX-Body DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; Serial: D2450V2 - SN:761 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.996 S/m; ε r = 50.617; ρ =…

Text truncated - open the document above for the full version.

Report No.:SYBH (Z-SAR)015102013-2 FCC ID: QISE8278S-603 6369A-U280134 Appendix B. SAR Measurement Plots Table of contents GSM 850 MHz Body GSM 1900 MHz Body UMTS Band V Body UMTS Band II B ody LTE Band II Body LTE Band IV Body LTE Band V Body WiFi 2450 MHz Body Date: 2013-11-3 Test Laboratory: HUAWEI SAR/HAC Lab E8278s-603 GSM850 GRPS 2TS 251CH Front side 5mm DUT: E8278s-603; Type: Mobile WiFi Smart; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 848.8 MHz;Duty Cycle: 1:4.10015 Medium parameters used: f = 849 MHz; σ = 0.979 S/m; ε r = 53.876; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(9.07, 9.07, 9.07); Calibrated: 2013-7- 26; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn851; Calibrated: 2013-7-31 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Body/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.924 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.255 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 1.53 W/kg SAR(1 g) = 0.984 W/kg; SAR(10 g) = 0.615 W/kg Maximum value of SAR (measured) = 1.06 W/kg 0 dB = 1.06 W/kg = 0.25 dBW/kg Date: 2013-11-3 Test Laboratory: HUAWEI SAR/HAC Lab E8278s-603 GSM850 GRPS 2TS 251CH Front side 5mm-repeated DUT: E8278s-603; Type: Mobile WiFi Smart; Serial: SAR2 Communication System: HW-GSM\GPRS\EGPRS-2TS; Frequency: 848.8 MHz;Duty Cycle: 1:4.10015 Medium parameters used: f = 849 MHz; σ = 0.979 S/m; ε r = 53.876; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(9.07, 9.07, 9.07); Calibrated: 2013-7- 26; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn851; Calibrated: 2013-7-31 lPhantom: SAM3; Type: SAM; Serial: TP-1597 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Body/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.01 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.775 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 1.59 W/kg SAR(1 g) = 1.02 W/kg; SAR(10 g) = 0.640 W/kg Maximum value of SAR (measured) = 1.11 W/kg 0 dB = 1.11 W/kg = 0.45 dBW/kg Date: 2013-11- 3 Test Laboratory: HUAWEI SAR/HAC Lab E8278s-603 GSM850 GRPS 2TS 190CH Front side 5mm DUT: E8278s-603; Type: Mobile WiF…

Text truncated - open the document above for the full version.
