Quick Start Thank you for choosing the LT E W i n g l e. The LTE Wingle allows you to access a wireless network at high speed. Note: This guide briefly describes the appearance of the LTE Wingle and the procedures for using the LTE Wingle. For details about how to set the management parameters, see help information on the web management page. Connection Scenarios Scenario 1: One-device Internet access using computer Scenario 2: Multi-device Internet access using Wi-Fi (connected to a computer) Scenario 3: Multi-device Internet access using Wi-Fi (connected to the power adapter) Getting to Know Your LTE Wingle The following figure shows the LT E Wi ng l e. It is provided only for your reference. The actual product may be different. 1 5 6 3 2 4  USB connector It connects the LTE Wi ngle to a computer.  Wi-Fi indicator It indicates the status of a Wi-Fi network.  Steady green: A Wi-Fi connection is set up.  Off: The Wi-Fi function is turned off or fails, or the LTE Wingle has been removed.  SMS indicator It indicates the status of an SMS.  Steady green: There are unread messages in your inbox.  Blinking green once every 2s: The message storage is full.  Off: The LTE Wi ngle is powered off, there are no unread messages.  2G/3G/ LTE indicator It indicates the LTE Wi ngle's status.  Blinking green twice every 2s: The LTE Wingle is powered on.  Blinking green once every 0.2s: The software of the LTE Wi ngle is being upgraded.  Blinking green once every 2s: The LT E Wi ng l e is registered with a 2G network.  Steady green: The LTE Wi ngle is connected to a 2G network .  Blinking blue once every 2s: The LTE Wingle is registered with a 3G network.  Steady blue: The LTE Wingle is connected to a 3G network.  Blinking cyan once every 2s: The LT E Wi ng l e is registered with a LTE network.  Steady cyan: The LTE Wi ngle is connected to a 3G+/LT E network.  Off: The LTE Wi ngle is removed.  microSD card slot It holds a microSD card.  SIM card slot It holds a Subscriber Identity Module (SIM) card. Getting Started 1. Slide the cover to remove it from the LTE Wingle. 2. Insert the SIM card and the microSD card into the corresponding card slots, as shown in the following figure. 3. Replace the cover and slide it into place. 1 2 2 1 Note:  The microSD card is an optional accessory. If it is not provided in the package, you can buy one yourself.  Ensure that the beveled edge of the SIM card is properly aligned with that of the SIM card slot and the microSD card is inserted according to the direction as labeled on the microSD card slot.  Do not remove the microSD or SIM card when the card is in use. Otherwise, the card as well as your LTE Wi ngle may get damaged and the data stored on the card may be corrupted.  Do not use any SIM card that is not standard or is incompatible with the LTE Wi ngle. Otherwise, the card as well as your LTE Wi ngle may get damaged and the data stored on the card may be corrupted. Using the Power Adapter Connect the LTE Wingle to the power adapter's USB port, and connect the power adapter to a power outlet. Note:  Only use power adapters compatible with the LT E Wi ng l e and provided by a designated manufacturer (HW-050100xxW: The first x represents U, E, B, A, or J, depending on your region. The second x represents generation number.). For details about the specific adapter model, contact an authorized dealer. Use of an incompatible power adapter or one from an unknown manufacturer may cause the LTE Wi ngle to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product.  The power adapter is an optional accessory. If it is not included in the product package, purchase one separately. Using Your LTE Wingle The procedure for installing the management program depends on your computer's operating system. The following sections are based on Windows 7. Connecting to a Network 1. Connect the LTE Wingle to one of your computer's USB ports. The installation wizard runs automatically. 2. When the installation is complete, the LTE Wingle's web management page is displayed and the LT E Wi ng l e connects to the network automatically. Note:  If the installation wizard does not run automatically, find the AutoRun.exe file in the driver path, and double-click the file to run it.  The default user name and password of the web management page are admin.  If your SIM card's personal identification number (PIN) verification function is enabled, log in to the web management page, and enter and save the PIN.  If you are not using the default access point name (APN), log in to the web management page, and configure and save the APN settings on the dial-up settings tab.  When using the LTE Wi ngle to access a network, do not use other devices to access the network, because doing so may cause conflicts.  If you are not connected to the network, access http://192.168.8.1 to check the device status.  If you cannot access http://192.168.8.1, disconnect other network connections, such as an Ethernet or Wireless Fidelity (Wi-Fi) connection, remove and then insert the LT E Wingle, or restart the computer. Disconnecting from a Network Remove the LTE Wi ngle from your computer. Note:  By default, the LTE Wi ngle automatically disconnects from the network if no data is transferred within 10 minutes.  If you do not need to connect to the network, it is recommended that you remove the LT E Wi ng l e from your computer to reduce data traffic.  Disconnect the LTE Wingle's data connection through its web management page or the Mobile Wi-Fi application. Before you remove the LTE Wingle, make sure that the data connection has been disconnected. Setting Up a Wi-Fi Connection 1. Ensure that the LTE Wi ngle's Wi-Fi function is on. 2. Select Start > Control Panel > Network and Internet > Network and Sharing Center > Connect to a network. Note: Before establishing a Wi-Fi connection, ensure that the computer is equipped with a…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-01-08 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISE8372H-510 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-3- 15: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

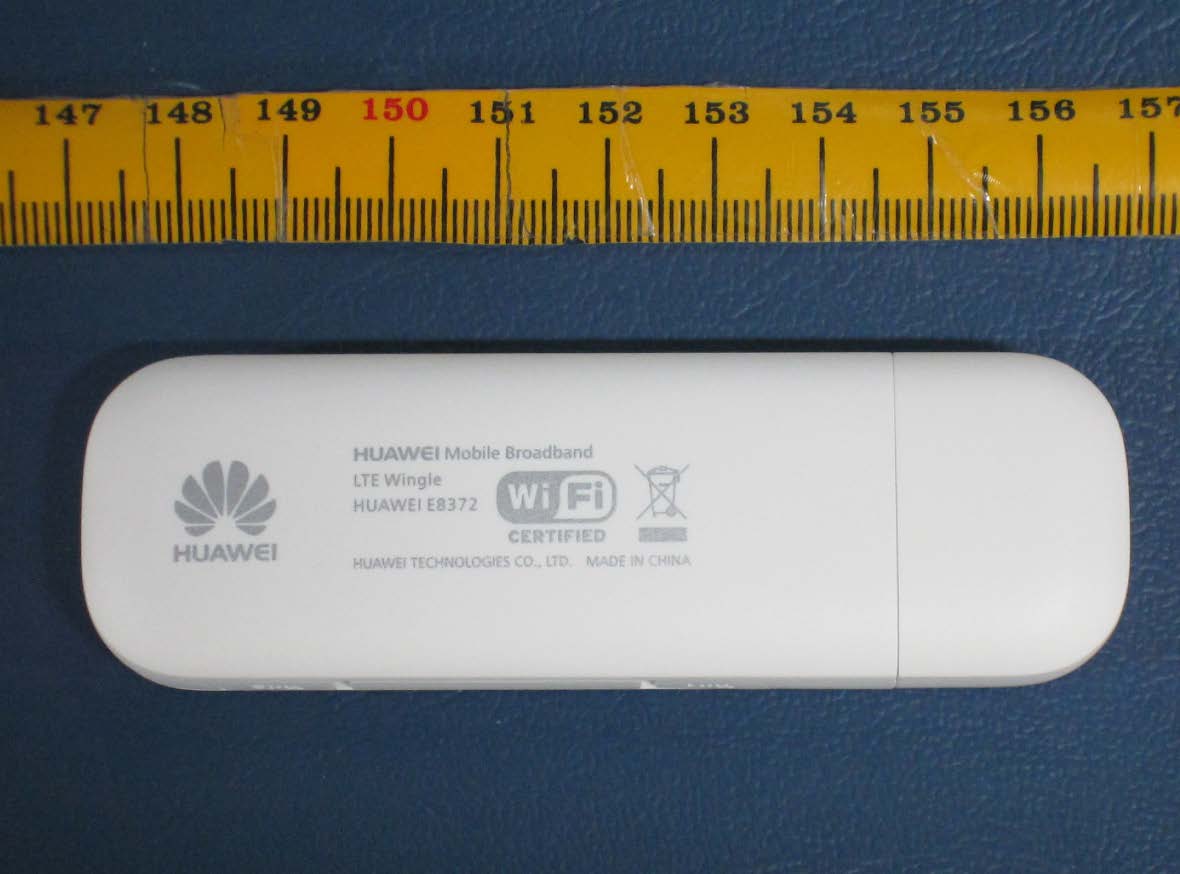

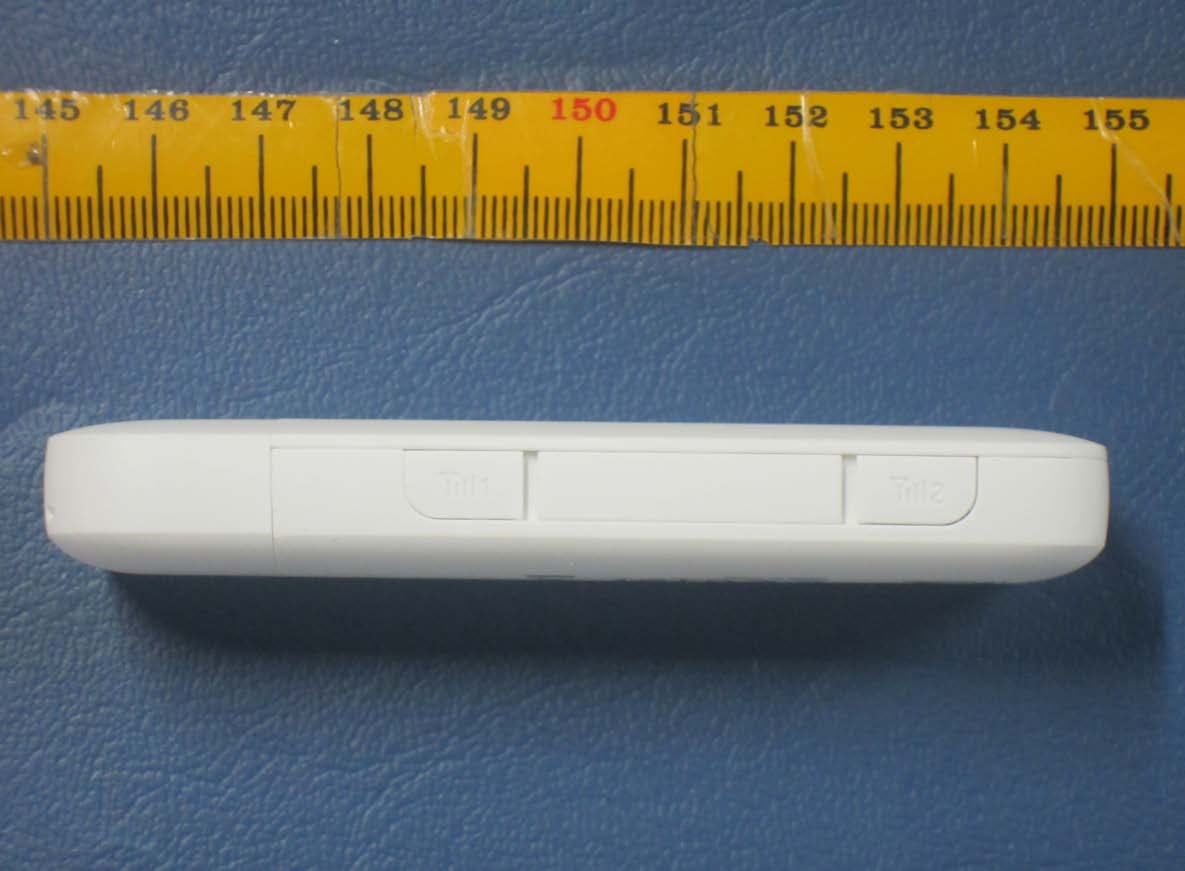

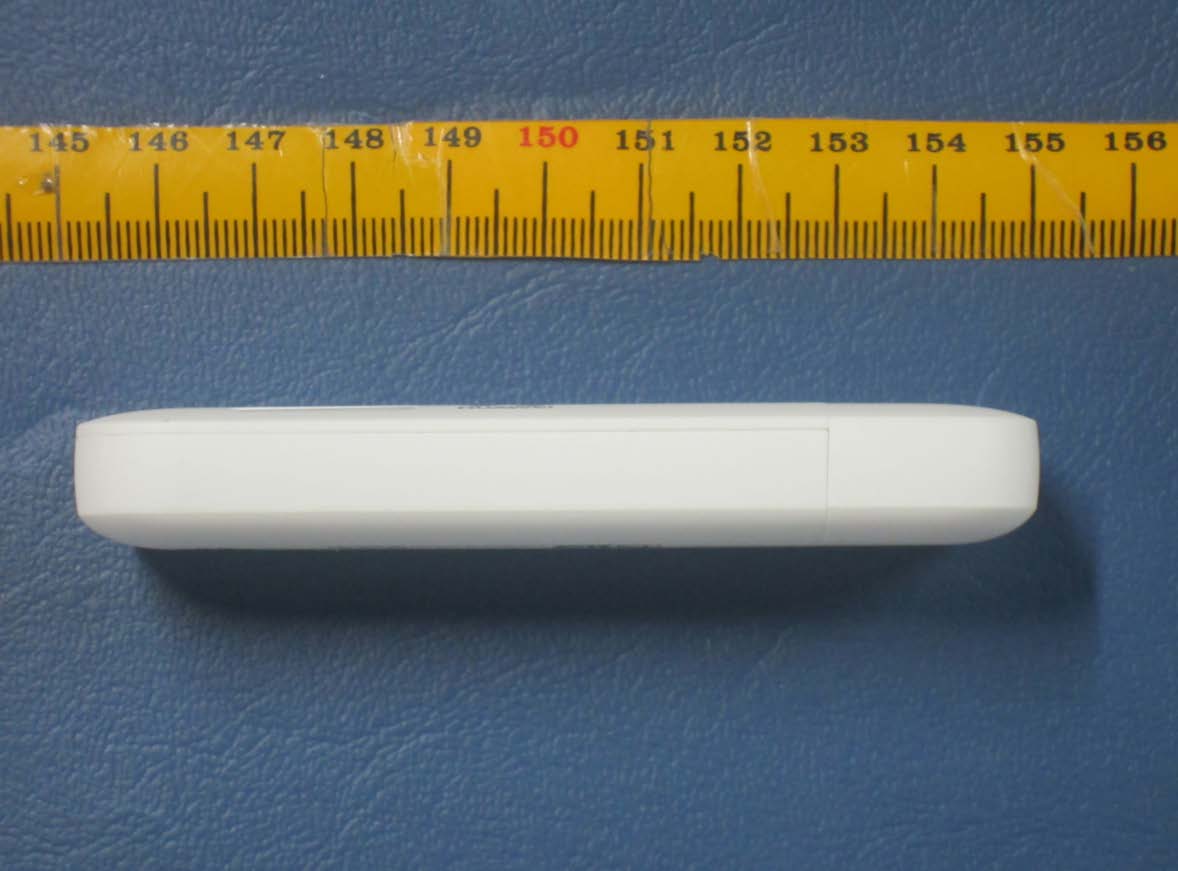

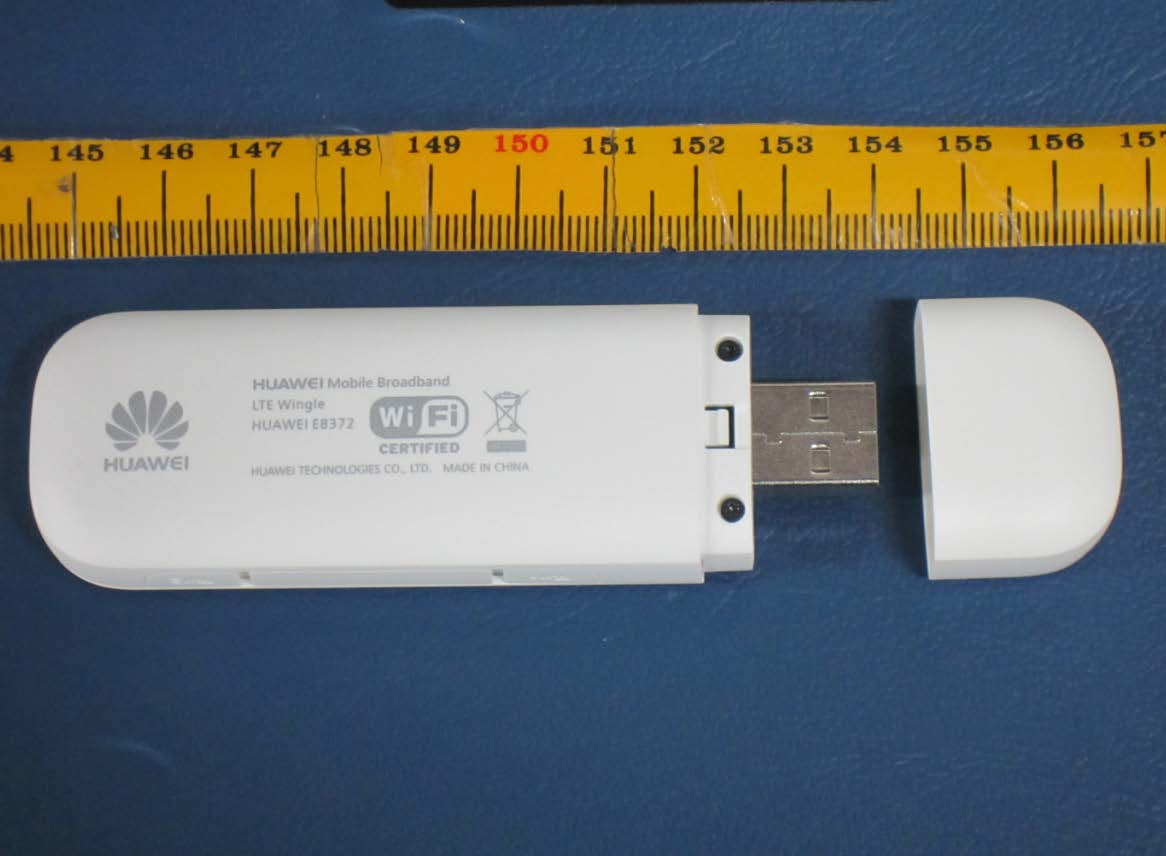

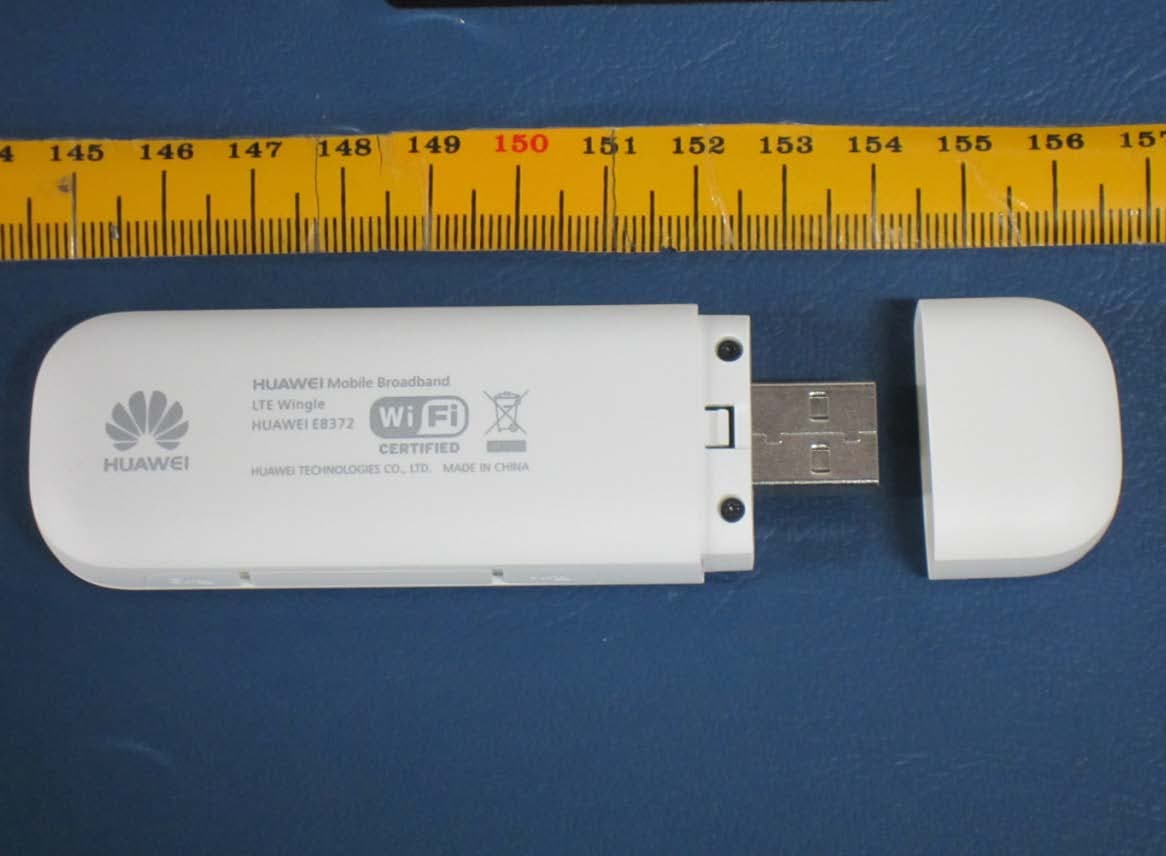

E8372h-510 SECRET 2015-1-12 Page1, Total6 External Photos of E8372h-510 E8372h-510 SECRET 2015-1-12 Page2, Total6 E8372h-510 SECRET 2015-1-12 Page3, Total6 E8372h-510 SECRET 2015-1-12 Page4, Total6 E8372h-510 SECRET 2015-1-12 Page5, Total6 E8372h-510 SECRET 2015-1-12 Page6, Total6

E8372h-510 SECRET Page 1 Total 1 E8372h-510 Label & Label Location: Label: Label Location:

E8372h-510 SECRET 2015-1-12 Page1, Total5 Internal Photos of E8372h-510 E8372h-510 SECRET 2015-1-12 Page2, Total5 E8372h-510 SECRET 2015-1-12 Page3, Total5 E8372h-510 SECRET 2015-1-12 Page4, Total5 E8372h-510 SECRET 2015-1-12 Page5, Total5

Report No. RHA1412-0127SAR Page 1 of 213 TESTING No. L2264 SAR TEST REPORT Product Name LTE Wingle Model Name E8372h-510 FCC ID QISE8372H-510 Applicant Huawei Technologies Co., Ltd. Manufacturer Huawei Technologies Co., Ltd. Date of issue January 6, 2015 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 2 of 213 GENERAL SUMMARY Reference Standard(s) FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. RSS-102 Issue 4 March 2010: Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands). KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r03 SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 Mobile Portable RF Exposure v05r02: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 941225 D01 SAR test for 3G devices v03: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D05 SAR for LTE Devices v02r03 SAR Test Considerations for LTE Handsets and Data Modems KDB 447498 D02 SAR Procedures for Dongle Xmtr v02: SAR Measurement Procedures for USB Dongle Transmitters. KDB 248227 D01 SAR meas for 802 11 a b g v01r02: SAR Measurement Procedures for 802.11a/b/g Transmitters. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Kai Xu Director Revised by Jie Li SAR Manager Performed by Jian Qi SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 3 of 213 TABLE OF CONTENT 1. General Information ........................................................................................................................ 5 1.1. Notes of the Test Report .......................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................... 5 1.3. Applicant Information ............................................................................................................... 6 1.4. Manufacturer Information ......................................................................................................... 6 1.5. Information of EUT ................................................................................................................... 7 1.6. EUT Antenna Locations ........................................................................................................... 8 1.7. The Maximum Reported SAR 1g ............................................................................................... 9 1.8. Test Date ................................................................................................................................. 9 2. SAR Measurements System Configuration ................................................................................... 10 2.1. SAR Measurement Set-up ..................................................................................................... 10 2.2. DASY5 E-field Probe System ................................................................................................ 11 2.2.1. EX3DV4 Probe Specification ........................................................................................... 11 2.2.2. E-field Probe Calibration ................................................................................................. 12 2.3. Other Test Equipment ............................................................................................................ 13 2.3.1. Device Holder for Transmitters ....................................................................................... 13 2.3.2. Phantom ......................................................................................................................... 13 2.4. Scanning Procedure .............................................................................................................. 13 2.5. Data Storage and Evaluation ................................................................................................. 16 2.5.1. Data Storage ................................................................................................................... 16 2.5.2. Data Evaluation by SEMCAD ......................................................................................... 16 3. Laboratory Environment ................................................................................................................ 18 4. Tissue-equivalent Liquid ............................................................................................................... 19 4.1. Tissue-equivalent Liquid Ingredients ...................................................................................... 19 4.2. Tissue-equivalent Liquid Properties ....................................................................................... 20 5. System Check ............................................................................................................................... 21 5.1. Description of System Check ................................................................................................. 21 5.2. System Check Results ........................................................................................................... 22 6. Operational…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 179 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 180 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 181 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 182 of 213 ANNEX G: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 183 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 184 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 185 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 186 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 187 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 188 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 189 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 190 of 213 ANNEX H: D2450V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 191 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 192 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 193 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 194 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 195 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 196 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 197 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 198 of 213 ANNEX I: D2600V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 199 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 200 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 201 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 202 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 203 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 204 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 205 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 206 of 213 ANNEX J: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 207 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 208 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 209 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 210 of 213 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 211 of 213 ANNEX K: The EUT Appearances and Test Configuration Picture 8: Constituents of the EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 212 of 213 Picture 9: Test position 1 Picture 10: Test position 2 5mm 5mm TA Technology (Shanghai) Co., Ltd. Test Report Report No. RHA1412-0127SAR Page 213 of 213 Picture 11: Test Position 3 Picture 12: Test Position 4 5mm 5mm

FCC RF Test Report Product Name: LTE Wingle Model Number: E8372h-510 Report No: SYBH(Z-RF)018122014-2002 FCC ID：QISE8372H-510 \ Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of E8372h-510 Report No: SYBH(Z-RF)018122014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 21 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-1 and 6369A-3. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of E8372h-510 Report No: SYBH(Z-RF)018122014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 21 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2014-12-23 Start Date of Test: 2014-12-25 End Date of Test: 2015-01-03 Test Result: Pass Approved by Senior Engineer: 2015-01-04 Liu Chunlin Date Name Signature Prepared by: 2015-01-04 Ling Kaiyun Date Name Signature RF Test Report of E8372h-510 Report No: SYBH(Z-RF)018122014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 21 Modification Record No. Last Report No. Modification Description First Report RF Test Report of E8372h-510 Report No: SYBH(Z-RF)018122014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 21 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 3 Description of the Equipment under Test (EUT) ..................................................................................................... 8 3.1 General Description ................................................................................................................................... 8 3.2 EUT Identity ............................................................................................................................................... 8 3.3 Technical Description ................................................................................................................................. 9 4 General Test Conditions / Configurations ............................................................................................................. 10 4.1 Test Modes .............................................................................................................................................. 10 4.2 EUT Configurations .................................................................................................................................. 10 4.3 Test Environments ................................................................................................................................... 12 4.4 Antenna requirements .............................................................................................................................. 12 4.5 Description of tests................................................................................................................................... 13 4.6 Test Setups .............................................................................................................................................. 15 4.7 Test Conditions ........................................................................................................................................ 18 5 Main Test Instruments .......................................................................................................................................... 21 RF Test Report of E8372h-510 Report No: SYBH(Z-RF)018122014-2002 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 21 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 2, Subpart J 2013 47 CFR FCC Part 15, Subpart C 2013 Test Method: FCC KDB 558074 D01 DTS Meas Guidance v03r02 ANSI C63.10…
