QISE8372H-511LTE Wingle

Quick Start Thank you for choosing the LT E W i n g l e. The LTE Wingle allows you to access a wireless network at high speed. Note: This guide briefly describes the appearance of the LTE Wingle and the procedures for using the LTE Wingle. For details about how to set the management parameters, see help information on the web management page. Connection Scenarios Scenario 1: One-device Internet access using computer Scenario 2: Multi-device Internet access using Wi-Fi (connected to a computer) Scenario 3: Multi-device Internet access using Wi-Fi (connected to the power adapter) Getting to Know Your LTE Wingle The following figure shows the LT E Wi ng l e. It is provided only for your reference. The actual product may be different. 1 5 6 3 2 4  USB connector It connects the LTE Wi ngle to a computer.  Wi-Fi indicator It indicates the status of a Wi-Fi network.  Steady green: A Wi-Fi connection is set up.  Off: The Wi-Fi function is turned off or fails, or the LTE Wingle has been removed.  SMS indicator It indicates the status of an SMS.  Steady green: There are unread messages in your inbox.  Blinking green once every 2s: The message storage is full.  Off: The LTE Wi ngle is powered off, there are no unread messages.  2G/3G/ LTE indicator It indicates the LTE Wi ngle's status.  Blinking green twice every 2s: The LTE Wingle is powered on.  Blinking green once every 0.2s: The software of the LTE Wi ngle is being upgraded.  Blinking green once every 2s: The LT E Wi ng l e is registered with a 2G network.  Steady green: The LTE Wi ngle is connected to a 2G network .  Blinking blue once every 2s: The LTE Wingle is registered with a 3G network.  Steady blue: The LTE Wingle is connected to a 3G network.  Blinking cyan once every 2s: The LT E Wi ng l e is registered with a LTE network.  Steady cyan: The LTE Wi ngle is connected to a 3G+/LT E network.  Off: The LTE Wi ngle is removed.  microSD card slot It holds a microSD card.  SIM card slot It holds a Subscriber Identity Module (SIM) card. Getting Started 1. Slide the cover to remove it from the LTE Wingle. 2. Insert the SIM card and the microSD card into the corresponding card slots, as shown in the following figure. 3. Replace the cover and slide it into place. 1 2 2 1 Note:  The microSD card is an optional accessory. If it is not provided in the package, you can buy one yourself.  Ensure that the beveled edge of the SIM card is properly aligned with that of the SIM card slot and the microSD card is inserted according to the direction as labeled on the microSD card slot.  Do not remove the microSD or SIM card when the card is in use. Otherwise, the card as well as your LTE Wi ngle may get damaged and the data stored on the card may be corrupted.  Do not use any SIM card that is not standard or is incompatible with the LTE Wi ngle. Otherwise, the card as well as your LTE Wi ngle may get damaged and the data stored on the card may be corrupted. Using the Power Adapter Connect the LTE Wingle to the power adapter's USB port, and connect the power adapter to a power outlet. Note:  Only use power adapters compatible with the LT E Wi ng l e and provided by a designated manufacturer (HW-050100xxW: The first x represents U, E, B, A, or J, depending on your region. The second x represents generation number.). For details about the specific adapter model, contact an authorized dealer. Use of an incompatible power adapter or one from an unknown manufacturer may cause the LTE Wi ngle to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product.  The power adapter is an optional accessory. If it is not included in the product package, purchase one separately. Using Your LTE Wingle The procedure for installing the management program depends on your computer's operating system. The following sections are based on Windows 7. Connecting to a Network 1. Connect the LTE Wingle to one of your computer's USB ports. The installation wizard runs automatically. 2. When the installation is complete, the LTE Wingle's web management page is displayed and the LT E Wi ng l e connects to the network automatically. Note:  If the installation wizard does not run automatically, find the AutoRun.exe file in the driver path, and double-click the file to run it.  The default user name and password of the web management page are admin.  If your SIM card's personal identification number (PIN) verification function is enabled, log in to the web management page, and enter and save the PIN.  If you are not using the default access point name (APN), log in to the web management page, and configure and save the APN settings on the dial-up settings tab.  When using the LTE Wi ngle to access a network, do not use other devices to access the network, because doing so may cause conflicts.  If you are not connected to the network, access http://192.168.8.1 to check the device status.  If you cannot access http://192.168.8.1, disconnect other network connections, such as an Ethernet or Wireless Fidelity (Wi-Fi) connection, remove and then insert the LT E Wingle, or restart the computer. Disconnecting from a Network Remove the LTE Wi ngle from your computer. Note:  By default, the LTE Wi ngle automatically disconnects from the network if no data is transferred within 10 minutes.  If you do not need to connect to the network, it is recommended that you remove the LT E Wi ng l e from your computer to reduce data traffic.  Disconnect the LTE Wingle's data connection through its web management page or the Mobile Wi-Fi application. Before you remove the LTE Wingle, make sure that the data connection has been disconnected. Setting Up a Wi-Fi Connection 1. Ensure that the LTE Wi ngle's Wi-Fi function is on. 2. Select Start > Control Panel > Network and Internet > Network and Sharing Center > Connect to a network. Note: Before establishing a Wi-Fi connection, ensure that the computer is equipped with a…

Text truncated - open the document above for the full version.

Safety Information Copyright © Huawei Technologies Co., Ltd. 2015. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/privacy-policy. Safety information This section contains important information about the operation of your device. It also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment  Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited.  Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information.  Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Areas with flammables and explosives  Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols.  Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security  Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.  Concentrate on driving. Your first responsibility is to drive safely.  RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer.  Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates.  Do not use your device while flying in an aircraft or immediately before boarding. Using wireless devices in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. Operating environment  Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions.  Do not use your device during thunderstorms to protect your device against any danger caused by lightning.  Ideal operating temperatures are -10°C to +40°C. Ideal storage temperatures are -20°C to +70°C. Extreme heat or cold may damage your device or accessories.  Keep the device and accessories in a well-ventilated and cool area away from direct sunlight. Do not enclose or cover your device with towels or other objects. Do not place the device in a container with poor heat dissipation, such as a box or bag.  Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.  To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.  Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.  Stop using your device or applications for a while if t…

Text truncated - open the document above for the full version.

Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-03-16 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISE8372H-511 IC: 6369A-E8372H511 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2015-04-30: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226

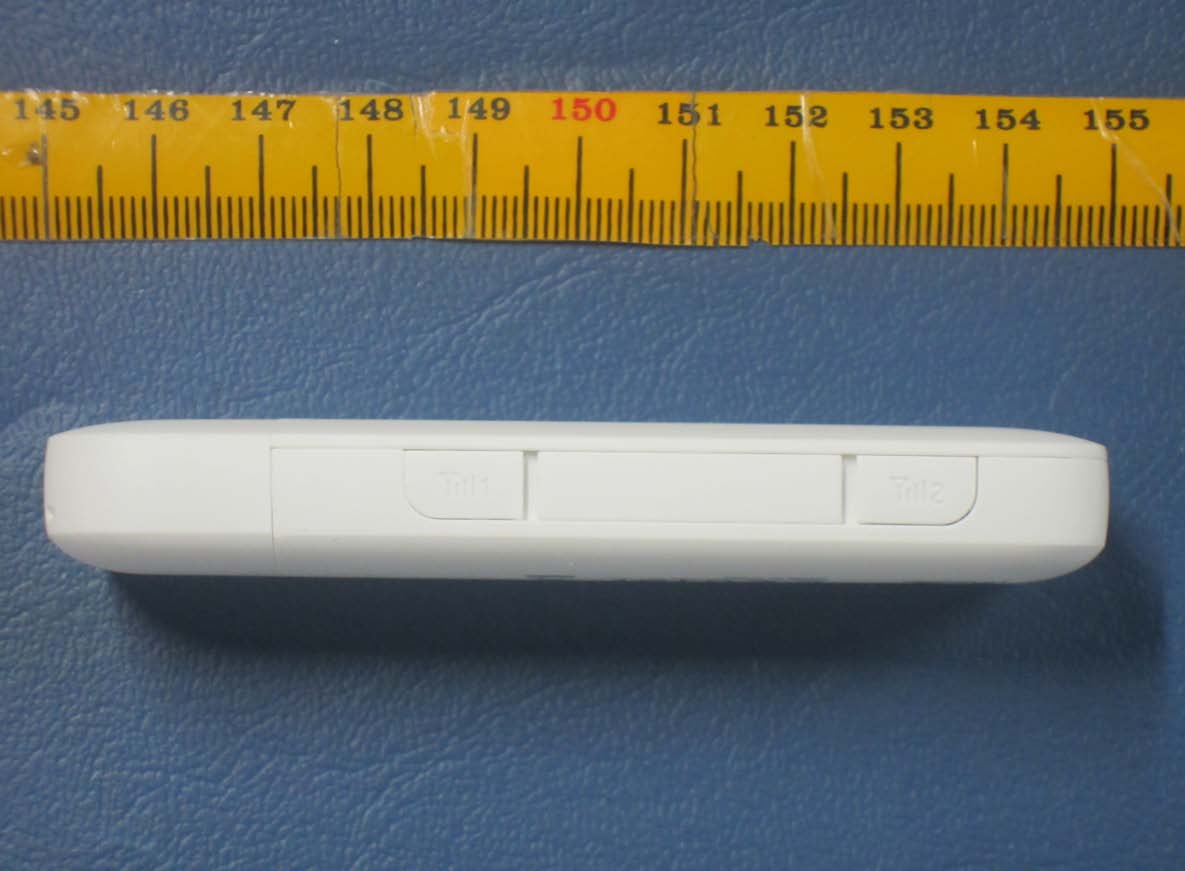

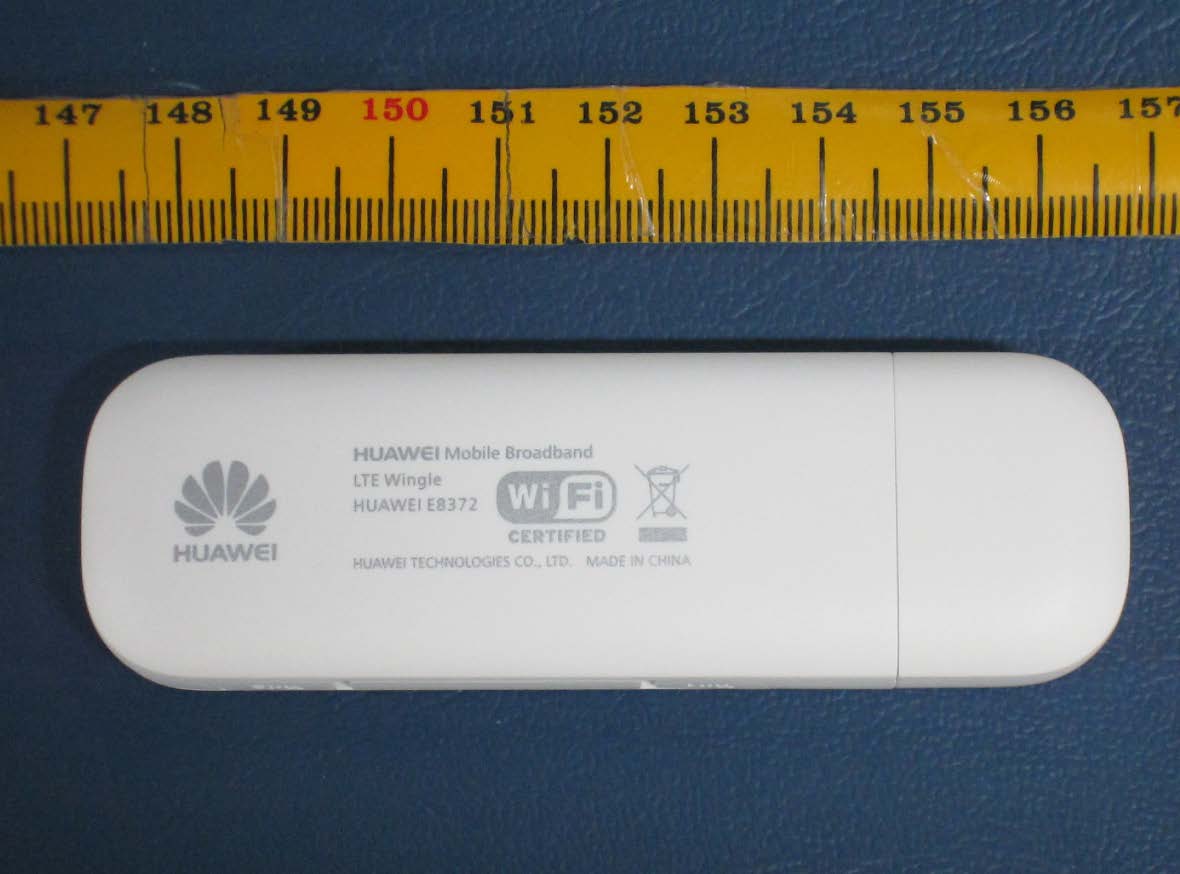

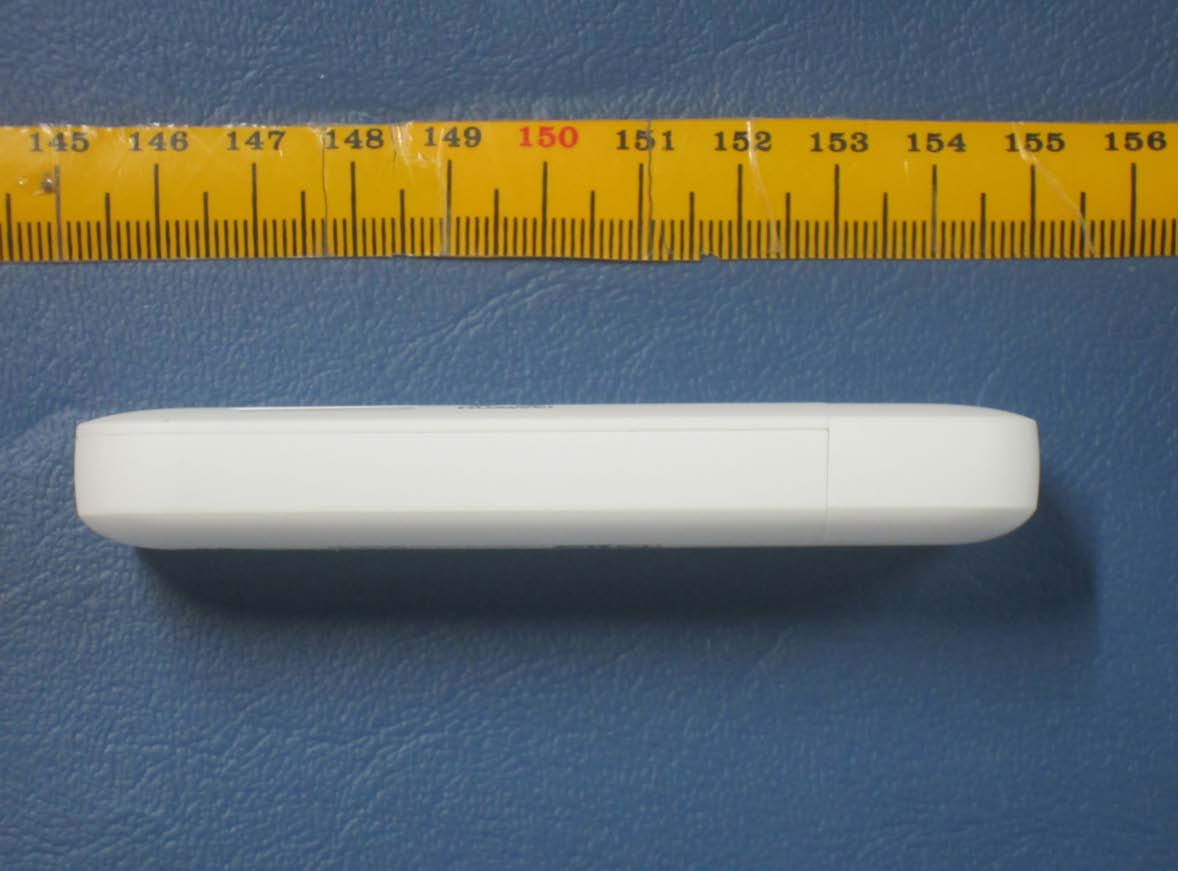

E8372h-511 SECRET 2015-3-17 Page1, Total6 External Photos of E8372h-511 E8372h-511 SECRET 2015-3-17 Page2, Total6 E8372h-511 SECRET 2015-3-17 Page3, Total6 E8372h-511 SECRET 2015-3-17 Page4, Total6 E8372h-511 SECRET 2015-3-17 Page5, Total6 E8372h-511 SECRET 2015-3-17 Page6, Total6

E8372h-511 SECRET Page 1 Total 1 E8372h-511 Label & Label Location: Label: Label Location:

E8372h-511 SECRET 2015-3-17 Page1, Total4 Internal Photos of E8372h-511 E8372h-511 SECRET 2015-3-17 Page2, Total4 E8372h-511 SECRET 2015-3-17 Page3, Total4 E8372h-511 SECRET 2015-3-17 Page4, Total4

Report No.: SET2015-03023 CCIC-SET/T（00） Page 1 of 22 EMC TEST REPORT Report No.: SET2015-03023 Product Name: LTE Wingle FCC ID: IC: QISE8372H-511 6369A-E8372H511 Model No. : E8372h-511 Applicant: Address: Received Date: Tested Date: Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C 2015-03-02 2015-03-02—2015-03-11 Issued by: CCIC Southern Electronic Product Testing (Shenzhen) Co., Ltd. Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 22 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2015-03023 CCIC-SET/T（00） Page 2 of 22 Te s t R e p o r t Product Name ...................... : LTE Wingle Model No. ........................... : E8372h-511 Applicant .............................. : Huawei Technologies Co., Ltd. Applicant Address ............... : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Manufacturer ........................ : Huawei Technologies Co., Ltd. Manufacturer Address ........ : Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Test Standards ..................... : 47 CFR Part 15 :2013 ,Subpart B ICES-003 Issue 5 August 2012 Test Result ........................... : PASS Tested by ............................ : 2015.03.12 Xiaolong Zhang, Test Engineer Reviewed by ......................... : 2015.03.12 Shuangwen Zhang, Senior Engineer Approved by ........................ : 2015.03.12 Wu Li’an, Manager Report No.: SET2015-03023 CCIC-SET/T（00） Page 3 of 22 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 4 1.1 EUT Description ......................................................................................................................... 4 1.2 Test Standards and Results ........................................................................................................ 6 1.3 Facilities and Accreditations ...................................................................................................... 7 1.3.1 Facilities .................................................................................................................................... 7 1.3.2 Test Environment Conditions .................................................................................................... 7 1.3.3 Measurement Uncertainty ......................................................................................................... 7 2. TEST CONDITIONS SETTING............................................................................................... 8 2.1 Test Peripherals .......................................................................................................................... 8 2.2 Test Mode .................................................................................................................................... 8 2.3 Test Setup and Equipments List ................................................................................................ 9 2.3.1 Conducted Emission.................................................................................................................. 9 2.3.2 Radiated Emission ..................................................................................................................... 9 3. 47 CFR PART 15B AND ICES-003 REQUIREMENTS ....................................................... 12 3.1 Conducted Emission ................................................................................................................. 12 3.1.1 Requirement ............................................................................................................................ 12 3.1.2 Test Description ...................................................................................................................... 12 3.1.3 Test Result ............................................................................................................................... 12 3.2 Radiated Emission .................................................................................................................... 15 3.2.1 Requirement ............................................................................................................................ 15 3.2.2 Test Description ...................................................................................................................... 16 3.2.3 Test Result ............................................................................................................................... 16 4. PHOTOGRAPHS OF THE EUT ............................................................................................ 20 5. PHOTOGRAPHS OF THE TEST SET-UP ........................................................................... 21 Change History Issue Date Reason for change 1.0 2015.03.12 First edition Report No.: SET2015-03023 CCIC-SET/T（00） Page 4 of 22 1. GENERAL INFORMATION 1.1 EUT Description EUT Name ........................... : LTE Wingle Serial No............................... : IMEI No. . ............................ : FCC ID .......................…
