QISEA360-135LTE CPE

CPE eA360 Series User Guide Issue 01 Date 2014-07-30 HUAWEI TECHNOLOGIES CO., LTD. Issue 01 (2014-07-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. i Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] CPE eA360 Series User Guide About This Document Issue 01 (2014-07-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. ii About This Document Overview This document describes the hardware, functions, installation, configuration, operation and maintenance (OM) of the eA360 series customer premises equipment (CPE). Product Version Product Name Product Version eA360 Series CPE V100R001 Intended Audience This document is intended for:  System engineers  Product engineers  Technical support engineers Issue 01 (2014-07-30) This is the first commercial release. CPE eA360 Series User Guide Contents Issue 01 (2014-07-30) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. iii Contents About This Document .................................................................................................................... ii 1 Overview ......................................................................................................................................... 1 1.1 Product Introduction ..................................................................................................................................................... 1 1.2 Application Scenarios ................................................................................................................................................... 2 1.3 Hardware Specifications ............................................................................................................................................... 5 1.4 Antenna Specifications ................................................................................................................................................. 6 2 Hardware ........................................................................................................................................ 7 2.1 eA360 Hardware ........................................................................................................................................................... 7 2.2 eA360 Cables ................................................................................................................................................................ 8 2.2.1 PoE Network Cable ................................................................................................................................................... 8 3 Installation.................................................................................................................................... 10 3.1 Installation Preparation ............................................................................................................................................... 10 3.2 Installation Procedure ................................................................................................................................................. 11 3.2.1 Mounting on a Utility Pole ...................................................................................................................................... 11 3.2.2 Mounting on the Wall .............................................................................................................................................. 15 3.2.3 Cable Connection ..................................................................................................................................................... 20 3.3 Installation Check ....................................................................................................................................................... 23 4 Configuring the eA360 ............................................................................................................... 26 5 Maintenance ................................................................................................................................. 27 5.1 Maintenance Preparation ............................................................................................................................................ 27 5.2 Fault Diagnosis ........................................................................................................................................................... 27 6 Legal Notice .................................................................................................................................. 29 6.1 Privacy Policy ...…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. ADD: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, China TEL: +86-755-2897-0299 FAX: +86-755-8965-0226 FCC Authorization Date: 2014-7-30 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Huawei Technologies Co., Ltd., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Zhang, Xinghai EMC Laboratory Manager QA-FR-170-B

QA- FR-172-A Huawei Technologies Co., Ltd. ADD: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, China TEL: +86-755-2897-0299 FAX: +86-755-8965-0226 FCC Confidential Authorization Date: 2015-7-16 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: QISEA360-135 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Huawei Technologies Co., Ltd., hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description As well as short-term confidential treatment of information accompanying this application as outlined below:  Internal Photos  User’s Manual  External Photos  Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Zhang, Xinghai EMC Laboratory Manager

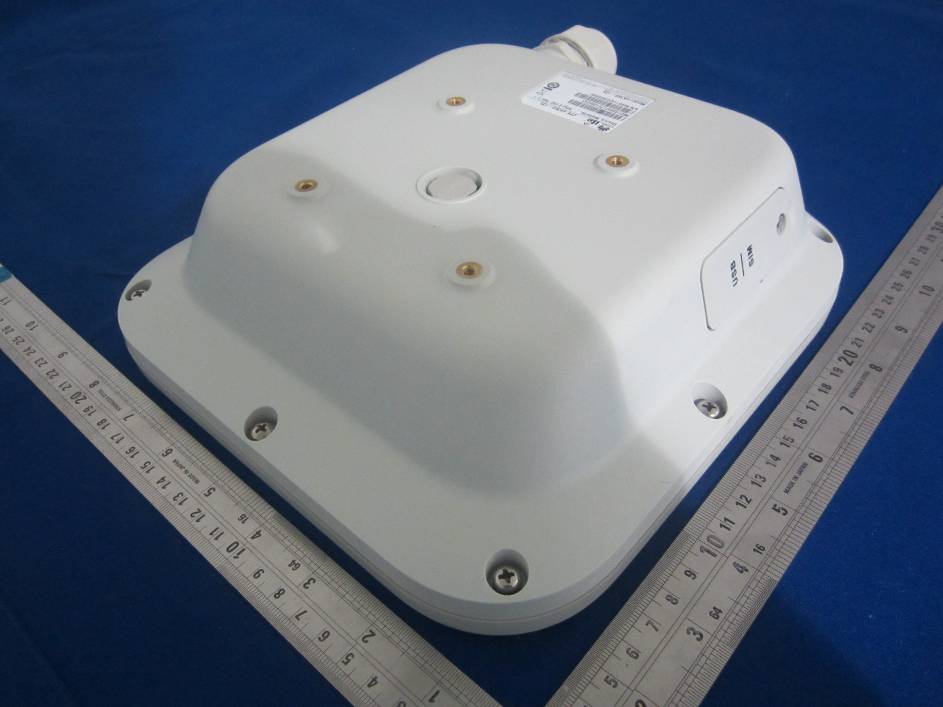

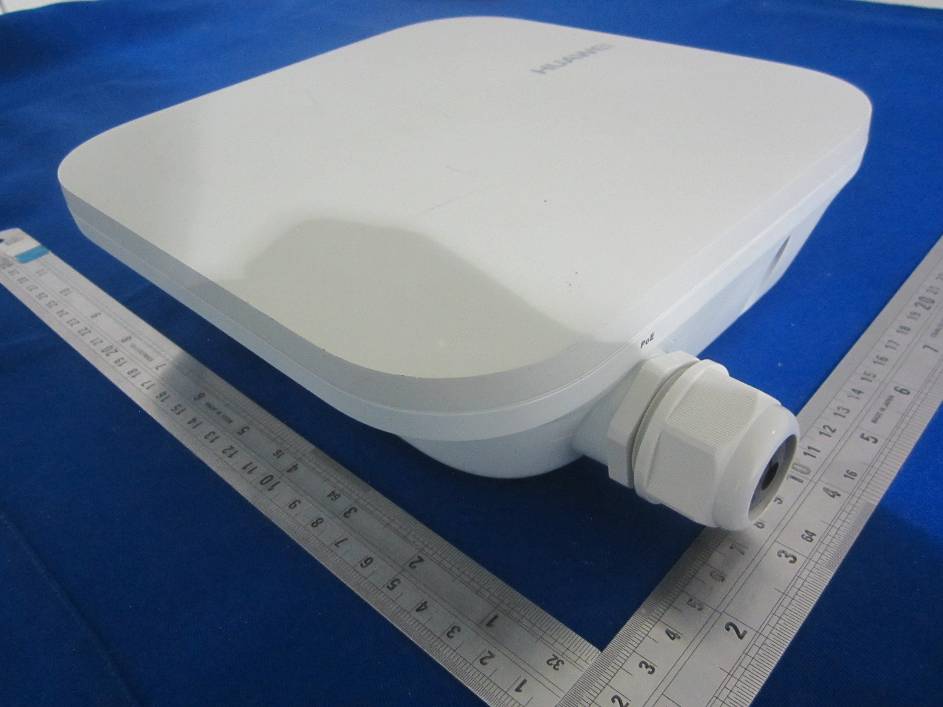

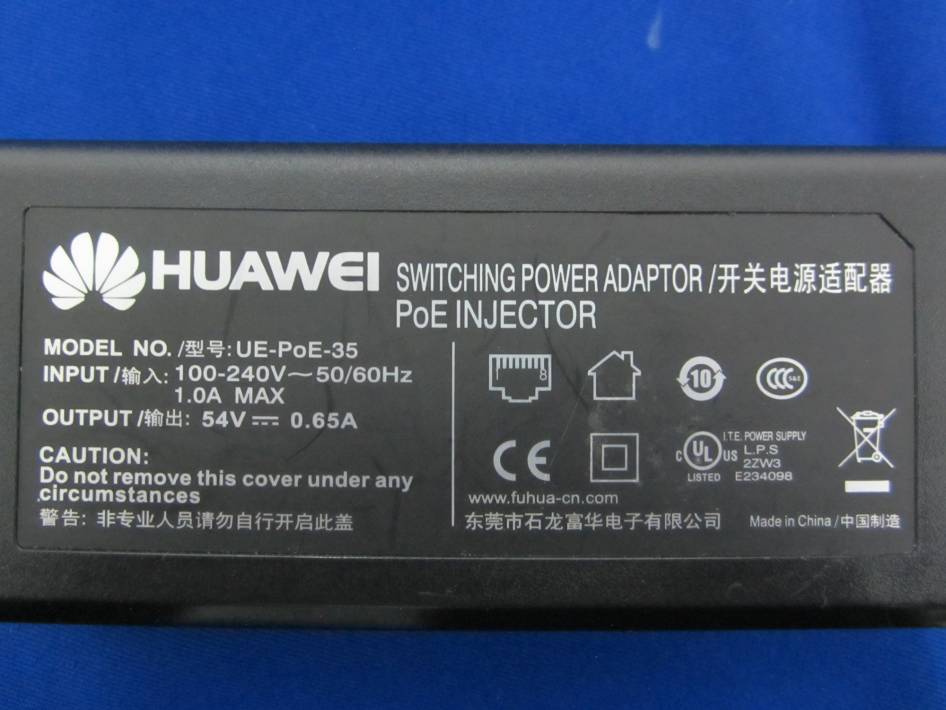

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Top View EUT – Bottom View EUT – Side View EUT – Side View EUT – RJ45 Port View EUT – USB & SIM Port View EUT – Adapter Top View EUT – Adapter Bottom View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncover View EUT – LTE Antenna View EUT – LTE Antenna Label View EUT – Cover Off View EUT –Main Board Top View EUT –Main Board Top Without Shielding View EUT –Main Board Bottom View EUT –Main Board Bottom Without Shielding View EUT –Wifi Chip View EUT –Wifi Antenna View EUT –Main Board Uncover View EUT –LTE Module Top View EUT –LTE Module Bottom View EUT –LTE Module Bottom Without Shielding View EUT –LTE Chip View

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG140714004-00B FCC Part 15.247 Page 9 of 63 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) According to subpart 1.1307 (b)(1)and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: Calculated Data: Mode Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) (dBi) (numeric)(dBm) (mW) Wi-Fi 2422 2.0 1.58 18.13 65.01 20 0.020 1.0 LTE 3662.5 16 39.81 18.89 77.45 20 0.613 1.0 Wi-Fi (2.4 G) and LTE can transmit at the same time, MPE evaluation is as below formula: PD1/Limit1+PD2/Limit2+......＜1, PD (Power Density) = 0.020/1+0.613/1=0.641＜1 Result: MPE evaluation of single and simultaneous transmission meet the requirement of standard.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dognguan).This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Report Type: Original Report Product Type: LTE CPE Test En gineer: Allen Qiao Re port Number: RDG140714004-00B Re port Date: 2015-04-01 Reviewed By: Jerry Zhang EMC Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: QISEA360-135 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG140714004-00B FCC Part 15.247 Page 2 of 63 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 9 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY .................................................................................................................................. 11 EUT SETUP ................................................................................................................................................................ 11 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST RESULTS SUMMARY .......................................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 16 APPLICABLE STANDARD ............................................................................................................................................ 16 MEASUREMENT UNCERTAINTY .................................................................................................................................. 16 EUT SETUP ................................................................................................................................................................ 16 EMI TEST RECEIVER & SPECTRUM A…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions – Side View Radiated Emission - Front View (Below 1GHz) Radiated Emission - Rear View (Below 1GHz) Radiated Emission – Front View (Above 1GHz) Radiated Emission – Rear View (Above 1GHz)
