QISEA660-135LTE CPE

Huawei Technologies Co.,Ltd
LTE CPE - FCC ID QISEA660-135 - Huawei Technologies Co.,Ltd
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
May 28, 2014
Application Purpose
Original Equipment
Date of Application
May 14, 2014
Equipment Note
LTE CPE
Frequency Range
3660.00000000 - 3665.00000000
Company
Huawei Technologies Co.,Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

β†—

Attestation Statements

β†—

Cover Letter(s)

β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

eLTE2.2 eA660 Series CPE User Guide Issue 01 Date 2013-10-30 HUAWEI TECHNOLOGIES CO., LTD. Issue 01 (2013-10-30) Huawei Proprietary and Confidential Copyright Β© Huawei Technologies Co., Ltd. i Copyright Β© Huawei Technologies Co., Ltd. 2013. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders. Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China Website: http://www.huawei.com Email: [email protected] eLTE2.2 eA660 Series CPE User Guide About This Document Issue 01 (2013-10-30) Huawei Proprietary and Confidential Copyright Β© Huawei Technologies Co., Ltd. ii About This Document Overview This document describes the hardware, functions, installation, configuration, operation and maintenance (OM) of the eA660 series customer premises equipment (CPE). Product Version Product Name Product Version eA660 Series CPE V100R001C01 Intended Audience This document is intended for: z System engineers z Product engineers z Technical support engineers Change History Issue 01 (2013-10-30) This is the first commercial release. eLTE2.2 eA660 Series CPE User Guide Contents Issue 01 (2013-10-30) Huawei Proprietary and Confidential Copyright Β© Huawei Technologies Co., Ltd. iii Contents About This Document .................................................................................................................... ii 1 Overview ......................................................................................................................................... 1 1.1 Product Introduction ..................................................................................................................................................... 1 1.2 Application Scenarios ................................................................................................................................................... 2 1.3 Hardware Specifications ............................................................................................................................................... 5 1.4 Antenna Specifications ................................................................................................................................................. 6 2 Hardware ........................................................................................................................................ 7 2.1 eA660 Hardware ........................................................................................................................................................... 7 2.2 eA660 Cables .............................................................................................................................................................. 10 2.2.1 PoE Network Cable ................................................................................................................................................. 10 2.2.2 Ground Cable ........................................................................................................................................................... 10 3 Installation.................................................................................................................................... 12 3.1 Installation Preparation ............................................................................................................................................... 12 3.2 Installation Procedure ................................................................................................................................................. 13 3.2.1 Mounting on a Utility Pole (Without an Angle Adjusting Component) ................................................................... 13 3.2.2 Mounting on a Utility Pole (with an Angle Adjusting Component) ........................................................................ 19 3.2.3 Mounting on the Wall (Without an Angle Adjusting Component) ........................................................................... 26 3.2.4 Mounting on the Wall (with an Angle Adjusting Component)................................................................................. 32 3.2.5 Cable Connection ..................................................................................................................................................... 38 3.3 Installation Check ....................................................................................................................................................... 42 4 Configuring the eA660 ............................................................................................................... 45 5 Maintenance ................................................................................................................................. 46 5.1 Maintenance Preparation ........................................…

Text truncated - open the document above for the full version.

Attestation Statements

Huawei Technologies Co. Ltd. 2014-5-9 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 ATTESTATION STATEMENT Declaration on CPE work frequency TO WHOM IT MAY CONCERN We, Huawei Technologies Co., Ltd., declare on our sole responsibility that the model This device eA660-135 with FCC ID number QISEA660-135 only works in the frequency band 3650-3675MHZ through setting the operation frequency in the software. Signature: Zhang, Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. Add: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86-755-2897-0299 Fax: +86-755-8965-0226

Cover Letter(s)

Huawei Technologies Co., Ltd. Add: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86-755-2897-0299 Fax: +86-755-8965-0226 FCC Authorization Date: 2014-5-8 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Huawei Technologies Co., Ltd., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Zhang, Xinghai EMC Laboratory Manager

Cover Letter(s)

Huawei Technologies Co., Ltd. Add: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86-755-2897-0299 Fax: +86-755-8965-0226 Date: 2014-5-9 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of confidentiality for FCC ID: QISEA660-135 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Huawei Technologies Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Huawei Technologies Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Circuit Description 3 Schematic 4 Part List & Tune-up Procedure SHORT-TERM 5 External and Internal Photos 6 Test-Setup Photos 7 User Manual The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Signature: Zhang, Xinghai EMC Laboratory Manager

External Photos

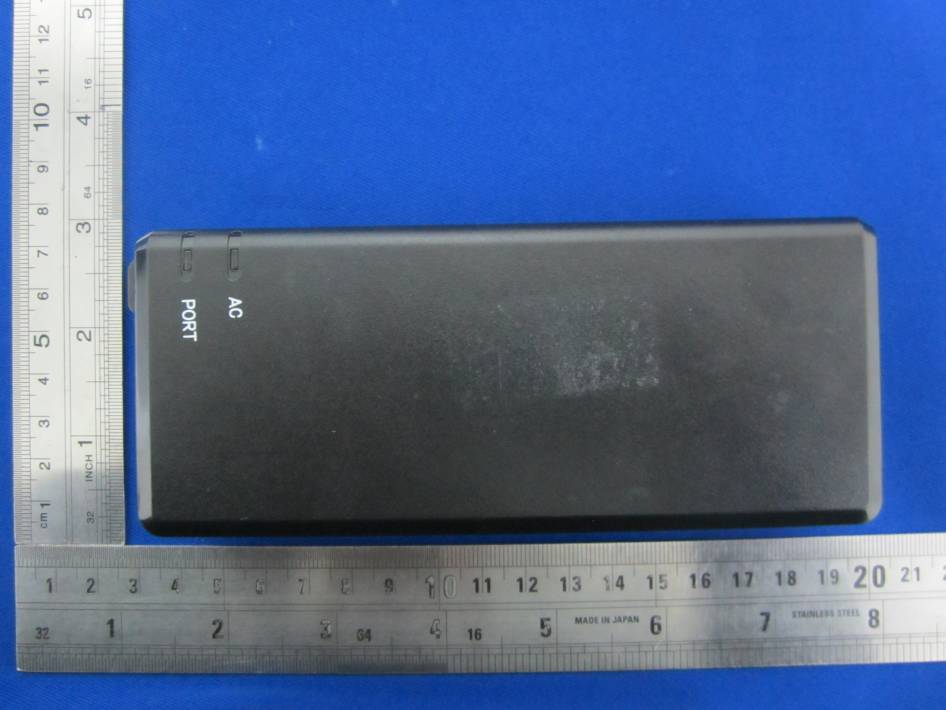

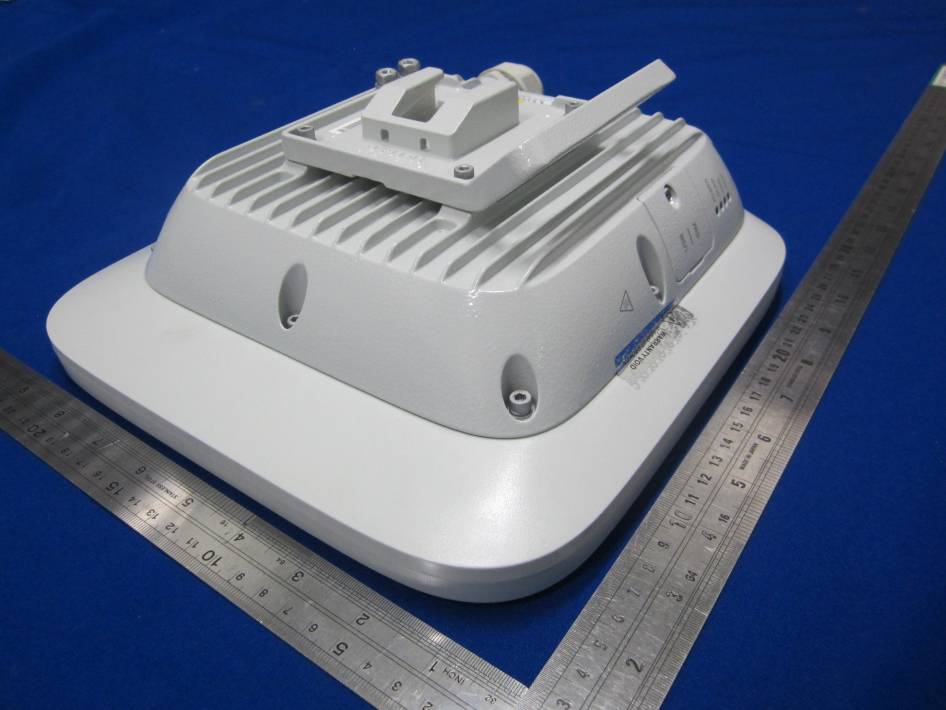

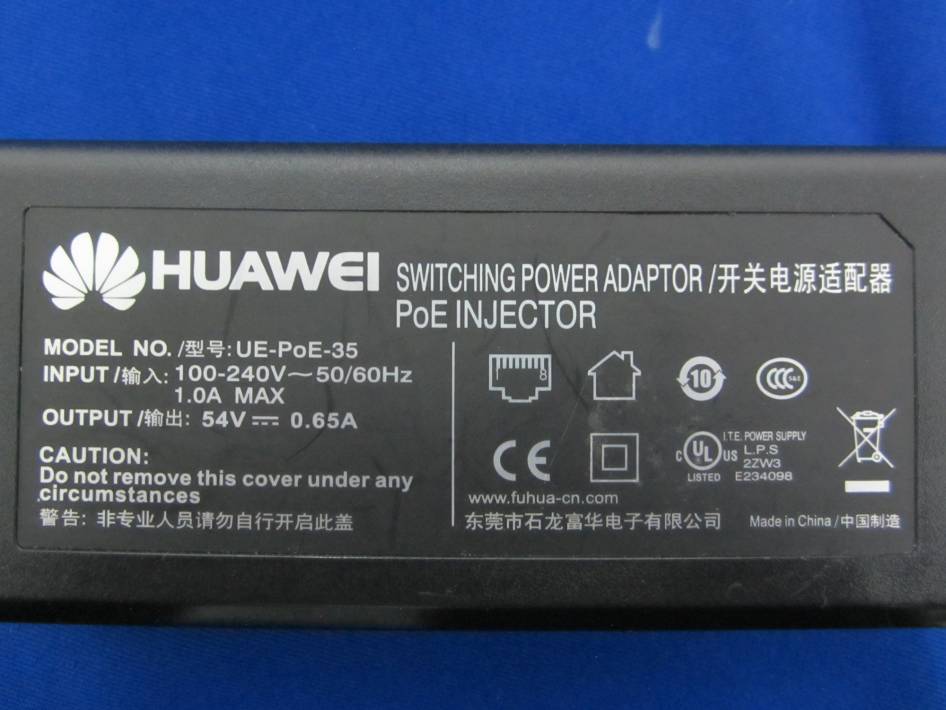

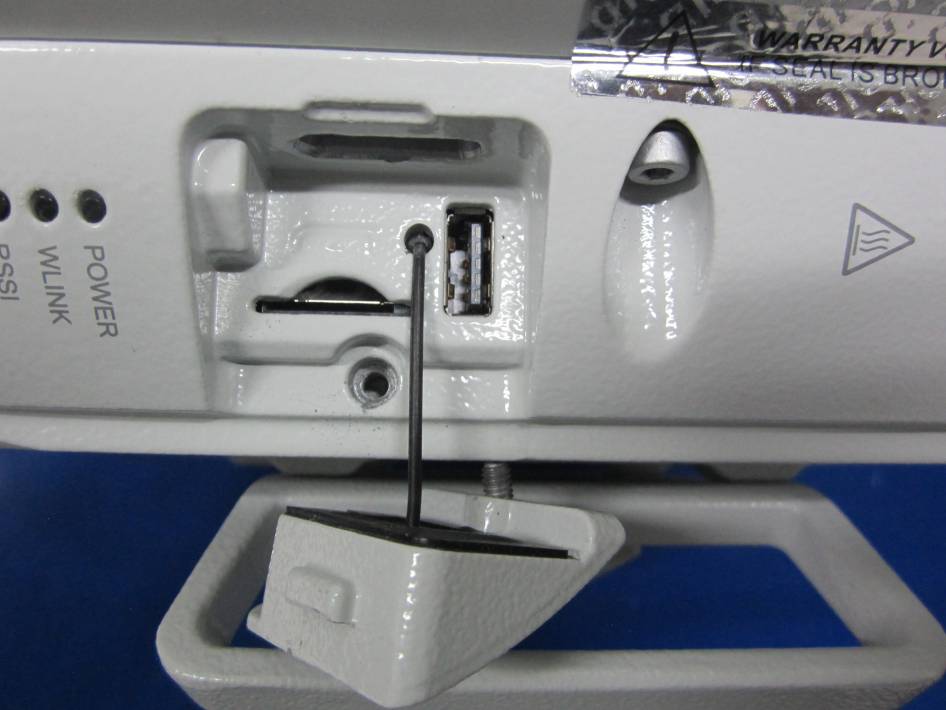

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT All View EUT – Top View EUT – Bottom View EUT – Side View 1 EUT – Side View 2 EUT – Port View 1 EUT – Port View 2 EUT – Adapter Top View EUT – Adapter Bottom View EUT – Adapter Label View

ID Label/Location Info

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Internal Photos

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – Cover off View 3 EUT – High Temperature Alarm Circuit View EUT – Antenna View EUT – Main Board Top View EUT – Main Board Bottom View EUT – Wifi Chip View EUT – RF Module Top View EUT – RF Module Top Shielding off View EUT – RF Module Bottom View EUT – RF Module Bottom Shielding off View EUT – RF Module Chip View

RF Exposure Info

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1DG140504003-00 FCC Part 90 Page 7 of 44 FCC§1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 3650-3675 16 39.81 25 316.23 20 2.51 5 Note: Maximum target power is 25 dBm Radiation Exposure Statement: To comply with FCC RF exposure requirements, a minimum separation distance of 20cm is required between the antenna and all public persons.

Test Report

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 90 TEST REPORT For Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C FCC ID: QISEA660-135 Report Type: Original Report Product Type: LTE CPE Test En gineer: Rocky Kang Re port Number: R1DG140504003-00 Re port Date: 2014-05-13 Reviewed B y: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1DG140504003-00 FCC Part 90 Page 2 of 44 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 FCCΒ§1.1307 (b) (1) & Β§2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) .................................................... 7 APPLICABLE STANDARD .............................................................................................................................................. 7 RESULT ........................................................................................................................................................................ 7 FCC Β§2.1046, Β§90.1321(a) & Β§90.1321(a) - RF OUTPUT POWER .......................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 TEST PROCEDURE ........................................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 8 TEST DATA .................................................................................................................................................................. 8 FCC Β§90.1321 (a); Β§90.1321 (a) - PEAK POWER SPECTRAL DENSITY ........................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 11 FCC Β§2.1049 & Β§90.209 – OCCUPIED BANDWIDTH ........................................................................................... 21 APPLICABLE STANDARD ............................................................................................................................................ 21 TEST PROCEDURE ...................................................................................................................................................... 21 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 21 TEST DATA ................................................................................................................................................................ 21 FCC Β§2.1051 & Β§90.1323(a) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ...................................... 26 APPLICABLE STANDARD ............................................................................................................................................ 26 TEST PROCE…

Text truncated - open the document above for the full version.

Test Setup Photos

EXHIBIT D - TEST SETUP PHOTOGRAPHS Transmitting Radiated Emissions (Below 1 GHz) Transmitting Radiated Emissions (Above 1 GHz)

Contact Information

Applicant

Zhang Xinghai
[email protected]+86-755-2897-0299Fax: +86-755-8965-0226

Test Firm

Bay Area Compliance Laboratory Corp. (Shenzhen)John Chan
[email protected]08675533320018Fax: 08675533320008

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
393.66 GHz - 3.67 GHz5.248 W20M7D7D0.024 ppm
Confidentiality
Long Term
Grant Notes
Power levels listed are EIRP. The EUT is approved for 1T2R configuration described in this filing. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. A minimum of 20 cm separation distance should be maintained between the antennas and any human body. The antennas must not be co-located with other transmitter antennas or operating in conjunction with other transmitters. Only 10 MHz, 15 MHz and 20 MHz operations are authorized.
