QISEC167EVDO Rev.A Rotatable USB Stick

Thank you for choosing the Mobile Broadband USB Stick. With your USB Stick, you can access a wireless network at high speed. Note: This manual describes the appearance of the USB Stick, as well as the procedures for preparation, installation, and removal. For operation details about the management program, see the online help included in the management program. Getting to Know Your USB Stick The following figure shows the appearance of the USB Stick. It is provided only for your reference. The actual product may be different. 1 3 4 5 2 n Rotatable USB Connector It connects the USB Stick to a PC. o Indicator It indicates the status of the USB Stick. z Solid: The USB Stick is powered on. z Blinking once every 2s: The USB Stick is searching for a network or no network is found. z Blinking twice every 2s: The USB Stick finds a network. z Blinking once every 0.2s: The USB Stick is transmitting data. p Strap Hole You can tie a strap to the USB Stick through the strap hole. q MicroSD Card Slot It holds a microSD card. r UIM Card Slot It holds a User Identity Module (UIM) card. Getting Your USB Stick Ready 1. Slide the back cover to remove it from the USB Stick. 2. Insert the UIM card and the microSD card into the corresponding card slots, as shown in the following figure. 3. Replace the back cover and slide it into place. Note: z The microSD card is an optional accessory. If it is not provided in the package, you can buy one yourself. z Ensure that the beveled edge of the UIM card is properly aligned with that of the UIM card slot and the microSD card is inserted according to the direction as labeled on the microSD card slot. z Do not remove the microSD or UIM card when the card is in use. Otherwise, the card as well as your USB Stick may get damaged and the data stored on the card may be corrupted. Installation/Removal Guide The procedure for installing the management program depends on the operating system (OS) installed on your PC. The following sections take Windows XP as an example. Connecting the USB Stick to a PC Plug the USB Stick into the USB port of your PC. Installing the USB Stick Management Program 1. Connect the USB Stick with the PC. 2. The OS automatically detects and recognizes the new hardware and starts the installation wizard. Note: If the auto-run program does not respond, find the AutoRun.exe file in the driver path. Then double-click AutoRun.exe to run the program. 3. Follow the on-screen instructions of the installation wizard. 4. After the program is installed, a shortcut icon for the management program appears on the desktop. Starting the Management Program After being installed, the management program starts automatically. Then every time the USB Stick is connected to the PC, the management program starts automatically. You can also double-click the shortcut icon on the desktop to start the management program. Removing the USB Stick 1. Double-click in the notification area. Then the Unplug or Eject Hardware dialog box appears. 2. Select the corresponding hardware and then click Stop. 3. When the message "It is safe to remove the device" appears, remove the USB Stick. Uninstalling the Management Program 1. Choose Start > Control Panel > Add or Remove Programs. 2. Find the management program and click Remove to uninstall the management program. Note: Exit the management program before uninstalling it. Version: V100R001_01 Part Number: 3101****

Copyright © Huawei Technologies Co., Ltd. 2009. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Warnings and Precautions This section contains important information pertaining to the operating instructions of your device. It also contains information about how to use your device safely. Read this information carefully before using the device. Electronic Device Do not use your device if using the device is prohibited. Do not use the device when using the device causes danger or interference with electronic devices. Medical Device z Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device when using the device is prohibited. z Some wireless devices may affect the performance of hearing aids or pacemakers. For any such problems, consult your service provider. z If you are using an electronic medical device, consult the doctor or the device manufacturer to confirm whether radio waves affect the operation of this device. Potentially Explosive Atmosphere Do not use your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not use your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity. Traffic Security z Observe local laws and regulations while using the device. To prevent accidents, do not use your wireless device while driving. z RF signals may affect electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. z In a motor vehicle, do not place the device over the air bag or in the air bag deployment area. Otherwise, the device may hurt you owing to the strong force when the air bag inflates. z Do not use your device while flying in an aircraft and before boarding an aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft and disrupt the wireless telephone network. It may also be considered illegal. Operating Environment z Do not use the device in dusty, damp, and dirty places or places with magnetic fields. Otherwise, it may result in malfunction of the circuit. z On a stormy day with thunder, do not use your device when it is being charged, to prevent any danger caused by lightning. z While using the device, observe the local laws and regulations, and respect others' privacy and legal rights. Safety of Children Comply with all precautions with regard to children's safety. Letting the child play with your device or its accessories, which may include parts that can be detached from the device, may be dangerous, as it may present a choking hazard. Ensure that small children are kept away from the device and accessories. Accessories Use the accessories delivered only by the manufacturer. Using accessories of other manufacturers or vendors with this device model may invalidate any approval or warranty applicable to the device, result in the non-operation of the d…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Address：Huawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP：518129 Page ：1/1 To: CETECOM Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com Subject：Letter of Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISEC167 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. Administration Building, Huawei Base, Bantian, Longgang District, Shenzhen 518129 P.R.C. +86 755 28780808 www.huawei.com Huawei internal reference RCT-US-01-01 USA FCC Short Term Confidentiality Request template Effective date: 2007-01-06 Version 1.1 Short Term Confidentiality Request 2009-12-10 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality Request for FCC ID: QISEC167 Product Name: EVDO Rev.A Rotatable USB Stick Product Model: HUAWEI EC167 To whom maybe concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, Huawei Technologies Co., Ltd requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 90 days: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. Users Manual The applicant also acknowledges that they will also provide appropriate notice to CETECOM should either of the following occur: A) If the applicant requires additional 45 day extension periods they will notify CETECOM with a new request letter at least 7 days prior to the short-term confidentiality expiration date-[Note: up to maximum of 3 extensions only are allowed], or b) Immediately notify CETECOM in the event the information regarding the product of the product is made available to the public. CETECOM will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely,

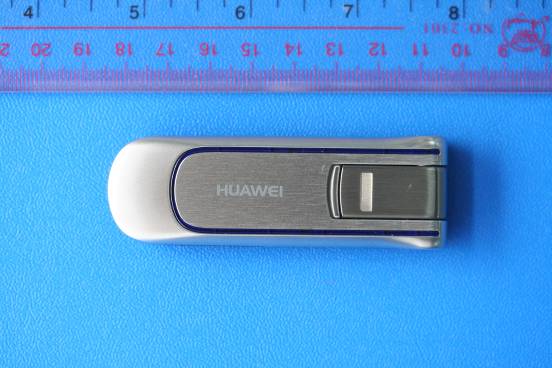

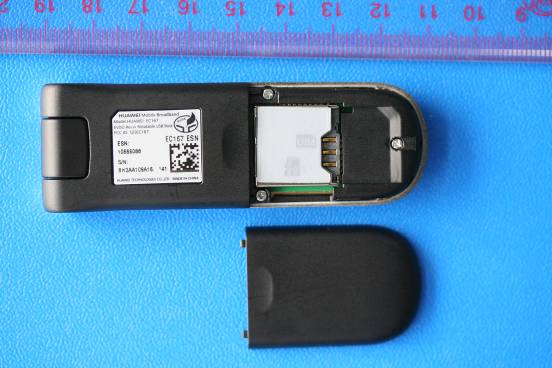

HUAWEI EC167 SECRET Page1, Total5 External Photos of HUAWEI EC167 HUAWEI EC167 SECRET Page2, Total5 HUAWEI EC167 SECRET Page3, Total5 HUAWEI EC167 SECRET Page4, Total5 HUAWEI EC167 SECRET Page5, Total5

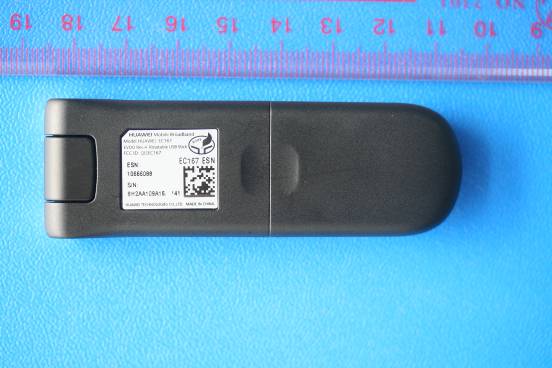

HUAWEI EC167 SECRET Page1, Total1 ID Label Location -HUAWEI EC167

HUAWEI EC167 SECRET Page1, Total1 ID Label -HUAWEI EC167

HUAWEI EC167 SECRET Page1, Total3 Internal Photos of HUAWEI EC167 HUAWEI EC167 SECRET Page2, Total3 HUAWEI EC167 SECRET Page3, Total3

Report No.: RZA2009-1578 TESTING No. L2264 OET 65 TEST REPORT Product Name EVDO Rev.A Rotatable USB Stick FCC ID QISEC167 Model HUAWEI EC167 Client HUAWEI Technologies Co., Ltd. TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name EVDO Rev.A Rotatable USB StickModel HUAWEI EC167 FCC ID QISEC167 Report No. RZA2009 -1578 Client HUAWEI Technologies Co., Ltd. Manufacturer HUAWEI Technologies Co., Ltd. Standard(s) ANSI/IEEE C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. OET Bulletin 65 supplement C, published June 2001 including DA 02-1438, published June 2002: Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits. Transition Period for the Phantom Requirements of Supplement C to OET Bulletin 65. IEC 62209-2:2008(106/162/CDV): Human exposure to radio frequency fields from handheld and body-mounted wireless communication devices – Human models, instrumentation, and procedures –Part 2: Procedure to determine the Specific Absorption Rate (SAR)for wireless communication devices used in close proximity to the human body .( frequency rang of 30MHz to 6GHz ) Conclusion Localized Specific Absorption Rate (SAR) of this portable wireless equipment has been measured in all cases requested by the relevant standards cited in Clause 5.2 of this test report. Maximum localized SAR is below exposure limits specified in the relevant standards cited in Clause 5.1 of this test report. General Judgment: Pass (Stamp) Date of issue: December 2 nd , 2009 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Li Jinchang TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 3of 88 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the test report.........................................................................................................5 1.2. Testing laboratory .................................................................................................................5 1.3. Applicant Information ............................................................................................................6 1.4. Manufacturer Information ......................................................................................................6 1.5. Information of EUT................................................................................................................7 1.6. Test Date ..............................................................................................................................7 2. Operational Conditions during Test ..............................................................................................8 2.1. General description of test procedures .................................................................................8 2.2. Information for the measurement of CDMA 1x devices.........................................................8 2.2.1. Output Power Verification ..............................................................................................8 2.2.2. Body SAR measurement ...............................................................................................8 2.3. Information for the measurement of CDMA 1x EV-DO devices.............................................9 2.3.1. Output Power Verification for EV-DO .............................................................................9 2.3.2. SAR measurement........................................................................................................9 2.4. Position of module in Portable devices ...............................................................................10 2.5. Picture of host product ........................................................................................................ 11 3. SAR Measurements System Configuration ................................................................................ 13 3.1. SAR Measurement Set-up ..................................................................................................13 3.2. DASY 5 E-field Probe System.............................................................................................14 3.2.1. EX3DV4 Probe Specification .......................................................................................14 3.2.2. E-field Probe Calibration ..............................................................................................15 3.3. Other Test Equipment .........................................................................................................15 3.3.1. Device Holder for Transmitters ....................................................................................15 3.3.2. Phantom......................................................................................................................16 3.4. Scanning procedure............................................................................................................16 3.5. Data Storage and Evaluation ..............................................................................................18 3.5.1. Data Storage................................................................................................................18 3.5.2. Data Evaluation by SEMCAD ......................................................................................18 3.6. System check......................................................................................................................21 3.7. Equivalent Tissues ..............................................................................................................22 4. Laboratory Environment.......................................................................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 66of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 67of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 68of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 69of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 70of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 71of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 72of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 73of 88 ANNEX E: D835V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 74of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 75of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 76of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 77of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 78of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 79of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 80of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 81of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 82of 88 ANNEX F: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 83of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 84of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 85of 88 TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2009-1578 Page 86of 88

Zur optimalen Anzeige dieses PDF-Portfolios sollte es in Acrobat oder Adobe Reader ab Version 9 geöffnet werden. Adobe Reader jetzt herunterladen

EMC Test Report Product Name: EVDO Rev.A Rotatable USB Stick Model Number: HUAWEI EC167 Report No: SYBHZ(R)E050102009EB-1 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 Report on EMC Test of EVDO Rev.A Rotatable USB Stick SYBHZ(R)E050102009EB-1 Confidential Information of Huawei. No Distribution without Written Permission Page2, Total23 Notice 1 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has obtained the accreditation of THE AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION (A2LA), and Accreditation Council Certificate Number: 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 6369A-1. 5. The laboratory also has been listed by the VCCI to perform EMC measurements. The accreditation number is R2364, C2583, and T256. 6. The test report is invalid if not marked with "exclusive stamp for the test report". 7. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 8. The test report is invalid if there is any evidence of erasure and/or falsification. 9. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 10. Normally, the test report is only responsible for the samples that have undergone the test. 11. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. Report on EMC Test of EVDO Rev.A Rotatable USB Stick SYBHZ(R)E050102009EB-1 Confidential Information of Huawei. No Distribution without Written Permission Page3, Total23 Notice 2 Modification Information: Table 1 Modification Information 1 2 3 4 5 6 Modification Information 7 Report on EMC Test of EVDO Rev.A Rotatable USB Stick SYBHZ(R)E050102009EB-1 Confidential Information of Huawei. No Distribution without Written Permission Page4, Total23 REPORT ON EVDO Rev.A Rotatable USB Stick M/N: EC167 REGULATION FCC CFR47 Part 15: Subpart B; FCC CFR47 Part 22: Subpart H; START OF TEST Nov.15, 2009 END OF TEST Nov.25, 2009 Final Judgement: Pass Approver 2009-12-02 张兴海 Date Name Signature Operator 2009-12-01 张 飞 Date Name Signature Report on EMC Test of EVDO Rev.A Rotatable USB Stick SYBHZ(R)E050102009EB-1 Confidential Information of Huawei. No Distribution without Written Permission Page5, Total23 REPORT BODY CONTENT 1 Status ............................................................................................................................................6 1.1 Product Information.......................................................................................................................6 1.2 Applied Standard ..........................................................................................................................6 1.3 Test Site ........................................................................................................................................7 1.4 Test environment condition...........................................................................................................7 2 Summary of Results......................................................................................................................8 3 Equipment Specification ...............................................................................................................9 3.1 General Description ......................................................................................................................9 3.2 Sub-Assembly Identity ..................................................................................................................9 4 System Configuration during EMC Test .....................................................................................10 4.1 Cables Used during Test ............................................................................................................10 4.2 Associated Equipment Used during Test ...................................................................................10 4.3 Test Configurations and Test Mode............................................................................................10 4.4 Test conditions and test Connections.........................................................................................10 5 Electromagnetic Interference (EMI) ............................................................................................12 5.1 Radiated Disturbance 30MHz to 18GHz....................................................................................12 5.2 Conducted Disturbance 0.15 MHz to 30MHz.............................................................................12 5.3 Radiated Spurious Emissions .....................................................................................................13 6 Main Test Instruments ................................................................................................................16 7 System Measurement Uncertainty..............................................................................................17 8 Graph and Data of Emission Test...............................................................................................18 8.1 Radiated Disturbance .................................................................................................................18 8.2 Conducted Disturbance ........................…

Text truncated - open the document above for the full version.

FCC Test Report Product Name: EVDO Rev.A Rotatable USB Stick Model Number: HUAWEI EC167 Report No: SYBHZ(R)E050102009EB-2 FCC ID: QISEC167 Reliability Laboratory of Huawei Technologies Co., Ltd. Huawei Base, Bantian, Longgang District, Shenzhen 518129, P.R. China Tel: +86 755 28780808 Fax: +86 755 89652518 FCC Test Report of HUAWEI EC167 FCC ID: QISEC167 Security Level: Public Report No: SYBHZ(R)E050102009EB-2 Confidential Information of Huawei. No Distribution without Permission Page2, Total34 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Committee for Laboratories (CNAL), and accreditation number: L0310. 2. The laboratory has obtained the accreditation of THE AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION (A2LA), and Accreditation Council Certificate Number: 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory also has been listed by the VCCI to perform EMC measurements. The accreditation number is C1758, R1672, and T153. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. Any copy of the test report is invalid if not re-marked with the "exclusive stamp for the test report". 7. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 8. The test report is invalid if there is any evidence of erasure and/or falsification. 9. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 10. Normally, the test report is only responsible for the samples that have undergone the test. 11. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. FCC Test Report of HUAWEI EC167 FCC ID: QISEC167 Security Level: Public Report No: SYBHZ(R)E050102009EB-2 Confidential Information of Huawei. No Distribution without Permission Page3, Total34 REPORT ON FCC Test of EVDO Rev.A Rotatable USB Stick M/N: HUAWEI EC167 Report No: SYBHZ(R)E050102009EB-2 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 22: Subpart H; FCC CFR47 Part 15: Subpart B; CONCLUSION Pass General Manager Dec. 2, 2009 张兴海 Date Name signature Technical Responsibility For Area of Testing Dec. 2, 2009 余 辉 Date Name signature Test Lab Engineer Dec. 2, 2009 胡 俊 Date Name signature Huawei Technologies Co Ltd Huawei Industrial Base, Bantian Longgang Shenzhen 518128, P.R China Tel: +86 755 89651014 Fax: +86 755 89652518 FCC Test Report of HUAWEI EC167 FCC ID: QISEC167 Security Level: Public Report No: SYBHZ(R)E050102009EB-2 Confidential Information of Huawei. No Distribution without Permission Page4, Total34 Contents 1 Summary.................................................................................................................................................... 5 2 Product Description................................................................................................................................6 2.1 PRODUCTION INFORMATION........................................................................…
