QISETS2259Fixed Wireless Terminal

Wonderful Communication, Mobile Life. Welcome to HUAWEI ETS2059/2259/2559 Fixed Wireless Terminal. HUAWEI ETS2059/2259/2559 Fixed Wireless Terminal User Guide Copyright © 2007 Huawei Technologies Co., Ltd. All Rights Reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and HUAWEI are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this manual are the property of their respective holders. Notice The information in this manual is subject to change without notice. Every effort has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information, and recommendations in this manual do not constitute the warranty of any kind, expressed or implied. i Table of Contents 1 Warnings and Precautions.....................................................................................................1 2 Introduction ...........................................................................................................................5 Packing List ...................................................................................................................5 Antenna and Feeder (Optional) .................................................. Appearance of the FWT ................................................................................................6 Icons...............................................................................................................................9 3 Installation ...........................................................................................................................10 Installing the UIM Card (Optional).............................................................................10 Installing the Power Adapter or the Spare Battery......................................................11 Installing the Antenna..................................................................................................12 Connecting the FWP to a PC .......................................................................................12 Placing the FWT ..........................................................................................................13 Validating .....................................................................................................................14 4 Basic Operations .................................................................................................................15 Powering the FWT On or Off......................................................................................15 Making a Call ..............................................................................................................15 Answering a Call .........................................................................................................16 Operations During a Call.............................................................................................16 Locking the Keypad ....................................................................................................17 5 Text Entry ............................................................................................................................18 Text Input Mode..........................................................................................................18 Entering Letters ...........................................................................................................18 6 Messages .............................................................................................................................20 Writing and Sending a Message ..................................................................................20 Viewing a Message ......................................................................................................20 Deleting a Message......................................................................................................21 Voice Mail....................................................................................................................21 Message Settings .........................................................................................................22 7 Phone Book.........................................................................................................................25 ii Adding a Contact .........................................................................................................25 Searching for a Contact ...............................................................................................25 Editing a Contact .........................................................................................................25 Deleting a Contact .......................................................................................................26 Copying a Contact .......................................................................................................26 Groups..........................................................................................................................27 Memory Status.............................................................................................................27 Saving My FWT Number ............................................................................................27 8 Settings ................................................................................................................................28 Call Settings.................................................................................................................28 Shortcut Key Settings ..................................................................................................29 Profile Settings ...................................................................................................…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. AddressHuawei Industrial Base, Bantian, Longgang, Shenzhen, P.R China Post ZIP518129 Page 1/1 To: MET LABORATORIES, INC. Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com SubjectLetter of Authorization 2008-01-09 To whom it may concern: We the undersigned, hereby authorize MET LABORATORIES, INC. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by MET LABORATORIES, INC.on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Huawei Technologies Co., Ltd. . Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

Huawei Technologies Co., Ltd. AddressHuawei Industrial Base,Bantian Longgang,Shenzhen 518129, P.R China Post ZIP518129 Page 1/1 To: MET LABORATORIES, INC. Fax : NULL From:Zhang Xinghai Fax:0086-755-89652518 Tel:0086-755-89651014 Email address: [email protected] Http: www.huawei.com SubjectLetter of Confidentiality MET LABORATORIES, INC. 914 W. Patapsco Avenue Baltimore MarylandUnited States Gentlemen: This letter is to comply with the Code of Federal Regulations Title 47 Section 0.457 and 0.459 pertaining to confidential material. Huawei Technologies Co., Ltd. would like the following documents regarding this submission for FCC ID: QISETS2259 to be kept confidential: 1. Schematic diagram. 2. Block Diagram. 3. Parts list (BOM) Information. 4. Operational description. 5. Tune-up procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhang Xinghai EMC Laboratory Manager

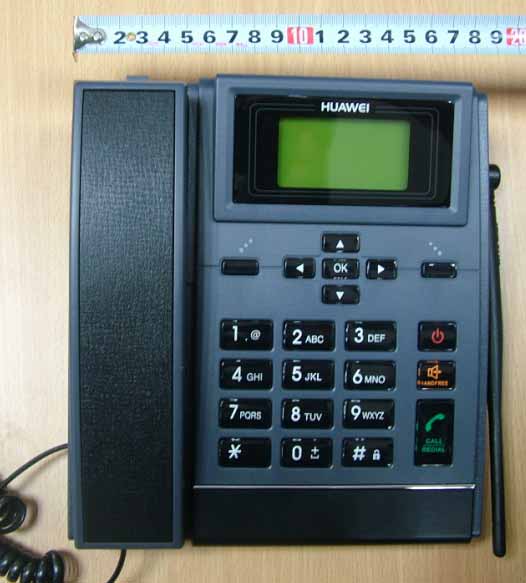

HUAWEI ETS2259 Fixed Wireless Terminal SECRET Page1, Total6 Photo documentation of external of product HUAWEI ETS2259 Fixed Wireless Terminal SECRET Page2, Total6 HUAWEI ETS2259 Fixed Wireless Terminal SECRET Page3, Total6 HUAWEI ETS2259 Fixed Wireless Terminal SECRET Page4, Total6 HUAWEI ETS2259 Fixed Wireless Terminal SECRET Page5, Total6 HUAWEI ETS2259 Fixed Wireless Terminal SECRET Page6, Total6

HUAWEI ETS2259 Fixed Wireless Terminal SECRET Page1, Total1 ETS2259 ID Label

HUAWEI ETS2259 Fixed Wireless Terminal SECRET Page1, Total1 ETS2259 Label Location

HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page1, Total13 Photo documentation of interior of product HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page2, Total13 HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page3, Total13 HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page4, Total13 HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page5, Total13 HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page6, Total13 HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page7, Total13 HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page8, Total13 HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page9, Total13 HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page10, Total13 HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page11, Total13 HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page12, Total13 HUAWEI ETS2559 Fixed Wireless Terminal SECRET Page13, Total13

HUAWEI ETS2259 Electromagnetic Radiation Exposure Estimation 1 Maximum Permissible Exposure (MPE) Estimation for ETS2259 1 Introduction HUAWEI ETS2259 is Wireless Fixed Terminal equipment in the CDMA system, The frequency band is US Cellular. The Fixed Wireless Terminal implements such functions as RF signal receiving / Transmitting, CDMA protocol processing, voice and SMS service etc. The Fixed Wireless Terminal uses QSC6020 chipset and Zero-IF technologies. 2 Limits and Guidelines on Exposure to Electromagnetic Fields According to the FCC Part 2.1091, we know: mobile device (transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters radiating structure(s) and the body of the user or nearby persons). And the Cellular radiotelephone service and PCS services are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more, or if they operate at frequencies above 1.5 GHz and their ERP is 3 watts or more. The radiated power of 800MHz for ETS2259 is 1W, so the ETS2259 is excluded from routine environmental evaluation for RF exposure according to the requirement of FCC Part 2.1091. The present document is given just only for reference. Uncontrolled limits are used for general public. General population/uncontrolled exposure apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. The exposure levels can be expressed in terms of power density, electric field strength, or magnetic field strength, as averaged over 30 minutes for the general public and 6 minutes for trained personnel. The exposure criterion is frequency dependent, and a chart covering the range from 3 kHz to 100 GHz can be found in NCRP No.86 (references IEEE C95.1-1999). Below are the limits. Limits for Occupational/Controlled Exposure HUAWEI ETS2259 Electromagnetic Radiation Exposure Estimation 2 Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) 0.3-3.0 3.0-30 30-300 300-1500 15,00-100,000 614 1842/f 61.4 -- -- 16.3/f 16.3/f 0.163 -- -- (100)* (900/f2)* 1.0 f/300 5 Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) 0.3-1.34 1.34-30 30-300 300-15,00 15,00-100,000 614 824/f 27.5 -- -- 1.63 2.19/f 0.073 -- -- (100)* (180/f2)* 0.2 f/1500 1.0 Power density S [mW/cm2] for controlled area at 800 MHz 75.2 300 248 300 )( === MHzf S mW/cm 2 Power density S [mW/cm2] for uncontrolled area at 800 MHz 55.0 1500 248 1500 )( === MHzf SmW/cm 2 S= 0.55 mW/cm 2 = 5.5 W/m 2 for uncontrolled exposure Reference levels are provided for exposure assessment to determine whether the basic restrictions on exposure of humans to electromagnetic fields are exceeded. The basic restrictions on exposure to electromagnetic fields are based directly on established health effects and biological considerations. We can get the max ERP in channel 777 from the RF report, the ERP is 24.56dBm, which is less than 30dBm, so in this report we calculate use the 30dBm as the worst case. 3 Location of EUT The EUT uses one monopole antenna. The source of the radiation is mounted on terminal; generally the direction of the antenna position is uprightness tabletop. The highest level of HUAWEI ETS2259 Electromagnetic Radiation Exposure Estimation 3 emission would be expected in close vicinity of the antenna and in line of sight to the antenna. 4 Prediction of the Exposure to Electromagnetic Fields Calculations can be made on a site by site basis to ensure the power density is below the limits given above, or guidelines can be done beforehand to ensure the minimum distances from the antenna is maintained through the site planning. The calculations are based on FCC OET 65 Appendix B. 4.1 Calculation of the Safe Distance Below method describes a theoretical approach to calculate possible exposure to electromagnetic radiation around a base station transceiver antenna. Precise statements are basically only possible either with measurements or complex calculations considering the complexity of the environment (e.g. soil conditions, near buildings and other obstacles) which causes reflections, scattering of electromagnetic fields. The maximum output power (given in EIRP) of a base station is usually limited by license conditions of the network operator. A rough estimation of the expected exposure in power flux density on a given point can be made with the following equation. The calculations are based on FCC OET 65 Appendix B. π∗∗ ∗ = )(4 )( 2 mr GWP S numeric Whereas: P = Maximum output power in W of the site G numeric = Numeric gain of the antenna relative to isotropic antenna R = distance between the antenna and the point of exposure in meters 4.2 Technical Description ETS2259 Technical Specification: Output power: 1W (30dBm) for CDMA800MHz Transmitter frequency band CDMA800 HUAWEI ETS2259 Electromagnetic Radiation Exposure Estimation 4 Number of antenna ports: 1 Frequency range: 800M Uplink:824 M~849M Downlink:869 M~894M Gain: 2.15dBi Mechanical specification (Height) 185.25 mm 4.3 Estimation of compliance boundary for indoor antenna CDMA 800: For the final determination of the compliance boundary the model for far-field calculation is used since this overestimates the field strength in the near-field region. Thus the calculated compliance boundary should be rather more conservative and on the safe side. For EUT the following compliance boundary is calculated: Power at antenna connector BTS: 30 dBm Antenna-cable attenuatio…

Text truncated - open the document above for the full version.

FCC TEST REPORT OF FIXED WIRELESS TERMINAL M/N: ETS2259 Dec.25.2007 Reliability Laboratory of Huawei Technologies Co., Ltd. All Right Reserved Report No: SYBH(R)40042007EB-1 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total39 Notice 1. The laboratory has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L0310. 2. The laboratory has obtained the accreditation of THE AMERICAN ASSOCIATION FOR LABORATORY ACCREDITATION (A2LA), and Accreditation Council Certificate Number: 2174.01. 3. The laboratory has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 97456. 4. The laboratory also has been listed by the VCCI to perform EMC measurements. The accreditation number is C1758, R1672, and T153. 5. The test report is invalid if not marked with "exclusive stamp for the test report". 6. Any copy of the test report is invalid if not re-marked with the "exclusive stamp for the test report". 7. The test report is invalid if not marked with the stamps or the signatures of the persons responsible for performing, revising and approving the test report. 8. The test report is invalid if there is any evidence of erasure and/or falsification. 9. If there is any dissidence for the test report, please file objection to the test centre within 15 days from the date of receiving the test report. 10. Normally, the test report is only responsible for the samples that have undergone the test. 11. Context of the test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of the laboratory. Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total39 REPORT ON FCC Test of Fixed Wireless Terminal M/N: ETS2259 Report No: SYBH(R)40042007EB-1 REGULATION FCC CFR47 Part 2: Subpart J; FCC CFR47 Part 22: Subpart H; FCC CFR47 Part 15: Subpart B; CONCLUSION There are 10 items need to be tested, 10 items have been tested. The sample of the model completely meets the requirements Final Judgement: Pass General Manager 2007.12.26 张兴海 Date Name signature Technical Responsibility For Area of Testing 2007.12.25 余 辉 Date Name signature Test Lab Engineer 2007.12.25 胡 俊 Date Name signature Huawei Technologies Co Ltd Huawei Industrial Base, Bantian Longgang Shenzhen 518128, P.R China Tel: +86 755 89651014 Fax: +86 755 89652518 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page4, Total39 Contents 1 Summary.................................................................................................................................................... 5 2 Product Description................................................................................................................................6 2.1 PRODUCTION INFORMATION................................................................................................................... 6 2.2 MODIFICATION INFORMATION.................................................................................................................. 6 3 Test Site Description................................................................................................................................. 7 3.1 TESTING PERIOD................................................................................................................................... 7 3.2 GENERAL SET UP DESCRIPTION............................................................................................................. 7 4 Product Description.................................................................................................................................. 8 4.1 TECHNICAL CHARACTERISTICS............................................................................................................... 8 4.2 EUT IDENTIFICATION LIST.................................................................................................................... 10 5 Main Test Instruments............................................................................................................................. 12 6 Transmitter Measurements..................................................................................................................... 13 6.1 EFFECTIVE RADIATED POWER OF TRANSMITTER (ERP)......................................................................... 13 6.2 CONDUCTED OUTPUT POWER............................................................................................................... 16 6.3 MODULATION CHARACTERISTICS.......................................................................................................... 18 6.4 OCCUPIED BANDWIDTH........................................................................................................................ 20 6.5 BAND EDGES COMPLIANCE.................................................................................................................. 22 6.6 SPURIOUS EMISSION AT ANTENNA TERMINAL........................................................................................ 24 6.7 RADIATED SPURIOUS EMISSION........................................................................................................... 26 6.8 FREQUENCY STABILITY........................................................................................................................ 30 7 EMC Test.................................................................................................................................................. 34 7.1 CONDUCTED EMISSION AT POWER PORT.............................................................................................. 34 7.2 RADIATED EMISSION OF ENCLOSURE IN IDLE MODE.........…

Text truncated - open the document above for the full version.

FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total3 Appendix A Modulation Characteristics According to FCC Part 2.1047 & Part22 Subpart H FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total3 Channel 283TM1 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total3 Channel 283TM3

FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total5 Appendix B Occupied Bandwidth According to FCC Part 2.1049 & Part 22 Subpart H FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total5 Channel 1013TM1 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total5 Channel 1013TM3 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page4, Total5 Channel 777TM1 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page5, Total5 Channel 777TM3

FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total5 Appendix C Band Edges Compliance According to FCC Part 2.1051 & 22.917 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total5 TM1 Left Edge (824 MHz) Channel 1013 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total5 Right Edge (849MHz) Channel 777 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page4, Total5 TM3 Left Edge (824 MHz) Channel 1013 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page5, Total5 Right Edge (849MHz) Channel 777

FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total25 Appendix D Spurious Emission at Antenna Terminal According to FCC Part 2.1051 & 22.917 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total25 TM1 Channel1013 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page4, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page5, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page6, Total25 Channel 283 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page7, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page8, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page9, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page10, Total25 Channel 777 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page11, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page12, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page13, Total25 FCC ID: QISETS2259 Report No: SYBH(E)74082007EB-1 Confidential Information of Huawei. No Distribution without Permission Page14, Total25 TM3 Channel1013 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page15, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page16, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page17, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page18, Total25 Channel 283 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page19, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page20, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page21, Total25 FCC ID: QISETS2259 Report No: SYBH(E)74082007EB-1 Confidential Information of Huawei. No Distribution without Permission Page22, Total25 Channel 777 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page23, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page24, Total25 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page25, Total25

FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total4 Appendix E Radiated Spurious Emission According to FCC Part 2.1053 & 22.917 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total4 Traffic Mode (9kHz-30MHz) -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 9k 20k 40k 60 80k 100k 200k 600k 1M 2M 5M 10M 15M 20M 30M Level in dBm Frequency in Hz FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page3, Total4 Traffic Mode (30MHz-2GHz) -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 15 30M 50 60 80 100M 200 300 400 500 800 1G 2G Level in dBm Frequency in Hz FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page4, Total4 Traffic Mode (2GHz-12.75GHz) -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 15 2G 3G 4G 5G 6 7 8 9 12.75 Level in dBm Frequency in Hz

FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total2 Appendix F Conducted Emission at Power Port According to FCC Part 15.107 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total2 MEASUREMENT RESULT: QP Detector Frequency MHz Level dBμV Transd dB Limit dBμV Margin dB Line PE 0.348000 44.90 10.2 59 14.1 N FLO 0.406500 40.40 10.1 58 17.6 N FLO 2.103000 37.40 10.1 56 18.6 L3 FLO 2.170500 36.20 10.1 56 19.8 L3 FLO 5.919000 26.40 10.3 60 33.6 L3 FLO 20.922000 31.70 13.7 60 28.3 N FLO MEASUREMENT RESULT: AV Detector Frequency MHz Level dBμV Transd dB Limit dBμV Margin dB Line PE 0.334500 26.80 10.2 49 22.2 L3 FLO 0.474000 22.50 10.0 46 23.5 L3 FLO 2.103000 18.90 10.1 46 27.1 L3 FLO 2.238000 17.50 10.1 46 28.5 L3 FLO 5.190000 11.90 10.2 50 38.1 L3 FLO 29.868000 19.80 13.7 50 30.2 N FLO 0 10 20 30 40 50 60 70 80 Level [dBμV] 150k 300k 500k 123571030 Frequency [Hz] + + + + + + x x x x x x

FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page1, Total2 Appendix G Radiated Emission of Enclosure in Idle Mode According to FCC Part 15.109 FCC ID: QISETS2259 Report No: SYBH(R)40042007EB-1 Confidential Information of Huawei. No Distribution without Permission Page2, Total2 MEASUREMENT RESULT: QP Detector Frequency Level Transd Limit MarginHeightAzimuth Polarisation MHz dBμV/m dB dBμV/mdB cm deg 30.240000 28.90 -4.7 40.0 11.1 200.090.00 VERTICAL 96.060000 21.30 -11.9 43.5 22.2 100.00.00 VERTICAL 137.880000 22.90 -10.3 43.5 20.6 200.0270.00 VERTICAL 229.260000 21.70 -10.9 46.0 24.3 100.00.00 HORIZONTAL 545.700000 32.30 -1.8 46.0 13.7 100.0270.00 VERTICAL 892.980…
