Welcome to HUAWEI F202 USER GUIDE 1 Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/en/privacy-policy/index.htm. 2 Appearance The figures in this guide are provided for your reference only. Front View 1 Left function key Select the option displayed in the lower left corner of the screen. 2 Navigation keys  Access the main menu by pressing the OK key in standby mode.  Access a shortcut menu by pressing the corresponding navigation key in standby mode.  Adjust the volume by pressing the navigation keys during a call. 3 Right function key Select the option displayed in the lower right corner of the screen. 4 End key  End or reject a call.  Press and hold this key to power the phone on or off.  Return to the standby mode. 3 Screen Icons Signal strength Battery level Alarm clock Hands-free mode Call in progress No network available Unread message Unopened voicemail message Phone powered by the power adapter Roaming Installation (Optional) Installing a UIM Card Ensure that the phone is powered off and disconnected from the power adapter. When installing a User Identity Module (UIM) card, ensure that the golden contacts of the UIM card are facing downward and that the beveled edge of the UIM card is properly aligned with that of the UIM card slot. Then check that the UIM card is fully inserted. 5 Speaker key Activate the hands-free mode to dial a number already entered or answer an incoming call. 6 Call/Send key  Make or answer a call.  View the call log in standby mode. 7 Number and symbol keys  Enter numbers, letters, and symbols.  Number keys (1–9): Speed-dial a user-assigned phone number by pressing and holding a key in standby mode.  # key: Switch between text input methods in editing mode.  * key: Display the symbol list in editing mode. 4 Do not frequently remove the UIM card when using the phone. Installing the Battery Before using the phone, install the battery properly. When installing the battery, ensure that the phone is powered off and is disconnected from the power adapter; ensure that the golden contacts of the battery mate securely with those in the battery slot. If the phone will not be used for a long time, remove the battery from the phone. Charging the Battery  When new phones are delivered, the battery power is low. 5 Therefore, charge the phone for a while and then power on the phone the first time you use it.  When you use the phone, it is recommended that you connect the power adapter to the phone. When using the battery to power the phone, ensure that the battery power is sufficient. Powering On the Phone To power on the phone, press and hold the end key until the screen lights up. Press and hold the end key to power off the phone. Call Functions Making a Call 1. In standby mode, press the number keys to enter a phone number. 2. Press the call key to dial the number. 3. Press the end key to end the call or cancel the dialing.  In standby mode, press the call key to view the call log. Find the desired number in the call log, and then press the call key dial the number.  Find the desired number in the phonebook, and then press the call key to dial the number. Answering or Rejecting a Call When there is an incoming call, press the call key to answer the call; press the end key to reject the c…

Text truncated - open the document above for the full version.

文档名称 文档密级 2013 -4-20 华为保密信息,未经授权禁止扩散 第1页, 共1页 To whom it may concern, Letter of Agency I, an officer of HUAWEI TECHNOLOGIES CO.,LTD do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 22 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Zhang xinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2013-6-10 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISF202 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2013-12-5: External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

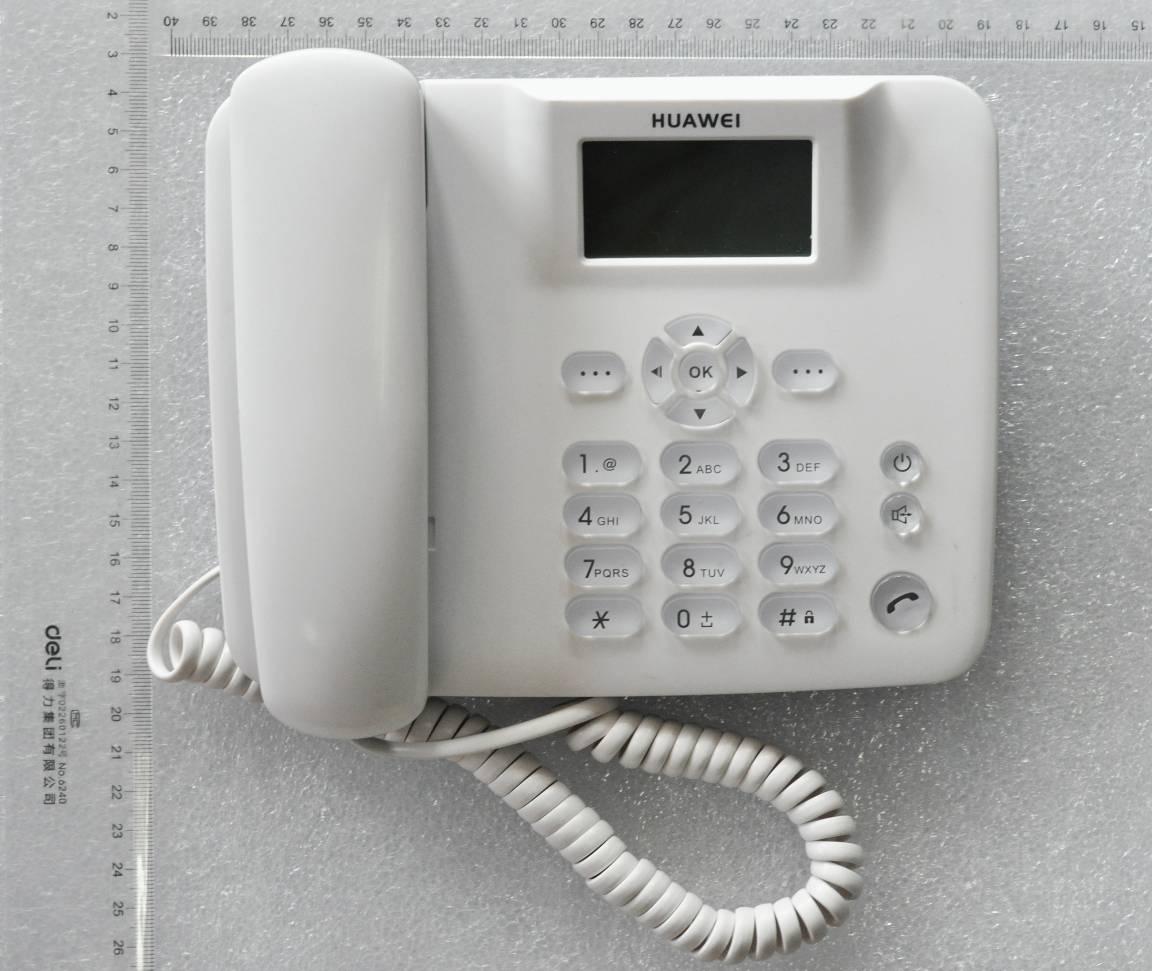

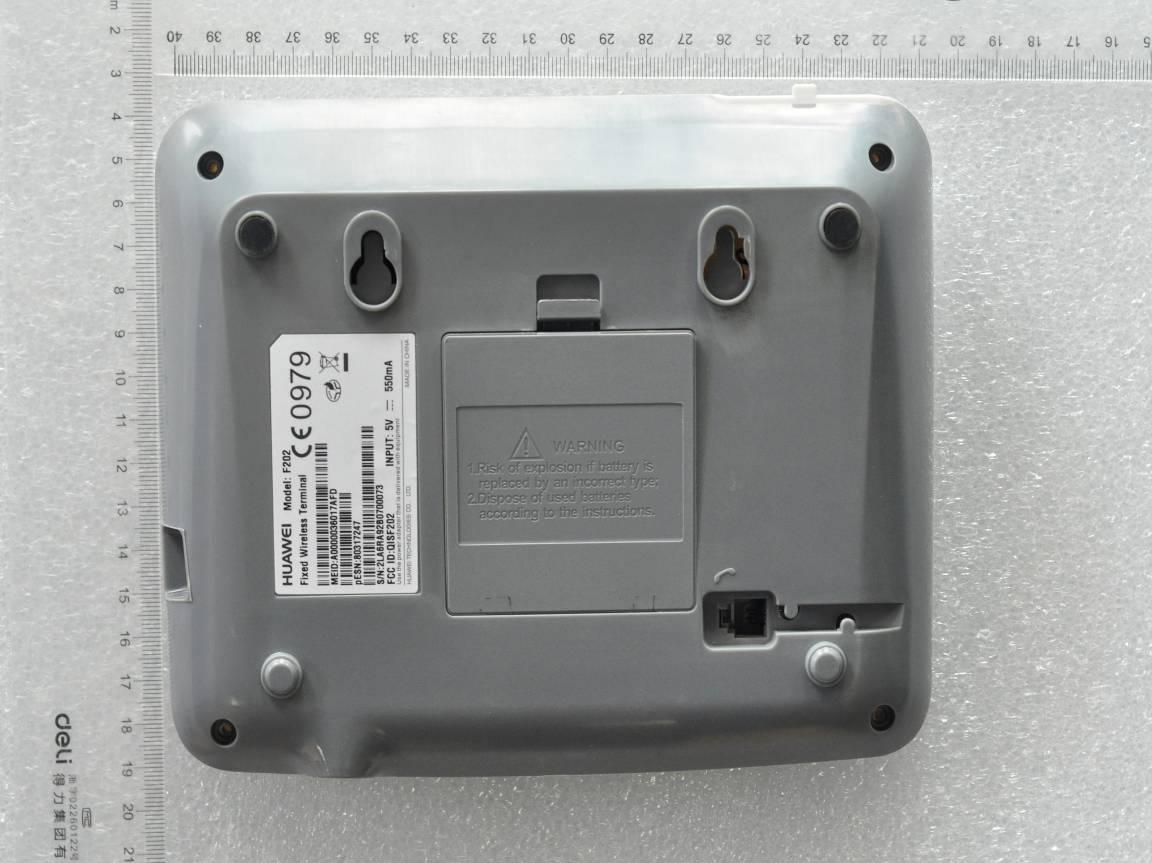

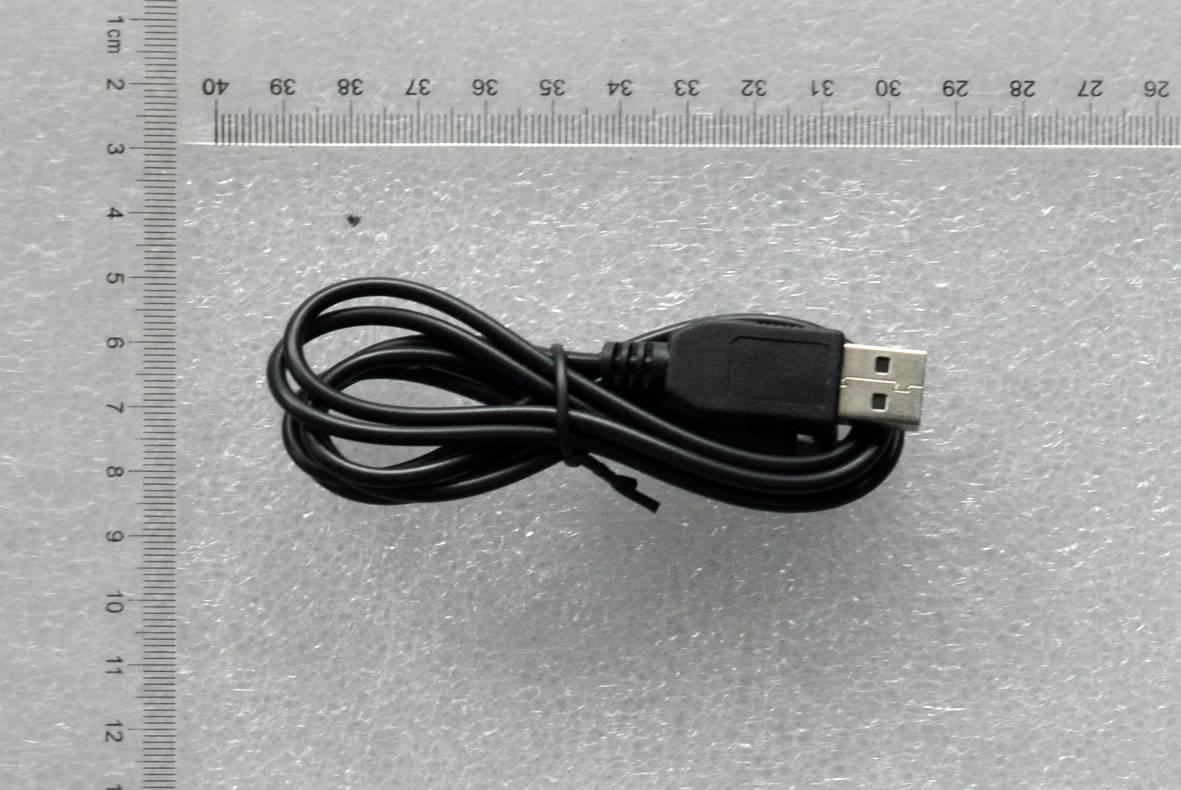

Huawei F202 Fixed Wireless Terminal SECRET Page1, Total7 Photo documentation of external of product Huawei F202 Fixed Wireless Terminal SECRET Page2, Total7 Huawei F202 Fixed Wireless Terminal SECRET Page3, Total7 Huawei F202 Fixed Wireless Terminal SECRET Page4, Total7 Huawei F202 Fixed Wireless Terminal SECRET Page5, Total7 Huawei F202 Fixed Wireless Terminal SECRET Page6, Total7 Huawei F202 Fixed Wireless Terminal SECRET Page7, Total7

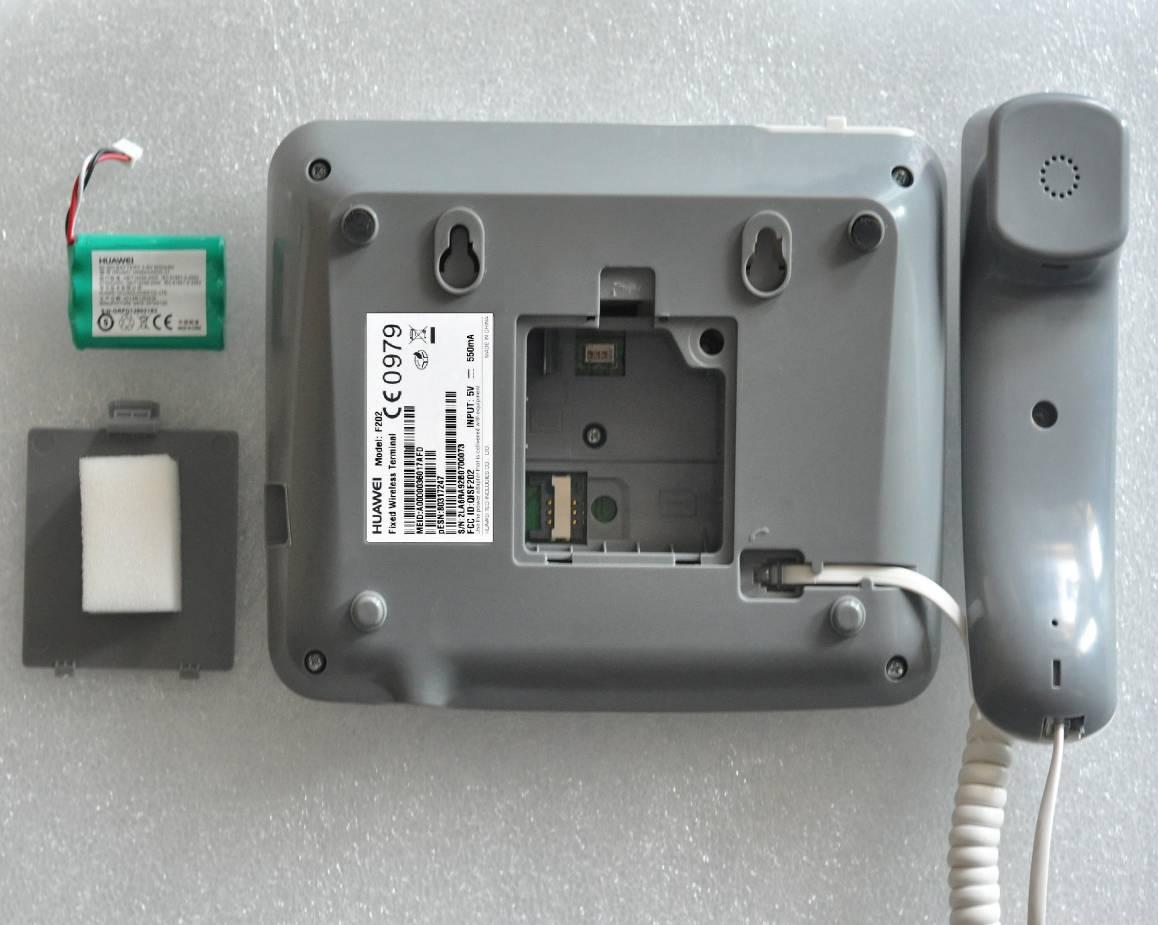

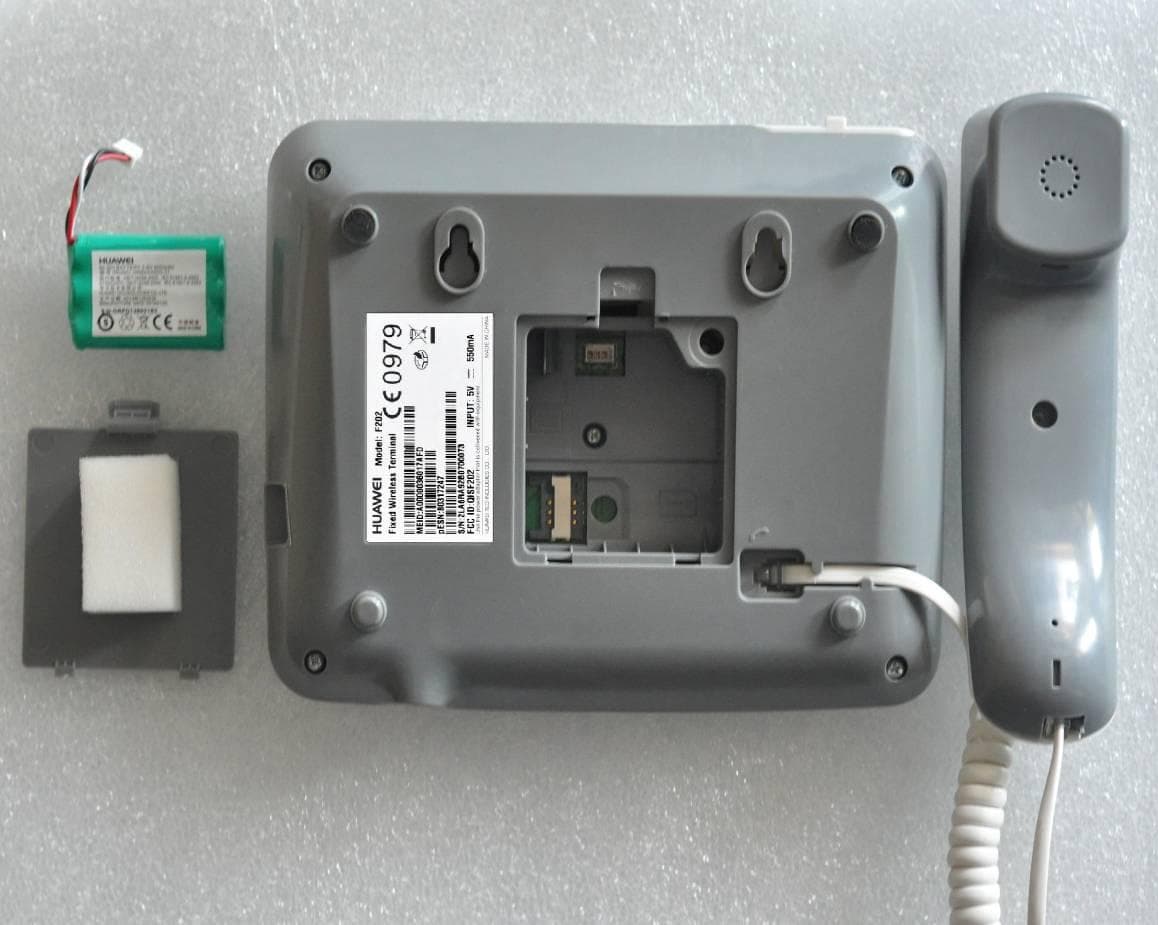

Huawei F202 Fixed Wireless Terminal SECRET Page1, Total3 Photo documentation of interior of product Huawei F202 Fixed Wireless Terminal SECRET Page2, Total3 Huawei F202 Fixed Wireless Terminal SECRET Page3, Total3

Report No. :SYBH (Z-SAR)024082013-2 FCC ID: QISF202 Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-ES-Body Date: 2013-9-3 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-ES-Head DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d059 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.991 S/m; ε r = 56.525; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10-2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/d=15mm, Pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.26 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 51.949 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 3.41 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.57 W/kg Maximum value of SAR (measured) = 2.55 W/kg 0 dB = 2.55 W/kg = 4.07 dBW/kg

Report No.:SYBH (Z-SAR)024082013-2 FCC ID: QISF202 Appendix B. SAR Measurement Plots Table of contents CDMA BC0 Body Date: 2013-9- 3 Test Laboratory: HUAWEI SAR/HAC Lab F202 CDMA BC0 777CH Back side 0mm DUT: F202; Type: Fixed Wireless Terminal; Serial: SAR2 Communication System: HW-CDMA 2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.31 MHz; σ = 1.004 S/m; ε r = 56.371; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Body/Area Scan (10x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.774 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.182 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.736 W/kg; SAR(10 g) = 0.506 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.785 W/kg 0 dB = 0.774 W/kg = -1.11 dBW/kg Date: 2013-9- 3 Test Laboratory: HUAWEI SAR/HAC Lab F202 CDMA BC0 384CH Back side 0mm DUT: F202; Type: Fixed Wireless Terminal; Serial: SAR2 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.993 S/m; ε r = 56.557; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Body/Area Scan (10x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.790 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.584 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 1.05 W/kg SAR(1 g) = 0.765 W/kg; SAR(10 g) = 0.523 W/kg Maximum value of SAR (measured) = 0.816 W/kg 0 dB = 0.790 W/kg = -1.02 dBW/kg Date: 2013-9- 3 Test Laboratory: HUAWEI SAR/HAC Lab F202 CDMA BC0 1013CH Back side 0mm DUT: F202; Type: Fixed Wireless Terminal; Serial: SAR2 Communication System: HW-CDMA 2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used: f = 825 MHz; σ = 0.978 S/m; ε r = 56.712; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Body/Area Scan (10x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.780 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.842 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.769 W/kg; SAR(10 g) = 0.526 W/kg Maximum value of SAR (measured) = 0.820 W/kg 0 dB = 0.780 W/kg = -1.08 dBW/kg Date: 2013-9-3 Test Laboratory: HUAWEI SAR/HAC Lab F202 CDMA BC0 777CH Right side 0mm DUT: F202; Type: Fixed Wireless Terminal; Serial: SAR2 Communication System: HW-CDMA 2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.31 MHz; σ = 1.004 S/m; ε r = 56.371; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Body/Area Scan (10x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.965 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.689 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.910 W/kg; SAR(10 g) = 0.615 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.969 W/kg 0 dB = 0.969 W/kg = -0.14 dBW/kg Date: 2013-9-3 Test Laboratory: HUAWEI SAR/HAC Lab F202 CDMA BC0 777CH Right side 0mm-repeated DUT: F202; Type: Fixed Wireless Terminal; Serial: SAR2 Communication System: HW-CDMA 2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.31 MHz; σ = 1.004 S/m; ε r = 56.371; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: ES3DV3 - SN3168; ConvF(6.14, 6.14, 6.14); Calibrated: 2012-10- 2; lSensor-Surface: 4mm (Mechanical Surface Detection), z = 2.0, 32.0 lElectronics: DAE4 Sn1236; Calibrated: 2012-11-23 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.4(1052); SEMCAD X 14.6.8(7028) Configuration/Body/Area Scan (10x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.902 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.029 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 3.15 W/kg SAR(1 g) = 0.929 W/kg; SAR(10 g) = 0.583 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.739 W/kg Date: 2013-9-3 Test Laboratory: HUAWEI SAR/HAC Lab F202 CDMA BC0 384CH Right side 0mm DUT: F202; Type: Fixed Wireless Terminal; Serial: SAR2 Communication System: HW-CDMA 2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.993 S/m; …

Text truncated - open the document above for the full version.

Report No.:SYBH (Z-SAR)024082013-2 FCC ID:QISF202 Appendix D. Photo documentation Table of contents Test Facility Test Positions Liquid depth Test Facility Photo 1: Measurement System DASY5 Test Positions Photo 2: Front View Photo 3: Rear View Photo 4: Back Side(0mm) Photo 5: Right Side(0mm) Photo 6:Back Side with DC Power adapter (0mm) NA NA Liquid depth Photo 7:MSL 835MHz depth (15.2cm) NA NA

Appendix . SAR system validation Per KDB 865664D02v01r01, SAR system validation status and system verification results should be documented in a separate section of the SAR report, or as an attachment, to confirm measurement accuracy. SAR measurement systems are validated according to procedures in KDB 865664 (D01). While detailed system validation results are not required in the SAR report, the validation status should be documented according to the validation date(s), measurement frequencies, SAR probes and tissue dielectric parameters. When multiple SAR systems are used to test a device, the validation status of each SAR system must be documented separately according to the associated system components. System validation status should be documented in a tabulated summary. Table: SAR system validation summary Freq(MHz) 835 DATE 2013/8/15 Probe SN 3168 Probe type ES3DV3 Probe Calibration Point 850 Tissue Type Body εr 54.52 σ(S/m) 0.956 CW validation Sensitivity PASS Probe linearity PASS Probe Isotropy PASS Mod validation MOD.type GMSK Duty factor PASS PAR NA

Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 FCC SAR Compliance Test Report Product Name:_______________________ Model :_______________________ FCC ID : _______________________ Report No. : _______________________ APPROVED (Lab Manager) PREPARED (Test Engineer) BY DATE 2013-09-26 2013-09-26 The test results of this test report relate exclusively to the item(s) tested , The HUAWEI does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of HUAWEI. Reliability Laboratory of Huawei Technologies Co., Ltd. F202 QISF202 SYBH(Z-SAR)024082013-2 Fixed Wireless Terminal Report No.: SYBH(Z-SAR)024082013-2 FCC ID: QISF202 2013-09-26 Page 2 of 25 Table of Contents 1 General Information ............................................................................................................................................................ 4 1.1 Statement of Compliance .......................................................................................................................................... 4 1.2 RF exposure limits...................................................................................................................................................... 4 1.3 EUT Description ......................................................................................................................................................... 5 1.3.1 General Description ........................................................................................................................................... 6 1.4 Test specification(s) .................................................................................................................................................. 8 1.5 Testing laboratory ....................................................................................................................................................... 8 1.6 Applicant and Manufacturer ...................................................................................................................................... 8 1.7 Application details ...................................................................................................................................................... 8 1.8 Ambient Condition ...................................................................................................................................................... 8 2 SAR Measurement System ............................................................................................................................................. 9 2.1 SAR Measurement Set-up ....................................................................................................................................... 9 2.2 Test environment ...................................................................................................................................................... 10 2.3 Data Acquisition Electronics description .............................................................................................................. 10 2.4 Probe description ..................................................................................................................................................... 11 2.5 Phantom description ................................................................................................................................................ 12 2.6 Device holder description ........................................................................................................................................ 12 2.7 Test Equipment List ................................................................................................................................................. 13 3 SAR Measurement Procedure ...................................................................................................................................... 14 3.1 Scanning procedure ................................................................................................................................................. 14 3.2 Spatial Peak SAR Evaluation ................................................................................................................................. 15 3.3 Data Storage and Evaluation .................................................................................................................................. 16 4 System Verification Procedure ........................................................................................................................................ 18 4.1 Tissue Verification .................................................................................................................................................... 18 4.2 System Check ........................................................................................................................................................... 19 4.3 System check Procedure ........................................................................................................................................ 20 5 Measurement Uncertainty Evaluation .......................................................................................................................... 21 6 SAR Test Configuration ................................................................................................................................................... 22 6.1 CDMA Test Configuration ...............................................................................................…
