QISF361Handset Phone

HUAWEI F361 USER GUIDE Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei"). The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned may be the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers. Thus, the descriptions herein may not exactly match the product or its accessories which you purchase. Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability. DISCLAIMER ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT. THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Privacy Policy Please refer to our privacy policy on our websites for the information about how we protect your personal information. 1 Getting Started The figures in this document are provided only for your reference. The phone that you have purchased may differ from that shown. Front View 2 3 1 6 8 7 45 2 1 Navigation keys
In standby mode, press OK to access the main menu.
In standby mode, press a navigation key to access specific shortcut menu.
During a call, press left or right navigation key to adjust the call volume. 2 Right function key Press this key to select the menu option in the lower right corner of the screen. 3 End key
End a call or reject an incoming call.
Press and hold this key to power on or off the phone.
In standby mode, press this key to turn on/off the display screen.
In non-standby mode, press this key to return to standby mode. 4 Microphone Microphone. 5 Power indicator The power indicator is steady red when the phone is connected to a power supply. 6 Number and Symbol keys
Press the keys to input numbers or characters.
Keys 1: In standby mode, press and hold the 1 key to access voicemail.
Keys 2 to 9: In standby mode, press and hold these keys for speed 3 Icons Signal strength Battery level Missed calls Unread messages Alarm activated Silent profile activated Keypad locked dialing.
Key *：In edit mode, press this key to open the symbol list. In standby mode, activate or deactivate the Silent profile by pressing and holding this key in standby mode. When keypad is locked, press left function key and this key to unlock.
Key #：In edit mode, press this key to switch the input method. In standby mode, press and hold this key to lock keypad. 7 Send key
Press this key to make or receive calls.
In standby mode, press this key to browse through the call history. 8 Left function key Press this key to select the menu option in the lower left corner of the screen. 4 Installation Installing the SIM Card Before installing the SIM card, ensure that the phone is powered off and disconnected from the power adapter. When installing the SIM card, ensure that the gold contact area faces down, that the beveled edge of the SIM card aligns with that of the SIM card slot, and that the SIM card is fully inserted. Do not frequently remove or insert the SIM card when using the phone. Installing the Battery Before installing the battery, ensure that the phone is powered off and disconnected from the power adapter. Ensure that the battery is correctly installed and that the battery poles are not reversed. 5 Charging the Battery  Method 1:  Method 2:
If you plan to leave the phone unused for a long period, you must remove the battery from the phone.
The battery supplies power for only a limited period. Ensure that the battery has been fully charged before using the phone without the line power supply connected.
If your battery power is exhausted or the battery is unused for a long period, the phone screen may not be able to light up when you charge the battery. This is normal. The phone will be ready for use after being charged for a while. 6 Powering On the Phone To power the phone on, press and hold the until the screen lights up. In standby mode, press and hold to power off the phone. Call Functions Making a Call 1. In standby mode, press the number keys …

Text truncated - open the document above for the full version.

Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 2007 to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Equipment: F361 , FCC ID:QISF361 Date:2013-1-05 Signature :_____________________________________ Name :__ Zhang Xinghai___ Title :EMC Laboratory Manager Company :_ Huawei Technologies Co., Ltd. Telephone: 0086-755-89651014

Huawei Technologies Co.,Ltd. Federal Communications Commission 2013-1-5 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISF361 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2013-05-31: External Photos Internal Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755-89650226

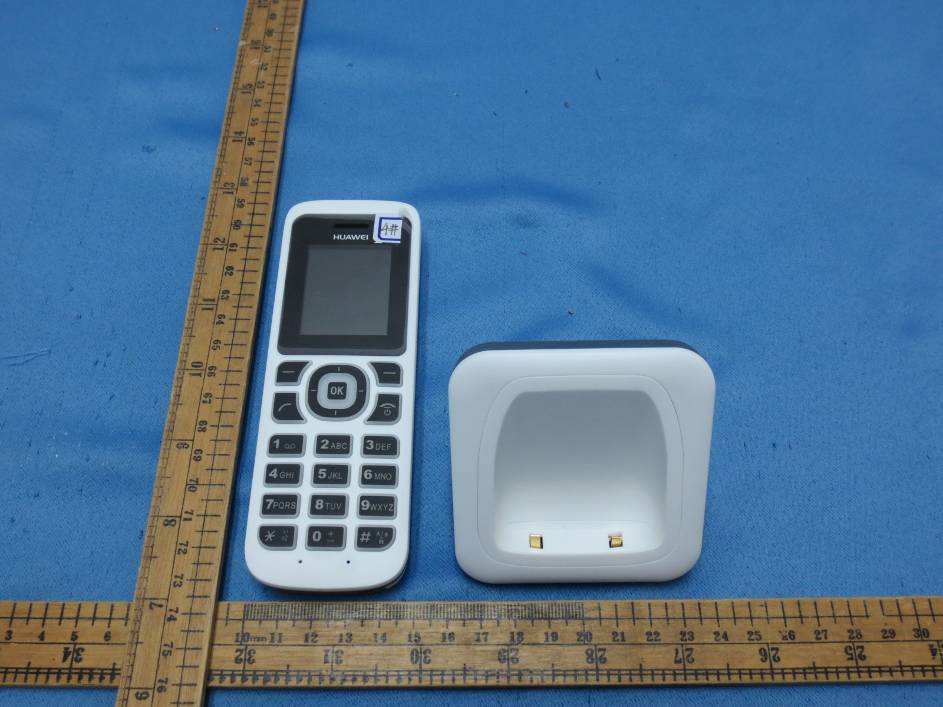

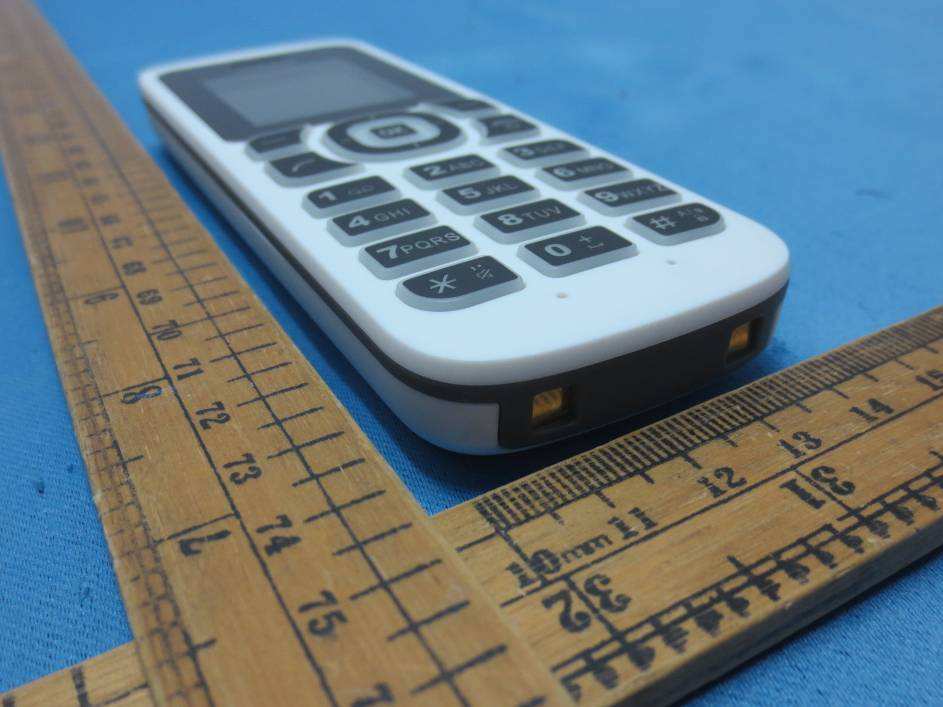

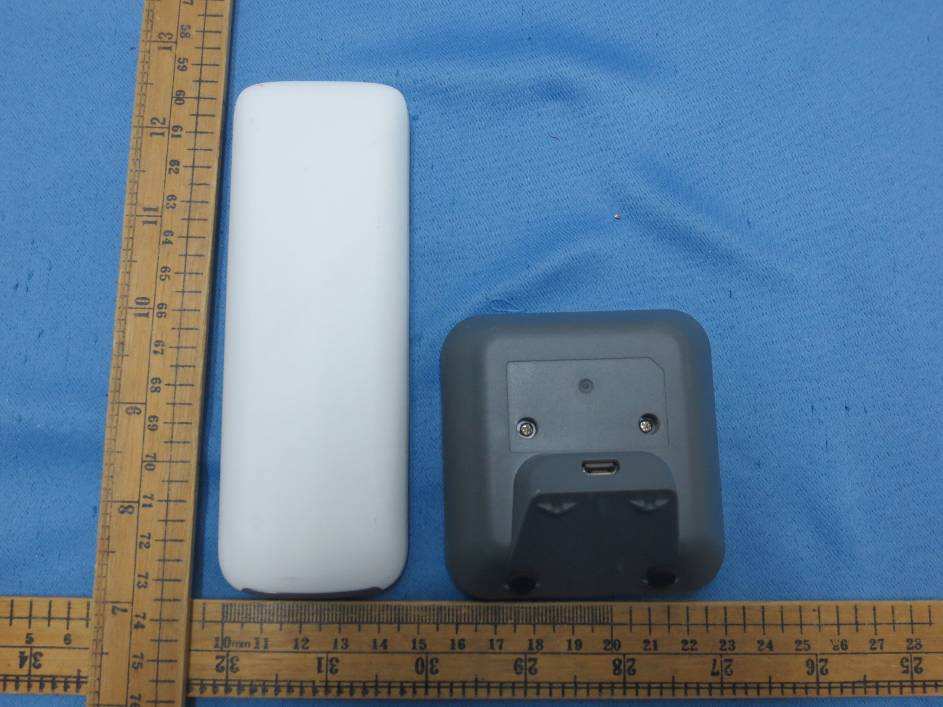

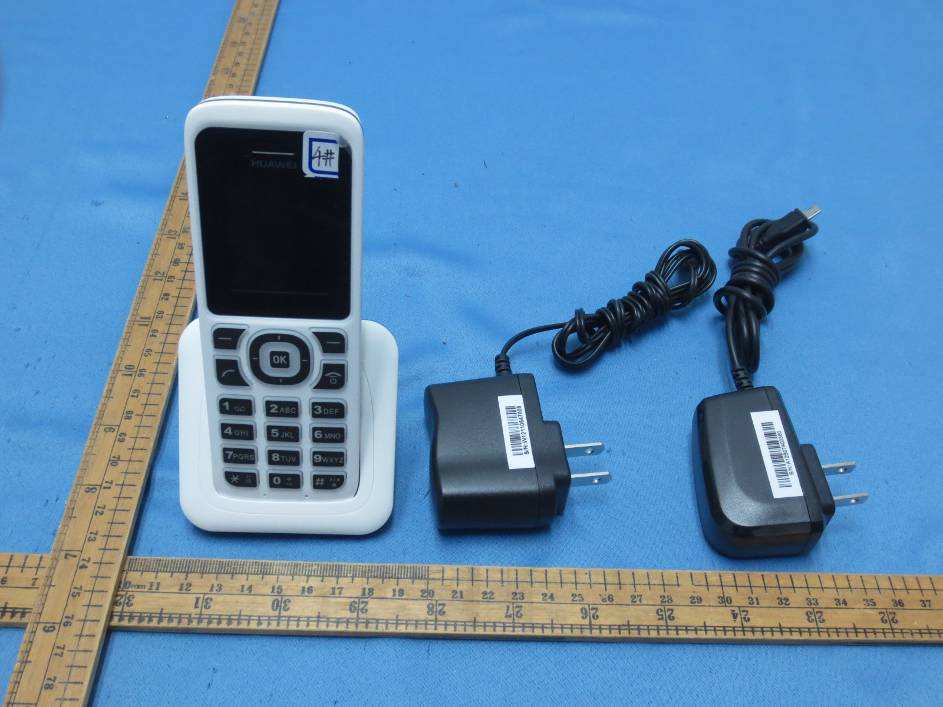

INTERTEK TESTING SERVICES External Photos: INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES

INTERTEK TESTING SERVICES Internal photos INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES

©Copyright. All rights reserved by CTTL Beijing. China Telecommunication Technology Labs. ® SAR TEST REPORT No. I13GC4184-FCC-SAR For Huawei Technologies Co., Ltd. GSM Digital Mobile Phone Model name: F361 Marketing name: Handset Phone With Hardware Version: 92361 Software Version: HUAWEI F361V100R001 FCCID: QISF361 Issued Date: 2013-1-10 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of China Telecommunication Technology Labs. Beijing. Test Laboratory: China Telecommunication Technology Labs. No. 11, Yue Tan Nan Jie, Xi Cheng District, Beijing, P. R. China 100191. Tel:+86(0)10-68094053, Fax:+86(0)10-68011404 Email: [email protected] Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 web:http://www.chinattl.com Page 2 of 108 Revision Version Report Number Revision Date Memo I13GC4184-FCC-SAR 00 2013/1/10 Initial creation of test report FCC OET 65C-1997, IEEE 1528-2003, ANSI C95.1-1992 Equipment: F361 REPORT NO.: I13GC4184-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 web:http://www.chinattl.com Page 3 of 108 China Telecommunication Technology Labs. ® TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................... 6 1.1 TESTING LOCATION .......................................................................................................................................... 6 1.2 TESTING ENVIRONMENT ................................................................................................................................... 6 1.3 PROJECT DATA .................................................................................................................................................. 6 1.4 SIGNATURE ........................................................................................................................................................ 6 2 STATEMENT OF COMPLIANCE.................................................................................................. 7 3 CLIENT INFORMATION ............................................................................................................... 8 3.1 APPLICANT INFORMATION ................................................................................................................................ 8 3.2 MANUFACTURER INFORMATION ...................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1 ABOUT EUT ...................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ....................................................................... 10 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .......................................................................... 10 5 TEST METHODOLOGY ............................................................................................................... 11 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................. 11 5.2 APPLICABLE MEASUREMENT STANDARDS ..................................................................................................... 11 6 SPECIFIC ABSORPTION RATE (SAR) ..................................................................................... 12 6.1 INTRODUCTION ............................................................................................................................................... 12 6.2 SAR DEFINITION ............................................................................................................................................ 12 7 TISSUE SIMULATING LIQUIDS ................................................................................................ 13 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 13 7.2 DIELECTRIC PERFORMANCE .......................................................................................................................... 13 8 SYSTEM VERIFICATION ........................................................................................................... 16 8.1 SYSTEM SETUP ................................................................................................................................................ 16 8.2 SYSTEM VERIFICATION ................................................................................................................................... 17 9 MEASUREMENT PROCEDURES .............................................................................................. 18 9.1 TESTS TO BE PERFORMED ............................................................................................................................... 18 FCC OET 65C-1997, IEEE 1528-2003, ANSI C95.1-1992 Equipment: F361 REPORT NO.: I13GC4184-FCC-SAR Address：11 YUE TAN NAN JIE, BEIJING, P.R.C,100045 Tel:+86 10 68094053 FAX:+86 10 68011404 web:http://www.chinattl.com Page 4 of 108 China Telecommunication Technology Labs. ® 9.2 GENERAL MEASUREMENT PROCEDURE ......................................................................................................... 19 9.3 POWER DRIFT ................................................................................................................................................. 20 10 CONDUCTED OUTPUT POWER ............................................................................................. 21 10.1 MANUFACTURING TOLERANCE .............................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES GSM 850 INTERTEK TESTING SERVICES GSM 1900

INTERTEK TESTING SERVICES GSM 850 (99% bandwidth) Ref 40.5 dBmAtt 40 dB * Offset 10.5 dB A LVL 100 kHz/Center 836.6 MHzSpan 1 MHz * * 3DB RBW 10 kHz VBW 30 kHz SWT 10 ms 1 PK VIEW -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 28.42 dBm 836.582000000 MHz OBW246.000000000 kHz T1 Temp 1 [T1 OBW] 14.14 dBm 836.478000000 MHz T2 Temp 2 [T1 OBW] 13.65 dB m 836.724000000 MHz GSM 1900 (99% bandwidth) Ref 40.5 dBmAtt 40 dB * Offset 10.5 dB A LVL 100 kHz/Center 1.88 GHzSpan 1 MHz * * 3DB RBW 10 kHz VBW 30 kHz SWT 10 ms 1 PK VIEW -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 26.37 dBm 1.880070000 GHz OBW242.000000000 kHz T1 Temp 1 [T1 OBW] 11.39 dB m 1.879880000 GHz T2 Temp 2 [T1 OBW] 11.02 dB m 1.880122000 GHz INTERTEK TESTING SERVICES GSM 850 (26dB bandwidth) Ref 40.5 dBmAtt 40 dB * Offset 10.5 dB A LVL 100 kHz/Center 836.6 MHzSpan 1 MHz SWT 10 ms 3DB * * RBW 10 kHz VBW 30 kHz 1 PK VIEW -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 29.09 dBm 836.670000000 MHz ndB [T1] 26.00 dB BW 316.000000000 kHz T1 Temp 1 [T1 ndB] 3.46 dBm 836.444000000 MHz T2 Temp 2 [T1 ndB] 3.61 dBm 836.760000000 MHz GSM 1900 (26dB bandwidth) Ref 40.5 dBmAtt 40 dB * Offset 10.5 dB A LVL 100 kHz/Center 1.88 GHzSpan 1 MHz SWT 10 ms * * RBW 10 kHz VBW 30 kHz 3DB 1 PK VIEW -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 27.02 dBm 1.880012000 GHz ndB [T1] 26.00 dB BW 314.000000000 kHz T1 Temp 1 [T1 ndB] 1.00 dBm 1.879846000 GHz T2 Temp 2 [T1 ndB] 0.98 dBm 1.880160000 GHz

INTERTEK TESTING SERVICES GSM 850 Ref 40.5 dBmAtt 40 dB * Offset 10.5 dB A LVL 820 MHz/Start 800 MHzStop 9 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 820 ms 1 PK VIEW -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 30.33 dBm 832.800000000 MHz D1 -13 dBm INTERTEK TESTING SERVICES GSM 1900 A Offset 10.5 dB LVL Att 40 dB * Ref 40.5 dBm 194.9 MHz/Start 1 MHzStop 1.95 GHz * * RBW 1 MHz VBW 3 MHz SWT 10 ms 3DB 1 PK VIEW -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 28.64 dBm 1.883734000 GHz D1 -13 dBm A Offset 10.5 dB LVL * * 3DB RBW 1 MHz VBW 3 MHz SWT 360 msAtt 40 dB * Ref 40.5 dBm Start 1.8 GHzStop 19.5 GHz1.77 GHz/ 1 PK VIEW -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] 28.52 dBm 1.870800000 GHz D1 -13 dBm

Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com 10 January, 2013 Huawei Technologies Co.,Ltd Bantian, Longgang District, Shenzhen, China Tel.: (86) 755- 89650288 Fax: (86) 755- 89650226 Dear Mr. Zhang Xinghai: Enclosed you will find your file copy of an Original Grant of Part 22 and Part 24 Certification report (FCC ID: QISF361). Model: F361. For your reference, TCB will normally take another 5 working days for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Leung Wai Leung, Tommy Deputy General Manager Enclosure Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com List of Exhibits Exhibit Type File Description Filename Test Report Test Report report.pdf Operational Description Technical Description descri.pdf Test Report Bandwidth Plot bw.pdf Test Report Spurious Emissions cspurious.pdf Test Report Bandedge Plot be.pdf RF Exposure Info SAR Report sar report. pdf External Photos External Photo external photos.pdf Internal Photos Internal Photo internal photos.pdf ID Label/Location Info Label Artwork and Location label.pdf Cover Letter Label Location Justification justification.pdf Schematics Circuit Diagram circuit.pdf User Manual User Manual manual.pdf Part List/Tune Up Info Tune Up Procedure tuneup.pdf Part List/Tune Up Info Part List partlist.pdf Cover Letter Letter of Agency agency.pdf Cover Letter Confidentiality Request request.pdf • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 22H&24E_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com TEST REPORT Report Number: 130106033SZN-001 Application for Original Grant of 47 CFR Part 22 and Part 24 Certification Handset Phone FCC ID: QISF361 Prepared and Checked by: Approved by: Billy Li Leung Wai Leung, Tommy Supervisor Deputy General Manager 10 January, 2013 10 January, 2013 INTERTEK TESTING SERVICES TRF: FCC 22H&24E_b Report Number: 130106033SZN-001 Page 1 of 18 FCC ID: QISF361 GENERAL INFORMATION Applicant Name: Huawei Technologies Co.,Ltd Applicant Address: Bantian, Longgang District, Shenzhen, China FCC Specification Standard: FCC Part 22: 2012 FCC Part 24: 2012 FCC ID: QISF361 FCC Model(s): F361 Type of EUT: GSM 850/1900 Transceiver Description of EUT: Handset Phone Serial Number: N/A Sample Receipt Date: 6 January, 2013 Date of Test: 9 January, 2013 Report Date: 10 January, 2013 Environmental Conditions: Temperature: 25 ± 10°C Humidity: 10 to 90% INTERTEK TESTING SERVICES TRF: FCC 22H&24E_b Report Number: 130106033SZN-001 Page 2 of 18 FCC ID: QISF361 Table of Contents 1.0 Summary of Test Results.................................................................................................................................. 3 1.1 Statement of Compliance................................................................................................................................ 3 2.0 General Description............................................................................................................................................ 4 2.1 Product Description........................................................................................................................................... 4 2.2 Test Methodology.............................................................................................................................................. 5 2.3 Test Facility........................................................................................................................................................ 5 3.0 System Test Configuration................................................................................................................................ 6 3.1 Justification.........................................................................................................................................................6 3.2 Details of EUT and Description of Accessories.............................................................................................. 7 3.3 Measurement Uncertainty................................................................................................................................. 7 3.4 Equipment Modification.............…

Text truncated - open the document above for the full version.
