QISF617-51Fixed Wireless Terminal

F617 User Guide 1 1 Gett ing to know your F617 Front view 1 2 3 4 5 678 1 Left function key  Access the main menu in standby mode.  Select the option displayed in the lower left corner of the screen. 2 Navigation keys  Access the main menu by pressing the OK key in standby mode.  Access a shortcut menu by pressing the corresponding navigation key in standby mode.  Adjust the volume by pressing the navigation keys during a call. The f igures in this guide are provided for your reference only. 2 3 Right function key Select the option displayed in the lower right corner of the screen. 4 Mute key Press this key to mute or unmute an ongoing call. 5 End key  End or reject a call.  Press and hold this key to power the phone on or off.  Return to the standby mode. 6 Hands-free key  Make or answer a call without lifting the handset in standby mode.  In the hands-free mode, cancel the dialing when dialing a number or end the current call. 7 Call key  Make or answer a call.  View the dialed calls in standby mode. 8 Number and symbol keys  Enter numbers, letters, and symbols.  Speed-dial a user-assigned phone number by pressing and holding 2~9 key in standby mode.  Press # key to switch between text input methods in editing mode.  Press * key to display the symbol list in editing mode. 3 Back and side view 3456 7 12 1 Battery cover 2 SIM card slot 3 Battery container 4 Battery cord jack 5 Coiled cord jack on main unit 6 Power jack 7 USB port (only for maintenance purposes) 2 Screen icons Full reception Calling No service Alarm clock Hands-free mode Unread message Unopened voicemail message Powered by the power adapter Full battery Update available 2G network 3G network In silent profile 4 3 Instal lat ion Ensure that F617 is powered off and disconnected from the power adapter. Installing the SIM card Ensure that the golden contacts of the SIM card are facing downward and that the beveled edge of the SIM card is properly aligned with that of the SIM card slot. Then check that the SIM card is fully inserted. Installing the battery Ensure that the battery is correctly instal led. Do not frequently remove the SIM card when using F617.  When new phones are delivered, the battery power is low. Therefore, charge the phone for a while and then power on the phone the f irst t ime you use it.  If the phone wil l not be used for a long t ime, remove the battery from the phone. 5 Connecting the power adapter When you use F617, it is recommended that you connect the power adapter to F617. 4 Powering on Press and hold unt il the screen lights up to power on the phone. 5 Cal l ing Making a call 1. In standby mode, press the number keys to enter a phone number. 2. Press to dial the number. 3. Press to end the call or cancel the dialing.  If the battery has not been used for a long t ime or the battery is exhausted, the screen of F617 may not funct ion when you charge the battery again. This is normal. After the battery is being charged for a while, you can power on the phone for use.  The battery supplies power for only a limited period. Ensure that the battery has been ful ly charged before putt ing it in use. Press and hold to power off the phone. You can also use the following methods to dial the number:  In standby mode, press to view the dialed cal ls. Find the desired number in the dialed cal ls, and then press to dial the number.  Find the desired number in the contacts, and then press to dial the number. 6 Answering or rejecting a call When there is an incoming cal l, press to answer the cal l; press to reject the call. 6 Messages Sending a message 1. Select Messages > Write message. 2. Write the message. 3. Press and then add a recipient using the following methods: – Enter the recipient's phone number. – Add the recipient from the contacts. 4. Press to send the message. Reading a message 1. Select Messages > Inbox. 2. Press / to scroll to a message in the list. 3. Press to open and read the message. 7 Text input methods Input methods functions The input methods have following basic funct ions:  In edit ing mode, press the # key to switch between input methods.  In edit ing mode, you can press to delete the character to the left of the cursor or press and hold to delete al l characters.  In predict ive and tradit ional input mode, press the 0 key to enter a space.  In any input method, press the * key to display the symbol list. Press to manage the message. 7 Traditional input In tradit ional input mode, press the number keys to enter letters. Press a number key repeatedly unt il the desired character appears. If the next letter you want to enter is on the same key as the current one, wait unt il the current letter is entered, and then enter the next one. Predictive input 1. Press the keys labeled with the letters required to spell the desired word once according to the spelling sequence of the word. As you enter letters, the phone attempts to predict the desired word and displays candidate words. 2. Press / to scroll to the desired word. 3. Press to enter the word, or press the 0 key to enter the word followed by a space. Number input  In 123 input mode, enter a desired number by pressing the number key.  In tradit ional input mode, press and hold corresponding number key to enter numbers. 8 Internet connect ion Connecting your F617 to a computer F617 can be connected to a computer to provide data services. You need to purchase the data service suite. For details, consult your service provider. 8 Installing the management program If you are using the data service for the f irst t ime, you need to install the management program. 1. Connect F617 to a computer with a compatible USB cable, the installation program automatically starts. 2. Follow the instructions of the installation program. 3. When the installation completes, a shortcut icon of the management program is displayed on the desktop. Accessing the Internet You can access the Internet after sett ing the network connect i…

Text truncated - open the document above for the full version.

Date (22/10/2015) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Huawei Technologies Co., Ltd. Bantian, Longgang District, Shenzhen, 518129, China hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Bu Cookies Phone: +86-755-88286998 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S. Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorization is application to following FCC ID application: FCC ID: QISF617-51 This authorization is valid until further written notice from Huawei Technologies Co., Ltd. Sincerely, For and Behalf of: Huawei Technologies Co., Ltd. Zhangxinghai EMC Laboratory Manager

Huawei Technologies Co.,Ltd. Federal Communications Commission 2015-10-22 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISF617-51 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2016-4-30 External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Fax: 0086-0755- 28970299

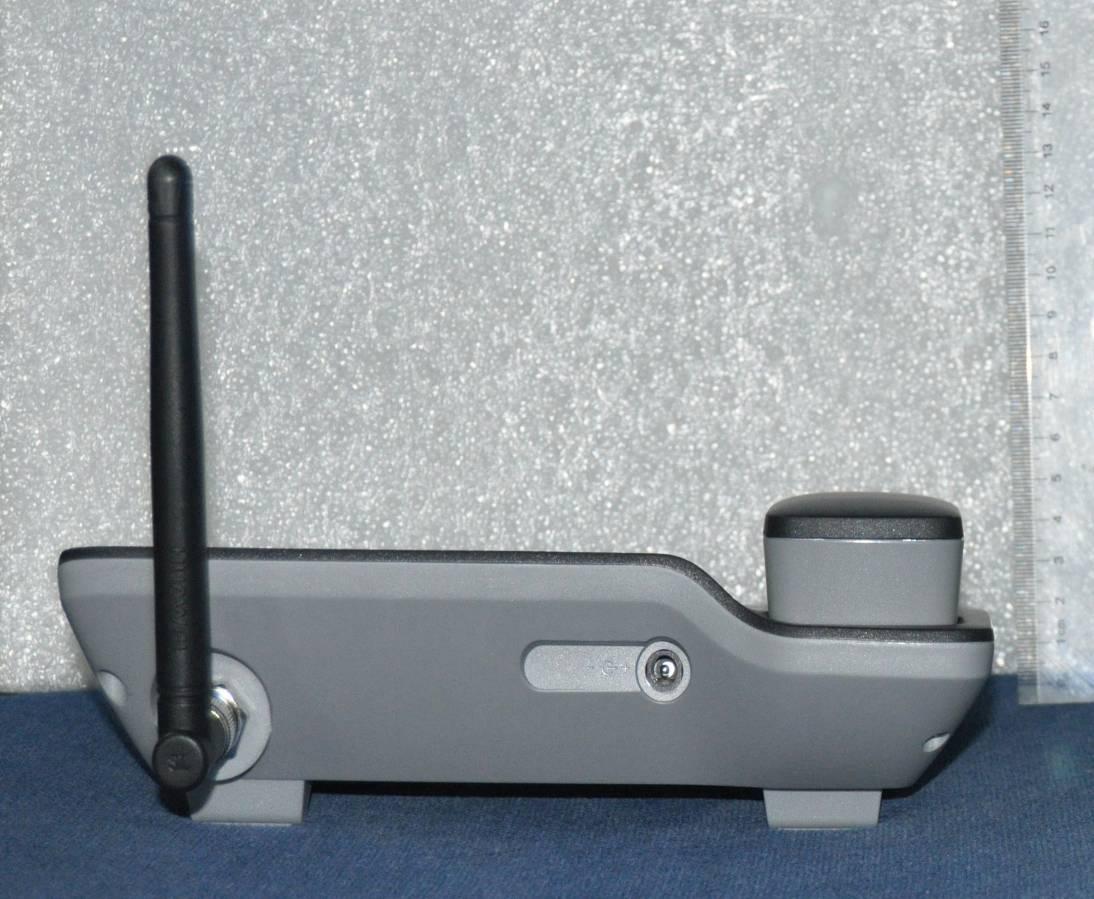

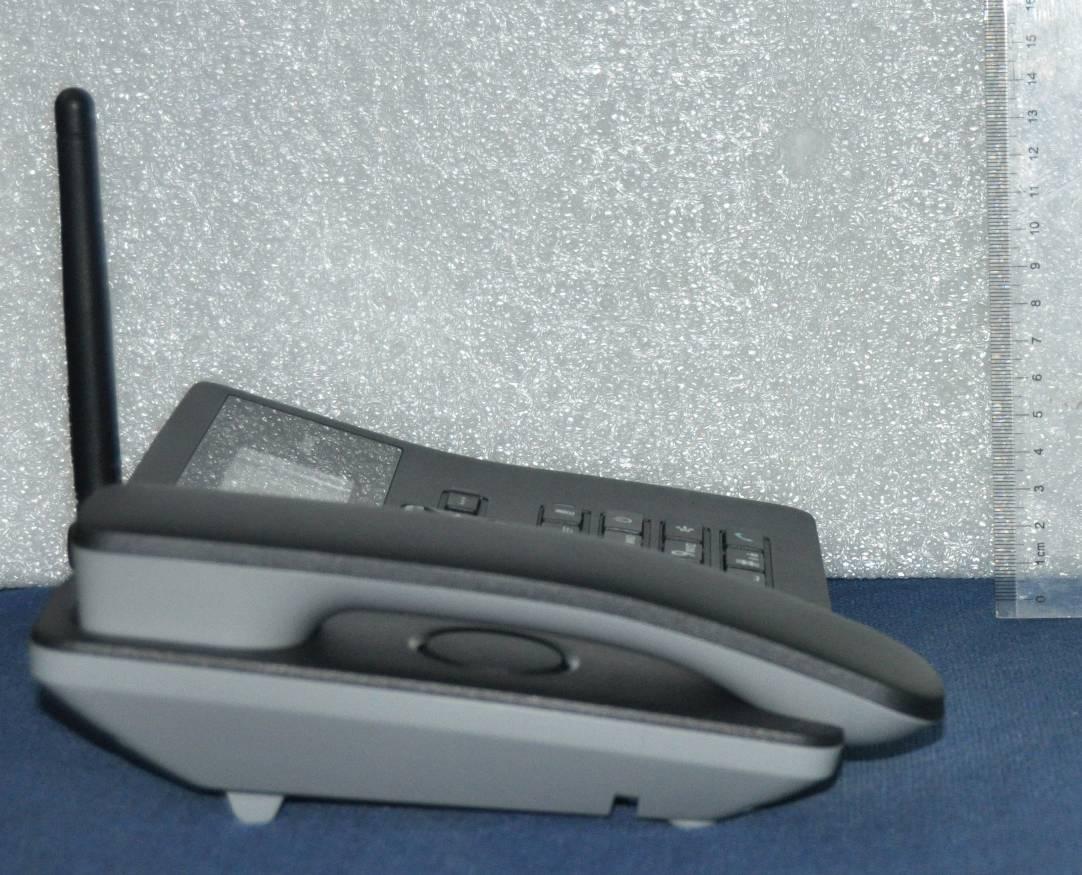

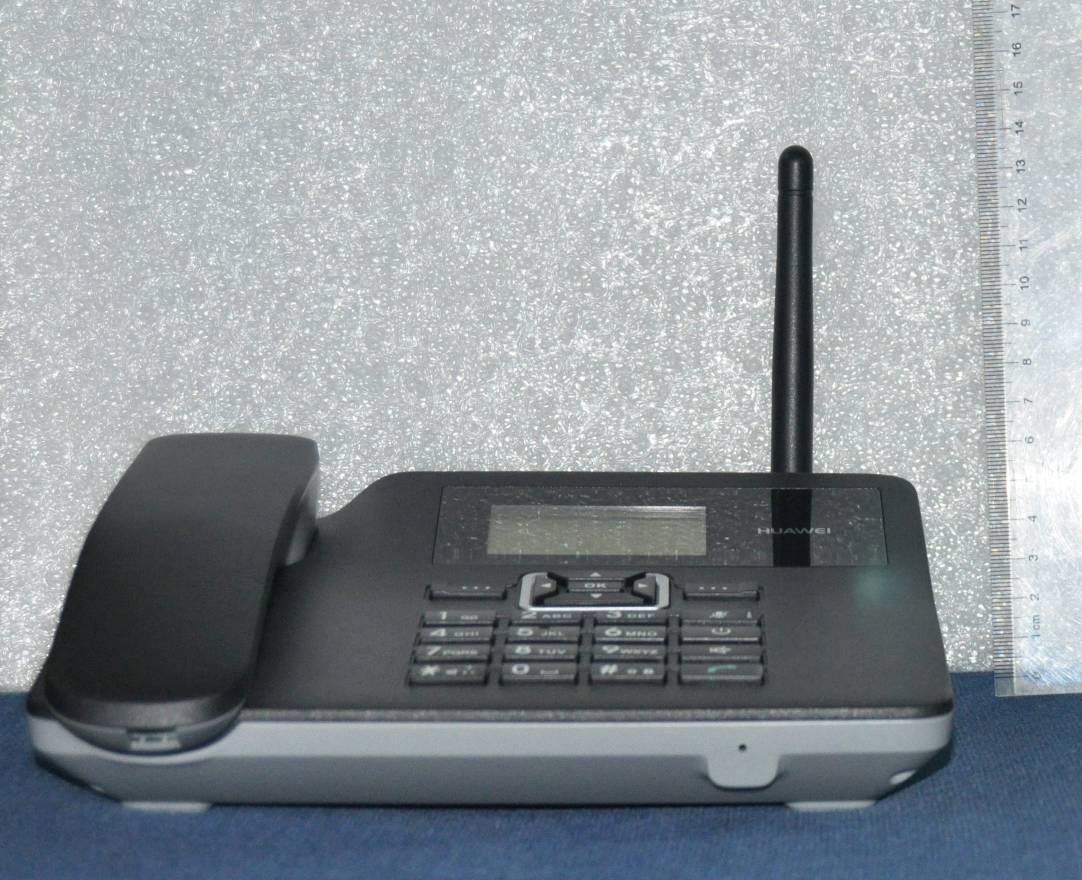

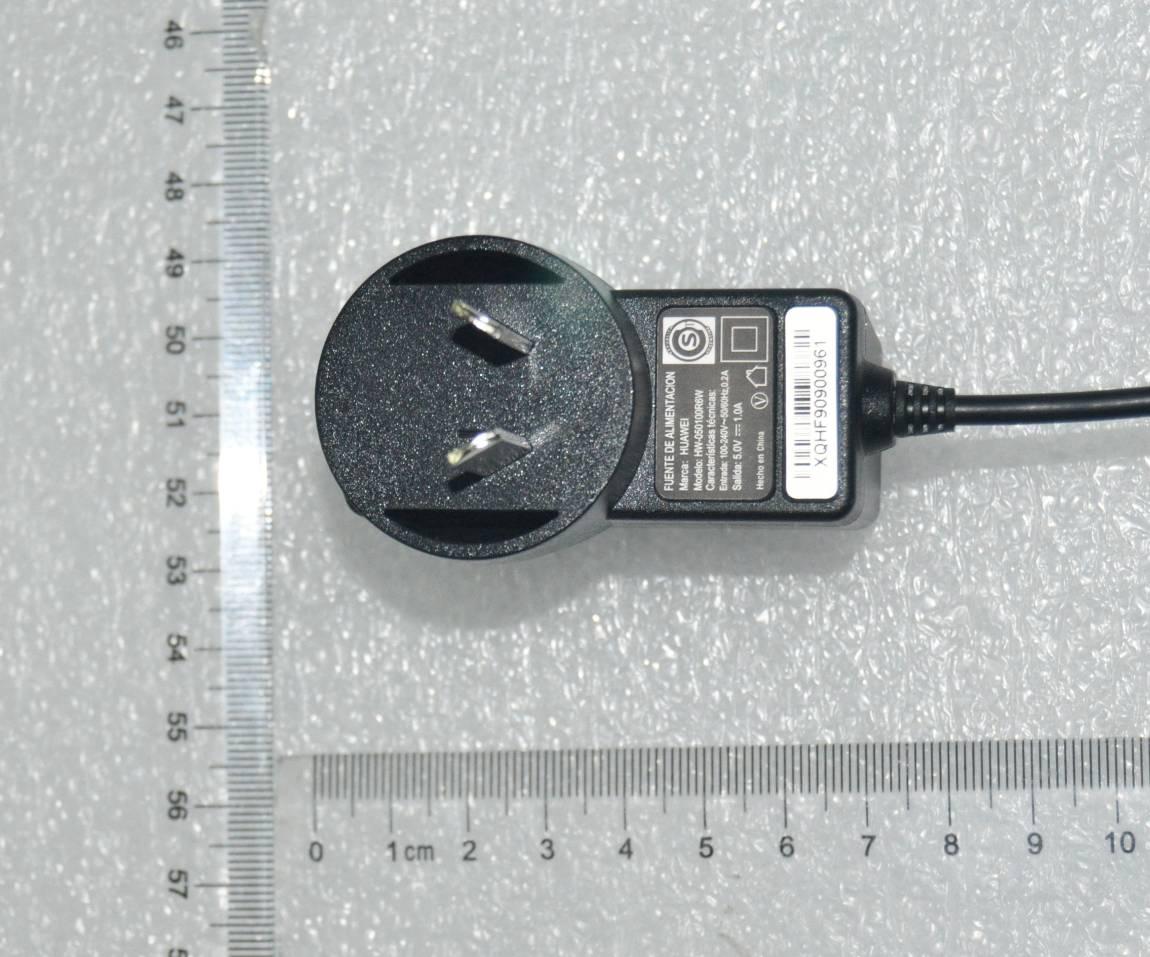

Huawei F617-51 Fixed Wireless Terminal SECRET Page1, Total6 Photo documentation of external of product F617-51 Huawei F617-51 Fixed Wireless Terminal SECRET Page2, Total6 Huawei F617-51 Fixed Wireless Terminal SECRET Page3, Total6 Huawei F617-51 Fixed Wireless Terminal SECRET Page4, Total6 Huawei F617-51 Fixed Wireless Terminal SECRET Page5, Total6 Huawei F617-51 Fixed Wireless Terminal SECRET Page6, Total6

Huawei F617-51 Fixed Wireless Terminal SECRET Page1, Total 1 F617-51 Label：

Huawei F617-51 Fixed Wireless Terminal SECRET Page1, Total 1 F617-51 Label Location

Huawei F617-51 Fixed Wireless Terminal SECRET Page1, Total5 Photo documentation of interior of product F617-51 Huawei F617-51 Fixed Wireless Terminal SECRET Page2, Total5 Huawei F617-51 Fixed Wireless Terminal SECRET Page3, Total5 Huawei F617-51 Fixed Wireless Terminal SECRET Page4, Total5 Huawei F617-51 Fixed Wireless Terminal SECRET Page5, Total5

Huawei F617-51 Fixed Wireless Terminal SECRET Page1, Total5 Photo documentation of interior of product F617-51 Huawei F617-51 Fixed Wireless Terminal SECRET Page2, Total5 Huawei F617-51 Fixed Wireless Terminal SECRET Page3, Total5 Huawei F617-51 Fixed Wireless Terminal SECRET Page4, Total5 Huawei F617-51 Fixed Wireless Terminal SECRET Page5, Total5

Appendix A. System Check Plots Table of contents SystemPerformanceCheck-D835-EX-Body-SN 7350 SystemPerformanceCheck-D835-EX-Body-SN 3744 SystemPerformanceCheck-D1900-EX-Body-SN 7350 Date: 2015-9-22 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Body-7350 DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 1 S/m; ε r = 56.863; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN7350; ConvF(9.42, 9.42, 9.42); Calibrated: 2015-1-8; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 2015-4-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=15mm, Pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.71 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 48.78 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 3.13 W/kg SAR(1 g) = 2.29 W/kg; SAR(10 g) = 1.54 W/kg Maximum value of SAR (measured) = 2.62 W/kg 0 dB = 2.71 W/kg = 4.33 dBW/kg Date: 2015-9-23 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D835-EX-Body-3744 DUT: Dipole 835 MHz D835V2; Type: D835V2; Serial: D835V2 - SN:4d126 Communication System: UID 0, CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 1 S/m; ε r = 56.863; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(8.82, 8.82, 8.82); Calibrated: 2015-7-24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 2015-4-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=15mm, Pin=250mW/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.39 W/kg Configuration/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.99 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.51 W/kg SAR(1 g) = 2.38 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 2.79 W/kg 0 dB = 2.39 W/kg = 3.78 dBW/kg Date: 2015-9-21 Test Laboratory: HUAWEI SAR/HAC Lab SystemPerformanceCheck-D1900-EX-Body-7350 DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d143 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.571 S/m; ε r = 51.358; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN7350; ConvF(7.82, 7.82, 7.82); Calibrated: 2015-1-8; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 2015-4-27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm pin=250mW/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.7 W/kg Configuration/d=10mm pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 85.92 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 10.6 W/kg; SAR(10 g) = 5.71 W/kg Maximum value of SAR (measured) = 13.4 W/kg 0 dB = 10.7 W/kg = 10.29 dBW/kg

Appendix B. SAR Measurement Plots Table of contents GSM 850 Body GSM 1900 Body UMTS Band V Body UMTS Band II Body Date: 2015-9-22 Test Laboratory: HUAWEI SAR/HAC Lab F617-51 GSM850 GPRS 2TS 251CH Top side 25mm-antenna vertical DUT: F617-51; Type: Fixed Wireless Terminal; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-2TS (0); Frequency: 848.8 MHz;Duty Cycle: 1:4.10015 Medium parameters used: f = 848.8 MHz; σ = 1.013 S/m; ε r = 56.82; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN7350; ConvF(9.42, 9.42, 9.42); Calibrated: 2015-1- 8; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 2015-4-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.40 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 35.91 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 1.53 W/kg SAR(1 g) = 1.23 W/kg; SAR(10 g) = 0.896 W/kg Maximum value of SAR (measured) = 1.36 W/kg 0 dB = 1.40 W/kg = 1.46 dBW/kg Date: 2015-9-23 Test Laboratory: HUAWEI SAR/HAC Lab F617-51 GSM1900 GPRS 2TS 661CH Top side 25mm-antenna horizontal DUT: F617-51; Type: Fixed Wireless Terminal; Serial: SAR1 Communication System: UID 0, HW-GSM\GPRS\EGPRS-2TS (0); Frequency: 1880 MHz;Duty Cycle: 1:4.10015 Medium parameters used: f = 1880 MHz; σ = 1.55 S/m; ε r = 51.425; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(7.24, 7.24, 7.24); Calibrated: 2015-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 2015-4-27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.406 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.94 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.557 W/kg SAR(1 g) = 0.359 W/kg; SAR(10 g) = 0.225 W/kg Maximum value of SAR (measured) = 0.424 W/kg 0 dB = 0.406 W/kg = -3.91 dBW/kg Date: 2015-9-23 Test Laboratory: HUAWEI SAR/HAC Lab F617-51 UMTS Band V 4132CH Top side 25mm-antenna vertical with battery 2#-Repeated DUT: F617-51; Type: Fixed Wireless Terminal; Serial: SAR1 Communication System: UID 0, HW-UMTS-FDD(WCDMA) (0); Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.994 S/m; ε r = 57.031; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN3744; ConvF(8.82, 8.82, 8.82); Calibrated: 2015-7- 24; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 2015-4-27 lPhantom: SAM1; Type: SAM; Serial: TP-1475 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.993 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.59 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.903 W/kg; SAR(10 g) = 0.638 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.02 W/kg 0 dB = 0.993 W/kg = -0.03 dBW/kg Date: 2015-9-21 Test Laboratory: HUAWEI SAR/HAC Lab F617-51 UMTS Band II 9400CH Top side 25mm-antenna vertical DUT: F617-51; Type: Fixed Wireless Terminal; Serial: SAR1 Communication System: UID 0, HW-UMTS-FDD(WCDMA) (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.55 S/m; ε r = 51.425; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration: lProbe: EX3DV4 - SN7350; ConvF(7.82, 7.82, 7.82); Calibrated: 2015-1- 8; lSensor-Surface: 3mm (Mechanical Surface Detection), z = 1.0, 31.0 lElectronics: DAE4 Sn852; Calibrated: 2015-4-27 lPhantom: SAM2; Type: SAM; Serial: TP:1474 lDASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.380 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.41 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.500 W/kg SAR(1 g) = 0.351 W/kg; SAR(10 g) = 0.231 W/kg Maximum value of SAR (measured) = 0.405 W/kg 0 dB = 0.380 W/kg = -4.20 dBW/kg

Justification of the extended calibration of Dipole D1900V2 SN:5d143 Per KDB 865664, we have Measured the Impedance and Return Loss as below, and the return loss is <-20dB, with 20% of prior calibration; the real or imaginary parts of the impedance is with 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole 1900 Head TST Target Value Measured Value Difference Impedance transformed to feed point 53.1Ω+6.3jΩ 51.92Ω+6.23jΩ R=-1.18Ω, X=-0.07Ω Return Loss -23.3dB -23.22dB 0.34% Dipole 1900 Body TST Target Value Measured Value Difference Impedance transformed to feed point 48.9Ω+6.2jΩ 48.91Ω+6.12jΩ R=-0.01Ω, X=-0.08Ω Return Loss -24.0dB -24.46dB -1.92% Measured Date 2014-09-23 2015-09-21 ----- Impedance Test-Head Return Loss Test-Head Impedance Test-Body Return Loss Test- Body

FCC RF Test Report Product Name: Fixed Wireless Terminal Model Number: F617-51 Report No: SYBH(Z-RF)026092015-2001 FCC ID：QISF617-51 Reliability Laboratory of Huawei Technologies Co., Ltd. Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Tel: +86 755 28780808 Fax: +86 755 89652518 RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 22 Notice 1. The laboratory has Passed the accreditation by China National Accreditation Service for Conformity Assessment (CNAS). The accreditation number is L0310. 2. The laboratory has Passed the accreditation by The American Association for Laboratory Accreditation (A2LA). The accreditation number is 2174.01. 3. The laboratory has been listed by the US Federal Communications Commission to perform electromagnetic emission measurements. The site recognition number is 97456. 4. The laboratory has been listed by Industry Canada to perform electromagnetic emission measurements. The recognition numbers of test site are 6369A-2. 5. The test report is invalid if not marked with the signatures of the persons responsible for preparing and approving the test report. 6. The test report is invalid if there is any evidence of erasure and/or falsification. 7. The test report is only valid for the test samples. 8. Content of the test report, in part or in full, cannot be used for publicity and/or promotional purposes without prior written approval from the laboratory. RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 22 Applicant: Huawei Technologies Co., Ltd. Address: Administration Building, Headquarters of Huawei Technologies Co., Ltd., Bantian, Longgang District, Shenzhen, 518129, P.R.C Date of Receipt Sample: 2015-09-21 Start Date of Test: 2015-09-21 End Date of Test: 2015-09-29 Test Result: Pass Approved by Senior Engineer: 2015-10-08 Liu Chunlin Date Name Signature Prepared by: 2015-10-08 maowenli Date Name Signature RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 22 Modification Record No. Last Report No. Modification Description 1 First report. RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 22 CONTENT 1 General Information ................................................................................................................................................ 6 1.1 Applied Standard........................................................................................................................................ 6 1.2 Test Location ............................................................................................................................................. 6 1.3 Test Environment Condition ....................................................................................................................... 6 2 Test Summary ........................................................................................................................................................ 7 2.1 Cellular Band (824-849 MHz paired with 869-894 MHz) ............................................................................ 7 2.2 PCS Band (1850-1910 MHz paired with 1930-1990 MHz) ......................................................................... 8 3 Description of the Equipment under Test (EUT) ..................................................................................................... 9 3.1 General Description ................................................................................................................................... 9 3.2 EUT Identity ............................................................................................................................................... 9 3.3 Technical Specification ............................................................................................................................ 11 4 General Test Conditions / Configurations ............................................................................................................. 12 4.1 Test Modes .............................................................................................................................................. 12 4.2 Test Environment ..................................................................................................................................... 12 4.3 Test Frequency ........................................................................................................................................ 13 4.4 DESCRIPTION OF TESTS ...................................................................................................................... 14 4.5 Test Setups .............................................................................................................................................. 17 4.6 Test Conditions ........................................................................................................................................ 19 5 Main Test Instruments .......................................................................................................................................... 21 6 Measurement Uncertainty..................................................................................................................................... 22 RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 22 1 General Information 1.1 Applied Standard Applied Rules: 47 CFR FCC Part 02: 2014 47 CFR FCC Part 22: 2014 47 CFR FCC Part 24: 2014 Test Method: FCC KDB 971168 D01 Pow…

Text truncated - open the document above for the full version.

RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 1 of 120 Appendix for test report RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 2 of 120 1Appendix_A: Effective (Isotropic) Radiated Power Output Data Part I - Test Results Test Band Test Mode Test Channel Conducted Power [dBm] ERP [dBm] Limit [dBm] Verdict GSM850 GSM/TM1 LCH 32.41 31.26 38.5 PASS MCH 32.34 31.19 38.5 PASS HCH 32.59 31.44 38.5 PASS GSM/TM2 LCH 27.63 26.48 38.5 PASS MCH 27.67 26.52 38.5 PASS HCH 27.59 26.44 38.5 PASS Test Band Test Mode Test Channel Conducted Power [dBm] EIRP [dBm] Limit [dBm] Verdict GSM1900 GSM/TM1 LCH 29.93 32.81 33 PASS MCH 29.52 32.4 33 PASS HCH 29.15 32.03 33 PASS GSM/TM2 LCH 27.27 30.15 33 PASS MCH 27.3 30.18 33 PASS RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 3 of 120 Test Band Test Mode Test Channel Conducted Power [dBm] EIRP [dBm] Limit [dBm] Verdict HCH 27.2 30.08 33 PASS Test Band Test Mode Test Channel Conducte d Power [dBm] ERP [dBm] Limit [dBm] Verdict WCDMA850 UMTS/TM1 LCH 23.30 22.15 38.5 PASS MCH 23.47 22.32 38.5 PASS HCH 23.48 22.33 38.5 PASS Test Band Test Mode Test Channel Conducte d Power [dBm] EIRP [dBm] Limit [dBm] Verdict WCDMA1900 UMTS/TM1 LCH 23.69 26.57 33 PASS MCH 23.32 26.2 33 PASS HCH 23.99 26.87 33 PASS Note1: a, For getting the ERP (Efficient Radiated Power) or EIRP (Efficient Isotropic Radiated Power) in substitution method, the following formula should be taken to calculate it, ERP [dBm] = SGP [dBm] - Cable Loss [dB] + Gain [dBd] EIRP [dBm] = SGP [dBm] - Cable Loss [dB] + Gain [dBi] b, SGP=Signal Generator Level Note2: RBW > emission bandwidth, VBW > 3 x RBW. Detector: RMS RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 4 of 120 2Appendix_B: Peak-to-Average Ratio Part I - Test Results Test Band Test Mode Test Channel Measured[dB] Limit [dB] Verdict GSM1900 GSM/TM1 LCH 0.14 13 PASS MCH 0.12 13 PASS HCH 0.13 13 PASS GSM/TM2 LCH 2.58 13 PASS MCH 2.27 13 PASS HCH 2.23 13 PASS WCDMA1900 UMTS/TM1 LCH 3.42 13 PASS MCH 3.48 13 PASS HCH 3.38 13 PASS RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 5 of 120 3Appendix_C: Modulation Characteristics Part I - Test Plots 3.1 For GSM 3.1.1 Test Band = GSM850 3.1.1.1 Test Mode = GSM/TM1 3.1.1.1.1 Test Channel = MCH RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 6 of 120 3.1.1.2 Test Mode = GSM/TM2 3.1.1.2.1 Test Channel = MCH RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 7 of 120 3.1.2 Test Band = WCDMA850 3.1.2.1 Test Mode = UMTS/TM1 3.1.2.1.1 Test Channel = MCH RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 8 of 120 3.1.3 Test Band = GSM1900 3.1.3.1 Test Mode = GSM/TM1 3.1.3.1.1 Test Channel = MCH RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 9 of 120 3.1.3.2 Test Mode = GSM/TM2 3.1.3.2.1 Test Channel = MCH RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 10 of 120 3.1.4 Test Band = WCDMA1900 3.1.4.1 Test Mode = UMTS/TM1 3.1.4.1.1 Test Channel = MCH RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 11 of 120 4Appendix_D: Bandwidth Part I - Test Results Test Band Test Mode Test Channel Occupied Bandwidth [kHz] Emission Bandwidth [kHz] Verdict GSM850 GSM/TM1 LCH 248.30 319.13 Pass MCH 245.65 323.16 Pass HCH 245.86 321.00 Pass GSM/TM2 LCH 240.25 304.15 Pass MCH 237.95 310.05 Pass HCH 240.83 304.68 Pass WCDMA850 UMTS/TM1 LCH 4.10 4.66 Pass MCH 4.09 4.66 Pass HCH 4.10 4.95 Pass GSM1900 GSM/TM1 LCH 244.18 315.26 Pass MCH 246.66 318.05 Pass HCH 246.20 318.02 Pass GSM/TM2 LCH 252.48 328.47 Pass MCH 253.51 318.34 Pass HCH 253.24 324.91 Pass WCDMA1900 UMTS/TM1 LCH 4.10 4.67 Pass MCH 4.11 4.66 Pass HCH 4.11 4.67 Pass RF Test Report of F617-51 Report No: SYBH(Z-RF)026092015-2001 Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd. Page 12 of 120 4.1.1 Test Band = GSM850 4.1.1.1 Test Mode = GSM/TM1 4.1.1.1.1…
