QISG1158GSM Mobile Phone

G1158 GSM Mobile Phone User Guide Copyright © Huawei Technologies Co., Ltd. 2009. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses. Trademarks and Permissions , HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, products, services, and company names mentioned are the property of their respective owners. Notice Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers. Thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Import and Export Regulations Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein. Table of Contents Your Phone ........................................................................................... 4 Keys and Functions ........................................................................... 5 Screen Icons ......................................................................................... 7 Installing the SIM Card .................................................................... 8 Removing the SIM Card .................................................................. 9 Charging the Battery ........................................................................ 9 Using the Function Menu ............................................................ 10 Making a Call ..................................................................................... 10 Answering a Call ............................................................................... 11 Phone Lock ......................................................................................... 11 PIN and PUK ...................................................................................... 11 Locking the Keypad ........................................................................ 12 Changing the Text Input Modes ................................................ 12 Multi-tap Input Mode .................................................................... 13 Predictive Input Mode ................................................................... 13 Entering Digits .................................................................................. 14 Entering Symbols ............................................................................. 14 FM Radio(Optional) ........................................................................ 14 Warnings and Precautions ........................................................... 15 4 Features marked with "optional" are optional. These features may vary according to service providers. For details, contact your service provider. Your Phone The following figure shows the appearance of your phone and it is for your reference only. 1 Screen 7 Flashlight (optional) 2 Navigation key 8 Charger/Headset jack (optional) 3 Left soft key 9 # key 4 Call/Answer key 10 End/Power key 5 5 Number keys 11 Right soft key 6 * key 12 Earpiece Keys and Functions Press... To...  Make a call.  Answer an incoming call.  View the Dialed calls in standby mode.  Power on or off the phone (by pressing and holding it for about 3s).  End a call, or reject an incoming call.  Return to the standby mode.  Display Menu in standby mode.  Select the highlighted item.  Display Contacts in standby mode.  Return to the previous menu. 6 Press... To...  Turn on the flashlight (by pressing and holding for about 2s or by pressing twice consecutively) in standby mode and turn off the flashlight (by pressing again) in standby mode if the phone provides the flashlight function.  Access Inbox (by pressing ) if the phone does not provide the flashlight function.  Access: Alarm clock (by pressing ), Call Records (by pressing ), and Calculator (by pressing ) in standby mode. -  Enter numbers, letters, and characters.  Enter + in standby mode (by pressing and hold the 0 key for about 3s).  Call the voice mail center in standby mode (by pressing and holding the 1 key for about 3s).  Speed-dial phone numbers in standby mode (by pressing and holding the 2-9 keys for about 3s).  Select a submenu item labeled with the corresponding number. 7 Press... To...  In standby mode, press the key once to enter *, press and hold the key to enter P.  Display the symbol list in any input mode.  Enter #.  Lock the keypad in standby mo…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Dec. 22, 2009 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. December 22, 2009 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: GSM Mobile phone Model name: HUAWEI G1158 We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Roy Wu Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

Huawei Technologies Co.,Ltd Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China Tel: +86-755-2878-1879 ; Fax: +86-755-2878-1889 Date: December 18, 2009 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QISG1158 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: Schem.pdf) Block Diagram (file: BlkDia.pdf) Parts List (file: PartsLst.pdf) Operation Description (file: OpDes.pdf) Tune Up Procedure (file: TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Zhang Xinghai Rev. 1/1/03

Huawei Technologies Co.,Ltd Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China Tel: +86-755-2878-1879 ; Fax: +86-755-2878-1889 Date: December 18, 2009 Power of Attorney To whom it may concern, Please be notified that I, Zhang Xinghai, have designated Roy Wu in Sporton International Inc. and as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: QISG1158 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Zhang Xinghai Company: Huawei Technologies Co.,Ltd TEL: +86-755-2878-1879 FAX: +86-755-2878-1889 E-mail: [email protected]

Huawei Technologies Co.,Ltd Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China Tel: +86-755-2878-1879 ; Fax: +86-755-2878-1889 Date: December 18, 2009 Statement We , Huawei Technologies Co.,Ltd, states that our device, FCC ID: QISG1158, has no space to put the label except the battery compartment of this device. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Zhang Xinghai

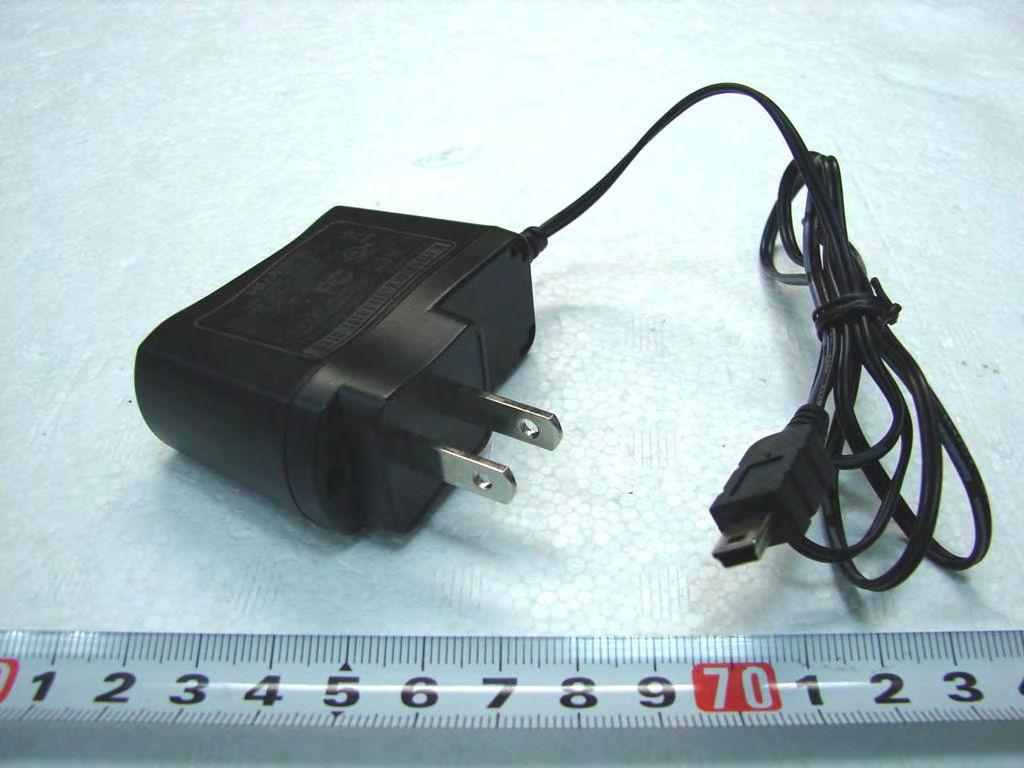

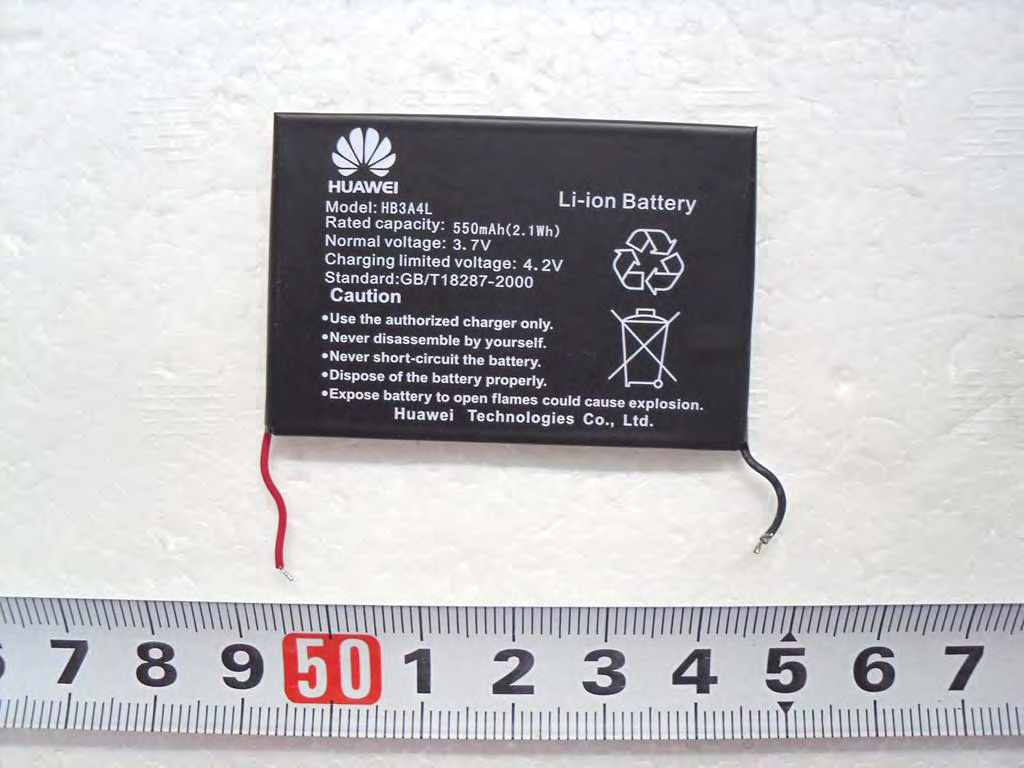

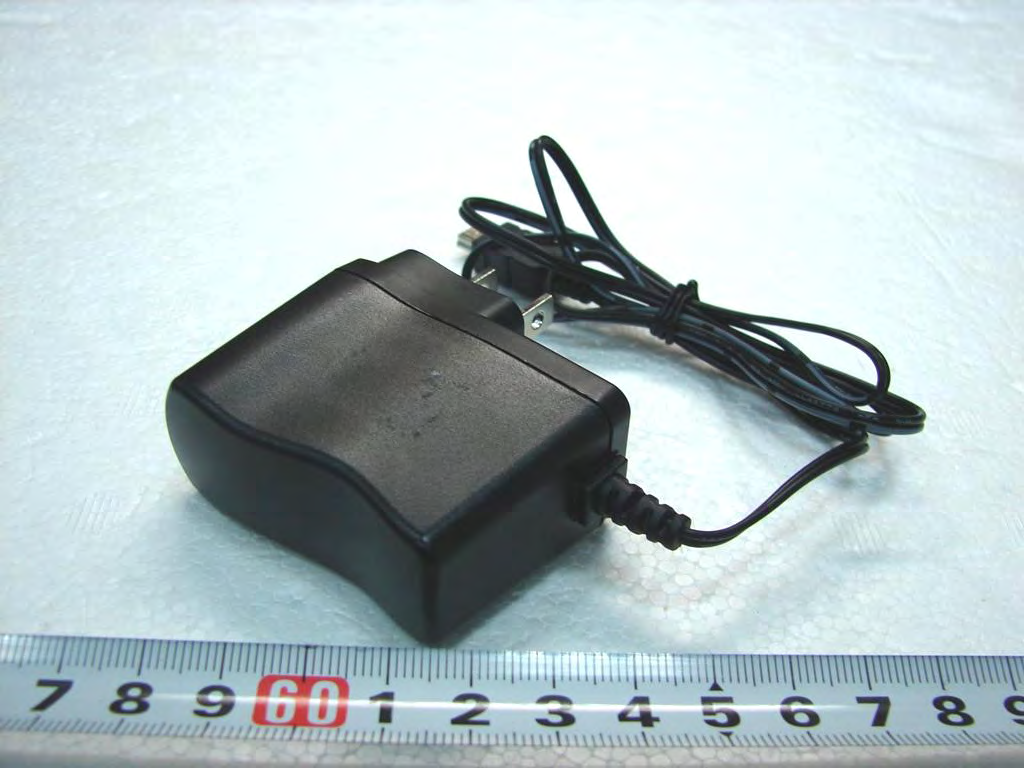

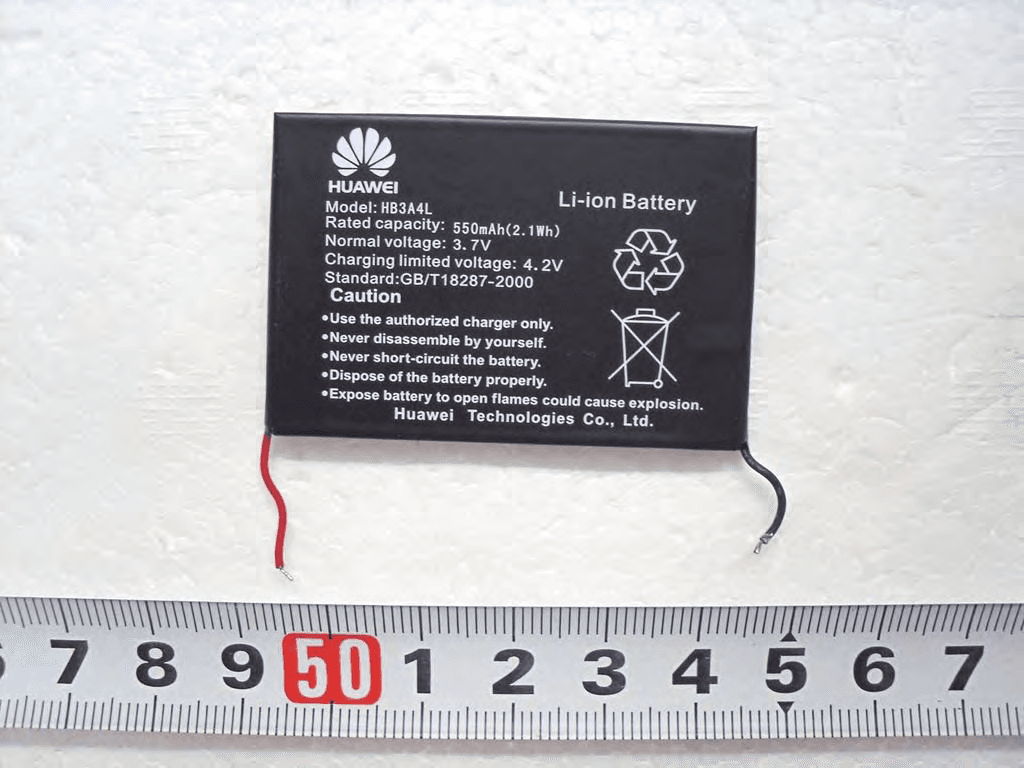

Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 1 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 1. External Photograph of EUT Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 2 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 3 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 4 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 5 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 6 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 720510 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 7 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 2. Photograph of Accessory Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 8 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 9 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 10 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 11 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 12 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 13 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 14 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 720510

Label Location

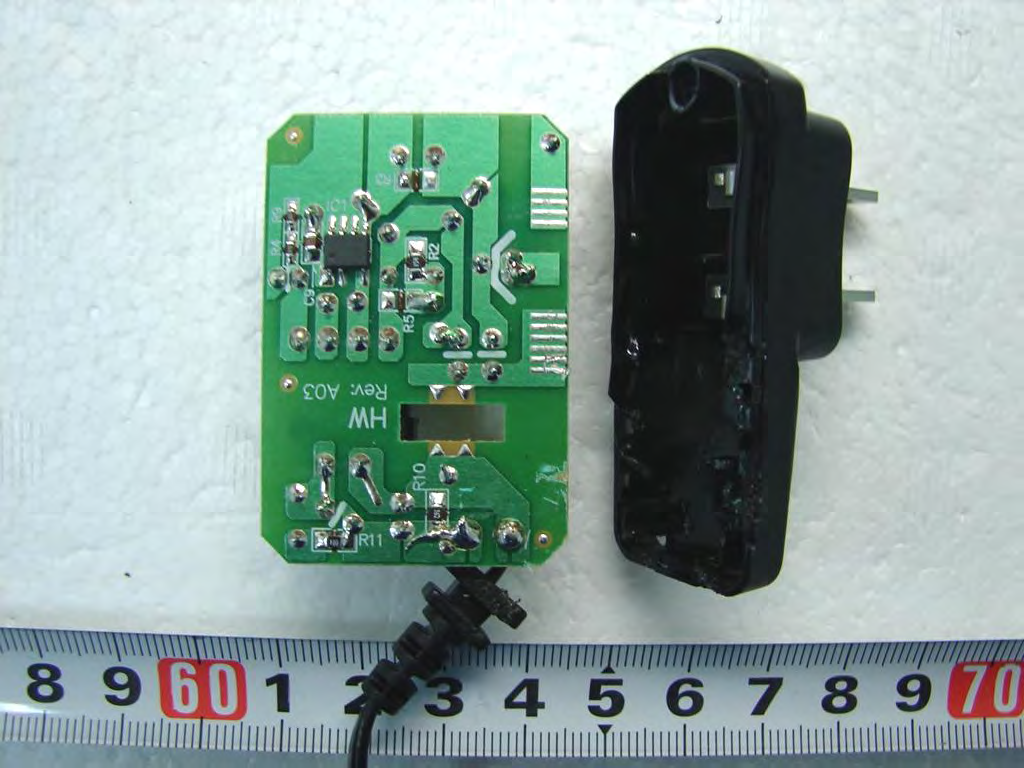

Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 15 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 3. Internal Photograph of EUT Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 16 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 17 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 18 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 19 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 20 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 21 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 22 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 23 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 24 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 25 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 GSM Antenna Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 26 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 GSM Antenna Photographs of EUT Report No.: EP9O2002 Model Name: HUAWEI G1158 SPORTON INTERNATIONAL INC. Page Number : 27 of 27 TEL : 886-3-327-3456 Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 720510 GSM Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 FCC SAR Test Report Report No. : FA9O2002 FCC SAR Test Report APPLICANT : Huawei Technologies Co., Ltd. EQUIPMENT : GSM Mobile phone BRAND NAME : HUAWEI MODEL NAME : HUAWEI G1158 FCC ID : QISG1158 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Oct. 20, 2009 and completely tested on Dec. 15, 2009. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 32 TEL : 886-3-327-3456 Report Issued Date : Dec. 18, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QISG1158 FCC SAR Test Report Report No. : FA9O2002 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage ........................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/13 System Check_835MHz_091213 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_091213 Medium parameters used: f = 835 MHz; σ = 0.896 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.26, 6.26, 6.26); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.04 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.4 V/m; Power Drift = -0.007 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 0.962 mW/g; SAR(10 g) = 0.629 mW/g Maximum value of SAR (measured) = 1.04 mW/g 0 dB = 1.04mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/14 System Check_835MHz_091214 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_091214 Medium parameters used: f = 835 MHz; σ = 0.976 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.08, 6.08, 6.08); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.976 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32.7 V/m; Power Drift = 0.017 dB Peak SAR (extrapolated) = 1.28 W/kg SAR(1 g) = 0.897 mW/g; SAR(10 g) = 0.593 mW/g Maximum value of SAR (measured) = 0.970 mW/g 0 dB = 0.970mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/14 System Check_1900MHz_091214 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_091214 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.12, 5.12, 5.12); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.46 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.3 V/m; Power Drift = 0.016 dB Peak SAR (extrapolated) = 6.36 W/kg SAR(1 g) = 3.7 mW/g; SAR(10 g) = 1.95 mW/g Maximum value of SAR (measured) = 4.20 mW/g 0 dB = 4.20mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/15 System Check_1900MHz_091215 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_091215 Medium parameters used: f = 1900 MHz; σ = 1.55 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.52, 4.52, 4.52); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.63 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.2 V/m; Power Drift = 0.00656 dB Peak SAR (extrapolated) = 6.02 W/kg SAR(1 g) = 3.98 mW/g; SAR(10 g) = 2.16 mW/g Maximum value of SAR (measured) = 4.56 mW/g 0 dB = 4.56mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/13 #01 GSM850_Right Cheek Ch189 DUT: 9O2002 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_091213 Medium parameters used: f = 836.4 MHz; σ = 0.897 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.26, 6.26, 6.26); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 C189/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.22 mW/g C189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.9 V/m; Power Drift = -0.114 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 1.11 mW/g; SAR(10 g) = 0.761 mW/g Maximum value of SAR (measured) = 1.19 mW/g 0 dB = 1.19mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/13 #01 GSM850_Right Cheek Ch189_2D DUT: 9O2002 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_091213 Medium parameters used: f = 836.4 MHz; σ = 0.897 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.26, 6.26, 6.26); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 C189/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.22 mW/g C189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.9 V/m; Power Drift = -0.114 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 1.11 mW/g; SAR(10 g) = 0.761 mW/g Maximum value of SAR (measured) = 1.19 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/13 #02 GSM850_Right Tilted Ch189 DUT: 9O2002 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_091213 Medium parameters used: f = 836.4 MHz; σ = 0.897 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.26, 6.26, 6.26); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 C189/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.701 mW/g C189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.2 V/m; Power Drift = -0.062 dB Peak SAR (extrapolated) = 0.854 W/kg SAR(1 g) = 0.645 mW/g; SAR(10 g) = 0.445 mW/g Maximum value of SAR (measured) = 0.688 mW/g 0 dB = 0.688mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/13 #03 GSM850_Left Cheek Ch189 DUT: 9O2002 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_091213 Med…
