QISG2158Dual Band GSM/GPRS Mobile Phone

G2158 GSM Mobile Phone User Guide Copyright © Huawei Technologies Co., Ltd. 2010. All rights reserved. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. Table of Contents Your Phone ............................................................... 1 Keys and Functions .................................................... 2 Screen Icons ............................................................. 5 Installing the SIM Card ............................................... 5 Removing the SIM Card.............................................. 6 Charging the Battery .................................................. 6 Using the Function Menu ............................................ 7 Making a Call ............................................................ 7 Answering a Call ........................................................ 8 Phone Lock ............................................................... 8 PIN and PUK ............................................................. 8 Locking the Keypad .................................................... 9 Changing the Text Input Modes .................................. 9 Multi-tap Input Mode ............................................... 10 Predictive Input Mode .............................................. 10 Entering Digits ......................................................... 11 Entering Symbols ..................................................... 11 FM Radio (Optional) ................................................. 11 Warnings and Precautions ........................................ 12 1 Features marked with "optional" are optional. These features may vary according to service providers. For details, contact your service provider. Your Phone The following figure shows the appearance of your phone and it is for your reference only. 1 Screen 7 Flashlight (optional) 2 Navigation key 8 Charger/Headset jack (optional) 3 Left soft key 9 # key 4 Call/Answer key 10 End/Power key 5 Number keys 11 Right soft key 2 6 * key 12 Earpiece Keys and Functions Press... To...  Make a call.  Answer an incoming call.  View the Dialed calls in standby mode.  Power on or off the phone (by pressing and holding it for about 3s).  End a call, or reject an incoming call.  Return to the standby mode.  Display Menu in standby mode.  Select the highlighted item.  Display Contacts in standby mode.  Return to the previous menu. 3 Press... To...  Turn on the flashlight (by pressing and holding for about 2s or by pressing twice consecutively) in standby mode and turn off the flashlight (by pressing again) in standby mode if the phone provides the flashlight function.  Access Inbox (by pressing ) if the phone does not provide the flashlight function.  Access Alarm clock (by pressing ), Call Records (by pressing ), and Browse (by pressing ) in standby mode. 4 Press... To... -  Enter numbers, letters, and characters.  Enter + in standby mode (by pressing and hold the 0 key for about 3s).  Call the voice mail center in standby mode (by pressing and holding the 1 key for about 3s).  Speed-dial phone numbers in standby mode (by pressing and holding the 2-9 keys for about 3s).  Select a submenu item labeled with the corresponding number.  In standby mode, press the key once to enter *, press and hold the key to enter P.  Display the symbol list in any input mode.  Enter #.  Lock the keypad in standby mode (by pressing and holding the key for about 3s).  Change input modes when editing texts. If the phone cannot be powered on after you press and hold , the reason is probably that the battery is used up. In this case, charge the phone for five minutes (during this period, the charging animation may be not displayed on the screen) and power it on again. 5 Screen Icons Icon Description Signal strength. A new text message is received. The phone is roaming. The call forwarding function is enabled. (Optional) A headset is connected to the phone. (Optional) The FM radio is activated. An alarm is activated. The keypad is locked. Battery charge level. The Standard profile is activated. The Conference profile is activated. The Outdoor profile is activated. The Mute profile is activated. The Customize profile is activated. Missed call(s). Installing the SIM Card Before installing the SIM card, ensure that your phone is powered off. Ensure that the golden contact area on the SIM card is facing downward, and the beveled corner is properly aligned with the SIM card slot. 6 Removing the SIM Card Before removing the SIM card, ensure that your phone is powered off. Charging the Battery 1. Connect the charger to an AC power socket. 2. Connect the charger to the charger jack on the phone. 3. Wait until the battery is completely charged. During the charging, the charging icon is displaying in animation. When the charging icon becomes static, the battery is fully charged. Disconnect the charger from the phone. 4. Disconnect the charger from the AC power socket. 5. Disconnect the charger from the phone. 7 Using the Function Menu 1. In standby mode, press (Menu). 2. Press to select the desired function menu. 3. Press (Select) to display the selected menu. 4. Select a submenu in either of the following ways:  Press to scroll to…

Text truncated - open the document above for the full version.

Huawei Technologies Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QISG2158 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: Schem.pdf) Block Diagram (file: BlkDia.pdf) Parts List (file: PartsLst.pdf) Operation Description (file: OpDes.pdf) Tune Up Procedure (file: TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Zhang Xinghai Attached: Copy of FCC Confidentiality Policy Rev. 1/1/03

Huawei Technologies Co., Ltd. Huawei industrial Base, Bantian, Longgang, Shenzhen 518129, P.R. China Date: February 11, 2010 Power of Attorney To whom it may concern, Please be notified that I, Zhang Xinghai have designated Roy Wu in Sporton International Inc., a as the person responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. This authorization is limited to the product of as following: FCC ID: QISG2158 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Zhang Xinghai Company: Huawei Technologies Co., Ltd. TEL: +86-755-2878-1879 FAX: 86-755-2878-1889 E-mail: [email protected]

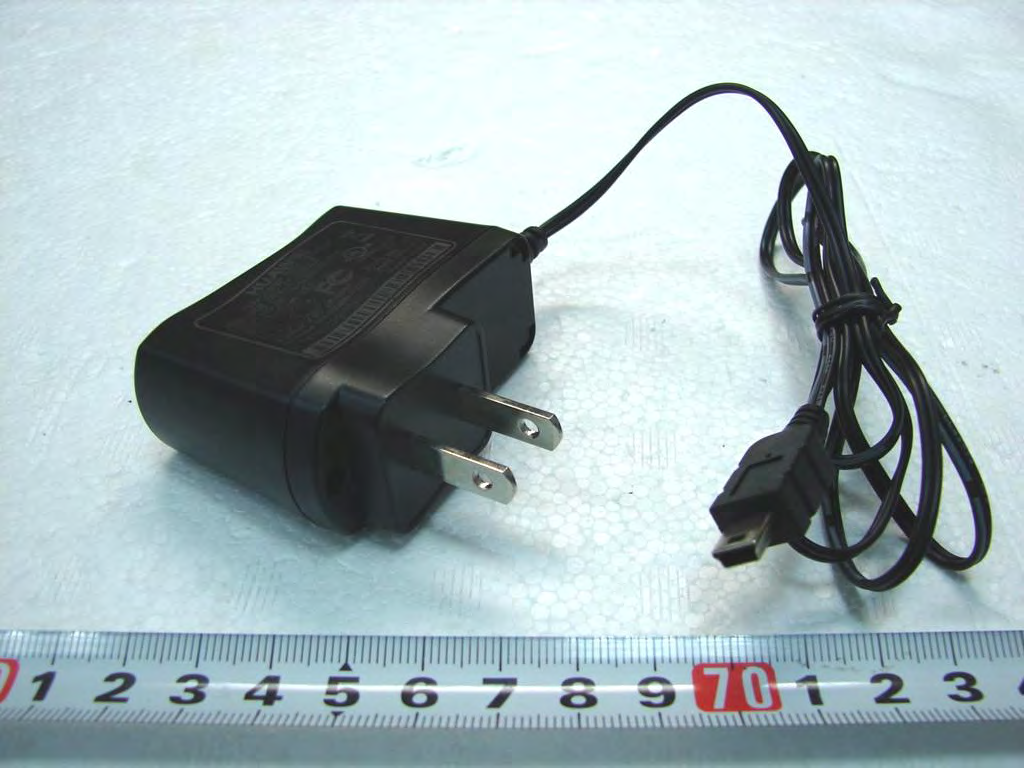

Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 1. External Photograph of EUT Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 720510 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 List of Accessory: Specification of Accessory AC Adapter Brand Name HUAWEI Model Name MOB_0030_01_0000US Power Rating I/P:100-240Vac, 50/60Hz, 0.1A; O/P: 5Vdc, 0.3A DC Power Cord Type 1 meter non-shielded cable without ferrite core Battery Brand Name HUAWEI Model Name HB3A4L Power Rating 3.7Vdc, 550mAh Type Li-ion Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 26 TEL : +86-0512-5790-0158 Issued Date : Feb. 12, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 720510

Label Location

Label Location

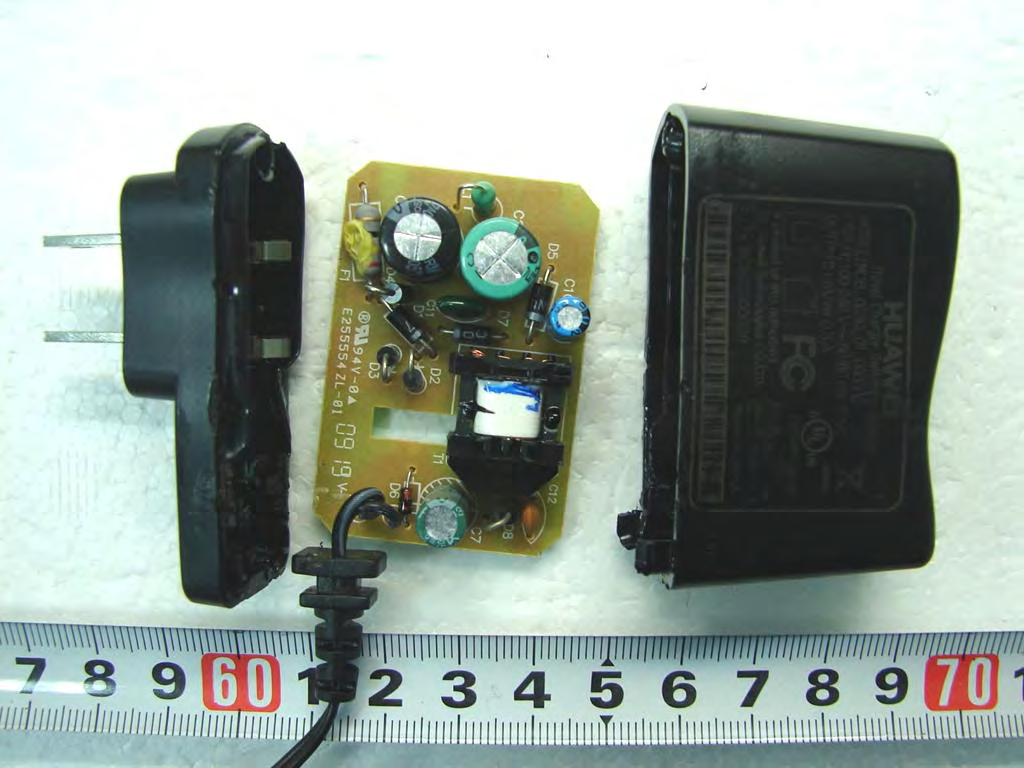

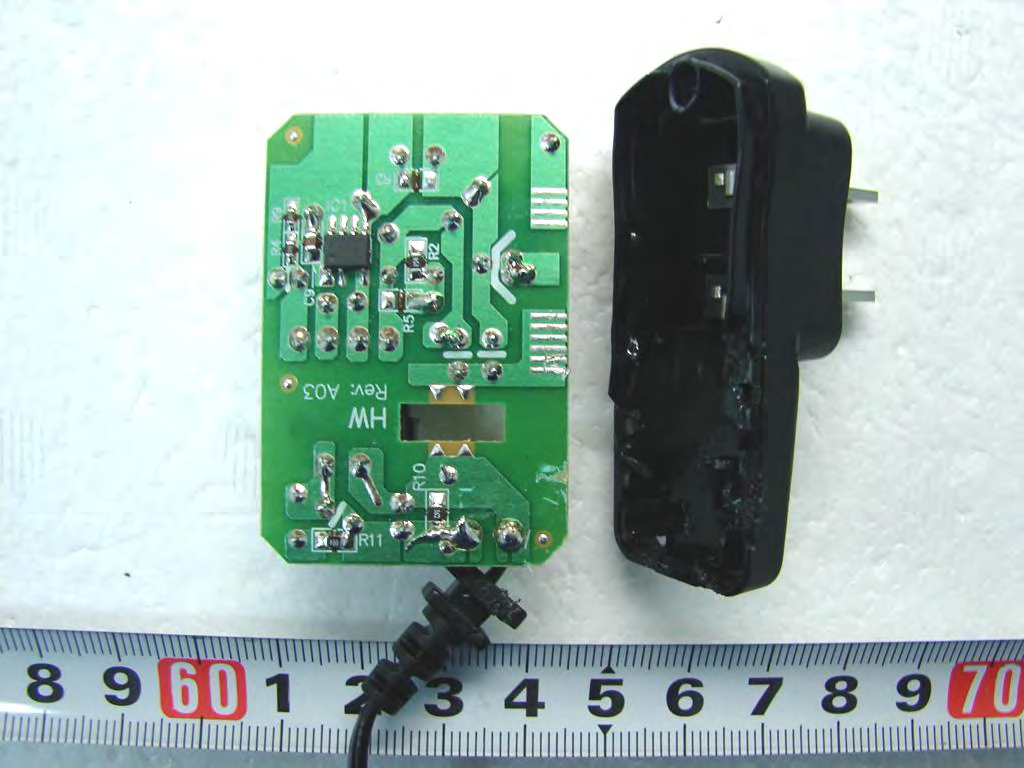

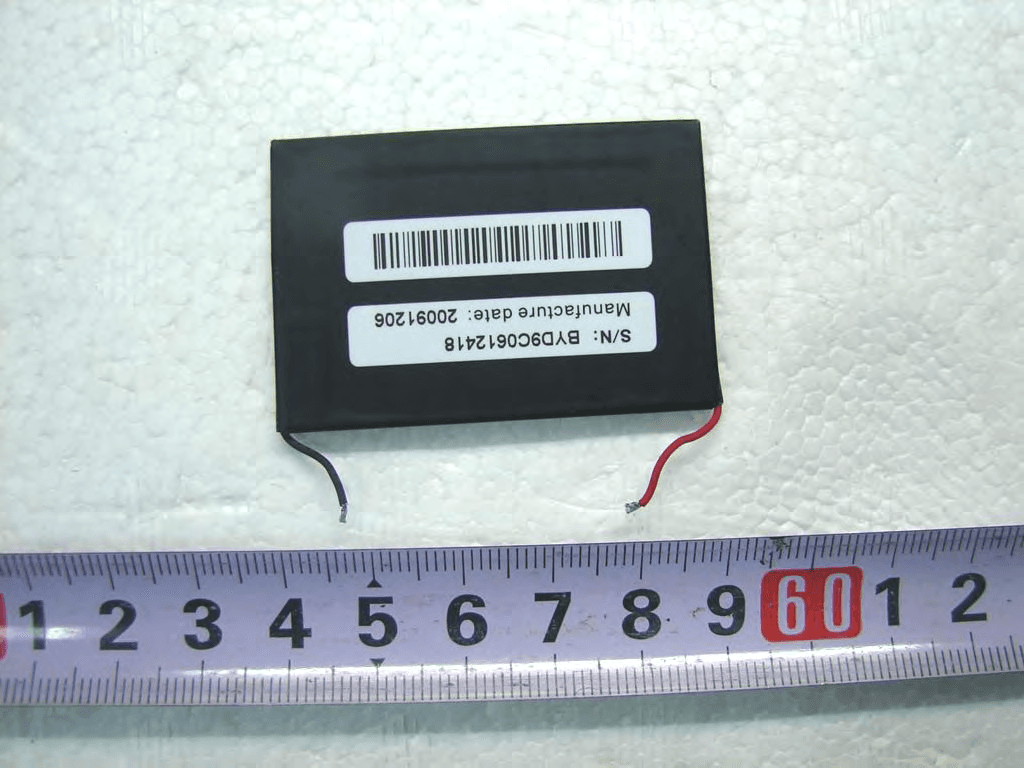

Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 25 TEL : +86-0512-5790-0158 Issued Date : Feb. 10, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 3. Internal Photograph of EUT Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 25 TEL : +86-0512-5790-0158 Issued Date : Feb. 10, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 25 TEL : +86-0512-5790-0158 Issued Date : Feb. 10, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 25 TEL : +86-0512-5790-0158 Issued Date : Feb. 10, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 25 TEL : +86-0512-5790-0158 Issued Date : Feb. 10, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 25 TEL : +86-0512-5790-0158 Issued Date : Feb. 10, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 25 TEL : +86-0512-5790-0158 Issued Date : Feb. 10, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 25 TEL : +86-0512-5790-0158 Issued Date : Feb. 10, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 25 TEL : +86-0512-5790-0158 Issued Date : Feb. 10, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 25 TEL : +86-0512-5790-0158 Issued Date : Feb. 10, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 25 TEL : +86-0512-5790-0158 Issued Date : Feb. 10, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 WWAN Antenna Photographs of EUT Report No.: EP020303 Model Name: HUAWEI G2158 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 25 TEL : +86-0512-5790-0158 Issued Date : Feb. 10, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 720510 WWAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 FCC SAR Test Report Report No. : FA020303 FCC SAR Test Report APPLICANT : Huawei Technologies Co., Ltd. EQUIPMENT : GSM Mobile phone BRAND NAME : HUAWEI MODEL NAME : HUAWEI G2158 FCC ID : QISG2158 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jan. 29, 2010 and completely tested on Jan. 30, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : Feb. 10, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : QISG2158 FCC SAR Test Report Report No. : FA020303 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................12 5.6 Device Holder ..................................................................................................................................................13 5.7 Data Storage and Evaluation ...........................................................................................................................14 5.7.1 Data Storage ...........…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/1/29 System Check_835MHz_100129 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_100129 Medium parameters used: f = 835 MHz; σ = 0.914 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.03 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.6 V/m; Power Drift = -0.0136 dB Peak SAR (extrapolated) = 1.45 W/kg SAR(1 g) = 0.953 mW/g; SAR(10 g) = 0.622 mW/g Maximum value of SAR (measured) = 1.03 mW/g 0 dB = 1.03mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/1/30 System Check_1900MHz_100130 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_100130 Medium parameters used: f = 1900 MHz; σ = 1.44 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.32, 7.32, 7.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.64 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.5 V/m; Power Drift = 0.022 dB Peak SAR (extrapolated) = 7.65 W/kg SAR(1 g) = 4 mW/g; SAR(10 g) = 2.06 mW/g Maximum value of SAR (measured) = 4.48 mW/g 0 dB = 4.48mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/1/29 #05 GSM850_Right Check_Ch128 DUT: 012901 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100129 Medium parameters used: f = 824.2 MHz; σ = 0.905 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.03 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.4 V/m; Power Drift = -0.114 dB Peak SAR (extrapolated) = 1.3 W/kg SAR(1 g) = 0.962 mW/g; SAR(10 g) = 0.665 mW/g. Maximum value of SAR (measured) = 1.02 mW/g 0 dB = 1.02mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/1/29 #05 GSM850_Right Check_Ch128_2D DUT: 012901 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100129 Medium parameters used: f = 824.2 MHz; σ = 0.905 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.03 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.4 V/m; Power Drift = -0.414 dB Peak SAR (extrapolated) = 1.3 W/kg SAR(1 g) = 0.962 mW/g; SAR(10 g) = 0.665 mW/g Maximum value of SAR (measured) = 1.02 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/1/29 #02 GSM850_Right Tilted_Ch189 DUT: 012901 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100129 Medium parameters used: f = 836.6 MHz; σ = 0.915 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.549 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.1 V/m; Power Drift = -0.172 dB Peak SAR (extrapolated) = 0.706 W/kg SAR(1 g) = 0.509 mW/g; SAR(10 g) = 0.349 mW/g Maximum value of SAR (measured) = 0.543 mW/g 0 dB = 0.543mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/1/29 #07 GSM850_Left Check_Ch128 DUT: 012901 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100124 Medium parameters used: f = 824.2 MHz; σ = 0.905 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.994 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.1 V/m; Power Drift = -0.170 dB Peak SAR (extrapolated) = 1.28 W/kg SAR(1 g) = 0.918 mW/g; SAR(10 g) = 0.626 mW/g Maximum value of SAR (measured) = 0.972 mW/g 0 dB = 0.972mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/1/29 #04 GSM850_Left Tilted_Ch189 DUT: 012901 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100129 Medium parameters used: f = 836.6 MHz; σ = 0.915 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.543 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.8 V/m; Power Drift = 0.055 dB Peak SAR (extrapolated) = 0.747 W/kg SAR(1 g) = 0.503 mW/g; SAR(10 g) = 0.337 mW/g Maximum value of SAR (measured) = 0.530 mW/g 0 dB = 0.530mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/1/30 #09 GSM1900_Right Check_Ch661 DUT: 012901 Communication System: Generic GSM; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_100130 Medium parameters used: f = 1880 MHz; σ = 1.43 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.32, 7.32, 7.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch661/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DAS…
