QISG2802GSM Mobile Phone

G2802 GSM Mobile Phone User Guide Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved. Trademarks and Permissions , , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their respective owners. NO WARRANTY THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS. 1 Features marked with "optional" are optional. These features may vary according to service providers. For details, contact your service provider. 1 Getting to Know Your Phone Your Phone The following figure shows the appearance of your phone and is provided for your reference only. 1 2 3 8 5 4 11 12 7 9 10 6 2 1 Earpiece7Microphone 2 Charger/Headset 8Torch 3 Screen 9Number keys 4 Navigation keys10End/Power key 5 Left soft key11Right soft key 6 Call /Answer key12Confirm key Keys and Functions Press ... To ... z Make a call. z Answer an incoming call. z View call logs in standby mode. z Power the phone on or off (press and hold the key for about 3 seconds). z End or reject a call. z Return to standby mode. Select the option displayed in the lower left corner of the screen. Select the option displayed in the lower right corner of the screen. z Access the main menu in standby mode. z Confirm a selection. 3 Press ... To ... z Access the functions assigned to the navigation keys in standby mode. z Customize the functions assigned to the navigation keys, select Menu > Settings > Phone settings > Direction key setup. – z Enter numbers, letters, and symbols. z Call voicemail in standby mode (press and hold the 1 key for about 3 seconds). z Speed-dial phone numbers in standby mode (press and hold the 2–9 keys for about 3 seconds). z Select an option labeled with the corresponding number. z Enter * (press the key once), + (press the key twice), P (press the key three times), and W (press the key four times) in standby mode. z Display the symbol list in editing mode. z Turn the torch on or off in standby mode (press and hold the key for about 3 seconds). z Enter #. z Switch between text input methods in editing mode. z Lock the keypad in standby mode (press and hold the key for about 3 seconds). 4 Screen Icons Icon Indicates ... Signal strength. General Packet Radio Service (GPRS) signal. The alert type is Ring only. The alert type is Vib. only. The alert type is Vib. and ring. The alert type is Vib. then ring The alert type is Silence. The earphone is plugged (Optional). Missed calls. Call forwarding enabled. New text messages. New multimedia messages. Alarms activated. Keypad locked. Battery level. 5 2 Getting Started Installing the SIM Card and the Battery When installing a SIM card, ensure that the gold contact area faces down, and that the beveled edge of the SIM card aligns with that of the SIM card slot. Before removing the battery and the SIM card, ensure that your phone is powered off. Installing a microSD Card 6 Charging the Battery 1. Connect the charger to an AC power socket. 2. Connect the charger to the phone's charger jack. 3. Wait until the battery is fully charged. While the battery is charging, the charging icon blinks. When the charging icon stops blinking, the battery is fully charged. When you charge a completely exhausted battery, the charging icon may appear several minutes later. 4. Disconnect the charger from the phone. 5. Disconnect the charger from the AC power socket. Phone Lock The phone lock protects your phone from unauthorized use. By default, the phone lock is disabled. You can change the preset phone unlock code (1234) to any number of four to eight digits. If you forget the phone unlock code, contact your service provider. PIN and PUK The personal identification number (PIN) protects your SIM card from unauthorized use. The PIN unblocking key (PUK) unlocks a blocked PIN. Both the PIN and the PUK are provided with the SIM card. For details, contact your service provider. If you enter the incorrect PIN a specified number of times, the phone prompts you to enter the PUK. 7 If you enter the incorrect PUK a specified number of times, the SIM card will become permanently invalid. If this occurs, contact your service provider for a new SIM card. Locking and Unlocking the Keypad To lock the keypad, press and hold for about 3 seconds in standby mode. To unlock the keypad, press (Unlock) then in quick succession. If the Auto keypad lock function is enabled, the phone will lock the keypad automatically after being idle in standby mode for a pre-defined period. When the keypad is locked, you can press to answer a call or make an emergency call. 3 Voice Services Making a Call 1. In standby mode, enter a phone number. z To make an international call, press twice to enter the plus sign (+). Then enter the country code or region code, area code, and phone number. 8 z To call an extension, enter the phone number, press three times to enter P, and enter the extension number. 2. Press to dial the number. 3. Press to end the call. z You can also make a call from call logs, contacts, and messages. z During a call, you can press or to adjust the in-call volume. Answering a Call When there is an incoming call: z Press to answer the call. z Press to reject the call. z Press (Mute) to mute the speaker, and then press (Reject) to reject the call. If the Any key answer function is enabled, you can press any key except and to answer a call. 9 4 Text Input Changing the Text Input Mode The current tex…

Text truncated - open the document above for the full version.

RF_160, Issue 02 HUAWEI TECHNOLOGIES CO., LTD. Declaration of Authorization We Name: HUAWEI TECHNOLOGIES CO., LTD. Address: Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China City: SHEN ZHEN Country: China Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country: Taiwan is authorized to apply for Certification of the following product(s): Product description: GSM Mobile Phone Type designation: HUAWEI G2802 on our behalf. Date: 2012-5-22 City: SHENZHEN Name: Zhang Xinghai (2) Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

HUAWEI TECHNOLOGIES CO., LTD. Date: 2012-5-22 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISG2802 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description 4 BOM List 5 Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________________ Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

HUAWEI TECHNOLOGIES CO., LTD. Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Attestation for FCC Declaration of Conformity FCC ID: QISG2802 Date: 2012/05/22 Please be notified that we, the undersigned, HUAWEI TECHNOLOGIES CO., LTD. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DOC. The test report number supporting the DOC is 124519R-ITUSP01V02Testing in regards to this report was done by QuieTek Corp., located at No.5-22, Rueishu Keng, Rueiping Tsuen, Linkou Shiang, Taipei County 244, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

HUAWEI TECHNOLOGIES CO., LTD. Date: 2012-5-22 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISG2802 ATTESTATION FCC ID: QISG2802 Product: GSM Mobile Phone Model: HUAWEI G2802 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Zhang Xinghai/manager HUAWEI TECHNOLOGIES CO., LTD.

Huawei Technologies Co.,Ltd Date: 2012/05/22 Federal Communications Commission Authorization and Evaluation Division FCC ID: QISG2802 USB function explanation The USB port in our device can support power charging and data transmission function. Your understanding will be highly appreciated. Sincerely, __________________ Zhang Xinghai/manager Huawei Technologies Co.,Ltd

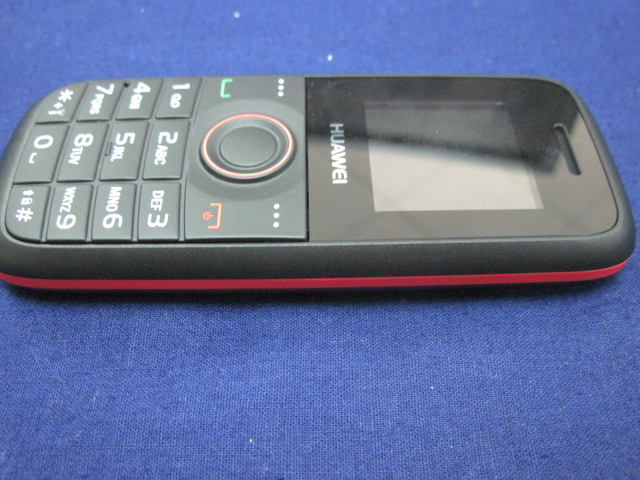

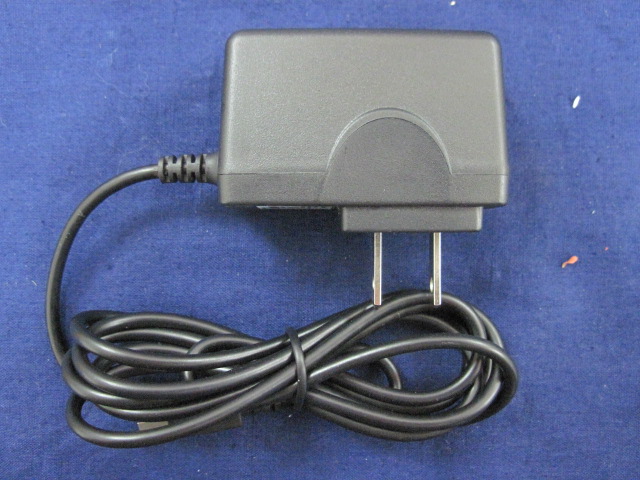

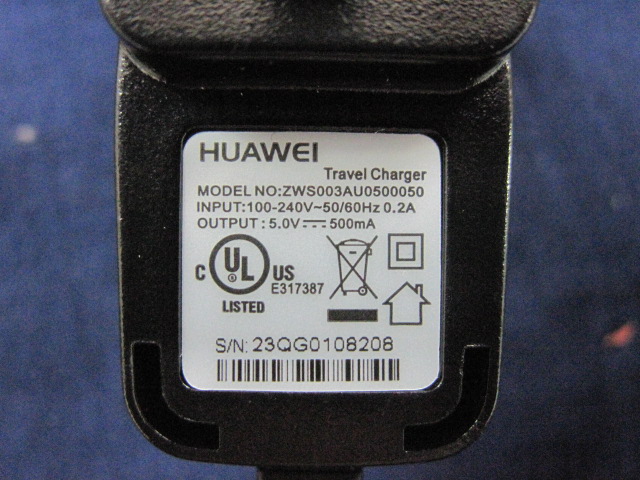

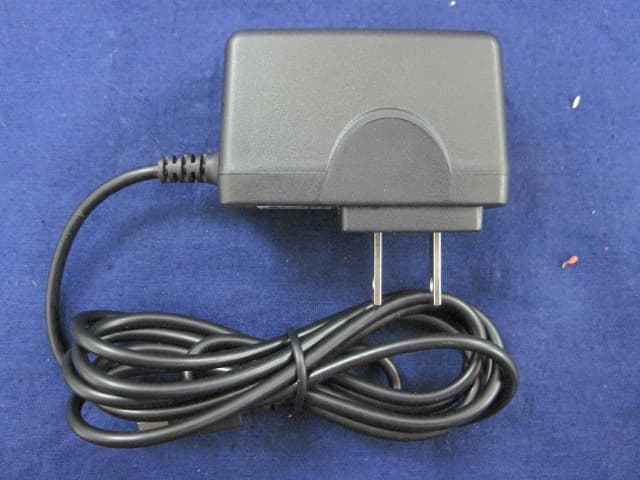

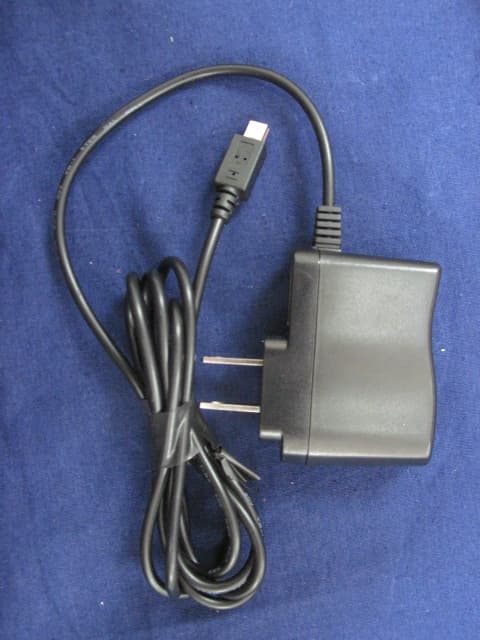

¾ EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 124S055R-HP-US-P07V01 Page: 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 124S055R-HP-US-P07V01 Page: 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 124S055R-HP-US-P07V01 Page: 4 of 6 (7) EUT Photo (Adapter #1) (8) EUT Photo (Adapter #1) Report No.: 124S055R-HP-US-P07V01 Page: 5 of 6 (9) EUT Photo (Adapter #2) (10) EUT Photo (Adapter #2) Report No.: 124S055R-HP-US-P07V01 Page: 6 of 6

(1) EUT Photo (2) EUT Photo (Battery #1) (3) EUT Photo (Battery #1) (4) EUT Photo (Battery #2) (5) EUT Photo (Battery #2) (6) EUT Photo (Battery #3) (7) EUT Photo (Battery #3) (8) EUT Photo (Battery #4) (9) EUT Photo (Battery #4) (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo

Report No.: 124S055R-HP-US-P03V01 Page: 1 of 103 SAR Test Report Product Name : GSM Mobile Phone Model No. : HUAWEI G2802 FCC ID : QISG2802 Applicant : HUAWEI TECHNOLOGIES CO., LTD Address : Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Date of Receipt : 24/04/2012 Date of Test : 27/04/2012~21/05/2012 Issued Date : 23/05/2012 Report No. : 124S055R-HP-US-P03V01 Report Version : V3.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 124S055R-HP-US-P03V01 Page: 2 of 103 Test Report Certification Issued Date: 23/05/2012 Report No.: 124S055R-HP-US-P03V01 Product Name : GSM Mobile Phone Applicant : HUAWEI TECHNOLOGIES CO., LTD Address : Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Manufacturer : HUAWEI TECHNOLOGIES CO., LTD Address : Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Model No. : HUAWEI G2802 FCC ID : QISG2802 Brand Name : HUAWEI EUT Voltage : DC 3.7V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) Head: 0.720W/kg Body: 1.09W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Engineering Supervisor: Robin Wu) Approved By : (Engineering Manager: Marlin Chen) Report No.: 124S055R-HP-US-P03V01 Page: 3 of 103 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No.: 124S055R-HP-US-P03V01 Page: 4 of 103 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................6 1.1. EUT Description ..................................................................................................6 1.2. Test Procedure ....................................................................................................8 1.3. Test Environment.................................................................................................8 2. SAR Measurement System ......................................................................................9 2.1. DASY5 System Description.................................................................................9 2.1.1. Applications ...................................................................................................10 2.1.2. Area Scans ....................................................................................................10 2.1.3. Zoom Scan (Cube Scan Averaging) ..............................................................10 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging .........................................10 2.2. DASY5 E-Field Probe........................................................................................ 11 2.2.1. Isotropic E-Field Probe Specification ............................................................. 11 2.3. Boundary Detection Unit and Probe Mounting Device ......................................12 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................12 2.5. Robot.................................................................................................................13 2.6. Light Beam Unit .................................................................................................13 2.7. Device Holder ....................................................................................................14 2.8. SAM Twin Phantom...........................................................................................14 3. Tissue Simulating Liquid .......................................................................................15 3.1. The composition of the tissue simulating liquid .................................................15 3.2. Tissue Calibration Result...................................................................................16 3.3. Tissue Dielectric Parameters for Head and Body Phantoms .............................17 4. SAR Measurement Procedure ...............................................................................18 4.1. SAR System Validation......................................................................................18 4.1.1. Validation Dipoles ..........................................................................................18 4.1.2. Validation Result ............…

Text truncated - open the document above for the full version.

FCC Part22H&24E Test Report Product Name : GSM Mobile Phone Model No. : HUAWEI G2802 FCC ID : QISG2802 Applicant : HUAWEI TECHNOLOGIES CO., LTD Address : Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Date of Receipt : 24/04/2012 Test Date : 30/07/2011~28/04/2012 Issued Date : 23/05/2012 Report No. : 124S055R-HP-US-P07V01 Report Version : V 3.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 124S055R-HP-US-P07V01 Page: 2 of 49 Test Report Certification Issued Date : 23/05/2012 Report No. : 124S055R-HP-US-P07V01 Product Name : GSM Mobile Phone Applicant : HUAWEI TECHNOLOGIES CO., LTD Address : Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Manufacturer : HUAWEI TECHNOLOGIES CO., LTD Address : Bantian, Longgang District, Shenzhen, 518129 Guangdong, P. R. China Model No. : HUAWEI G2802 FCC ID : QISG2802 EUT Voltage : DC 3.7V Brand Name : HUAWEI Applicable Standard : FCC CFR Title 47 Part 2,TIA/EIA 603-C FCC Part22 Subpart H, FCC Part24 Subpart E Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Engineering Supervisor: Robin Wu) Approved By : (Engineering Manager: Marlin Chen) Report No.: 124S055R-HP-US-P07V01 Page: 3 of 49 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No.: 124S055R-HP-US-P07V01 Page: 4 of 49 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................... 6 1.1. EUT Description ......................................................................................................... 6 1.2. Mode of Operation...................................................................................................... 8 1.3. Tested System Details ................................................................................................ 9 1.4. Configuration of Tested System ................................................................................ 10 1.5. EUT Exercise Software............................................................................................. 11 2. Technical Test ........................................................................................................... 12 2.1. Summary of Test Result............................................................................................ 12 2.2. Test Environment...................................................................................................... 13 3. Peak Output Power .................................................................................................. 14 3.1. Test Equipment......................................................................................................... 14 3.2. Test Setup................................................................................................................. 15 3.3. Limit ..........................................................................................................................15 3.4. Test Procedure......................................................................................................... 15 3.5. Uncertainty ............................................................................................................... 17 3.6. Test Result................................................................................................................ 18 4. Occupied Bandwidth................................................................................................. 24 4.1. Test Equipment......................................................................................................... 24 4.2. Test Setup................................................................................................................. 24 4.3. Limit ..........................................................................................................................25 4.4. Test Procedure................................................................................…

Text truncated - open the document above for the full version.

SAR-Test Setup Photographs Test Setup Photographs Left-Cheek Touch Left-Tilt 15° Right-Cheek Touch Right-Tilt 15° Body SAR Back 15mm Body SAR Front 15mm Body SAR Back 15mm with Headset Depth of the liquid in the phantom – Zoom in Note: The position used in the measurements were according to IEEE 1528 - 2003 Part22&24-Test Photograph Description: ERP Test Setup Description: Substitution Antenna for ERP Test Description: EIRP Test Setup Description: Substitution Antenna for EIRP Test
